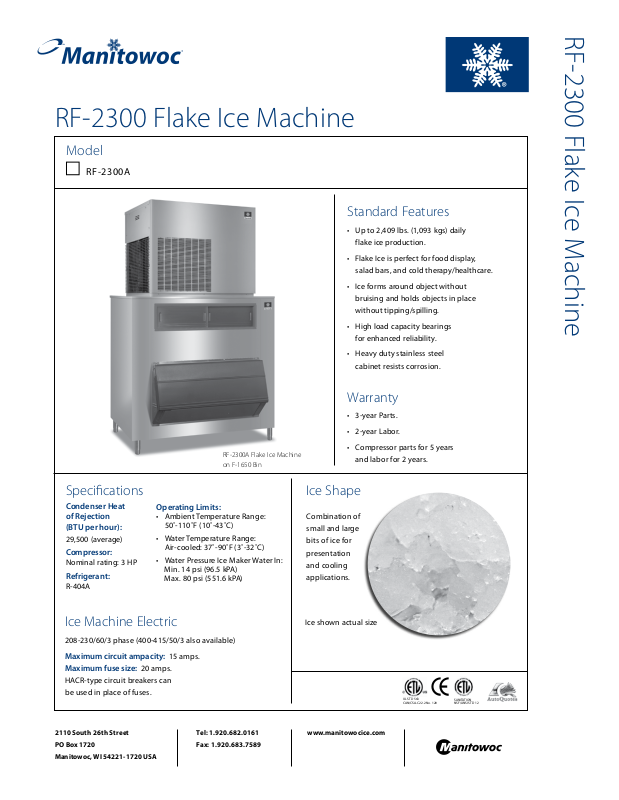

RF-2300 Flake Ice Machine
Model
RF-2300A
RF-2300 Flake Ice Machine
Standard Features
• Up to 2,409 lbs. (1,093 kgs) daily
flake ice production.
• Flake Ice is perfect for food display,
salad bars, and cold therapy/healthcare.
• Ice forms around object without
bruising and holds objects in place
without tipping/spilling.
• High load capacity bearings
for enhanced reliability.
• Heavy duty stainless steel
cabinet resists corrosion.
RF-2300A Flake Ice Machine
on F-1650 Bin
Specifications
Condenser Heat
of Rejection
(BTU per hour):
29,500 (average)
Compressor:
Nominal rating: 3 HP
Refrigerant:
R-404A
Operating Limits:
• Ambient Temperature Range:
50˚-110˚F (10˚-43˚C)
• Water Temperature Range:
Air-cooled: 37˚-90˚F (3˚-32˚C)
• Water Pressure Ice Maker Water In:
Min. 14 psi (96.5 kPA)
Max. 80 psi (551.6 kPA)
Ice Machine Electric
208-230/60/3 phase (400-415/50/3 also available)
Maximum circuit ampacity: 15 amps.
Maximum fuse size: 20 amps.
HACR-type circuit breakers can
be used in place of fuses.
Warranty
• 3-year Parts.
• 2-year Labor.
• Compressor parts for 5 years
and labor for 2 years.
Ice Shape
Combination of
small and large
bits of ice for
presentation
and cooling
applications.
Ice shown actual size
UL STD 563
CAN/CSA-C22.2 No. 120
SANITATION
NSF/ANSI STD 12
2110 South 26th Street
PO Box 1720
Manitowoc, WI 54221-1720 USA
Tel: 1.920.682.0161
Fax: 1.920.683.7589
www.manitowoci ce.com
RF-2300 Flake Ice Machine
(161.29 cm)
RF-2300 on F-1650
Storage Bin
36.77"
(94.40 cm)
F
31"
(78.74 cm)
6.00"
(15.24 cm)
Installation Note - Minimum installation clearance:
Top/sides: 8" (20.32 cm), back: 5" (12.70 cm).
Space-Saving Designs
26.92"
(68.38 cm)
A
D
E
B
C
60.00"
(152.4 cm)
A
Electrical Entrance (2) Options
3/8" F.P.T. Ice Making Water Inlet
B
1/2" M.P.T. Ice Making Water Drain
C
Water-cooled Unit Option:
1/2" F.P.T. Condenser Inlet
D
1/2" M.P.T. Condenser Drain
E
3/4" F.P.T. Bin Drain
F
27.56"
(70.00 cm)
63.5"
RF-2300 RF-2300
F-1300 F-1650
Height 91.06" 91.06"
231.3 cm 231.3 cm
Width 48.00" 60.00"
121.92 cm 152.40 cm
Depth 31.00" 31.00"
78.74 cm 78.74 cm
Bin 1320 lbs. 1660 lbs.
Storage 599 kgs 753 kgs
Height i ncludes bin leg s 6.00" (15.24 cm)
Air Flow Overhead View
Air in front, air
out back, and
side vents.
Model
RF-2300A Flake
Air-
cooled
2110 South 26th Street
PO Box 1720
Manitowoc, WI 54221-1720 USA
Ice
Shape
70°Air/50°F Water
21°Air/10°C Water
Tel: 1.920.682.0161
Fax: 1.920.683.7589
www.manitowoci ce.com
Ice Production 24 Hours
90°Air/70°F Water
32°Air/21°C Water
2,409 lbs. 1,835 lbs.
Power kWh/100 lbs
@ 90°Air/70°F Water
32°Air/21°C Water
Potable Water Usage
(100 lbs./45.4 kgs of Ice)
12 Gal.
4.94
1,093 kgs 832 kgs 45.4 L
4544B ©2010 Ma nitowoc 9 /10 Con tinuing product improvement may ne cessitate change of speci fications without notice.
