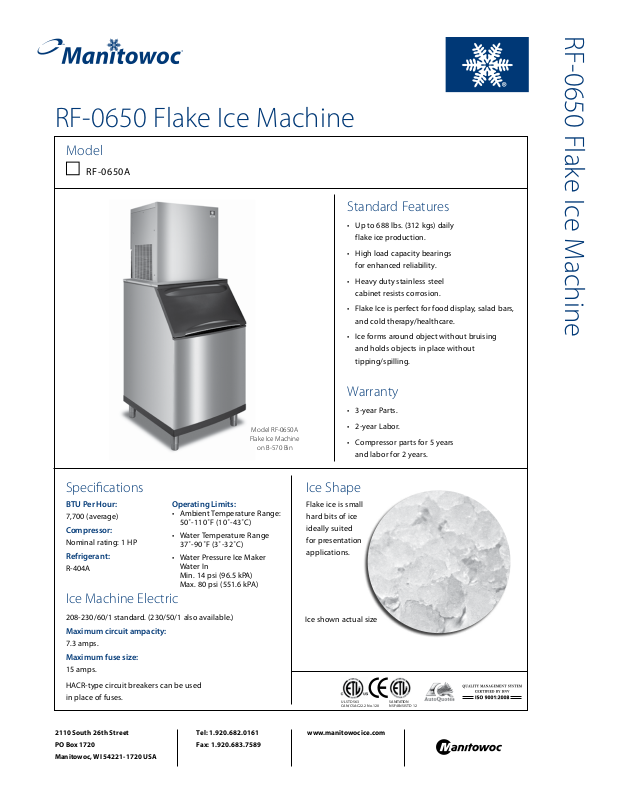

Manitowoc RF-0650A General Manual
RF-0650 Flake Ice Machine
Model
RF-0650A
RF-0650 Flake Ice Machine
Standard Features
• Up to 688 lbs. (312 kgs) daily
flake ice production.
• High load capacity bearings
for enhanced reliability.
• Heavy duty stainless steel
cabinet resists corrosion.
• Flake Ice is perfect for food display, salad bars,
and cold therapy/healthcare.
• Ice forms around object without bruising
and holds objects in place without
tipping/spilling.
Specifications
BTU Per Hour:
7,700 (average)
Compressor:
Nominal rating: 1 HP
Refrigerant:
R-404A
Operating Limits:
• Ambient Temperature Range:
50˚-110˚F (10˚-43˚C)
• Water Temperature Range
37˚-90˚F (3˚-32˚C)
• Water Pressure Ice Maker
Water In
Min. 14 psi (96.5 kPA)
Max. 80 psi (551.6 kPA)
Ice Machine Electric
208-230/60/1 standard. (230/50/1 also available.)
Maximum circuit ampacity:
7.3 amps.
Maximum fuse size:
15 amps.
HACR-type circuit breakers can be used
in place of fuses.
Model RF-0650A
Flake Ice Machine
on B-570 Bin
Warranty
• 3-year Parts.
• 2-year Labor.
• Compressor parts for 5 years
and labor for 2 years.
Ice Shape
Flake ice is small
hard bits of ice
ideally suited
for presentation
applications.
Ice shown actual size
UL STD 563
CAN/CSA-C22.2 No. 120
SANITATION
NSF/ANSI STD 12
2110 South 26th Street
PO Box 1720
Manitowoc, WI 54221-1720 USA
Tel: 1.920.682.0161
Fax: 1.920.683.7589
www.manitowocice.com
RF-0650 Flake Ice Machine
RF-0650 on B-570
Storage Bin
25.20" (64.00 cm)
Space-Saving Designs
RF-0650 on B-570
18.50" (47.00 cm)
Height 77.56"
197.00 cm
Width 30.00"
6.20 cm
A
27.56"
(70.00 cm)
Depth 34.00"
86.36 cm
Bin Storage 430 lbs.
B
6.25"
(15.88 cm)
C
195 kgs
Height i ncludes adjustabl e bin legs
6.00" to 7.00", (15.24 to 17.78 cm)
set at 6.00" (15.24 c m).
Accessories
K-00405 48" B Style Bin Adapter*
44.00"
(111.76 cm)
D
6.00"
(15.24 cm)
*adapter not for use with Large
Capacity Bins.
Standard Equipment
K-00404 30" B-Style Bin Adapter
34.00" (86.36 cm)
A Electrical Entrance (2) Options
B
3/8" (0.95 cm) N.P.T. Ice Making Water Inlet
Installation Note - Minimum installation clearance:
Top/sides: 8" (20.32 cm), back: 5" (12.70 cm).
Model
Air-cooled
Ice Machine
RF-0650A Flake
2110 South 26th Street
PO Box 1720
Manitowoc, WI 54221-1720 USA
1/2" (1.27 cm) N.P.T. Water Drain
C
3/4" (1.91 cm) Bin Drain
D
Ice
Shape
70° Air/50°F Water
21º Air/10º C Water
Tel: 1.920.682.0161
Fax: 1.920.683.7589
www.manitowocice.com
30.00" (76.20 cm)
Air Flow Overhead View
Air in side,
air out back
and side.
Ice Production 24 Hours
90° Air/70°F Water
32º Air/21º C Water
688 lbs. 540 lbs.
312 kgs 245 kgs 45.4 L
Power kWh/100 lbs
@ 90°Air/70°F
5.06
Potable Water Usage
(100 lbs./45.4 kgs of Ice)
12 gal.
4542B ©2010 Ma nitowoc 1 /10 Con tinuing product i mprovement may ne cessitate change of speci fications without notice.
