Q Model

Ice Machines

Installation

and

Owner/Operator

Use and Care Manual

Thank you for selecting a Manitowoc Ice Machine, the dependability leader in ice making equipment and related products.

With proper installation, care and maintenance, your new Manitowo c Ice Machine will provide you with many years of

reliable and economical performance.

Part Number 80-1640-3

3/2005

Safety Notices

Procedural Notices

As you work on a QuietQube®-Series Ice Machine, be sure to pay close attention to the safety notices in this manual. Disregarding the notices may lead to serious injury and/or damage to the ice machine.

Throughout this manual, you will see the following types of safety notices:

Warning

PERSONNEL INJURY POTENTIAL

Do not operate equipment that has been misused, abused, neglected, damaged, or altered/modified from that of original manufactured specifications.

Warning

Text in a Warning box alerts you to a potential personal injury situation. Be sure to read the Warning statement before proceeding, and work carefully.

Caution

Text in a Caution box alerts you to a situation in which you could damage the ice machine. Be sure to read the Caution statement before proceeding, and work carefully.

As you work on a QuietQube®-Series Ice Machine, be sure to read the procedural notices in this manual. These notices supply helpful information which may assist you as you work.

Throughout this manual, you will see the following types of procedural notices:

Important

Text in an Important box provides you with information that may help you perform a procedure more efficiently. Disregarding this information will not cause damage or injury, but it may slow you down as you work.

NOTE: Text set off as a Note provides you with simple, but useful, extra information about the procedure you are performing.

Read These Before Proceeding:

Caution

Proper installation, care and maintenance are essential for maximum ice production and troublefree operation of you Manitowoc Ice Machine. Read and understand this manual. It contains valuable care and maintenance information. If you enounter problems not covered by this manual, do not proceed, contact Manitowoc Ice, Inc. We will be happy to provide assistance.

Important

Routine adjustments and maintenance procedures outlined in this manual are not covered by the warranty.

We reserve the right to make product improvements at any time.

Specifications and design are subject to change without notice.

MANITOWOC ICE, INC.

2110 South 26th Street P.O. Box 1720

Manitowoc, WI 54221-1720

Phone: (920) 682-0161

Service Fax: (920) 683-7585

Web Site - www.manitowocice.com

Litho in U.S.A.

Section 1

Revised 6/2003

General Information

Table of Contents

Model Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

How to Read a Model Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Ice Cube Sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Bin Caster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Stacking Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Ice Bagger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Ice Deflector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

GSI200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Arctic Puref Water Filter System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Manitowoc Cleaner and Sanitizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Aucs“ Automatic Cleaning System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Dispenser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Manitowoc Cleaner and Sanitizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Dispenser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Model/Serial Number Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Warranty Coverage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Labor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Exclusions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Authorized Warranty Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Section 2 Installation Instructions

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Ice Machine Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Ice Storage Bin Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Remote Condenser Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Location of Ice Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Stacking Two Ice Machines on a Single Storage Bin . . . . . . . . . . . . . . . . . . . . 2-5

Ice Machine Heat of Rejection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Leveling the Ice Storage Bin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Air-Cooled Baffle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Q320/Q370/Q420 Ice Machines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Q280 – Q1000 Ice Machines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Q1300/Q1600/Q1800 Ice Machines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Q1300/Q1600/Q1800 Ice Machines (Cont.) . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

S170/S400/S570 Ice Storage Bins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

S320/S420 Ice Storage Bins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

S970 Ice Storage Bins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

JC0495/JC0895/JC1095/JC1395 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

JC1895 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Part No. 80-1375-3 1

Table of Contents

Revised 6/2003

Electrical Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

Fuse/Circuit Breaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

Minimum Circuit Ampacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

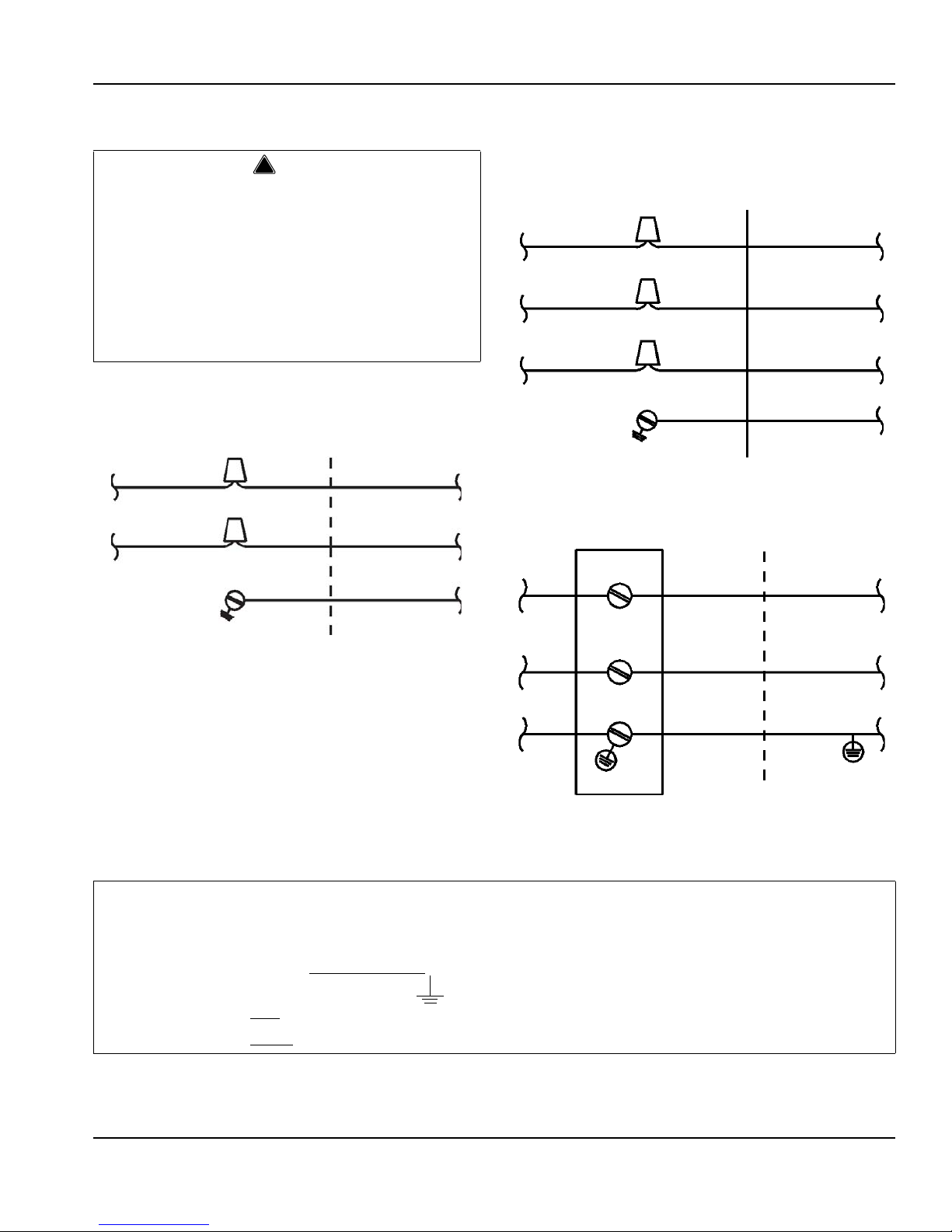

Self-Contained Electrical Wiring Connections . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

Self Contained Ice Machine 115/1/60 or 208-230/1/60 . . . . . . . . . . . . . . . . . 2-9

Self Contained Ice Machine 208-230/3/60 . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

Self Contained Ice Machine 230/1/50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

For United Kingdom Only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

Remote Electrical Wiring Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10

Remote Ice Machine

With Single Circuit Model Condenser 115/1/60 or 208-230/1/60 . . . . . . . . . 2-10

Remote Ice Machine

With Single Circuit Model Condenser 208-230/3/60 or 380-415/3/50 . . . . . . 2-10

Remote Ice Machine

With Single Circuit Model Condenser 230/1/50 . . . . . . . . . . . . . . . . . . . . . . 2-10

Water Supply and Drain Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

Water Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

Water Inlet Lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

Drain Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

Cooling Tower Applications

(Water-Cooled Models) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

Water Supply and Drain Line Sizing/Connections . . . . . . . . . . . . . . . . . . . . 2-12

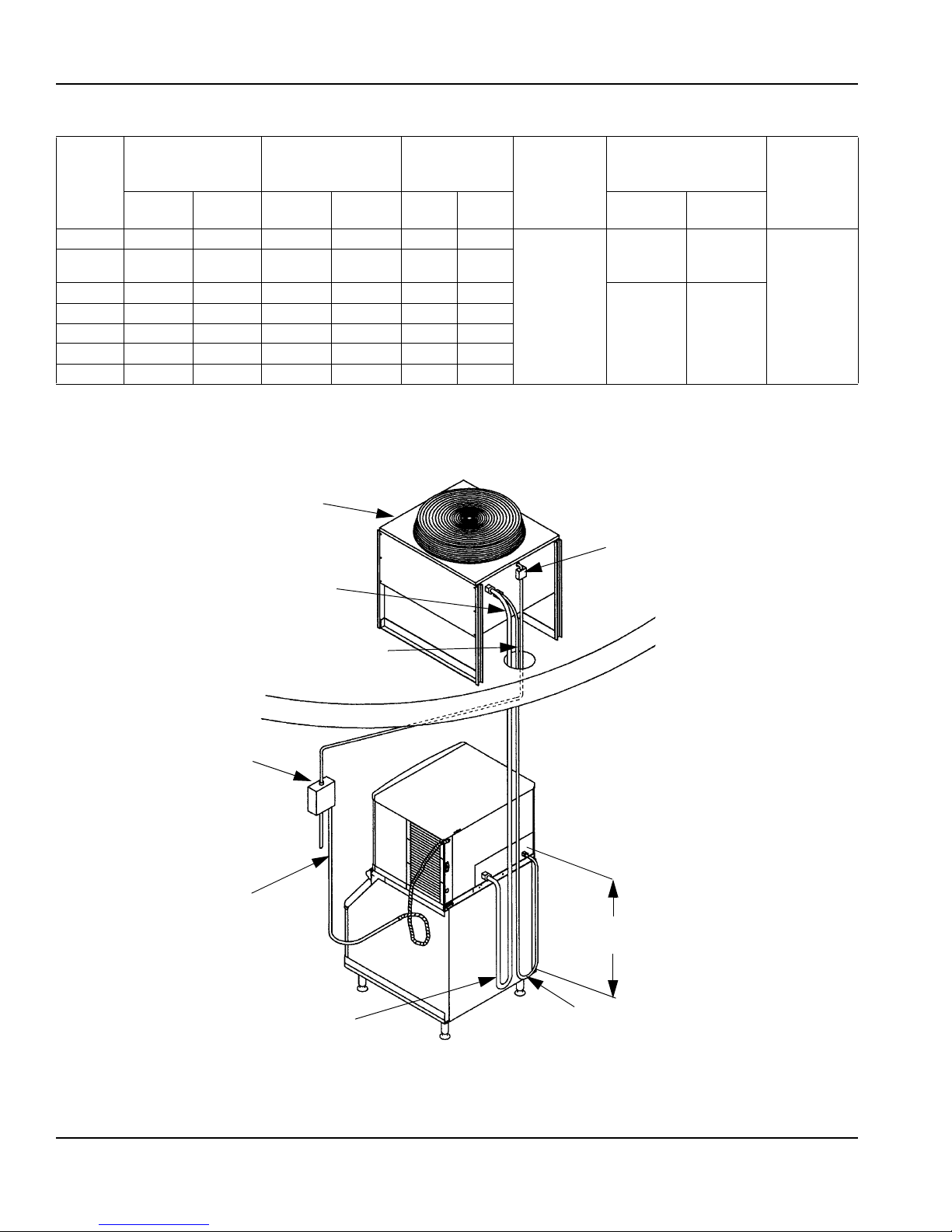

Remote Condenser/Line Set Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13

Remote Ice Machines

Refrigerant Charge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14

Guidelines for Routing Line Sets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14

Calculating Remote Condenser Installation Distances . . . . . . . . . . . . . . . . . 2-15

Lengthening or Reducing Line Set Lengths . . . . . . . . . . . . . . . . . . . . . . . . . 2-16

Connecting A Line Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16

Remote Receiver Service Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16

Remote Ice Machine Usage with Non-Manitowoc Multi-Circuit Condensers 2-17

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17

Head Pressure Control Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17

Fan Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17

Internal Condenser Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17

Condenser DT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17

Refrigerant Charge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17

Quick Connect Fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17

Non-Manitowoc Multi-Circuit Condenser Sizing Chart . . . . . . . . . . . . . . . . . 2-18

Installation Check List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19

Additional Checks for Remote Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19

Before Starting the Ice Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

AuCS® Automatic Cleaning System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20

2-20

Part No. 80-1375-3 2

Section 3

Revised 6/2003

Ice Machine Operation

Table of Contents

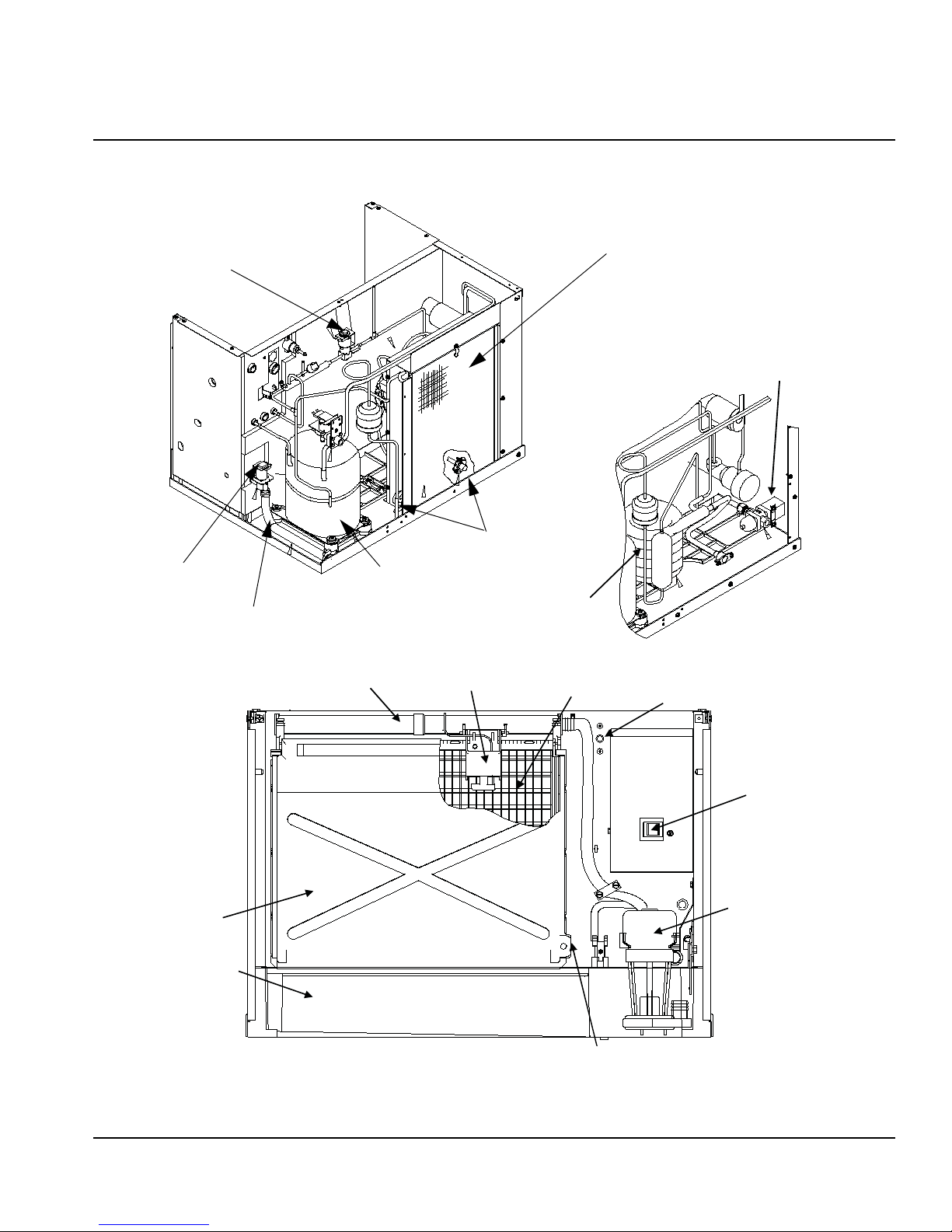

Component Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Ice Machine Sequence of Operation Q200/Q280/Q320/Q370/Q420/Q450/Q600/Q800/Q1000/Q1300/Q1600/Q1800 . 3-2

Initial Start-Up or Start-Up After Automatic Shut-Off . . . . . . . . . . . . . . . . . . . 3-2

Freeze Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Harvest Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Automatic Shut-Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Remote

Q450/Q600/Q800/Q1000/Q1300/Q1600/Q1800 . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Initial Start-Up or Start-Up After Automatic Shut-Off . . . . . . . . . . . . . . . . . . . 3-4

Freeze Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Harvest Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Automatic Shut-Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Operational Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

Water Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

Ice Thickness Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

Harvest Sequence Water Purge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

Section 4 Maintenance

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Ice Machine Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Exterior Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Cleaning the Condenser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

Water-Cooled Condenser

and Water Regulating Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Manitowoc’s Patented Cleaning or Sanitizing Technology . . . . . . . . . . . . . . 4-3

AlphaSan“ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Interior Cleaning and Sanitizing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

Cleaning Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

Sanitizing Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

Procedure To Cancel A Cleaning Or

Sanitizing Cycle After It Has Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

Automatic Cleaning System (AuCS“) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

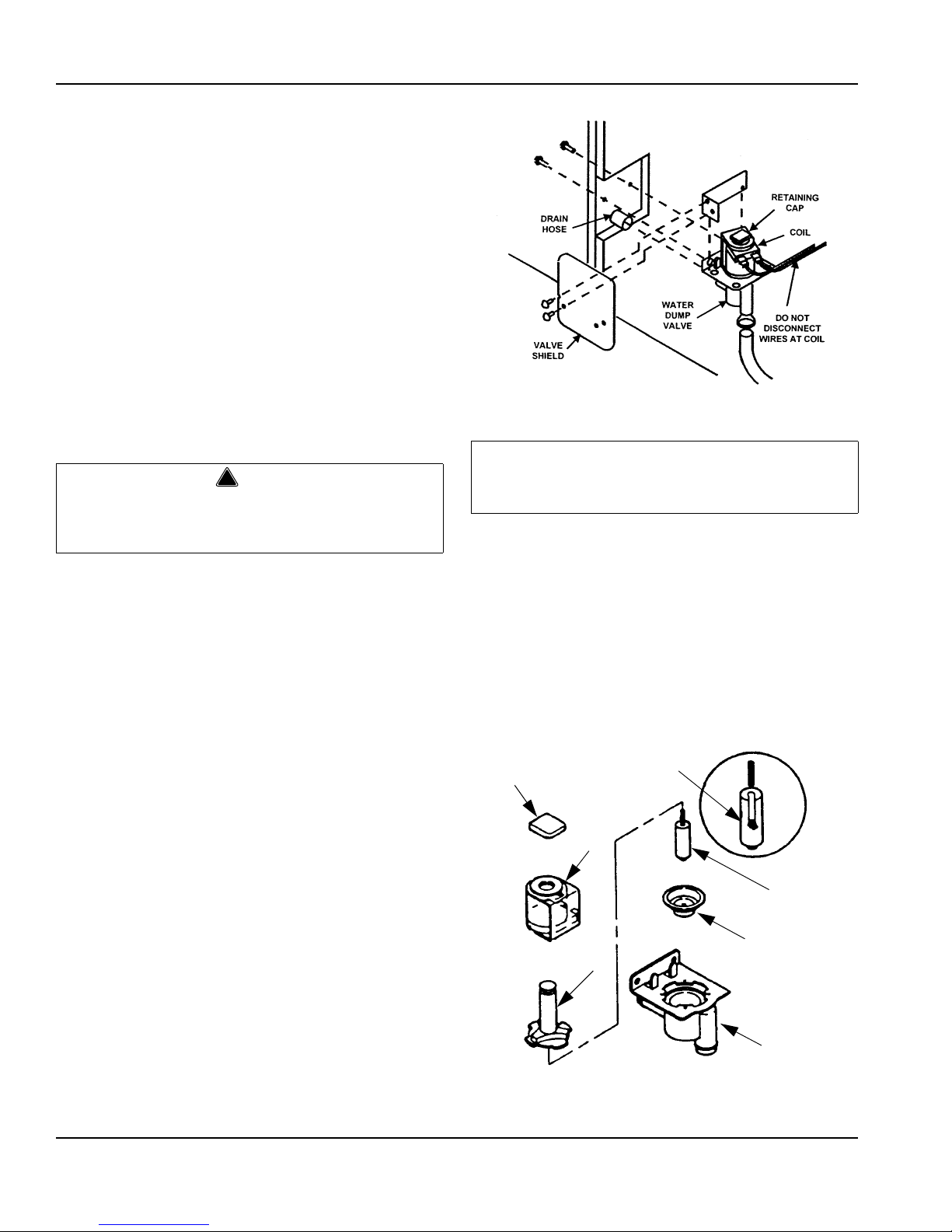

Removal of Parts For Cleaning/Sanitizing . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

Removal from Service/Winterization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12

Self-Contained Air-Cooled Ice Machines . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12

Water-Cooled Ice Machines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12

Remote Ice Machines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12

AuCS“ Accessory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12

Section 5 Before Calling for Service

Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

Safety Limit Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

Part No. 80-1375-3 3

Table of Contents

Revised 6/2003

Part No. 80-1375-3 4

Section 1

Revised 6/2003

General Information

Model Numbers

This manual covers the following models:

Self-Contained

Air-Cooled

QD0322A QY0324A

QD0422A QY0424A

QD0282A QY0284A

QD0372A QY0374A

QD0452A QY0454A

QD0602A QY0604A

QD0802A QY0804A

QD1002A QY1004A

QD1302A QY1304A

QD1802A QY1804A

NOTE: Model numbers ending in 3 indicate a 3-phase unit. Example: QY1804A3

Self-Contained

Water-Cooled

QD0323W QY0325W

QD0423W QY0425W

QD0283W QY0285W

QD0373W QY0375W

QD0453W QY0455W

QD0603W QY0605W

QD0803W QY0805W

QD1003W QY1005W

QD1303W QY1305W

QD1603W QY1605W

QD1803W QY1805W

Remote

QD0492N QY0494N

QD0692N QY0694N

QD0892N QY0894N

QD1092N QY1094N

QD1392N QY1394N

QD1692N QY1694N

QD1892N QY1894N

How to Read a Model Number

9 REMOTE

AIR-COOLED

# CUBE SIZE

2 DICE 3 DICE 4 HALF-DICE 5 HALF-DICE

CONDENSER TYPE

AIR-COOLED WATER-COOLED AIR-COOLED WATER-COOLED

Q D 0452 A

ICE MACHINE

MODEL

ICE CUBE SIZE

D DICE Y HALF DICE

ICE MACHINE

SERIES

CONDENSER TYPE

A SELF-CONTAINED AIR-COOLED W SELF-CONTAINED WATER-COOLE N REMOTE AIR-COOLED

Ice Cube Sizes

Dice

7/8" x 7/8" x 7/8"

2.22 x 2.22 x 2.22 cm

Half Dice

3/8" x 1-1/8" x 7/8"

0.95 x 2.86 x 2.22 cm

Warning

PERSONAL INJURY POTENTIAL

Do not operate equipment that has been misused, abused, neglected, damaged, or altered/modified from that of original manufactured specifications.

Part No. 80-1375-3 1-1

General Information Section 1

Revised 6/2003

Accessories

Contact your Manitowoc distributor for these optional accessories:

BIN CASTER

Replaces standard legs.

STACKING KIT

As your business grows and your ice needs increase, Manitowoc stack-on capability can double your daily ice production without using additional floor space.

ICE BAGGER

Maximize profits from bagged ice sales with this convenient accessory. This sturdy unit rests on the bin door frame, and adapts for left or right side filling.

ICE DEFLECTOR

Warning

All Manitowoc ice machines require the ice storage (bin, dispenser, etc.) to incorporate an ice deflector.

Prior to using a non-Manitowoc ice storage system with Manitowoc ice machines, contact the manufacturer to assure their ice deflector is compatible with Manitowoc ice machines.

GSI200

This accessory releases chlorine dioxide on a controlled basis to inhibit the growth of bacteria and slime.

ARCTIC PURE™ WATER FILTER SYSTEM

AUCS® AUTOMATIC CLEANING SYSTEM

This accessory reduces equipment cleaning expense. The AuCS

accessory monitors ice making cycles and

initiates cleaning procedures automatically.

DISPENSER

A counter-top dispenser is ideal for cafeterias and many types of self-service facilities. Manitowoc auto-fill, floorstanding ice dispensers meet the strict sanitary requirements of the food service, lodging and health care industries.

MANITOWOC CLEANER AND SANITIZER

Manitowoc Ice Machine Cleaner and Sanitizer are available in convenient 16 oz. (473 ml) and 1 gal (3.78 l) bottles. These are the only cleaner and sanitizer approved for use with Manitowoc products.

Cleaner Part Number Sanitizer Part Number

16 0z. 94-0456-3 16 0z. 94-0565-3 1 Gallon 94-0580-3 1 Gallon 94-0581-3

DISPENSER

Engineered specifically for Manitowoc ice machines, This water filter is an efficient, dependable, and affordable method of inhibiting scale formation, filtering sediment, and removing chlorine taste and odor.

MANITOWOC CLEANER AND SANITIZER

Manitowoc Ice Machine Cleaner and Sanitizer are available in convenient 16 oz. (473 ml) and 1 gal (3.78 l) bottles. These are the only cleaner and sanitizer approved for use with Manitowoc products.

Cleaner Part Number Sanitizer Part Number

16 0z. 94-0456-3 16 0z. 94-0565-3 1 Gallon 94-0580-3 1 Gallon 94-0581-3

1-2

Part No. 80-1375-3

Section 1 General Information

Revised 6/2003

Model/Serial Number Location

Record the model and serial number of your ice machine and bin or dispenser in the space provided below. These numbers are required when requesting information from your local Manitowoc distributor, or Manitowoc Ice, Inc.

The model and serial number are listed on the OWNER WARRANTY REGISTRATION CARD. They are also listed on the MODEL/SERIAL NUMBER DECAL affixed to the ice machine, remote condenser and storage bin.

Ice Machine Bin or Dispenser Remote Condenser AuCS Accessory

Model Number

Serial Number

Part No. 80-1375-3 1-3

SV1600

Model/Serial Number Location

General Information Section 1

Revised 6/2003

Warranty

GENERAL

The packet containing this manual also includes warranty information. Warranty coverage begins the day your new ice machine is installed.

Important

Complete and mail the OWNER WARRANTY REGISTRATION CARD as soon as possible to validate the installation date.

If you do not return your OWNER WARRANTY REGISTRATION CARD, Manitowoc will use the date of sale to the Manitowoc Distributor as the first day of warranty coverage for your new ice machine.

Warranty Coverage

GENERAL

The following Warranty outline is provided for your convenience. For a detailed explanation, read the warranty bond shipped with each product.

Contact your local Manitowoc Distributor or Manitowoc Ice, Inc. if you need further warranty information.

EXCLUSIONS

The following items are not included in the ice machine’s warranty coverage:

1. Normal maintenance, adjustments and cleaning.

2. Repairs due to unauthorized modifications to the ice machine or use of non-standard parts without prior written approval from Manitowoc Ice, Inc.

3. Damage caused by improper installation of the ice machine, electrical supply, water supply or drainage, or damage caused by floods, storms, or other acts of God.

4. Premium labor rates due to holidays, overtime, etc.; travel time; flat rate service call charges; mileage and miscellaneous tools and material charges not listed on the payment schedule. Additional labor charges resulting from the inaccessibility of equipment are also excluded.

5. Parts or assemblies subjected to misuse, abuse, neglect or accidents.

6. Damage or problems caused by installation, cleaning and/or maintenance procedures inconsistent with the technical instructions provided in this manual.

Important

This product is intended exclusively for commercial application. No warranty is extended for personal, family, or household purposes.

PARTS

1. Manitowoc warrants the ice machine against defects in materials and workmanship, under normal use and service for three (3) years from the date of original installation.

2. The evaporator and compressor are covered by an additional two (2) year (five years total) warranty beginning on the date of the original installation.

LABOR

1. Labor required to repair or replace defective components is covered for three (3) years from the date of original installation.

2. The evaporator is covered by an additional two (2) year (five years total) labor warranty beginning on the date of the original installation.

7. This product is intended exclusively for commercial application. No warranty is extended for personal, family, or household purposes.

AUTHORIZED WARRANTY SERVICE

To comply with the provisions of the warranty, a refrigeration service company qualified and authorized by a Manitowoc distributor, or a Contracted Service Representative must perform the warranty repair.

1-4

Part No. 80-1375-3

Section 1 General Information

Revised 6/2003

THIS PAGE INTENTIONALLY LEFT BLANK

Part No. 80-1375-3 1-5

General Information Section 1

Revised 6/2003

1-6

Part No. 80-1375-3

Section 2

Installation Instructions

General

Refer to Installation Manual f or complete installation guidelines.

Ice Machine Dimensions

Q320/Q370/Q420 ICE MACHINES

WATER COOLED AIR COOLED

Failure to follow these installation guidelines may affect warranty coverage.

Important

SV1602 SV1611

Ice Machine Dimension H

Q320 21.5 in (54.6 cm) Q370 21.5 in (54.6 cm) Q420 26.5 in (67.3 cm)

Part No. 80-1375-3 2-1

Installation Instructions Section 2

Q280 – Q1000 ICE MACHINES Q1300/Q1600/Q1800 ICE MACHINES

WATER-COOLED SELF CONTAINED

SV1612 SV1628

AIR-COOLED

SELF CONTAINED

WATER-CO OLED

Ice Machine Dimension H

Q200 – Q280 16.5 in (41.9 cm)

Q450 21.5 in (54.6 cm) Q600 21.5 in (54.6 cm) Q800 26.5 in (67.3 cm)

Q1000 29.5 in (74.9 cm)

2-2

SV1613

SV1627

Ice Machine Dimension H

Q1300/Q1600 29.5 in (74.9 cm)

Q1800 29.5 in (74.9 cm)

Part No. 80-1375-3

Section 2 Installation Instructions

Q1300/Q1600/Q1800 ICE MACHINES (CONT.)

REMOTE AIR-COOLED

SV1629

Ice Storage Bin Dimensions

S170/S400/S570 ICE STORAGE BINS

SV1609

Bin Model Dimension A Dimension B

S170 29.5 in (74.9 cm) 19.1 in (48.5 cm) S400 34.0 in (86.3 cm) 32.0 in (81.3 cm) S570 34.0 in (86.3 cm) 44.0 in (111.7 cm)

S320/S420 ICE STORAGE BINS

SV1614

Bin Model Dimension A Dimension B

S320 34.0 in (86.3 cm) 32.0 in (81.3 cm) S420 34.0 in (86.3 cm) 44.0 in (111.7 cm)

Part No. 80-1375-3 2-3

Installation Instructions Section 2

S970 ICE STORAGE BINS

SV1610 SV1297

Warning

All Manitowoc ice machines require the ice storage system (bin, dispenser, etc.) to incorporate an ice deflector.

The Q1300, Q1600 and Q 1 80 0 series ice machines require adding Manitowoc Ice Deflector Kit K00139 when installing with non-Manitowoc ice storage systems.

Prior to using a non-Manitowoc ice storage system with other Manitowoc ice machines, contact the manufacturer to assure their ice deflector is compatible with Manitowoc ice machines.

Remote Condenser Dimensions

JC0495/JC0895/JC1095/JC1395

JC1895

2-4

SV1301

Part No. 80-1375-3

Section 2 Installation Instructions

Location of Ice Machine

The location selected for the ice machin e must meet the following criteria. If any of these criteria are not met, select another location.

• The location must be free of airborne and other contaminants.

• The air temperature must be at least 35°F (1. 6°C), but must not exceed 110°F (43.4°C).

• The location must not be near heat-generating equipment or in direct sunlight.

• The location must not obstruct air flow through or around the ice machine. Refer to the chart below for clearance requirements.

Q1300/Q1600/

Q1800

Top/Sides 24" (610 mm) 8" (203 mm)

Back 12" (305 mm) 5" (127 mm)

Q370

Top/Sides 12" (305 mm) 5" (127 mm)

Back 5" (127 mm) 5" (127 mm)

All other

Q models

Top/Sides 8" (203 mm) 8" (203 mm)

Back 5" (127 mm) 5" (127 mm)

There is no minimum clearance required. This value is

recommended for efficient operation and servicing only. Q1600 is not available as an air-cooled model.

The ice machine must be protected if it will be subjected to temperatures belo w 32°F (0°C). Failure caused by exposure to freezing temperatures is not covered by the warranty. See “Removal from Service/Winterization”.

Self-Contained

Air-Cooled

Self-Contained

Air-Cooled

Self-Contained

Air-Cooled

Caution

Water-Cooled

and Remote

Water-Cooled

and Remote

Stacking Two Ice Machines on a Single Storage Bin

A stacking kit is required for stacking two ice machines. Installation instructions are supplied with the stac king kit.

Q450/Q600/

Q800/Q1000

Top/Sides 16" (40.64 cm) 5" (12.70 cm)

Back 5" (12.70 cm) 5" (12.70 cm)

Q1300/Q1600/

Q1800

Top/Sides 48" (121.92 cm) 24" (60.96 cm)

Back 12" (30.48 cm) 12" (30.48 cm)

There is no minimum clearance required. This value is

recommended for efficient operation and servicing only. Q1600 is not available as an air-cooled model.

Stacked

Self-Contained

Air-Cooled

Stacked

Water-Cooled

and Remote

Ice Machine Heat of Rejection

Series

Ice Machine

Q280 3,800 6,000 Q320 4,600 6,200 Q370 3,900 5,950 Q420 7,000 9,600 Q450 7,000 9,600 Q600 9,000 13,900

Q800 12,400 19,500 Q1000 16,000 24,700 Q1300 24,000 35,500 Q1600 24,000 35,500 Q1800 36,000 50,000

B.T.U./Hour Because the heat of rejection varies during the ice making cycle,

the figure shown is an average.

Air Conditioning

Heat of Rejection

Ice machines, like other refrigeration equipment, reject heat through the condenser. It is helpful to know the amount of heat rejected by the ice machine when sizing air conditioning equipment where self -c on ta ine d aircooled ice machines are installed.

This information is also necessary when evaluating the benefits of using water-cooled or remote condensers to reduce air conditioning loads . The am ount of heat add ed to an air conditioned environment by an ice machine using a water-cooled or remote condenser is negligible.

Knowing the amount of heat rejected is also important when sizing a cooling tower for a water-cooled condenser. Use the peak figure for sizing the cooling tower.

Peak

Part No. 80-1375-3 2-5

Installation Instructions Section 2

Leveling the Ice Storage Bin

1. Screw the leveling legs onto the bottom of the bin.

2. Screw the foot of each leg in as far as possible.

Caution

The legs must be screwed in tightly to prevent them from bending.

3. Move the bin into its final position.

4. Level the bin to assure that the bin door closes and seals properly. Use a level on top of the bin. Turn each foot as necessary to level the bin.

NOTE: An optional caster assembly is available for use in place of the legs. Installation i nstructions are supp lied with the casters.

Air-Cooled Baffle

The air-cooled baffle prevents condenser air from recirculating. To install:

1. Remove the back panel screws next to the condenser.

2. Align the mounting holes in the air baffle with the screw holes and reinstall the screws.

SCREWS

AIR

BAFFLE

THREAD ‘FOOT’ IN AS

FAR AS POSSIBLE

Leveling Leg and Foot

THREAD LEVELING LEG INTO BASE OF

CABINET

SV1606

SV1607

Air Baffle

2-6

Part No. 80-1375-3

Section 2 Installation Instructions

Electrical Service

GENERAL

Warning

All wiring must conform to local, state and national codes.

VOLTAG E

The maximum allowabl e voltag e variation is ±10% of the rated voltage at i ce machine start-up (when the electrical load is highest).

Warning

The ice machine must be grounded in accordance with national and local electrical codes.

FUSE/CIRCUIT BREAKER

A separate fuse/circuit break er must be provided for each ice machine. Circuit breakers must be H.A.C.R. rated (does not apply in Canada).

MINIMUM CIRCUIT AMPACITY

The minimum circuit ampacity is used to help select the wire size of the electrical supply. (Minimum circuit ampacity is not the ice machine’s running amp load.)

The wire size (or gauge) is also dependent upon location, materials used, length of run, etc., so it must be determined by a qualified electrician.

Part No. 80-1375-3 2-7

Installation Instructions Section 2

Q320/370/420 Ice Machines

Vol tag e

Ice Machine

Q320

Q370

Q420

Phase

Cycle

115/1/60 15 11.2 15 10.5

208-230/1/60 15 4.8 15 4.2

230/1/50 15 5.2 15 4.7 115/1/60 20 12.9 20 12.2

208-230/1/60 15 6.2 15 5.8

230/1/50 15 6.2 15 5.8 115/1/60 20 12.3 20 11.4

208-230/1/60 15 7.8 15 7.4

230/1/50 15 6.3 15 5.9

Q280 - Q1000 Ice Machines

Voltage

Ice Machine

Q280

Q450

Q600

Q800

Q1000

Q1300

Q1600

Q1800

Phase

Cycle

115/1/60 20 12.6 20 11.7 N/A N/A

208-230/1/60 15 5.7 15 5.2 N/A N/A

230/1/50 15 5.7 15 5.2 N/A N/A 115/1/60 20 12.8 20 11.9 20 13.6

208-230/1/60 15 7.8 15 7.4 N/A N/A

230/1/50 15 6.1 15 5.7 N/A N/A

208-230/1/60 15 9.2 15 8.7 15 9.3

230/1/50 15 9.2 15 8.8 15 9.4 208-230/1/60 20 12.1 20 11.4 20 11.9 208-230/3/60 15 8.9 15 8.2 15 8.9

230/1/50 20 12.0 20 10.6 20 11.2 208-230/1/60 20 14.3 20 13.2 20 14.2 208-230/3/60 15 9.8 15 8.8 15 9.9

230/1/50 20 15.6 20 14.2 20 14.6 208-230/1/60 30 19.5 30 18.1 30 19.8 208-230/3/60 20 13.1 20 11.6 20 12.7

230/1/50 30 15.7 30 14.3 30 14.7 380-415/3/50 N/A N/A N/A N/A 15 7.3 208-230/1/60 N/A N/A 30 17.2 30 18.2 208-230/3/60 N/A N/A 20 11.0 20 12.0

230/1/50 N/A N/A N/A N/A N/A N/A 380-415/3/50 N/A N/A N/A N/A N/A N/A 208-230/1/60 40 28.1 40 26.7 40 26.9 208-230/3/60 20 15.5 20 14.1 20 13.9

230/1/50 40 23.3 40 21.9 40 22.2 380-415/3/50 N/A N/A N/A N/A 15 9.1

Maximum Fuse/

Air-Cooled Water Cooled Remote

Maximum

Fuse/Circuit

Breaker

Circuit Breaker

Circuit Amps

Air-Cooled Water Cooled

Minimum

Circuit Amps

Maximum

Fuse/Circuit

Breaker

Maximum Fuse/

Circuit Breaker

Minimum

Circuit Amps

Maximum

Fuse/Circuit

Breaker

Minimum

Circuit Amps

Minimum

Circuit Amps

2-8

Part No. 80-1375-3

Section 2 Installation Instructions

Self-Contained Electrical Wiring Connections

Warning

These diagrams are not intended to show proper wire routing, wire sizing, disconnects, etc., only the correct wire connections.

All electrical work, including wire routing and grounding, must conform to local, state and national electrical codes.

Though wire nuts are sho wn in t he dr awings, the ice machine field wiring connections may use either wire nuts or screw terminals.

SELF CONTAINED ICE MACHINE 115/1/60 OR 208-230/1/60

N=115V

L2=208-230V

GROUND

SELF CONTAINED ICE MACHINE 208-230/3/60

GROUND

ICE MACHINE

SV1190

CONNECTIONS

TO SEPARATE

FUSE/BREAKER

GROUND

SELF CONTAINED ICE MACHINE 230/1/50

SV1258

ICE MACHINE

CONNECTIONS

TO SEPARATE

FUSE/BREAKER

SV1191

GROUND

ICE MACHINE

CONNECTIONS

GROUND

TO SEPARATE

FUSE/BREAKER.

DISCONNECT ALL

POLES.

For United Kingdom Only

As the colours of the wires in the mains lead of the appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

• The wire which is coloured green and yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth ground symbol

• The wire coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

• The wire coloured brown must be connected t o the terminal which is marked with the letter L or coloured red.

or coloured green or green and yellow.

Part No. 80-1375-3 2-9

Installation Instructions Section 2

Remote Electrical Wiring Connections

Warning

These diagrams are not intended to show proper wire routing, wire sizing, disconnects, etc., only the correct wire connections.

All electrical work, including wire routing and grounding, must conform to local, state and national electrical codes.

Though wire nuts are sho wn in t he dr awings, the ice machine field wiring connections may use either wire nuts or screw terminals.

REMOTE ICE MACHINE WITH SINGLE CIRCUIT MODEL CONDENSER 115/1/60 OR 208-230/1/60

SINGLE CIRCUIT

REMOTE

CONDENSER

GROUND

NOTE: CONDENSER FAN MOTOR VOLTAGE MATCHES ICE MACHINE VOLTAGE (115V OR 208-230V)

REMOTE ICE MACHINE WITH SINGLE CIRCUIT MODEL CONDENSER 208-230/3/60 OR 380-415/3/50

GROUND

NOTE: FAN MOTOR IS 208-230V

TO SEPARATE

FUSE/BREAKER

GROUND

SINGLE CIRCUIT

REMOTE

CONDENSER

ICE

MACHINE

SV1199

ICE

MACHINE

SV1255

GROUND

N=115V OR L2=208-230V

TO SEPARATE

FUSE/BREAKER

GROUND

REMOTE ICE MACHINE WITH SINGLE CIRCUIT MODEL CONDENSER 230/1/50

SINGLE CIRCUIT

REMOTE

CONDENSER

ICE

MACHINE

SV1256

GROUND

TO SEPARATE

FUSE/BREAKER

DISCONNECT ALL

NOTE: FAN MOTOR IS 220-240V

(220-240).

POLES.

GROUND

2-10

Part No. 80-1375-3

Section 2 Installation Instructions

Water Supply and Drain Requirements

WATER SUPPLY

Local water conditions may require treatment of the water to inhibit scale formation, filter sediment, and remove chlorine odor and taste.

Important

If you are installing a Manitowoc water filter system, refer to the Installation Instructions supplied with the filter system for ice making water inlet connections.

WATER INLET LINES

Follow these guidelines to install water inlet lines:

• Do not connect the ice machine to a hot wate r supply. Be sure all hot water restrictors installed for other equipment are working. (Check valves on sink faucets, dishwashers, etc.)

• If water pressure exceeds the maximum recommended pressure, obtain a water pressure regulator from your Manitowoc distributor.

• Install a water shut-off valve for both the ice making and condenser water lines.

• Insulate water inlet lines to prevent condensation.

DRAIN CONNECTIONS

Follow these guidelines when installing drain lines to prevent drain water from flowing back into the ice machine and storage bin:

• Drain lines must have a 1.5 inch drop per 5 feet of run (2.5 cm per meter), and must not create traps.

• The floor drain must be large enough to accommodate drainage from all drains.

• Run separate bin and ice machine drain lines. Insulate them to prevent condensation.

• Vent the bin and ice machine drain to the atmosphere. Do not vent the condenser drain on water-cooled models.

Cooling Tower Applications (Water-Cooled Models)

A water cooling tower installation does not require modification of the ice machine. The water regulator valve for the condenser continues to control the refrigeration discharge pressure.

It is necessary to know the amount of heat rejection, and the pressure drop through the condenser and water valves (inlet and outlet) when using a cooling tower on an ice machine.

• Water entering the co ndenser must not exceed 90°F (32.2°C).

• Water flow th rough the condenser m ust not e xceed 5 gallons (19 liters) per minute.

• Allow for a pressure drop of 7 psi (48 kPA) between the condenser water inlet and the outlet of the ice machine.

• Water exiting the condenser must not exceed 110°F (43.3°C).

Part No. 80-1375-3 2-11

Installation Instructions Section 2

WATER SUPPLY AND DRAIN LINE SIZING/CONNECTIONS

Caution

Plumbing must conform to state and local codes.

Location Water Temperature Water Pressure Ice Machine Fitting

Ice Making Water Inlet

Ice Making

Water Drain

Condenser Water Inlet

Condenser

Water Drain

Bin Drain --- ---

33°F (0.6°C) Min.

90°F (32.2°C) Max.

--- ---

33°F (0.6°C) Min.

90°F (32.2°C) Max.

--- ---

20 psi (137.9 kPA) Min.

80 psi (551.5 kPA) Max.

20 psi (137.9 kPA) Min.

150 psi (1034.2 kPA) Max.

3/8" Female Pipe Thread

1/2" Female Pipe Thread

Q1300/Q1600/Q1800 - 1/2" Female Pipe Thread

All Others - 3/8" Female Pipe Thread

1/2" Female Pipe Thread

3/4" Female Pipe Thread

Tubing Size Up to Ice

Machine Fitting

3/8" (9.5 mm) minimum

inside diameter

1/2" (12.7 mm) minimum

inside diameter

1/2" (12.7 mm) minimum

inside diameter

3/4" (19.1 mm) minimum

inside diameter

Typical Water Supply Drain Installation

2-12

SV1626

Part No. 80-1375-3

Section 2 Installation Instructions

Remote Condenser/Line Set Installation

Remote Single

Ice Machine

Q490 JC0495 RT-20-R404A Q690 JC0895

Q890 Q1090 JC1095 Q1390 JC1395 RL-20-R404A Q1690 JC1695 Q1890 JC1895

*Line Set Discharge Line Liquid Line

RT 1/2" (12.7 mm) 5/16" (7.9 mm) RL 1/2" (12.7 mm) 3/8" (9.5 mm)

Air Temperature Around the Condenser

Minimum Maximum

-20°F (-28.9°C) 120°F (49°C)

REMOTE ICE MACHINES REFRIGERANT CHARGE

Each remote ice machine ships from the factory with a refrigerant charge appropriate for installation with line sets of up to 50' (15.25 m). The serial tag on the ice machine indicates the refrigerant charge.

Circuit

Condenser

Line Set*

RT-35-R404A RT-50-R404A

RL-35-R404A RL-50-R404A

Additional refrigerant may be required for installations using line sets between 50' and 100' (15.25-30.5 m) long. If additional refrigerant is required, an additional label located next to the Model/Serial Numbers decal states the amount of refrigerant to be added.

IMPORTANT

EPA CERTIFIED TECHNICIANS

If remote line set length is between 50' and 100' (15.25-

30.5 m), add 1.5 lb. (24 oz) (0.68 kg) of refrigerant to the nameplate charge.

Tubing length: _______________________________ Refrigerant added to nameplate: ________________ New total refrigerant charge: ___________________

Typical Additional Refrigerant Label

If there is no additional label, the nameplate charge is sufficient for line set s up to 100' (30. 5 m). (See the chart below.)

WARNING

Potential Personal Injury Situation

The ice machine contains refrigerant charge. Installation of the line sets must be performed by a properly trained and EPA certified refrigeration technician aware of the dangers

of dealing with refrigerant charged equipment.

Ice Machine

Q490 6 lb. (96 oz.) None 6 lb. (96 oz.) Q690 8 lb. (128 oz.) None 8 lb. (128 oz.)

Q890 8 lb. (128 oz.) None 8 lb. (128 oz.) Q1090 9.5 lb. (152 oz.) None 9.5 lb. (152 oz.) Q1390 12.5 lb. (200 oz.) 1.5 lb. (24 oz) 14 lb. (224 oz.) Q1690 15 lb. (240 oz.) 2.0 lb. (32 oz) 17 lb. (272 oz.) Q1890 15 lb. (240 oz.) 2.0 lb. (32 oz) 17 lb. (272 oz.)

Nameplate Charge

(Charge Shipped in Ice Machine)

Refrigerant to be Added for

50'-100' Line Sets

Maximum System Charge

(Never Exceed )

Part No. 80-1375-3 2-13

Installation Instructions Section 2

GENERAL

Condensers must be mounted horizontally with the fan motor on top.

Remote condenser installations consist of v ertical and horizontal line sets between the ice machine and the condenser. When combined, they must fit within approved specifications. The following guidelines, drawings and calculation methods must be followed to verify a proper remote condenser installa tion.

Caution

The 60 month compressor warranty (including the 36 month labor replacement warranty) will not apply if the remote ice machine is not installed according to specifications.

This warranty also will not apply if the refrigeration system is modified with a condenser, heat reclaim device, or other parts or assemblies not manufactured by Manitowoc Ice, Inc., unless specifically approved in writing by Manitowoc Ice, Inc.

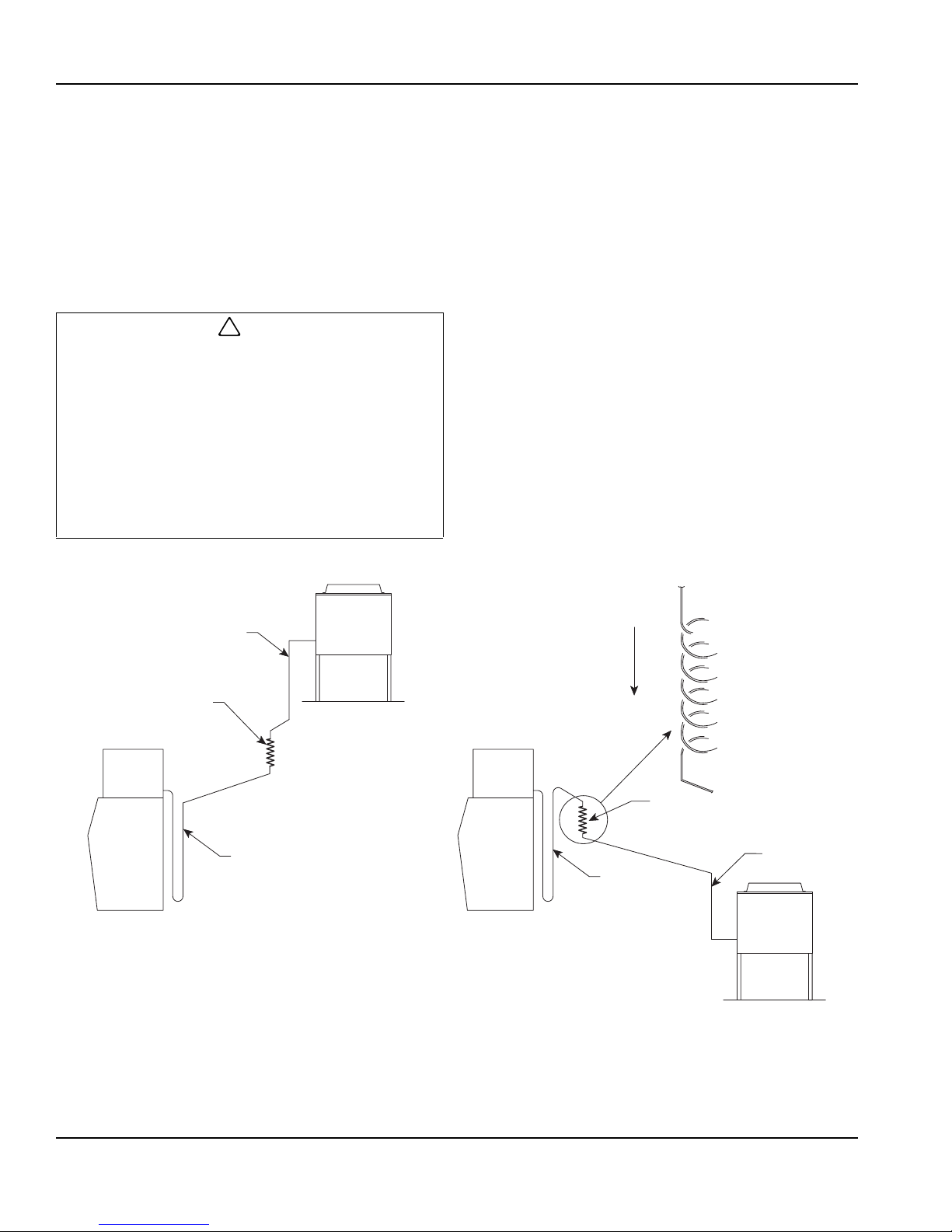

GUIDELINES FOR ROUTING LINE SETS

First, cut a 2.5" (63.5 mm) circular hole in t he wall or ro of for tubing routing. The line set en d with the 90° bend will connect to the ice machine. The straight end will connect to the remote condenser.

Follow these guidelines when routing the refrigerant lines. This will help insure proper performance and service accessibility.

1. Optional - Make the service loop in the line sets (See below). This permits easy access to the ice machine for cleaning and service. Do not use hard rigid copper at this location.

2. Required - Do not form traps in the re frigeration lines (except the service loop). Refrigerant oil must be free to drain toward the ice machine or the condenser. Route excess tubing in a supported downward horizontal spiral (See below). Do not coil tubing vertically.

3. Required - Keep outdoor refrigerant line runs as short as possible.

SV1204

DOWNWARD

HORIZONTAL

SPIRAL

Routing Line Sets

2-14

Part No. 80-1375-3

Section 2 Installation Instructions

CALCULATING REMOTE CONDENSER INSTALLATION DISTANCES

Line Set Length

The maximum length is 100' (30.5 m). The ice machine compressor must have the proper oil

return. The receiver is designed to hold a char ge sufficient to operate the ice machine in ambient temperatures between -20°F (-28.9°C) and 120°F (49°C), with line set lengths of up to 100' (30.5 m).

Line Set Rise/Drop

The maximum rise is 35' (10.7 m). The maximum drop is 15' (4.5 m).

Caution

If a line set has a rise followed by a drop, another rise cannot be made. Likewise, if a line set has a drop followed by a rise, another drop cannot be made.

Calculated Line Set Distance

The maximum distance is 150' (45.7 m). Line set rises, drops, ho rizontal runs (or combina tions of

these) in excess of the stated maximums will exceed compressor start-up and design limits. This will cause poor oil return to the compressor.

Make the following calculations to mak e sure the line set layout is within specifications.

1. Insert th e measured rise into the formula below. Multiply by 1.7 to get the calculated rise. (Example: A condenser located 10 feet above the ice machine has a calculated rise of 17 feet.)

2. Insert th e measured drop into the formula below. Multiply by 6.6 to get the calculated drop. (Example. A condenser located 10 f eet below t he ice machine has a calculated drop of 66 feet.)

3. Insert th e measured horizontal distance into the formula below. No calculation is necessary.

4. Add together the calculated rise, calculated drop, and horizontal distance to get the total calculated distance. If this total exceeds 150' (45.7 m), move the condenser to a new location and perform the calculations again.

Maximum Line Set Distance Formula

Step 1. Measured Rise (35' [10.7 m] Maximum) ______ x 1.7 = _______ Calculated Rise Step 2. Measured Drop (15' [4.5 m] Maximum) ______ x 6.6 = _______ Calculated Drop Step 3. Measured Horizontal Distance (100' [30.5 m] Maximum) _______ Horizontal Distance Step 4. Total Calculated Distance 150' (45.7 m) _______ Total Calculated Distance

SV1196 SV1195 SV1194

Combination of a Rise and a

Horizontal Run

Combination of a Drop and a

Horizontal Run

Combination of a Rise, a Drop

and a Horizontal Run

Part No. 80-1375-3 2-15

Installation Instructions Section 2

LENGTHENING OR REDUCING LINE SET LENGTHS

In most cases, b y routing the line set properly, shortening will not be necessary. When shortening or lengthening is required, do so bef ore con necting the lin e set to the ice machine or the remote condenser. This prevents the loss of refrigerant in the ice machine or condenser.

The quick connect fittings on the line sets are equipped with Schraeder valves. Use these valves to recover any vapor charge from the line set. When lengthening or shortening lines, follow good refrigeration practices and insulate new tubing. Do not change the tube sizes. Evacuate the lines and place a bo ut 5 oz (1 43 g) of vapor refrigerant charge in each line.

CONNECTING A LINE SET

1. Remove the dust caps from the line set, condenser and ice machine.

2. Apply refrigeration oil to the threads on the quick disconnect couplers before connecting them to the condenser.

3. Carefully thread the female fitting to the condenser or ice machine by hand.

4. Tighten the couplings with a wrench until they bottom out.

REMOTE RECEIVER SERVICE VALVE

The receiver service valve is closed during shipment. Open the valve prior to starting the ice machine.

1. Remove the top and left side panels.

2. Remove the receiver service valve cap.

3. Backseat (open) the valve.

4. Reinstall the cap and panels.

REMOVE FRONT, TOP, AND LEFT SIDE PANEL FOR ACCESS TO RECEIVER VALVE

TURN COUNTERCLOCKWISE TO OPEN

5. Turn an additional 1/4 turn to ensure proper brassto-brass seating. Torque to the following specifications:

Liquid Line Discharge Line

10-12 ft lb.

(13.5-16.2 N•m)

35-45 ft lb.

(47.5-61.0 N•m)

6. Check all fittings for leaks.

RECEIVER SERVICE VALVE CAP (TURN

SV1603

COUNTERCLOCKWISE TO REMOVE)

Backseating the Receiver Service Valve

2-16

Part No. 80-1375-3

Section 2 Installation Instructions

Remote Ice Machine Usage with Non-Manitowoc Multi-Circuit Condensers

WARRANTY

The sixty (60) month compressor warranty, including thirty six (36) month labor replacement warranty, shall not apply when the remote ice machine is not installed within the remote specifications. The foregoing warranty shall not apply to any ice machine installed and/or maintained inconsistent with the technical instructions provided by Manitowoc Ice, Inc. Performance may vary from Sales specifications. Q-Model ARI certified standard ratings only apply when used with a Manito woc remote condenser.

If the design of the condenser meets the specificatio ns, Manitowoc’s be extended to the Manitowoc manufactured part of the system. Since Manitowoc does conjunction with the ice machine, Manitowoc will not endorse, recommend, or approve the condenser, and will not be responsible for its performance or reliability.

only approval is f or full w arranty cov erage to

not test the condenser in

Important

Manitowoc warrants only complete new and unused remote packages. Guaranteeing the integrity of a new ice machine under the terms of our warranty prohibits the use of pre-existing (used) tubing or condensers.

HEAD PRESSURE CONTROL VALVE

Any remote condenser connected to a Manitowoc QModel Ice Machine must have a head pressure control valve #836809 -3 (a v ailab le from Ma nitow oc Distributors) installed on the condenser package. Manitowoc will not accept substitute “off the shelf” head pressure control valves.

FAN MOTOR

The condenser fan must be on during the complete ice machine freeze cycle (do not cycle on fan cycle control). The ice maker has a condenser fan motor circuit for use with a Manitowoc condenser . It is recommended that this circuit be used to control the condenser fan(s) on the multi-circuit condenser to assure it is on at the proper time. Do not exceed the rated amps for the fan motor

circuit listed on the ice machine’s serial tag.

INTERNAL CONDENSER VOLUME

The multi-circuit condenser internal volume must not be less than or exceed that used by Manitowoc (see chart on next page). Do not exceed internal volume and try

to add charge to compensate, as compressor failure will result.

CONDENSER ∆T

∆T is the difference in temperature between the condensing refrigerant and entering air. The ∆T should be 15 to 20°F (-9.4 to -6.6°C) at the beginning of the freeze cycle (peak load conditions) and dr op down to 12 to 17°F (-11.1 to -8.3°C) during the last 75% of the freeze cycle (average load conditions).

REFRIGERANT CHARGE

Remote ice machines have the serial plate refrigerant charge (total system charge) located in the ice maker section. (Remote condensers and line sets are supplied with only a vapor charge.)

Caution

Never add more than nameplate charge to ice machine for any application.

Caution

Do not use a fan cycling control to try to maintain discharge pressure. Compressor failure will result.

Part No. 80-1375-3 2-17

QUICK CONNECT FITTINGS

The ice machine and line sets come with quick connect fittings. It is recommended th at matching q uic k connects (availab le through Manitow oc Distributors) be installed in the multi-circuit condenser, and that a vapor “holding” charge (5 oz.) of proper refrigerant be added to the condenser prior to connection of the ice machine or line set to the condenser.

Installation Instructions Section 2

NON-MANITOWOC MULTI-CIRCUIT CONDENSER SIZING CHART

Internal

Ice

Machine

Model

Refrigerant Heat of Rejection

Type Charge

Average

Btu/hr

Peak

Condenser

Volu m e ( cu ft )

Design

Pressure

Min Max Discharge Liquid

Q450 R-404A 6 lbs. 7,000 9,600 0.020 0.035 500 psig Q600 R-404A 8 lbs. 9,000 13,900 0.045 0.060

safe working

pressure

Quick Connect Stubs-

Male Ends

coupling

P/N

83-6035-3

coupling

P/N

83-6034-3

Head

Pressure

Control

Valve

Manitowoc

P/N

83-6809-3

Q800 R-404A 8 lbs. 12,400 19,500 0.045 0.060 Q1000 R-404A 9.5 lbs. 16,000 24,700 0.065 0.085 Q1300 R-404A 14 lbs.124,000 35,500 0.085 0.105 Q1600 R-404A 17 lbs.136,000 50,000 0.130 0.170 Q1800 R-404A 17 lbs.

Amount reflects additional R-404A refrigerant added to nameplate charge for 50' to 100' line sets, to ensure proper operation at all ambient

conditions. Q1300 has 1.5 lbs. additional R-404A. Q1600 and Q1800 has 2.0 lbs. additional R-404A

SINGLE CIRCUIT REMOTE CONDENSER

36,000 50,000 0.130 0.170

DISCHARGE LINE

2,500 psig

burst

pressure

mounting flange P/N 83-6006-3

ELECTRICAL DISCONNECT

mounting

flange P/N

83-6005-3

substitutes

ELECTRICAL DISCONNECT

ELECTRICAL SUPPLY

LIQUID LINE

ICE MACHINE

36.00" (91.44 cm) DROP

LIQUID REFRIGERANT LINE

DISCHARGE REFRIGERANT LINE

BIN

Typical Single Circuit Remote Condenser Installation

SV1615

2-18

Part No. 80-1375-3

Section 2 Installation Instructions

Installation Check List

Is the Ice Machine level?

Has all of the internal packing been removed?

Have all of the electrical and water connections

been made?

Has the supply voltage been tested and checked

against the rating on the nameplate?

Is there proper clearance around the ice machine

for air circulation?

Has the ice machine been installed where

ambient temperatures will remain in the range of 35° - 110°F (1.7° - 43.3°C)?

Has the ice machine been installed where the

incoming water temperature will remain in the range of 33° - 90°F (0.6° - 32.2°C)?

Are the ice machine and bin drains vented?

Are all electrical leads free from contact with

refrigeration lines and moving equipment?

Has the owner/operator been instructed regarding maintenance and the use of Manito woc Cleaner and Sanitizer?

Has the owner/operator completed the warranty registration card?

Has the ice machine and bin been sanitized?

Is the toggle switch set to ice? (The to ggle switch is located directly behind the front panel).

Is the ice thickness control set correctly? (Refer to Operational Checks in Section 3 of this man ual to check/set the correct ice bridge thickness).

Additional Checks for Remote Models

Is there a separate drain for the water-cooled

condenser?

Is the water trough dr ain plug installed? (The d rain

plug is taped to the top of the water pump).

Has the receiver service valve been opened 100%?

Does the remote condenser f an operate pro perly after start-up?

Has the remote condenser been located where ambient temperatures will remain in the range of

-20° - 120°F ( -6.6 - 49°C).

Is the line set routed properly?

Part No. 80-1375-3 2-19

Installation Instructions Section 2

Before Starting the Ice Machine

All Manitowoc ice machines are factory-operated and adjusted before shipment. Normally, new installations do not require any adjustment.

To ensure proper operation, follow the Operational Checks in Section 3 of this manual. Starting the ice machine and completing the Operational Chec ks are the responsibilities of the owner/operator.

Adjustments and maintenance procedures outlined in this manual are not covered by the warranty.

Warning

Potential Personal Injury Situation

Do not operate equipment that has been misused. abused, neglected, damaged, or altered/modified from that of original manufactured specifications.

AuCS® Automatic Cleaning System

This optional accessory monitors ice making cycles and initiates cleaning procedures automatically. The AuCS® accessory can be set to automatically clean or sanitize the ice machine every 2, 4 or 12 weeks. Refer to the AuCS® Installation and Owner/Operator Use and Care Guide for details.

SV1601

2-20

Part No. 80-1375-3

Component Identification

Revised 6/2003

Section 3

Ice Machine Operation

HOT GAS VALVE

WATER DUMP VALVE

DRAIN HOSE

COMPRESSOR

DISTRIBUTION

TUBE

REMOTE COUPLINGS

ICE THICKNESS

PROBE

AIR CONDENSER

WATER

CONDENSER

EVAPOR ATOR

CONDENSER WATER REGULATING VALVE

WATER COOLED

HIGH PRESSURE CUTOUT/

MANUAL RESET

(When applicable)

MODEL

SV1604G

WATER

CURTAIN

WATER

TROUGH

Part No. 80-1375-3 3-1

BIN SWITCH

Component Identification (Typical Q450 Shown)

ICE/OFF/CLEAN

SWITCH

WATER

PUMP

SV1605

Ice Machine Operation Section 3

Revised 6/2003

Ice Machine Sequence of Operation Q200/Q280/Q320/Q370/Q420/Q450/Q600/Q800/Q1000/Q1300/Q1600/Q1800

INITIAL START-UP OR START-UP AFTER AUTOMATIC SHUT-OFF

1. Water Purge

Before the compressor starts, the water pump and water dump solenoid are energized for 45 seconds, to completely purge the ice machine of old water. This feature ensures that the ice making cycle starts with fresh water.

The hot gas valve(s) is also energized during water purge, although it stays on for an additional 5 seconds (50 seconds total on time) during the initial refrigeration system start-up.

2. Refrigeration System Start-Up

The compressor starts after the 45 second water purge, and it remains on throughout the entire Freeze and Harvest Sequences. The water fill valve is energized at the same time as the compressor. It remains on until the water level sensor closes for 3 continuous seconds, or until a six-minute time period has expired.The hot gas valve(s) remains on for 5 seconds during initial compressor start-up and then shuts off.

At the same time the compressor starts, the condenser fan motor (air-cooled models) is supplied with power throughout the entire Freeze and Harvest Sequences. The fan motor is wired through a fan cycle pressure control, therefore it may cycle on and off. (The compressor and condenser fan motor are wired through the contactor. As a result, anytime the contactor coil is energized, the compressor and fan motor are supplied with power.)

FREEZE SEQUENCE

3. Prechill

The compressor is on for 30 seconds prior to water flow, to prechill the evaporator.

4. Freeze

The water pump restarts after the 30 second prechill. An even flow of water is directed across the evaporator and into each cube cell, where it freezes. The water fill valve will cycle on and then off one more time to refill the water trough.

When sufficient ice has formed, the water flow (not the ice) contacts the ice thickness probe. After approximately 7 seconds of continual water contact, the harvest sequence is initiated. The ice machine cannot initiate a harvest sequence until a 6 minute freeze lock has been surpassed.

3-2

Freeze Sequence (Typical Q450 Shown)

Continued on next page …

Part No. 80-1375-3

Section 3 Ice Machine Operation

Revised 6/2003

HARVEST SEQUENCE

5. Water Purge

The water pump continues to run, and the water dump valve energizes for 45 seconds to purge the water in the sump trough. The water fill valve energizes (turns on) and de-energizes (turns off) strictly by time. The water fill valve energizes for the last 15 seconds of the 45-second water purge. The water purge setting of 45 seconds for the fill valve to energize during the last 15 seconds of the Water Purge. If set at less than 45 seconds the water fill valve does not energize during the water purge.

After the 45 second water purge, the water fill valve, water pump and dump valve de-energize. (Refer to “Water Purge Adjustment” for details.) The hot gas valve also opens at the beginning of the water purge to divert hot refrigerant gas into the evaporator.

6. Harvest

The hot gas valve(s) remains open and the refrigerant gas warms the evaporator causing the cubes to slide, as a sheet, off the evaporator and into the storage bin. The sliding sheet of cubes swings the water curtain out, opening the bin switch. The momentary opening and reclosing of the bin switch terminates the harvest sequence and returns the ice machine to the freeze sequence (Step 3 - 4.)

must be at the factory

AUTOMATIC SHUT-OFF

7. Automatic Shut-Off

When the storage bin is full at the end of a harvest sequence, the sheet of cubes fails to clear the water curtain and will hold it open. After the water curtain is held open for 7 seconds, the ice machine shuts off. The ice machine remains off for 3 minutes before it can automatically restart.

The ice machine remains off until enough ice has been removed from the storage bin to allow the ice to fall clear of the water curtain. As the water curtain swings back to the operating position, the bin switch re-closes and the ice machine restarts (steps 1 - 2), provided the 3 minute delay period is complete.

Automatic Shut-Off (Typical Q450 Shown)

Harvest Sequence (Typical Q450 Shown)

Part No. 80-1375-3 3-3

Ice Machine Operation Section 3

Revised 6/2003

Remote Sequence of Operation Q450/Q600/Q800/Q1000/Q1300/Q1600/Q1800

INITIAL START-UP OR START-UP AFTER AUTOMATIC SHUT-OFF

1. Water Purge

The hot gas and harvest pressure regulating (HPR) solenoid valves also energize during water purge, although they stay on for an additional 5 seconds (50 seconds total on time) during the initial refrigeration system start-up.

2. Refrigeration System Start-Up

The compressor and liquid line solenoid valve energize after the 45 second water purge and remain on throughout the entire Freeze and Harvest Sequences. The water fill valve is energized at the same time as the compressor. It remains on until the water level sensor closes for 3 continuous seconds, or until a six-minute time period has expired. The hot gas valve and HPR solenoid valves remain on for 5 seconds during initial compressor start-up and then shut off.

FREEZE SEQUENCE

3. Prechill

The compressor is on for 30 seconds prior to water flow, to prechill the evaporator.

4. Freeze

The remote condenser fan motor starts at the same time the compressor starts and remains on throughout the entire Freeze and Harvest Sequences. (The compressor and condenser fan motor are wired through the contactor, therefore, anytime the contactor coil is energized, the compressor and fan motor are on.)

Freeze Sequence (Typical Q450 Shown)

Continued on next page …

3-4

Part No. 80-1375-3

Section 3 Ice Machine Operation

Revised 6/2003

HARVEST SEQUENCE

5. Water Purge

After the 45 second water purge, the water fill valve, water pump and dump valve de-energize. (Refer to “Water Purge Adjustment” for details.) The hot gas valve(s) and HPR solenoid valve also open at the beginning of the water purge.

6. Harvest

The HPR valve and the hot gas valve(s) remain open and the refrigerant gas warms the evaporator causing the cubes to slide, as a sheet, off the evaporator and into the storage bin. The sliding sheet of cubes swings the water curtain out, opening the bin switch. The momentary opening and re-closing of the bin switch terminates the harvest sequence and returns the ice machine to the freeze sequence (Step 3 - 4.)

must be at the factory

AUTOMATIC SHUT-OFF

7. Automatic Shut-Off

The ice machine remains off until enough ice has been removed from the storage bin to allow the ice to drop clear of the water curtain. As the water curtain swings back to the operating position, the bin switch re-closes and the ice machine restarts (steps 1 - 2) provided the 3 minute delay period is complete.

Automatic Shut-Off (Typical Q450 Shown)

Harvest Sequence (Typical Q450 Shown)

Part No. 80-1375-3 3-5

Ice Machine Operation Section 3

Revised 6/2003

Operational Checks

GENERAL

Manitowoc ice machines are factory-operated and adjusted before shipment. Normally, new installations do not require any adjustment.

To ensure proper operation, always follow the Operational Checks:

• when starting the ice machine for the first time

• after a prolonged out of service period

• after cleaning and sanitizing

NOTE: Routine adjustments and maintenance procedures are not covered by the warranty.

WATER LEVEL

The water level sensor is set to maintain the proper water level above the water pump housing. The water level is not adjustable.

If the water level is incorrect, check the water level probe for damage (probe bent, etc.). Repair or replace the probe as necessary.

ICE THICKNESS CHECK

The ice thickness probe is factory-set to maintain the ice bridge thickness at 1/8" (3.2 mm).

NOTE: Make sure the water curtain is in place when performing this check. It prevents water from splashing out of the water trough.

1. Inspect the bridge connecting the cubes. It should be about 1/8" (3.2 mm) thick.

2. If adjustment is necessary, turn the ice thickness probe adjustment screw clockwise to increase bridge thickness, counterclockwise to decrease bridge thickness.

NOTE: Turning the adjustment 1/3 of a turn will change the ice thickness about 1/16" (1.5 mm).

ADJUSTING SCREW

SV1616

1/8” ICE BRIDGE THICKNESS

SV1208

Ice Thickness Check

3. Make sure the ice thickness probe wire and the bracket do not restrict movement of the probe.

Water Level Probe

3-6

Part No. 80-1375-3

Section 3 Ice Machine Operation

Revised 6/2003

HARVEST SEQUENCE WATER PURGE

The harvest sequence water purge adjustment may be used when the ice machine is hooked up to special water systems, such as a de-ionized water treatment system.

Important

The harvest sequence water purge is factory-set at 45 seconds. A shorter purge setting (with standard water supplies such as city water) is not recommended. This can increase water system cleaning and sanitizing requirements.

• The harvest sequence water purge may be set to 15, 30, or 45 seconds.

• During the harvest sequence water purge, the water fill valve energizes and de-energizes by time. The water purge must be at the factory setting of 45 seconds for the water fill valve to energize during the last 15 seconds of the water purge. If it is set to less than 45 seconds, the water fill valve will not energize during the water purge.

CONTROL BOARD

WATER PURGE ADJUSTMENT

Water Purge Adjustment

SV1617

Part No. 80-1375-3 3-7

Ice Machine Operation Section 3

Revised 6/2003

THIS PAGE INTENTIONALLY LEFT BLANK

3-8

Part No. 80-1375-3

Section 4

Maintenance

General

You are responsible for maintaining the ice machine in accordance with the instructions in this manual. Maintenance procedures are not covered by the warranty.

Warning

If you do not understand the procedures or the safety precautions that must be followed, call your local Manitowoc service representative to perform the maintenance procedures for you.

We recommend that you perform the following maintenance procedures every six months to ensure reliable, trouble-free operation and maximum ice production.

Ice Machine Inspection

Warning

Disconnect electric power to the ice machine and the remote condensing unit at the electric service switch before cleaning the condenser.

Check all water fittings and lines for leaks. Also, make sure the refrigeration tubing is not rubbing or vibrating against other tubing, panels, etc.

Do not put anything (boxes, etc.) on the sides or back of the ice machine. There must be adequate airflow through and around the ice machine to maximize ice production and ensure long component life.

Exterior Cleaning

Clean the area around the ice machine as often as necessary to maintain cleanliness and efficient operation.

Sponge any dust and dirt off the outside of the ice machine with mild soap and water. Wipe dry with a clean, soft cloth.

Heavy stains should be removed with stainless steel wool. Never use plain steel wool or abrasive pads. They will scratch the panels.

Part No. 80-1640-3 4-1

Maintenance Section 4

Cleaning the Condenser

GENERAL

3. Straighten any bent condenser fins with a fin comb.

Warning

Disconnect electric power to the ice machine head section and the remote condensing unit at the electric service switches before cleaning the condenser.

A dirty condenser restricts airflow, resulting in excessively high operating temperatures. This reduces ice production and shortens component life. Clean the condenser at least every six months. Follow the steps below.

Warning

The condenser fins are sharp. Use care when cleaning them.

1. Clean the outside of the condenser with a sof t bru sh or a vacuum with a brush attachment. Be careful not to bend the condenser fins.

2. Shine a flashlight through the conden se r to che ck for dirt between the fins. If dirt remains:

A. Blow compressed air through the condenser fins

from the inside. Be careful not to bend the fan blades.

“COMB” DOWN

ONLY

CONDENSER

FIN

COMBS

SV1515

Straighten Bent Condenser Fins

4. Carefully wipe off the fan blades and motor with a soft cloth. Do not bend the fan blades. If the fan blades are excessively dirty, wash with warm, soapy water and rinse thoroughly.

B. Use a commercial condenser coil cleaner.

Follow the directions and cautions supplied with the cleaner.

Caution

If you are cleaning the condenser fan blades with water, cover the fan motor to prevent water damage.

4-2

Part No. 80-1640-3

Section 4 Maintenance

WATER-COOLED CONDENSER AND WATER REGULATING VALVE

Symptoms of restrictions in the condenser water circuit include:

• Low ice production

• High water consumption

• High operating temperatures

• High operating pressures If the ice machine is experiencing any of these symptoms,

the water-cooled condenser and water regulating valve may require cleaning due to scale build-up.

The cleaning procedures require special pumps and cleaning solutions. Follow the manufacturer’s instructions for the specific cleaner being used.

MANITOWOC’S PATENTED CLEANING OR SANITIZING TECHNOLOGY

Manitowoc Ice Machines include technology that allows the initiation and completion of a cleaning or sanitizing cycle at the flip of a switch. This cycle will permit cleaning or sanitizing of all surfaces that come in contact with the water distribution system. Periodic maintenance must be performed that includes sanitizing the bin (or dispenser) and adjacent surface areas, which cannot be contacted by the water distribution system.

This technology will also allow initiation and completion of a clean or sanitize cycle, after which the ice machine automatically starts ice making again.

Refer to the cleaning or sanitizing procedure for complete details.

The AuCS Accessory can be set to automatically start and finish a clean or sanitize cycle every 2, 4, or 12 weeks. This accessory monitors ice-making cycles and initiates a cleaning or sanitizing cycle automatically. Refer to Automatic Cleaning System (AuCS) Accessory for further details.

ALPHASAN

The goal of AlphaSan is to keep the plastic surfaces of an ice machine cleaner, by reducing or delaying the formation of bio-film. The active ingredient in AlphaSan is the element silver in the form of silver ions (Ag+). AlphaSan slowly releases silver ions via an ion exchange mechanism. When AlphaSan is compounded directly into a plastic part, a controlled release of silver ions from the surface is regulated to maintain an effective concentration at or near the surface of the plastic ice machine part. AlphaSan’s unique ability to effectively control the release of silver not only protects against undesired discoloration of the plastic, but also will last the life of the plastic part. Although AlphaSan helps prevent bio-film build up it does not eliminate the need for periodic cleaning and maintenance. AlphaSan has no adverse effect on the taste of the ice or beverage.

Part No. 80-1640-3 4-3

Maintenance Section 4

Interior Cleaning and Sanitizing

GENERAL

Clean and sanitize the ice machine every six months for efficient operation. If the ice machine requires more frequent cleaning and sanitizing, consult a qualified service company to test the water quality and recommend appropriate water treatment or installation of AuCS required, an extremely dirty ice machine may be taken apart for cleaning and sanitizing.

accessory (Automatic Cleaning System). If

Caution

Use only Manitowoc approved Ice Machine Cleaner (part number 94-0546-3) and Sanitizer (p ar t number 94-0565-3). It is a violation of Federal law to use these solutions in a manner inconsistent with their labeling. Read and understand all labels printed on bottles before use.

Caution

Do not mix Cleaner and Sanitizer solutions together. It is a violation of Federal law to use these solutions in a manner inconsistent with their labeling.

Warning

Wear rubber gloves and safety goggles ( and/or face shield) when handling ice machine Cleaner or Sanitizer.

Step 3 Wait about one minute or until water starts to flow over the evaporator.

Step 4 Add the proper amount of Manitowoc Ice Machine Cleaner to the water trough.

Model Amount of Cleaner

Q200 Q280 Q320 Q370 3 ounces (90 ml)

Q420 Q450 Q600 Q800 5 ounces (150 ml)

Q1000 Q1300

Q1600 Q1800

Step 5 The ice machine will automatically time out a ten minute cleaning cycle, followed by six rinse cycles, and stop. The Clean light will turn off to indicate the Cleaning mode is completed. This entire cycle lasts approximately 25 minutes.

Step 6 When the cleaning process stops, move the toggle switch to OFF position. Refer to “Sanitizing Procedure” on the next page.

Step 7

A. The ice machine may be set to start and finish a

cleaning procedure then automatically start ice making again.

B. You must wait about one minute into the

cleaning cycle (until water starts to flow over the evaporator) then move the switch from CLEAN to ICE position.

C. When the cleaning cycle is completed, an ice

making sequence will start automatically.

9 ounces (270 ml)

CLEANING PROCEDURE

Ice machine cleaner is used to remove lime scale or other mineral deposits. It is not used to remove algae or slime. Refer to the section on Sanitizing for removal of algae and slime.

Step 1 Set the toggle switch to the OFF position after ice falls from the evaporator at the end of a Harvest cycle. Or, set the switch to the OFF position and allow the ice to melt off the evaporator.

Caution

Never use anything to force ice from the evaporator. Damage may result.

Step 2 To start cleaning, place the toggle switch in the CLEAN position. The water will flow through the water dump valve and down the drain. The Clean light will turn on to indicate the ice machine is in the Cleaning mode.

4-4

Important

After the toggle switch is moved to the ICE position, opening the curtain switch will interrupt the cleaning sequence. The sequence will resume from the point of interruption when the curtain switch closes.

Part No. 80-1640-3

Section 4 Maintenance

SANITIZING PROCEDURE

Use sanitizer to remove algae or slime. Do not use it to remove lime scale or other mineral deposits.

Step 4 Use the sanitizing solution and a sponge or cloth to sanitize (wipe) all parts and interior surfaces of the ice machine. Sanitize the following areas:

A. Side walls B. Base (area above water trough)

C. Evaporator plastic parts

Caution

Never use anything to force ice from the evaporator. Damage may result.

Warning

Disconnect electric power to the ice machine (and dispenser if applicable) at the electric switch box before proceeding.

Step 2 Remove the water curtain, water distribution tube, and the components you want to clean or sanitize. Disassemble the water distribution tube. See the following pages for removal/disassembly procedures for these parts.

Step 3 Mix a solution of water and sanitizer.

Solution Type Water Mixed With

Sanitizer 4 gal. (15 l) 3 oz (118 ml) sanitizer

D. Water Distribution tube exterior and interior

surfaces. Remove water distribution tube Orings then sanitize o-rings and distribution tube

E. Water pump discharge tubing

F. Exterior plastic of water pump

G. Ice thickness probe and water level probe

H. Bin or dispenser

Step 5 Rinse all sanitized areas with clear water. Step 6 Install the removed parts, restore power and

place toggle switch in the clean position. The water will flow through the water dump valve and down the drain. The Clean light will turn on to indicate the ice machine is in the Cleaning mode.

Step 7 Wait about two minutes or until water starts to flow over the evaporator.

Step 8 Add the proper amount of Manitowoc Ice Machine sanitizer to the water trough.

Model Amount of Sani tizer

Q200 Q280 Q320 Q370

Q420 Q450 Q600 Q800

Q1000

Q1300 Q1600 Q1800 7.5 ounces (222 ml)

3 ounces (90 ml)

Part No. 80-1640-3 4-5

Step 9 The ice machine will automatically time out a ten minute sanitizing cycle, followed by six rinse cycles, and stop. The Clean light will turn off to indicate the Cleaning cycle is completed. This entire cycle lasts approximately 30 minutes.

Step 10 Move toggle switch from CLEAN to OFF, then back to CLEAN. Repeat steps 7, 8 and 9.

Step 11 When the sanitizing process stops, move the toggle switch to ICE position.

Maintenance Section 4

AUTOMATIC CLEANING SYSTEM (AuCS®)

This accessory monitors ice making cycles and initiates cleaning (or sanitizing) procedures automatically. The

AuCS

Accessory can be set to automatically clean or

sanitize the ice machine every 2, 4, or 12 weeks.

Caution

Refer to the AuCS® Accessory Installation - Use and Care Manual for complete details on the installation, operation, maintenance and cautionary statements of this accessory.

Automatic Operation

The following occurs when the toggle switch is in the ICE position:

• The ice machine control board counts the number of ice harvest cycles.

•The AuCS

accessory interrupts the ice making mode and starts the cleaning (or sanitizing) mode when the harvest count equals the “Frequency of Cleaning” setting of the AuCS

• When the automatic cleaning (or sanitizing) cycle is complete (approximately 25 minutes), ice making resumes automatically, and the “Harvest Count” is reset to zero.

Important

Opening the curtain switch will interrupt the cleaning or sanitizing sequence. The sequence will resume from the point of interruption when the curtain recloses.

Manual Start Operation Step 1 Set the toggle switch to the OFF position after

ice falls from the evaporator at the end of a Harvest cycle. Or, set the switch to the OFF position and allow the ice to melt off the evaporator.

Caution

Never use anything to force ice from the evaporator. Damage may result.

Step 2 To start the automatic cleaning system, move the toggle switch to the CLEAN position. The water will flow through the water dump valve and down the drain. The Clean light will turn on to indicate the ice machine is in the Self Cleaning mode. The AuCS

then automatically adds cleaner or sanitizer to the ice machine.

Step 3 The ice machine will automatically time out a ten minute cleaning or sanitizing cycle, followed by six rinse cycles, (de-energize the Clean light) and stop. This entire cycle lasts approximately 25 minutes.

Step 4 After the cleaning or sanitizing cycle stops, move the toggle switch to ICE position.

Step 5

A. The ice machine may be set to start and finish a

cleaning or sanitizing cycle, then automatically start ice making again.

B. You must wait about one minute into the

cleaning cycle (until water starts to flow over the evaporator), then move the toggle switch from CLEAN to ICE position.

4-6

C. When the cleaning or sanitizing cycle is

completed, the clean light will turn off and an ice making sequence will start automatically.

Part No. 80-1640-3

Section 4 Maintenance

REMOVAL OF PARTS FOR CLEANING/SANITIZING

1. Turn off the water supply to the ice machine at the water service valve.

Warning

Disconnect electric power to the ice machine at the electric switch box before proceeding.

2. Remove the water curtain, water distribution tube, and the components you want to clean or sanitize. Disassemble the water distribution tube. See the following pages for removal/disassembly procedures for these parts.

Warning

Wear rubber gloves and safety goggles ( an d/or face shield) when handling Ice Machine Cleaner or Sanitizer.

3. Soak the removed part(s) in a properly mixed solution. The water distribution tube must be disassembled prior to soaking.

Solution Type Water Mixed With

Cleaner 1 gal. (4 l) 16 oz (500 ml) cleaner

Sanitizer 4 gal. (15 l) 3 oz (90 ml) sanitizer

4. Use a soft-bristle brush or sponge (NOT a wire brush) to carefully clean the parts.

Caution

Do not mix Cleaner and Sanitizer solutions together. It is a violation of Federal law to use these solutions in a manner inconsistent with their labeling.

Caution

Do not immerse the water pump motor in the cleaning or sanitizing solution.

5. Use the solution and a brush to clean the top, sides, and bottom evaporator extrusions; the inside of the ice machine panels; and the entire inside of the bin.

6. Thoroughly rinse all of the parts and surfaces with clean water.

7. Install the removed parts.

NOTE: Incomplete rinsing of the ice thickness probe or water level probe may leave a residue. This could cause the ice machine to malfunction. For best results, br ush or wipe the probes off while rinsing it. Thoroughly dry the probes before installing them.

8. Turn on the water and electrical supply.

Part No. 80-1640-3 4-7

Maintenance Section 4

Wat er Dump Va lve

The water dump valve normally does not require removal for cleaning. To determine if removal is necessary:

1. Locate the water dump valve.

2. Set the toggle switch to ICE.

3. While the ice machine is in the freeze mode, check the dump valve’s clear plastic outlet drain hose for leakage.

A. If the dump valve is leaking, remove,

disassemble and clean it.

B. If the dump valve is not leaking, do not remove

it. Instead, follow the “Cleaning Procedure” on Page 3-5.

Follow the procedure below to remove the dump valve.

Warning

Disconnect the electric power to the ice machine at the electric service switch box and turn off the water supply before proceeding.

1. If so equipped, remove the water dump valve shield from its mounting bracket.

2. Lift and slide the coil retainer cap from the top of the coil.

3. Note the position of the coil assembly on the valve for assembly later. Leaving the wires attached, lift the coil assembly off the valve body and the enclosing tube.

4. Press down on the plastic nut on the enclosing tube and rotate it 1/4 turn. Remove the enclosing tube, plunger, and plastic gasket from the valve body.

NOTE: At this point, the water dump valve can easily be cleaned. If complete removal is desired, continue with step 5.

The plunger and the inside of the enclosing tube must be completely dry before assembly.

NOTE: During cleaning, do not stretch, damage or remove the spring from the plunger . If it is removed, slide the spring’s flared end into the plunger’s slotted top opening until the spring contact s the pl unger spr ing sto p.

5. Remove the valve body.

6. Remove the tubing from the dump valve by twisting the clamps off.

7. Remove the two screws securing the dump valve and the mounting bracket.

CAP

Dump Valve Removal

Important

PLUNGER SPRING STOP

COIL

SPRING

4-8

ENCLOSING

TUBE

Dump Valve Disassembly

PLUNGER

DIAPHRAM

VALVE BODY

Part No. 80-1640-3

Section 4 Maintenance

Wat er Pump

Warning

Disconnect the electric power to the ice machine at the electric service switch box and turn off the water supply.

1. Disconnect the water pump power cord.

POWER CORD

PUMP OUTLET

LOOSEN SCREWS

WATER PUMP

Ice Thickness Probe

1. Compress the side of the ice thickness probe near the top hinge pin and remove it from the bracket.

DISCONNECT WIRE LEAD

COMPRESS HINGE PIN TO REMOVE

ICE THICKNESS PROBE

SV1619

Ice Thickness Probe Removal

NOTE: At this point, the ice thickness probe can easily be cleaned. If complete removal is desired, continue with step 2 below.

SV1618

Water Pump Removal

2. Disconnect the hose from the pump outlet.

3. Loosen the screws securing the pump mounting bracket to the bulkhead.

4. Lift the pump and bracket assembly off the screws.

Warning

Disconnect the electric power to the ice machine at the electric service switch box.

2. Disconnect the wire lead from the control board inside the electrical control box.

Ice Thickness Probe Cleaning

1. Mix a solution of Manitowoc ice machine cleaner and water (2 ounces of cleaner to 16 ounces of water) in a container.

2. Soak ice thickness probe in container of cleaner/ water solution while disassembling and cleaning water circuit components (soak ice thickness probe for 10 minutes or longer).

3. Clean all ice thickness probe surfaces including all plastic parts (do not use abrasives). Verify the ice thickness probe cavity is clean. Thoroughly rinse ice thickness probe (including cavity) with clean water, then dry completely. Incomplete rinsing and

drying of the ice thickness probe can cause premature harvest.

4. Reinstall ice thickness probe, then sanitize all ice machine and bin/dispenser interior surfaces.

Part No. 80-1640-3 4-9

Maintenance Section 4

Water Level Probe

1. Loosen the screw that holds the water level probe in place. The probe can easily be cleaned at this point without proceeding to step 2.

Warning

Disconnect the electrical power to the ice machine at the electrical disconnect before proceeding.

2. If complete removal is required, disconnect the wire lead from the control board inside the electrical control box.

SCREW

WATER LEVEL PROBE

WATER TROUGH

WIRE LEAD

Follow the procedure below to remove the water inlet valve.

Warning

Disconnect the electric power to the ice machine at the electric service switch box and turn off the water supply before proceeding.

1. Remove the valve shield if necessary.

2. Remove the filter access screws that hold the valve in place.

NOTE: The water inlet valve can be disassembled and cleaned without disconnecting the incoming water supply line to the ice machine.

3. Remove, clean, and install the filter screen.

4. If necessary, remove the enclosure tube access screws to clean interior components.

FILTER ACCESS SCREWS

ICE MACHINE SIDE PANEL

SV1621

Water Level Probe Removal

Water Inlet Valve

The water inlet valve normally does not require removal for cleaning. Follow the instructions below to determine if removal is necessary.

1. Set the ICE/OFF/CLEAN switch to OFF. Locate the water inlet valve (in the compressor area of the ice machine). It pours water into the water trough.

2. When the ice machine is off, the water inlet valve must completely stop water flow into the machine. Watch for water flow. If water flows, remove, disassemble and clean the valve.

3. When the ice machine is on, the water inlet valve must allow the proper water flow through it. Set the toggle switch to ON. Watch for water flow into the ice machine. If the water flow is slow or only trickles into the ice machine, remove, disassemble, and clean the valve.

INCOMING WATER LINE

MOUNTING PLATE

FILTER ACCESS SCREWS

Water Inlet Valve Removal

ENCLOSURE TUBE ACCESS SCREWS

ELECTRICAL SOLENOID

RESTRICTOR (FLAT SIDE MUST FACE OUT)

FITTING

O-RING

VALVE BODY

FILTER SCREEN

Exploded View of Water Inlet Valve

WATER INLET VALVE

SV1622

ENCLOSURE TUBE

SPRING

RUBBER SEAL

SV1623

4-10

Part No. 80-1640-3

Section 4 Maintenance

Water Distribution Tube

1. Disconnect the water hose from the distribution tube.

1. LIFT UP

2. SLIDE BACK

3. SLIDE TO RIGHT

DISTRIBUTION TUBE

THUMBSCREW

LOCATING PIN

Water Distribution Tube Removal

1. Loosen the two thumbscrews which secure the distribution tube.

2. Lift the right side of the distribution tube up off the locating pin, then slide it back and to the right.

SV1620

Water Curtain

1. Gently flex the curtain in the center and remove it from the right side.

STEP 1

STEP 2

SV1213

Water Curtain Removal

2. Slide the left pin out.

Caution

Do not force this removal. Be sure the locating pin is clear of the hole before sliding the distribution tube out.

3. Disassemble for cleaning/sanitizing. A. Twist both of the inner tube ends until the tabs

line up with the keyways.

B. Pull the inner tube ends outward.

INNER TUBE

KEYWAY

TAB

SV1211

Water Distribution Tube Disassembly

Part No. 80-1640-3 4-11

Maintenance Section 4

Removal from Service/Winterization

GENERAL

Special precautions must be taken if the ice machine is to be removed from service for an extended period of time or exposed to ambient temperatures of 32°F (0°C) or below.

Caution

If water is allowed to remain in the ice machine in freezing temperatures, severe damage to some components could result. Damage of this nature is not covered by the warranty.

Follow the applicable procedure below.

SELF-CONTAINED AIR-COOLED ICE MACHINES

1. Disconnect the electric power at the circuit breaker or the electric service switch.

2. Turn off the water supply.

3. Remove the water from the water trough.

4. Disconnect and drain the incoming ice-making water line at the rear of the ice machine.

5. Blow compressed air in both the incoming water and the drain openings in the rear of the ice machine until no more water comes out of the inlet water lines or the drain.

6. Make sure water is not trapped in any of the water lines, drain lines, distribution tubes, etc.

WATER-COOLED ICE MACHINES

1. Perform steps 1-6 under “Self-Cont ained Air-Cooled Ice Machines.”

2. Disconnect the incoming water and drain lines from the water-cooled condenser.

3. Insert a large screwdriver between the bottom spring coils of the water regulating valve. Pry upward to open the valve.

SV1624

4-12

Pry Open the Water Regulating Valve

4. Hold the valve open and blow compressed air through the condenser until no water remains.

REMOTE ICE MACHINES

1. Move the ICE/OFF/CLEAN switch to OFF.

2. “Frontseat” (shut off) the receiver service valves. Hang a tag on the switch as a reminder to open the valves before restarting.

3. Perform steps 1-6 under “Self-Cont ained Air-Cooled Ice Machines.”

AUCS

Refer to the AuCS of the AuCS

Accessory

Accessory.

Accessory manual for winterization

Part No. 80-1640-3

Section 5

Revised 6/2003

Before Calling for Service

Checklist

If a problem arises during operation of your ice machine, follow the checklist below before calling service. Routine adjustments and maintenance procedures are not covered by the warranty.

Problem Possible Cause To Correct

Ice machine does not operate. No electrical power to the ice machine

and/or condensing unit. High pressure cutout tripping. Clean condenser coil. (See Section 4) ICE/OFF/CLEAN toggle switch set

improperly. Water curtain stuck open. Water curtain must be installed and

Remote receiver service valve and/or Liquid/suction line shut off valves are closed.

Ice machine stops, and can be restarted by moving the toggle switch to OFF and back to ICE.

Ice machine does not release ice or is slow to harvest.

Ice machine does not cycle into harvest mode.

Ice quality is poor (soft or not clear). Poor incoming water quality. Contact a qualified service company to

Safety limit feature stopping the ice machine.

Ice machine is dirty. Clean and sanitize the ice machine.

Ice machine is not level. Level the ice machine. (See Section 2) Low air temperature around ice machine

head section. Fan cycling control does not de-energize

condenser fan motor. The six-minute freeze time lock-in has

not expired yet. Ice thickness probe is dirty. Clean and sanitize the ice machine.

Ice thickness probe is disconnected. Connect the wire. Ice thickness probe is out of adjustment. Adjust the ice thickness probe.

Uneven ice fill (thin at the top of evaporator).

Water filtration is poor. Replace the filter. Ice machine is dirty. Clean and sanitize the ice machine.

Water dump valve is not working. Disassemble and clean the water dump

Water softener is working improperly (if applicable).

Replace the fuse/reset the breaker/turn on the main switch.

Move the toggle switch to the ICE position.

swinging freely. (See Section 4) Open the valve(s). (See Section 2)

Refer to “Safety Limit Feature” on the next page.

(See Section 4)

Air temperature must be at least 35°F

(1.6°C).

Verify pressure is below cut-out setpoint, replace fan cycling control.

Wait for the freeze lock-in to expire.

(See Section 4)

(See Section 3) Verify sufficient water level in sump

trough. Contact a qualified service company to check refrigeration system.

test the quality of the incoming water and make appropriate filter recommendations.

(See Section 4)

valve. (See Section 4) Repair the water softener.

Part No. 80-1375-3 5-1

Before Calling for Service Section 5

Revised 6/2003

Problem Possible Cause To Correct

Ice machine produces shallow or incomplete cubes, or the ice fill pattern on the evaporator is incomplete.

Low ice capacity. Water inlet valve filter screen is dirty. Remove the water inlet valve and clean

Ice thickness probe is out of adjustment. Adjust the ice thickness probe.

(See Section 4)

Water trough level is too high or too low. Check the water level probe for damage.

(See Section 3)

Water inlet valve filter screen is dirty. Remove the water inlet valve and clean

the filter screen. (See Section 4) Water filtration is poor. Replace is filter. Hot incoming water. Connect the ice machine to a cold water

supply. (See Section 2) Water inlet valve is not working. Remove the water inlet valve and clean it.

(See Section 4) Incorrect incoming water pressure. Water pressure must be 20-80 psi

(137.9 - 551.5 kPA) Ice machine head section is not level. Level the ice machine head section.

(See Section 2)

the filter screen. (See Section 4) Incoming water supply is shut off. Open the water service valve. Water inlet valve stuck open or leaking. Remove the water inlet valve and clean it.

(See Section 4) The condenser is dirty. Clean the condenser. (See Section 4) High air temperature around condenser

unit.

Air temperature must not exceed 130°F

(43.3°C)

Safety Limit Feature

In addition to the standard safety controls, such as the high pressure cutout, your Manitowoc ice machine features built-in safety limits which will stop the ice machine if conditions arise which could cause a major component failure.

Before calling for service, re-start the ice machine using the following procedure:

1. Move the ICE/OFF/CLEAN switch to OFF and then back to ICE.

A. If the safety limit feature has stopped the ice

machine, it will restart after a short delay. Proceed to step 2.

B. If the ice machine does not restart, see “Ice

machine does not operate” on the previous page.

2. Allow the ice machine to run to determine if the condition is recurring.

A. If the ice machine stops again, the condition has

recurred. Call for service.

B. If the ice machine continues to run, the condition

has corrected itself. Allow the ice machine to continue running.
