Manitowoc Q460, Q660, Q1060, Q1090 User Manual

Thank you for selecting a Manitowoc Ice Machine, the dependability leader in ice making equipment and related products. With proper installation, care and maintenance, your new Manitowoc Ice Machine will provide you with many years of reliable and economical performance.

Part Number 000001759

01/07

Q Model

Ice Machines

Inst allation

Use and Care Manual

Q460/Q660/Q1060/

Q1090

We reserve the right to make product improvements at any time.

Specifications and design are subject to change without notice.

Safety Notices

As you work on this Ice Machine, be sure to pay close attention to the safety notices in this manual. Disregarding the notices may lead to serious injury and/ or damage to the ice machine.

Throughout this manual, you will see the following types of safety notices:

Procedural Notices

As you work on this Ice Machine, be sure to read the procedural notices in this manual. These notices supply helpful information which may assist you as you work.

Throughout this manual, you will see the following types of procedural notices:

NOTE: Text set off as a Note provides you with simple, but useful, extra information about the procedure you are performing.

Read These Before Proceeding:

Warning

PERSONNEL INJURY POTENTIAL

Do not operate equipment that has been misused, abused, neglected, damaged, or altered/modified from that of original manufactured specifications.

Warning

Text in a Warning box alerts you to a potential personal injury situation. Be sure to read the Warning statement before proceeding, and work carefully.

Caution

Text in a Caution box alerts you to a situation in which you could damage the ice machine. Be sure to read the Caution statement before proceeding, and work carefully.

Important

Text in an Important box provides you with information that may help you perform a procedure more efficiently. Disregarding this information will not cause damage or injury, but it may slow you down as you work.

Caution

Proper installation, care and maintenance are essential for maximum ice production and troublefree operation of your Manitowoc Ice Machine. Read and understand this manual. It contains valuable care and maintenance information. If you enounter problems not covered by this manual, do not proceed, contact Manitowoc Ice, Inc. We will be happy to provide assistance.

Important

Routine adjustments and maintenance procedures outlined in this manual are not covered by the warranty.

Table of Contents (continued)

Part Number 000001759

Section 1 General Information

Model Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

How to Read a Model Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Ice Cube Sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Bin Caster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Stacking Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Ice Bagger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Ice Deflector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

GSI200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Arctic Pure Water Filter System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Aucs“ Automatic Cleaning System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Dispenser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Manitowoc Cleaner and Sanitizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Model/Serial Number Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Warranty Coverage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Labor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Exclusions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Authorized Warranty Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Section 2 Installation Instructions

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Ice Machine Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Ice Storage Bin Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Remote Condenser Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

JC1096 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Location of Ice Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Stacking Two Ice Machines on a Single Storage Bin . . . . . . . . . . . . . . . . . . . . 2-3

Ice Machine Heat of Rejection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Leveling the Ice Storage Bin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Air-Cooled Baffle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Table of Contents (continued)

2 Part Number 000001759

Electrical Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Fuse/Circuit Breaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Ground Fault Circuit Interupter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Minimum Circuit Ampacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Self Contained Ice Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Remote Electrical Wiring Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Remote Ice Machine With Single Circuit Model Condenser 230/1/50 . . . . . 2-6

Water Supply and Drain Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

Water Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

Water Inlet Lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

Drain Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

Water Supply and Drain Line Sizing/Connections . . . . . . . . . . . . . . . . . . . . 2-8

Remote Condenser/Line Set Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

Remote Ice Machine Refrigerant Charge . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10

Guidelines for Routing Line Sets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10

Calculating Remote Condenser Installation Distances . . . . . . . . . . . . . . . . . 2-11

Lengthening or Reducing Line Set Lengths . . . . . . . . . . . . . . . . . . . . . . . . . 2-12

Connecting A Line Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12

Remote Receiver Service Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12

Installation Check List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14

Additional Checks for Remote Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14

Section 3 Ice Machine Operation

Component Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Self-Contained Air-Cooled

Q460/Q660/Q1060 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Initial Start-Up or Start-Up After Automatic Shut-Off . . . . . . . . . . . . . . . . . . 3-2

Freeze Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Harvest Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Automatic Shut-Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Remote

Q1060 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Initial Start-Up or Start-Up After Automatic Shut-Off . . . . . . . . . . . . . . . . . . 3-4

Freeze Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Harvest Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Automatic Shut-Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Operational Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

Water Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

Ice Thickness Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

Harvest Sequence Water Purge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

Table of Contents (continued)

Part Number 000001759

Section 4 Maintenance

Interior Cleaning and Sanitizing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Cleaning Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Additional Component Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

Ice Machine Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

Exterior Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

Cleaning the Condenser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

AlphaSan“ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

Removal from Service/Winterization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

Self-Contained Air-Cooled Ice Machines . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

Remote Ice Machines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

Section 5 Before Calling for Service

Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

Safety Limit Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

Table of Contents (continued)

4 Part Number 000001759

Blank Page

Section 1 General Information

Part Number 000001759 1-1

Section 1

General Information

Model Numbers

This manual covers the following models:

How to Read a Model Number

Ice Cube Sizes

Self-Contained Air-Cooled Remote

QD0462A QY0464A

N/A

QD0662A QY0664A

N/A

QD1062A QY1064A

QD1069N QY1069N QD1092N

QY1092N QR1090N

Warning

PERSONAL INJURY POTENTIAL

Do not operate equipment that has been misused, abused, neglected, damaged, or altered/modified from that of original manufactured specifications.

Dice

7/8" x 7/8" x 7/8"

2.22 x 2.22 x 2.22 cm

Half Dice

3/8" x 1-1/8" x 7/8"

0.95 x 2.86 x 2.22 cm

Q D 0462 A

ICE MACHINE

MODEL

ICE CUBE SIZE

D DICE Y HALF DICE

# CUBE SIZE

2 DICE 4 HALF-DICE

CON DENSER TYP

AIR-COOLED AIR-COOLED

A SELF-CONTAINED AIR-COOLED N REMOTE AIR-COOLED

9 REMOTE

AIR-COOLED

CON DENSER TYPE

ICE MACHINE

SERIES

General Information Section 1

1-2 Part Number 000001759

Accessories

BIN CASTER

Replaces standard legs.

STACKING KIT

As your business grows and your ice needs increase, Manitowoc stack-on capability can double your daily ice production without using additional floor space.

ICE BAGGER

Maximize profits from bagged ice sales with this convenient accessory. This sturdy unit rests on the bin door frame, and adapts for left or right side filling.

ICE DEFLECTOR

GSI200

This accessory releases chlorine dioxide on a controlled basis to inhibit the growth of bacteria and slime.

ARCTIC PURE WATER FILTER SYSTEM

Engineered specifically for Manitowoc ice machines, This water filter is an efficient, dependable, and affordable method of inhibiting scale formation, filtering sediment, and removing chlorine taste and odor.

AUCS® AUTOMATIC CLEANING SYSTEM

This accessory reduces equipment cleaning expense. The AuCS

accessory monitors ice making cycles and

initiates cleaning procedures automatically.

DISPENSER

A counter-top dispenser is ideal for cafeterias and many types of self-service facilities. Manitowoc auto-fill, floorstanding ice dispensers meet the strict sanitary requirements of the food service, lodging and health care industries.

MANITOWOC CLEANER AND SANITIZER

Manitowoc Ice Machine Cleaner and Sanitizer are available in convenient 473 ml and 3.78 l bottles. These are the only cleaner and sanitizer approved for use with Manitowoc products.

Warning

All Manitowoc ice machines require the ice storage (bin, dispenser, etc.) to incorporate an ice deflector.

Prior to using a non-Manitowoc ice storage system with Manitowoc ice machines, contact the manufacturer to assure their ice deflector is compatible with Manitowoc ice machines.

Cleaner Part Number Sanitizer Part Number

473 ml 94-0456-3 473 ml 94-0565-3

3.78 l 94-0580-3 3.78 l 94-0581-3

Section 1 General Information

Part Number 000001759 1-3

Model/Serial Number Location

Record the model and serial number of your ice machine and bin or dispenser in the space provided below. These numbers are required when requesting information from your local Manitowoc distributor, or Manitowoc Ice, Inc.

The model and serial number are listed on the OWNER WARRANTY REGISTRATION CARD. They are also listed on the MODEL/SERIAL NUMBER DECAL affixed to the ice machine, remote condenser and storage bin.

Model/Serial Number Location

Ice Machine Bin or Dispenser Remote Condenser AuCS Accessory

Model Number

Serial Number

SV1600

Model/Serial Plate

Ice Machine

General Information Section 1

1-4 Part Number 000001759

Warranty

GENERAL

The packet containing this manual also includes warranty information. Warranty coverage begins the day your new ice machine is installed.

If you do not return your OWNER WARRANTY REGISTRATION CARD, Manitowoc will use the date of factory shipping as the first day of warranty coverage for your new ice machine.

Warranty Coverage

GENERAL

The following Warranty outline is provided for your convenience. For a detailed explanation, read the warranty bond shipped with each product.

Contact your local Manitowoc Representative or Manitowoc Ice, Inc. if you need further warranty information.

PARTS

1. Manitowoc warrants the ice machine against defects in materials and workmanship, under normal use and service for three (3) years from the date of original installation.

2. The evaporator and compressor are covered by an additional two (2) year (five years total) warranty beginning on the date of the original installation.

LABOR

1. Labor required to repair or replace defective components is covered for three (3) years from the date of original installation.

2. The evaporator is covered by an additional two (2) year (five years total) labor warranty beginning on the date of the original installation.

EXCLUSIONS

The following items are not included in the ice machine’s warranty coverage:

1. Normal maintenance, adjustments and cleaning.

2. Repairs due to unauthorized modifications to the ice machine or use of non-standard parts without prior written approval from Manitowoc Ice, Inc.

3. Damage caused by improper installation of the ice machine, electrical supply, water supply or drainage, or damage caused by floods, storms, or other acts of God.

4. Premium labor rates due to holidays, overtime,

etc.; travel time; flat rate service call charges; mileage and miscellaneous tools and material charges not listed on the payment schedule. Additional labor charges resulting from the inaccessibility of equipment are also excluded.

5. Parts or assemblies subjected to misuse, abuse, neglect or accidents.

6. Damage or problems caused by installation, cleaning and/or maintenance procedures inconsistent with the technical instructions provided in this manual.

7. This product is intended exclusively for commercial application. No warranty is extended for personal, family, or household purposes.

AUTHORIZED WARRANTY SERVICE

To comply with the provisions of the warranty, a refrigeration service company qualified and authorized by a Manitowoc distributor, or a Contracted Service Representative must perform the warranty repair.

Normal maintenance, adjustments and cleaning as outlined in this manual are not covered by the warranty. If you have followed the procedures listed on page 5-1 of this manual, and the ice machine still does not perform properly, call your authorized service company.

Important

Complete and mail the OWNER WARRANTY REGISTRATION CARD as soon as possible to validate the installation date.

Important

This product is intended exclusively for commercial application. No warranty is extended for personal, family, or household purposes.

Section 2 Installation Instructions

Part Number 000001759 2-1

Section 2

Installation Instructions

General

Refer to Installation Manual for complete installation guidelines.

Ice Machine Dimensions

Ice Storage Bin Dimensions

S170/S400/S570/S970/C570/C950

Important

Failure to follow these installation guidelines may affect warranty coverage.

Ice Machine Dimension H

Q460 54.6 cm Q660 54.6 cm

Q1060 Q1090 74.9 cm

AIR-COOLED

SV1613

Bin Model Dimension A Dimension B

S170 74.9 cm 48.5 cm

S400 86.3 cm 81.3 cm S570 C570 86.3 cm 111.7 cm S970 C970 86.3 cm 111.7 cm

Warning

All Manitowoc ice machines require the ice storage system (bin, dispenser, etc.) to incorporate an ice deflector. Prior to using a Manitowoc ice machine on a nonManitowoc ice storage system, contact the manufacturer to assure their ice deflector is compatible with Manitowoc ice machines.

SV1609

Installation Instructions Section 2

2-2 Part Number 000001759

Remote Condenser Dimensions JC1096

SV1297

Section 2 Installation Instructions

Part Number 000001759 2-3

Location of Ice Machine

The location selected for the ice machine must meet the following criteria. If any of these criteria are not met, select another location.

• The location must be free of airborne and other contaminants.

• The air temperature must be at least 1.6°C, but must not exceed 43.4°C.

• The location must not be near heat-generating equipment or in direct sunlight.

• The location must not obstruct air flow through or around the ice machine. Refer to the chart below for clearance requirements.

Stacking Two Ice Machines on a Single Storage Bin

A stacking kit is required for stacking two ice machines. Installation instructions are supplied with the stacking kit.

Ice Machine Heat of Rejection

Ice machines, like other refrigeration equipment, reject heat through the condenser. It is helpful to know the amount of heat rejected by the ice machine when sizing air conditioning equipment where self-contained aircooled ice machines are installed.

This information is also necessary when evaluating the benefits of using water-cooled or remote condensers to reduce air conditioning loads. The amount of heat added to an air conditioned environment by an ice machine using a water-cooled or remote condenser is negligible.

Knowing the amount of heat rejected is also important when sizing a cooling tower for a water-cooled condenser. Use the peak figure for sizing the cooling tower.

Q Models

Self-Contained

Air-Cooled

Remote

Top/Sides 203 mm 203 mm

Back 127 mm 127 mm

There is no minimum clearance required. This value is

recommended for efficient operation and servicing only.

Caution

The ice machine must be protected if it will be subjected to temperatures below 0° C. Failure caused by exposure to freezing temperatures is not covered by the warranty. See “Removal from Service/Winterization”.

Q460/Q660/

Q1060

Stacked

Self-Contained

Air-Cooled

Stacked Remote

Top/Sides 406 mm 127 mm

Back 127 mm 127 mm

Series

Ice Machine

Heat of Rejection

B.T.U./Hour

Air Conditioning

Because the heat of rejection varies during the ice making cycle,

the figure shown is an average.

Peak

Q460 7,000 9,600 Q660 9,000 13,900

Q1060 16,000 24,700

Installation Instructions Section 2

2-4 Part Number 000001759

Leveling the Ice Storage Bin

1. Screw the leveling legs onto the bottom of the bin.

2. Screw the foot of each leg in as far as possible.

3. Move the bin into its final position.

4. Level the bin to assure that the bin door closes and seals properly. Use a level on top of the bin. Turn each foot as necessary to level the bin.

NOTE: An optional caster assembly is available for use in place of the legs. Installation instructions are supplied with the casters.

Leveling Leg and Foot

Air-Cooled Baffle

The air-cooled baffle prevents condenser air from recirculating. To install:

1. Remove the back panel screws next to the condenser.

2. Align the mounting holes in the air baffle with the screw holes and reinstall the screws.

Air Baffle

Caution

The legs must be screwed in tightly to prevent them from bending.

SV1606

THREAD LEVELING LEG INTO BASE OF

CABINET

THREAD ‘FOOT’ IN AS

FAR AS POSSIBLE

SV1607

AIR

BAFFLE

SCREWS

Section 2 Installation Instructions

Part Number 000001759 2-5

Electrical Service

GENERAL

VOLTAGE

The maximum allowable voltage variation is ±10% of the rated voltage at ice machine start-up (when the electrical load is highest).

FUSE/CIRCUIT BREAKER

A separate fuse/circuit breaker must be provided for each ice machine. Circuit breakers must be H.A.C.R. rated.

GROUND FAULT CIRCUIT INTERUPTER

Ground Fault Circuit Interupter (GFCI/GFI) protection is a system that shuts down the electric circuit (opens it) when it senses an unexpected loss of power, presumably to ground. Manitowoc Ice, Inc. does not recommend the use of a GFCI/GFI circuit protection with our equipment. If code requires the use of a GFCI/GFI then you must follow the local code. The circuit must be dedicated, sized properly and there must be a panel GFCI/GFI breaker. We do not recommend GFCI/GFI outlets as they are known for more intermittent nuisance trips than panel breakers.

MINIMUM CIRCUIT AMPACITY

The minimum circuit ampacity is used to help select the wire size of the electrical supply. (Minimum circuit ampacity is not the ice machine’s running amp load.)

The wire size (or gauge) is also dependent upon location, materials used, length of run, etc., so it must be determined by a qualified electrician.

Warning

All wiring must conform to local and national codes.

Warning

The ice machine must be grounded in accordance with national and local electrical codes.

Installation Instructions Section 2

2-6 Part Number 000001759

Q460 - Q1090 Ice Machines

SELF CONTAINED ICE MACHINE 230/1/50

Remote Electrical Wiring Connections

REMOTE ICE MACHINE WITH SINGLE CIRCUIT MODEL CONDENSER 230/1/50

Ice

Machine

Voltag e Phase

Cycle

Air-Cooled Remote

Maximum Fuse/

Circuit Breaker

Minimum Circuit

Amps

Maximum Fuse/

Circuit Breaker

Minimum Circuit

Amps Q460 230/1/50 15 6.7 N/A N/A Q660 230/1/50 15 9.2 N/A N/A

Q1060 230/1/50 20 15.6 20 14.6 Q1090 230/1/50 N/A N/A 20 14.6

Warning

These diagrams are not intended to show proper wire routing, wire sizing, disconnects, etc., only the correct wire connections.All electrical work, including wire routing and grounding, must conform to local and national electrical codes.

GROUND

ICE MACHINE

CONNECTIONS

TO SEPARATE

FUSE/BREAKER.

DISCONNECT ALL

POLES.

SV1191

SINGLE CIRCUIT

REMOTE

CONDENSER

NOTE: FAN MOTOR IS 220-240V

ICE

MACHINE

GROUND

TO SEPARATE

FUSE/BREAKER

(220-240).

DISCONNECT ALL

POLES.

SV1256

Section 2 Installation Instructions

Part Number 000001759 2-7

Water Supply and Drain Requirements

WATER SUPPLY

Local water conditions may require treatment of the water to inhibit scale formation, filter sediment, and remove chlorine odor and taste.

WATER INLET LINES

Follow these guidelines to install water inlet lines:

• Do not connect the ice machine to a hot water supply. Be sure all hot water restrictors installed for other equipment are working. (Check valves on sink faucets, dishwashers, etc.)

• If water pressure exceeds the maximum recommended pressure, obtain a water pressure regulator from your Manitowoc distributor.

• Install a water shut-off valve for both the ice making and condenser water lines.

• Insulate water inlet lines to prevent condensation.

• Do not apply heat to water inlet valve fitting. This will damage the plastic parts.

DRAIN CONNECTIONS

Follow these guidelines when installing drain lines to prevent drain water from flowing back into the ice machine and storage bin:

• Drain lines must have a 2.5 cm drop per meter of run and must not create traps.

• The floor drain must be large enough to accommodate drainage from all drains.

• Run separate bin and ice machine drain lines. Insulate them to prevent condensation.

• Vent the bin and ice machine drain to the atmosphere. Do not vent the condenser drain on water-cooled models.

Important

If you are installing a Manitowoc water filter system, refer to the Installation Instructions supplied with the filter system for ice making water inlet connections.

Installation Instructions Section 2

2-8 Part Number 000001759

WATER SUPPLY AND DRAIN LINE SIZING/CONNECTIONS

Typical Water Supply Drain Installation

Caution

Plumbing must conform to state and local codes.

Location Water Temperature Water Pressure Ice Machine Fitting

Tubing Size Up to Ice

Machine Fitting

Ice Making Water Inlet

0.6°C Min. 32°C Max.

1.38 bar Min.

5.52 bar Max.

3/8" Female Pipe Thread

9.5 mm minimum inside diameter

Ice Making

Water Drain

--- ---

1/2" Female Pipe Thread

12.7 mm minimum inside diameter

Bin Drain --- ---

3/4" Female Pipe Thread

19 mm minimum

inside diameter

SV1626

Section 2 Installation Instructions

Part Number 000001759 2-9

Remote Condenser/Line Set Installation

REMOTE ICE MACHINE REFRIGERANT CHARGE

Each remote ice machine ships from the factory with a refrigerant charge appropriate for installation with line sets of up to 30 m. .

Ice Machine

Remote Single

Circuit

Condenser

Line Set*

Q1060 Q1090 JC1096

RT-20-R404A RT-35-R404A RT-50-R404A

*Line Set Discharge Line Liquid Line

RT 12.7 mm 7.9 mm

Air Temperature Around the Condenser

Minimum Maximum

-29°C 49°C

Warning

Potential Personal Injury Situation

The ice machine contains refrigerant charge. Installation of the line sets must be performed by a properly trained and

certified refrigeration technician aware of the dangers of

dealing with refrigerant charged equipment.

Ice Machine

Nameplate Charge

(Charge Shipped in Ice Machine)

Refrigerant to be Added for

15 m - 30 m Line Sets

Maximum System Charge

(Never Exceed) Q1090 Q1060

4.4 kg None 4.4 kg

Installation Instructions Section 2

2-10 Part Number 000001759

GENERAL

Condensers must be mounted horizontally with the fan motor on top.

Remote condenser installations consist of vertical and horizontal line sets between the ice machine and the condenser. When combined, they must fit within approved specifications. The following guidelines, drawings and calculation methods must be followed to verify a proper remote condenser installation.

GUIDELINES FOR ROUTING LINE SETS

First, cut a 64 mm circular hole in the wall or roof for tubing routing. The line set end with the 90° bend will connect to the ice machine. The straight end will connect to the remote condenser.

Follow these guidelines when routing the refrigerant lines. This will help insure proper performance and service accessibility.

1. Optional - Make the service loop in the line sets (See below). This permits easy access to the ice machine for cleaning and service. Do not use hard rigid copper at this location.

2. Required - Do not form traps in the refrigeration lines (except the service loop). Refrigerant oil must be free to drain toward the ice machine or the condenser. Route excess tubing in a supported downward horizontal spiral (See below). Do not coil tubing vertically.

3. Required - Keep outdoor refrigerant line runs as short as possible.

Routing Line Sets

Caution

The 60 month compressor warranty (including the 36 month labor replacement warranty) will not apply if the remote ice machine is not installed according to specifications.

This warranty also will not apply if the refrigeration system is modified with a condenser, heat reclaim device, or other parts or assemblies not manufactured by Manitowoc Ice, Inc., unless specifically approved in writing by Manitowoc Ice, Inc.

DOWNWARD

HORIZONTAL

SPIRAL

SV1204

Section 2 Installation Instructions

Part Number 000001759 2-11

CALCULATING REMOTE CONDENSER INSTALLATION DISTANCES

Line Set Length

The maximum length is 30 m.

The ice machine compressor must have the proper oil return. The receiver is designed to hold a charge sufficient to operate the ice machine in ambient temperatures between -29°C and 49°C, with line set lengths of up to 30 m.

Line Set Rise/Drop

The maximum rise is 11 m.

The maximum drop is 4.5 m.

Calculated Line Set Distance

The maximum distance is 45 m.

Line set rises, drops, horizontal runs (or combinations of these) in excess of the stated maximums will exceed compressor start-up and design limits. This will cause poor oil return to the compressor.

Make the following calculations to make sure the line set layout is within specifications.

1. Insert the measured rise into the formula below. Multiply by 1.7 to get the calculated rise.

(Example: A condenser located 3 meters above the

ice machine has a calculated rise of 5 meters.

2. Insert the measured drop into the formula below. Multiply by 6.6 to get the calculated drop.

(Example. A condenser located 3 meters below the

ice machine has a calculated drop of 20 meters.

3. Insert the measured horizontal distance into the

formula below. No calculation is necessary.

4. Add together the calculated rise, calculated drop, and horizont al distance to get the total calculated distance. If this total exceeds 45 m, move the

condenser to a new location and perform the calculations again.

Maximum Line Set Distance Formula

Caution

If a line set has a rise followed by a drop, another rise cannot be made. Likewise, if a line set has a drop followed by a rise, another drop cannot be made.

Step 1. Measured Rise 10.7 m Maximum ______ x 1.7 = _______ Calculated Rise Step 2. Measured Drop 4.5 m Maximum ______ x 6.6 = _______ Calculated Drop Step 3. Measured Horizontal Distance 30.5 m Maximum _______ Horizontal Distance Step 4. Total Calculated Distance 45 m

Maximum

_______ Total Calculated Distance

Combination of a Rise and a

Horizontal Run

Combination of a Drop and a

Horizontal Run

Combination of a Rise, a Drop

and a Horizontal Run

SV1196 SV1195 SV1194

Installation Instructions Section 2

2-12 Part Number 000001759

LENGTHENING OR REDUCING LINE SET LENGTHS

In most cases, by routing the line set properly, shortening will not be necessary. When shortening or lengthening is required, do so before connecting the line set to the ice machine or the remote condenser. This prevents the loss of refrigerant in the ice machine or condenser.

The quick connect fittings on the line sets are equipped with Schraeder valves. Use these valves to recover any vapor charge from the line set. When lengthening or shortening lines, follow good refrigeration practices and insulate new tubing. Do not change the tube sizes. Evacuate the lines and place about 143g of vapor refrigerant charge in each line.

CONNECTING A LINE SET

1. Remove the dust caps from the line set, condenser and ice machine.

2. Apply refrigeration oil to the threads on the quick disconnect couplers before connecting them to the condenser.

3. Carefully thread the female fitting to the condenser or ice machine by hand.

4. Tighten the couplings with a wrench until they bottom out.

5. Turn an additional 1/4 turn to ensure proper brassto-brass seating. Torque to the following specifications:

6. Check all fittings for leaks.

REMOTE RECEIVER SERVICE VALVE

The receiver service valve is closed during shipment. Open the valve prior to starting the ice machine.

1. Remove the top and left side panels.

2. Remove the receiver service valve cap.

3. Backseat (open) the valve.

4. Reinstall the cap and panels.

Backseating the Receiver Service Valve

Liquid Line Discharge Line

13.5-16.2 N•m 47.5-61.0 N•m

SV1603

REMOVE FRONT, TOP, AND LEFT SIDE PANEL FOR ACCESS TO RECEIVER VALVE

TURN COUNTERCLOCKWISE TO OPEN

RECEIVER SERVICE VALVE CAP (TURN COUNTERCLOCKWISE TO REMOVE)

Section 2 Installation Instructions

Part Number 000001759 2-13

Typical Single Circuit Remote Condenser Installation

SV1615

SINGLE CIRCUIT REMOTE CONDENSER

ELECTRICAL DISCONNECT

DISCHARGE LINE

LIQUID LINE

ELECTRICAL DISCONNECT

ELECTRICAL SUPPLY

ICE MACHINE

BIN

DISCHARGE REFRIGERANT LINE

LIQUID REFRIGERANT LINE

91 cm DROP

Installation Instructions Section 2

2-14 Part Number 000001759

Installation Check List

Is the Ice Machine level?

Has all of the internal packing been removed?

Have all of the electrical and water connections

been made?

Has the supply voltage been tested and checked

against the rating on the nameplate?

Is there proper clearance around the ice machine

for air circulation?

Has the ice machine been installed where

ambient temperatures will remain in the range of

1.7° - 43°C?

Has the ice machine been installed where the

incoming water temperature will remain in the range of 0.6° - 32°C?

Is the water trough drain plug installed?

Are the ice machine and bin drains vented?

Are all electrical leads free from contact with

refrigeration lines and moving equipment?

Has the owner/operator been instructed regarding maintenance and the use of Manitowoc Cleaner and Sanitizer?

Has the owner/operator completed the warranty registration card?

Has the ice machine and bin been sanitized?

Is the toggle switch set to ice? (The toggle switch is located directly behind the front panel).

Is the ice thickness control set correctly? (Refer to Operational Checks in Section 3 of this manual to check/set the correct ice bridge thickness).

Additional Checks for Remote Models

Has the receiver service valve been opened 100%?

Does the remote condenser fan operate properly after start-up?

Has the remote condenser been located where ambient temperatures will remain in the range of

-6.6 - 49°C?

Is the line set routed properly?

Section 3 Ice Machine Operation

Part Number 000001759 3-1

Section 3

Ice Machine Operation

Component Identification

Figure 3-1. Component Identification (Typical Q460 Shown)

ICE THICKNESS

PROBE

EVAPORATOR

WATER

CURTAIN

WATER

TROUGH

ICE/OFF/CLEAN

SWITCH

WATER

PUMP

BIN SWITCH

DISTRIBUTION

TUBE

SV1604G

SV1605

HARVEST VALVE

AIR CONDENSER

REMOTE COUPLINGS

COMPRESSOR

DRAIN HOSE

WATER DUMP VALVE

WATER INLET VALVE

Ice Machine Operation Section 3

3-2 Part Number 000001759

Self-Contained Air-Cooled Q460/Q660/Q1060

INITIAL START-UP OR START-UP AFTER AUTOMATIC SHUT-OFF

1. Water Purge

Before the compressor starts, the water pump and water dump solenoid are energized for 45 seconds, to completely purge the ice machine of old water. This feature ensures that the ice making cycle starts with fresh water.

The harvest valve is also energized during water purge, although it stays on for an additional 5 seconds (50 seconds total on time) during the initial refrigeration system start-up.

2. Refrigeration System Start-Up

The compressor starts after the 45 second water purge, and it remains on throughout the entire Freeze and Harvest Sequences. The water fill valve is energized at the same time as the compressor. It remains on until the water level sensor closes for 3 continuous seconds, or until a six-minute time period has expired. The harvest valve remains on for 5 seconds during initial compressor start-up and then shuts off.

At the same time the compressor starts, the condenser fan motor (air-cooled models) is supplied with power throughout the entire Freeze and Harvest Sequences. The fan motor is wired through a fan cycle pressure control, therefore it may cycle on and off. (The compressor and condenser fan motor are wired through the contactor. As a result, anytime the contactor coil is energized, the compressor and fan motor are supplied with power.)

FREEZE SEQUENCE

3. Prechill

The compressor is on for 30 seconds prior to water flow, to prechill the evaporator.

4. Freeze

The water pump restarts after the 30 second prechill. An even flow of water is directed across the evaporator and into each cube cell, where it freezes. The water fill valve will cycle on and then off one more time to refill the water trough.

When sufficient ice has formed, the water flow (not the ice) contacts the ice thickness probe. After approximately 7 seconds of continual water contact, the harvest sequence is initiated. The ice machine cannot initiate a harvest sequence until a 6 minute freeze lock has been surpassed.

Figure 3-2. Freeze Sequence

(Typical Q460 Shown)

Section 3 Ice Machine Operation

Part Number 000001759 3-3

HARVEST SEQUENCE

5. Water Purge

The water pump continues to run, and the water dump valve energizes for 45 seconds to purge the water in the sump trough. The water fill valve energizes (turns on) and de-energizes (turns off) strictly by time. The water fill valve energizes for the last 15 seconds of the 45-second water purge. The water purge

must be at the factory setting of 45 seconds for the fill valve to energize during the last 15 seconds of the Water Purge. If set at less than 45 seconds the water fill valve does not energize during the water purge.

After the 45 second water purge, the water fill valve, water pump and dump valve de-energize. The harvest valve also opens at the beginning of the water purge to divert hot refrigerant gas into the evaporator.

6. Harvest

The harvest valve remains open and the refrigerant gas warms the evaporator causing the cubes to slide, as a sheet, off the evaporator and into the storage bin. The sliding sheet of cubes swings the water curtain out, opening the bin switch. The momentary opening and reclosing of the bin switch terminates the harvest sequence and returns the ice machine to the freeze sequence (Step 3 - 4.)

Figure 3-3. Harvest Sequence (Typical Q460 Shown)

AUTOMATIC SHUT-OFF

7. Automatic Shut-Off

When the storage bin is full at the end of a harvest sequence, the sheet of cubes fails to clear the water curtain and will hold it open. After the water curtain is held open for 7 seconds, the ice machine shuts off. The ice machine remains off for 3 minutes before it can automatically restart.

The ice machine remains off until enough ice has been removed from the storage bin to allow the ice to fall clear of the water curtain. As the water curtain swings back to the operating position, the bin switch re-closes and the ice machine restarts (steps 1 - 2), provided the 3 minute delay period is complete.

Figure 3-4. Automatic Shut-Off (Typical Q460

Shown)

Ice Machine Operation Section 3

3-4 Part Number 000001759

Remote Q1060/Q1090

INITIAL START-UP OR START-UP AFTER AUTOMATIC SHUT-OFF

1. Water Purge

The harvest valve and harvest pressure regulating (HPR) solenoid valves also energize during water purge, although they stay on for an additional 5 seconds (50 seconds total on time) during the initial refrigeration system start-up.

2. Refrigeration System Start-Up

The compressor and liquid line solenoid valve energize after the 45 second water purge and remain on throughout the entire Freeze and Harvest Sequences. The water fill valve is energized at the same time as the compressor. It remains on until the water level sensor closes for 3 continuous seconds, or until a six-minute time period has expired. The harvest valve and HPR solenoid valves remain on for 5 seconds during initial compressor start-up and then shut off.

The remote condenser fan motor starts at the same time the compressor starts and remains on throughout the entire Freeze and Harvest Sequences. (The compressor and condenser fan motor are wired through the contactor, therefore, anytime the contactor coil is energized, the compressor and fan motor are on.)

FREEZE SEQUENCE

3. Prechill

The compressor is on for 30 seconds prior to water flow, to prechill the evaporator.

4. Freeze

Figure 3-5. Freeze Sequence (Typical Q460 Shown)

Section 3 Ice Machine Operation

Part Number 000001759 3-5

HARVEST SEQUENCE

5. Water Purge

After the 45 second water purge, the water fill valve, water pump and dump valve de-energize. The harvest valve and HPR solenoid valve also open at the beginning of the water purge.

6. Harvest

The HPR valve and the harvest valve remain open and the refrigerant gas warms the evaporator causing the cubes to slide, as a sheet, off the evaporator and into the storage bin. The sliding sheet of cubes swings the water curtain out, opening the bin switch. The momentary opening and re-closing of the bin switch terminates the harvest sequence and returns the ice machine to the freeze sequence (Step 3 - 4.)

Figure 3-6. Harvest Sequence (Typical Q460 Shown)

AUTOMATIC SHUT-OFF

7. Automatic Shut-Off

The ice machine remains off until enough ice has been removed from the storage bin to allow the ice to drop clear of the water curtain. As the water curtain swings back to the operating position, the bin switch re-closes and the ice machine restarts (steps 1 - 2) provided the 3 minute delay period is complete.

Figure 3-7. Automatic Shut-Off (Typical Q460

Shown)

Ice Machine Operation Section 3

3-6 Part Number 000001759

Operational Checks

GENERAL

Manitowoc ice machines are factory-operated and adjusted before shipment. Normally, new installations do not require any adjustment.

To ensure proper operation, always follow the Operational Checks:

• when starting the ice machine for the first time

• after a prolonged out of service period

• after cleaning and sanitizing

NOTE: Routine adjustments and maintenance procedures are not covered by the warranty.

WATER LEVEL

The water level sensor is set to maintain the proper water level above the water pump housing. The water level is not adjustable.

If the water level is incorrect, check the water level probe for damage (probe bent, etc.). Repair or replace the probe as necessary.

Figure 3-8. Water Level Probe

ICE THICKNESS CHECK

The ice thickness probe is factory-set to maintain the ice bridge thickness at 3 mm.

NOTE: Make sure the water curtain is in place when performing this check. It prevents water from splashing out of the water trough.

1. Inspect the bridge connecting the cubes. It should be about 3 mm thick.

2. If adjustment is necessary, turn the ice thickness probe adjustment screw clockwise to increase bridge thickness, counterclockwise to decrease bridge thickness.

NOTE: Turning the adjustment 1/3 of a turn will change the ice thickness about 1.5 mm.

Figure 3-9. Ice Thickness Check

3. Make sure the ice thickness probe wire and the bracket do not restrict movement of the probe.

SV1616

SV1208

ADJUSTING SCREW

3 mm ICE BRIDGE THICKNESS

Section 3 Ice Machine Operation

Part Number 000001759 3-7

HARVEST SEQUENCE WATER PURGE

The harvest sequence water purge adjustment may be used when the ice machine is hooked up to special water systems, such as a de-ionized water treatment system.

• The harvest sequence water purge may be set to 15, 30, or 45 seconds.

• During the harvest sequence water purge, the water fill valve energizes and de-energizes by time. The water purge must be at the factory setting of 45 seconds for the water fill valve to energize during the last 15 seconds of the water purge. If it is set to less than 45 seconds, the water fill valve will not energize during the water purge.

Figure 3-10. Water Purge Adjustment

Important

The harvest sequence water purge is factory-set at 45 seconds. A shorter purge setting (with standard water supplies such as city water) is not recommended. This can increase water system cleaning and sanitizing requirements.

SV1617

CONTROL BOARD

WATER PURGE ADJUSTMENT

Ice Machine Operation Section 3

3-8 Part Number 000001759

THIS PAGE INTENTIONALLY LEFT BLANK

Section 4 Maintenance

Part Number 000001759 4-1

Section 4

Maintenance

Interior Cleaning and Sanitizing

GENERAL

Clean and sanitize the ice machine every six months for efficient operation. If the ice machine requires more frequent cleaning and sanitizing, consult a qualified service company to test the water quality and recommend appropriate water treatment. The ice machine must be taken apart for cleaning and sanitizing.

CLEANING PROCEDURE

Ice machine cleaner is used to remove lime scale and mineral deposits. Ice machine sanitizer disinfects and removes algae and slime.

Step 1 Set the toggle switch to the OFF position after

ice falls from the evaporator at the end of a Harvest cycle. Or, set the switch to the OFF position and allow the ice to melt off the evaporator.

Step 2 Remove top cover. This will allow easiest

access for adding cleaning and sanitizing solutions.

Step 3 Remove all ice from the bin.

Step 4 Place the toggle switch in the CLEAN position.

The water will flow through the water dump valve and down the drain. Wait until the water trough refills and water flows over the evaporator, then add the proper amount of ice machine cleaner.

Step 5 Wait until the clean cycle is complete

(approximately 30 minutes) then place the toggle switch in the OFF position and disconnect power to the ice machine (and dispenser when used).

Step 6 Remove parts for cleaning and hand sanitizing.

A. Remove the water curtain

• Gently flex the curtain in the center and remove it from the right side.

• Slide the left pin out.

Water Curtain Removal

Caution

Use only Manitowoc approved Ice Machine Cleaner and Sanitizer for this application (Manitowoc Cleaner part number 94-0546-3 and Manitowoc Sanitizer part number 94-0565-3). It is a violation of Federal law to use these solutions in a manner inconsistent with their labeling. Read and understand all labels printed on bottles before use.

Caution

Do not mix Cleaner and Sanitizer solutions together. It is a violation of Federal law to use these solutions in a manner inconsistent with their labeling.

Warning

Wear rubber gloves and safety goggles (and/or face shield) when handling ice machine Cleaner or Sanitizer.

Caution

Never use anything to force ice from the evaporator. Damage may result.

Model Amount of Cleaner

Q460/Q660 150 ml

Q1060/Q1090 265 ml

Warning

Disconnect the electric power to the ice machine at the electric service switch box..

Maintenance Section 4

4-2 Part Number 000001759

B. Remove the ice thickness probe

• Compress the hinge pin on the top of the ice thickness probe.

Ice Thickness Probe Removal

• Pivot the ice thickness probe to disengage one pin then the other. The ice thickness probe can be cleaned and sanitized at this point without complete removal. If complete removal is desired, disconnect the ice thickness control wiring from the control board.

C. Remove the water distribution tube

• Disconnect the water hose from the distribution tube.

Water Distribution Tube Removal

• Loosen the two thumbscrews which secure the distribution tube.

• Lift the right side of the distribution tube up off the locating pin, then slide it back and to the right.

Disassemble for cleaning/sanitizing.

• Twist both of the inner tube ends until the tabs line up with the keyways.

• Pull the inner tube ends outward.

Water Distribution Tube Disassembly

SV3135

COMPRESS HINGE PIN TO REMOVE

Caution

Do not force this removal. Be sure the locating pin is clear of the hole before sliding the distribution tube out.

SV1620

1. LIFT UP

2. SLIDE BACK

3. SLIDE TO RIGHT

DISTRIBUTION TUBE

THUMBSCREW

LOCATING PIN

SV1211

INNER TUBE

TAB

KEYWAY

INNER TUBE

Section 4 Maintenance

Part Number 000001759 4-3

D. Remove the white vinyl water distribution

tubing

• Disconnect the hose from the water pump outlet.

• Disconnect the hose from the dump valve (the tubing pressure fits - pull tubing into evaporator compartment).

E. Remove the water pump

• Disconnect the water pump power cord.

Water Pump Removal

• Loosen the screws securing the pump mounting bracket to the bulkhead.

• Lift the pump and bracket assembly off the screws.

F. Remove the water level probe

• Loosen the screw that holds the water level probe in place. The probe can easily be cleaned and sanitized at this point without proceeding to step 2.

• If complete removal is required, disconnect the wire lead from the control board inside the electrical control box.

Water Level Probe Removal

Step 7 Mix a solution of cleaner and warm water.

Depending upon the amount of mineral buildup, a larger quantity of solution may be required. Use the ratio in the table below to mix enough solution to thoroughly clean all parts.

Step 8 Use 1/2 of the cleaner/water mixture to clean all

components. The cleaner solution will foam when it contacts lime scale and mineral deposits; once the foaming stops use a soft-bristle nylon brush, sponge or cloth (NOT a wire brush) to carefully clean the parts. Soak parts for 5 minutes (15 - 20 minutes for heavily scaled parts). Rinse all components with clean water.

SV1618

POWER CORD

WATER PUMP

LOOSEN SCREWS

DO NOT SOAK

WATER PUMP

MOTOR IN

CLEANER OR

SANITIZER

SOLUTIONS

Solution Type Water Mixed With

Cleaner 4 l 500 ml cleaner

SCREW

WATER LEVEL PROBE

SV1621

WATER TROUGH

WIRE LEAD

ICE MACHINE SIDE PANEL

Maintenance Section 4

4-4 Part Number 000001759

Step 9 While components are soaking, use 1/2 of the

cleaner/water solution to clean all foodzone surfaces of the ice machine and bin (or dispenser). Use a nylon brush or cloth to thoroughly clean the following ice machine areas:

• Side walls

• Base (bottom of the water trough)

• Interior of the water trough

• Evaporator cells and evaporator plastic parts including top, bottom, and sides

• Bin or dispenser

• Ice machine top cover

Remove water trough drain plug and rinse all areas thoroughly with clean water. Reinstall water trough drain plug.

Step 10 Mix a solution of sanitizer and warm water.

Step 11 Use 1/2 of the sanitizer/water solution to

sanitize all removed components. Use a cloth or sponge to liberally apply the solution to all surfaces of the removed parts or soak the removed parts in the sanitizer/water solution. Do not rinse parts after sanitizing.

Step 12 Use 1/2 of the sanitizer/water solution to

sanitize all foodzone surfaces of the ice machine and bin (or dispenser). Use a cloth or sponge to liberally apply the solution. Wipe all surfaces twice to ensure complete coverage with sanitizer solution. When sanitizing, pay particular attention to the following areas:

• Side walls

• Base (bottom of the water trough)

• Interior of water trough

• Evaporator cells and evaporator plastic parts including top, bottom and sides

• Bin or dispenser

• Ice machine top cover

Do not rinse the sanitized areas. Remove the water trough drain plug and wipe with solution. When the sanitizer solution has drained from the trough, reinstall the water trough drain plug.

Step 13 Replace all removed components.

Step 14 Reapply power to the ice machine and place

the toggle switch in the CLEAN position.

Step 15 Wait about two minutes or until water starts to

flow over the evaporator. Add the proper amount of Manitowoc Ice Machine Sanitizer to the water trough by pouring between the water curtain and evaporator.

Solution Type Water Mixed With

Sanitizer 23 l 120 ml sanitizer

Clean/sanitize top, bottom and sides of evaporator.

Wipe bottom lip of evaporator with a sponge or cloth

soaked in cleaner

and then sanitizer solution.

Model Amount of Sanitizer

Q460 Q660 90 ml

Q1060 Q1090 210 ml

Section 4 Maintenance

Part Number 000001759 4-5

Step 16 The ice machine will stop after the sanitize

cycle (approximately 30 minutes). Place the toggle switch in the OFF position and disconnect power to the ice machine.

Step 17 Repeat step 6 for hand sanitizing.

Step 18 Mix a solution of sanitizer and warm water.

Step 19 Use 1/2 of the sanitizer/water solution to

Step 20 Use 1/2 of the sanitizer/water solution to

sanitize all foodzone surfaces of the ice machine and bin (or dispenser). Use a cloth or sponge to liberally apply the solution. When sanitizing, pay particular attention to the following areas:

• Side walls

• Base (bottom of the water trough)

• Interior of water trough

• Evaporator cells and evaporator plastic parts including top, bottom and sides

• Bin or dispenser

• Ice machine top cover

Do not rinse the sanitized areas. Remove the water trough drain plug and wipe with solution. When the sanitizer solution has drained from the trough, reinstall the water trough drain plug.

Step 21 Install the removed parts, restore power and

place the toggle switch in the ICE position.

Warning

Disconnect the electric power to the ice machine at the electric service switch box..

Solution Type Water Mixed With

Sanitizer 23 l 120 ml sanitizer

Maintenance Section 4

4-6 Part Number 000001759

ADDITIONAL COMPONENT REMOVAL

The following components may be removed for easier access in some installations or they may need to be removed and cleaned to correct an operational problem.

Water Inlet Valve

The water inlet valve normally does not require removal for cleaning. Refer to Section 5 for a list of causes for “No Water Entering Water Trough” or “Water Overflows Water Trough.

1. When the ice machine is off, the water inlet valve must completely stop water flow into the machine.

2. When the ice machine is on, the water inlet valve must allow the proper water flow through it. Set the toggle switch to ON. Watch for water flow into the ice machine. If the water flow is slow or only trickles into the ice machine, refer to Section 5.

Follow the procedure below to remove the water inlet valve.

1. Remove the 1/4” hex head screws.

2. Remove, clean, and install the filter screen.

Water Dump Valve

The water dump valve normally does not require removal for cleaning. To determine if removal is necessary:

1. Set the toggle switch to ICE.

2. Verify the water trough fills with water at the beginning of the freeze cycle.

3. While the ice machine is in the freeze mode, check the water trough to determine if the dump valve is leaking. If there is no or little water in the water trough (during the freeze cycle) the dump valve is leaking.

A. If the dump valve is leaking, remove,

disassemble and clean it.

B. If the dump valve is not leaking, do not remove

it. Instead, follow the “Ice Machine Cleaning Procedure”.

Follow the procedure below to remove the dump valve.

1. Leaving the wires attached, twist coil and rotate it counter-clockwise1/4 turn.

2. Lift the coil assembly off the valve body.

3. Remove the spring, plunger, and nylon gasket from the valve body.

NOTE: At this point, the water dump valve can easily be cleaned. If complete removal is desired, continue with step 4.

NOTE: During cleaning, do not stretch or damage the spring.

4. Remove the tubing from the dump valve by twisting the clamps off.

5. Twist the valve body to remove from mounting bracket.

Warning

Disconnect the electric power to the ice machine and dispenser at the electric service switch box and turn off the water supply before proceeding.

FILTER ACCESS SCREWS

WATER INLET VALVE

FILTER SCREEN LOCATION

Warning

Disconnect the electric power to the ice machine at the electric service switch box and turn off the water supply before proceeding.

Section 4 Maintenance

Part Number 000001759 4-7

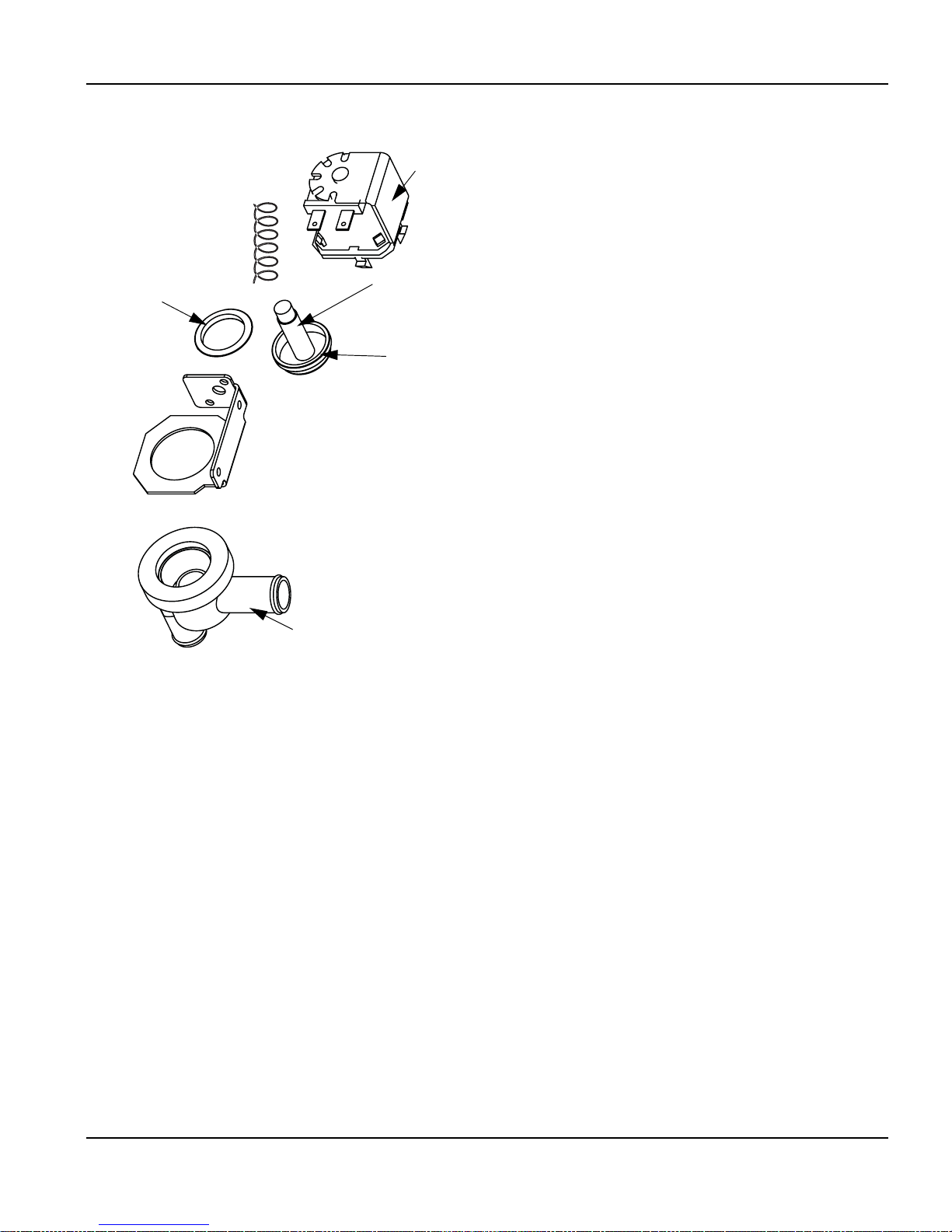

Dump Valve Disassembly

SPRING

PLUNGER

DIAPHRAM

VALVE BODY

COIL

MOUNTING BRACKET

NYLON GASKET

Maintenance Section 4

4-8 Part Number 000001759

Ice Machine Inspection

Check all water fittings and lines for leaks. Also, make sure the refrigeration tubing is not rubbing or vibrating against other tubing, panels, etc.

Do not put anything (boxes, etc.) on the sides or back of the ice machine. There must be adequate airflow through and around the ice machine to maximize ice production and ensure long component life.

Exterior Cleaning

Clean the area around the ice machine as often as necessary to maintain cleanliness and efficient operation. Use cleaners designed for use with stainless steel products.

Sponge any dust and dirt off the outside of the ice machine with mild soap and water. Wipe dry with a clean, soft cloth.

Heavy stains should be removed with stainless steel wool. Never use plain steel wool or abrasive pads. They will scratch the panels.

Cleaning the Condenser

GENERAL

A dirty condenser restricts airflow, resulting in excessively high operating temperatures. This reduces ice production and shortens component life. Clean the condenser at least every six months. Follow the steps below.

1. The washable aluminum filter on self-contained ice machines is designed to catch dust dirt lint and grease. Clean the filter with a mild soap and water.

2. Clean the outside of the condenser with a soft brush or a vacuum with a brush attachment. Be careful not to bend the condenser fins.

3. Shine a flashlight through the condenser to check for dirt between the fins. If dirt remains:

A. Blow compressed air through the condenser fins

from the inside. Be careful not to bend the fan blades.

B. Use a commercial condenser coil cleaner.

Follow the directions and cautions supplied with the cleaner.

Warning

Disconnect electric power to the ice machine head section and the remote condensing unit at the electric service switches before cleaning the condenser.

Warning

The condenser fins are sharp. Use care when cleaning them.

Section 4 Maintenance

Part Number 000001759 4-9

4. Straighten any bent condenser fins with a fin comb.

Straighten Bent Condenser Fins

5. Carefully wipe off the fan blades and motor with a soft cloth. Do not bend the fan blades. If the fan blades are excessively dirty, wash with warm, soapy water and rinse thoroughly.

AlphaSan

The goal of AlphaSan® is to keep the plastic surfaces of an ice machine cleaner, by reducing or delaying the formation of bio-film. The active ingredient in AlphaSan

is the element silver in the form of silver ions (Ag+). AlphaSan

slowly releases silver ions via an ion

exchange mechanism. When AlphaSan

is compounded directly into a plastic part, a controlled release of silver ions from the surface is regulated to maintain an effective concentration at or near the surface of the plastic ice machine part. AlphaSan’s

unique ability to effectively control the release of silver not only protects against undesired discoloration of the plastic, but also will last the life of the plastic part. Although AlphaSan

helps prevent bio-film build up it does not eliminate the need for periodic cleaning and maintenance. AlphaSan

has no adverse effect on the

taste of the ice or beverage.

Caution

If you are cleaning the condenser fan blades with water, cover the fan motor to prevent water damage and disconnect electrical power.

SV1515

FIN

COMBS

CONDENSER

“COMB” DOWN

ONLY

Maintenance Section 4

4-10 Part Number 000001759

Removal from Service/Winterization

GENERAL

Special precautions must be taken if the ice machine is to be removed from service for an extended period of time or exposed to ambient temperatures of 0°C or below.

Follow the applicable procedure below.

SELF-CONTAINED AIR-COOLED ICE MACHINES

1. Disconnect the electric power at the circuit breaker or the electric service switch.

2. Turn off the water supply.

3. Remove the water from the water trough.

4. Disconnect and drain the incoming ice-making water line at the rear of the ice machine.

5. Energize the ice machine and wait one minute for the water inlet valve to open.

6. Blow compressed air in both the incoming water and the drain openings in the rear of the ice machine until no more water comes out of the inlet water lines or the drain.

7. Make sure water is not trapped in any of the water lines, drain lines, distribution tubes, etc.

REMOTE ICE MACHINES

1. Move the ICE/OFF/CLEAN switch to OFF.

2. “Frontseat” (shut off) the receiver service valves. Hang a tag on the switch as a reminder to open the valves before restarting.

3. Perform steps 1-6 under “Self-Contained Air-Cooled Ice Machines.”

Caution

If water is allowed to remain in the ice machine in freezing temperatures, severe damage to some components could result. Damage of this nature is not covered by the warranty.

Section 5 Before Calling for Service

Part Number 000001759 5-1

Section 5

Before Calling for Service

Checklist

If a problem arises during operation of your ice machine, follow the checklist below before calling service. Routine adjustments and maintenance procedures are not covered by the warranty.

Problem Possible Cause To Correct

Ice machine does not operate. No electrical power to the ice machine

and/or condensing unit.

Replace the fuse/reset the breaker/turn

on the main switch. High pressure cutout tripping. Clean condenser coil. (See Section 4) ICE/OFF/CLEAN toggle switch set

improperly.

Move the toggle switch to the ICE

position. Water curtain stuck open. Water curtain must be installed and

swinging freely. (See Section 4) Remote receiver service valve is closed. Open the valve (See Section 2)

Ice machine stops, and can be restarted by moving the toggle switch to OFF and back to ICE.

Safety limit feature stopping the ice machine.

Refer to “Safety Limit Feature” on the

next page.

Ice machine does not release ice or is slow to harvest.

Ice machine is dirty. Clean and sanitize the ice machine.

(See Section 4) Ice machine is not level. Level the ice machine. (See Section 2) Low air temperature around ice machine

head section.

Air temperature must be at least 1.6°C.

Fan cycling control does not de-energize condenser fan motor.

Verify pressure is below cut-out setpoint,

replace fan cycling control.

Ice machine does not cycle into harvest mode.

The six-minute freeze time lock-in has not expired yet.

Wait for the freeze lock-in to expire.

Ice thickness probe is dirty. Clean and sanitize the ice machine.

(See Section 4) Ice thickness probe is disconnected. Connect the wire. Ice thickness probe is out of adjustment. Adjust the ice thickness probe.

(See Section 3) Uneven ice fill (thin at the top of

evaporator).

Verify sufficient water level in sump

trough. Contact a qualified service

company to check refrigeration system.

Ice quality is poor (soft or not clear). Poor incoming water quality. Contact a qualified service company to

test the quality of the incoming water and

make appropriate filter

recommendations. Water filtration is poor. Replace the filter. Ice machine is dirty. Clean and sanitize the ice machine.

(See Section 4) Water dump valve is not working. Disassemble and clean the water dump

valve. (See Section 4) Water softener is working improperly (if

applicable).

Repair the water softener.

Before Calling for Service Section 5

5-2 Part Number 000001759

Safety Limit Feature

In addition to the standard safety controls, such as the high pressure cutout, your Manitowoc ice machine features built-in safety limits which will stop the ice machine if conditions arise which could cause a major component failure.

Before calling for service, re-start the ice machine using the following procedure:

1. Move the ICE/OFF/CLEAN switch to OFF and then back to ICE.

A. If the safety limit feature has stopped the ice

machine, it will restart after a short delay. Proceed to step 2.

B. If the ice machine does not restart, see “Ice

machine does not operate” on the previous page.

2. Allow the ice machine to run to determine if the condition is recurring.

A. If the ice machine stops again, the condition has

recurred. Call for service.

B. If the ice machine continues to run, the condition

has corrected itself. Allow the ice machine to continue running.

Problem Possible Cause To Correct

Ice machine produces shallow or incomplete cubes, or the ice fill pattern on the evaporator is incomplete.

Ice thickness probe is out of adjustment. Adjust the ice thickness probe.

(See Section 4)

Water trough level is too high or too low. Check the water level probe for damage.

(See Section 3)

Water inlet valve filter screen is dirty. Remove the water inlet valve and clean

the filter screen. (See Section 4) Water filtration is poor. Replace the filter. Hot incoming water. Connect the ice machine to a cold water

supply. (See Section 2) Water inlet valve is not working. Remove the water inlet valve and clean

it.

(See Section 4) Incorrect incoming water pressure. Water pressure must be 138 - 552 kPA Ice machine head section is not level. Level the ice machine head section.

(See Section 2)

Low ice capacity. Water inlet valve filter screen is dirty. Remove the water inlet valve and clean

the filter screen. (See Section 4) Incoming water supply is shut off. Open the water service valve. Water inlet valve stuck open or leaking. Remove the water inlet valve and clean

it.

(See Section 4) The condenser is dirty. Clean the condenser. (See Section 4) High air temperature around condenser Air temperature must not exceed 43°C

Section 5 Before Calling for Service

Part Number 000001759 5-3

THIS PAGE INTENTIONALLY LEFT BLANK

Before Calling for Service Section 5

5-4 Part Number 000001759

THIS PAGE INTENTIONALLY LEFT BLANK

Manitowoc International Refrigeration Co. LTD

www.manitowoc.com.cn

Manitowoc Foodservice International S.A.S. 18 Chemin de Charbonnières F-69132 Ecully Cedex Téléphone : +33 (0)4 72 18 22 50 Fax : +33 (0)4 72 18 22 60 Site Web – www.manitowocice.com

Manitowoc Ice, Inc. 2110 South 26th Street P.O. Box 1720 Manitowoc, WI 54221-1720 Phone: (920) 682-0161 Service Fax: (920) 683-7585 Web Site - www.manitowocice.com

Manitowoc (China) International Refrigeration Company, LTD No. 151 Jiam Ye Road Hangzhou Hi-Tech Industry Development Zone (Bin Jiang) Hangzhou, Zhejiang 310052 P.R. China Telephone: 86-571-86888688 Service Fax: 86-571-86622707 Web Site – www.manitowoc.com.cn
