M & H SERIES
M-15, 45, 90,150,200 & H-265
INSTALLATION & SERVICE GUIDE
Part Number 5001192
Manitowoc Beverage Equipment
2100 Future Drive w Sellersburg, IN 47172-1868
Tel: 812.246.7000, 800.367.4233 Fax: 812.246.9922
www.manitowocbeverage.com
In accordance with our policy of continuous product development and
improvement, this information is subject to change at any time without notice.
5001192 Revision 27 January, 2003
Installation and Service Manual
FOREWORD
SerVend developed this manual as a reference guide for the owner/operator, service agent, and
installer of this equipment. Please read this manual before installation or operation of the machine.
Consult the troubleshooting guide within this manual for service assistance
If you cannot correct the service problem, call your SerVend Service Agent or Distributor. Always have
your model and serial number available when you call.
Your Service Agent ____________________________________________________________
Service Agent Telephone Number _________________________________________________
Model Number _______________________________________________________________
Serial Number _______________________________________________________________
The model and serial numbers are located on the right side of the dispenser, just behind the drainpan.
Installation Date ______________________________________________________________
Your Local SerVend Distributor ___________________________________________________
Distributor Telephone Number ___________________________________________________
A qualified service technician should perform installation and start-up of this equipment.
UNPACKING AND INSPECTION
Note: The Unit was thoroughly inspected before leaving the factory. Any damage or irregularities
should be noted at the time of delivery (or not later than 15 days from the date of delivery.)
WARRANTY INFORMATION
Consult your local SerVend Distributor for terms and conditions of your warranty. Your warranty specifically
excludes all beverage valve brixing, general adjustments, cleaning, accessories and related servicing.
Your warranty card must be returned to SerVend to activate the warranty on this equipment. If a warranty
card is not returned, the warranty period can begin when the equipment leaves the SerVend factory.
No equipment may be returned to SerVend without a written Return Goods Authorization (RGA). Equipment
returned without an RGA will be refused at SerVend’s dock and returned to the sender at the sender’s
expense.
Please contact your local SerVend distributor for return procedures.
5001192
Revision 03 February, 2003
3
Installation and Service Manual
SAFETY INSTRUCTIONS
Installation and start-up of this equipment should be done by a qualified service technician. Operation,
maintenance, and cleaning information in this manual are provided for the user/operator of the equipment.
DAILY CHECK LIST FOR THE OPERATOR
• Check CO
the primary regulator gauge will point to a shaded
area that reads “Low CO2” or “Change CO2 Cylinder.”
• Check Syrup supply.
supply. If CO2 supply is low, an arrow on
2
• Clean drain pan, grid, and splash panel. See daily
cleaning instructions on page 18.
• Clean the valve nozzles and diffusers. See daily
cleaning instructions on page 18.
4
Revision 03 February, 2003
5001192
Installation and Service Manual
TABLE OF CONTENTS
FOREWORD ........................................................................................................ 3
UNPACKING AND INSPECTION ........................................................................ 3
WARRANTY INFORMATION............................................................................... 3
SAFETY INSTRUCTIONS ................................................................................... 4
DAILY CHECK LIST FOR THE OPERATOR ....................................................... 4
COMPATIBLE ICE ............................................................................................... 7
ICE RECOMMENDED FOR DISPENSING ............................................................................7
EQUIPMENT OVERVIEW .................................................................................... 8
HOW THE ICE DISPENSER WORKS ...................................................................................8
ICE STORAGE AND DISPENSING ....................................................................................... 8
EQUIPMENT SPECIFICATIONS ........................................................................................... 9
OVERALL M - SERIES DIMENSIONS ..................................................................................9
SPECIFICATIONS .............................................................................................. 11
M - 15 .................................................................................................................................. 11
M - 45 .................................................................................................................................. 11
M - 90 .................................................................................................................................. 12
M - 150 ................................................................................................................................ 12
M - 200 ................................................................................................................................ 13
M - 250 ................................................................................................................................ 13
OVERALL H - SERIES DIMENSIONS.............................................................. 14
SPECIFICATIONS ............................................................................................. 15
H - 265 ................................................................................................................................. 15
INSTALLATION.................................................................................................. 16
COUNTER TOP INSTALLATION ......................................................................................... 16
FLOOR INSTALLATION ......................................................................................................17
ADDING AN ICE MACHINE TO A SERVEND DISPENSER ............................. 18
BEVERAGE SYSTEM ....................................................................................... 19
CLEANING AND SANITIZING ............................................................................................. 19
5001192
Revision 03 February, 2003
5
Installation and Service Manual
TABLE OF CONTENTS
TROUBLESHOOTING ....................................................................................... 20
CONDITION ........................................................................................................................ 20
INVESTIGATION: ................................................................................................................ 20
CHECK / HOW TO CHECK: ................................................................................................ 20
CORRECTION: ................................................................................................................... 20
CONDITION ........................................................................................................................ 21
INVESTIGATION ................................................................................................................. 21
CHECK / HOW TO CHECK ................................................................................................. 21
CORRECTION .................................................................................................................... 21
CONDITION ........................................................................................................................ 22
INVESTIGATION ................................................................................................................. 22
CHECK / HOW TO CHECK ................................................................................................. 22
CORRECTION .................................................................................................................... 22
ADJUSTMENTS ................................................................................................ 23
AGITATION TIMER.............................................................................................................. 23
DOOR ................................................................................................................................. 23
ICE FLOW ...........................................................................................................................24
GENERAL INSTRUCTIONS .............................................................................. 25
REMOVAL OF GEAR MOTOR ............................................................................................ 25

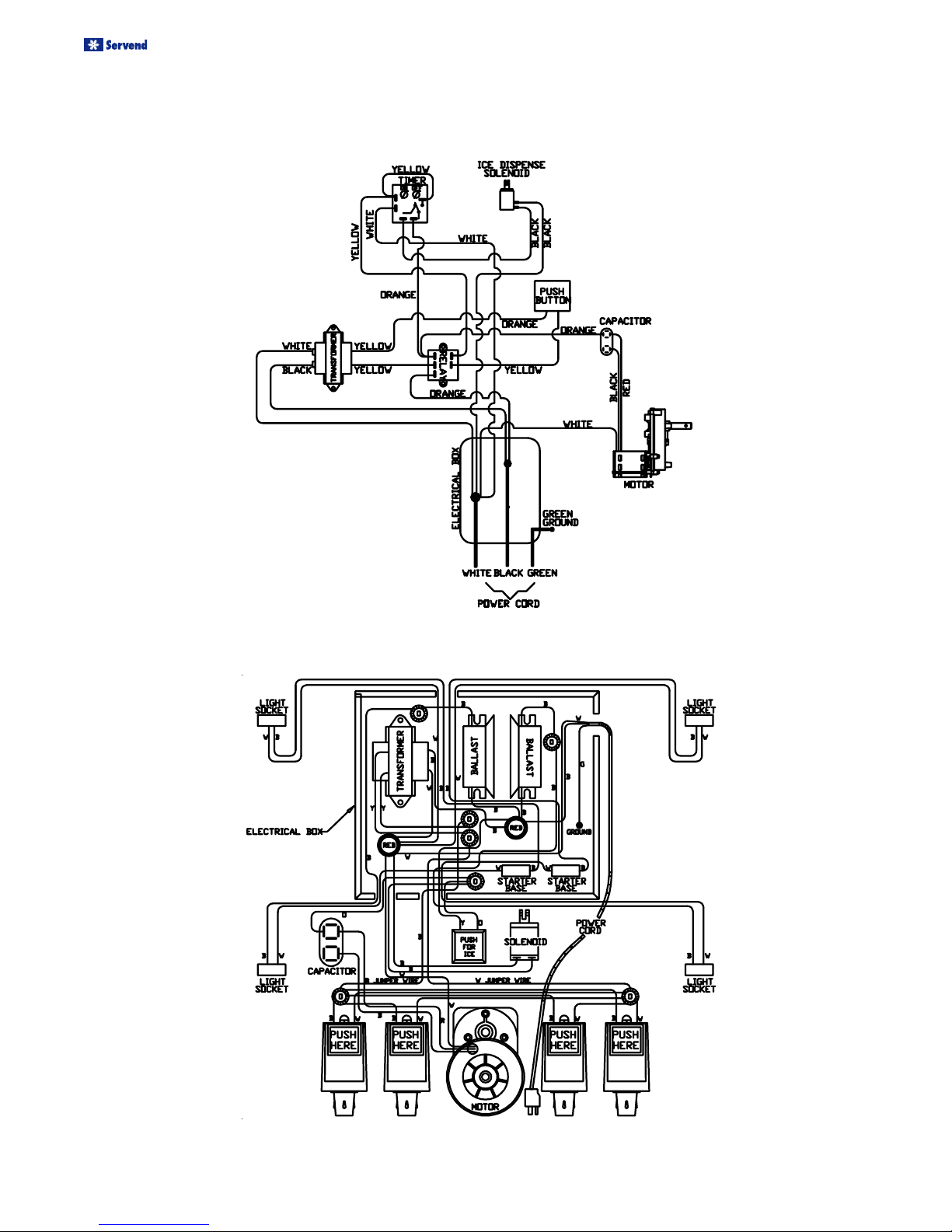

WIRING DIAGRAMS ......................................................................................... 26
M-150 : H-265 PUSH BUTTON : H-265 WITH KEY SWITCH - ALL VOLTAGES .................. 26
H-265 WITH COIN MECHANISM - ALL VOLTAGES ............................................................ 26
WIRING DIAGRAMS ......................................................................................... 27
M-15A : M-15B : M-45 : M-90 : STANDARD CONFIGURATION - ALL VOLTAGES ............. 27
M-15C : STANDARD CONFIGURATION - ALL VOLTAGES ................................................ 27
M-15C WITH AGITATION TIMER ......................................................................................... 28
M-90 WITH LIGHTS AND VALVES - ALL VOLTAGES ......................................................... 28
M-150 : H-265 PUSH BUTTON : H-265 WITH KEY SWITCH - ALL VOLTAGES .................. 29
M-150 WITH LIGHT AND VALVES - ALL VOLTAGES ......................................................... 29
WIRING DIAGRAMS ......................................................................................... 30
M-200 : M-250 : M250-36 : STANDARD CONFIGURATION - ALL VOLTAGES ................... 30
H-265 WITH COIN MECHANISM - ALL VOLTAGES ............................................................ 30
6
Revision 03 February, 2003
5001192
COMPATIBLE ICE
ICE RECOMMENDED FOR DISPENSING
Installation and Service Manual
FULL CUBE
7/8" x 7/8" x 7/8"
MINI
7/8" DIA x 3/4" LONG
MINI CUBE
3/8" x 7/8" x 7/8"
GOURMET-SMALL
1" DIA x 3/4"
CUBELET
5/8" x 5/8" x 5/8"
SerVend Dispensers are designed to dispense hard,
cube ice up to two and one half cm (one inch) square.
The ice shapes and sized listed are recommended for
dispensing.
NEW EAGLE SERIES
CONTOUR
3/8" x 1 1/4" x 1 1/4"
MINI CUBE
3/4" x 3/4" x 3/4"
1.125"
CRESCENT CUBE
LENTICULAR
1 3/8" x 3/8"
0.375
1.125"
“Super Cooled” bagged ice is not recommended for
dispensing. “Super Cooled” ice is ice that has been
stored in freezers at or below -17°C (0°F). Should it
be necessary to use “Super Cooled” ice, allow the
bag(s) to warm at room temperature for 25 to 30
minutes before placing the ice in the dispenser.
5001192
Revision 03 February, 2003
7
Installation and Service Manual
EQUIPMENT OVERVIEW
HOW THE ICE DISPENSER WORKS
ICE STORAGE AND DISPENSING
Ice is stored in the dispenser’s bin. Ice is transported from
the bottom of the bin to the ice dispense point by the paddle
wheel. The injection molded paddle wheel has paddles
which lift the ice to the dispense point.
SEQUENCE OF OPERATION:
PUSH LEVER ICE DISPENSING
The customer’s cup presses against the push plate. The
push plate then raises a microswitch actuator arm on the
right side of the dispensing chute. The microswitch actuator
arm hits the lever of the microswitch.
The energized microswitch activates the solenoid, which
pulls down the solenoid plunger. The plunger is connected to a cable, which is then connected to a pulley.
This raises the door of the ice chute.
The energized microswitch also activates the gear motor. The gear motor turns the agitator and paddle wheel,
lifting the ice from the bottom of the bin to the ice dispenser point. Ice falls forward through the open door,
through the bin spout, through the ice chute and into the
customer’s cup.
SEQUENCE OF OPERATION:
PUSH BUTTON ICE DISPENSING
Customer’s finger presses the push button, located in
the merchandiser frame. The button is labeled “ICE”
The push button energized the plunger microswitch. The
energized microswitch activating the solenoid, which pulls
down the solenoid plunger. The plunger is connected to
a cable, which is then connected to a pulley. This raises
the door on the ice chute.
The energized microswitch also activates the gear motor. The gear motor turns the agitator and paddle wheel,
lifting ice from the bottom of the bin to the ice dispense
point. The dispenser paddle wheel turns counter clockwise looking at the wheel from the outside front of the
dispenser. Ice falls forward through the open door,
through the bin spout, into the ice chute and into the
customer’s cup.
8
Revision 03 February, 2003
5001192
Installation and Service Manual
HOW THE ICE DISPENSER WORKS (CONT’D)
SEQUENCE OF OPERATION:
KEY SWITCH OR COIN OPERATED ICE DISPENSING (H265)
The key switch or coin mechanism engages a microswitch.
The energized microswitch activates the solenoid, which
pulls down the solenoid plunger. The plunger is connected
to a cable, which is then connected to a pulley, this raises
the door of the ice chute.
EQUIPMENT SPECIFICATIONS
OVERALL M - SERIES DIMENSIONS
FRONT DIMENSIONS >
The energized microswitch also activates the gear motor. The gear motor turns the agitator and paddle wheel,
lifting ice from the bottom of the bin to the ice dispense
point. Ice falls forward through the open door, through
the bin spout, into the ice chute and into the customer’s
container.
5001192
Revision 03 February, 2003
< TOP DIMENSIONS
9
Installation and Service Manual
OVERALL DIMENSIONS (CONT’D)
M - SERIES
< REAR DIMENSIONS
BOTTOM DIMENSIONS >
10
Revision 03 February, 2003
5001192
Installation and Service Manual
SPECIFICATIONS
M - 15 ______________________________________________________________________
Dimensions:
Width 38.1 cm (15”)
Depth - overall 71.1 cm (28”)
Depth - counter top 66 cm (26”)
Height 81.3 cm (32”)
Bin Top Size - width 38.1 cm (15”)
- depth 52.1 cm (20.5”)
Rear “A” 19.1 cm (7.5”)
Hole “E” Height (top hole) 20.5 cm (8.06”)
Hole “H” Height (bottom hole) 7.8 cm (3.06”)
Hole “E” Diameter 5 cm (2”)
Hole “H” Diameter 5 cm (2”)
Right side to bin drain 19.0 cm (7.5”)
Right side to drain pan drain 25.4 cm (10.0”)
Rear to bin drain 35.9 cm (14.12”)
Rear to drain pan drain 53.3 cm (21.0”)
Bin drain fitting size 3/4” M.I.P.T.
Drain pan fitting size 3/4” M.I.P.T.
Ice storage capacity: 40.8 kg (90lb)
Electric voltage - Cycle - Amperage:
120 Volts - 60 Hz. - 1.2 amp (U.S. Standard)
100 Volts - 50 / 60 Hz. - N/A
220 Volts - 50 Hz. - 0.44 amp
220 Volts 60 Hz. - N/A
240 Volts 50 Hz. - 0.35 amp
Motor Horsepower 1/15
M - 45 ______________________________________________________________________
Dimensions:
Width 38.1 cm (15”)
Depth - overall 71.1 cm (28”)
Depth - counter top 66 cm (26”)
Height 61.6 cm (32”)
Dispense Height 24.8 cm (9.75”)
Bin Top Size - width 38.1 cm (15”)
- depth 45.4 cm (17.88”)
Rear “A” 29.3 cm (11.5”)
Rear “B” 19.1 cm (7.5”)
Hole “F” Diameter 5 cm (2”)
Hole “G” Diameter 5 cm (2”)
Right side to bin drain 18.8 cm (7.5”)
Right side to drain pan drain 25 cm (10”)
Rear to bin drain 38.7 cm (15.25”)
Rear to drain pan drain 47.6 cm (18.75”)
Bin drain fitting size 3/4” M.I.P.T.
Drain pan fitting size 3/4” M.I.P.T.
Ice storage capacity: 20.4 kg (45lb)
Electric voltage - Cycle - Amperage:
120 Volts - 60 Hz. - 1.2 amp (U.S. Standard)
(Eight foot cord with plug is included with the U.S. unit)
100 Volts - 50 / 60 Hz. - N/A
220 Volts - 50 Hz. - 0.44 amp
220 Volts 60 Hz. - N/A
240 Volts 50 Hz. - 0.35 amp
Motor Horsepower 1/15
5001192
Revision 03 February, 2003
11
Installation and Service Manual
SPECIFICATIONS
M - 90 ______________________________________________________________________
Dimensions:
Width 38.1 cm (15”)
Depth - overall 71.1 cm (28”)
Depth - counter top 66 cm (26”)
Height 81.3 cm (32”)
Dispense Height 24.8 cm (9.75”)
Bin Top Size - width 38.1 cm (15”)
- depth 45.7 cm (18”)
Rear “A” 29.2 cm (11.5”)
Rear “B” 19.1 cm (7.5”)
Hole “E” Diameter 5 cm (2”)
Hole “H” Diameter 5 cm (2”)
Right side to bin drain 16.8 cm (6.62)
Right side to drain pan drain 25.4 cm (10”)
Rear to bin drain 35.9 cm (14.12”)
Rear to drain pan drain 53.3 cm (21”)
Bin drain fitting size 3/4” M.I.P.T.
Drain pan fitting size 3/4” M.I.P.T.
Ice storage capacity: 40.8 kg (90lb)
Electric voltage - Cycle - Amperage:
120 Volts - 60 Hz. - 1.2 amp (U.S. Standard)
(Eight foot cord with plug is included with the U.S. unit)
100 Volts - 50 / 60 Hz. - N/A
220 Volts - 50 Hz. - 0.44 amp
220 Volts 60 Hz. - N/A
240 Volts 50 Hz. - 0.35
Motor Horsepower 1/15
M - 150 _____________________________________________________________________
Dimensions:
Width 55.9 cm (22”)
Depth - overall 71.1 cm (28”)
Depth - counter top 66 cm (26”)
Height 81.3 cm (32”)
Dispense Height 29.2 cm (11.5”)
Bin Top Size - width 55.9 cm (22”)
- depth 47 cm (18.5”)
Rear “A” 23.8 cm (9.375”)
Rear “B” 14.9 cm (5.875”)
Hole “E” Diameter 6.4 cm (2.5”)
Hole “F” Diameter 3.5 cm (1.375”)
Hole “G” Diameter 3.5 cm (1.375”)
Hole “H” Diameter 6.4 cm (2.5”)
Right side to bin drain 25.4 cm (10”)
Right side to drain pan drain 35.6 cm (14”)
Rear to bin drain 38.1 cm (15”)
Rear to drain pan drain 53.3 cm (21”)
Bin drain fitting size 3/4 M.I.P.T.
Drain pan fitting size 3/4 M.I.P.T.
Ice storage capacity: 68 kg (150 lb)
Electric voltage - Cycle - Amperage:
120 Volts - 60 Hz. - 1.7 amp (U.S. Standard)
(Eight foot cord with plug is included with the U.S. unit)
100 Volts - 50 / 60 Hz. - 1.7 amp
220 Volts - 50 Hz. - 0.85 amp
220 Volts 60 Hz. - 0.85 amp
240 Volts 50 Hz. - 0.85 amp
Motor Horsepower: 1/7 H.P.
12
Revision 03 February, 2003
5001192
Installation and Service Manual
SPECIFICATIONS
M - 200 _____________________________________________________________________
Dimensions:
Width 76.2 cm (30”)
Depth - overall 76.2 cm (30”)
Depth - counter top 72.4 cm (28.5”)
Height 81.9 cm (32.25”)
Dispense Height 30.5 cm (12”)
Bin Top Size - width 76.2 cm (30”)
Rear “A” 34 cm (13.375”)
Rear “B” 25.1 cm (9.875”)
Rear “C” 3.2 cm (1.25”)
Hole “E” Diameter 6.4 cm (2.5”)
Hole “F” Diameter 3.5 cm (1.375”)
Hole “G” Diameter 3.5 cm (1.375”)
Hole “H” Diameter 6.4 cm (2.5”)
Right side to bin drain 38.1 cm (15”)
Right side to drain pan drain 44.5 cm (17.5”)
Rear to bin drain 37.5 cm (14.75”)
Rear to drain pan drain 45.1 cm (17.75”)
Bin drain fitting size 3/4” M.I.P.T.
Drain pan fitting size 3/4” M.I.P.T.
Ice storage capacity: 90.7 kg (200 lb)
Electric voltage - Cycle - Amperage:
Motor Horsepower: 1/7 H.P.
- depth 57.2 cm (22.5”)
120 Volts - 60 Hz. - 1.7 amp (U.S. Standard)
(Eight foot cord with plug is included with the U.S. unit)
100 Volts - 50 / 60 Hz. - 1.7 amp
220 Volts - 50 Hz. - 0.85 amp
220 Volts 60 Hz. - 0.85 amp
240 Volts 50 Hz. - 0.85 amp
M - 250 _____________________________________________________________________
Dimensions:
Width 76.2 cm (30”)
Depth - overall 76.2 cm (30”)
Depth - counter top 72.4 cm (28.5”)
Height 91.4 cm (36”)
Dispense Height 30.5 cm (12”)
Bin Top Size - width 76.2 cm (30”)
- depth 50.2 cm (19.75”)
Rear “A” 32.1 cm (12.625”)
Rear “B” 25.1 cm (9.875”)
Rear “C” 3.2 cm (1.25”)
Hole “E” Diameter 6.4 cm (2.5”)
Hole “F” Diameter 3.5 cm (1.375”)
Hole “G” Diameter 3.5 cm (1.375”)
Hole “H” Diameter 6.4 cm (2.5”)
Right side to bin drain 35.6 cm (14”)
Right side to drain pan drain 35.6 cm (14”)
Rear to bin drain 36.8 cm (14.5”)
Rear to drain pan drain 62.2 cm (24.5”)
Bin drain fitting size 3/4” M.I.P.T.
Drain pan fitting size 3/4” M.I.P.T.
Ice storage capacity: 113.4 kg (250lb)
Electric voltage - Cycle - Amperage:
120 Volts - 60 Hz. - 1.7 amp (U.S. Standard)
(Eight foot cord with plug is included with the U.S. unit)
100 Volts - 50 / 60 Hz. - 1.7 amp
220 Volts - 50 Hz. - 0.85 amp
220 Volts 60 Hz. - 0.85 amp
240 Volts 50 Hz. - 0.85 amp
Motor Horsepower: 1/7 H.P.
5001192
Revision 03 February, 2003
13
Installation and Service Manual
OVERALL H - SERIES DIMENSIONS
H - 265
43 3/8"
30 1/2"
22 1/2"
I
C
E
P
U
S
H
9"
30"
61 1
25 7/16"
14
Revision 03 February, 2003
5001192
Installation and Service Manual
SPECIFICATIONS
H - 265 _____________________________________________________________________
Dimensions:
Width 76.2 cm (30”)
Depth - overall 77.5 cm (30.5”)
Depth - floor space 72.4 cm (28.5”)
Height- with 15 cm (6”) legs 156.8 cm (61.75”)
Dispense Height 22.9 cm (9”)
Bin Top Size - width 76.2 cm (30”)
- depth 57.2 cm (22.5”)
Electrical entrance - Cord exits machine from the bottom
Drain to floor 38.7 cm (15.25”)
Drain to right side 38.1 cm (15”)
Drain fitting size 3/4” F.I.P.T.
Ice storage capacity: 113.4 kg (250lb)
Electric voltage - Cycle - Amperage:
120 Volts - 60 Hz. - 1.7 amp (U.S. Standard)
(Eight foot cord with plug is included with the U.S. unit)
100 Volts - 50 / 60 Hz. - 1.7 amp
220 Volts - 50 Hz. - 0.85 amp
220 Volts 60 Hz. - 0.85 amp
240 Volts 50 Hz. - 0.85 amp
Motor Horsepower: 1/7 H.P.
5001192
Revision 03 February, 2003
15
Installation and Service Manual
(M Series Dispenser)
INSTALLATION
COUNTER TOP INSTALLATION
OPTION A:

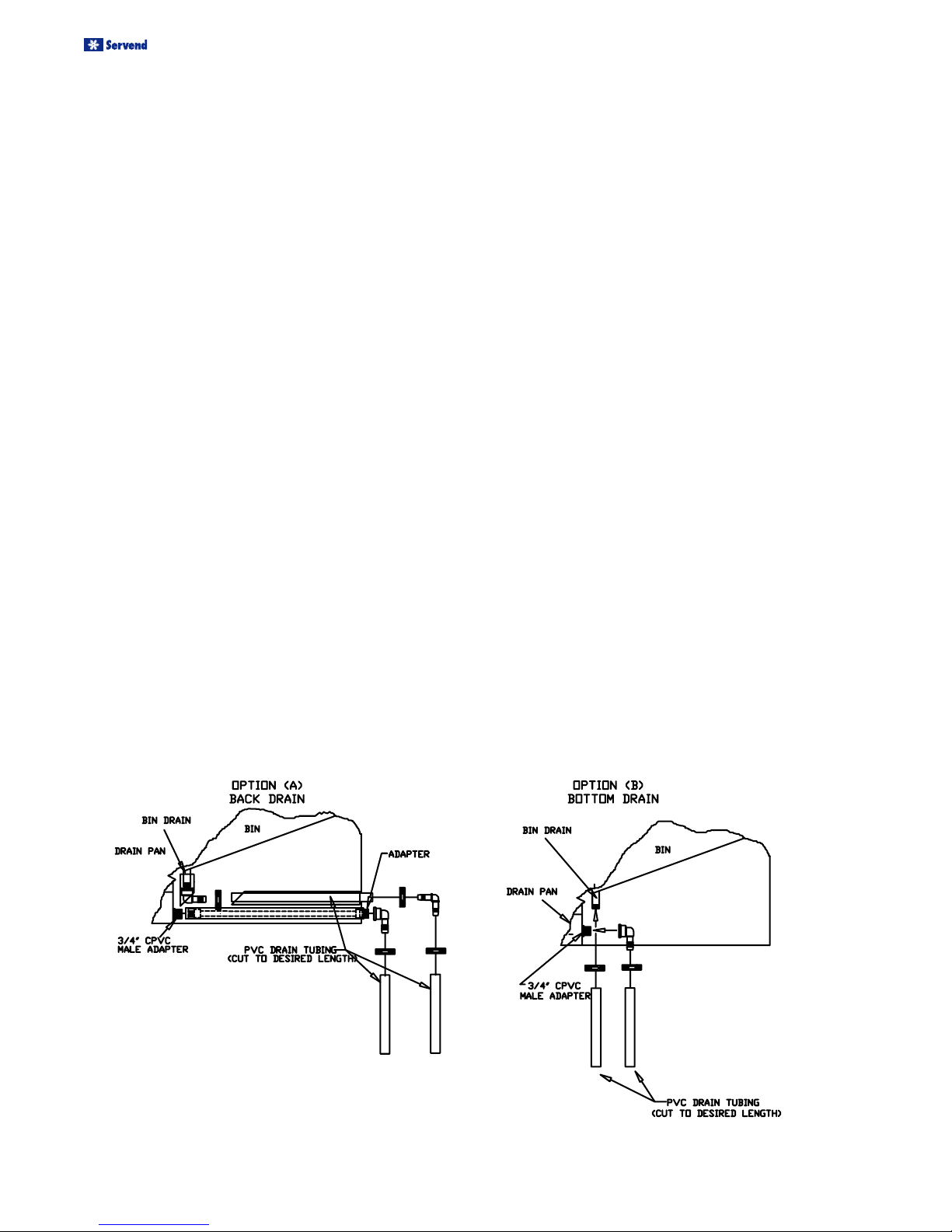

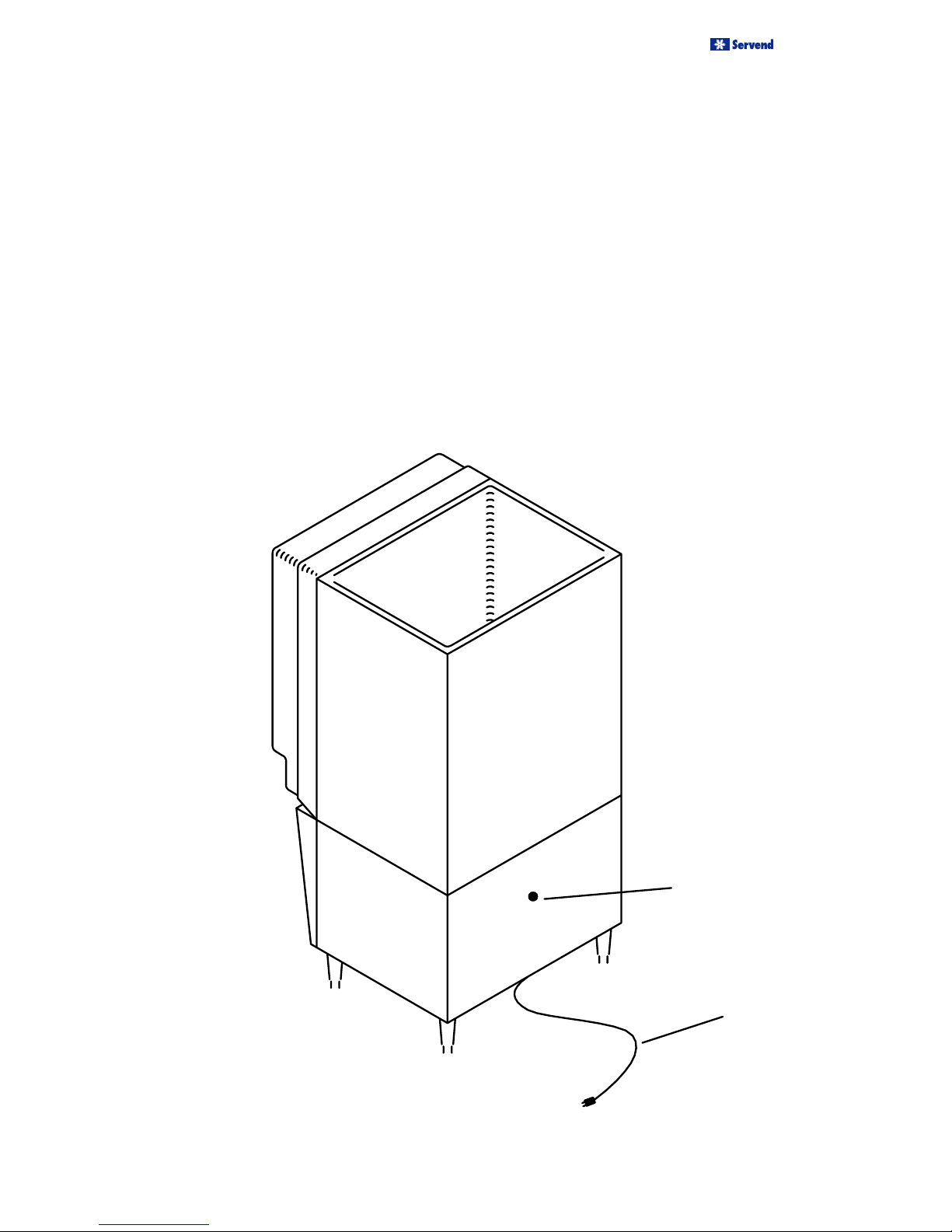

Check the equipment location. Assure the proper drain
and electrical requirements are available before proceeding. Carefully remove the dispenser from the shipping
carton.
If the dispenser is to be set on legs, lay the dispenser on
its’ back. Use the shipping cardboard as a protective
interface between the dispenser and the floor. Thread
the legs into the leg gussets on the bottom corners of
the dispenser. If the dispenser is to be set on a counter
without the legs, most local codes require the dispenser
to have a silicone seal between the counter and the dispenser.
Carefully pick up the dispenser, setting it in place. Be
sure the dispenser is stable and level. Place a level on
the top of the bin, side to side and front to back to see if
the bin is level. If the dispenser has legs, level the dispenser bin by adjusting the dispenser legs. If the dispenser does not have legs, shim between the counter
top and the dispenser.
Remove the splash panel and drain pan from the front of
the dispenser. If your dispenser has beverage valves
attached, these valves will be attached to the splash
panel. Included inside the dispenser from the factory is
a length (1.8m [6ft.]) of vinyl tubing. One half of this
tubing is to be used for the bin drain, with the other half
of the tubing used for the drain pan drain. Attached to
the tubing are two tubing adaptors.
One drain tube fitting is with a 90° bend. This fitting
attaches to the bin drain fitting. Underneath the dispenser toward the front of the dispenser is the bin drain.
Attach the 90° fitting to the bin drain outlet. Slip the
drain tubing over the tubing end of the fitting. Secure
the tubing with the hose clamp provided.
The second drain tube fitting is a straight connector. This
fitting attached to the drain pan fitting of the dispenser.
Attach the fitting to the drain pan. Slip the drain tubing
over the tubing end of the fitting. Secure the tubing with
the hose clamp provided. Insulate all drain tubes.
OPTION B:
One drain tube fitting is with a straight connector.
This fitting attaches to the bin drain fitting. Underneath the dispenser toward the front of the dispenser
is the bin drain. Attach the straight fitting to the bin
drain outlet. Slip the drain tubing over the tubing
end of the fitting. Secure the tubing with the hose
clamp provided.
The second drain tube fitting is a 90° bend. This
fitting attached to the drain pan fitting of the dispenser. Attach the fitting to the drain pan. Slip the
drain tubing over the tubing end of the fitting. Secure the tubing with the hose clamp provided. Insulate all drain tubes.
16
Revision 03 February, 2003
5001192
Installation and Service Manual
COUNTER TOP INSTALLATION
If beverage valves are supplied with your dispenser, connect them to the beverage system at this time according
to the information supplied by the beverage supplier.
Route the electric wires under the dispenser and out to
the electrical receptacle.
Replace the drain pan to the dispenser. Secure the free
ends of the vinyl drain tubing to the drain connections
supplied by the owner/operator. Attach the splash panel
to the front of the dispenser.
Clean and sanitize the dispenser according to the
directions in this manual.
FLOOR INSTALLATION
(H265 Series Dispenser)
Check the equipment location. Assure the proper drain
and electrical requirements are available before proceeding. Carefully remove the dispenser from the shipping
carton. Lay the dispenser on its’ back. Use the shipping
cardboard as a protective interface between the dispenser and the floor. Thread the legs into the leg gussets on the bottom corners of the dispenser.
Carefully pick up the dispenser, setting it in place. Be
sure the dispenser is stable and is level. Place a level
on the top of the bin, side to side and front to back to see
if the bin is level. Adjust the bin legs to level the dispenser.
5001192
Revision 03 February, 2003
Drain
3/4" FPT
Cord
17
Installation and Service Manual
ADDING AN ICE MACHINE TO A SERVEND DISPENSER
When mounting an ice machine on top of a SerVend dispenser place the front edge of the machine with the outside
front edge of the dispenser bin. With some ice makers, there
may be an overhang of the ice machine on the back of the
dispenser.
Installations that include a SerVend ice machine on a SerVend
dispenser, you must install an ice deflection baffle. Some
installations may also require a manual fill lid, and possibly a
strip lid kit.
With a SerVend ice machine, the baffle will mount through
the front panel of the ice machine. Refer to the drawing below.
6" MINIMUM
Several SerVend dispensers have a manual fill area in the
front of the dispenser. This manual fill area is not covered by
the ice machine. Order and obtain a manual fill lid from your
local SerVend Distributor. Be sure to have the model and
serial number of the dispenser available when ordering this
or any part.
SerVend manufactures dispensers in 22 inch, 30 inch, 36
inch, and 42 inch widths. At times a customer wishes to install a narrower ice machine than the width of the dispenser.
In those instances, a strip lid kit is necessary to fill the excess bin opening of the dispenser. This strip lid kit must be
ordered from your local SerVend distributor. You will need
the model and serial number of your dispenser and the model
of the SerVend ice machine to order the correct strip lid.
Instructions for installation are included in each style of strip
lid.
ENCLOSURE
LEFT SIDE PANEL
FRONT CHANNEL
OVERHANG
ICE DEFLECTOR
SLOT
FRONT PANEL
18
I
C
E
BOTTOM SCREW
COMPONENT
BOX COVER
5001192
Revision 03 February, 2003
Installation and Service Manual
BEVERAGE SYSTEM
Installation and maintenance of the beverage system is not covered in this manual. The SerVend M series dispenser is an ice only dispenser. In some applications, The dispenser provides a mounting location for optional
beverage valves. Please contact your SerVend Service Company for installation and maintenance of your beverage system.
CLEANING AND SANITIZING
1. If a SerVend ice machine is mounted on top of the
dispenser, remove the front panel of the ice maker.
2. Turn the ice maker off.
3. Empty all ice from the dispenser.
4. Unplug the dispenser from the electric receptacle.
5. Mix a cleaning solution consisting of a mild non abrasive detergent with water according to the package
directions.
6. Using the cleaning solution and a soft bristle brush
or cloth, wash the following dispenser parts:
(With a top mounted ice maker, accessibility is
through the front opening of the ice maker.) Paddle
wheel pin (removed from the dispenser) Agitator (removed from the dispenser) Paddle wheel (removed from the dispenser) Entire bin area Ice
chute Rear agitator bushing Drive shaft assembly
inside bin
7. Mix a solution of 1.5 cl (1/2 oz.) household bleach
to 7.5 L (2 gal) of clean water. To achieve 5.25%
Cl Na O concentration per gallon of water, the
mixture should supply 100 PPM (parts per million) of available chlorine. Or mix a solution of any NSF approved sanitizer, following the
directions for mixing and applying that sanitizer.
8. Using the sanitizing solution and a soft bristle
brush or cloth, clean each of the dispenser parts
listed above.
9. Do not rinse the parts after they have been sanitized. Replace all parts back to the dispenser.
10. Pour in fresh clean ice into the dispenser
bin. Or turn the ice maker back on.
11. Plug the dispenser into the receptacle.
12. Check for proper ice dispensing.
5001192
Revision 03 February, 2003
19
Installation and Service Manual
TROUBLESHOOTING
CONDITION
Dispenser does not
dispense ice.
INVESTIGATION:
There is no power to
the dispenser.
There is power to the
dispenser, however
nothing runs.
CHECK / HOW
TO CHECK:
Is the dispenser
plugged in?
The dispenser is
plugged in with power
to the receptacle. With
a meter, check to see
if power is getting to
the white and black
cord wires inside the
electric box.
Is power going through
the microswitch? With
the dispenser plugged
in, meter probes on the
“C” and “NC” terminals
of the microswitch, energize the microswitch.
If the meter starts out
registering voltage,
then does not register
voltage when the
switch is pushed, the
switch is good.
CORRECTION:
Plug the dispenser in.
If no power is present,
check the cord and
plug of the dispenser.
Replace if broken wire
or connection is detected.
If no power is going
through the microswitch,
replace the switch or locate the broken connection.
The gear motor runs
but the dispensing
paddle wheel does not
turn.
If the gear motor attempts to start but fails
to do so, check the capacitor. To completely
check the capacitor,
you must use a capacitor checker according
to the instructions supplied.
If gear motor fails to attempt to start, check
the gear motor. To
check the gear motor,
disconnect power from
the dispenser. Disconnect the gear motor
wires in the junction
box. Check for continuity through the gear
motor.
Remove the paddle
wheel pin in the bin
area. Is this pin broken or missing?
If capacitor does not
test correctly, replace
the capacitor.
If gear motor does not
test correctly, replace
the gear motor.
If the paddle wheel pin
is broken or missing,
replace the pin.
20
Revision 03 February, 2003
5001192
TROUBLESHOOTING
Installation and Service Manual
CONDITION
Dispenser does not dispense ice.
INVESTIGATION
Gear motor runs but
the dispensing paddle
wheel does not turn.
Dispenser runs but
does not dispense ice.
Dispenser runs, ice
does not dispense but
does congeal ice into
a large ball.
CHECK / HOW
TO CHECK
Remove the agitator
and paddle wheel. Are
you able to turn the
shaft from the gear
motor without turning
the motor armature itself?
Is there at least one
half bin of ice?
Is the ice in the bin of
the proper size and
type of ice?
The agitation timer
should be checked.
See page 23 for
proper check out procedure.
If there is an ice maker
mounted on top of the
dispenser, is an ice deflection baffle installed?
CORRECTION
Lower ice bin level.
Adjust or replace timer if
necessary. See page 23.
Adjust door to minimum
or larger opening.
Microswitch may be
sticking. Check the
microswitch and linkage
to the microswitch.
Clean linkage and
microswitch. Replace
microswitch if necessary.
Check the agitation timer.
Adjust the timer to two
seconds on time and
four hours off time. Also
check timer for being
shorted.
Dispenser crushes ice
as it dispenses.
Is the ice in the bin of
the proper size and
type of ice?
Is there an ice maker
on top of the dispenser?
Is excess water running into the dispenser
from the top mounted
ice maker?
Is the bin drain clean
and open?
See page 5 for acceptable ice.
Is the ice being used a
full size piece of ice?
i.e. cubes full, not shallow, etc.
If the dispenser has an
ice maker on top, is
there an ice deflection
baffle installed between the dispenser
and the ice maker?
5001192
Revision 03 February, 2003
21
Installation and Service Manual
TROUBLESHOOTING
CONDITION
Dispenser crushes ice as
it dispenses.
Ice continuous to dispense
or dispenses by itself.
INVESTIGATION
Is there an ice maker on
top of the dispenser?
Is the agitation timer (if
equipped) set properly?
Is the ice door opening
fully when the dispenser
operates?
Does ice continue to
dispense after the cup
has been pulled away?
Does the ice dispense
by itself without anyone
around the dispenser?
CHECK / HOW
TO CHECK
Is there at least 7.5 cm (3
in) between the top of the
ice and the top of the dispenser bin?
Timer should agitate for
two seconds every four
hours.
The ice door should open
a minimum of 3.8 cm
(1.5in).
Does the gear motor continue to run during this
time?
Does the dispenser do
this at regular intervals?
CORRECTION
Remove the gear motor.
Some models contain a
shaft extension held on
with a roll pin. If the roll
pin is broken, replace. If
the roll pin is good, replace the gear motor.
If not sufficient ice, add
additional ice to bin.
If the ice does not meet
the dispensing parameters as described on
page 5 replace the ice.
Adjust or replace the agitation timer as required.
The ice deflection baffle
is to be installed between
the dispenser and the ice
maker. Install deflector if
missing.
Repair top mounted ice
maker to reduce amount
of water entering the dispenser.
Clean the bin drain.
Replace ice with acceptable type.
Adjust ice machine to
make a good, complete,
not hollow piece of ice.
Install deflector if missing.
22
Revision 03 February, 2003
5001192
Installation and Service Manual
ADJUSTMENTS
AGITATION TIMER
The agitation timer is standard equipment for the dispensers
with 90.7 kg. (200 lbs.) and larger bin storage. This timer is
available as an option for all other dispensers. The purpose of
the timer is to periodically agitate the ice in the bin, preventing
the ice from congealing together.
The timer is located in the electrical box of the dispenser. The
two dials on the timer should be set to agitate the ice for two
seconds every four hours of non ice dispenser use.
To check the agitation timer, turn the off time dial (right dial on
the drawing below) counter clockwise until the dial stops. Do
not use the dispenser for 15 minutes. Within that time period,
the agitator will turn. If the agitator does not turn, replace the
timer.
If the solenoid is electrically activated when the agitation timer
moves the gear motor, the timer has shorted out internally and
must be replaced.
To correctly reset the agitation timer, turn both dials counter
clockwise until they stop. Your “points” on the dials will be set at
“0”.
Turn the ON time (left dial) from the “0” to the “2”.
ADJUSTMENTS
DOOR
The door is used to stop the flow of ice to the container when
the microswitch is released. The door assembly is not used
to reduce the flow of ice. See the ice flow reducer on the
following page.
When operated, the door should open completely. This would
be a minimum of 3.8 cm (1.5 in) as measured from the
bottom of the chute opening to the bottom of the door
when energized.
To adjust the door opening, raise or lower the door solenoid in
the opposite direction you wish to effect the door. EXAMPLE:
If you wish to open the door wider, lower the door solenoid.
This will raise the door wider.
To move the solenoid, loosen the four machine screws on the
side of the coil. Slide the solenoid in the direction you wish to
move it. Tighten the screws on the solenoid to secure the coil
in place.
EXAMPLE OF DOOR ADJUSTMENT SCREW
LOCATION
Turn the OFF time (right dial) from the “0” to the “4”.
The drawing shows the position of the dials when the timer is
set correctly.
5001192
Revision 03 February, 2003
23
Installation and Service Manual
ADJUSTMENTS
ICE FLOW
The delivery of the ice from the dispenser is influenced by
several factors. The primary influence is the type of ice being dispensed. If you are dispensing a wet, rounded corner
ice, this ice will dispense at a faster rate than an ice with
square corners.
A flow restrictor is available as an option for installation in the dispensing chute of the dispenser. This
restrictor will prevent a full paddle wheel “cup” of ice
from being delivered into the chute. This will then
reduce the delivery of ice to the container.
Regardless of the ice you are dispensing, it is possible to
reduce the delivery of the ice. However the reduction will
depend upon the type of ice. DO NOT REDUCE THE DOOR
OPENING TO REDUCE ICE FLOW.
Installation of flow restrictor
To install the ice flow restrictor:
1. Remove the merchandiser.
2. Remove the door assembly.
3. Drill 3/16” hole in top of chute from the bin as
shown in the above drawing.
4. Place the restrictor in the chute, holding with the
bolt and nut.
5. Tighten nut.
6. Replace door assembly and merchandiser.
24
Revision 03 February, 2003
5001192
Installation and Service Manual
GENERAL INSTRUCTIONS
REMOVAL OF GEAR MOTOR
These instructions are provided as a guide for the removal of the gear motor. Depending on the model number of
your dispenser, these instructions may vary slightly.
1. Disconnect power from the electric receptacle.
2. Remove all ice from the ice storage bin of the dispenser.
3. Remove the paddle wheel pin from the paddle wheel
/ agitator assembly inside the dispenser bin.
4. Remove the agitator assembly from the dispenser
bin by pushing the agitator to the back of the bin.
Angle the front of the agitator to the side. Pull the
agitator forward then out of the dispenser.
5. Remove the paddle wheel from the dispenser by
pulling the hub of the paddle wheel to the back of
the bin and off the gear motor shaft.
6. Remove the four bolts from the front wall of the dispenser. These bolts mount into the gear motor case.
7. Remove the front from the dispenser and expose
the gear motor.
8. Disconnect the electric connector from the gear
motor wire leads.
9. Remove the strap from around the gear motor.
10. You should be able to remove the gear motor
from the dispenser.
11. To install a replacement gear motor, reverse
this procedure.
5001192
Revision 03 February, 2003
25
Installation and Service Manual
WIRING DIAGRAMS
M-150 : H-265 PUSH BUTTON : H-265 WITH KEY SWITCH - ALL VOLTAGES
H-265 WITH COIN MECHANISM - ALL VOLTAGES
To Electric
Power Supply
26
Revision 03 February, 2003
5001192
Installation and Service Manual
WIRING DIAGRAMS
M-15A : M-15B : M-45 : M-90 : STANDARD CONFIGURATION - ALL VOLTAGES
TO ELECTRIC
POWER
SUPPLY
M-15C : STANDARD CONFIGURATION - ALL VOLTAGES
TO ELECTRIC
POWER SUPPLY
5001192
Revision 03 February, 2003
27
Installation and Service Manual
WIRING DIAGRAMS
M-15C WITH AGITATION TIMER
M-90 WITH LIGHTS AND VALVES - ALL VOLTAGES
28
Revision 03 February, 2003
5001192
Installation and Service Manual
WIRING DIAGRAMS
M-150 : H-265 PUSH BUTTON : H-265 WITH KEY SWITCH - ALL VOLTAGES
To Electric
Power Supply
M-150 WITH LIGHT AND VALVES - ALL VOLTAGES
To Electric
Power Supply
5001192
Revision 03 February, 2003
29
Installation and Service Manual
WIRING DIAGRAMS
M-200 : M-250 : M250-36 : STANDARD CONFIGURATION - ALL VOLTAGES
To Electric Power Supply
H-265 WITH COIN MECHANISM - ALL VOLTAGES
30
Revision 03 February, 2003
5001192
Manitowoc Beverage Equipment
2100 Future Drive w Sellersburg, IN 47172-1868
Tel: 812.246.7000, 800.367.4233 Fax: 812.246.9922
www.manitowocbeverage.com
In accordance with our policy of continuous product development and
improvement, this information is subject to change at any time without notice.
5001192 Revision 03 February, 2003
Loading...
