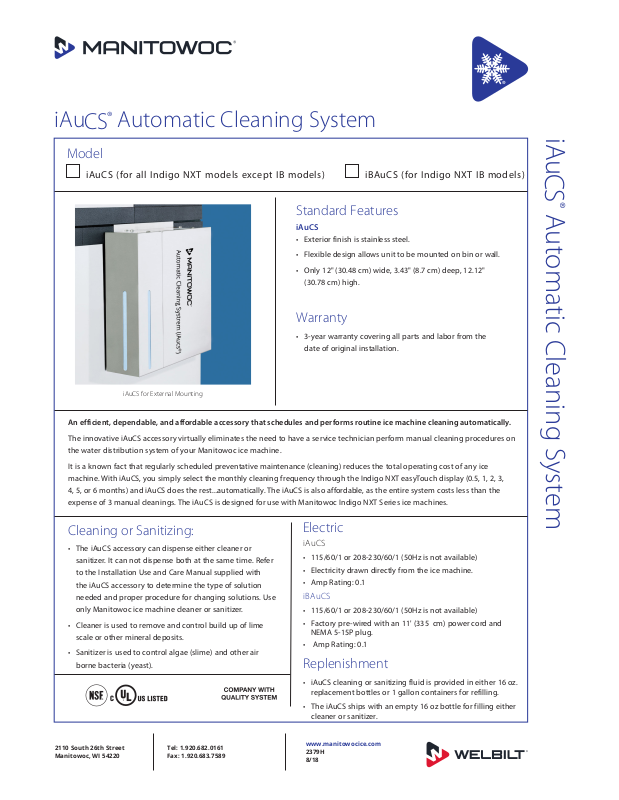

Manitowoc IAUC Specifications
iAu
®
Automatic Cleaning System
CS
Model
iAuCS (for all Indigo NXT models except IB models) iBAuCS (for Indigo NXT IB models)
Standard Features
iAuCS
• Exterior finish is stainless steel.
• Flexible design allows unit to be mounted on bin or wall.
• Only 12" (30.48 cm) wide, 3.43" (8.7 cm) deep, 12.12"
(30.78 cm) high.
Warranty
• 3-year warranty covering all parts and labor from the
date of original installation.
iAuCS for External Mounting
iAu
CS
®
Automatic Cleaning System
An efficient, dependable, and affordable accessory that schedules and performs routine ice machine cleaning automatically.
The innovative iAuCS accessory virtually eliminates the need to have a service technician perform manual cleaning procedures on
the water distribution system of your Manitowoc ice machine.
It is a known fact that regularly scheduled preventative maintenance (cleaning) reduces the total operating cost of any ice
machine. With iAuCS, you simply select the monthly cleaning frequency through the Indigo NXT easyTouch display (0.5, 1, 2, 3,
4, 5, or 6 months) and iAuCS does the rest...automatically. The iAuCS is also affordable, as the entire system costs less than the
expense of 3 manual cleanings. The iAuCS is designed for use with Manitowoc Indigo NXT Series ice machines.
Cleaning or Sanitizing:
• The iAuCS accessory can dispense either cleaner or
sanitizer. It can not dispense both at the same time. Refer
to the Installation Use and Care Manual supplied with
the iAuCS accessory to determine the type of solution
needed and proper procedure for changing solutions. Use
only Manitowoc ice machine cleaner or sanitizer.
• Cleaner is used to remove and control build up of lime
scale or other mineral deposits.
• Sanitizer is used to control algae (slime) and other air
borne bacteria (yeast).
Electric
iAuCS
• 115/60/1 or 208-230/60/1 (50Hz is not available)
• Electricity drawn directly from the ice machine.
• Amp Rating: 0.1
iBAuCS
• 115/60/1 or 208-230/60/1 (50Hz is not available)
• Factory pre-wired with an 11' (335 cm) power cord and
NEMA 5-15P plug.
• Amp Rating: 0.1
Replenishment
• iAuCS cleaning or sanitizing fluid is provided in either 16oz.
replacement bottles or 1gallon containers for refilling.
• The iAuCS ships with an empty 16 oz bottle for filling either
cleaner or sanitizer.
2110 South 26th Street
Manitowoc, WI 54220
Tel: 1.920.682.0161
Fax: 1.920.683.7589
www.manitowocice.com
2379H
8/18
iAuCS
®
Automatic Cleaning System
iAuCS / iBAuCS
(External Mounting)
Compatibility: The iAuCS
model is for use with all
Indigo NXT Cubers from
iF0300 to iT1900, Indigo
NXT QuiteQubes models
iF0600C to iF2100C. iBAuCS
is for use with all Indigo
NXT IB models, IBF0620C,
IBF0820C and IBT1020C.
Installation: The iAuCS is mounted on the wall near
the ice machine or on the bin with the included
bracket and hardware. iAuCS line voltage is
obtained from the ice machine. iBAuCS line voltage
requires external supply (unit comes pre-wired with
11' cord and NEMA 15-5P plug).
Setting Run Frequency: The frequency of cleanings
can be set through the menus of the Indigo NXT
easyTouch display.
Automatic Operation: Automatic cleaning initiated
by the iAuCS system takes about 30 minutes
depending on the size of the machine. The water
in the trough is dumped and refilled at the start of
the cycle. The cleaner or sanitizer is dispensed from
the iAuCS accessory and the water pump performs
a wash cycle followed by a series of rinse cycles.
Ice making automatically resumes when the iAuCS
cycle is complete.
Welbilt reserves the right to make changes to the design or specications without prior notice.
2110 South 26th Street
Manitowoc, WI 54220
Tel: 1.920.682.0161
Fax: 1.920.683.7589
www.manitowocice.com
2379H
8/18
