QuietQube Series Ice Machines

Technician’s Handbook

Part Number: 000015431 Rev01 5/19

Safety Notices

Read these precautions to prevent personal injury:

• Read this manual thoroughly before operating, installing or performing maintenance on the equipment. Failure to follow instructions in this manual can cause property damage, injury or death.

• Routine adjustments and maintenance procedures outlined in this manual are not covered by the warranty.

• Proper installation, care and maintenance are essential for maximum performance and trouble-free operation of your equipment.

• Visit our website www.manitowocice.com for manual updates, translations, or contact information for service agents in your area.

• This equipment uses high voltage electricity and contains refrigerant charge. Installation and repairs are to be performed by properly trained technicians aware of the dangers of dealing with high voltage electricity and refrigerant under pressure. The technician must also be certified in proper refrigerant handling and servicing procedures. All lockout and tag out procedures must be followed when working on this equipment.

• As you work on this equipment, be sure to pay close attention to the safety notices in this handbook. Disregarding the notices may lead to serious injury and/or damage to the equipment.

DEFINITIONS

DANGER

Indicates a hazardous situation that, if not avoided, will result in death or serious injury. This applies to the most extreme situations.

Warning

Indicates a hazardous situation that, if not avoided, could result in death or serious injury.

Caution

Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.

Notice

Indicates information considered important, but not hazard-related (e.g. messages relating to property damage).

NOTE: Indicates useful, extra information about the procedure you are performing.

Warning

Follow these electrical requirements during installation of this equipment:

• All field wiring must conform to all applicable codes of the authority having jurisdiction. It is the responsibility of the end user to provide the disconnect means to satisfy local codes. Refer to rating plate for proper voltage.

• This appliance must be grounded.

• This equipment must be positioned so that the plug is accessible unless other means for disconnection from the power supply (e.g., circuit breaker or disconnect switch) is provided.

• Check all wiring connections, including factory terminals, before operation. Connections can become loose during shipment and installation.

Warning

Follow these precautions to prevent personal injury during installation of this equipment:

• Installation must comply with all applicable equipment fire and health codes with the authority having jurisdiction.

• Connect to a potable water supply only.

• To avoid instability the installation area must be capable of supporting the combined weight of the equipment and product. Additionally the equipment must be level side to side and front to back.

• Remove all removable panels before lifting and installing and use appropriate safety equipment during installation and servicing. Two or more people are required to lift or move this appliance to prevent tipping and/or injury.

• Do not damage the refrigeration circuit when installing, maintaining or servicing the unit.

• This equipment contains refrigerant charge. Installation of the line sets must be performed by a properly trained and EPA certified refrigeration technician aware of the dangers of dealing with refrigerant charged equipment.

• Ice machines require a deflector when installed on an ice storage bin. Prior to using a non-OEM ice storage system with this ice machine, contact the bin manufacturer to assure their ice deflector is compatible.

• Prior to installing a non-OEM ice storage system with this ice machine, follow the manufacturers installation procedures and verify the location and installation meets the local/national mechanical codes and stability requirements.

Warning

Follow these precautions to prevent personal injury while operating or maintaining this equipment:

• Legs or casters must be installed and the legs/casters must be screwed in completely. When casters are installed the mass of this unit will allow it to move uncontrolled on an inclined surface. These units must be tethered/secured to comply with all applicable codes. Swivel casters must be mounted on the front and rigid casters must be mounted on the rear. Lock the front casters after installation is complete.

• Refer to nameplate to identify the type of refrigerant in your equipment.

• Only trained and qualified personnel aware of the dangers are allowed to work on the equipment.

• Read this manual thoroughly before operating, installing or performing maintenance on the equipment. Failure to follow instructions in this manual can cause property damage, injury or death.

• Crush/Pinch Hazard. Keep hands clear of moving components. Components can move without warning unless power is disconnected and all potential energy is removed.

• Moisture collecting on the floor will create a slippery surface. Clean up any water on the floor immediately to prevent a slip hazard.

Warning

Follow these precautions to prevent personal injury while operating or maintaining this equipment:

• Objects placed or dropped in the bin can affect human health and safety. Locate and remove any objects immediately.

• Never use sharp objects or tools to remove ice or frost.

• Do not use mechanical devices or other means to accelerate the defrosting process.

• When using cleaning fluids or chemicals, rubber gloves and eye protection (and/or face shield) must be worn.

DANGER

Do not operate equipment that has been misused, abused, neglected, damaged, or altered/modified from that of original manufactured specifications. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision concerning use of the appliance by a person responsible for their safety. Do not allow children to play with, clean or maintain this appliance without proper supervision.

DANGER

Follow these precautions to prevent personal injury during use and maintenance of this equipment:

• It is the responsibility of the equipment owner to perform a Personal Protective Equipment Hazard Assessment to ensure adequate protection during maintenance procedures.

• Do Not Store Or Use Gasoline Or Other Flammable Vapors Or Liquids In The Vicinity Of This Or Any Other Appliance. Never use flammable oil soaked cloths or combustible cleaning solutions for cleaning.

• All covers and access panels must be in place and properly secured when operating this equipment.

• Risk of fire/shock. All minimum clearances must be maintained. Do not obstruct vents or openings.

• Failure to disconnect power at the main power supply disconnect could result in serious injury or death. The power switch DOES NOT disconnect all incoming power.

• All utility connections and fixtures must be maintained in accordance with the authority having jurisdiction.

• Turn off and lockout all utilities (gas, electric, water) according to approved practices during maintenance or servicing.

• Units with two power cords must be plugged into individual branch circuits. During movement, cleaning or repair it is necessary to unplug both power cords.

Warning

Follow these precautions to prevent personal injury while operating or maintaining this equipment.

• Refer to nameplate to identify the type of refrigerant in your equipment.

• Only trained and qualified personnel aware of the dangers are allowed to work on the equipment.

• Read this manual thoroughly before operating, installing or performing maintenance on the equipment. Failure to follow instructions in this manual can cause property damage, injury or death.

• Crush/Pinch Hazard. Keep hands clear of moving components. Components can move without warning unless power is disconnected and all potential energy is removed.

• Moisture collecting on the floor will create a slippery surface. Clean up any water on the floor immediately to prevent a slip hazard.

• Never use sharp objects or tools to remove ice or frost. Do not use mechanical devices or other means to accelerate the defrosting process.

• When using cleaning fluids or chemicals, rubber gloves and eye protection (and/or face shield) must be worn.

Warning

Follow these precautions to prevent personal injury during use and maintenance of this equipment:

• Units with two power cords must be plugged into individual branch circuits. During movement, cleaning or repair it is necessary to unplug both power cords.

• Never use a high-pressure water jet for cleaning on the interior or exterior of this unit. Do not use power cleaning equipment, steel wool, scrapers or wire brushes on stainless steel or painted surfaces.

• Two or more people are required to move this equipment to prevent tipping.

• Locking the front casters after moving is the owner’s and operator’s responsibility. When casters are installed, the mass of this unit will allow it to move uncontrolled on an inclined surface. These units must be tethered/secured to comply with all applicable codes.

• The on-site supervisor is responsible for ensuring that operators are made aware of the inherent dangers of operating this equipment.

• Do not operate any appliance with a damaged cord or plug. All repairs must be performed by a qualified service company.

THIS PAGE INTENTIONALLY LEFT BLANK

Table of Contents

Safety Notices ...............................3

Definitions ..............................4

General Information

How to Read a Model Number ................19

Head Sections ..........................19

CVD Condensing Units ...................20

Ice Cube Sizes ..............................20

Model/Serial Number Location................21

Warranty ..................................22

Warranty Registration....................22

Model Numbers ............................23

QuietQube® Models .....................23

LuminIce® II ................................24

Installation

Stacking Two Ice Machines on a Single Storage

Bin....................................25

Ice Deflector ...........................25

Location of Ice Machine ......................26

Head Section ...........................26

Ice Beverage Models.....................27

Location of CVD Condensing Units .........28

Clearance Requirements .....................29

Dual Evaporator Model Installation on a Manitowoc

Bin........................................30

Ice Machine on a Dispenser Installation ........31

Water Supply and Drains .....................32

Lineset Applications .........................33

QuietQube® Remote Condensing Unit..........34

Additional Refrigerant Charge For 51' to 100' Line

Sets .......................................35

Part Number: 000015431 Rev01 5/19 13

Maintenance

Cleaning and Sanitizing ......................37

General................................37

Cleaning/Sanitizing Procedure .............38

Preventative Maintenance Cleaning Procedure

......................................38

iAuCS® ................................38

Exterior Cleaning ........................38

Touchscreen Operation For The Clean Cycle .....39

Starting a clean cycle ....................39

Water curtain/damper operation during the

clean cycle .............................39

Pausing a clean cycle.....................39

Power interruption during clean cycle ......39

Aborting a clean cycle....................39

Cleaning/Sanitizing Procedure ................40

Cleaning Procedure......................40

Sanitizing Procedure .....................43

Parts Removal for Cleaning/Sanitizing.......45

Preventative Maintenance Cleaning Procedure ..54

Removal from Service/Winterization ...........56

Operation

Operational Checks..........................57

General................................57

Ice Thickness Check......................58

Sequence of Operation ......................60

QuietQube® Models .....................60

Initial Start-Up or Start-Up After

Automatic Shut-Off ......................60

Freeze Sequence . . . . . . . . . . . . . . . . . . . . . . . .61

Harvest Sequence .......................63

Automatic Shut-Off ......................64

Restart After Automatic Shut-off ...........64

14 Part Number: 000015431 Rev01 5/19

Menu Navigation

Touch Screen Features .......................69

Home screen icon descriptions ............71

Setup Wizard ...............................73

Menu Navigation Overview...................74

Settings Menu Screen Navigation ..........74

USB Flash Drive Specifications and Formatting .

......................................79

Upgrading Firmware with a Flash Drive .....79

Exporting Data to a Flash Drive ............80

Troubleshooting

Troubleshooting ............................81

Event Log ..............................82

Event Log Detail.........................83

Thaw Cycle.............................88

Safe Operation Mode ....................89

E01 Long Freeze Cycle ..................90

E02 Long Harvest Cycle .................90

Analyzing Why A Service Fault (E01 & E02)

Stopped the Ice Machine .................90

E01 Long Freeze.........................91

E02 Long Harvest........................92

Part Number: 000015431 Rev01 5/19 15

Troubleshooting By Symptom .................93

Symptom #1 Ice Machine Stops Running ...93 Symptom #2 Ice Machine has a Long Freeze

Cycle ..................................93

Symptom #3 Will not harvest, cubes normal .93 Symptom #4 Will not harvest cubes melted..93

Reset To Factory Defaults .................94

Symptom #1 Ice Machine Will Not Run......95

Diagnosing a Condensing Unit

That Will Not Run .......................98

Symptom #2 Low Production, Long Freeze Cycle

......................................99

Symptom #3 Harvest Problems ...........115

Failure Type and Symptoms: .............119

Symptom #3 QuietQube® Models With CVD

Condensing Units ......................121

Symptom #4 QuietQube® Models With CVD

Condensing Units ......................125

16 Part Number: 000015431 Rev01 5/19

Component Check Procedures

Control Board, Display And Touchscreen ...127 Operating an ice machine without a

Touchscreen...........................129

Control Board Relay Test.................130

Programming A Replacement Control Board 131 USB Flash Drive Specifications and Formatting .

.....................................132

Exporting Data to a Flash Drive ...........133

Upgrading Firmware with a Flash Drive ....134

Main Fuse ............................135

Bin Switch ............................136

Water Level Control Circuitry .............139

Ice Thickness Probe (Initiates Harvest) .....142

Bin Level Probe ........................146

Thermistors ...........................148

High Pressure Cutout (HPCO) Control ......151

Low Pressure Cutout (LPCO) Control.......152

Compressor Time Delay .................153

Fan Cycle Control.......................154

Harvest Assist Air Pump .................155

Compressor Electrical Diagnostics.........156

Diagnosing Start Components ............158

Refrigeration Components...................159

Head Pressure Control Valve .............159

Suction Accumulator Operation...........165

Recovery/Evacuation/Charging Procedures

QuietQube® Models ........................166

Connections...........................167

Recovery/Evacuation Procedures .........168

Charging Procedures....................169

System Contamination Clean-Up .............170

Determining Severity of Contamination ....170

Contamination Cleanup Chart ............171

Cleanup Procedure .....................172

Liquid Line Filter-Driers..................175

Suction Filter ..........................175

Replacing Pressure Controls Without Removing

Refrigerant Charge .....................176

Total System Refrigerant Charge

QuietQube® CVD Models....................177

Part Number: 000015431 Rev01 5/19 17

Charts

Cycle Times/24-Hour Ice Production/Refrigerant

Pressure Charts ............................179

IF0600C/CVDF0600 .....................180

IBF0620C/CVDF0600....................181

IBF0820C/CVDF0900....................182

IF0900C/CVDF0900 ....................183

IBT1020C/CVDT1200....................184

IT1200C/CVDT1200.....................185

IF1400C/CVDF1400 .....................186

IF1800C/CVDF1800 .....................187

IF2100C/CVDF2100 .....................188

Diagrams

Wiring Diagrams ...........................189

Wiring Diagram Legend .................189

IF0600C/IBF0620C/IBF0820C/IF0900C 1ph .190

IT1200C/IBT1020C 1ph ..................192

IF1400C/IF1800C/IF2100C 1ph ...........194

CVD 1ph Condensing Unit ...............196

CVD 3ph Condensing Unit ...............198

Electronic Control Board ....................200

Refrigeration Tubing Schematics..............202

IF0600C/CVDF0600 IB0620C/CVDF0600

IBF0820/CVDF0900 IF0900C/CVDF0900 ....202

IBT1020C/CVDT1200 IT1200C/CVDT1200 ..204

Dual Evaporators...........................206

IF1400C/IF1800C.......................206

IF2100C ..............................208

18 Part Number: 000015431 Rev01 5/19

General Information

How to Read a Model Number

HEAD SECTIONS

A alternate compressor

Qcoated condenser

(AUS)

SPECIAL USE

Blankgeneral use

I oblique V blades

Zcord without plug

B NEMA plug (USA)

F schuko plug (EU)

POWER CORD OPTION

G 13A blade (GBR)

Blank juncon box

H high pressure

Mmarine

Pcorreconal

Ttop air discharge

XLuminice/Sanitaon

L lever

V space maker

MARKET IDENTIFIER

Blank not market speciﬁc

SSaudi Arabia (GCC)

K Korea (KC)

C China (CCC)

D Germany (GS)

N Brazil (InMetro)

(tradional)

ELECTRICAL

CONFIGURATION

161 = 115/60/1

261 = 208-230/60/1

251 = 220-240/50/1 (S=230)

263 = 208-230/60/3

271 = 200/50-60/1

273 = 200/50-60/3

453 = 380-415/50/3

463 = 460/60/3

C CVD (remote)

Aair cooled

Wwater cooled

N remote

CONDENSER TYPE

2= 22" wide cabinet

#= all other #s mean

producon value

Soo is stated in kg/day

0300 produces ~300 #/day

0320 produces ~320 #/day

0350 produces ~350 #/day

etc. . .

REFRIGERANT TYPE

NOMINAL PRODUCTION @ 70/50

P R290 (propane)

F R404A (four)

T R410A (ten)

B R600A (butane)

E R134A (eight)

ICE MACHINE SERIES

I Indigo

U Undercounter

KKoolaire

RFlake/Nugget

B Big shot

SS-series

IB Ice Beverage

C Countertop

ICE TYPE

RRegular

DDice

Y Half-dice

F Flake

NNugget

G Gourmet

Blank for IB only

I Y T1 2 0 0 C –2 6 1 X

Part Number: 000015431 Rev01 5/19 19

CVD CONDENSING UNITS

CVDT 1200 3

CONDENSING

UNIT MODEL

REFRIGERANT TYPE F = R404A T = R410

Ice Cube Sizes

Regular

1-1/8" x 1-1/8" x 7/8"

2.86 x 2.86 x 2.22 cm

CONDENSING

UNIT SERIES

Dice

7/8" x 7/8" x 7/8"

2.22 x 2.22 x 2.22 cm

3 PHASE

Half Dice

3/8" x 1-1/8" x 7/8"

0.95 x 2.86 x 2.22 cm

20 Part Number: 000015431 Rev01 5/19

Notice

All Manitowoc ice machines require the ice storage system (bin, dispenser, etc.) to incorporate an ice deflector.

Prior to using a non-Manitowoc ice storage system with other Manitowoc ice machines, contact the manufacturer to assure their ice deflector is compatible with Manitowoc ice machines.

Model/Serial Number Location

These numbers are required when requesting information from your local Manitowoc Distributor, service representative, or Manitowoc Ice, Inc.

• The model and serial number can be viewed by pressing the information icon on the touchscreen.

• The owner warranty registration card.

• The model/serial number data plate located in the evaporator compartment and on the back of the ice machine.

The model and serial number displayed on the touchscreen must match the data plate for proper operation. For example a model number listed on the data plate may show IDT1200C-161X but the display would only show IDT1200C-161.

Part Number: 000015431 Rev01 5/19 21

Warranty

For warranty information visit:

www.manitowocice.com/Service/Warranty

• Warranty Coverage Information

• Warranty Registration

• Warranty Verification

Warranty coverage begins the day the ice machine is installed.

WARRANTY REGISTRATION

Completing the warranty registration process is a quick and easy way to protect your investment. Scan the QR code with your smart device or enter the link in a web browser to complete your warranty registration.

WWW.MANITOWOCICE.COM/SERVICE/WARRANTY#WARRANTY-

REGISTRATION

Registering your product insures warranty coverage and streamlines the process if any warranty work is required.

22 Part Number: 000015431 Rev01 5/19

Model Numbers

QUIETQUBE® MODELS

Ice Machine Head Section CVD® Condensing Unit

IYF0600C IBF0620C IBF0820C IYF0900C IBT1020C IDT1200C IYT1200C IDF1400C IYF1400C IDF1800C IYF1800C IDF2100C IYF2100C

CVDF0600

CVDF0900

CVDT1200

CVDF1400

CVDF1800

CVDF2100

Part Number: 000015431 Rev01 5/19 23

LuminIce® II

The LuminIce® growth inhibitor recirculates the air in the ice machine foodzone over a UV bulb. This process will inhibit the growth of common micro-organisms on all exposed foodzone surfaces.

• LuminIce® bulbs require replacement on a yearly basis.

• The control board can be set to automatically display a reminder after 12 months.

NOTE: LuminIce® and LuminIce® II bulbs are not interchangeable; verify your model before ordering a replacement bulb. LuminIce® bulbs have a white base and LuminIce® II bulbs have a blue base.

Cleanup Procedure for Accidental Bulb Breakage

The cleanup procedure is identical to the procedure used to clean up compact fluorescent (CFL) or fluorescent tube lights. These lights contain a small amount of mercury sealed within a glass tube. Breaking these types of lights will release mercury and mercury vapor. The broken bulb can continue to release mercury vapor until it is cleaned up and removed.

The latest EPA procedures can be viewed on their website at www.epa.gov/cfl/cflcleanup.html.

24 Part Number: 000015431 Rev01 5/19

Installation

Warning

PERSONAL INJURY POTENTIAL

Remove all ice machine panels before lifting.

Notice

IF1400C/IF1800C/IF2100C ice machines are not approved for use on Manitowoc D570 bins.

Notice

The ice machine head section must be protected if it will be subjected to temperatures below 32°F (0°C). Failure caused by exposure to freezing temperatures is not covered by the warranty.

STACKING TWO ICE MACHINES ON A SINGLE STORAGE BIN

Indigo Model ice machines cannot be stacked. However an adapter is available that allows two QuietQube® ice machines to be placed side by side on 60" bins.

ICE DEFLECTOR

An ice deflector is required for all ice machines installed on a bin and may be required by the dispenser manufacture when installed on a dispenser.

Part Number: 000015431 Rev01 5/19 25

Location of Ice Machine

HEAD SECTION

The location selected for the ice machine head section must meet the following criteria. If any of these criteria are not met, select another location.

• The location must be free of airborne and other contaminants.

• The air temperature must be at least 35°F (1.6°C), but must not exceed 110°F (43°C).

• Ice Making Water Inlet - Water Pressure must be at least 20 psi (1.4 bar), but must not exceed 80 psi

(5.5 bar).

• The location must not be near heat-generating equipment or in direct sunlight and protected from weather.

• The ice machine must be protected if it will be subjected to temperatures below 32°F (0°C). Failure caused by exposure to freezing temperatures is not covered by the warranty.

26 Part Number: 000015431 Rev01 5/19

ICE BEVERAGE MODELS

• Ice/Beverage Ice Machines require that a proper ice level be maintained when installed on a dispenser. Ice Beverage machines ship with a ice level management sensor pre-installed.

• The ice machine head is installed with the electrical inlet, water supply inlet, refrigeration tubing and water drain entering from the back of the ice machine.

• The ice machine head section contains a service loop that must remain installed between the ice machine head section and line set. Sufficient tubing length must be available to allow 180° rotation of the ice machine.

• Maintain a 3" space between the back of the ice machine and the back of the dispenser to allow room for the refrigeration line set service loop.

• The water inlet and electrical connection must contain a service loop to allow future service and maintenance access.

• The drain line must contain a union or other suitable means of disconnection at the ice machine head section.

• The location must be free of airborne and other contaminants.

• The air temperature must be at least 35°F (1.6°C), but must not exceed 110°F (43°C).

• The location must not be near heat-generating equipment or in direct sunlight.

Part Number: 000015431 Rev01 5/19 27

LOCATION OF CVD CONDENSING UNITS

The location selected for the CVD Condensing Unit must meet the following criteria. If any of these criteria are not met, select another location.

• The air temperature must be at least -20°F (-28.9°C) but must not exceed 120°F (48.9°C).

• The location must not allow exhaust fan heat and/or grease to enter the condenser.

• The location must not obstruct airflow through or around the condensing unit. See below for clearance requirements.

Minimum/Maximum Temperatures

Model

All Ice Machine

Head Sections

QuietQube

Condensing Units

CVDF0600 CVDF0900 CVDT1200 CVDF2100

CVDF1400 CVDF1800

Minimum Air

Temperature

35°F

2°C

-20°F

-29°C

-20°F

-29°C

Maximum Air

Temperature

110°F

43°C

120°F

49°C

130°F

54°C

28 Part Number: 000015431 Rev01 5/19

Clearance Requirements

QuietQube Model Clearance Requirements

Model Top Back Sides IF0600C IF0900C IT1200C IF1400C IF1800C IF2100C

IBF0620C IBF0820C IBT1020C

** 24" (61 cm) is recommended on top/sides for servicing

Condensing Unit Clearance Requirements

Model Top/Sides Back Front

CVDF0600 CVDF0900 CVDT1200 CVDF1400 CVDF1800 CVDF2100

* 24" (61 cm) is recommended on top/sides for servicing

(13 cm)

2"**

(5 cm)

(0 cm*)

(13 cm)

48"

(122 cm)

(13 cm)

8" **

(20 cm)

48"

(122 cm)

Part Number: 000015431 Rev01 5/19 29

Dual Evaporator Model Installation on a Manitowoc Bin

Dual evaporator models will not function correctly with the stock bin deflector. An ice deflector kit is required for installation and is ordered separate. Order appropriate kit (30" or 48") for your bin.

The stock bin deflector must be removed and replaced with the correct deflector to prevent injury.

Warning

PERSONAL INJURY POTENTIAL

Do not operate any ice machine with the deflector removed.

NOTE: A deflector must be installed on all dual evaporator models used in bin applications.

2. LOCK IN PLACE WITH PIN

1. SLIDE

FORWARD

30 Part Number: 000015431 Rev01 5/19

Ice Machine on a Dispenser Installation

No deflector is needed for machines that match the size of the dispenser (30" head section on a 30" dispenser) unless required by the dispenser manufacturer.

Adapters are required when a smaller ice machine is going on a larger dispenser (22" machine on a 30" dispenser).

Ice level management is recommended to prevent water leakage or movement of ice machine during agitation.

A dispenser baffle is required to prevent ice from contacting the ice machine door and prevent possible water leakage. K00348 is used on 22" ice machines and K00346 is used on 30" ice machines.

Important

Manitowoc Ice/Beverage Ice Machines require an adapter for mounting. Adapters are not included with the ice machine, dispenser or bin and must be ordered separately. When a non-Manitowoc adapter is used, verify the adapter is compatible with Manitowoc Ice/ Beverage Ice Machines prior to installation.

Warning

Ice Beverage ice machines, adapter plates and adapter covers must be secured to the dispenser to prevent tipping or dislodging during agitation.

Part Number: 000015431 Rev01 5/19 31

Water Supply and Drains

Potable Water

• Water temperature must be between 40°F (4.4°C) and 90°F (32°C).

• Water pressure must be between 20 psi (140 kPa) and 80 psi (550 kPa).

• Minimum internal diameter of tubing 3/8" (10 mm).

Drain Connections

• Drain lines must have a 1.5 inch drop per 5 feet (2.5 cm per meter) of run and must not create traps.

• The floor drain must be large enough to accommodate drainage from all drains.

• Run separate bin and ice machine drain lines.

• Insulate drain lines to prevent condensation.

• Vent the ice machine drain to the atmosphere.

• Drain termination must have an air gap that meets local code.

Auxiliary Base Drain Installation

An auxiliary drain is located in the ice machine base to remove moisture in high humidity areas.

1. View the back of the ice machine base on the compressor side and locate and remove the cap plug.

2. Route tubing to an open site drain:

• Use 1/2 inch ID CPVC tubing.

• Apply a bead of silicone around the exterior of the ice machine tubing and insert into ice machine base. The silicone will secure the tubing and provide a watertight seal.

• Provide support for tubing.

32 Part Number: 000015431 Rev01 5/19

Lineset Applications

Notice

The 60-month compressor warranty (including the 36-month labor replacement warranty) will not apply if the Manitowoc Ice Machine, Condenser or QuietQube® Condensing Unit were not installed according to specifications. This warranty also will not apply if the refrigeration system is modified with a condenser, heat reclaim device, or other parts or assemblies not manufactured by Manitowoc Ice. Or refrigeration system additives such as leak detection dyes, inhibitors or non OEM approved chemicals.

Warning

Recovery locations vary by model. Verify you are making the correct connections for your model to prevent accidental release of high pressure refrigerant.

Important

Manitowoc remote systems are only approved and warranted as a complete new package. Warranty on the refrigeration system will be void if new equipment is connected to pre-existing (used) tubing, remote condenser, remote condensing unit or ice machine head section.

Part Number: 000015431 Rev01 5/19 33

QuietQube® Remote Condensing Unit

QuietQube® Ice

Machine

IF0600C IBF0620C IBF0820C

IF0900C IBT1020C CVDT1200

IT1200C CVDT1200

IF1400C CVDF1400 RC-20

IF1800C CVDF1800

IF2100C CVDF2100

*Line Set

RC 21/31/51

RC 20/30/50

RC 23/33/53

Remote Single

Circuit Condenser

CVDF0600

CVDF0900

Suction

Line

5/8 inch

(16 mm)

3/4 inch

(19 mm)

3/4 inch

(19 mm)

Line Set* S Trap

RC-21 RC-31 RC-51

RC-30 RC-50 RC-23 RC-33 RC-53

Liquid

Line

3/8 inch (10 mm)

1/2 inch (13 mm)

5/8 inch (16 mm)

K00172

K00166

Minimum

Insulation

Thickness

1/2" (13 mm)

Suction Line 1/4" (7 mm)

Liquid Line

1/2"(13 mm)

Suction Line 1/4" (7 mm)

Liquid Line

1/2" (13 mm)

Suction Line 1/4" (7 mm)

Liquid Line

34 Part Number: 000015431 Rev01 5/19

Additional Refrigerant Charge For 51' to 100' Line Sets

Ice

Machine

IF0600C

IBF0820C

IBT1020C

IT1200C

IF1400C CVDF1400

IF1800C CVDF1800

IF2100C CVDF2100

Condenser

CVDF0600

CVDF0900

CVDT1200

Additional Amount of

Refrigerant To Be Added

To Nameplate Charge

1.5 lbs 680 gIBF0620C

4 lbs

1814 gIF0900C

2 lbs

907 g

2 lbs

907 g

2 lbs

907 g

2 lbs

907 g

4 lbs

1814 g

Part Number: 000015431 Rev01 5/19 35

Calculating Allowable Lineset Distance

Line Set Length

The maximum length is 100' (30.5 m).

Line Set Rise/Drop

The maximum rise is 35' (10.7 m).

The maximum drop is 15' (4.5 m).

S TRAP

REQUIRED IF

RISE IS HIGHER

THAN 20'

35 FT. (10.7 M)

MAXIMUM

DISTANCE

35 ft. (10.7 m) Rise: The maximum distance the Condenser

or Condensing Unit can be above the ice machine.

15 FT. (4.5 M)

MAXIMUM

DISTANCE

15 ft. (4.5 m) Drop: The maximum distance the Condenser

or Condensing Unit can be below the ice machine.

If a line set has a rise followed by a drop, another rise cannot be made. Likewise, if a line set has a drop followed by a rise, another drop cannot be made.

36 Part Number: 000015431 Rev01 5/19

Maintenance

Cleaning and Sanitizing

GENERAL

You are responsible for maintaining the ice machine in accordance with the instructions in this manual. Maintenance procedures are not covered by the warranty.

Clean and sanitize the ice machine every six months for efficient operation. If the ice machine requires more frequent cleaning and sanitizing, consult a qualified service company to test the water quality and recommend appropriate water treatment. An extremely dirty ice machine must be taken apart for cleaning and sanitizing.

Manitowoc Ice Machine Cleaner and Sanitizer are the only products approved for use in Manitowoc ice machines.

Caution

Use only Manitowoc approved Ice Machine Cleaner and Sanitizer for this application (Manitowoc Cleaner part number 9405463 and Manitowoc Sanitizer part number 9405653). It is a violation of Federal law to use these solutions in a manner inconsistent with their labeling. Read and understand all labels printed on bottles before use.

Caution

Do not mix Cleaner and Sanitizer solutions together. It is a violation of Federal law to use these solutions in a manner inconsistent with their labeling.

Warning

Wear rubber gloves and safety goggles (and/or face shield) when handling Ice Machine Cleaner or Sanitizer.

Part Number: 000015431 Rev01 5/19 37

CLEANING/SANITIZING PROCEDURE

This procedure must be performed a minimum of once every six months.

• The ice machine and bin must be disassembled cleaned and sanitized.

• All ice produced during the cleaning and sanitizing procedures must be discarded.

• Removes mineral deposits from areas or surfaces that are in direct contact with water.

PREVENTATIVE MAINTENANCE CLEANING PROCEDURE

• This procedure cleans all components in the water flow path, and is used to clean the ice machine between the bi-yearly cleaning/sanitizing procedure.

IAUCS®

iAuCS® does not operate when the Clean button is used to start a clean cycle. To prime the hose activation is required through the Service Menu/iAuCS® icon.

EXTERIOR CLEANING

Clean the area around the ice machine as often as necessary to maintain cleanliness and efficient operation.

Wipe surfaces with a damp cloth rinsed in water to remove dust and dirt from the outside of the ice machine. If a greasy residue persists, use a damp cloth rinsed in a mild dish soap and water solution. Wipe dry with a clean, soft cloth.

The exterior panels have a clear coating that is stain resistant and easy to clean. Products containing abrasives will damage the coating and scratch the panels.

• Never use steel wool or abrasive pads for cleaning.

• Never use chlorinated, citrus based or abrasive cleaners on exterior panels and plastic trim pieces.

38 Part Number: 000015431 Rev01 5/19

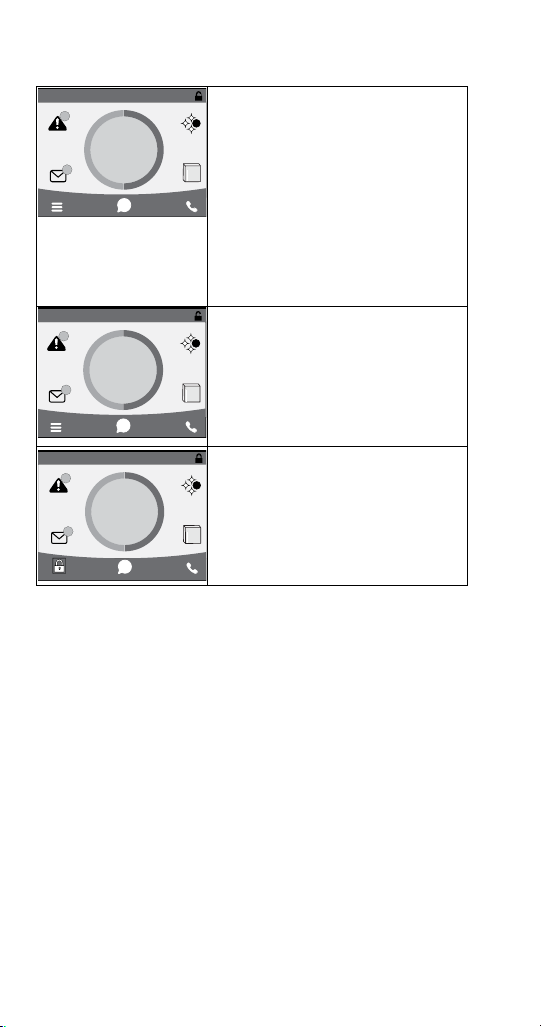

Touchscreen Operation For The Clean Cycle

STARTING A CLEAN CYCLE

Pressing the clean button will display a Continue/Abort screen, and a warning that pressing Continue will result in a clean cycle that can last up to 35 minutes.

WATER CURTAIN/DAMPER OPERATION DURING THE CLEAN CYCLE

The water curtain/damper must remain closed during the clean sequence. When the curtain/damper is open for more than 3 seconds the clean cycle stops and a message is displayed on the touchscreen with a choice to continue or stop the clean cycle. Stopping the clean cycle will result in a series of rinse and dump cycles to verify cleaner or sanitizer has been removed before ice making.

PAUSING A CLEAN CYCLE

The clean cycle can be paused and resumed at any time by pressing the on/off button. The clean cycle will resume from the beginning of either the wash or rinse cycle depending on the point of interruption.

POWER INTERRUPTION DURING CLEAN CYCLE

If the power supply is interrupted during the clean cycle the state is retained in the circuit board. When power is reapplied the clean cycle will resume from the beginning of either the wash or rinse cycle depending on the point of interruption.

ABORTING A CLEAN CYCLE

Verify cleaner/sanitizer is not present in the water system before aborting a clean cycle.

1. Press and hold the Clean button, then press and release the On/Off button.

2. Release the Clean button and select abort from the touchscreen.

Part Number: 000015431 Rev01 5/19 39

Cleaning/Sanitizing Procedure

CLEANING PROCEDURE

Caution

Do not mix Cleaner and Sanitizer solutions together. It is a violation of Federal law to use these solutions in a manner inconsistent with their labeling.

Warning

Wear rubber gloves and safety goggles (and/or face shield) when handling Ice Machine Cleaner or Sanitizer.

Ice machine cleaner is used to remove lime scale and mineral deposits. Ice machine sanitizer disinfects and removes algae and slime.

NOTE: Although not required and dependent on your installation, removing the ice machine top cover may allow easier access.

40 Part Number: 000015431 Rev01 5/19

Step 1 Open the front door to access the evaporator compartment. Ice must not be on the evaporator during the clean/sanitize cycle. Follow one of the methods below:

• Press the power switch at the end of a harvest cycle after ice falls from the evaporator(s).

• Press the power switch and allow the ice to melt.

• Use the touchscreen to initiate a manual harvest cycle.

Notice

Never use anything to force ice from the evaporator. Damage may result.

Step 2 Remove all ice from the bin/dispenser.

Step 3 Press the Clean button and select “Turn off

when complete”. Water will flow through the water dump valve and down the drain. Wait approximately 1 minute until the water trough refills and the display indicates Add Chemical. Add the proper amount of ice machine cleaner to the water trough by pouring between the water curtain and evaporator, then confirm the chemical was added.

NOTE: There is a 10 minute time limit to confirm chemical was added.

• Confirmation is pushed within 10 minutes - The ice machine will start a 10 minute wash cycle, followed by 6 rinse and flush cycles.

• Confirmation is not pushed within 10 minutes - The ice machine will skip the 10 minute wash cycle and start 6 rinse and flush cycles.

Step 4

Model Amount of Cleaner

IF0600C/IBF0620C/IBF0820C

IF0900C/IBT1020C/IT1200C

IF1400C/IF1800C/IF2100C 9 ounces (265 ml)

5 ounces (150 ml)

Part Number: 000015431 Rev01 5/19 41

Step 5 Wait until the clean cycle is complete, then disconnect power to the ice machine (and dispenser when used).

Warning

Disconnect the electric power to the ice machine at the electric service switch box.

Step 6 Remove parts for cleaning.

Please refer to the proper parts removal for your ice machine. Continue with next step when the parts have been removed.

“Single Evaporator Ice Machines” on page 45

“Ice Beverage Ice Machines” on page 47

“Dual Evaporator Ice Machines” on page 49

Step 7 Mix a solution of cleaner and lukewarm water.

Depending upon the amount of mineral buildup, a larger quantity of solution may be required. Use the ratio in the table below to mix enough solution to thoroughly clean all parts.

Solution Type Water Mixed With

Cleaner 1 gal. (4 L)

16 oz (500 ml)

cleaner

42 Part Number: 000015431 Rev01 5/19

Step 8 Use 1/2 of the cleaner/water mixture to clean all components. The cleaner solution will foam when it contacts lime scale and mineral deposits; once the foaming stops use a soft-bristle nylon brush, sponge or cloth (NOT a wire brush) to carefully clean the parts. Soak parts for 5 minutes (15 - 20 minutes for heavily scaled parts). Rinse all components with clean water.

Step 9 While components are soaking, use 1/2 of the cleaner/water solution to clean all food zone surfaces of the ice machine and bin (or dispenser). Use a nylon brush or cloth to thoroughly clean the following ice machine areas:

• Side walls

• Base (area above water trough)

• Evaporator plastic parts - including top, bottom, and sides

• Bin or dispenser

Rinse all areas thoroughly with clean water.

SANITIZING PROCEDURE

Step 10 Mix a solution of sanitizer and lukewarm water.

Solution

Type

Sanitizer 3 gal. (12 L) 2 oz (60 ml) sanitizer

Water Mixed With

Step 11 Use 1/2 of the sanitizer/water solution to

sanitize all removed components. Use a spray bottle to liberally apply the solution to all surfaces of the removed parts or soak the removed parts in the sanitizer/water solution. Do not rinse parts after sanitizing.

Part Number: 000015431 Rev01 5/19 43

Step 12 Replace all removed components.

Step 13 Wait 20 minutes.

Step 14 Reapply power to the ice machine and press the

Clean button.

Step 15 Press the Clean button and select “Make ice when complete”. Water will flow through the water dump valve and down the drain. Wait approximately 1 minute until the water trough refills and the display indicates Add Chemical. Add the proper amount of ice machine sanitizer to the water trough by pouring between the water curtain and evaporator, then confirm the chemical was added.

Model Amount of Sanitizer

IF0600C/IBF0620C/ IBF0820C

IF0900C/IBT1020C/IT1200C

IF1400C/IF1800C/IF2100C 12 ounces (355 ml)

3 ounces (90 ml)

Step 16 The ice machine will automatically start ice making after the sanitize cycle is complete.

44 Part Number: 000015431 Rev01 5/19

PARTS REMOVAL FOR CLEANING/SANITIZING

Single Evaporator Ice Machines

A. Remove the water curtain

• Gently flex the curtain in the center and remove it from the right side.

• Slide the left pin out.

B. Remove the water trough

• Depress tabs on right and left side of the water trough.

• Allow front of water trough to drop as you pull forward to disengage the rear pins.

C. Remove the water level probe

• Pull the water level probe straight down to disengage.

• Lower the water level probe until the wiring connector is visible.

• Disconnect the wire lead from the water level probe.

• Remove the water level probe from the ice machine.

Part Number: 000015431 Rev01 5/19 45

D. Remove the ice thickness probe

• Compress the hinge pin on the top of the ice thickness probe.

• Pivot the ice thickness probe to disengage one pin then the other. The ice thickness probe can be cleaned at this point without complete removal. If complete removal is desired, disconnect the ice thickness control wiring from the control board.

E. Remove the water distribution tube

NOTE: Distribution tube thumbscrews are retained to prevent loss. Loosen thumbscrews but do not pull thumbscrews out of distribution tube.

• Loosen the two outer screws (do not remove screws completely they are retained to prevent loss) and pull forward on the distribution tube to release from slip joint.

• Disassemble distribution tube by loosening the two (2) middle thumbscrews and dividing the distribution tube into two pieces.

NOTE: Proceed to step 7 on page 42.

46 Part Number: 000015431 Rev01 5/19

Ice Beverage Ice Machines

A. Remove splash shield

• Grasp the top center of splash shields.

• Lift up and then out.

B. Remove ice thickness probe

• Compress the hinge pin on the top of the ice thickness probe.

Part Number: 000015431 Rev01 5/19 47

C. Remove the water trough

• Depress tabs on right and left side of the water trough.

• Allow front of water trough to drop as you pull forward to disengage the rear pins.

D. Remove the water level probe

• Pull the water level probe straight down to disengage.

• Lower the water level probe until the wiring connector is visible.

• Disconnect the wire lead from the water level probe.

• Remove the water level probe from the ice machine.

E. Remove the water distribution tube

NOTE: Distribution tube thumbscrews are retained to prevent loss. Loosen thumbscrews but do not pull thumbscrews out of distribution tube.

• Loosen the two outer screws (do not remove screws completely they are retained to prevent loss) and pull forward on the distribution tube to release from slip joint.

• Disassemble distribution tube by loosening the two (2) middle thumbscrews and dividing the distribution tube into two pieces

NOTE: Proceed to step 7 on page 42.

48 Part Number: 000015431 Rev01 5/19

Dual Evaporator Ice Machines

A. Remove front splash shield

• Grasp the top of the splash shield.

• Lift up and then out.

B. Remove evaporator splash shields

• Grasp the top center of splash shields.

• Lift up and then out.

C. Remove the water trough shield

• Grasp the water trough shield in the center and the left end.

• Flex the water trough shield in the center and pull the left end forward until clear of the side wall. Repeat for the right end.

• Pull water trough shield forward to remove.

Part Number: 000015431 Rev01 5/19 49

D. Remove ice thickness probe

• Compress the hinge pin on the top of the ice thickness probe.

E. Remove ice dampers

• Grasp ice damper and apply pressure toward the back mounting bracket.

• Apply pressure to the front mounting bracket with thumb.

• Pull ice damper download when the front ice damper pin disengages.

F. Remove the water pump assembly

• Disconnect the vinyl distribution tube from the water pump.

• Disconnect the water pump and water level probe electrical connections.

• After the wires are disconnected, remove the two thumbscrews and lift the water pump assembly out of the ice machine.

• Depress tabs, lift and remove water pump. Do not immerse the water pump motor in cleaner or sanitizer solutions.

• Remove the water level probe from the assembly housing.

50 Part Number: 000015431 Rev01 5/19

G. Remove distribution tubes

• Distribution tubes thumbscrews are retained to prevent loss. Loosen thumbscrews but do not pull thumbscrews out of distribution tube.

• Loosen the two outer screws and pull forward on the distribution tube to release from slip joint.

• Disassemble distribution tube by loosening the two (2) middle thumbscrews and dividing the distribution tube into two pieces.

H. Remove the water trough

• Depress the two tabs on the top of the water trough.

• Turn left and right ice dampers down to clear water trough.

• Pull forward on the water trough to remove.

NOTE: Proceed to page 42 Step 7.

Part Number: 000015431 Rev01 5/19 51

Ice Thickness Probe & Water Level Probe

Clean the probes using the following procedure.

NOTE: Do not soak electrical connectors in cleaner or sanitizer solution.

1. Mix a solution of Manitowoc ice machine cleaner and water (2 ounces of cleaner to 16 ounces of water) in a container.

2. Soak probes in container of cleaner/water solution while disassembling and cleaning water circuit components (soak probes for 10 minutes or longer).

3. Clean all probe surfaces including all plastic parts (do not use abrasives). Verify all surfaces are clean. Thoroughly rinse probes with clean water.

4. Reinstall probe, then sanitize the ice machine and bin/ dispenser interior surfaces.

52 Part Number: 000015431 Rev01 5/19

Water Inlet Valve

The water inlet valve normally does not require removal for cleaning. Refer to ”Water System Checklist” on page 103, if you are troubleshooting water related problems.

1. When the ice machine is off, the water inlet valve must completely stop water flow into the machine. Watch for water flow.

When the ice machine is on, the water inlet valve must allow the proper water flow through it. Press the Power button to energize the ice machine. Watch for water flow into the ice machine. If the water flow is slow or only trickles into the ice machine, refer to water system checklist.

Water Dump Valve

The water dump valve normally does not require removal for cleaning. To determine if removal is necessary:

1. Locate the water dump valve.

2. While the ice machine is in the freeze mode, check the rain to determine if the dump valve is leaking. If there is no or little water in the water trough (during the freeze cycle) the dump valve is leaking.

A. If the dump valve is leaking and debris is not

visible and easily removed, the dump valve must be replaced.

B. If the dump valve is not leaking, do not remove

it. Instead, follow the “Ice Machine Cleaning Procedure”.

Part Number: 000015431 Rev01 5/19 53

Preventative Maintenance Cleaning Procedure

This procedure will descale the components in the water flow path, and is used to descale the ice machine between the bi-yearly cleaning/sanitizing procedures.

Ice machine cleaner/descaler is used to remove lime scale and mineral deposits. Ice machine sanitizer disinfects and removes algae and slime.

NOTE: Although not required and dependent on your installation, removing the ice machine top cover may allow easier access.

1. Ice must not be on the evaporator during the clean/ sanitize cycle. Follow one of the methods below:

A. Press the power button at the end of a harvest

cycle after ice falls from the evaporator(s).

B. Press the power button and allow the ice to

melt.

Caution

Never use anything to force ice from the evaporator. Damage may result

2. Open the front door to access the evaporator.

3. Press the Clean button and select “Make ice when complete”. Water will flow through the water dump valve and down the drain. Wait approximately 1 minute until the water trough refills and the display indicates Add Chemical. Add the proper amount of ice machine descaler to the water trough by pouring between the water curtain and evaporator, then confirm the chemical was added.

54 Part Number: 000015431 Rev01 5/19

Model Amount of Cleaner

IF0600C/IBF0620C/IBF0820C

IF0900C/IBT1020C/IT1200C

IF1400C/IF1800C/IF2100C 9 ounces (265 ml)

5 ounces (150 ml)

4. Close and secure the front door. The ice machine will automatically start ice making after the descale cycle is complete (approximately 24 minutes).

NOTE: Once the cycle has started it must complete before the ice machine can make ice again. Returning it to ice making mode will not cancel a clean cycle

Part Number: 000015431 Rev01 5/19 55

Removal from Service/Winterization

General

Special precautions must be taken if the ice machine is to be removed from service for an extended period of time or exposed to ambient temperatures of 32°F (0°C) or below.

Notice

If water is allowed to remain in the ice machine in freezing temperatures, severe damage to some components could result. Damage of this nature is not covered by the warranty.

1. Turn off the ice machine by pressing the On/Off Button.

2. Turn off the water supply.

3. Remove the water from the water trough.

4. Disconnect and drain the incoming ice-making water line at the rear of the ice machine.

5. Start the Ice making cycle by pressing the On/Off Button and wait one minute for the water inlet valve to open - or - Energize all relays in the touchscreen service menu.

6. Blow compressed air in both the incoming water and the drain openings in the rear of the ice machine until no more water comes out of the water inlet lines or the drain.

7. Disconnect the electric power at the circuit breaker or the electric service switch.

8. Make sure water is not trapped in any of the water lines, drain lines, distribution tubes, etc.

NOTE: www.manitowocice.com has an informational video on this and other topics.

56 Part Number: 000015431 Rev01 5/19

Operation

Operational Checks

GENERAL

Manitowoc ice machines are factory-operated and adjusted before shipment. Normally, new installations do not require any adjustment.

To ensure proper operation, always follow the Operational Checks:

• when starting the ice machine for the first time

• after a prolonged out of service period

• after cleaning and sanitizing

NOTE: Routine adjustments and maintenance procedures are not covered by the warranty.

Important

Refrigeration compressors must be operated for a minimum break in period of 24 hours before full ice production will be reached.

Part Number: 000015431 Rev01 5/19 57

ICE THICKNESS CHECK

The ice thickness probe is factory-set to maintain the ice bridge thickness at 1/8 in. (3 mm).

NOTE: Make sure the water curtain/splash shields are in place when performing this check. It prevents water from splashing out of the water trough. Remove the curtain to make an adjustment, then replace immediately after the adjustment is made.

1. Inspect the bridge connecting the cubes. It should be about 1/8 in. (3 mm) thick.

2. If adjustment is necessary, turn the ice thickness probe adjustment screw clockwise to increase bridge thickness or counterclockwise to decrease bridge thickness. Set a 9/32" gap between the ice thickness probe and evaporator as a starting point. Then adjust to achieve 1/8" ice thickness.

3. Make sure the ice thickness probe wire and the bracket do not restrict movement of the probe.

1/8" (3 mm)

ICE BRIDGE THICKNESS

PLACE 9/32" (7MM) DRILL BIT

HERE TO SET INITIAL GAP

Ice Thickness Check

NOTE: Turning the adjustment 1/3 of a turn will change the ice thickness about 1/16" (1.5 mm). Make adjustment only

when the ice machine is off to prevent initiating a harvest.

58 Part Number: 000015431 Rev01 5/19

Control Board Timers

The control board has the following non-adjustable timers:

• The ice machine is locked into the freeze cycle for 6

minutes before a harvest cycle can be initiated. This can be overridden by initiating a manual harvest. Refer to “Manual Harvest” on page 75.

• The maximum freeze time is 35 minutes at which time

the control board automatically initiates a harvest sequence.

• The maximum harvest time is 7 minutes, the control

board will perform a remove thaw cycle and then return the ice machine to the freeze cycle.

• Maximum water fill time in the freeze cycle:

• Single evaporator 6 minutes.

• Dual evaporator 8 minutes.

Part Number: 000015431 Rev01 5/19 59

Sequence of Operation

QUIETQUBE® MODELS

NOTE: The power button must be depressed and the water curtain/ice dampers must be in place on the evaporator before the ice machine will start.

INITIAL START-UP OR START-UP AFTER AUTOMATIC SHUT-OFF

1. Water Purge

Before the compressor starts, the water pump and water dump solenoid are energized to purge the ice machine of old water. This feature ensures that the ice making cycle starts with fresh water.

2. Refrigeration System Start-Up

Ice Machine Head Section:

The harvest valve(s), air pump(s) and liquid line solenoid valve energize to equalize high and low side refrigeration pressure. After 10 seconds the harvest valve(s) and air pump(s) de-energize.

CVD Condensing Unit:

The low pressure switch closes and sends voltage to the time delay relay. The time delay relay when closed sends voltage to the contactor coil, which energizes the compressor.

60 Part Number: 000015431 Rev01 5/19

FREEZE SEQUENCE

3. Prechill

The compressor lowers the temperature of the evaporator(s) before the water pump is energized. The water fill valve will energize and remain on until water completes the water level probe circuit.

4. Freeze

The water pump energizes and water flows over the evaporator. After water contacts the water level probe the water fill valve de-energizes. The control board will automatically cycle the water fill valve. The valve energizes once in the pre-chill and up to twice in the freeze cycle.

The freeze cycle continues until the six minute freeze lock expires and enough ice has formed to send a signal from the ice thickness probe to the control board.

Water Pump

The water pump(s) energizes and water flows over the evaporator. The water pump is energized throughout the freeze cycle.

Part Number: 000015431 Rev01 5/19 61

Water Inlet Valve

The water inlet valve energized in prechill. After water contacts the low and high water probes the water fill valve de-energizes. Ice builds on the evaporator and the water level drops. When water loses contact with the high water probe, the water fill valve energizes until water contacts the high water probe again.

Maximum Fill Time = Prechill fill time + first fill + second fill.

SINGLE EVAPORATOR MAXIMUM FILL TIME

Initial startup or startup after automatic shutoff

Prechill (2 minutes) + first fill time (6 minutes) + second fill time (6 minutes) = 14.0 minutes.

Consecutive cycles

Prechill (30 sec.) + first fill time (6 minutes) + second fill time (6 minutes) = 12.5 minutes.

DUAL EVAPORATOR MAXIMUM FILL TIMES

Initial startup or startup after automatic shutoff

Prechill (2 minutes) + first fill time (8 minutes) + second fill time (8 minutes) = 18.0 minutes.

Consecutive cycles

Prechill (30 sec.) + first fill time (8 minutes) + second fill time (8 minutes) = 16.5 minutes.

62 Part Number: 000015431 Rev01 5/19

HARVEST SEQUENCE

5. Water Purge

The air pump(s) and the harvest valve(s) open at the beginning of the water purge to divert refrigerant gas into the evaporator.

The water pump continues to run, and the water dump valve energizes to purge the water in the water trough.

CVD Condensing Unit:

When the refrigerant pressure is low enough to open the fan cycling pressure control the condenser fan motor stops.

6. Harvest

The air pump(s) remain energized and the harvest valve(s) remains open. The refrigerant gas warms the evaporator causing the cubes to begin melting and slide, as a sheet, off the evaporator and into the storage bin. If the damper/curtain does not open within 3.5 minutes in the harvest cycle the following occurs:

• 3.5 minutes - The water inlet valve energizes until

water touches the high water level probe.

• 4 minutes - The water pump energizes.

• 6.5 to 7 minutes - The water dump valve energizes.

• If bin switch does not open before 7 minutes the ice

machine will start a Thaw Cycle xx

Single evaporator models - The sliding sheet of cubes opens the water curtain/ice damper and bin switch.

The momentary opening and re-closing of the bin switch will terminate the harvest sequence and return to the freeze sequence (Step 3 - 4).

Dual evaporator models - The sliding sheet of cubes opens the ice damper and bin switch. The momentary opening and re-closing of the bin switch de-energizes the harvest valve for that evaporator. When the bin switches have opened and closed for both evaporators the ice machine will terminate the harvest sequence and return to the freeze sequence (Step 3 - 4).

Part Number: 000015431 Rev01 5/19 63

AUTOMATIC SHUT-OFF

7. Automatic Shut-Off

Ice Machine Section: Shuts off when:

• The storage bin is full at the end of a harvest sequence.

• The sheet of cubes fails to clear the water curtain and holds it open.

• One or both ice dampers are held down.

• Bin level probe thermistor senses setpoint (when used).

After the water curtain or ice damper are held open for 30 seconds, the ice machine shuts off. The ice machine control board starts a 10 minute delay which must time out before the ice machine can automatically restart.

CVD Condensing Unit: The liquid line solenoid valve closes and the condensing unit pumps down. The LPCO opens, starts a five minute delay period and de-energizes the contactor coil, which de-energizes the compressor and condenser fan motor.

RESTART AFTER AUTOMATIC SHUT-OFF

The ice machine remains off until enough ice has been removed to allow the ice to fall clear of the water curtain or ice damper. As the water curtain or ice damper swings back to the operating position, the bin switch re-closes and the ice machine restarts (steps 1 - 2), provided the 10 minute control board delay period and 5 minute condensing unit delay periods have completed.

64 Part Number: 000015431 Rev01 5/19

Time

Length of

Contactor

Refrigeration

Compressor &

Solenoid

Liquid Line

Dump

Water

Valve

Water Inlet

Energized Parts Chart

Air

Harvest

Pumps

Valve(s)

Single & Twin Evaporator QuietQube® Models

Pump

Water

Motor*

Condenser Fan

Valve

On Off Off Off On Off Off 45 Seconds

Operation

Ice Making

Sequence of

Start-up

1. Water Purge

Shut Off

2. Refrigeration System

Start-Up - Initial or After Auto

Pressure Equalization Off On On Off Off Off Off 5 Seconds

Compressor Start Off On On Off Off On On 5 Seconds

Part Number: 000015431 Rev01 5/19 65

Time

Length of

120 Seconds

Initial Start-Up is

30 Seconds thereafter

ice thickness probe

Until Ice contact with

45 Seconds

Factory-set at

Contactor

Refrigeration

Compressor &

Solenoid

Liquid Line

Dump

Water

Valve

Water Inlet

Energized Parts Chart

Air

Harvest

Pumps

Valve(s)

Single & Twin Evaporator QuietQube® Models

Pump

Water

Condenser Fan

Valve

Motor*

May cycle

Off On On

Off Off Off

Off On On

On/Off

Cycles Off

times

two more

then On/Off,

On Off Off

On On On Off On On On

Operation

Ice Making

Sequence of

3. Pre chill

Freeze Sequence

4. Freeze

5. Water Purge

Harvest Sequence

66 Part Number: 000015431 Rev01 5/19

Time

Length of

activation

Until curtain switch

activation

expires & all bin

Until 10 min. delay

switches re-close

Bin switch

Contactor

Refrigeration

Compressor &

Solenoid

Liquid Line

Dump

Water

Valve

Water Inlet

Energized Parts Chart

Air

Harvest

Pumps

Valve(s)

Single & Twin Evaporator QuietQube® Models

Pump

Water

Condenser Fan

Valve

Motor*

Off ** On On On Off** On On

Off Off Off Off Off Off Off

Operation

Ice Making

Sequence of

Shut-Off

Water Assist

Starts 3.5 minutes in

6. Harvest Off On On Off Off On On

harvest cycle

7. Automatic

* The condenser fan motor is controlled by a fan cycle control and may cycle on/off.

* The contactor is controlled by a low pressure control and may cycle on/off whenever power is supplied to the condensing unit.

Part Number: 000015431 Rev01 5/19 67

** Water Pump On after 4 minutes - Dump Valve On after 6.5 minutes.

THIS PAGE INTENTIONALLY LEFT BLANK

68 Part Number: 000015431 Rev01 5/19

Menu Navigation

Power Button Touchscreen Lock Clean Button

11/18/2018 10:42 AM

MAKING ICE

Touch Screen Features

The Indigo® control panel offers a series of pressuresensitive buttons and an interactive touchscreen.

Buttons

Power Button: Provides On/Off functions for the ice

machine.

Lock/Unlock Button: Allows or prevents touchscreen navigation.

Cleaning Button: Initiates a cleaning cycle. Refer to “Cleaning and Sanitizing” on page 37 for details on starting and bypassing a clean cycle.

“Part Number: 000015431 Rev01 5/19” 69

Touchscreen

11/18/2018 10:42 AM

MAKING ICE

Home screen allows viewing of ice machine status, alerts and messages.

Navigation with the touchscreen provides access to menu items,machine information, settings and event logs.

Setup and Energy Saver settings can be adjusted along with access to service and troubleshooting information. The icons provide status indication and allow navigation by pressing the icon.

11/18/2018 10:42 AM

Program Mode On

MAKING ICE

The touchscreen will display Program Mode On, whenever the ice machine

is off due to a bin level probe, weight program or time program.

The touchscreen will display a lock in place of the menu icon when the

touchscreen has been locked.

70 “Part Number: 000015431 Rev01 5/19”

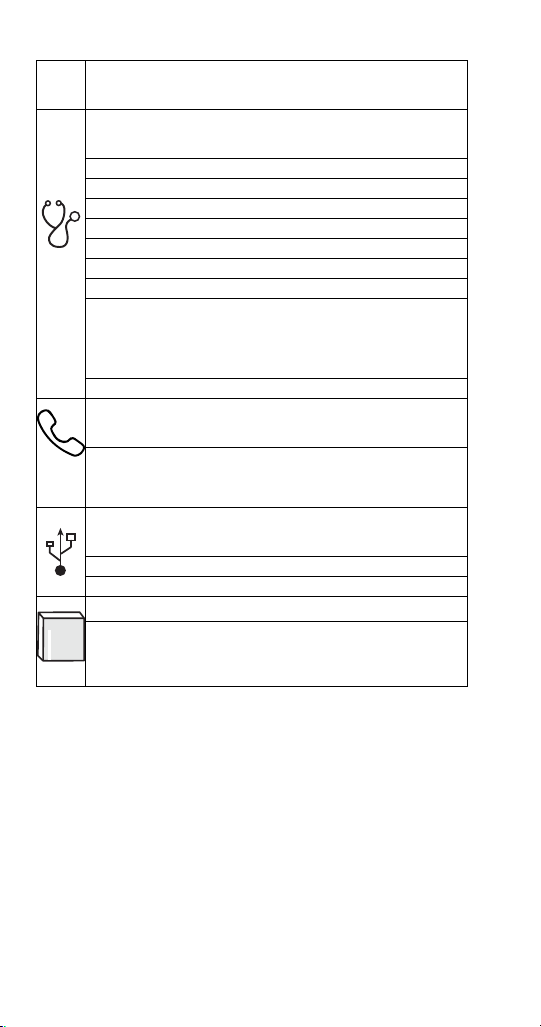

HOME SCREEN ICON DESCRIPTIONS

Icon Description

Home Screen Pressing this icon at any time will return the

display to the home screen. State of ice Machine is the center portion of the screen which displays the current condition of the ice machine - Making ice, bin full, program mode or machine off

Alert Alert icon with number of messages. Pressing

this icon will display the alert log which will

allow viewing and resetting of alerts

Message Message icon with umber of messages. Pressing

this icon will display the routine maintenance

reminder screen which will allow viewing and resetting of the reminder

Menu Menu icon will take you to the main menu.

Note: This icon changes to a lock if the touchscreen lock has been selected.

Information Information icon provides model and serial

number, installation date and other information specific to the ice machine.

Service Locator Provides contact information for your local

service support - Default is the Manitowoc Ice website service locator

Lock/Unlock Indicates if screen is locked or unlocked.

The icon is only visible when the screen is locked.

LuminIce Only visible when a LuminIce II accessory is

connected. Blue S - Normal operation

Red S - Replace bulb Red/Blue alternating - Incorrect bulb installed

“Part Number: 000015431 Rev01 5/19” 71

Icon Description

iAuCS This icon appears when the iAUCS activates

during a programed cleaning cycle.

72 “Part Number: 000015431 Rev01 5/19”

Setup Wizard

Screens will automacally advance aer a selecon is made or press the arrows to advance/go back one screen. All sengs can be accessed and changed without the wizard by using menu screen navigaon.

Setup Description

Press ON/OFF

Button

Select

Language

Start Wizard

Date and Time

Configuration

Set Local Time Use arrows to set local time.

Verify Date Use arrows to set date for your location.

Accessory Detection

Optional

USB Settings

Download

Configure Units Select standard or metric.

Set Brightness

Optional Ice

Program

Optional

Cleaning

Reminder

Optional Clean

Air Filter

Air-cooled

models only Optional Water Filter Reminder

Water Usage

Option

Congratulations Setup wizard is complete

Turn On Ice

Machine

On/Off button is used to start/stop ice making.

Default is English. Scroll to select a different

language.

Setup wizard will guide ice machine

programming.

Select Month/Day/Year or Day/Month/Year.

Select 12 hour or 24 hour time format.

Detects if Ice Level Sensor, LuminIce II or iAuCS

are connected.

Checkmark = yes - X = no

Only used when setup features have been

transferred to a USB drive. Skip screen by

selecting right arrow.

Configure screen brightness during normal

operation.

Program ice machine run times or press right

arrow to skip this setup.

Set clean and sanitize reminder or press right

arrow to skip.

Set to ON for self-contained air cooled models.

Select Yes or No.

Factory default - or - Use less water for reverse

osmosis systems (see “Reverse Osmosis or

Deionized Water Usage” on page 140) -

or - Use more water to improve clarity for

unfiltered water

Turn on ice machine by pressing the On/Off

button.

“Part Number: 000015431 Rev01 5/19” 73

Menu Navigation Overview

SETTINGS MENU SCREEN NAVIGATION

Select SETTINGS Icon from the Home Screen to access Main Menu screen. The main menu screen contains four main headings, which allow access to subheadings under each main heading.

Energy

Ice Program

Continuous Mode - Default, No Program

Time Program - Select Daily On/Off times

Weight Program - Select Daily Production Weight

Water Usage

Use Factory Default

Use Less Water With Reverse Osmosis

Use More Water To Improve Ice Clarity

Statistics

Ice Production - Previous 7 Days

Water Usage - Previous 7 Days

Energy Usage - Previous 7 Days

NOTE: The performance statistics are calculated based on the performance of the ice machine at 900F (320C) ambient temperature and 700F (210C) water temperature. The actual statistics will vary dependent on your environmental conditions.

74 “Part Number: 000015431 Rev01 5/19”

Service

Data

Real Time Data

Time and Temperature Inputs Outputs

Data History for 5 Previous Days

Minimum and Maximum Freeze (Length, Time of day,

Thermistor Temperatures)

Minimum and Maximum Harvest (Length, Time of day,

Thermistor Temperatures)

Lifetime Data History

Installation Date Control Board Replacement Date Control Board Manufacture Date Runtime Cycle Count Potable Water Clean Cycles

Alert Log

Lists/Clears Alerts

Manual Harvest

Off or On

Control Board Replacement

Manual Replacement

Manually enter model number Manually enter serial number Manually enter condenser serial number (optional) Verification

USB Replacement

Import to ice machine Export to USB

“Part Number: 000015431 Rev01 5/19” 75

Service

Diagnostics

Control board

Enable All Relays Self Check

Temperature Sensors

Lists Sensor Temperatures

Inputs

Lists Control Board Input Information

User Interface

Screen Calibration Button Diagnostics Screen Diagnostics

Screen Calibration

Contact information

Factory defaults to QR code and website address to

Manitowoc Ice’s Global Locator.

Edit Contact Information Button.

USB

Upgrade Firmware

Export Data

iAuCS

Manually initiate the iAuCS pump for pump/hose

priming. NOTE: The clean button does not initiate the

iAuCS pump.

76 “Part Number: 000015431 Rev01 5/19”

Settings

Language

Select Language

Reminders

Clean Reminder

Set Month Interval

Air Filter

Set On/Off/Interval

Water Filter

Set Reminder

Configure Date & Time

Set Time Set Date

Units

Standard or Metric

Brightness

Adjust Touch Screen Brightness For Sleep Mode or Inactivity. NOTE: 100% brightness is activated by touching the screen when the lock feature is off.

USB

Import Settings To Ice Machine Export Settings To USB

iAuCS

When the iAuCS is detected, the icon will appear in the settings menu to set frequency of cleanings with iAuCS

“Part Number: 000015431 Rev01 5/19” 77

Reset Defaults

Require Setup Wizard

Optional Setup Wizard restart for training purposes or resale of equipment.

Backup Current Settings

Import To Ice Machine Export To USB

Reset Factory Defaults

78 “Part Number: 000015431 Rev01 5/19”

USB FLASH DRIVE SPECIFICATIONS AND FORMATTING

Updating firmware on Indigo™ model ice machines requires a properly formatted 32 GB or smaller USB flash drive. All USB flash drives must be formatted before use to remove any software programs or files currently on the flash drive.

USB Flash Drive Specifications:

• USB 2 Version

• 32 GB or less capacity

• Fat32 File System

USB Flash Drive Formatting:

Procedure to format a USB flash drive varies with operating system software. Refer to operating system software manufacturer’s website for formatting instructions.

UPGRADING FIRMWARE WITH A FLASH DRIVE

Important

The flash drive must be formatted before using. All files and software on the flash drive are removed during the formatting process.

1. Drag and drop the files from website or email onto a

flash drive.

2. Ensure that the ice machine’s power is on.

3. Navigate to USB - Menu/Service/USB.

4. Insert the flash drive into the USB port on the ice

machine control board. Do not remove flash drive until transfer is complete.

NOTE: See “Electronic Control Board” on page 200 for USB location.

5. Select “Upgrade firmware” and remove USB drive

when the transfer is complete.

“Part Number: 000015431 Rev01 5/19” 79

EXPORTING DATA TO A FLASH DRIVE

Data can be copied from the control board memory to a flash drive and used to transfer setup and/or cycle data to a replacement control board or to transfer setup information to multiple ice machines. Data may also be requested by service department personnel for analysis or as an aid to troubleshooting. The data files are small and can be attached to an email.

Important

The flash drive must be formatted before using. All files and software on the flash drive are removed during the formatting process.

1. Ensure that the ice machine’s power is on.

2. Press the Menu button.

3. Navigate to USB - Menu/Service/USB.

4. Insert the flash drive into the USB port on the ice machine control board. Do not remove flash drive until update is complete.

5. Select Export Data and remove USB drive when the transfer is complete.

80 “Part Number: 000015431 Rev01 5/19”

Troubleshooting

Check the touchscreen for alerts - An alert icon with the number of messages will be displayed if alerts are present. Pressing the alert icon will display the alert log which will allow viewing and resetting of alerts. Refer to the alert log and event log on the following pages for a description of the event.

NOTE: There are two sequences that allow the ice machine to continue ice making during alert events:

Thaw Cycle

When the damper/curtain does not open during the 7 minute harvest cycle (E02 fault) a thaw cycle starts. See ”Thaw Cycle” on page 88

Safe Operation Mode

Allows the ice machine to operate up to 72 hours if the ice thickness probe (E19 fault) and/or water level probe sensors fail (E20 fault). See “Safe Operation Mode” on page 89

Part Number: 000015431 Rev01 5/19 81

EVENT LOG

Refer to Event Log Detail For Code descriptions.

Displayed Text Code Description

Long Freeze E01 Long Freeze Cycle Long Harvest E02 Long Harvest Cycle Power Loss E03 Input Power Loss Hi cnd Temp or Wtr Cnd Fault HPC Fault E05 High Pressure Control Opened

Starving TXV E07 Starving TXV Single Evaporator or Low On

TXV Fault E08 TXV Fault Single or Dual Circuit

Flood Evap1 E09 Flooding Evaporator Fault Single

Flood Evap2 E10 Flooding Evaporator Fault Dual TXV, Dual

Refrig Fault E11 Refrigeration Fault Curtain Fault E12 Curtain Switch Fault - Open more than

Low liq temp E15 Fan Cycle Control Fault - Low Liquid Line

Rmt Cnd Fault E16 Remote Condensing Unit Fault (CVD Only)

ITP Fault E19 Ice Thickness Probe Fault WTR Fault E20 Water System Fault T1 Fault E21 T1 Temperature Sensor Issue T2 Fault E22 T2 Temperature Sensor Issue T3 Fault E23 T3 Temperature Sensor Issue T4 Fault E24 T4 Temperature Sensor Issue T5 Bin Probe E25 Bin Level Probe Sensor Fault (IB Only) T6 Fault E26 T6 or T7 Temperature Sensor Issue T7 Fault E27 T6 or T7 Temperature Sensor Issue iAUCS E28 iAuCS Not Detected Event Log Only USB Comm E29 USB Communication Fault USB DNLD E30 USB Download Fault Safe Mode E31 Safe Mode RS485 COMM E32 RS485 Communication Fault Keyboard E33 Touchscreen Fault Display E34 Display Fault

E04 High Condenser Temperature

E06 Spare

Charge

Evaporators

Evaporator, Single Circuit

Circuit

24 hours E13 Spare E14 Spare

Temperature

E17 Spare E18 Spare

82 Part Number: 000015431 Rev01 5/19

Displayed Text Code Description

Checksum E36 Check Sum Error WatchDog E37 Watch Dog Event UI Comm E38 UI Comm Event

EVENT LOG DETAIL

E01 Long Freeze

3 consecutive 35 minute freeze cycles = Ice machine is off.

E02 Long Harvest

3 consecutive 7minute harvest cycles = Ice machine is off.

E03 Power Loss

When power is interrupted to the ice machine the control board will log the event in the ELOG and stamp the loss of power on power-up.

E04 High Condenser Temperature

Liquid Line Temperature too High for Self-contained Air Cooled Ice machine = Air Cooled Condenser Fault

Liquid Line Temperature too High for Self-contained Water Cooled ice machine = Water Cooled Condenser Fault

E05 High Pressure Control Opened

The high pressure cutout switch (HPCO) opened.

E06 Spare

E07 Starving TXV Single Evaporator or Low On Charge

The difference of the average evaporator inlet (T3) and outlet (T4) is greater than 12°F in the last 1 minute of the freeze cycle.

E08 TXV Fault Single or Dual Circuit Evaporators

The difference of the average evaporator inlet (T3) and outlet (T4) is greater than 12°F in the last 1 minute of the freeze cycle.

Part Number: 000015431 Rev01 5/19 83

E09 Flooding Evaporator Fault Single Evaporator, Single Circuit

Average compressor discharge line temperature during the first 6 minutes of the freeze cycle (T2) compared to the average of the Prechill (T1) +50°F is less than 1.05°F.

E10 Flooding Evaporator Fault Dual TXV, Dual Circuit

Average compressor discharge line temperature during the first 6 minutes of the freeze cycle (T2) compared to the average of the Prechill (T1) +50°F is less than 1.05°F.

E11 Refrigeration Fault

The compressor discharge temperature did not increase by at least 10° F, and the evaporator temperature did not decreased by at least 10° F - Measured from Refrigeration Start up or Prechill until 2 minutes into the Freeze cycle.

E12 Curtain Switch Fault Open more than 24 hours

The ice machine is set to ice making and remains in bin full condition for more than 24 hours. The curtain switch is open or curtain is off.

E13 Spare

E14 Spare

E15 Fan Cycle Control Fault - Low Liquid Line Temperature

The liquid line temperature dropped below 60° F for more than one continuous minute during the freeze cycle.

E16 Remote Condensing Unit Fault (CVD Only)

The liquid line temperature dropped below 40° F, or exceeded 140° F for more than 1 continuous minute during the freeze cycle.

E17 Spare

E18 Spare

84 Part Number: 000015431 Rev01 5/19

E19 Ice Thickness Probe Fault

The monitored Frequencies is out of the appropriate range (Probe unplugged or problem with microphone).

E20 Water System Fault

Any of the following:

1. Sensing high water probe and not low water probe.

2. Evaporator outlet temperature is less than -10°F 6.5 to 7.5 minutes in freeze cycle.

3. Low water probe is satisfied at the end of harvest.

4. Low or high water probe is satisfied at end of freeze cycle.

E21 T1 Temperature Sensor Issue

During Pre-chill the thermistor had an average value reading outside the valid range.

E22 T2 Temperature Sensor Issue

During Pre-chill the thermistor had an average value reading outside the valid range.

E23 T3 Temperature Sensor Issue

During Pre-chill the thermistor had an average value reading outside the valid range.

E24 T4 Temperature Sensor Issue

During Pre-chill the thermistor had an average value reading outside the valid range.

E25 Bin Level Probe Low Sensor Fault

The thermistor had an average value reading outside of the valid range for 10 continuous minutes.

Part Number: 000015431 Rev01 5/19 85

E26 T6 or T7 Temperature Issue

The thermistor had an average value reading outside of the valid range.

E27 T6 or T7 Temperature Issue

The thermistor had an average value reading outside of the valid range.

E28 AuCS

When the AUCS clean option is selected from the menu, the control checks for the presence of the AUCS board. When the AUCS is not connected it will signal an Event which will clear as soon as the hardware is detected.

E29 USB Communication Fault

USB Communication error; No USB drive in port or defective USB drive.

E30 USB Download Fault

USB Download error related to USB drive or a defective USB drive.

E31 Safe Mode

Safe mode allows the ice machine to operate for a period of time in the event of a Water level or ice thickness probe failure. The controller allows the machine to operate based on model data and historical cycle information.

E32 RS485 Communication Fault

The device plugged into the RS485 port is not communicating between the control board and gateway.

E33 Touchscreen Fault

The Touchscreen is not plugged into the control board or is faulty.

E34 Display Fault

The touchscreen is not plugged into the control board or is faulty.

86 Part Number: 000015431 Rev01 5/19

E36 Check Sum Error

Event Log Only: Activates on power loss.

E37 Watch Dog Event

Event Log Only: Micro Process time out, possible electrical noise.

E38 UI Comm Event

Event Log Only: User interface communication error: loose communication cable, power interruption.

Part Number: 000015431 Rev01 5/19 87

THAW CYCLE

When the damper/curtain does not open during the 7 minute harvest cycle the following ice thaw cycle occurs:

• The compressor, harvest solenoid valve and dump valve de-energize. The water pump remains energized and the water inlet valve energizes until water touches the high water level probe.

• Water is circulated, dumped and refilled to the high water level probe for 3 minutes. Model 1200 or smaller: Circulate 165 seconds, dump 45 seconds Model 1400 and larger: Circulate 240 seconds, dump 120 seconds

• At the end of the thaw cycle the ice machine will start another freeze cycle (approximately 1 - 1.75 hour).

Curtain Operation In Water Assist Harvest

• Open & close damper = Continue Thaw Cycle

• Open damper 30 seconds = Full Bin Shutoff

Use the keypad and turn the ice machine off and then on to terminate the cycle. Disconnecting and reconnecting power to end the cycle will result in the ice machine restarting in a harvest cycle.

88 Part Number: 000015431 Rev01 5/19

SAFE OPERATION MODE

Allows the ice machine to operate up to 72 hours if the ice thickness probe (E19 fault) and/or water level probe sensors fail (E20 fault).

• When the control board starts the safe mode an alert is flashed on the LCD display to notify the end-user they have a production problem.

• The control board automatically initiates and monitors the safe mode. The control will automatically exit the safe mode if a normal signal is received from the input.

• After 72 hours the control board will enter a standby mode and turn off.

• The control board needs a five cycle history to operate safe mode. If five cycles have never been successfully completed the ice machine will shut-off.

Part Number: 000015431 Rev01 5/19 89

E01 LONG FREEZE CYCLE

If the freeze time reaches 35 minutes, the control board automatically initiates a harvest cycle. If 3 consecutive 35-minute freeze cycles occur, the ice machine stops.

E02 LONG HARVEST CYCLE

If the harvest time reaches 7 minutes, the control board will start a thaw cycle and automatically return the ice machine to the freeze cycle. After 3 consecutive long harvest cycles the ice machine stops.

ANALYZING WHY A SERVICE FAULT (E01 & E02)

STOPPED THE ICE MACHINE

Some service Faults are designed to stop the ice machine prior to major component failures, most often a minor problem or something external to the ice machine. This may be difficult to diagnose, as many external problems occur intermittently.

Example: An ice machine stops intermittently on E01 Long Freeze (long freeze time). The problem could be a low ambient temperature at night, a water pressure drop, the water is turned off one night a week, etc.

Refrigeration and electrical component failures will cause a Service Fault. Eliminate all electrical components and external causes first. If it appears that the refrigeration system is causing the problem, use Manitowoc’s procedures, charts, checklists, and other references to determine the cause.

The following checklists are designed to assist the service technician in analysis. However, because there are many possible external problems, do not limit your diagnosis to only the items listed.

90 Part Number: 000015431 Rev01 5/19

E01 LONG FREEZE

Improper Installation

• Refer to “Installation/Visual Inspection Checklist” on page 102

Water System

• Defective water level probe

• Low water pressure (20 psig min.)

• High water pressure (80 psig max.)

• High water temperature (90°F/32.2°C max.)

• Clogged water distribution tube

• Dirty/defective water fill valve

• Dirty/defective water dump valve

• Defective water pump

• Loss of water from sump area

Electrical System

• Low incoming voltage

• Ice thickness probe out of adjustment

• Harvest cycle not initiated electrically

• Contactor not energizing

• Compressor electrically non-operational

• Defective fan cycling control

• Defective fan motor

Miscellaneous

• Non-Manitowoc components

• Improper refrigerant charge

• Defective head pressure control

• Defective harvest valve

• Defective compressor

• TXV starving or flooding (check bulb mounting)

• Non-condensible in refrigeration system

• Plugged or restricted high side refrigerant lines or component

• Restricted air flow/dirty condenser fins

• High inlet air temperature

• Condenser discharge air recirculation

Part Number: 000015431 Rev01 5/19 91

E02 LONG HARVEST

Harvest time exceeds 7 minutes for 3 consecutive harvest cycles.

Possible Cause Checklist

Improper Installation

• “Installation/Visual Inspection Checklist” on page 102

Water System

• Water area (evaporator) dirty

• Dirty/defective water dump valve

• Vent tube not installed on water outlet drain

• Water freezing behind evaporator

• Plastic extrusions and gaskets not securely mounted to the evaporator

• Clogged water distribution tube

Electrical System

• Ice thickness probe out of adjustment

• Bin switch closed/defective

• Premature harvest

Refrigeration System

• Non-Manitowoc components

• Improper refrigerant charge

• Defective head pressure control valve

• Defective harvest valve

• TXV flooding (check bulb mounting)

• Defective fan cycling control

92 Part Number: 000015431 Rev01 5/19

Troubleshooting By Symptom

The troubleshooting procedures follow flow charts. There are four symptoms, the symptom that you are experiencing will determine which flow chart to use. The flow chart asks yes and no questions to determine the problem. The flow chart will direct you to a procedure to correct the problem. QuietQube® remote condensing units use separate charts.

SYMPTOM #1 ICE MACHINE STOPS RUNNING

Ice machine is in Ice Making cycle or Has a History of Shutting Down

• Refer to Ice Machine Stops Running Flow Chart

SYMPTOM #2 ICE MACHINE HAS A LONG FREEZE CYCLE

Ice Formation is Thick or Thin Ice Fill on inlet or outlet of Evaporator or Low Production

E01 Long Freeze (possible)

• Refer to Low Production, Long Freeze Cycle

SYMPTOM #3 WILL NOT HARVEST, CUBES NORMAL

Ice Machine Will Not Harvest - Freeze Cycle is Normal and Ice Cubes are Not Melted After Harvest E02 Long Harvest (possible)

Refer to Harvest Problems

SYMPTOM #4 WILL NOT HARVEST CUBES MELTED

Ice Machine Will Not Harvest - Freeze Cycle is Normal and Ice Cubes are Melted After Harvest

• Refer to Freeze Cycle Normal, Cubes Are Melted

Part Number: 000015431 Rev01 5/19 93

RESET TO FACTORY DEFAULTS

Before starting troubleshooting procedures, reset the control board to factory defaults to prevent mis-diagnosis. Before resetting to factory defaults do one of the following:

A. Copy settings to a usb device and flash settings

into the control board when diagnostics are complete.

B. Write down any customer settings so they can be

re-entered when diagnostics are complete.

94 Part Number: 000015431 Rev01 5/19

Refer to Alert/Error Log

Install Ground

Yes

Unit has

Yes

adequate ground?

board diagnostics

Refer to display & control

Does theice machine start

START

Error Logged?

Is thereanAlertor

Yes

whenthe Power buttonis pushed?

Yes

Is the display interface

energized and functioning?

control board?

CyclePower to Board,

Yes

board diagnostics

Referto display&control

arelightsflashing?

Micro light flashing?

Yes

Are there any lights

on or flashing on the

Display light

Yes

Flashing?

SYMPTOM #1 ICE MACHINE WILL NOT RUN

Part Number: 000015431 Rev01 5/19 95

Yes

Install thewater curtain/damper

Yes

All water curtains or

Binswitch light on?

Yes

dampersin place?

Yes

(Multievap all lightson?)

board diagnostics

Refer to display &control

Supply power to the

Yes

icemachine

Control board fuse

is good?

Replace fuse & determine which

component causedfuseto blow

Yes

board connector?

Linevoltageat wires

55 &56on9pin control

96 Part Number: 000015431 Rev01 5/19

curtain/damper.

Replacethe water

diagnostics.

Refer to bin switch

Yes

curtain/damper.

magnet on the water

E01 or E02

In Event Log?

Press power buttonto

startice making,

Refer to E02 Long Harvst Cycle

E01

E02

Yes

Which Event? Refer to E01 Long Freeze Cycle

Yes

Ice machine starts?

Test runice machine

board diagnostics

Refer to display&control

Part Number: 000015431 Rev01 5/19 97

DIAGNOSING A CONDENSING UNIT THAT WILL NOT RUN

If the ice machine water pump is not energized, refer to “Diagnosing an Ice Machine that Will Not Run.”

1. Verify primary voltage is supplied to the ice machine condensing unit and the fuse/circuit breaker is closed.

2. Verify the high-pressure control is closed.

3. Verify the low-pressure control is closed.

4. Verify voltage is present at terminals 1 & 2 on the compressor time delay relay.

5. Verify the time delay period has expired and test for line voltage at compressor time delay relay terminals 1 & 3.

6. Verify line voltage is present at the contactor coil.

7. Verify the contactor contacts are closed and line voltage is present across all lines.

8. Refer to compressor diagnostics.

98 Part Number: 000015431 Rev01 5/19

SYMPTOM #2 LOW PRODUCTION, LONG FREEZE CYCLE

Ice Machine has a Long Freeze Cycle

Ice Formation is Thick or Thin ice fill at Inlet or Outlet of Evaporator or Low Production

Information must be verified to eliminate non-refrigeration problems which can cause good refrigeration components to appear defective.

Before starting, see “Before Beginning Service” on page 99 for a few questions to ask when talking to the ice machine owner.

Before Beginning Service

Ice machines may experience operational problems only during certain times of the day or night. A machine may function properly while it is being serviced, but malfunctions later. Information provided by the user can help the technician start in the right direction, and may be a determining factor in the final diagnosis.

Ask these questions before beginning service:

• When does the ice machine malfunction? (night, day,

all the time, only during the Freeze cycle, etc.)

• When do you notice low ice production? (one day a

week, every day, on weekends, etc.)

• Can you describe exactly what the ice machine seems

to be doing?

• Has anyone been working on the ice machine?

• During “store shutdown,” is the circuit breaker, water

supply or air temperature altered?

• Is there any reason why incoming water pressure

might rise or drop substantially?

Part Number: 000015431 Rev01 5/19 99

Ice Production Check

The amount of ice a machine produces directly relates to the operating water and air temperatures. This means a condensing unit with a 70°F (21°C) outdoor ambient temperature and 50°F (10°C) water produces more ice than the same model condensing unit with a 90°F (32°C) outdoor ambient temperature and 70°F (21°C) water.

1. Determine the ice machine operating conditions:

Air temp entering condenser: ____°

Air temp around ice machine: ____°

Water temp entering sump trough: ____°

2. Refer to the appropriate 24-Hour Ice Production Chart (starting on page 179). Use the operating conditions determined in step 1 to find published 24-Hour Ice Production:_____

• Times are in minutes.

Example: 1 min. 15 sec. converts to 1.25 min. (15 seconds ÷ 60 seconds = .25 minutes)

• Weights are in pounds.

Example: 2 lb. 6 oz. converts to 2.375 lb. (6 oz. ÷ 16 oz. = .375 lb.)

3. Perform an ice production check using the formula below.

1. _________ Freeze Time

+ _________

Harvest Time

= _________

Total Cycle

Time

2. 1440

_________

Minutes in

24 Hrs.

3. _________

Weight of

One Harvest

÷ _________

Total Cycle
