INSTR4166 0703
Thank you for selecting a Manitowoc ArcticPure filter system. With proper installation, care and maintenance,
your new Manitowoc filter system will provide you with many years of reliable and economical performance.
Part Number 80-1462-3
Table of Contents
Section 1 - General Information
Safety Notices........................................................................2
Model Numbers ....................................................................3
Warranty Coverage ................................................................3
Section 2 - Installation Instructions
General ..................................................................................4
Dimensions/Exploded Views ..............................................5-6
Location ................................................................................7
Water Service ........................................................................7
Assembly
AR-10000/AR-20000 ........................................................7
AR-40000 ........................................................................7
Installation
AR-10000/AR-20000 ........................................................8
AR-40000 ........................................................................8
AR-Pre ..............................................................................9
Section 3 - Start-up and Maintenance
Installation Checklist............................................................10
Start-up Procedure ..............................................................10
Routine Maintenance ..........................................................10
Troubleshooting ..................................................................11
Recommended Service Parts ..............................................12
1
Safety Notices
When using or servicing this product, be sure to pay close attention to the
safety notices in this manual. Disregarding the notices may lead to serious
injury and/or damage to the water filter and/or ice machine. Throughout this
manual, you will see the following types of safety notices:
Procedural Notices
When using or servicing an Arctic Pure™ water filter or Manitowoc ice machine,
be sure to read the procedural notices in this manual. These notices supply
helpful and important information.
Throughout this manual, you will see the following types of procedural
notices:
NOTE: Text set off as a Note provides you with simple, but useful, extra
information.
Text in a Warning box alerts you to a potential personal injury
situation. Be sure to read the Warning statement, and then proceed
carefully.
Text in a Caution box alerts you to a situation in which you could
damage the water filter and/or ice machine. Be sure to read the
Caution statement, and then proceed carefully.
Important boxes serve two functions.
They call the operator's attention to important information.
They also provide the service technician with information that may
help perform a procedure more efficiently. Disregarding this
information may slow down the work.
2
Section 1
General Information
Model Numbers
This manual covers the following models:
Model # Range Claims
AR-10000
10,000 gal capacity
AR-20000
20,000 gal capacity
AR-40000
40,000 gal capacity
AR-Pre
Model #* Specifications Flow Rate
AR-10000
AR-20000
AR-40000
AR-Pre
For ice machines
up to 250 lbs
For ice machines
250 - 600 lbs
For ice machines
600-2000 lbs
For use i n
conjunction with:
AR-10000,
AR-20000,
AR-40000
Pressure: 25-125 psi
Temperature: 35-100°F
Connections: 3/8" JG
Micron Rating: 1.0
Pressure: 25-125 psi
Temperature: 35-100°F
Connections: 3/8" JG
Micron Rating: 1.0
Pressure: 25-125 psi
Temperature: 35-100°F
Connections: 3/8" JG
Micron Rating: 1.0
Pressure: 25-125 psi
Temperature: 35-100°F
Connections: 3/8" JG
Micron Rating: 5 Micron
Chlorine taste and odor
reduction, scale inhibi tion
Chlorine taste and odor
reduction, scale inhibi tion
Chlorine taste and odor
reduction, scale inhibi tion
Sediment Reduction K00337
Replacement
Cartridge
K00338
K00339 (1)
K00339 (2)
0.75 gpm
0.75 gpm
1.5 gpm
1.5 gpm
Parts/Labor
Manitowoc warrants the ArcticPure™filter systems against defects
in materials and workmanship on the housing, hardware, bracket
and fittings, under normal use and service for three (3) years from
the date of original installation. Labor required to repair or replace
defective components is covered for three (3) years from the date
of the original installation.
Exclusions
The following items are not included in the ArcticPure™system(s)
warranty coverage:
• Wear items such as filter cartridges or o-rings.
• Normal maintenance or adjustments as outlined in this manual.
• Repairs due to unauthorized modifications to the filter system or
use of non-standard parts without prior written approval from
Manitowoc Ice, Inc.
• Damage caused by improper installation of the filter system or
the ice machine, electrical supply, water supply or drainage, or
damage caused by floods, storms or other acts of God.
• Premium labor rates due to holidays, overtime, etc.; travel time;
flat rate service call charges; mileage and miscellaneous tools
and material charges not listed on the payment schedule.
Additional labor charges resulting from the inaccessibility of
equipment are also excluded.
• Parts or assemblies subjected to misuse, abuse, neglect or
accidents.
• Damage or problems caused by installation, and/or maintenance
procedures inconsistent with the technical instructions provided
in this manual.
*3/8" threaded stainless FPT (Female Pipe Thread) adapters included
Owner Warranty Registration Card
The warranty card can be found inside the product box containing
your new ArcticPure™water filter system. Warranty coverage
begins the day your new system is installed. Complete and mail the
OWNER WARRANTY REGISTRATION CARD as soon as possible to
validate the installation date.
If the OWNER WARRANTY REGISTRATION CARD is not returned,
Manitowoc®will use the date of sale to the Manitowoc distributor
as the first day of warranty for your new filter system.
Warranty Coverage - General
The following Warranty outline is provided for your convenience. For a
detailed explanation, read the warranty bond shipped with each system.
Contact your local Manitowoc representative or Manitowoc Ice, Inc.
if you need further warranty information.
IMPORTANT: This product is intended exclusively for commercial
applications. No warranty is extended for personal, family or
household uses.
Authorized Warranty Service
To comply with the provisions of this warranty, a refrigeration
service company, qualified and authorized by your Manitowoc
distributor, or a Contracted Service Representative must perform
the warranty repair.
If the dealer you purchased the ArticPure™system from is not
authorized to perform warranty service, contact your
Manitowoc distributor or Manitowoc Ice, Inc., for the name of
the nearest authorized service representative.
Service Calls
Normal maintenance and/or adjustments as outlined in this manual
are not covered by the warranty. If you have followed the procedures
on page 9 of this manual, and the filter system still does not perform
properly, call your authorized service company.
3
General
These instructions are provided to assist the qualified installer.
Check your local Yellow Pages for the name of the nearest
Manitowoc distributor, or call Manitowoc Ice, Inc. for information.
The ArcticPure
™
water filtration systems are designed to reduce
coarse and fine particulate matter from the incoming potable water
supply. Chlorine will be reduced in the water so as not to adversely
affect the ice produced or the equipment components. Siliphos
®
scale and corrosion inhibitor is automatically fed into the water to
inhibit the formation of scale on water solenoids and evaporator
plates. The NSF seal on these products is recognized worldwide as
a sign that the product to which it is affixed complies with the
public health requirements.
DO NOT install on line pressure above 125 psi (862 kPa).
DO NOT install on hot water line. Maximum temperature allowed is
100°F (38°C).
DO NOT install in direct sunlight.
DO NOT reverse connections. The system must be installed with
the inlet and outlet as labeled.
DO NOT install ArcticPure
™
filter systems in locations where they
can be damaged by other free-standing equipment.
PROTECT from freezing.
INSTALLATION must comply with existing state or local plumbing
codes.
This piece of equipment is made in America and has American sizes
on hardware. All metric conversions are approximate and vary in size.
Safety
Always follow these safety precautions when installing and
operating the water filter system:
DO NOT use a torch or other high temperature sources near filter
or cartridge.
DO NOT use with water that is microbiologically unsafe or of
unknown quality without adequate disinfection before or after
the system.
Section 2
Installation Instructions
4Siliphos®is a registered trademark of Guilini Chemie GmbH
Section 2
Dimensions & Exploded Views
18 19/32"
21 11/32" NOM.
17 1/2"
5 23/32"
USING FPT ADAPTERS
2 17/32"
3 1/4"
AR-20000
VENT TUBE
INLET
3/8" OD TUBE OR
3/8" FPT
OUTLET
3/8" OD TUBE OR
3/8" FPT
5
5 23/32"
USING FPT ADAPTERS
VENT TUBE
INLET3/8" OD TUBE OR
3/8" FPT
3 1/4"
13 7/32"
OUTLET3/8" OD TUBE OR
3/8" F PT
2 17/32"
17 3/32" NOM.
14 5/16"
AR-10000

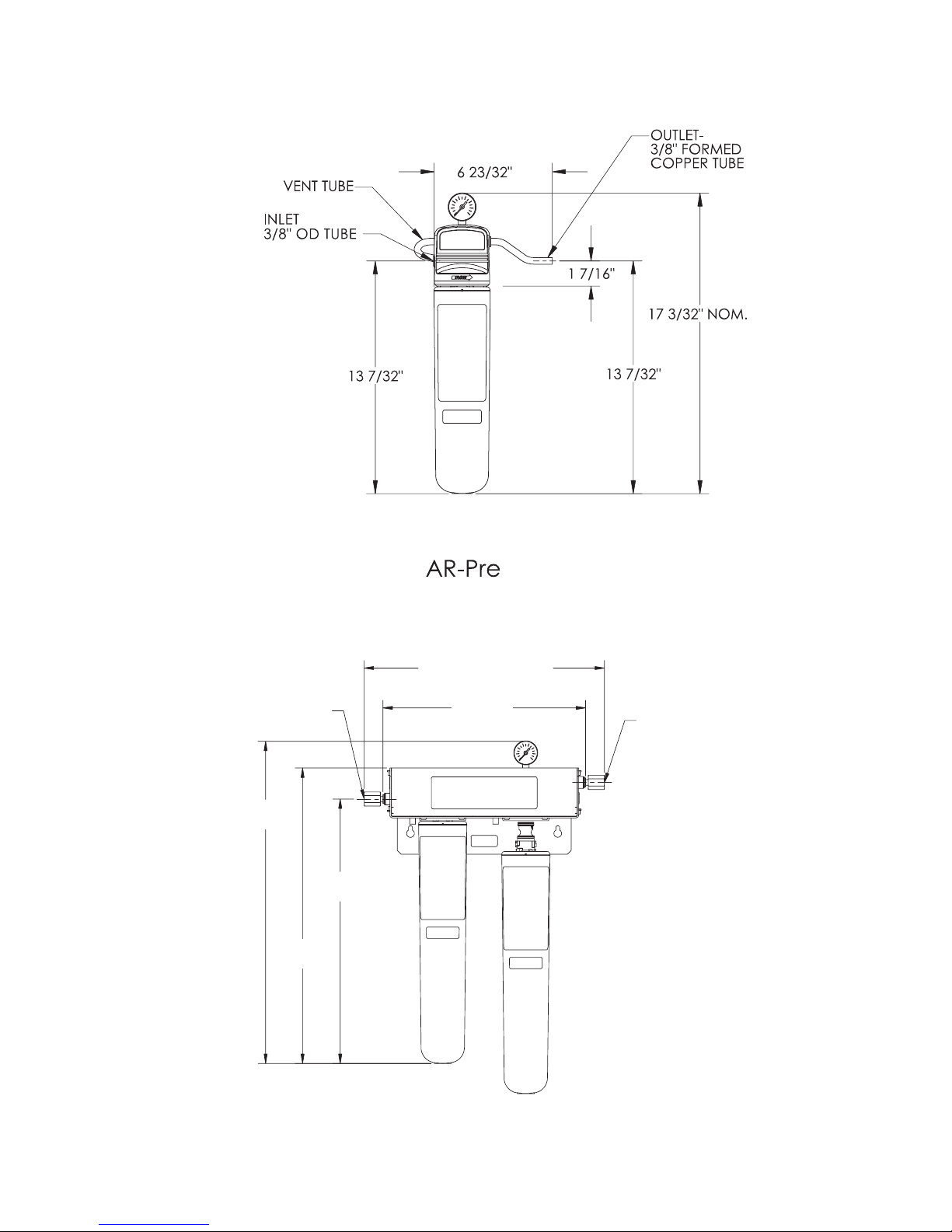

Section 2
Dimensions & Exploded Views (continued)
6
INLET
3/8" OD TUBE OR
3/8" FPT
21 5/16"
NOM
19 9/16"
NOM
17 1/2"
NOM
15 7/8"
USING FPT ADAPTERS
13 13/32"
OUTLET
3/8" OD TUBE OR
3/8" FPT
AR-40000
Location
ArcticPure™water filtration systems should be located on the
incoming cold water line and preferably away from heavy traffic areas.
The system should be mounted on a wall or structure that will support
the weight of the system when filled with water.
NOTE: This product is designed for cold water use only (less than
100°F/38°C). Passing hot water through this product may seriously
damage filter housings and/or cartridges and affect warranty
coverage.
ArcticPure
™
systems may be used with metal or non-metallic piping
systems.
NOTE: Any non-metallic fittings used in the installation must be of
adequate rating for the line pressure.
Water Service
All ArcticPure™systems come with 3/8" John Guest connections on
the inlet and outlet ports. Stainless steel FPT adapters are provided
as optional connections.
John Guest connections are suitable for use with the following
tubing:
• Polyethylene • Nylon
• Polyurethane • Seamless Brass (soft)
• Seamless Copper (soft) • Seamless Mild Steel (soft)
Assembly - AR-10000/AR-20000
NOTE: The head/bracket will be packed separately from the filter
cartridge in the product box.
1. Locate position to mount the filter system. Be sure to leave
enough clearance (a minimum of 2" beneath the filter cartridge
length is recommended) to allow for cartridge changeout.
2. Mark and drill mounting holes.
3. Mount filter head, using key hole slots in the mounting bracket.
4. Remove the protective cap from the cartridge.
5. Inspect the cartridge and o-rings for damage. See Replacement
Parts list if replacement is required.
6. Lubricate o-rings with food grade lubricant.
7. With the product label facing to the left, insert the cartridge into
the filter head. Rotate 1/4 turn to the right to secure. Product
label will face forward.
Assembly - AR-40000
NOTE: The manifold cover will be packed separately from the
manifold. The filter cartridges will be packed separately in the
product box.
Locate position to mount the filter system. Be sure to leave enough
clearance (a minimum of 2" beneath the filter cartridge length is
recommended) to allow for cartridge changeout.
1. Use a level under the mounting bracket to be sure that the
system hangs evenly.
2. Mark and drill the top and bottom mounting holes.
3. Install bottom mounting fasteners and mount the manifold,
using the key hole slots in the mounting bracket.
4. Install top mounting fastener.
5. Install manifold cover, using the 4 sheet metal screws provided.
6. Remove the protective cap from each cartridge.
7. Inspect each cartridge and all o-rings for damage. See
Replacement Parts list if replacement is required.
8. Lubricate o-rings with food grade lubricant.
9. With the product label facing to the left, insert a cartridge into
the filter head. Rotate 1/4 turn to the right to secure. Product
label will face forward. Repeat for the remaining cartridge.
DO NOT use with hard metal tubing such as:
• Stainless steel
• Chrome plated copper
• Hard metal polished tubing
DO NOT use petroleum jelly.
Section 2
7
Installation - AR-10000/AR-20000 & AR-40000
Shut off the incoming water supply.
For John Guest Fitting Installation:
NOTE: Please review the following recommendations before
installing the water lines.
• Tubing must be 3/8" O.D., (.371 - .376).
• Cut the tube square. The outside diameter must be free of
score marks.
• Burrs and sharp edges must be removed prior to installation.
NOTE: Use a tube insert for thin-walled plastic tubing.
To install water lines into the inlet/outlet ports:
1. Insert water line tubing into the inlet port fitting.
2. Pull on the tubing to be sure it is secure. If the tubing releases,
refer to the Troubleshooting section of this manual (page 11) to
reinstall.
3. Repeat for the outlet port fitting. Connect outlet water line to
the potable water connection on the ice machine.
NOTE: For water-cooled machines, be sure that the filter system
only feeds the potable water connection.
For Stainless Steel FPT Adapter Installation:
1. Insert the adapter into the inlet port fitting
2. Install water line tubing into inlet port adapter.
3. Pull on the adapter to be sure it is secure. If the adapter releases,
refer to the Troubleshooting section of this manual (page 11) to
reinstall.
4. Repeat for the outlet port fitting. Connect outlet water line to the
potable water connection on the ice machine.
NOTE: For water-cooled machines, be sure that the filter system
only feeds the potable water connection.
The fitting will grip before it seals. Tubing must be pushed
into the tube stop to prevent leaks.
The fitting will grip before it seals. Adapter must be pushed
into the tube stop to prevent leaks.
Section 2
8
Installation - AR-Pre
NOTE: If the AR-Pre is being retrofitted to an existing ArcticPure
™
system, shut off the incoming water supply, relieve the filter
pressure by removing the existing filter cartridge(s), and disengage
the water inlet line. A small quantity of water will be vented directly
behind the cartridge body. If the optional stainless steel adapters
are being used, disconnect from the primary filter inlet port and
reinstall in the AR-Pre inlet port.
1. Draw a minimum 8" (20.3 cm) level line to the left of the
primary filter system bracket from the center of the lower left
mounting screw.
• For installation to an AR-10000/AR-20000 system, mark the
first hole for the AR-Pre on the level line 4.5" (11.4 cm) from
the center of the lower left mounting fastener on the primary
system.
• For installation to an AR-40000 system, mark the first hole
for the AR-Pre on the level line 5.5" (13.9 cm) from the
center of the lower left mounting screw on the primary
system.
2. Mark and drill the mounting holes for the AR-Pre.
3. Insert the precut copper tubing into the outlet fitting of the
AR-Pre head.
4. Insert opposite end of the tubing into the inlet fitting of the
primary filter assembly.
5. Pull on the tubing to be sure it is secure. If the tubing releases,
refer to the Troubleshooting section of this manual (page 11) to
reinstall.
6. Align the prefilter mounting keyhole slots with the predrilled
holes.
7. Install mounting screws and tighten.
8. Insert incoming water line into the inlet port of the AR-Pre.
Follow notes and steps 1-3 on this page under “Installation AR-10000/AR-20000/AR-40000”.
8. Remove the protective cap from the cartridge.
9. Inspect the cartridge and o-rings for damage. See Replacement
Parts list if replacement is required.
10. Lubricate o-rings with food grade lubricant.
11. With the product label facing to the left, insert the cartridge into
the filter head. Rotate 1/4 turn to the right to secure. Product
label will face forward.
The fitting will grip before it seals. Tubing must be pushed into
the tube stop to prevent leaks.
DO NOT use petroleum jelly.
9
Installation Check List
• Have the min.-max. water temperature and pressure been
checked?
• Has the filter system been installed away from heavy traffic
areas?
• Is the system installed securely to the mounting surface?
• Has the water supply line been checked for suitability? (Refer
to Water Service section, page 7).
• Have the water supply lines been securely installed into the
inlet/outlet ports?
Start-up Procedure
Turn on the incoming water supply.
Check for leaks. If the connections are leaking, refer to the
Troubleshooting section of this manual (page 11) to reinstall.
NOTE: System should be flushed for 2 minutes to remove trapped
air and carbon fines (5 minutes for AR-Pre).
To set the pressure gauge:
Rotate the red follower needle clockwise until it contacts the black
pressure needle on the low side.
The red follower needle will now record the lowest water pressure
when the filter system is in use.
NOTE: The filter pressure will decrease as the cartridge life decreases.
Section 3
Routine Maintenance
ArcticPure™cartridges will need to be changed for one or more of
the following reasons:
• The filter has trapped water-borne sediment and the water
flow has stopped or water pressure through the filter has
dropped below 20 psi.
• The maximum life of the carbon filter has been reached and
the filter will no longer reduce chlorine to acceptable levels.
• The Siliphos has been completely dissolved and hard scale
build-up may accelerate.
It is recommended that ArcticPure
™
filter cartridges be changed out:
• Every 6 months or when water pressure through the system
drops below 20 psi, whichever occurs first.
To change the filter:
1. Rotate the cartridge 1/4 turn to the left. The cartridge should
easily release. Dispose of used cartridge.
2. Remove the protective cap from the cartridge.
3. Inspect the cartridge and o-rings for damage. See Replacement
Parts list if replacement is required.
4. Lubricate o-rings with food grade lubricant.
5. With the product label facing to the left, insert the cartridge
into the filter head. Rotate 1/4 turn to the right to secure.
Product label will face forward.
ArcticPure
™
systems are equipped with internal shut-off valves.
It is not necessary to shut off the incoming water supply
during cartridge changeout.
DO NOT use petroleum jelly.
10
Troubleshooting
Please use Troubleshooting Guide to repair system. If system
still does not work properly, contact Manitowoc Service for
assistance.
A leak may occur at the inlet/outlet connections because of defective tubing. To repair:
• Turn off incoming water supply and depressurize system by removing the filter cartridge(s).
• Disconnect the water line by pushing the collet squarely against the face of the fitting.
• Pull the tubing to release.
• To repair the connection, cut off at least 3/8" (6.4mm) from the end of the tubing. Tubing ends must be cut square to ensure a
positive seal.
Refer to notes and instructions under Installation - AR-10000/AR-20000/AR-40000, page 8 to reconnect the water line.
Problem Cause To Correct
Water to filter system shut off Turn on water supply
No water through filter system
Filter cartridges plugged Replace filter cartri dges
Restore system pressure
System below 20 psi
Low water flow through filter
Filter cartridges plugged Replace filter cartri dges
Water line ends are damaged Trim water l ine to remove damaged area
Water leak on water inlet/outlet
O-ring in fi lter head is damaged Replace o-ri ng
Water leak between head and filter cartridge Damaged o-ring on filter cartridge Replace o-ri ng
Repair water supply to filters
11
Recommended Replacement Parts List
Part # Description
K00337 AR-Pre Cartridge
K00338 AR-10000 Cartridge
K00339 AR-20000 Cartridge
7601973 John Guest Collet
7601983 John Guest O-ring
Exploded View
AR-Pre, AR-10000, AR-20000
Exploded View
AR-40000 Manifold
12
Loading...
