Manhattan LCD HD089C2 User Manual

HD089C2

User Manual

Updated for Firmware Build 12/27/2011

Contents

Page 1----------Contents
Page 2-3-------Features & Specifications
Page 4----------Remote Control
Page 5-7------- Basic Monitor Adjustments
Page 8-11------Using Advanced Options
Page 11-------- Power Options
Page 12-------- Sun Hood Installation
Page 13-14---- Advanced Troubleshooting

Page 15-------- Warranty

© 2011 Manhattan LCD LLC. - All Rights Reserved

1

Section: Features & Specifications:

LCD Screen Specifications:

Screen Size: 8.9” Diagonal
Screen Architecture: WXGA 720p (Native 1280x768 Pixels)
Screen Backlight: Edge Lit LED
Contrast Ratio: 500:1
Brightness: 400 nits
Viewing Angle: (LR/UD) 110/100
Screen Finish: Crystal Clear (Gloss)

Video Inputs:

HDMI: 1 Input
VGA: 1 Input
Component: 1 Input
Composite Video: 1 Input
3G HDSDI: 1 Input (Optional)

Controller Specifications:

Accepts HD Video Up to 1080P 60Hz
NTSC & PAL Compatible
HDCP Compliant
Firmware Upgradable
Compatible Frame Rates 24Hz, 50Hz, 60Hz
Supported resolutions 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
Power: 12v DC (requires Regulated power supply)
Power Consumption: 1300 MA @ 12V DC

Software Features:

Screen Markers & Aspect Guides
Focus Assist (2D peaking)
False Color (exposure assist)
Under-scan / Over-scan
Canon DSLR Record & Playback Mode (EOS 5D, 7D, 60D)
Red Camera Mode (For Use with Red Cameras HDMI Port)
Adjustable Color Control
Adjustable Aspect adjustments
Color Table Presets
Picture in Picture

© 2011 Manhattan LCD LLC. - All Rights Reserved

2

Case Specifications:

19 button Keypad with aluminum buttons
2 standard 1/4x20 mounts Top & Bottom
Case: 0.125" thick Black ABS Polymer- Matte Finish
Case Dimensions: 9.2" Wide, 6.9" High, 1.4" Deep
Weight: Approx 1.9 LBS

Optional Accessories:

3G HDSDI w/ Loop-through

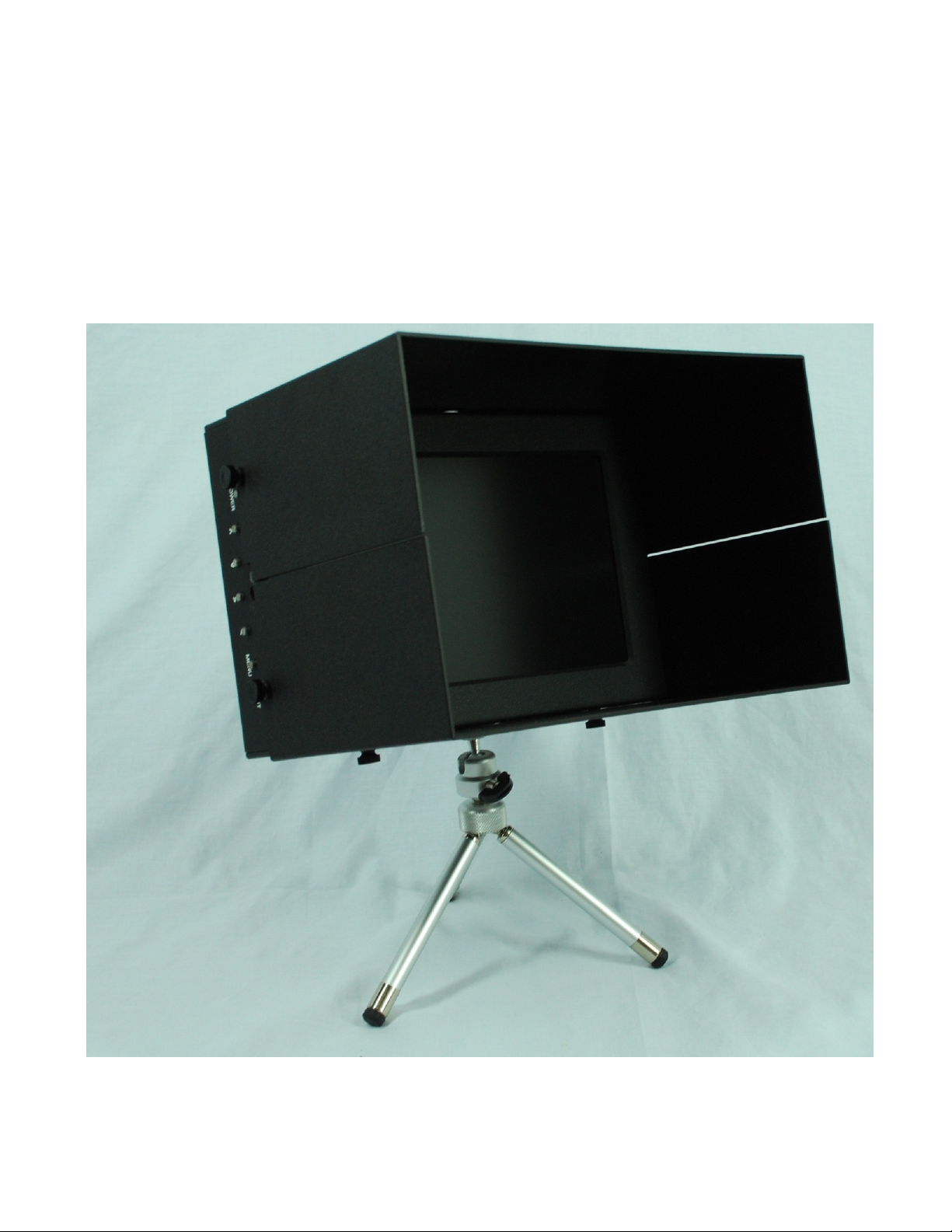

ABS Sun-hood
Sony Battery Plate
Canon Battery Plate
Panasonic Battery Plate
Anton Bauer Battery Plate
XLR Power Input (w/ built in voltage regulator)

© 2011 Manhattan LCD LLC. - All Rights Reserved

3

Section: Remote Control

The remote requires 2 AAA batteries (not included)
Sections Highlighted in Red are new features added 4/1/2010.
Quick access menu appears on the lower right side of the screen.
Use the recall button to go up a menu level in the quick menu.

***NOTE*** The remote is required to access the quick menu & Factory Menu if you need to

access the factory menu you must contact the support department.

[e-mail]

© 2011 Manhattan LCD LLC. - All Rights Reserved

4

Section: Basic Monitor Adjustments

Powering on the Monitor:

Insert 12V regulated power source via connector into the 12V DC socket. A RED LED will indicate
power is reaching the monitor. If RED LED fails to light, trouble shoot the power adapter or battery.
The screen will be BLACK until you press the POWER button on the monitor or the remote. When the
monitor is powered on the LED status indicator should be green and the monitor will display the
Manhattan LCD logo for 1 second and then switch to a solid blue screen. (May display a black screen
on certain firmware revisions)

Selecting an Input:

Using the Control console located on the left
side of the monitor press the INPUT button.
Use the ^ v buttons located just under the
POWER button and scroll to the appropriate
input. Press the INPUT button to select and
activate the input.

Using the remote control unit with two AAA
batteries installed, point the remote at the Monitor Console’s IR
port (beneath LED indicator) and press the Source Button use the
Up & Down arrows to scroll to the appropriate input and the
enter key to select the input.

Navigating the menu system:

***NOTE*** you must be on an input that is receiving a video

signal to make any changes to any options.

Using the Control console located on the left side of the monitor press the Menu button. To scroll
between Picture, Img.Adj, & Setup tabs use the >< buttons located above the MENU key.
Use the ^ v buttons located just under the POWER button to scroll within a menu tab. To adjust a
specific field use the >< buttons located above the MENU key to apply your changes and go up a level
press the MENU button again to save your changes and go up a level and MENU button once more to
exit the menu.

Using the I/R remote control unit with two AAA batteries installed, point the remote at the Monitor
Console’s IR port (beneath LED indicator) and press the MENU Button use the up & down arrows to
scroll to the appropriate input and the enter key to select the input. To scroll between Picture,
Img.Adj, & Setup tabs use the Left & Right arrow buttons located under the MENU key. Use the Up &
Down arrow buttons located just under the Menu button to scroll within a menu tab. To adjust a
specific field use the Left & Right arrow buttons located below the MENU key to make changes to a
certain field. Press the MENU button again to save your changes and go up a level Use the UP arrow
to get back to the menu tabs and MENU button once more to exit the menu.
