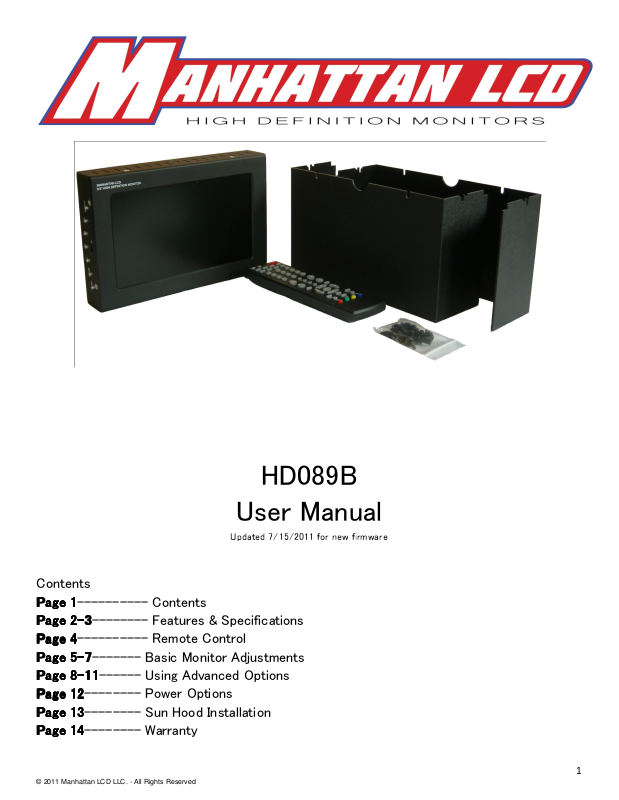

Manhattan LCD HD089BC User Manual
HD089B
User Manual
Updated 7/15/2011 for new firmware
Contents
Page
Page 1111---------- Contents
Page Page
Page
Page 2222----3333-------- Features & Specifications
Page Page
Page
Page 4444---------- Remote Control
Page Page
Page
Page 5555----7777------- Basic Monitor Adjustments
Page Page
Page
Page 8888----11
Page Page
Page
Page 12
Page Page
Page

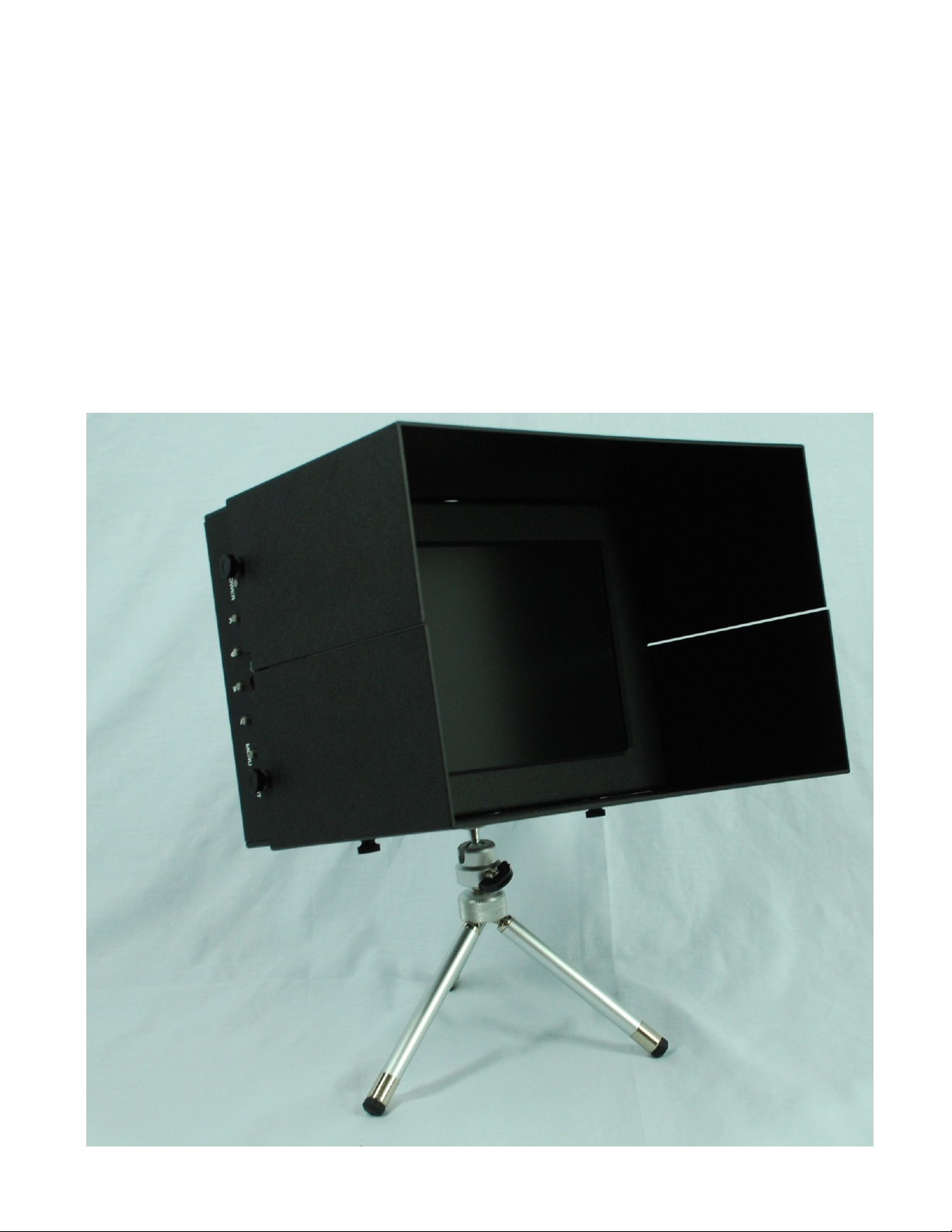

Page 11113333-------- Sun Hood Installation
Page Page
Page
Page 11114444-------- Warranty
Page Page
11------ Using Advanced Options
1111
12-------- Power Options
1212
© 2011 Manhattan LCD LLC. - All Rights Reserved
1
Section: Features & Specifications:
LCD Screen Specifications:
LCD Screen Specifications:
LCD Screen Specifications:LCD Screen Specifications:
Screen Size: 8.9” Diagonal
Screen Architecture: WXGA HD 576p (Native 1024X600 Pixels)
Screen Backlight: Edge Lit LED
Contrast Ratio: 500:1
Brightness: 350 nits
Viewing Angle: (LR/UD) 140/110
Screen Finish: Antiglare (matte)
Video Inputs:
Video Inputs:
Video Inputs:Video Inputs:
HDMI: 1 Input
VGA: 1 Input
Component: 1 Input
Composite Video 1 Input
Controller Specifications:
Controller Specifications:
Controller Specifications:Controller Specifications:
Accepts HD Video Up to 1080P 60Hz
NTSC & PAL Compatible
HDCP Compliant
Firmware Upgradable
Compatible Frame Rates 24Hz, 50Hz, 60Hz
Supported resolutions 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
Power: 12v DC (requires Regulated power supply)
Power Consumption: 1300 MA @ 12V DC
Software Features:
Software Features:
Software Features:Software Features:
Screen Markers & Aspect Guides
Focus Assist (2D peaking)

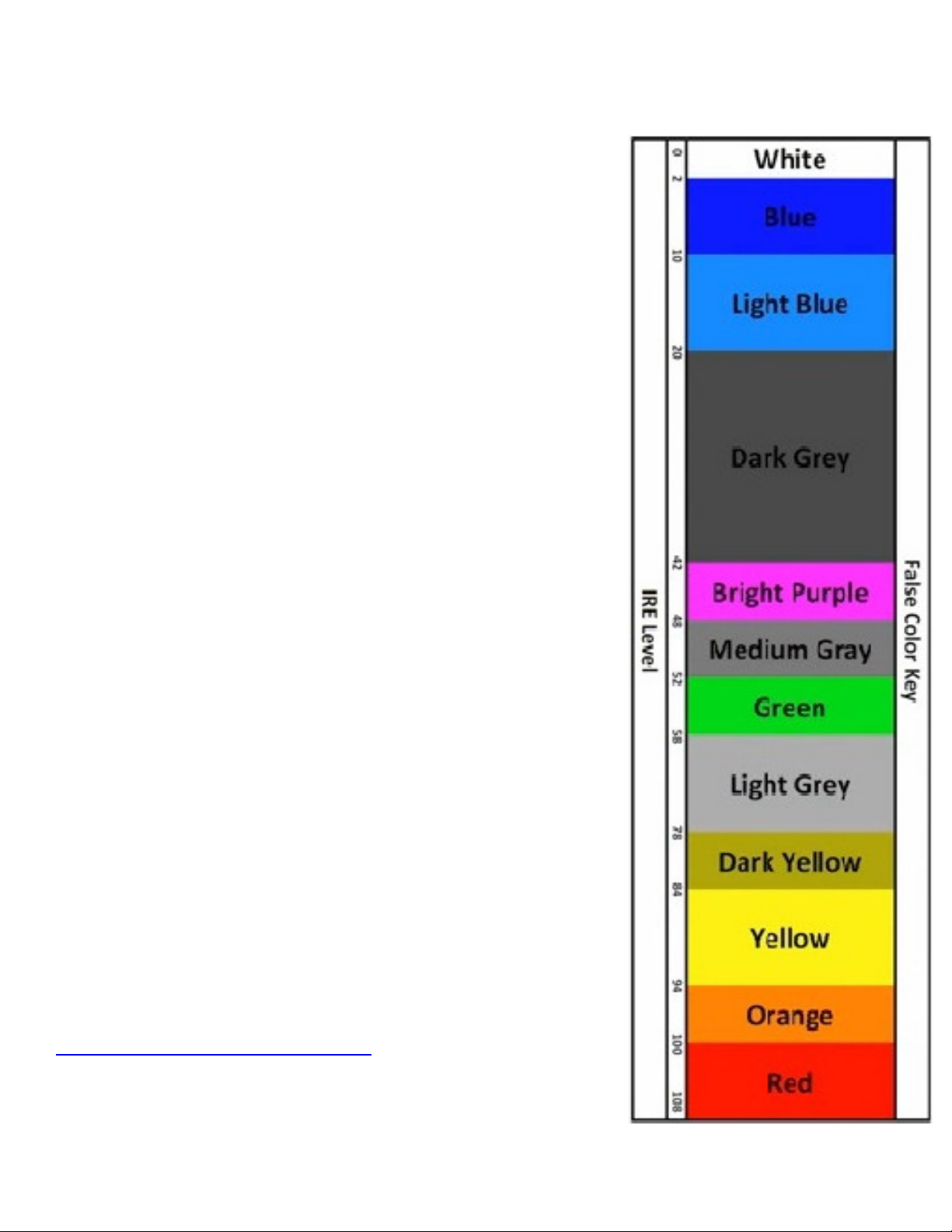

False Color (exposure assist)
Under-scan / Over-scan
Canon DSLR Record & Playback Mode (EOS 5D, 7D, 60D)
Red Camera Mode (For Use with Red Cameras HDMI Port)
Adjustable Color Control
Adjustable Aspect adjustments
Color Table Presets
Picture in Picture
© 2011 Manhattan LCD LLC. - All Rights Reserved
2
Case Specifications:
Case Specifications:
Case Specifications:Case Specifications:
2 standard 1/4x20 mounts Top & Bottom
Case: 0.125" thick Black ABS Polymer- Matte Finish
Case Dimensions: 9.6" Wide, 6.4" High, 1.6" Deep
Weight: Approx 1.8 LBS
Optional Accessories:
Optional Accessories:
Optional Accessories:Optional Accessories:
ABS Sunhood
Sony Battery Plate
Canon Battery Plate
Panasonic Battery Plate
Anton Bauer Battery Plate
XLR Power Input (w/ built in voltage regulator)
© 2011 Manhattan LCD LLC. - All Rights Reserved
3
Section: Remote Control
The remote requires 2 AAA batteries (not included)
Sections Highlighted in Red are new features added 4/1/2010.
Quick access menu appears on the lower right side of the screen.
Use the recall button to go up a menu level in the quick menu.
***NOTE*** The remote is required to access the quick menu & Factory Menu if you need
to access the factory menu you must contact the support department.
support@manhattanlcd.com
© 2011 Manhattan LCD LLC. - All Rights Reserved
4
Section: Basic Monitor Adjustments
Power
Powering
PowerPower
Insert 12V regulated power source via connector into the 12V DC socket. A RED LED will
indicate power is reaching the monitor. If RED LED fails to light, trouble shoot the power adapter or
battery. The screen will be BLACK until you press the POWER button on the monitor or the
remote. When the monitor is powered on the LED status indicator should be green and the monitor
will display the Manhattan LCD logo for 1
second and then switch to a solid blue
screen. (May display a black screen on
certain firmware revisions)
Selecting an
Selecting an Input:
Selecting anSelecting an
Using the Control console located on the left
side of the monitor press the INPUT button.
Use the ^^^^ vvvv buttons located just under the
POWER button and scroll to the appropriate
input. Press the INPUT button to select and
activate the input.
Using the remote control unit with two AAA batteries installed,
point the remote at the Monitor Console’s IR port (beneath
LED indicator) and press the Source Button use the UUUUp &
DDDDown
own arrows to scroll to the appropriate input and the enter
own own
key to select the input.
ing on
on the
inging
onon
the Monitor
Monitor::::
the the
MonitorMonitor
Input:
Input:Input:
p &
p & p &
Navigating
Navigating the menu system:
NavigatingNavigating
***NOTE*** you must be on an input that is receiving a video
signal to make any changes to any options.
Using the Control console located on the left side of the monitor press the Menu button. To
scroll between Picture, Img.Adj, & Setup tabs use the ><
Use the ^^^^ vvvv buttons located just under the POWER button to scroll within a menu tab. To adjust a
specific field use the ><
level press the MENU button again to save your changes and go up a level and MENU button once
more to exit the menu.
Using the I/R remote control unit with two AAA batteries installed, point the remote at the Monitor
Console’s IR port (beneath LED indicator) and press the MENU Button use the up & down arrows
to scroll to the appropriate input and the enter key to select the input. To scroll between Picture,
Img.Adj, & Setup tabs use the Left
© 2011 Manhattan LCD LLC. - All Rights Reserved
the menu system:
the menu system:the menu system:
>< buttons located above the MENU key to apply your changes and go up a
><><
Left & R
LeftLeft
>< buttons located above the MENU key.
><><
& Right
ight arrow buttons located under the MENU key. Use the Up
& R& R
ightight
Up
Up Up
5
