Manhattan Computer Products DS 100 User Manual

User Guide
Plaza DS •100
freesat digital TV receiver
CONGRATULATIONS
on buying a Manhattan Plaza DS•100 freesat receiver.
This high-performance unit is designed to provide you with the best of digital TV and radio from freesat, with high-quality digital pictures and sound.
You can only use the Plaza DS•100 with a suitable satellite dish.
We have tried to make the User Guide, Quick Start Guide and packaging easy to understand, and they have gained Plain English Campaign’s Crystal Mark.
Some of the features of the Plaza DS•100
Over 140 freesat TV and radio channels Subscription-free channels On-screen channel list and channel browsing Eight-day programme guide Automatic programme reminder Digital text and interactive services Audio description Subtitles Receives non-freesat channels SCART connection Remote control Automatic set-up Auto-update for new channels Auto-standby for saving power
2
When installed and used correctly, this equipment should provide many years of trouble-free entertainment in your home.
Please take the time to read this user guide carefully before installing or using the unit, and keep it for future reference.
If you experience any difculties connecting or using the Plaza DS•100, see the Troubleshooting section at the end of this guide before contacting us.
FURTHER INFORMATION
FREESAT
You can get more information and help from the freesat website at
www.freesat.co.uk
MANHATTAN
You can get more information on us from our website at
www.manhattan-tv.com or you can phone us on 020 8450 0005
www.manhattan-tv.com
3
1
2
3
CONTENTS
In The Box
Your receiver 6 Remote control 8
5
Preparation
The satellite dish 10 Connecting your receiver 11 Switching on 14 Tuning in 15
Everyday Use
Turning on the receiver 18 Changing channels 18 Information bar 20 Changing the volume 20 Subtitles and audio description 21 Browsing channels 21 Using the channel list 23 Regional channels 24
4
5
Using the programme guide 25 Interactive TV services 27 Recording freesat programmes 28
Advanced Use 29
TV screen size 29 TV/DTV 30 Using the menu 30 The lock code 31 Changing the channel list 31 Using the favourite channels list 33 Settings 35 Changing the receiver’s language 39 Receiver information 40
Non-Freesat Channels 41
Tuning in non-freesat channels 41 Watching non-freesat channels 42 Appendix A - Safety 43 Appendix B - Troubleshooting 46 Appendix C - Specications 48
4
User Guide
Plaza DS •100
freesat digital TV receiver
In The Box
In your Plaza DS•100 freesat receiver
1
pack you should  nd the following items.
Plaza DS•100 receiver Remote control Batteries for the remote control SCART lead to connect to the TV Quick-start guide User guide
5
YOUR RECEIVER
Manhattan Plaza DS•100
Open the receiver’s front cover by gently pulling forward at the sides.
Power indicator light.
Front
CH–CH+VOL–VOL
+
VOL- / VOL+ Turn the volume up and down.
CH- / CH+ Switch to the next or previous channel.
POWER Switch the receiver on and off.
6
Manhattan Plaza DS•100
Back
Mains power output for connecting to the mains supply.
TV SCART Output for connecting to the TV.
VCR SCART Output/input for connecting to a video casette recorder or DVD recorder.
LNB IN Input for connecting to the satellite dish.
7
REMOTE CONTROL
Manhattan Plaza DS•100
Standby - switches the receiver on and
off.
Mute - silences the receiver’s sound.
0, 1 … 9 - buttons to choose channels and
so on, and to enter your postcode.
Switches to the last channel watched, and switches between freesat and non-freesat channel lists.
Switches to the next channel in the
favourite channels list.
Displays (and exit) the main menu screen.
Displays channel and programme
information.
8
Up, down, left, right - moves the
highlight bar in menus and in the EPG. Allows you to browse the channels and programmes.
Chooses the option in the menu.
Turns the volume up and down.
Switches to the next or previous channel.
Moves one page up or down the channel
list.
Displays the channel list.
Displays the electronic programme guide
(EPG).
Exits a menu and returns to the main
menu.
Exits a menu and returns to normal TV
viewing.
Switches between freesat and the TV’s
tuner.
Switches audio description on and off.
Switches between widescreen display
formats on a conventional TV.
Switches subtitles on and off.
Displays the interactive and digital text
services (where available).
Red, green, yellow, blue -
chooses options within menus.
9
PREPARATION
This section explains how to set up
2
your Plaza DS•100 to receive freesat.
THE SATELLITE DISH
To receive freesat you must connect your Plaza DS•100 receiver to an appropriate satellite dish, xed in position and accurately pointed at 28.2° East.
For safety reasons and to provide reliable reception, we strongly recommend that you have your dish installed by a professional. You may be able to use a satellite dish already installed at your home. If you have any questions about the dish, please consult your installer.
10
CONNECTING YOUR RECEIVER
Place your Plaza DS•100 receiver on a  rm, level surface close to the television, an electric socket, and the cable from the dish. (See Appendix A - Safety.)
Connect the cable from your dish to the LNB IN socket at the back of the receiver (if the dish cable is  tted with a wall socket inside your home, you will need a connecting cable, which you can get from your installer).
HINT: The ‘F-connector’ used for
connecting the satellite dish cable to the receiver has a central wire that is inserted into the hole in the LNB IN socket while the collar is screwed onto the socket. When screwing the collar on make sure the central wire goes into the socket hole and is not bent to one side.
11
CONNECTING YOUR RECEIVER (continued)
Turn off your TV and connect the SCART lead between the TV SCART socket on the back of your Plaza DS•100 receiver and a SCART socket on your television (usually labelled AV). There may be more than one SCART socket on your television. If you are not sure which to use, check the manual for your TV.
HINT: If your TV has different connectors,
you will need an adapter or special cable. Ask your dealer or check the manual for your TV.
12
You may have other equipment, such as a DVD player, to connect to the receiver.
You can connect a VCR (video cassette recorder) or DVD recorder to your Plaza DS•100 receiver
to record freesat programmes and play them back. You will need to connect a second SCART cable (not supplied) between the VCR SCART socket on the back of the receiver and a SCART socket on the VCR or DVD recorder. Check the VCR or DVD recorder’s manual for guidance.
You could connect the Plaza DS•100 receiver to a stereo or surround sound system instead, so that you can listen to the sound through the sound system instead of (or as well as) the television’s speakers. You could use the VCR Scart socket on the back of the receiver, but you will need an adapter or special cable to suit the connections of the sound system.
HINT: You cannot connect the receiver to
a VCR or DVD recorder and a sound system at the same time.
13
SWITCHING ON
Take the battery compartment cover off the back of the Plaza DS•100 remote control by lifting it up while pushing the catch. Insert the two AAA batteries supplied, as shown on the inside of the compartment, and replace the compartment cover.
Turn your TV set on and choose the correct
channel for the receiver (you usually do this by pressing an ‘AV’ button on your TV remote control, but check your TV manual for guidance).
Plug the receiver in and switch it on. After a few seconds, the set-up screen shown below will appear on your TV.
HINT: If you do not see this screen on
your TV, see ‘Troubleshooting’ on page
46.
14
The set-up screen shows the strength of the freesat signal received from the satellite dish. If the signal strength is below 50%, you should check the satellite dish connection at the back of the receiver (switch the receiver off and reconnect the cable if necessary). If the connection is OK, consult your dealer or installer.
HINT: The Network ID and Transport
ID are in the freesat signal and are used to allow the receiver to identify the satellite dish and freesat network, to make sure the dish is receiving the correct satellite signals.
When the signal strength shown on the set-up screen is 50% or more, you can tune the receiver in.
TUNING IN
Because this is the  rst time that the receiver has been used, there are no channels stored in it’s memory. The receiver will automatically  nd and store channels.
Press the
button on the remote control to
search for the ‘Network ID’ and ‘Transport ID’.
When the Network ID and Transport ID have been found and displayed, press the
button
on the remote control to display the following postcode screen.
15
TUNING IN (continued)
Enter your postcode using the number buttons on the remote control followed by the button.
Then use the
or buttons to choose the screen format used by your TV (a 16:9 widescreen TV or a squarer 4:3 TV), then press
to start the
channel search.
HINT: Enter your postcode by pressing the
correct number button a number of times to produce the relevant letter (as printed above each button) or number, in the same way as ‘texting’ with a mobile phone. For example, for an ‘s’ you would press
7
 ve times. You do not need to enter a space. If you make a mistake, the
button deletes
the last letter or number you entered.
16
Your Plaza DS•100 receiver will take a few seconds to  nd and store the available freesat channels, displaying the names of the channels as they are found. When it is  nished, the receiver will display the total number of freesat channels it has found.
Your Plaza DS•100 receiver is now ready for you to receive freesat digital TV and radio.
HINT: When new freesat channels become
available, you do not need to tune your Plaza DS•100 receiver again because it is automatically updated.
17
EVERYDAY USE
This section describes the day-to-day
3
TURNING ON THE RECEIVER
You turn on the Plaza DS•100 receiver by pressing the control or the button on the front of the receiver. The power light on the front of the receiver changes from red to blue when the receiver is on.
You turn the Plaza DS•100 receiver off, so it goes into standby, by pressing the
remote control or the When the receiver is in standby, the power light on the front of it glows red. The Plaza DS•100 uses less power when it is in standby.
18
use of your Plaza DS•100 receiver – how to choose the channel you want to watch and how to control the basic features of your Plaza DS•100 receiver.
button on the remote
button on the
button on the receiver.
HINT: You should leave the Plaza DS•100
receiver plugged in, with the socket switched on, at all times (except when there is lightning – see appendix A). If you are not using the receiver, put it in standby by pressing the
button on the remote control or the
button on the front of the receiver.
CHANGING CHANNELS
Flick through channels by pressing the
buttons on the remote control (or the
+
CH
and on the front of the Plaza DS•100 receiver).
Pressing the next channel in the channel list. Pressing the or the list. When you have chosen the last channel in the list, pressing the select the  rst channel in the list. Similarly, when you are on the  rst channel, pressing the
buttons behind the fold-down
+
CH
or
CH
button will select the previous channel in
button will select the
CH
or
+
button will
and
 ap
CH
or
button will go to the last channel in
CH
the channel list.
If you know the channel number, you can go directly to the channel you want using the number buttons on the remote control. The channel numbers have three digits, and the  rst channel in the list is 101. As you put in a channel number, each digit appears in the top left of the screen to show the number you have pressed. The radio stations are stored from channel 700 onwards.
SWAP
Press the
button on the remote control to switch from the channel you are currently watching to the channel you were watching before.
• Use the electronic programme guide (see page 25).
HINT: The channel numbers are set by
freesat. Because there are spaces left for future channels to join freesat, there are some numbers missing in the channel list.
There are several other ways to change channel.
• Use the browsing bar at the bottom of the TV screen (see page 21).
• Use the on-screen channel list (see page 23).
HINT: If you enter a number which is not
an available channel, the channel you are watching will not change.
19

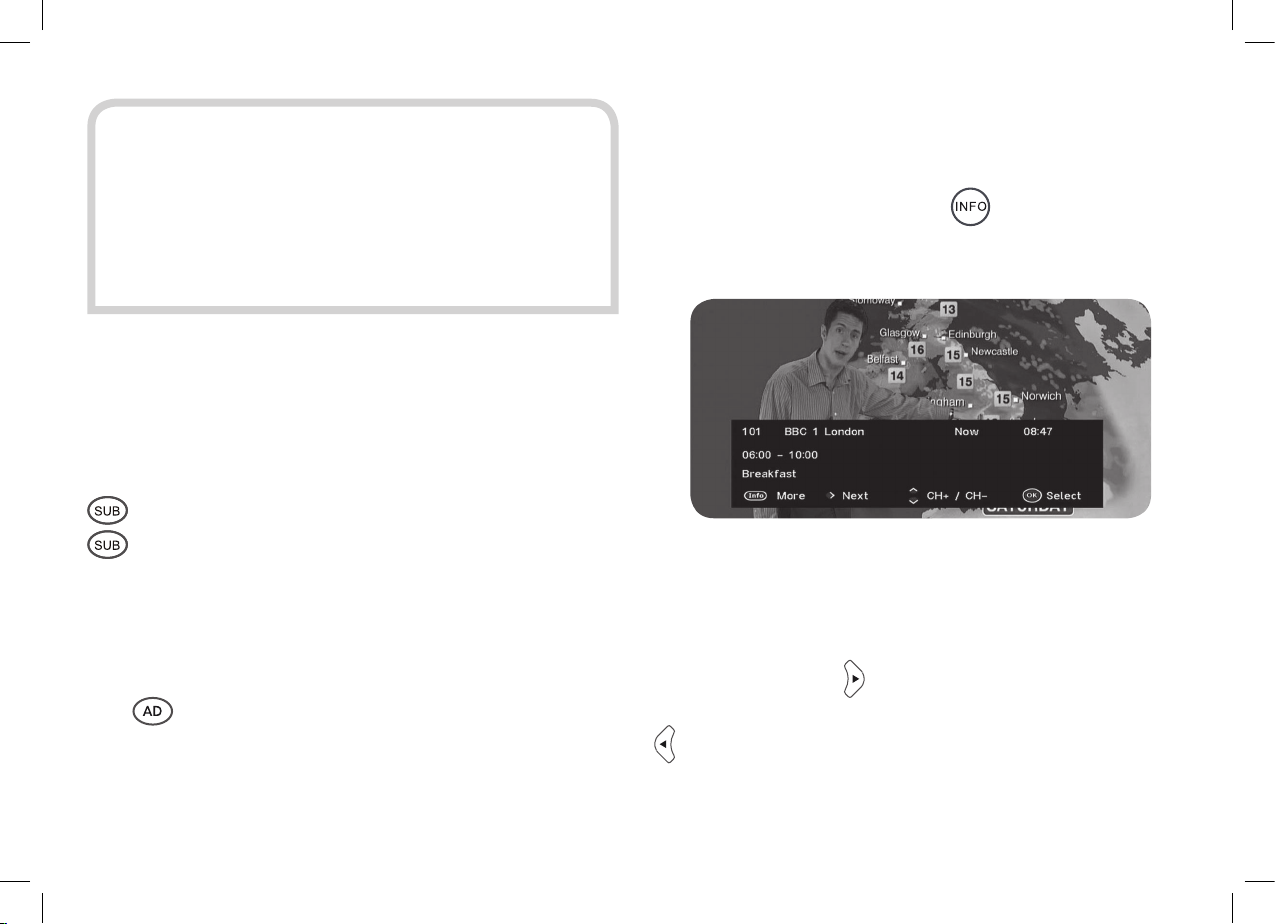

INFORMATION BAR
Whenever you change channel, the Plaza DS•100 displays an information bar at the bottom of the screen. This stays on the screen for about three seconds.
The information bar shows:
• the name of the programme you are watching, and the time it is on from and to;
• the name of the next programme on that channel, and the time it is on from and to;
• the channel number and name; and
• the time.
HINT: If the channel you have chosen is not
on at that time, the normal information bar is replaced by one that says ‘Service not currently available’.
CHANGING THE VOLUME
and buttons on the remote control or
the
VOL
+
and
VOL
buttons behind the  ap on the front of the Plaza DS•100’s receiver. You can turn the sound off completely by pressing the
button on the remote control. To put the sound back on at the previous volume, press the
button again.
20
BROWSING CHANNELS AND PROGRAMMES
HINT: The volume and mute buttons also
affect the sound supplied to the VCR SCART socket, so using these buttons while you are recording a programme will affect the recording.
SUBTITLES AND AUDIO DESCRIPTION
Many freesat programmes are broadcast with subtitles for people who are deaf or hard of hearing. You display subtitles by pressing the
button, and turn them off by pressing the
button again. Some programmes have an extra soundtrack to tell people who are blind or partially sighted what is happening on screen. When this soundtrack is available, you need to turn the audio description function on by pressing the
button on the remote control. Pressing
the button again turns the audio description off.
You can see what is on the other freesat channels by using the Plaza DS•100 receiver’s browsing facility. Press
on the remote
control to display the browsing bar.
The browsing bar shows the name and number of the current channel, the time, and the name and times of the programme currently showing. You can use the
button to see the details of
the next programme on that channel. Press the
button to go back.
21
BROWSING CHANNELS AND PROGRAMMES
(continued)
Pressing
or changes the browsing bar to show the details of the next channel up or down the channel list, while you are still watching the current channel. By repeatedly pressing the or buttons, you can see what is showing on any of the other freesat channels. If you want to watch the channel displayed in the browsing bar, press
, or to remove the browsing bar
press .
HINT: You can also display the browsing
bar by pressing the or buttons. You can browse through the channels more quickly by pressing just these buttons.
of the programme on now or next (whichever you choose) and symbols to say whether the channel has audio description, subtitles, or digital text and whether it is broadcast in high de nition or Dolby Digital sound (not available with the Plaza DS•100 receiver). Pressing the
button again removes the extra information
from the browsing bar.
While the browsing bar is displayed, pressing the
button again will display more details
about the channel, including a short summary
22

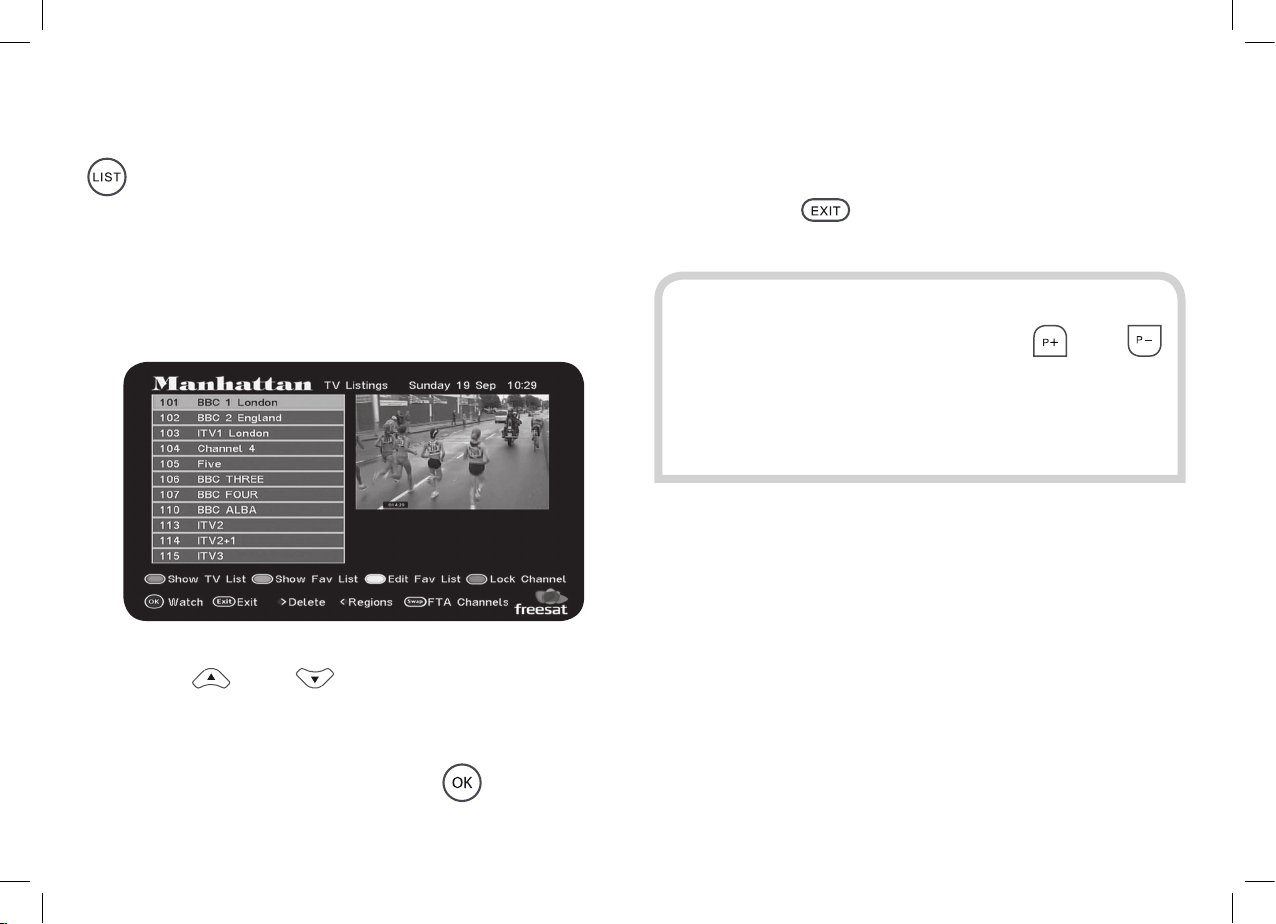

USING THE CHANNEL LIST
You can display the channel list by pressing the
button on the remote control. This lists the channels on the left-hand side of the screen, in number order, with the current channel (as shown in the window on the right-hand side of the screen) highlighted with an orange bar.
Use the and buttons on the remote control to move the orange bar up or down through the channel list to highlight the channel you want to watch. Then press
to close the
channel list.
Or you can return to the channel that you were watching before using the channel list by pressing the
button.
HINT: You can move through the channel
list more quickly by using the
and buttons, which move the orange highlight bar through the list one page (11 channels) at a time.
23

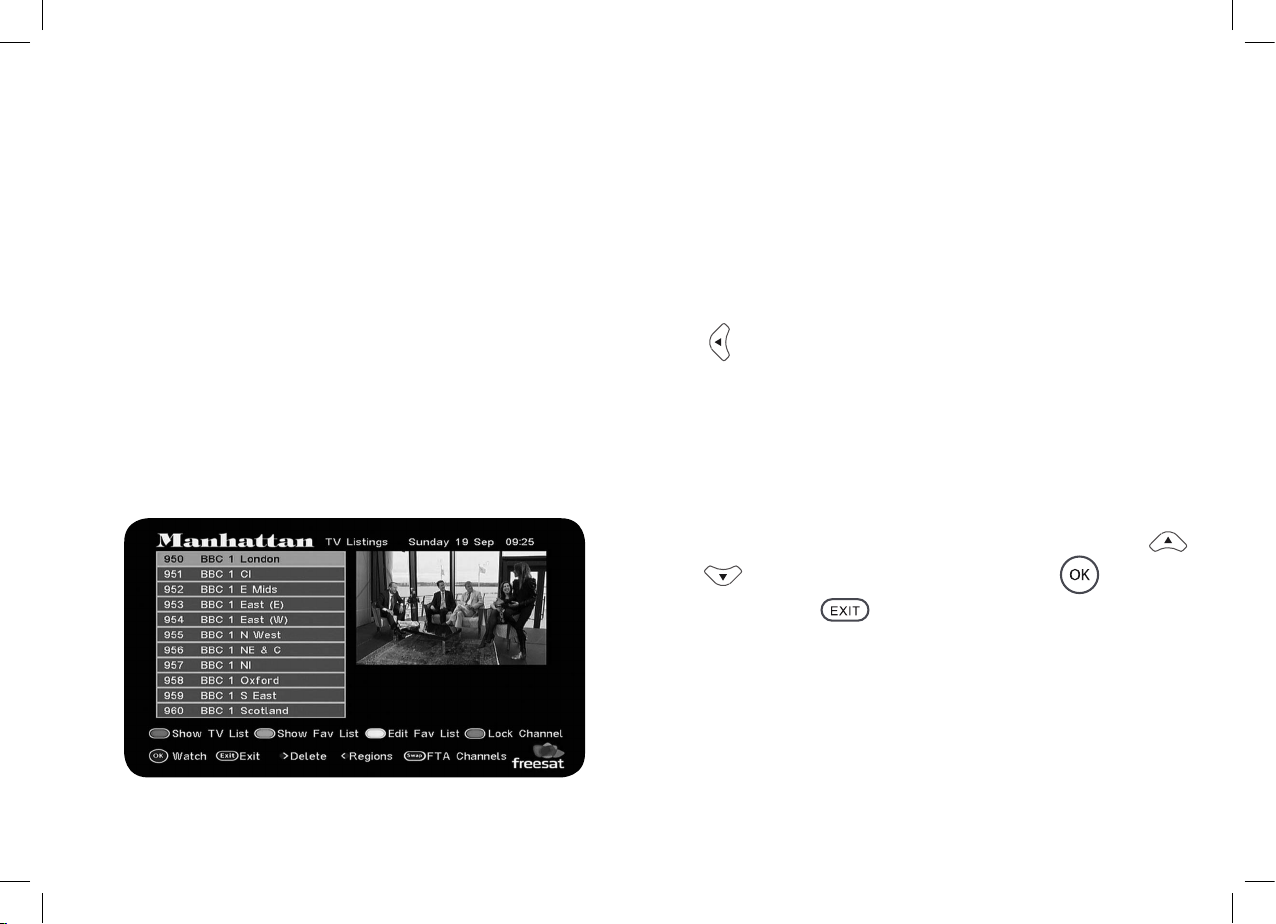

REGIONAL CHANNELS
BBC and ITV broadcast different variations of their channels for different regions in the UK. With freesat you can see the variations available to other regions.
The regional variations BBC1, BBC2, and ITV1 you receive are based on the postcode that you entered when you installed the Plaza DS•100. Those variations are channel numbers 101, 102 and 103 in the channel list.
You can watch the ITV1 variation for a nearby region by choosing channel number 977. All the BBC1 and BBC2 regional variations are listed in the channel list from number 950.
You can replace your regions variation of BBC1 or BBC2 with that of another region by pressing the
button while channel 101 or 102 is highlighted with the orange bar in the channel list screen.
Choose the region that you want, from the list on the right-hand side of the screen, by moving the highlight bar through the list with the and can press the
buttons and then pressing . Or you
button to leave the region
setting the same.
24

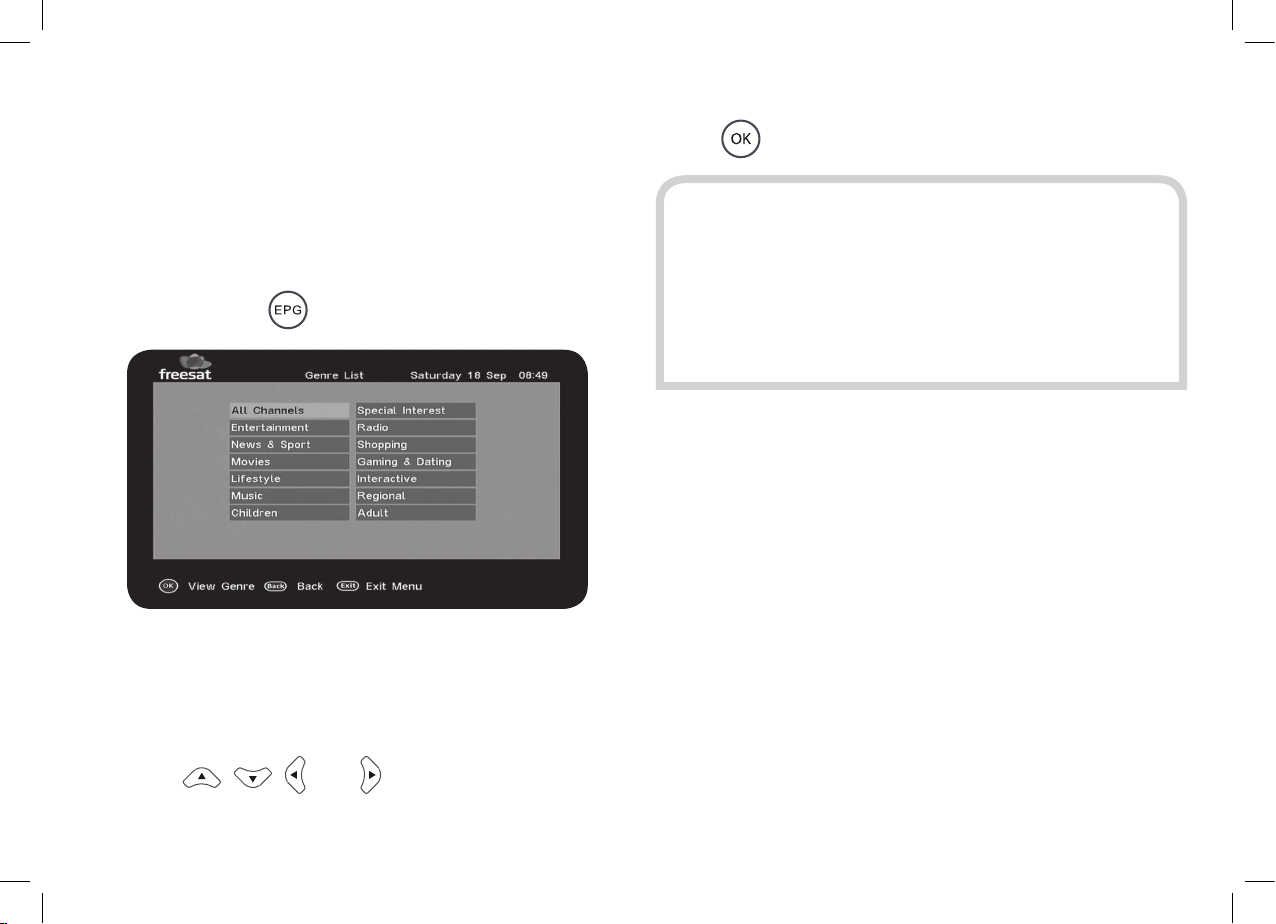

USING THE PROGRAMME GUIDE
until it highlights the section you want, then
The Plaza DS•100 can display information about programmes that are showing on all freesat channels in the next seven days. You can browse the full programme schedules with the electronic programme guide, which you see by pressing the
button.
First, choose the section of the programme guide you want to look at – either all channels or a speci c channel genre.
Use the
, ,
and
buttons to move the
orange highlight bar through the list of sections
press
.
HINT: You can set the Plaza DS•100 receiver
to skip the section screen and always display the programmes for all the channels. The ‘Advanced use’ section starting on page 29 explains how to do this.
The programme guide screen shows a table of the programmes, with each page showing on eight channels over a two-hour period. On the  rst page of the programme guide, the current programme on the channel you were watching, highlighted in the centre of the screen with an orange bar. A summary of the highlighted programme is shown above the programme guide. The current date and time is shown at the top of the screen, and an orange line down through the table shows the present time in the schedules.
25
USING THE PROGRAMME GUIDE (continued)
You look through the scheduled programmes using the
and
the channels, and the
button to move through
and buttons to move the orange highlight bar across to show the programmes showing at different times. As you move the highlight bar through the tables, the programme summary shown above the table changes to re ect the programme highlighted. You can  nd details of any programme, on any channel, for up to eight days ahead.
When you reach the last channel on a page of the guide, pressing Press
to switch the receiver to the channel
moves to the next page.
and programme highlighted by the orange bar. If the programme is on at the time, the receiver will switch to that channel immediately.
screen and, after a few seconds, the receiver automatically switches to the relevant channel. When a programme has a reminder set, a clock symbol is shown next to its name in the programme guide table.
HINT: You can jump through the
programme guide more quickly using the red and green buttons, which move to the next or previous page of eight channels. The yellow and blue buttons move the highlight bar through the schedules a day back or forward.
If the programme is scheduled for later on, a reminder is set so that when the programme is about to start, a message is displayed on
26
INTERACTIVE TV SERVICES
Several freesat channels broadcast a range of digital text and interactive services such as news, weather, games, sports information and video alongside normal TV.
You can use the interactive services by pressing
You can set up to eleven reminders but if you try to set a reminder for a programme that is on at the same time as one you have already set a reminder for, a warning is displayed on the screen. You can cancel a reminder by highlighting the programme in the programme guide and pressing
again.
You can leave the programme guide and return to watching TV by pressing the
or
button.
the
or the red button while watching the TV channel. This will display a menu of services available from that channel or broadcaster.
27
INTERACTIVE TV SERVICES (continued)
When you have  nished with the interactive services, you can return to normal TV by pressing
again or the
button.
HINT: Different broadcasters provide
different interactive services, so we recommend that you try out the interactive options on different channels to discover where the services that most appeal to you are.
RECORDING FREESAT PROGRAMMES
You can record a programme by connecting a VCR or DVD recorder to the VCR SCART socket on the back of the Plaza DS•100. You will need to choose the recorder’s SCART input for recording. See your recorder’s manual for more information.
If you have a recorder connected to the receiver, you can record a programme even when you are not at home. Highlight the programme in the programme guide, make a note of the date and time, and set a reminder with the
button. Then set the recorder’s timer to record from its SCART input on the date and times noted.
Please note that for the recorder’s timer to work the Plaza DS•100 must not be in standby mode and ‘auto standby’ must be disabled (see page 36).
HINT: Do not use the channel list,
programme, interactive services, and so on while recording a programme as the screen displays associated with these functions will also be recorded.
28
ADVANCED USE
The section explains how to get the
4
TV SCREEN SIZE
The freesat channels broadcast using a widescreen 16:9 format, designed for widescreen TVs. If you have a squarer 4:3 television, the widescreen
most out of your Plaza DS•100 receiver.
The full widescreen
broadcast picture.
Full frame squeezes the widescreen picture into the screen of a 4:3 TV.
image cannot be displayed. You use the button to choose how the Plaza DS•100  ts the 16:9 widescreen image onto your 4:3 screen.
Pressing the three options available:
• only the centre of the image is shown (centre cutout);
• the complete widescreen picture is squeezed into the squarer format (full frame); or
• the complete, unaltered image is shown, smaller and with black bars above and below it.
button will take you through the
Centre cutout
displays only the centre of the widescreen picture on a 4:3 TV. This is the factory setting.
HINT: The button has no effect on the
picture if you have set the TV screen size to ‘16:9 widescreen’ in the settings menu (see page 36).
Letterbox shows the whole picture on a 4:3 TV with black bars above and below.
29
TV/DTV
The
button switches your television from displaying the freesat programmes through the receivers SCART lead to regular broadcasts you receive through the TV aerial. When the Plaza DS•100 is turned on, some televisions will automatically switch to their SCART lead to display the freesat channel. You can use the
button to release that automatic switch without having to switch off or disconnect the receiver. Pressing the button switches the channel displayed on the television between the signal from the aerial (TV) and digital television from freesat (DTV).
USING THE MENU SYSTEM
Many of the receivers everyday functions are carried out by pressing a single button on the remote control, but the functions used less often are carried out by making a selection from on-screen menus. When you choose one
menu option, it opens up another menu of choices relating to that option.
You open the Plaza DS•100’s main menu by pressing the
button on the remote control. This displays the four main menu options – TV listings, settings, language and information.
You can choose any of these options by pressing the relevant number on the remote control.
30
HINT: At any time when using the menu
options you can return to the previous menu screen by pressing the button or the
button. Or, you can return to
watching TV by pressing the button.
When you get the Plaza DS•100 the PIN is set to 0000. You can change this to any four digit number, as explained later in this section.
THE LOCK CODE
Some of the Plaza DS•100 menu options are locked to avoid accidental changes, and you can lock particular channels to prevent some people, such as children, from watching them. To unlock options or channels you need to enter a four-digit PIN using the remote control.
CHANGING THE CHANNEL LIST
The channel list contains all freesat channels that the receiver found when it was  rst installed, and may include some channels that you do not watch, do not want to include in the on-screen channel list, or do not want some members of your family to watch.
31
CHANGING THE CHANNEL LIST (continued)
Go to the Plaza DS•100 main menu by pressing the
button. Choose the TV listings menu by moving the highlight bar to the TV listings option in the menu and pressing pressing
1
(the number of the TV listings
, or by
option in the menu).
To remove a channel from the channel list, move the orange highlight bar through the channels
using the
and buttons (or the
buttons to move a page at a time). When the channel you want to remove is highlighted, press the
to enter the PIN and delete the
channel.
and
HINT: This is the same channel list screen
you would use to choose a channel.
32
HINT: You need to enter the PIN because,
once deleted, a channel cannot be restored. easily. You will need to install the receiver again from scratch.
You can prevent any channel from being viewed without  rst entering the PIN by locking that channel in the channel list. Move the orange highlight bar through the channel list using the
and buttons to highlight the channel you want to lock, then press the blue button to enter the PIN and lock that channel.
USING THE FAVOURITE CHANNELS LIST
The favourite channels list makes it easier for you to choose the channel you want to watch, by limiting the on-screen list to just a few channels, such as those you watch the most.
In the list of channels displayed, use the
It takes a short time to set up the favourite channels list. First, display the channel list by choosing option 1 from the main menu or by pressing the
button, then press the yellow
button to edit the favourite channels list.
and
buttons (and the and buttons to move a page at a time) to move the orange highlight bar to a channel that you want to include in your favourites. Press the red button to add that channel to the favourite channels list. A channel included in the favourite channels list is shown with a tick against its name. When you have added all the channels that you want to your favourites, press the yellow button again to stop editing the favourites list.
33
USING THE FAVOURITE CHANNELS LIST (continued)
HINT: You can remove a channel from the
favourite channels list by highlighting the channel and pressing the green button. You can also add and delete a channel from your favourites list using the
button.
orange bar and press
. You can switch back to the main channel list by pressing the red button.
You can also switch to a channel from the favourite channels list, without going to the channel list.
Press the
button to switch to the next channel in your favourite channels list (or to the  rst in the list if you are currently watching a channel that is not in the favourites list).
If you want to see your favourite channels list, go to the channel list and press the green button. To view a channel, highlight it with the
34
Press the
button again to switch to the next channel in the list, and so on through your favourites list.
HINT: The channels in the favourite channels
list are stored in the same order as they appear in the normal channel list, regardless of the order you added them to your favourites list.
SETTINGS
The selections available from the settings (option 2) in the main menu are concerned with more advanced features of the Plaza DS•100. We recommend that you take the time to read this section carefully before you make changes to the receiver from these menus.
To make changes to any of the settings,  rst go to the main menu with the highlighting option 2, and pressing
button,
. Then move the orange highlight bar to the setting that you want to change, and press
to
display the options available.
KEY BEEP
The Plaza DS•100 can produce a small beep through the TV speakers whenever a button on the remote control is pressed. This is to con rm that the button has been pressed and the Plaza DS•100 has received the command. You can turn this beep on or off by moving the orange highlight bar to the option
you want and pressing
A con rmation of the setting is then shown on-screen.
.
HINT: When using the settings menu,
you can return to the main menu screen by pressing the
button or the button, or you can go back to watching TV by pressing the button.
HINT: When the key beep option is on,
the beep can be heard through the TV speakers even when the receiver’s volume is turned down or muted. However, if the TV’s volume is turned down or muted, you will not be able to hear it.
35

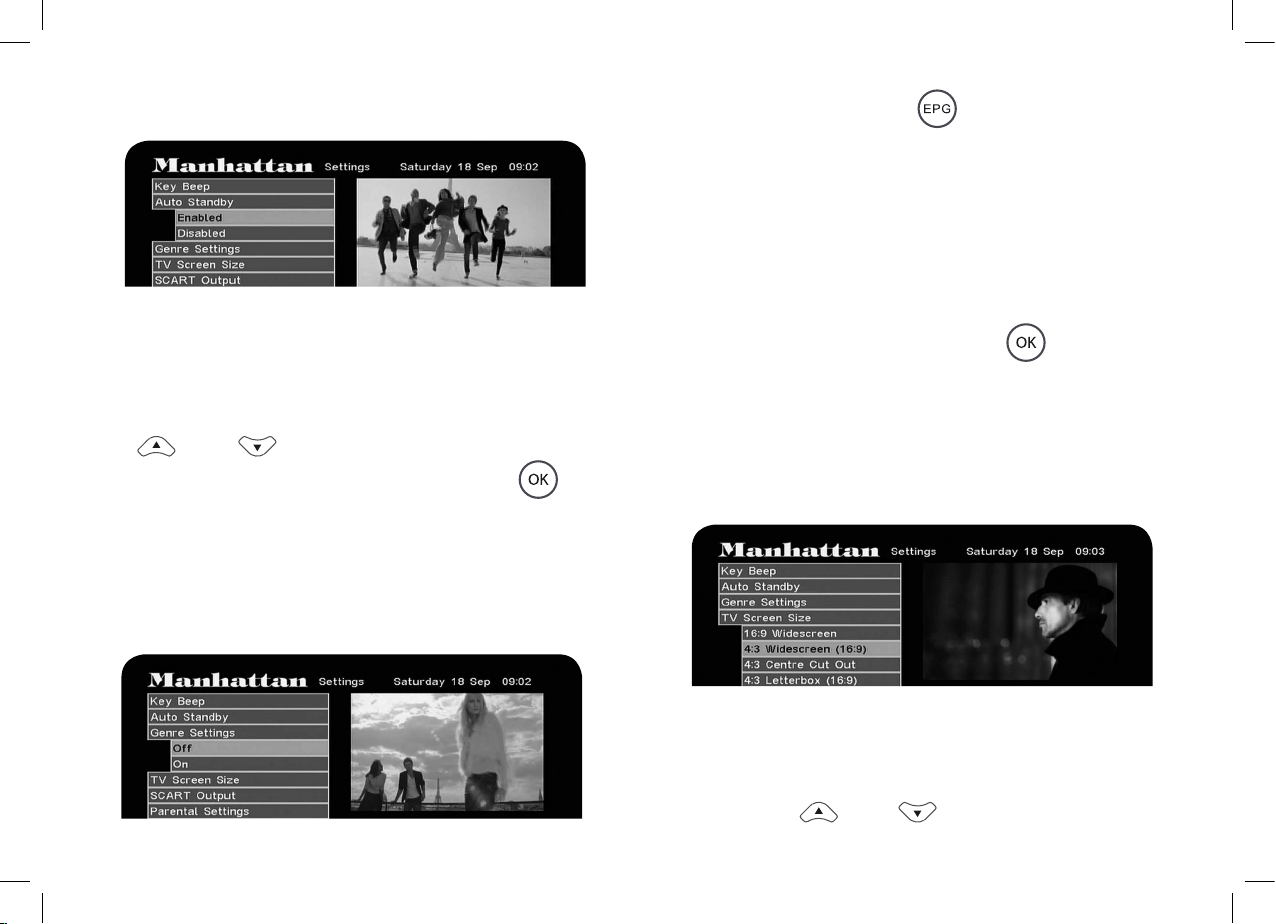

AUTO STANDBY
The Plaza DS•100 automatically goes into standby if it is not used for a long time. If you want to stop the receiver from doing this, use the and buttons to move the orange highlight bar to ‘disabled’ and press setting is conrmed on-screen.
. This
GENRE SETTING
When you press the button, you get a screen that allows you to display all channels or only channels of a certain genre (type, such as sport, movies, music and so on). If you want to automatically skip the selection screen and see all channels listed in the programme guide, you can turn off the genre setting. Move the orange highlight bar to ‘off’ and press
. The setting
is then conrmed on-screen.
TV SCREEN SIZE
36
This option allows you to choose which screen size is used when the Plaza DS•100 is turned on. Use the and buttons to move the
orange highlight bar to the option you want, then press
. The setting is then con rmed
on-screen.

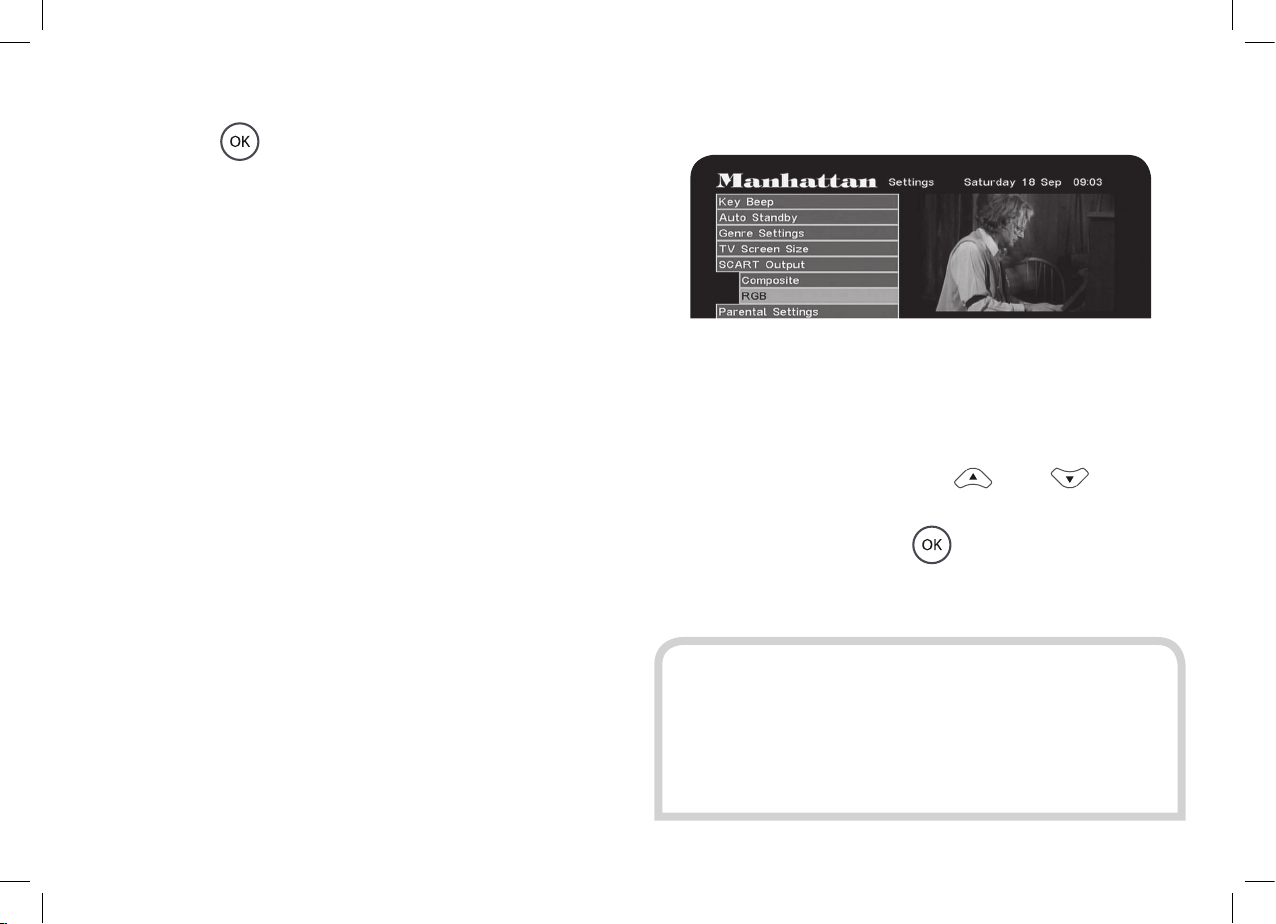

SCART OUTPUT
This setting alters the signal your TV receives. When you install the receiver, the SCART output is set to RGB, but you can change it to composite video. Use the and buttons to move the orange highlight bar to the option you want, then press
. The setting will be
con rmed on-screen.
HINT:The RGB setting will usually produce
the best quality picture, but a few televisions cannot accept this signal. See your TV manual for more guidance.
37

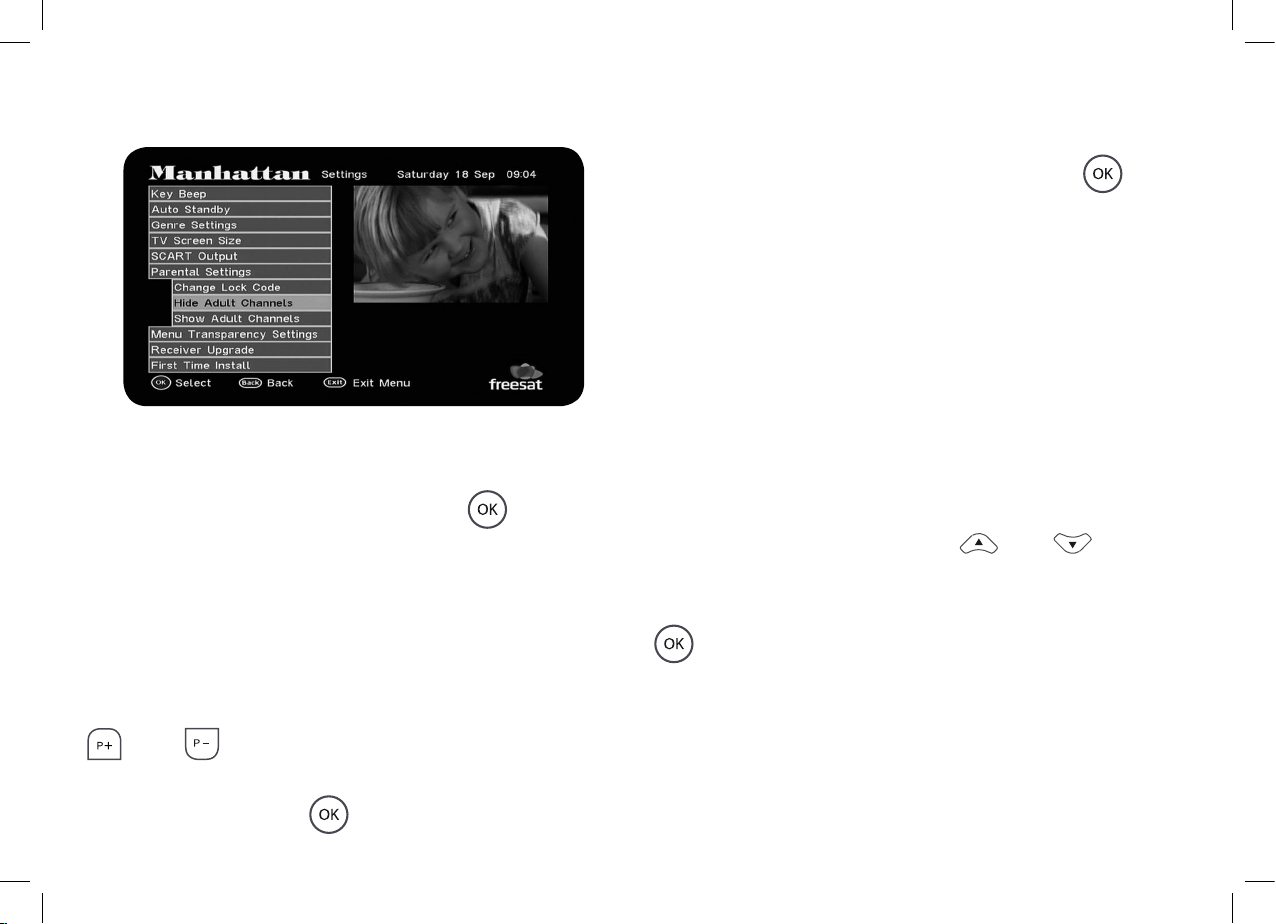

PARENTAL SETTINGS
In the parental settings options you can change the PIN by moving the orange highlight bar to the ‘change lock code’ option and pressing
. You
will need to enter your PIN (the factory setting is
0000) and then enter your new 4-digit PIN. You will need to enter it a second time to conrm your choice.
MENU TRANSPARENCY SETTINGS
The Plaza DS•100 can be set to prevent people watching adult channels. Move the highlight bar to ‘hide adult channels’, press
and enter your PIN. The adult category is then removed from the selection screen in the channel list, the adult channels are removed from the channel list and programme guide, and they cannot be selected by putting in the channel number or by skipping through the channels with the
and buttons. You can allow access to adult channels again by choosing ‘show adult channels’, pressing
38
, and entering your PIN.
You can turn this setting on so that the menu screens (and other on-screen information) are displayed transparently so that you can see the TV picture behind. Use the
and buttons to move the orange highlight bar to select ‘off’ (not transparent), or 25%, 50% or 75%, then press
. The setting will be conrmed on-screen.
RECEIVER UPGRADE
CHANGING THE RECEIVER’S LANGUAGE
When new software is made available for your Plaza DS•100, it is automatically downloaded to your receiver through your satellite dish. You can choose to have the receiver updated with new software automatically, or only when you choose to download updates. Use the
and
buttons to move the orange highlight bar, to
select either ‘manual’ or ‘automatic’, then press
. The setting is then conrmed on-screen.
RESTORING ALL SETTINGS
To restore all settings to what they were when you got the receiver, bring back deleted channels, or retune the receiver if you move to a different area, you can reinstall the Plaza DS•100 as though it were new from the factory. Press
and enter your PIN to start the installation process, and follow the procedure set out in the preparation and tuning in sections of this guide. (see pages 10 and 15 ).
The freesat channels can broadcast in a number of languages or with subtitles available in a number of languages. The Plaza DS•100 is set to English-language soundtrack and English subtitles, but you can change this setting using the language menu.
Display the main menu by pressing and press
3
to display the language menu. Move the orange highlight bar to ‘audio language’ to alter the choice of language heard, or to ‘subtitle language’ to alter the language used for subtitles, then press
.
39
CHANGING THE RECEIVER’S LANGUAGE
(continued)
and the software installed, and the postcode you entered when you installed the receiver.
Move the orange highlight bar to the language you want from the list of languages displayed, then press
. Press to return to watching
TV.
RECEIVER INFORMATION
The Plaza DS•100 can display a page of information about your particular receiver and your reception. This includes the signal strength, the version of the receiver hardware
40
Display the main menu by pressing , and press
4
to display the information screen.
HINT: We recommend that you have this
screen displayed on your TV if you need to phone the Plaza DS•100 helpline.
NON-FREESAT CHANNELS
This section explains how to set up
5
HINT: You have to tune in non-freesat
channels and they are less convenient to switch to. Some functions of the Plaza DS•100 are not available when viewing non-freesat channels.
your Plaza DS•100 receiver to receive channels that are not included with freesat. As well as receiving the many freesat channels, the Plaza DS•100 can also be used to watch other satellite channels as long as a channel is broadcast from the same satellites as freesat and is free.
TUNING IN NON-FREESAT CHANNELS
Go to the settings menu by pressing followed by non-freesat services’ and press open the manual-tuning menu.
2
, highlight the last option, ‘add
twice to
41
TUNING NON-FREESAT CHANNELS (continued)
Use the
and buttons to move between the boxes for the ‘frequency’, ‘symbol rate’ and ‘LNB polarisation’ boxes, and in each enter the relevant values with the number buttons or the
and buttons. The ‘level’ and ‘quality’ displays at the bottom of the screen show if there is a signal present with those values.
HINT: The tuning information for
non-freesat channels may be given in specialist magazines and on the particular channel’s website.
Move the highlight bar to the ‘scan’ box and press
to start scanning for new channels. If any new channels are found, the  rst of those channels is displayed in the small preview window
. You can change the channel
displayed
using the
and buttons. All new channels are stored automatically. Once you have tuned in all the non-freesat channels you want, leave the manual tuning menu and return to the settings menu by pressing .
You should now choose the ‘show non-freesat services’ option, move the orange highlight bar to ‘yes’, and press
. This enables the channel list to display the non-freesat channels for selection and viewing.
WATCHING NON-FREESAT CHANNELS
Non-freesat channels are stored from channel number 3000 onwards, but they are not listed in
42
the programme guide and the button gives no information on the programmes showing. They cannot be added to your favourite channels list and you cannot choose them with the number buttons on the remote control.
APPENDIX A - SAFETY
POWER
The receiver should be plugged into a 230V to 240V AC, 50Hz supply.
You can only choose a non-freesat channel from the channel list or by stepping from another non-freesat channel using the
and channel list and then the
buttons. Press to display the main
SWAP
button to switch to the non-freesat list. Choose the non-freesat channel you want to watch by highlighting it with the orange bar using the
buttons, then press
.
and
HINT: There may be some non-Freesat
channels listed that you do not want, and you can delete these in the normal way using the
button.
CABLES
Make sure all cables are positioned so they are not likely to be walked on, crushed or damaged by things placed on or against them. Pay particular attention to the power cable where it goes into the socket and where it comes out of the receiver. Do not connect or adjust cables to the receiver when it is plugged in.
TEMPERATURE AND MOISTURE
Do not use or leave the receiver in a hot, cold or humid (moist) environment. Do not allow the receiver to get wet – from drips or splashes – as this is dangerous. Do not place vases or other water- lled objects on top of the receiver.
43
VENTILATION
Slots and openings in the receiver’s cover are for ventilation. Do not cover or block them as this could lead to the receiver overheating.
CLEANING
Unplug the receiver before you clean it with a lightly dampened cloth. Do not use liquid or aerosol cleaners.
HEAT AND FLAMES
Do not place the receiver near to naked ames or sources of intense heat, such as an electric re. Make sure that no ames, such as lighted candles, are placed on top of the receiver.
LIGHTNING
If there is a storm or lightning, unplug the receiver.
receiver is qualied to do so. Do not remove the cover yourself – you could get an electric shock.
REPLACEMENT PARTS
If your receiver needs repairing, make sure the person carrying out the repair uses parts which are specied by us or which have the same specications as the original part. Other parts may cause a re, electric shock or other dangers.
SERVICING
Make sure that anyone who services your
44
ELECTRICAL SAFETY Your receiver needs a 230V AC ~ 50Hz mains supply and is tted with a moulded plug. If the plug breaks or becomes damaged, do not use it. If you change the fuse in the plug, make sure you ret the fuse cover. If the plug needs replacing, follow these instructions. The wires in the mains lead are coloured in line with the following code.
Blue - Neutral Brown - Live
NO CONNECTION (EARTH)
FUSE
BLUE (NEUTRAL)
BROWN (LIVE)
PROTECTING THE ENVIRONMENT
If you one day nd that your receiver or remote control needs replacing, or are of no further use to you, do not throw them out with your household waste. Under the Waste Electrical and Electronic Equipment (WEEE) regulations, your local council must provide a suitable recycling centre.
Do not throw batteries in the bin or on a re. Make sure that you dispose of batteries safely at a local recycling centre. You can also recycle batteries at many supermarkets.
OUTER SLEEVE
CABLE GRIP
45
APPENDIX B – TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE WHAT TO DO
Power light off
No set up screen
Signal strength
below 50%
‘No signal’ message
Power cable disconnected Check the power cable. Mains fuse blown Check the fuse.
Switch on the receiver, check the
Receiver not switched on
SCART lead disconnected
Television not switched to SCART input
Cable from the satellite dish disconnected
Cable from the satellite dish faulty
Dish in the wrong position
Cable from the satellite dish disconnected
Dish damaged or in the wrong position
power cable, the switch at the socket and the fuse. Check the SCART lead is connected to the receiver and the TV. Choose the TV’s SCART input (see the TV manual for guidance). Check the cable connections at the receiver and the dish. Consult your installer if necessary. Replace the cable from the satellite dish. Consult your installer if necessary. Reinstall the dish. Consult your installer if necessary. Check the cable from the dish. Consult your installer if necessary. Check the dish. Consult your installer if necessary.
46
No picture or sound
SCART lead disconnected
Check the SCART lead connections at the receiver and the TV.
TV not switched to SCART input Choose the TV’s SCART input channel.
Full picture not visible
No response to remote control
Cannot view a channel
No information for a channel in the programme guide
Can’t record a channel
Mismatched screen format
Choose the correct screen size to suit
your TV. Receiver in standby Switch the receiver on. Remote control not aimed at the
receiver correctly Remote sensor on the front of the
receiver is obstructed
Aim the remote control at the receiver.
Check for obstructions in front of the
receiver. Batteries in the remote control need replacing Replace the batteries in the remote control. Wrong channel number used Choose the channel from Channel List.
Channel locked
Enter the PIN. If you have forgotten the PIN,
phone the helpline on 020 8450 0005. Information on the channel not downloaded Wait for the download.
Tuned to non-freesat channel Tune to a freesat channel
No connection to recorder
Wrong recorder input selected
Connect a SCART lead from the
receiver to the recorder.
Select the recorder’s SCART input.
See the recorder’s manual for guidance.
47
HELPLINE
020 8450 0005
APPENDIX C - SPECIFICATIONS
Input frequency 950~2150MHz
Input connector F type, female 75 ohm
Tuner
LNB supply
Digital signal input level -25 to -65 dBm
Video
Audio
Power Requirements
Dimensions
Aspect ratio 4:3, 16:9 and letter box
Video output Two SCART sockets; TV (CVBS/RGB) & VCR (CVBS)
Audio output Audio left and right
Mains input voltage 230-240VAC~ 50Hz
Power consumption Maximum 10W (LNB with 200mA)
Width, depth and height Width: 258mm, x depth: 175mm, height: 44mm
www.manhattan-tv.com
14.0V / 19.0V (maximum.350mA), short-circuit protected
48
v2.1
Loading...
