Page 1
PC TV
ConVerTer
USer MAnUAL
MODEL 150095
MAN-150095-UM-0107-04
Page 2
Thank you for purchasing the MANHATTAN® PC TV Converter, Model 150095.
Just connect a VGA port to almost any TV to view computer-based presentations, games, pictures
and movies, or a Web browser. Refer to this manual for easy setup, and enjoy these quality
features:
• Use your TV as a PC monitor to view presentations, games, pictures and movies or browse
the Web
• Connects a VGA port to TV – ideal for computers without a TV-out connector
• Enables notebook computer users to easily connect and use a large-format monitor
• Adjust and set preferences with onscreen display and front-mount control panel
• Compact, portable size and USB power requires no external supply or adapter – use almost
anywhere
• Simple and quick to install; Windows and Mac compatible
• Lifetime Warranty
2
Page 3
Mode & reSoLUTion TAbLe
This PC TV Converter supports the following VGA display modes:
Resolution: 640 x 480 800 x 600 1024 x 768
Vertical Frequency (Hz): 60, 72, 75, 85 56, 60, 72, 75, 85 60, 70, 72, 75
The Zoom function supports the following VGA display modes:
Resolution: 640 x 480 800 x 600 1024 x 768
Vertical Frequency (Hz): 60, 72, 75, 85 56, 60, 72, 75 60
The Size function supports these VGA display modes (NTSC, NTSC-EIAJ (Japan), PAL-M):
Resolution: 640 x 480 800 x 600 1024 x 768
Vertical Frequency (Hz): 60, 72, 75, 85 60, 72, 75 60, 70, 72, 75
The Size function supports these VGA display modes (PAL, PAL-N):
Resolution: 800 x 600 1024 x 768
Vertical Frequency (Hz): 56, 60, 72, 75 60, 70, 72, 75
This PC TV Converter supports the following Mac display modes:
Resolution: 640 x 480 832 x 624
Vertical Frequency (Hz): 66 75
3
Page 4

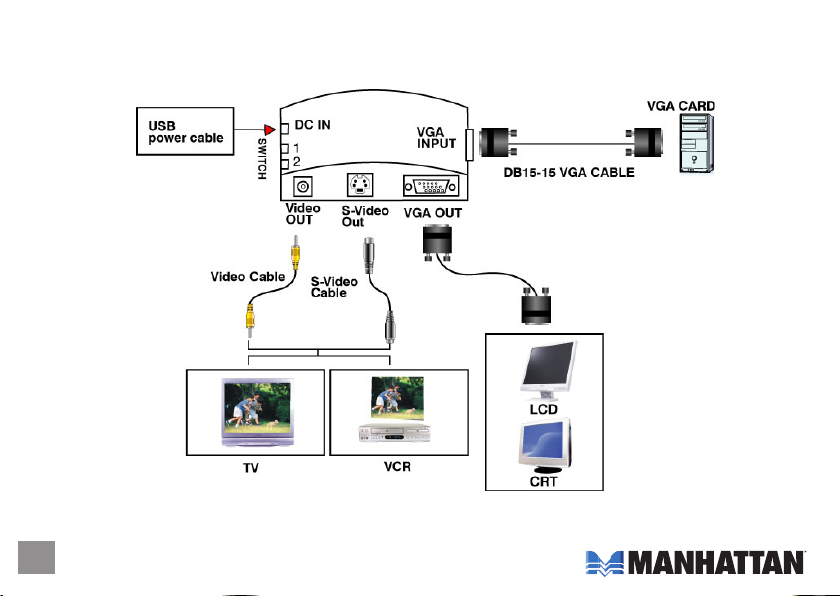

hArdwAre ConneCTionS & APPLiCATionS
4
Page 5
Button Functions
Left/Right/Down/Up: Moves the picture.
Menu: Recalls the menu.
Zoom: Zooms the picture.
Switch Functions
Switch 1 in the up position sets the video standard to PAL.
Switch 1 in the down position sets the video standard to NTSC.
NOTE: For most U.S. applications, both switches should be set in the down position.
Connectors
• Red or black DB15 connects the cable to the VGA card.
• Blue DB15 connects to the monitor.
• Yellow RCA connects to Video Out.
• Blue switch is for selecting the TV standards.
• Black DC In is for the 5 V power input (inner = negative).
• S-Video connector is for S-Video Output.
5
Page 6
SPeCifiCATionS
• Video standards: NTSC/NTSC-EIAJ/PAL/PAL-M/PAL-N
• Resolutions supported: 640 x 480 (up to 85 Hz), 800 x 600 (up to 85 Hz) and
1024 x 768 (up to 75 Hz)
• Input port: DB15 (VGA)
• Output ports: Composite video (RCA), S-video and HD15 (VGA)
• Front panel controls: Zoom, Menu and onscreen display directional controls
• Image controls: horizontal and vertical size, brightness, contrast, hue, saturation, sharpness
and onscreen display background
• 10 x 6 x 3 cm (4.0 x 2.25 x 1.0 in.); 82.2 g (2.9 oz.)
System Requirements
• NTSC or PAL support with composite video or S-video input
• No driver or operating system requirements; compatible with Windows and Mac computers
Package Contents
• PC TV Converter
• RCA video (114 cm, 45 in.), USB (114 cm, 45 in.) and VGA (92 cm, 36 in.) cables
• User manual
6
Page 7
NOTES
7
