Assembly Guide
1000010416 - 13/03/2019
Model: 11GMC1 / 11GMC2 / 11GMC3 / 11GMC4
Double Cabinet
Stuck? Questions? We are here to help.
1-888-230-2225
help@manhattancomfort.com
In order to ease the assembly,
you should separate and identify the parts first
Do not place the parts directly onto the floor.
Use a cardboard sheet or a mat to place the
parts, during the separation and assembly.
IMPORTANT
In order to avoid severe or even fatal injuries, follow the
instructions carefully.
*Tools Needed (not supplied)
IDENTIFICATION OF PARTS
IDENTIFY THE COLOR OF YOUR CABINET
Dimension
N°
P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
DESCRIPTION
LEFT SIDE SMART
RIGHT SIDE SMART
CEILING 2 DOORS SMART
REAR 2 DOORS SMART
SHELF SMART
TOP BACK 2 DOORS SMART
BOTTOM BACK 2 DOORS SMART
DOOR RIGHT SMART
DOOR LEFT SMART
FRAME SMART FRONT
FRAME SMART REAR
BLACK MATT
3000009260
3000009261
3000009397
3000009214
3000009203
3000009215
3000009216
3000009338
3000009340
3000009224
3000009227
WHITE MATT
3000009313
3000009314
3000009393
3000009330
3000009335
3000009336
3000009337
3000009357
3000009359
3000009331
3000009333
BLUE MATT
3000009263
3000009265
3000009395
3000009284
3000009285
3000009286
3000009287
3000009288
3000009290
3000009292
3000009294
GREY
-
-
-
-
-
-
-
3000009208
3000009211
-
-
MATERIAL
STEEL
STEEL
STEEL
STEEL
STEEL
STEEL
STEEL
STEEL
STEEL
STEEL
STEEL
QUANTITY
1 PC
11PC
PC
1 PC 26.33'' 13.38''
1 PC 26.33'' 12.75''
1 PC 26.25'' 11.85''
1 PC 26.25'' 12.16''
1 PC 23.97'' 11.10''
1 PC 23.97'' 14.01''
1 PC
1 PC 27.51'' 8.74''
LENGTH WIDTH THICKNESS
25.27''
25.27''
27.48''
27.51''
13.77''
13.77''
13.70''
8.74''
0.66''
0.66''
0.90''
1.29''
0.62''
0.66''
0.66''
1.37''
1.37''
0.59''
0.59''
L
H
ASSEMBLED PRODUCT:
H: 29.92'' W:27.55'' L:13.77''
W
P3
26 Lbs
P6
P5
26 Lbs
P1
P7
26 Lbs
P4
P9
P2
Lbs
supported distributed
F1
1000008297
Qty. 2
Maximum weight
P8
Hardware list
F2
1000008616
Qty. 2
1000009033
F3
Qty. 1
P10
P11
F4
1000000281 - WHITE
1000007352 - BLACK
1000010221 - BLUE
Qty. 2
F5
1000010136
Qty. 2
F6
1000008285
Qty. 4
F7
3000009645 - WHITE
3000009643 - BLACK
3000009649 - BLUE
3000009647 - GREY
Qty. 2
F8
1000008285
Qty. 1
1 - Identify the parts as figure below:
P10 with hole and P11 without hole.
P11
P10
1 - Attach the P11 part on the P1 and P2 parts in
the indicated direction.
2 - Then attachthe P10 part on the P1 and P2 parts.
P1
P10
P11
P2
01
01
1 - Check the alignment of the holes
on the fitted parts.
2 - The hole in the horizontal bar
of part P10, should be up.
P2
P1
P10
01
02
4x

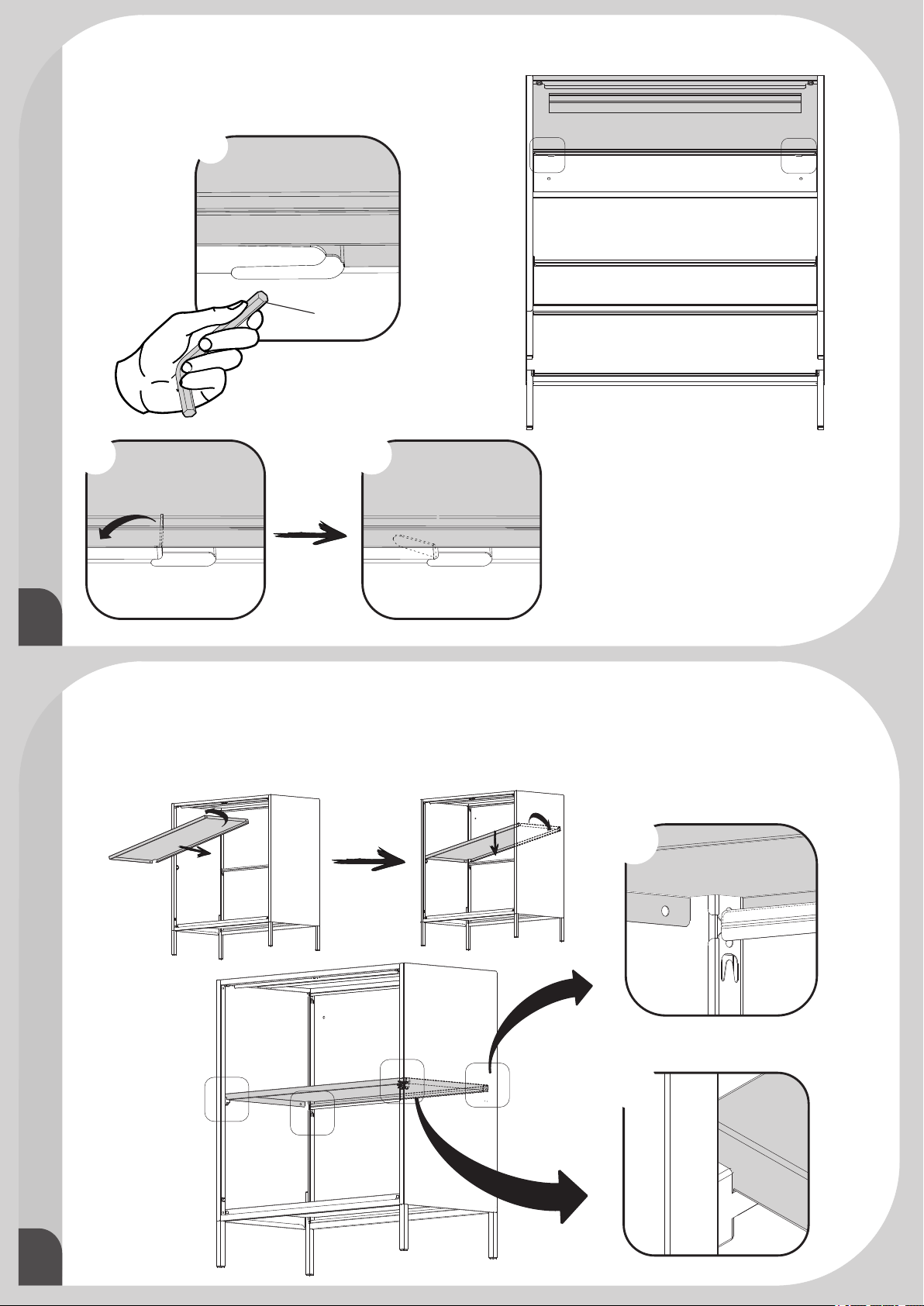

1 - With the end of F3, smash the safety claw,
locking part P10 and P11 to part P1 and P2.
F3
01
03
1- Identify the cutout on the top end of the P7 part.
P7
01
04
1 - Attach the P7 part on the P1, P2 and P11 parts.
2 - Slide part P7 to support on parts P1 and P2..
P7
01
05
P7
1 - With the end of F3, smash the safety claw,
locking part P7 to part P1 and P2.
P7
2x
F3
01
06

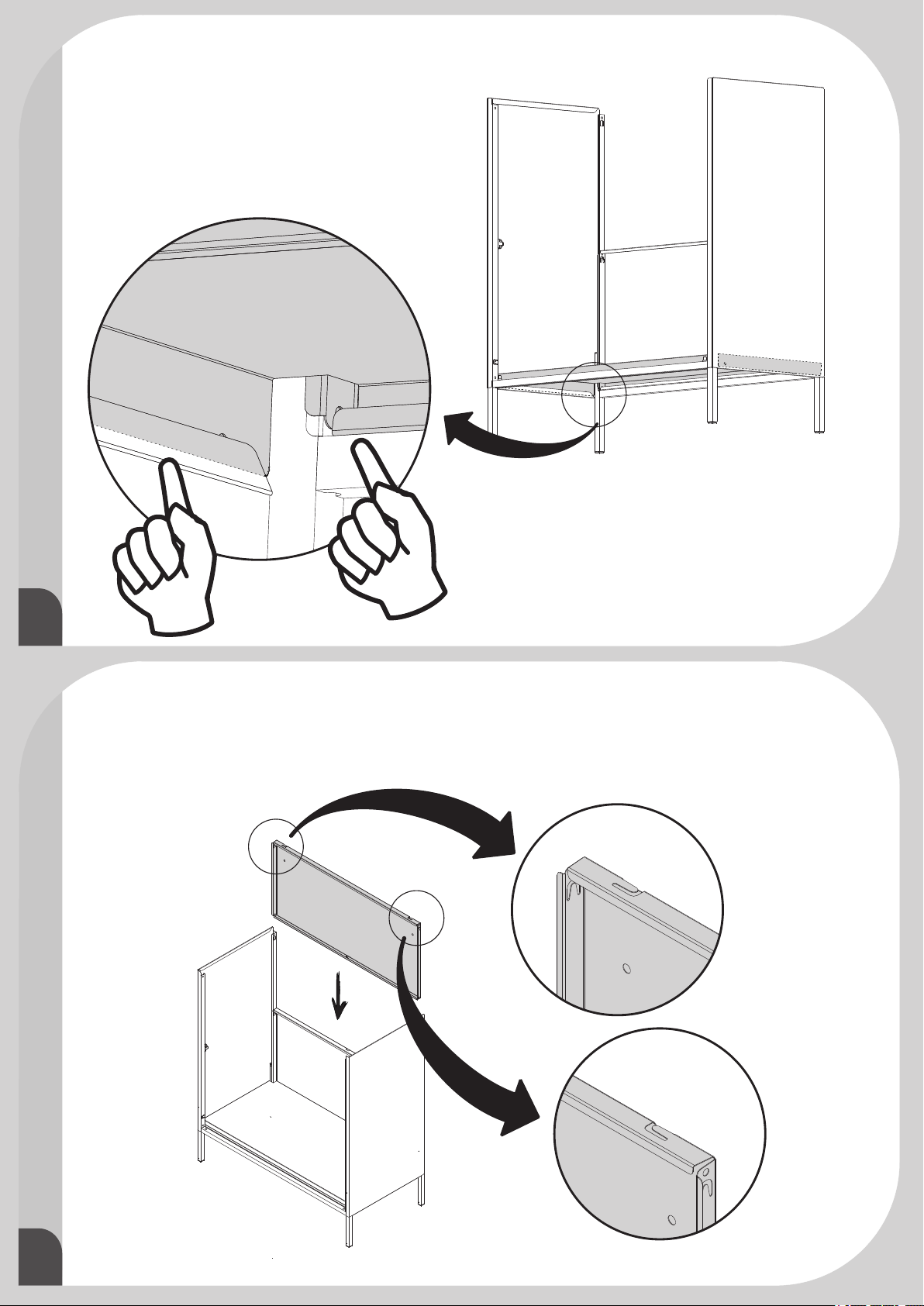

1 - Attach the joint of the front of the
P4 part under the P7 part.
2 - Lower the P4 part as indicated.
P4
01
07
1 - Check all the fittings before moving forward.
P4
01
08
1 - Attach the P6 part with both cutouts facing up, on parts P1 and P2.
2 - Attach the P6 part onto the P7 part.
P6
01
09
1 - With the end of F3, smash the safety claw,
locking part P7 to part P1, P2 and P7.
01
10
P6
1x
F3
F3
2x
2x
1x

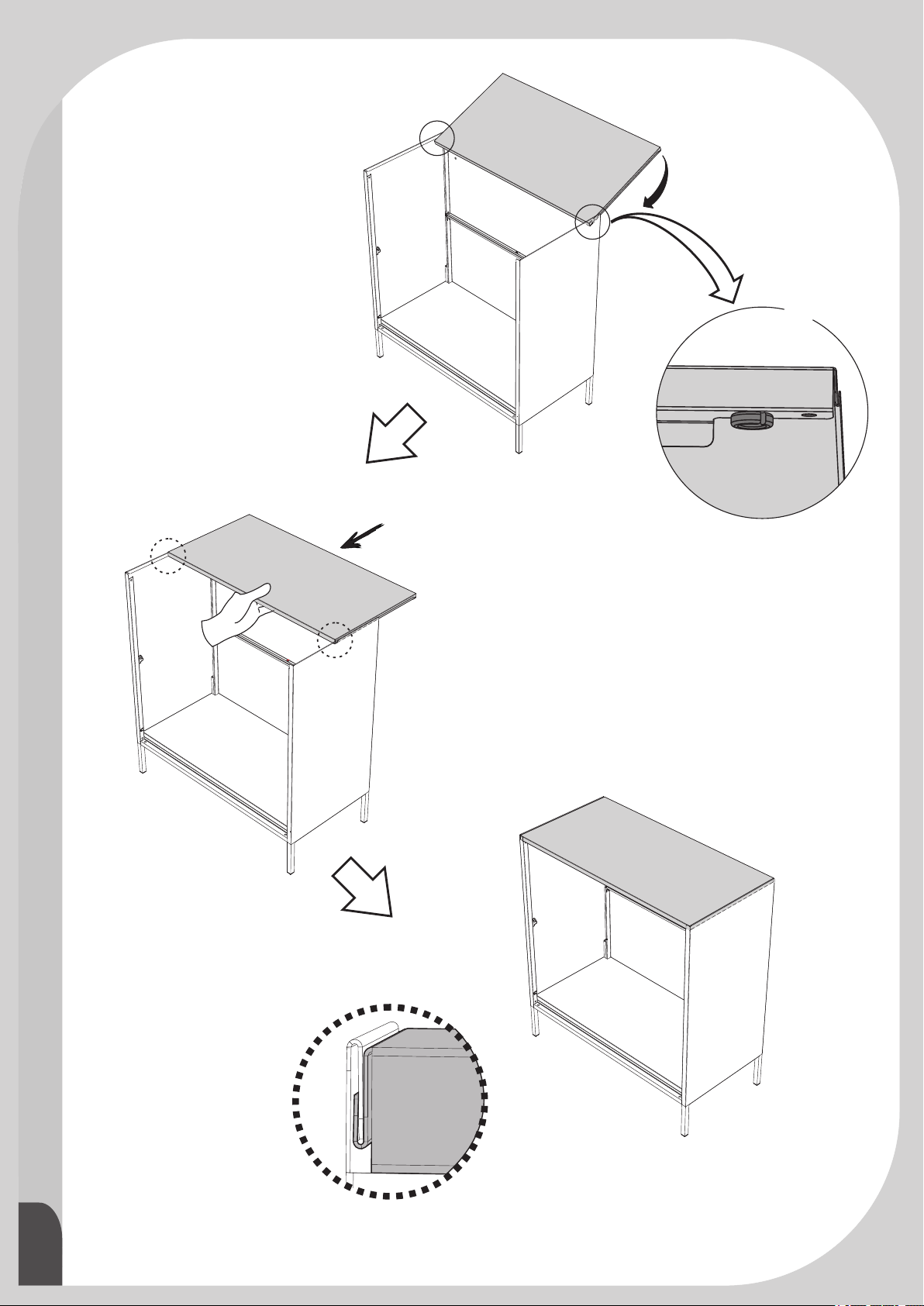

1 - Attach the P3 part on
the parts P1 and P2.
P3
2x
P3
2 - Pull the front of the P3 part.
P3
01
11
A
T
T
E
N
T
I
N
O
1 - With the end of F3, smash the
safety claw, locking part P6 to part P3.
2x
F3
2x 2x
P3
01
12

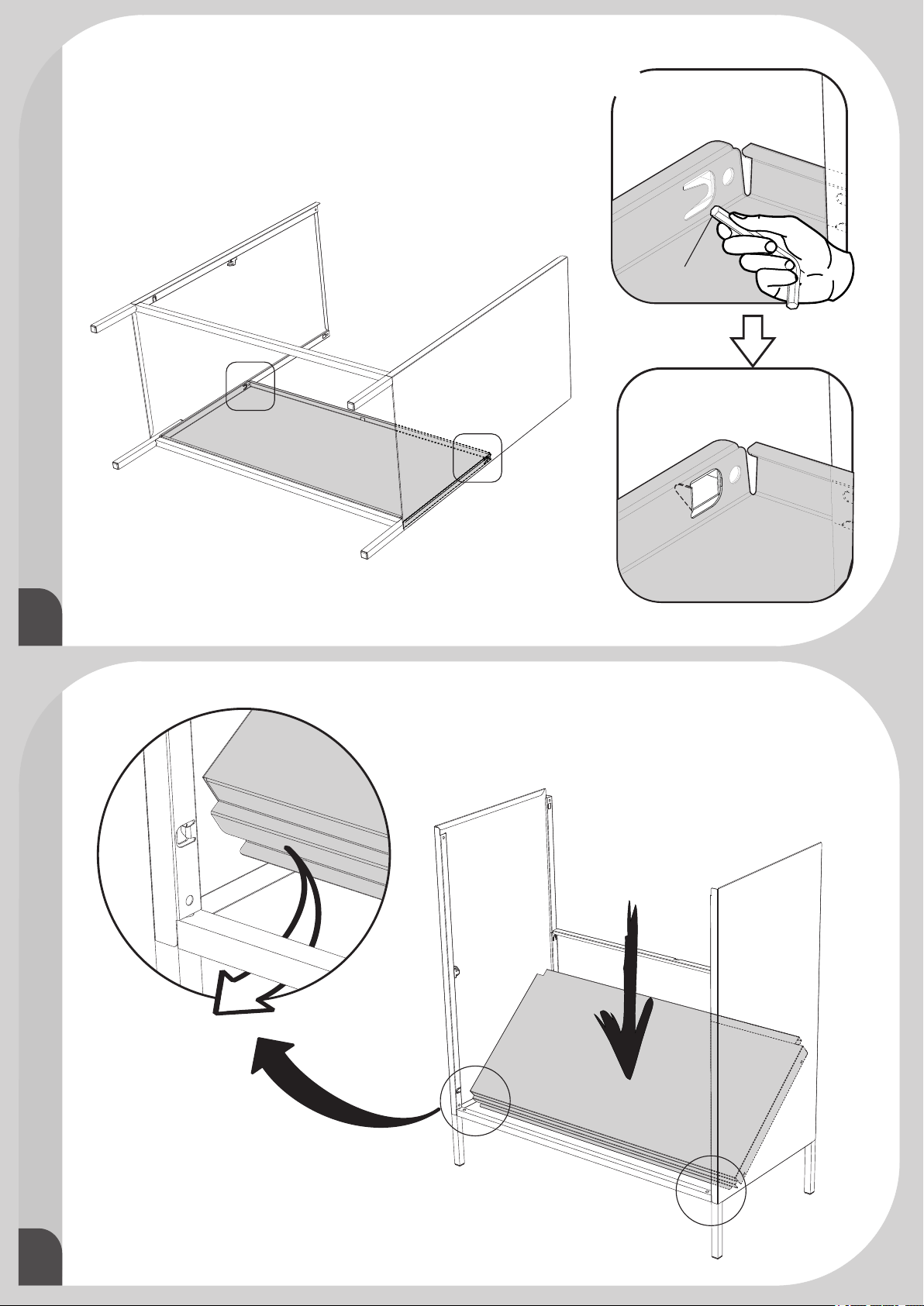

1- Slightly turn the P5 part and place it inside the cabinet, as indicated.
2- Check all the fittings before continuing.
P5
P5
2x
01
13
2x
P5
P5
IMPORTANT: CABINET MUST BE ATTACHED TO THE WALL
01
14
2x
1 - Lay the cabinet against the wall and mark the hole.
1 - Drill the wall on the marked
point, using a ½” drill bit.
½”
2 - Insert the metal part of
the bushing into the hole
until it overcomes the wall.
WALL
01
15
F1
2X

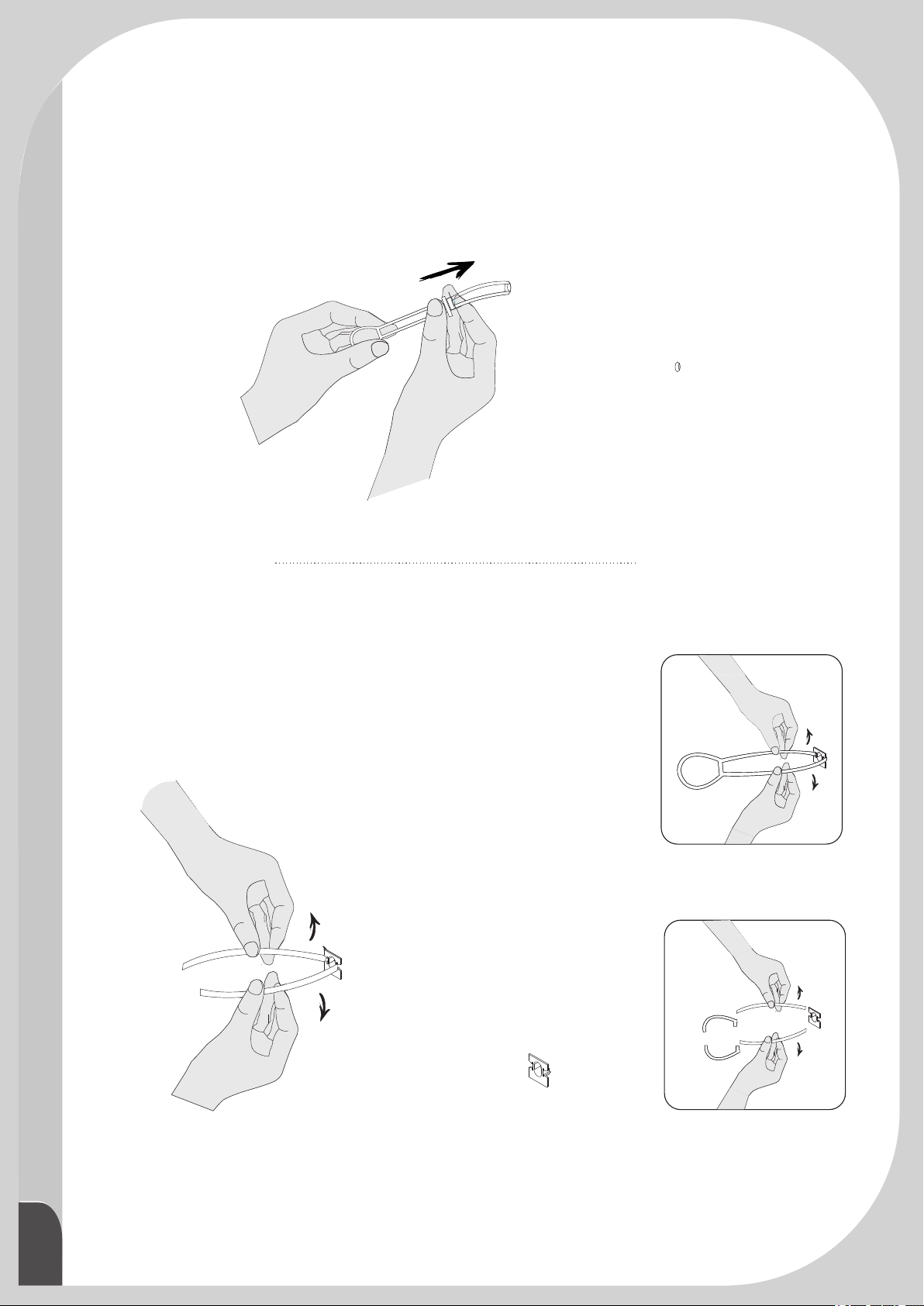

3 - Pull the bushing driving it against the wall and then
push the plastic ring until it leans close to the wall
WALL
Plastic ring
4 - Break the bushing's rods
1
WALL
WALL
2
01
15
WALL
1 - Insert the screw F2 into the hole of part P5.
2 - Turn screw F2 with part F3 clockwise.
3 - Press part F4 against the heads of the F2 screws.
4 - Attach the F5 into the P10 part.
2x
F2
F3
2x
F4
2x
01
16
F5
2X
F2
2X
F3
1X
F4
2X

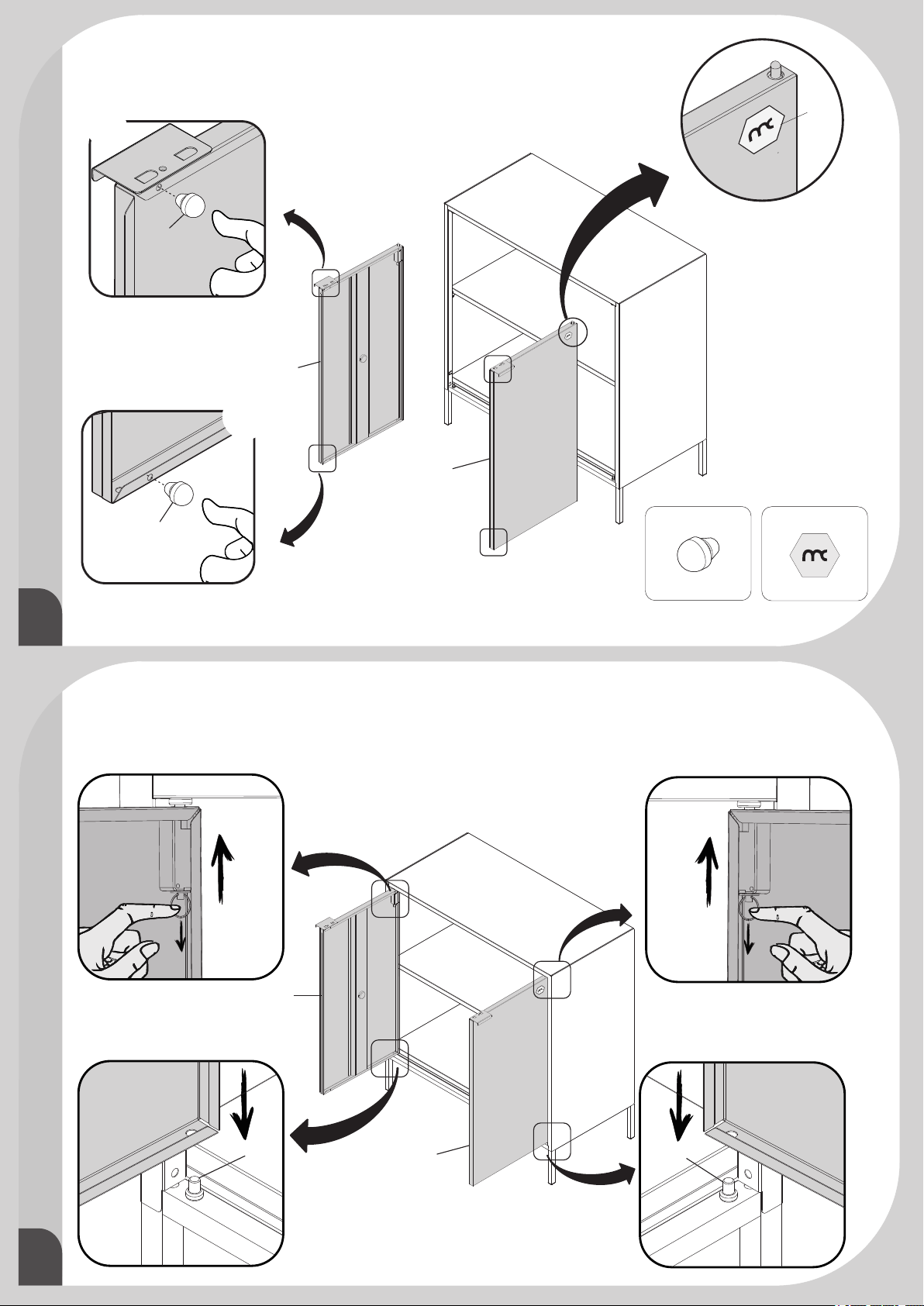

1 - Attach the F7 handle to the doors P8 and P9 as indicated below
F7
F7
F5
F7
2X
01
17
CLICK !
F7
P8
P9
F7
CLICK !
1 - Attach the F6 into the P8 and P9 holes.
2 - Glue F8 to part P8 in the indicated area..
2x
F6
P9
2x
P8
F8
01
18
F6
F6
4X
1 - Attach part P8 to the right side of the enclosure on parts F5 and P4.
2 - Attach part P9 to the left side of the enclosure on parts F5 and P4.
P3
F8
1X
01
19
P9
F5
P8
F5
