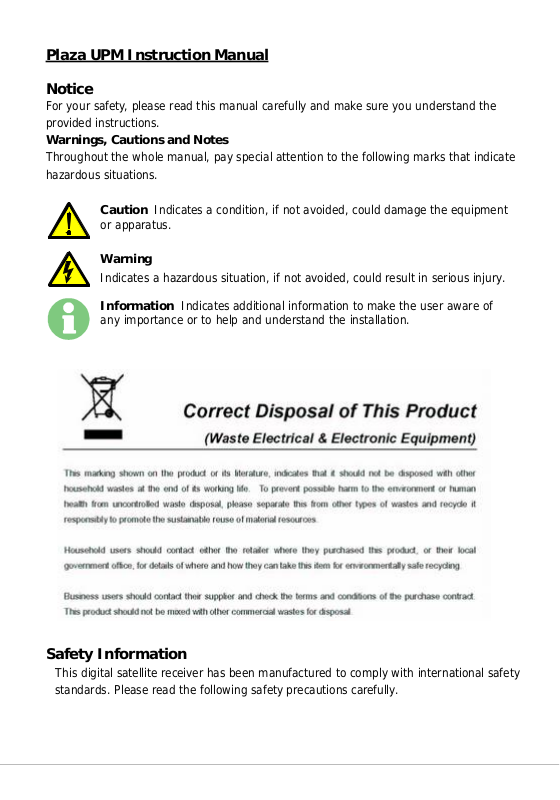

Plaza UPM Instruction Manual

Caution

Indicates a condition, if not avoided, could damag

e the equipment

Notice

For your safety, please read this manual carefully and make sure you understand the provided instructions.

Warnings, Cautions and Notes

Throughout the whole manual, pay special attention to the following marks that indicate hazardous situations.

or apparatus.

Warning

Indicates a hazardous situation, if not avoided, could result in serious injury. Information Indicates additional information to make the user aware of

any importance or to help and understand the installation.

Safety Information

This digital satellite receiver has been manufactured to comply with international safety standards. Please read the following safety precautions carefully.

User’s Manual

Safety Instructions and Precautions

The socket-outlet shall be installed near the equipment and shall be easily accessible.

Avoid placing any items and blocking ventilations on the top. Ventilations blocking can cause fire

Avoid cleaning the surface with Detergents, Benzene or Volatile gasoline. Color can be damaged.

Disconnect the power and the antenna if not used for long period or during thunderstorm.

If there is smoke or burning smell, turn off & un-plug the set immediately. Contact your local repair center for advice.

Keep the set away from any source of water.

Clean off the dust using dry cloth. Dust or Metallic particles entering the set can cause fire and electric shock.

Avoid dissembling and assembling. Do not open the set.

Do not pull the power cable to unplug. Do not move the set while power cord is plugged in.

Place the set in well ventilated area. Avoid direct sunlight and humidity.

1 Before You Begin

1.1 Features

€• MPEG-2 & Fully DVB Compliant €‚ MPEG-2 Video (MP@ML), MPEG-1 Audio Layer1, Layer 2 €ƒ PLL RF-Modulator UHF 21~69 with PAL I / G / B / D / K €„ LNB Controlling Logic €… SCPC/MCPC Receivable from C / Ku-Band Satellites €† Digital Tuner with Loop-through €‡ Wide Symbol Rate 1~45Mbps & Frequency Input 950 ~ 2150MHz €ˆ USALS & DiSEqC 1.2 Supported €‰ 1 SCART for TV €Š User friendly OSD Menu with Full Function €‹ 256 Color Graphic User Interface €Œ Multi-language menu €• 4-digit 7-segment LED Display €Ž Variable Aspect Ratio (4:3, 16:9) with Pan Vector or Letter Box €• EPG (Electronic Program Guide) for On-screen Channel Information €• Small Screen Picture on EPG and PIP (Picture In Picture) Supported €‘ Teletext and Subtitle Supported (VBI & OSD) €’ Capacity for Storing 8000 Channels (TV + Radio Total). €“ Favorite Channel and Parental Lock Function €” Live Screen Pause and Resume €• Zoom and Multi Picture Supported €– Blind Scan Supported €— RS232C Port for receiver to receiver data transfer and Upgrading System

Software

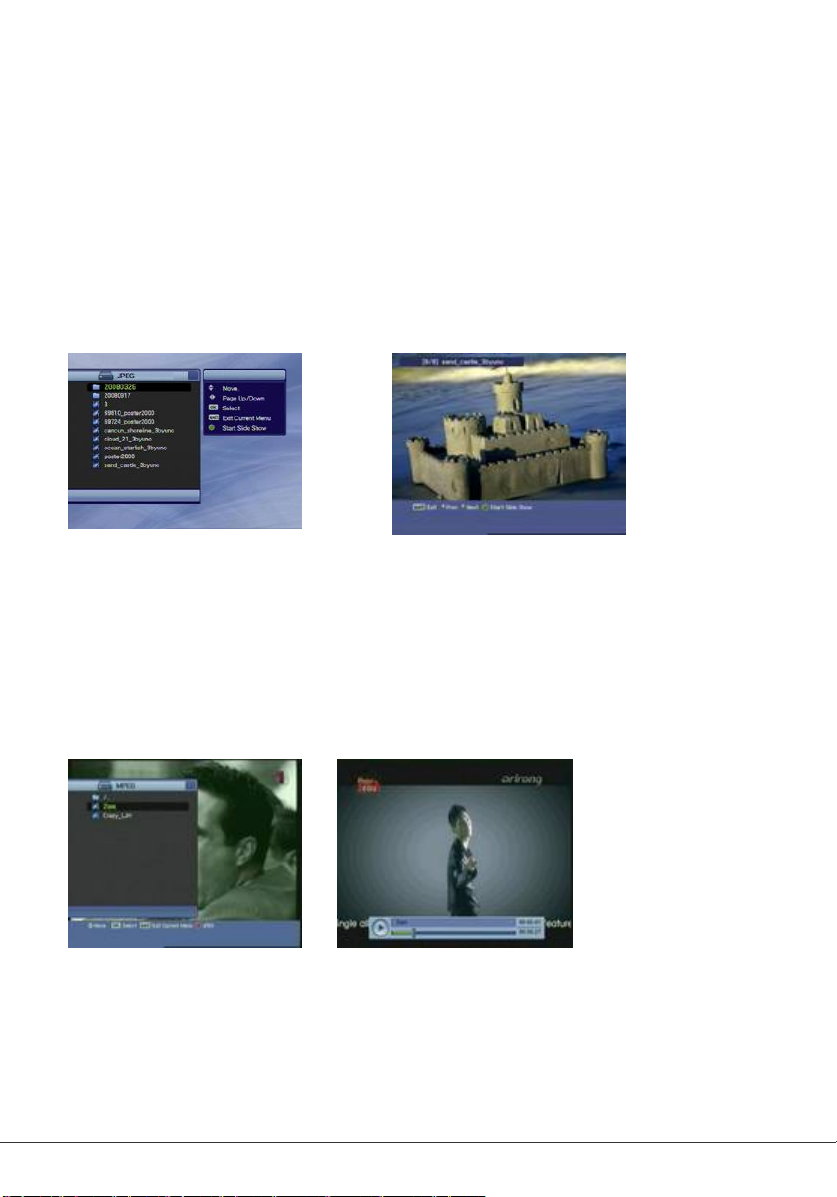

€˜ USB 2.0 connector supporting Jpeg Viewer, external PVR and Upgrading

System Software.

€™ One channel recording and one channel watching €š Time Shift Supported €› Jpeg Viewer Supported

2 Controls and Functions

1. DISH IN 13/18 (14/19) V

2.1 Front Panel

Item Description

1. STANDBY Button Turns the receiver On/Off.

2. CH Up/Down Buttons (▲ /▼)

3. Volume Up/Down Buttons (◀/▶)

4. Display (4-digit 7-segment)

2.2 Rear Panel

Changes channels in viewing mode and moves the cursor up/down in menu mode.

Increases/ decreases the volume levels in viewing mode and changes settings in menu mode.

The 4-digit displays channel information. In STAND BY mode, it displays the local time. The red LED is STAND BY indicator.

Item Description

500mA Max

2. LOOP OUT Signal Loop Out to connect to another satellite receiver

3. S/PDIF Digital Audio Optical Out to connect to a Dolby Digital

4. TV SCART RGB or CVBS Audio & Video Out to connect to a

Connect the satellite dish

decoder for AC3 audio

conventional TV

5. RS-232C To connect a Set-top box or a Serial Port of PC

6. TV OUT UHF RF Out to connect to a conventional TV

7. AERIAL IN Connect the TV antenna to the Aerial In.

8. AUDIO, VIDEO CVBS VIDEO and Audio L / R Out to connect to TV. Connect

Red and White connector to Audio L/R, and Yellow to Video respectively

9. AC 100-240V ~

50/60Hz Max 20W

100~240V AC, 50/60Hz Mains Power Inlet. Connect Power Lead to this connector.

10. POWER (Switch) To switch the power to Set-top On or Off.

2.3 Remote Control Unit

All receiver features can be controlled with the remote controller.

Button Description

1. POWER MUTE Freeze

FUNC

TV/STB

TV/Rad A/V+

Option

Sleep

2. NUMERIC

Buttons

(0~9)

Recall

FAV/SAT

3. OK

Turns the receiver On/Off. Turns the sound on/off. Changes Live Screen to Pause or

Resume. Zoom, Multi Picture.

To switch between TV and STB mode.

Switches between TV and Radio. Select video mode (4:3, 4:3

Letter Box, 16:9) and audio mode (Left, Right, Stereo, Joint)

To select Audio, Teletext and Subtitle language.

To set Brightness, Contrast and Color of picture on the screen.

To set the Sleep Timer. Press repeatedly to set minutes.

To select channels or to use for numeric entry in the menu.

Move to the previous channel or to show a list of 10 channels watched previously when you press twice.

To select a satellite or Favorite List.

To display channel list and select a channel in viewing mode. To enter a function or to confirm a selection in the menu.

Button Description

◀/▶ ( / )

To move left/right or change settings in menu mode. To

adjust audio volume level in viewing mode.

▲/▼ ( / )

A to Z

EXIT

EPG

4 .VOL+/-

CH+/-

INFO RED

GREEN

YELLOW

BLUE

5. REC (Record) PLAY / PAUSE

T.Shift PVR Info REW STOP FF PVR LIST PIP SLOW ◀ JUMP

To move up/down in menu mode. To change channel in viewing mode

To enter the Main menu for installation and other settings. To sort the channels automatically in alphabetical order.

Exit from the present menu and moves to the previous menu.

To display channel program guide. Changes the volume level in viewing mode. Changes channels in viewing mode.

Shows the information of the Banner and EPG. For Teletext.or to move PIP Screen in PIP mode

For Teletext or to change to edit mode in channel list. To display PIP Channel list

For Teletext or to change main-picture with sub-picture in PIP mode. In channel list mode changes list format.

For Teletext or to find a channel in channel list mode To record the channel on external hard disc drive. To playback or pause the recorded files. Pause playing

mode. Set Timeshift Mode, Auto/Manual

Display playback status bar Rewind playback. Stop playing mode or to stop recording. Fast forward playback. Display the file list. Watch two channels at the same time. Playback in slow mode. Rewind Jump, Playback and Timeshift

JUMP▶ JPEG A-B MARK JUMP

Forward Jump, Playback and Timeshift Display the JPEG list. Set the block to repeat, copy and cut. Set the bookmark. Jump to book marked point.

3 Connections

3.1 Connecting to TV & VCR

Receiver to TV with RF, CVBS and SCART connections.

1. Connect the TV antenna to AERIAL IN of receiver.

2. Connect the RF-IN of TV/VCR to RF-OUT of receiver.

3. Connect the Video and Audio of TV/VCR to the Video and Audio RCA

connectors. Connect Red and White connector to Audio R and Audio L, and Yellow to Video respectively.

Connect SCART of TV/VCR to TV SCART of receiver.

3.2 Connecting to Dish

Connect the satellite antenna cable to DISH

Connect the output of DiSEqC 1.0 switch to

Connect the input of DiSEqC 1.2 motor to

DISH IN of the receiver and output of motor

Single fixed Dish

4 Fixed Dishes Using a DiSEqC switch

IN.

DISH IN of the receiver.

Motorized Dish Using DiSEqC 1.2/USALS

to LNB.

4. Menu Overview

button.

The selected sub menu is highlighted. When you

e sub menu you want, press the

4.1 Menu Instruction

Press the MENU button to display the main menu.

Select the sub menu using the ▲/▼/◀/▶

have selected th

(OK) button.

When you want to return to the previous menu, press the (EXIT) button. When you want to return to viewing mode, press the Menu button.

4.2 Menu Help

In the menu, short information is displayed at the bottom of the screen.

: Using ▲/▼ button.

: Using P+/P- button.

: Using ◀/▶button.

: Using (OK) button.

: Using colored buttons.

4.3 Menu Structure Installation

Dish: Select the dish and LNB settings for channel search. Auto Scan: Search the whole satellite (all transponders) automatically without setting

the special parameters.

Manual Scan: Search the transponders manually with user setting parameters. Blind Scan: Automatically scan the entire frequency range of the satellite SAT/TP Edit: The red button to select the satellite

Option

TV Output: Select the video or audio output. Language: Select the display language, audio language, and subtitle language.

: Using (EXIT) button.

: Numerical button or ◀ button.

Time Setting: Setting current time. Parental Control: Change the password and select the censorship classification OSD Display: Setting OSD display time and transparency.

Channel

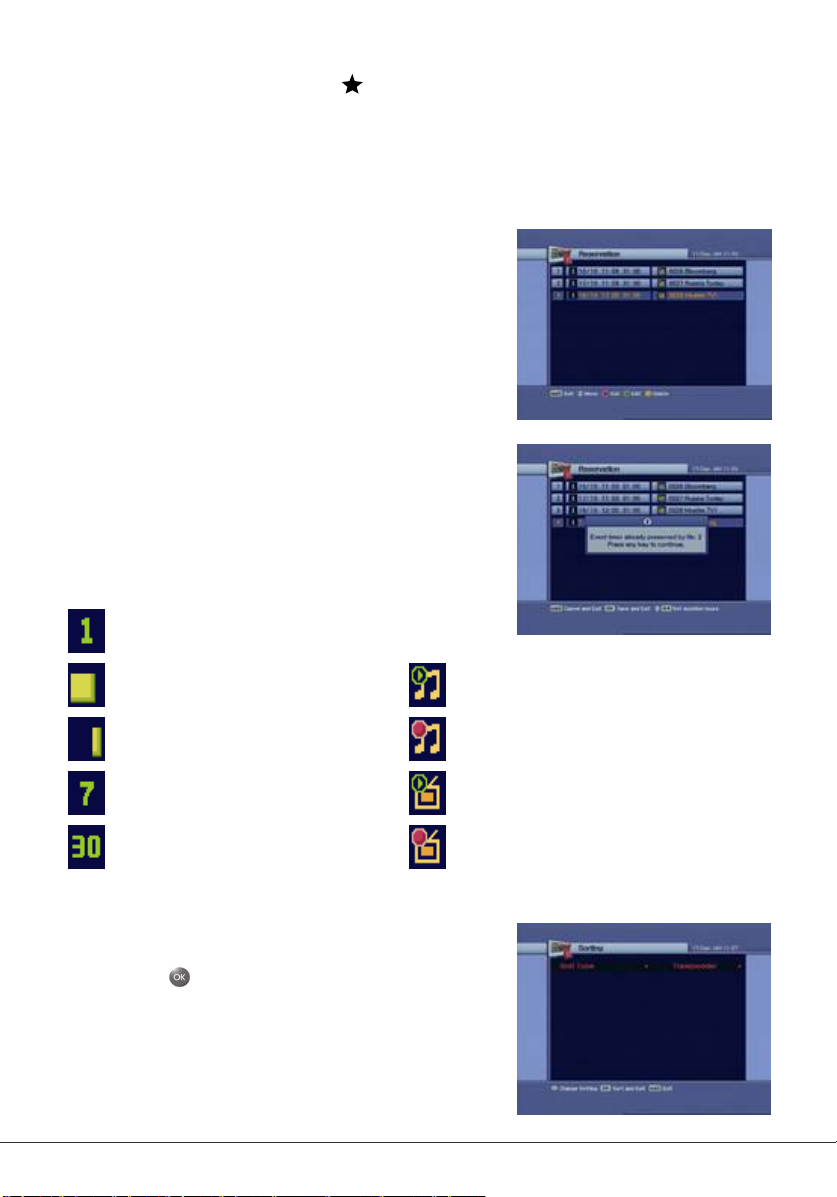

Reservation: Reserving channels you want to record at your desired time. Sorting: Choose the channel sort type, such as by Transponder, Network, CAS.

Delete: To delete Satellite or channels such as TV/Radio, CAS related, etc.

Advanced

Reset Factory Default: Restore the receiver to the default values. Channel Upload: Transfer channel data from receiver to receiver or PC. S/W Upload: Transfer the software from receiver to receiver or PC. USB transfer: Download from USB device or upload to USB device

Status

Information: To check the software and hardware versions of the receiver. Card: To check smart card information or to enter its setup parameters.

PVR

PVR Setting: Select Timeshift Mode, Size, Record time, Jump time, Record file format. HDD Information: Check the Hard Disc Drive Total size, Free size, Used size Format HDD: To format the Hard Disc Drive. Formatting will erase all previous

recordings.

5. Menu Operation

5.1 First Installation

If you have a fixed dish you can install the receiver using First Installation for your

convenience. It allows you to set your receiver using simple procedures.

Select the desired language using the ▲/▼

button.

Press the button to confirm and go to the next

step.

Select the desired satellite using the ▲/▼ button.

Press the button to confirm and go to the

next step.

Select LNB Type using the ▲ /▼ button.

Press the button to confirm and go to the

next step.

If you use a DiSEqC 1.0 switch, select DiSEqC

option using the ▲/▼ button.

Press the button to confirm and go to the

next step.

After all settings are done press the button to

start scanning.

Menu help Previous Step: If you want to go back to the previous step, press the red button and then you can reset options. Cancel and Exit: If you want to skip 'First Installation', press the Exit button.

If you have a motorized dish and/or you want to use of the detailed setup procedure, please refer to the following installation part in 5.2.

5.2 Installation

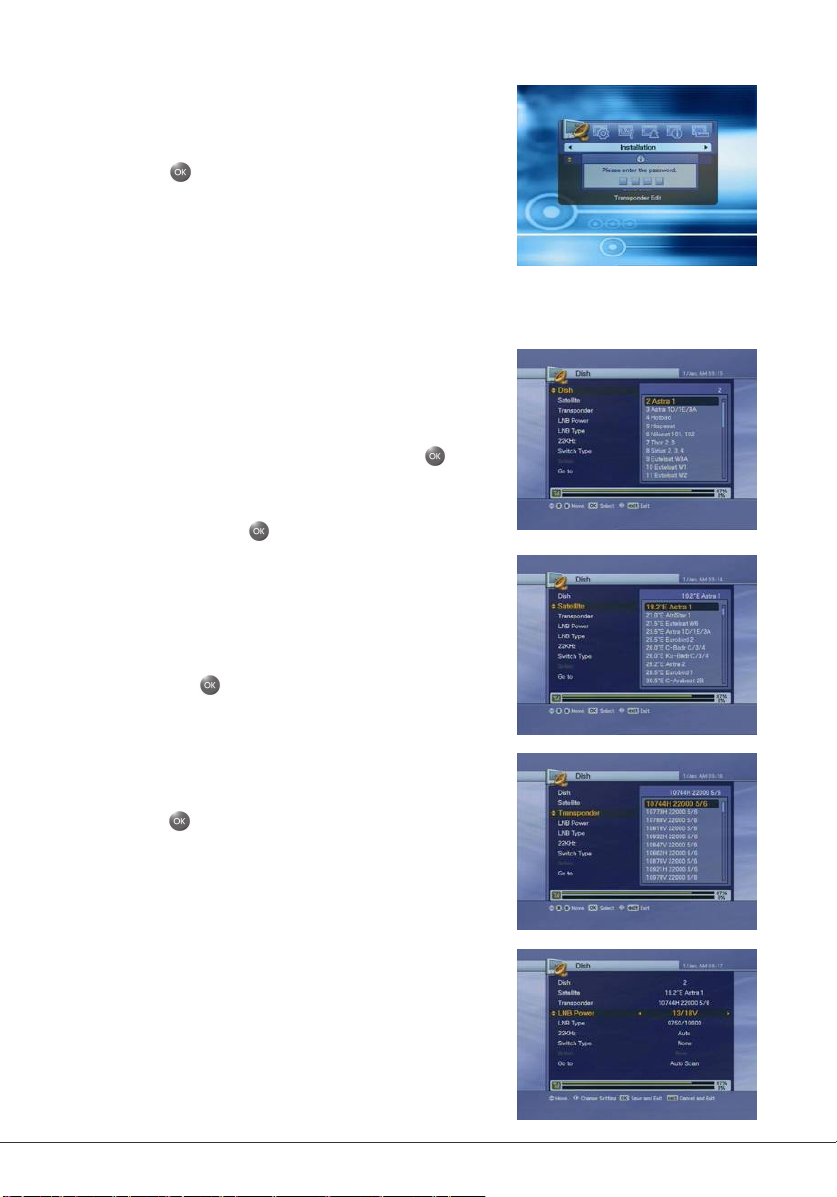

5.2.1 Dish

Press the Menu button to display the main menu.

Press the button on the sub menu. The password pop-up window appears. All sub menus such as Dish, Auto Scan, Manual Scan, and SAT/TP Edit on the Installation are locked by password. The default password is "0000".

Use the ▲/▼ buttons to move up or down in this menu. In any item, such as Dish, Satellite, Transponder etc use the ◀/▶ buttons, to enter or to change the settings.

Dish

Press the ◀/▶ button, the right screen shows the

pre-selected 32 satellites list.

Select the desired satellite, and press the button. Satellite column will show the selected Satellite name. If you can't find the desired satellite, select any

satellite and press the button.

Satellite

Press the ◀/▶ button when you are on Satellite column to display the full satellite list. Select a satellite and press the button to replace the

Current satellite.

Transponder

Press the ◀/▶ button, to display the transponder list.

Press the button to select a transponder form the

selected satellite. If you change the satellite the transponder list will change accordingly.

LNB Power

Select one of the LNB Power types using the ◀/▶

button. Select 13/18V normally or if the distance between antenna and receiver is greater than 60m, you can select LNB Power value as 14/19V.

LNB Type

Select the LNB Type. If you select User Single or

User Dual, enter LNB Local Oscillator (LO) frequency using 0 ~ 9 buttons, and press the button. If you

select LNB Type as 9750/10600, 9750/10750 or User Dual, 22KHz value is fixed to auto mode. In other cases you can select On or Off.

Switch Type (select Switch Type if used)

If you use a DiSEqC 1.0 switch, select DiSEqC.

Then select one of the DiSEqC inputs on the Option.

If you use a DiSEqC 1.1 switch, select SMATV.

Then enter a value using 0 ~ 9 buttons (950~2150) on the Option.

Motor

If you use a DiSEqC 1.2 motor, select Motor.

Adjust position of your Motor on the Option.

DiSEqC 1.2 Options

Move West-East: Press the ◀/▶ button to move the motor. Store Position: Press the button to save the current position. Go to Position: Press the button to move the motor to the stored position. Go to Reference: Press the button to move the motor to the 0 position. Set West Limit: Press the button to enter the West limit. Set East Limit: Press the button to enter the East limit. Enable Limit: Press the button to change to Enable or Disable Limit.

USALS

If you use a USALS motor, select USALS using the

◀/▶ button.

Configure your location Longitude and Latitude and

move position of your USALS motor through the Option.

USALS Option

Go to Position: Press the button to move the motor to the satellite position

calculated by the Longitude and Latitude.

Go to

Select Auto Scan, Manual Scan or Blind Scan and

press the Button.

5.2.2 Auto Scan

You can search the channels offered by the satellite that has been configured to your antenna.

Select the satellite for scanning using ▲/▼button

and press the button. The check mark indicates which satellite has been selected. Press button again on the marked satellite and it will de-select it.

Press the ◀/▶ button, select scan option using

▲/▼button, and press the button. To start scan,

move to StartScan and press the button.

Free+CAS options

Select Free+CAS or CAS using the ▲/▼buttons.

Press the red button, CAS Pop-up window will appear.

Select the kind of CAS using the ▲/▼ buttons.

Press the button.

Move to "Start Scan" and press the button.

Searching

The left window shows TV channels and the Right

window shows Radio channels during scan. White channel names are new channels downloaded to your receiver. Black channel names are already existing channels.

If you press the EXIT button whilst it is scanning

for channels, pop-up window appears for the options of saving the changes. When you complete scanning for channels, a similar pop-up window appears.

If you want to save the updated channels, select 'Yes' and press button.

5.2.3 Manual Scan

Change to the specific Transponders you want to scan.

Press the button to start the manual scan.

Dish: Select satellite for the manual scan. Frequency: Select the frequency of the transponder you want to scan manually. Polarity: Select the polarity of the transponder. Symbol Rate: Select the symbol rate of the transponder. Code Rate: Select the code rate of the transponder. Scan Mode: Select the scan mode Free+CAS, Free or CAS. Service Type: Select the service TV+Radio, TV or Radio. Network Search: When enabled, the receiver searches for more transponders using

the network index table. PID: Search using Auto PID, Manual Dec and Manual Hex.

PID search options

When you select Manual Dec option, a pop-up

menu appears.

Enter the value of Video PID, Audio PID and PCR PID with 0 ~ 9 buttons. Then press button.

Press the button to scan PIDs.

When you select the Manual Hex option, a pop

up menu appears.

Enter the value of Video PID, Audio PID and PCR

PID using pop-up keypad.

Select ‘Done’ on the keypad to save PIDs or

press the button to close the pop-up menu.

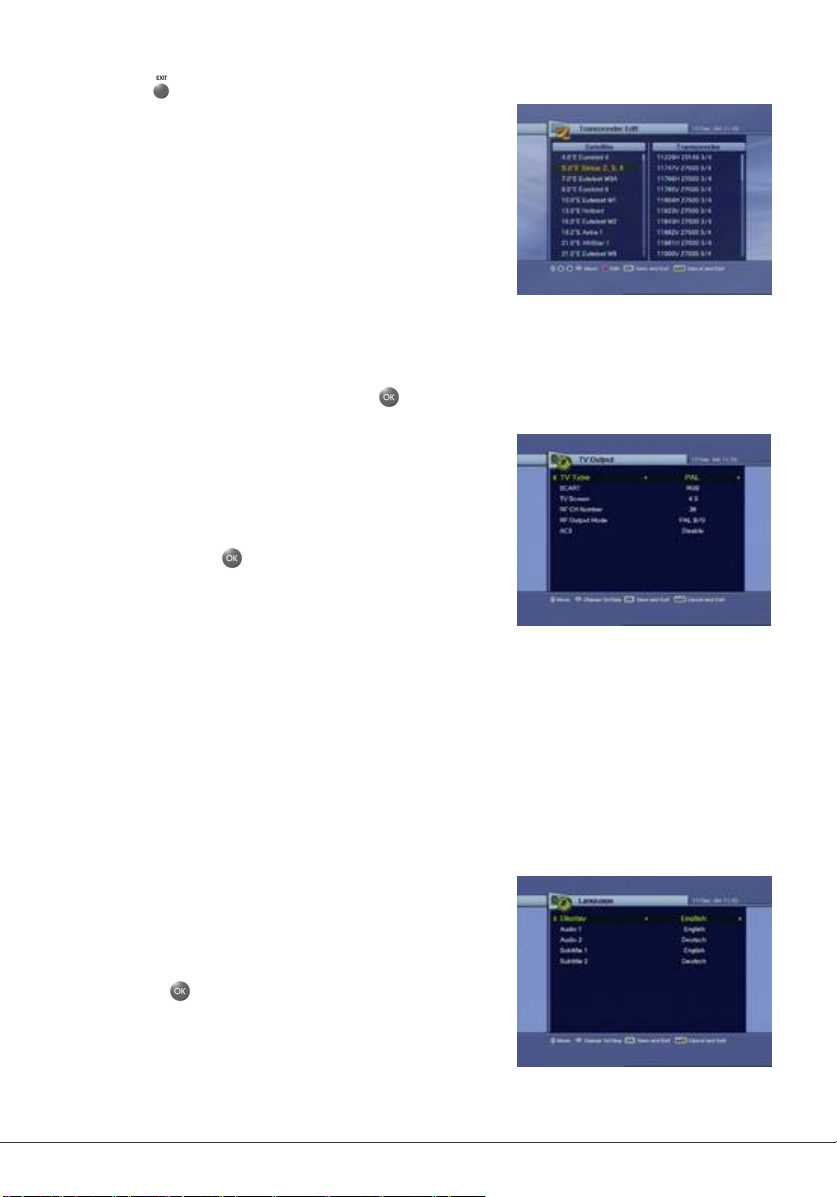

5.2.4 SAT/TP Edit

Press the red button and select the satellite using ▲/▼buttons on the left. Press ◀/▶ button to move to the transponder on the right. Press red button to eidt.

Select Delete, Edit or Add from the popup window.

(The satellite and transponder cannot be deleted if

the channels of the selected satellite have already been Downloaded)

If you select Edit or Add a popup window appears. Edit the parameters as desired using 0 ~ 9 buttons. Then press the button the changes will be saved.

5.3 Option

5.3.1 TV Output

Select the TV output options using the ▲/▼/◀/

▶ buttons.

If you press the button, it will exit the menu

and save the changes.

TV Type: Select your TV type (PAL, NTSC,

PAL/NTSC).

SCART: Select output signal to your TV (RGB, CVBS, S-VIDEO). TV Screen: Select the screen format of your TV (4:3, 4:3 Letter Box, 16:9) RF CH Number: Set the RF output channel (audio and video signal to your TV).

Default is set to channel 64. RF Output Mode: Select RF audio output Mode (PAL B/G, PAL D/K, PAL I for PAL standard) AC3: If you set it to enable, you can listen to the audio in Dolby-Digital when

connected to AC-3 decoder via the S/P DIF output.

5.3.2 Language

Select the language options using the ▲/▼/◀/

▶ button

Press the button to save the selected

language Display: Change the language used for the OSD Menu.

Audio 1-2: Change the audio language that you listen to.

Subtitle 1-2: Change the subtitle language that you watch.

5.3.3 Time Setting

Select the Time Setting option using the ▲/▼

◀/▶ buttons.

After setting press the button, to save the

changes and exit.

Time Mode: Select TDT (receives the time from broadcaster) or User Mode (set time manually)

Offset: Set the time difference between GMT and the local time. Day light saving: Enable will advance time by one hour. Start day: Daylight saving start day. End day: Daylight saving end day.

5.3.4 Parental Control

If you want to change the password, press the

◀/▶ button. Enter the new password then enter it again to confirm.

Select your desired rating level using the ◀/▶

button.

Press the button to save and exit. Rating

mode allows you to block channel according to the age level you have set.

5.3.5 OSD Display

Select the options using the ▲/▼ /◀/▶ button.

After setting, press the button to save changes

and exit.

OSD Display options

Banner display time: Select duration time for channel banner display. Screen Saver: Select Screen Saver switch on time to protect your TV in Radio mode.

Disable, 5, 10, 20, 30, 60, 120 Minutes

OSD Transparency: Select the OSD transparency level (Low, Middle, High). Teletext Transparency: Select the Teletext transparency level (Low, Middle, High). Anti-flicker: Select enable to reduce flicker on picture. Brightness, Contrast and Color: These are best adjusted on a live picture in viewing

mode. In viewing mode press the button and adjust the levels accordingly.

5.4 Channel

5.4.1 Reservation

You can reserve up to 8 channels. The channel will come on at your desired time.

Press the red button to add a channel or green buton

to edit the reserved channel. And then use the ▲/▼ ◀/▶ button to set the detailed settings for your reservation.

To delete the reservation press yellow button.

After all settings are done, press OK button to save.

If the event is duplicated with the time zone that was

already registered previously, the alarm message appears stating is not able to register. In this case,

you must register a reservation for another time zone.

Turns on one time only

Turns on during weekday Radio channel (FTA, CI)

Turns on during weekend Radio channel (PVR only)

Turns on weekly TV channel (FTA, CI)

Turns on every day TV channel (PVR only)

5.4.2 Sorting

Select Sorting Type using the ◀/▶ button.

Press the button to save the changes.

Transponder: Channels are sorted into transponder order. Network: Channels are sorted into service

provider’s order.

CAS: Channels are sorted into Scrambled and

Free channels order.

5.4.3 Delete

To delete you can select Mode such as Channel, Satellite and CAS. Then in Option you can select the detailed items to delete.

Select the Mode and Option you want to delete

channels using the ▲/▼/◀/▶ button.

Press the button to delete and exit.

5.5 Advanced

5.5.1 Reset Factory Default

If you want to reset the set to the default values,

select yes and press the button.

5.5.2 Software and Channel Upload

Connect the receiver with another receiver or PC

through RS-232 cable.

For the target receiver, turn the AC Power off, then

turn on again.

The transfer status of is displayed at the bottom.

5.5.4 USB Transfer

To download from USB device, select USB Transfer and press the OK button.

To upload to USB device, select Upload to USB and press the OK button.

Select the data type you want to transfer to USB device.

5.6 Status

5.6.1 Information

To display the system information such as Model

ID, Hardware version and Software version.

5.7 PVR

1. PVR Setting

In this menu, you can set Record, Time shift size (Auto or Manual) and default Record Time. If Time Shift is Auto, whenever user changes the channel, time shift is activated automatically. If Manual, time shift function doesn’t work.

To force Time Shift in PVR, press T.Shift button.

2. HDD Information

To check HDD size, Free size and the recoded size, press the OK button.

3. Format HDD

To format the HDD in PVR, press OK button. Formatting will delete all files. Select yes if you wish to proceed.

6. Viewing General Information

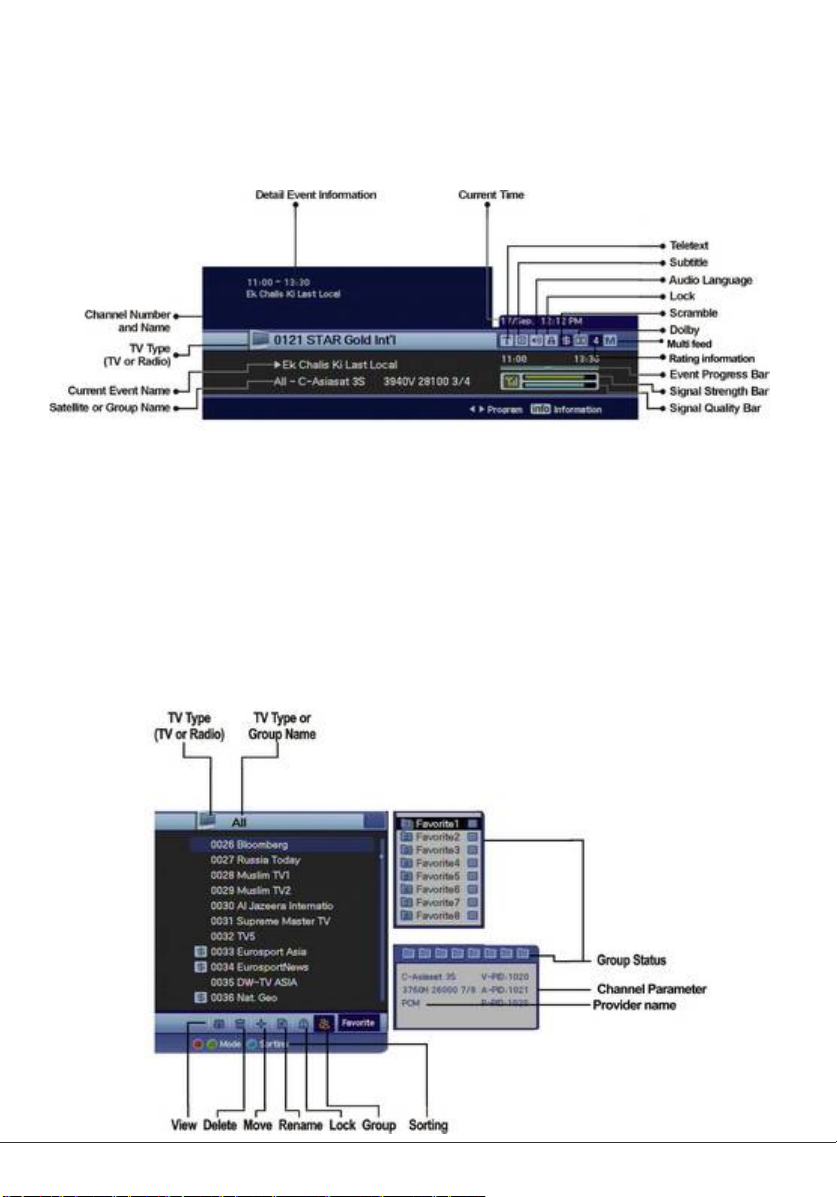

6.1 Banner Information

When you press the INFO button, the banner information appears for a few seconds.

If you press the INFO button again, the detail EPG window appears on top of banner

and you can use ch +/- buttons to change channels and display its EPG.

If '▶' exists on the Banner, press the ◀/▶button to display the next EPG.

6.2 Changing to TV or Radio Mode

Press TV/Rad button to select Radio mode. Press again to re select TV mode.

6.3 TV or Radio Channel Lists

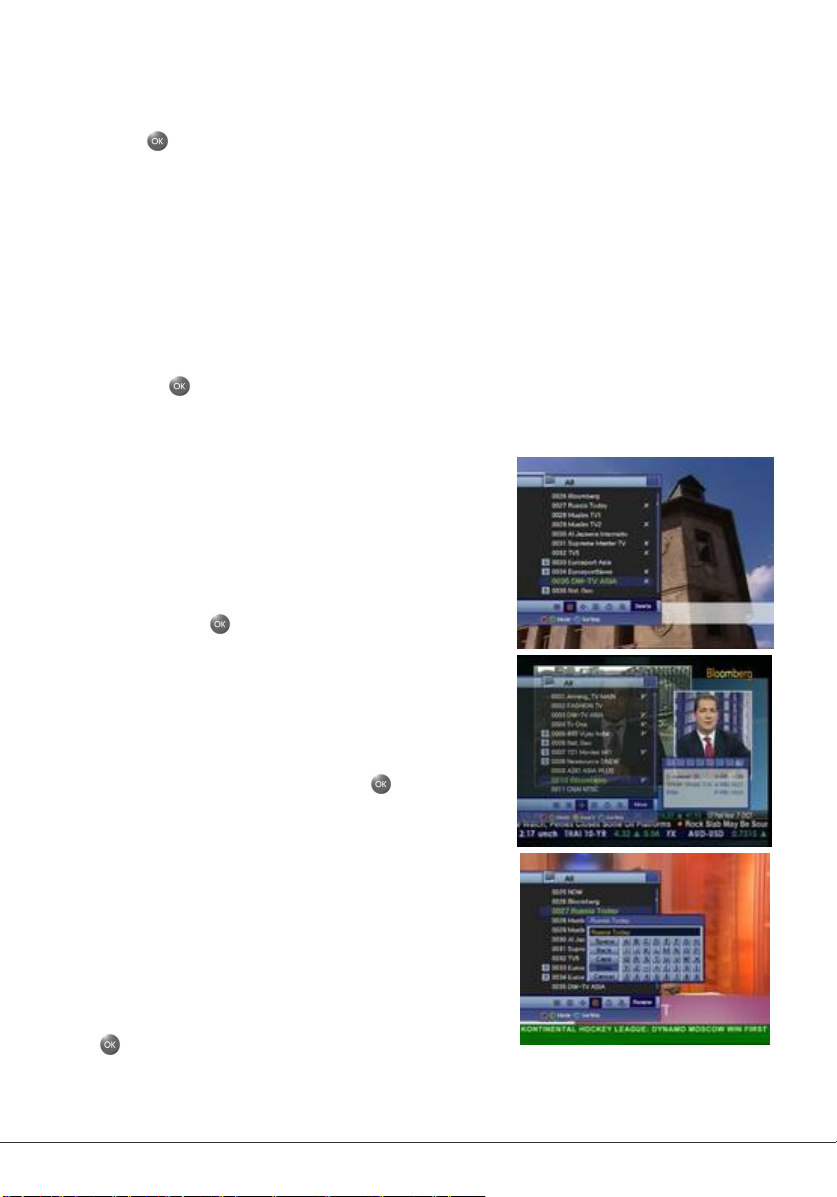

6.3.1 Watching Mode

Press the button to display the channel list. Several icons are displayed at the bottom of the list each has a special and convenient function for use. If you want to change the mode, press the green button to select a desired function.

Press the ▲/▼ button to move the cursor.

. Press the P+- button when to go to the next or previous channel page.

Press A-Z button if you want to sort the channel list alphabetically. Press any numeric

button to display alphabetical keypad and select an entry.

Press TV/Rad button to change list to Radio.

Press the button to select the desired channel.

. Press the INFO button to display the information for a selected channel.

Press the blue button to find a channel by using the displayed keypad.

Press EXIT button to close channel list.

6.3.2 Delete Mode

Select the Delete Icon using the green button.

Select channel you want to delete using

the▲/▼ button. Press the button. A X sign will appear on the

right of the channel name.

Press the EXIT button to save and exit.

6.3.3 Move Mode

Select the Move Icon using the green button.

Select the channel/s and press the

button. A tick will appear on the right of the channel name.

Press the ▲/▼ button to move to desired position.

Then press blue button to insert.

Press the EXIT button to save and exit.

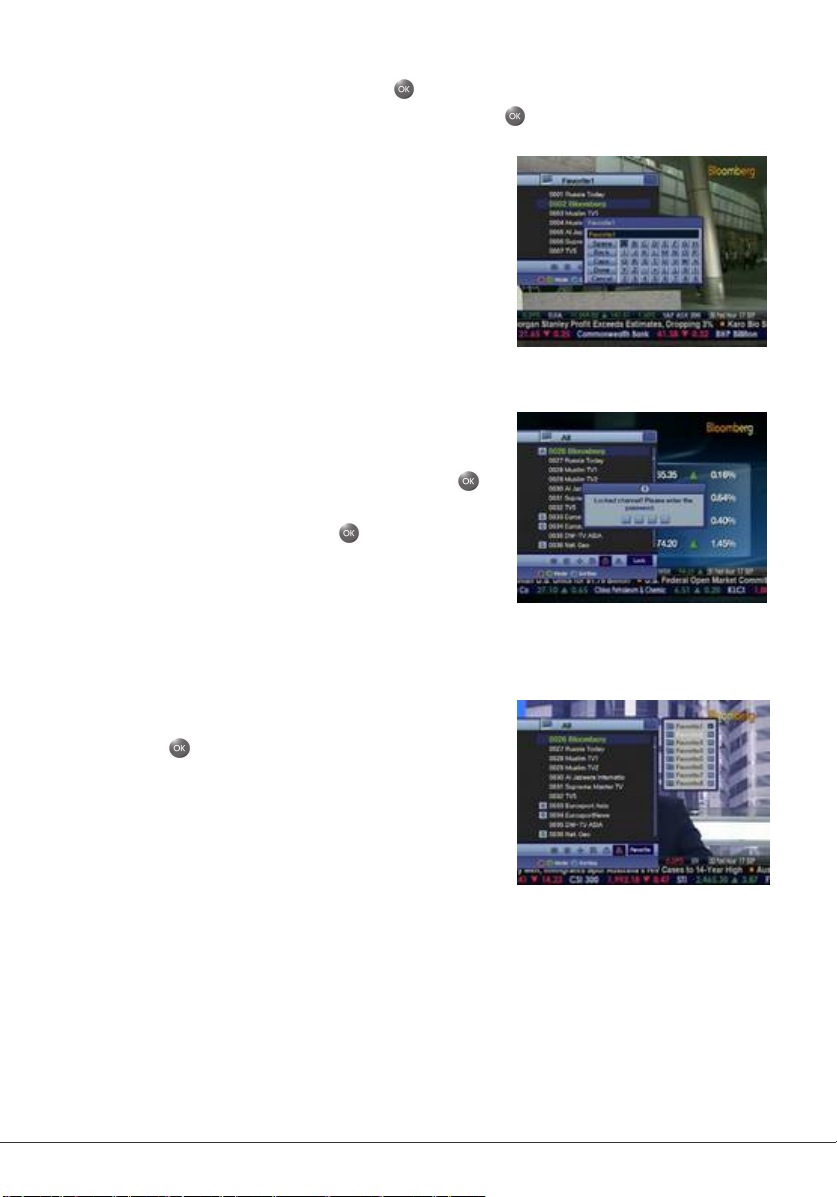

6.3.4 Rename Mode

Select Rename Icon using the green button.

Select the channel to rename and press

the button. An editing name keypad will be displayed.

Using the ▲/▼/◀/▶ button and the button rename the channel.

After renaming, select Done tab and then press the button. Finally press the

EXIT button. You can rename the Favorite group.

Select the desired group.

Change the name of group as per above

procedure.

Space: Space between two characters. Back: Delete characters. Caps: Change between caps and lower case letter. Done: To save the changes. Cancel: Exit rename mode.

6.3.5 Lock Mode

Select Lock Icon using the green button.

Select the channel to be locked and press the

button. Lock mark will appear on the left of the channel name. To cancel it, press button again.

Press the EXIT button to save and exit.

Set the password in Parental Control function.

6.3.6 Favorite Mode

You can configure 8 favorite groups. Each can hold 100 channels thus totalling to 800 favorite channels.

Select Favorite Icon using the green button.

Press the button. Favorite Window will appear

on the right of the list. Select a group then press ◀/▶ button focus will move to channel list.

Select the channel/s that you want to add to the

favorite list.

Press the EXIT button to save and exit.

6.4 Option

While watching TV or listening to Radio, press the Option button. A pop-up window will

appear at the top left. You can select Teletext Language, Audio Language and Subtitle Language. If you want to change the option, press the ◀/▶ button.

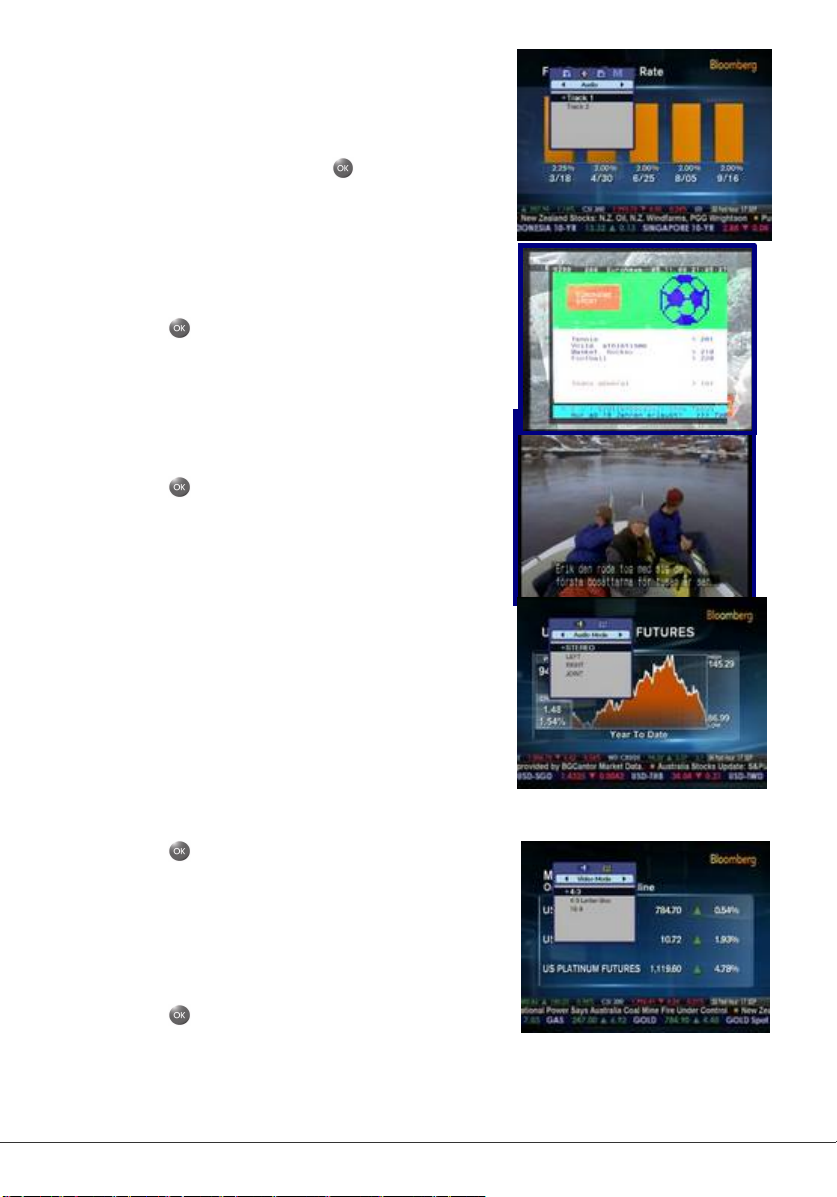

6.4.1 Audio Language

Select the 'Audio' using the ◀/▶ button.

Press the ▲/▼ button to select a desired audio language then press the button.

6.4.2 Teletext Language

Select the 'Teletext' using the ◀/▶ button.

Press the ▲/▼ button to select a language.

Press the butto. Teletext in the selected

language is displayed if available.

6.4.3 Subtitle Language

Select the 'Subtitle' using the ◀/▶ button.

Press the ▲/▼ button to select a language.

Press the button.

If the selected language is different from what is

available, subtitles are not displayed.

6.5 A/V+

While watching TV or listening to Radio, press the A/V+ button. A pop-up window will appear at the top left. Select Audio Mode or Video Mode using ◀/▶ button.

6.5.1 Audio Mode

Select the 'Audio Mode' using the ◀/▶ button.

Press the ▲/▼ button to set the output for

speakers (STEREO, LEFT, RIGHT, JOINT).

Press the button to save and exit.

6.5.2 Video Mode

Select the 'Video Mode' using the ◀/▶button.

Press the ▲/▼ button to select screen format of

your TV.

Press the button to save and exit

6.6 FAV/SAT

While watching TV or listening to Radio, press the FAV/SAT button. You can select a Favorite group.

6.6.1 Satellite

Select the 'Satellite' using the ◀/▶ button.

Press the ▲/▼ button to select a Satellite.

Press the button, to display the channel list for

the selected Satellite.

6.6.2 Favorite

Select the 'Favorite' using the ◀/▶ button.

Press the ▲/▼ button to select a group.

Press the button, to display the channel list for

the selected group.

6.8 EPG

Press the EPG button and the electronic channel guide appears if available. Time intervals are arranged in a row and Channel lists are shown in a column.

6.8.1 EPG Information

Press the ◀/▶ button to change time interval.

Press the ▲/▼ button to change the channel, and

then press the INFO button, the detail EPG window will appear.

Press the EXIT button to exit.

Press the red button to reserve channels for event

timer.

6.9 Other Features

6.9.1 Zoom mode

Press the button.

AV file format of

File size

You can move the focus using the ▲/▼ ◀/▶

Up/Down/Left/Right buttons.

Press the EXIT button to exit this mode.

Zoom mode supports the function of enlarging Screen by X2, x3, x4, x5 and x6.

6.9.2 Multi Picture

Select the Multi Picture mode on the function bar.

Select the desired channel using the ▲/▼ /◀/▶

Up/Down/Left/Right buttons. Press OK button.

Press the EXIT button to watch the channel in full

size. Multi Picture supports 4, 9, 10, 13 and 16 partition.

6.9.3 Live Screen Pause/Resume

Press Freeze button on TV mode to pause the picture. Press it again to resume

watching.

7. PVR

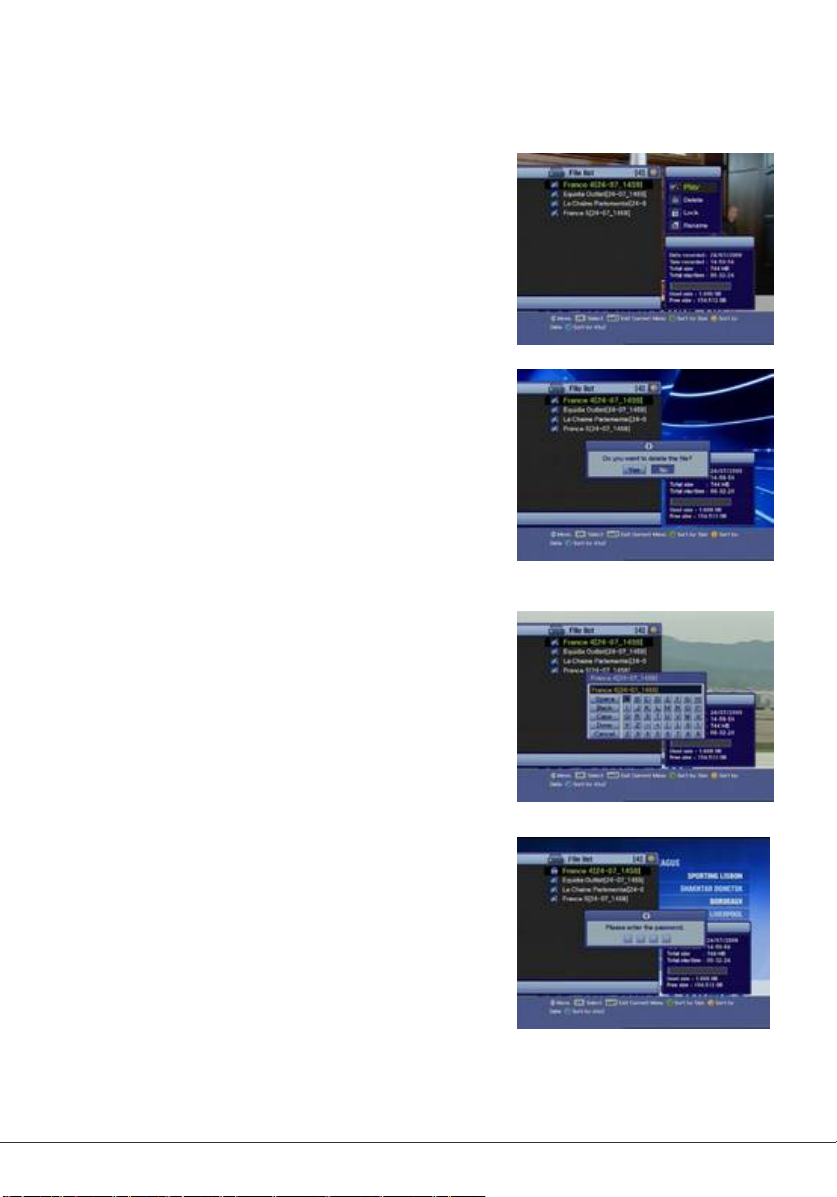

7.1 Play List

recorded channels.

Date

HDD Information

7. 1.1 Playback mode

Select the recorded file using the ▲/▼ buttons.

Press the OK button to play the file.

Press the STOP button to stop playback.

7.1.2 Delete mode

Select File and press OK popup window will appear.

Select Delete and press OK confirmation popup

window will appear.

Select yes and press OK.

Press the EXIT button to exit.

7.1.3 Rename mode

Select the file to rename and select Rename an

editing keypad will be displayed.

Rename the file using ▲/▼ /◀/▶ and Ok buttons.

After renaming, select 'Done' tab and then press

OK button.

Press the EXIT button to exit.

7.1.4 Lock Mode

Select the file and select Lock. Press the OK

button. The lock icon will appear on the left of the file name.

Press the Exit button to exit.

To unlock a file select the file and select Unlock.

Enter your password and press EXIT.

If you record a locked cannel, the file is locked automatically.

7.2 PVR Banner

Current channel name

To access the PVR Banner, press PVR Info button.

Current position

Record time Time gap

Control position

PVR

The description of icons

7.2.1 Time Shift

Time Shift function temporarily records the current program, in case you have missed a scene or like to see a scene again. This function only works automatically if the Time shift is set to Auto in the PVR Setting.

Progress Bar

: Time Shift status : Recording status : Time Shift and record status

: Playback, Rewind and Forward statuses. : Time Shift Playback, Rewind and Forward statuses. : Recording playback, Rewind and Forward statuses.

If Time shift is set to Auto, to go back to the

required scene press rewind.

If Time shift is set to Manual in the PVR Setting, Time Shift will work only when you press the T.Shift button.

7.2.2 Record

Press the Record (●) button to record the channel you are watching.

Record mode can't be canceled by any control such

as changing channel, etc. Press STOP (■) button to stop recording.

Max duration time for recording is set to the default record time and is set in PVR Setting. If you want to change the duration, press the ◀/▶ button (Minimum: 5 minutes, Maximum: 10 Hours)

7.2.2.1 Recording and playback of the same channel simultaneously

Press the Record (●) button on the desired

channel

Press the REW (◀◀) button and use the ▶▶/

◀◀/◀/▶ button to go back to the position you

want to watch.

Press the PLAY/Pause (▶II) button when desired

position is found.

The recorded content will be played from that

position until the current recorded part.

7.2.2.2 Recording one and playback of other file simultaneously

Press the REC (●) button on the desired channel

Press the PVR List button to open the file list.

Select the desired file using the ▲/▼ button

Press the OK or PLAY/Pause (▶II) button to playback the file.

Press the STOP (■ ) button to stop playback then the recording channel will be shown.

7.2.2.3 Recording one and viewing live channel simultaneously

You can watch another channel while recording, in the same transponder (TP).

Press the REC (●) button on the desired channel.

Press the OK button to view the channel list

Select the channel you want to watch using the ▲/▼ button

7.2.3 Playback

Press the PVR List button to open the file list.

Select the file you want to watch using the ▲/▼ button.

Press the OK or PLAY/Pause (▶II) button

Press the Exit or PVR List button to exit from the

file list

Press the ◀/▶ or REW, FF, etc., if you want to

check

status of playback.

Press a numeric button (0-9) in Playback mode

Each number represents the value of 10. If you press number 3, the control position will locate at 30% advanced on the progress bar.

7.2.3.1 Jump in playback mode

You can locate the control point to the desired position using the ◀/▶ button

By releasing the ◀/▶ button, playback continues from that position.

7.2.3.2 Bookmark

For your convenience this function enables you to set bookmarks within the media file to continue from or to target a special position in the file.

Play the file you want to watch

Move the control to the desired position using the ◀/▶ button. Then press the MARK button and a white

small bar will be placed at that position.

To delete a Bookmark, move the control using the ◀/▶ button to the desired Bookmark and press the MARK button.

Press the JUMP button and the control will move to the next Bookmark position and playback starts from this point. The maximum number of the Bookmarks is twenty in a file.

7.2.4 FF/REW/SLOW mode

These functions are available in Playback and Time Shift mode.

Fast Forward Speed: x 2, x 3, x 4

Press the FF (▶▶) button x 2 speed will turn on.

Press the FF (▶▶) button again to advance speed. Press repeatedly to change speed.

: Fast forward icon in Playback mode

: Fast forward icon in Time shift mode

Rewind Speed: x 2, x 3, x 4

Press the REW (◀◀) button x 2 speed will turn on.

Press the REW (◀◀) button again to advance speed. Press repeatedly to change speed.

Slow

Press the SLOW (I▶) button speed will decrease to ½

Press the SLOW (I▶) button again and the speed will decrease further to ¼.

To resume normal playback press Play/Pause button.

7.2.5 Set repeat

You can set the block to repeat on the PVR Banner.

Play the recorded file.

Move the control to the desired starting position using the ◀/▶ button.

Press the A-B button to set the starting point and then move the control to ending point using the ◀/▶ button.

Press the A-B button again on the ending point.

Press the A-B button to cancel setting block.

8. Other Functions

8.1 Image Viewer

Connect the USB device to the receiver then after it has initialized, press the JPEG button on the remote control.

Select JPEG file by using the ▲/▼ buttons and press the OK button.

Press the ◀/▶ button to select next JPEG images in current folder.

8.2 Video File Player

Connect the USB device to the receiver then after it has initialized, press the JPEG button on the remote control and select MPEG (green button).

Select MPEG file by using the ▲/▼ buttons and press the OK button.

8.2 Picture In Picture (PIP)

Press the PIP button to display PIP. Press the PIP button repeatedly to change the

size of sub-picture or to close the sub-picture. PIP function will only show another channel from the same TP.

When in PIP mode, press the Yellow (F3) button to swap main-picture with sub-

picture.

Press the Red button to move the position of sub-picture.

To display the service list of main-picture, press the OK button. To display the service

list of sub-picture, press the Green button.

Additional Information

A.1 Troubleshooting

Please check the receiver using the procedures described below. If you can’t solve the problem even after following the procedures, please contact your dealer. Do

Do not open the receiver cover. It may cause a dangerous situation.

No front panel display The power cord is not

plugged in.

No picture or sound

No picture

No or bad UHF signal

Remote control does not operate

Poor picture quality Less channels in scan

Wrong connection of the Audio/Video outputs of the receiver to TV.

Wrong connection of the antenna.

No or Bad signal message appears.

Audio muting Press the MUTE button

No or poor signal. Check antenna cable or

Incorrect settings of some tuner parameters.

The UHF Antenna is not optimized.

Signal too strong. Connect a signal attenuator

UHF Antenna is too small. Change to a larger antenna.

Remote control batteries are exhausted or not inserted.

Cable has signal or power loss.

Check power switch on back panel is turned on.

Ensure TV is tuned or switched to correct input.

Check LNB connections are not shorting.

Check other device connected between Antenna and the receiver, or adjust the antenna position.

connect it to the receiver securely.

Set the values of tuner parameters correctly. Refer to the Installation menu.

Adjust the antenna.

to the input.

Check batteries are inserted correctly. Replace leaky or used batteries.

Change the LNB power in Dish menu. Check cable.

A.2 Technical Specifications

1. Tuner & Demodulator Parameter Specifications

Input Frequency

950 MHz to 2150 MHz

Range RF Input Signal Level -25 to –65 dBm RF Impedance 75œ IF Bandwidth 55 MHz/8 MHz (under 5 Msps) LNB Power 13/18 VDC, 14/19 VDC +/- 5%, 0.5A max, 0.8A peak

overload protected

LNB Tone Switch 22 KHz +/- 2 KHz, 0.6 Vpp +/- 0.2V DiSEqC Control Version 1.2, Tone burst A/B Demodulation QPSK Symbol Rate 1~ 45Msps/SCPC, MCPC

2. MPEG Parameter Specifications

Transport Stream MPEG-2 ISO/IEC 13818 Transport Stream Specification Input Rate Max.15Mbit/s Video MPEG-2 MP@ML Audio MPEG-1/2 Audio Layer 1,2 Aspect Ratio 4:3, 16:9 Video Resolution 720x576 (PAL), 720x480 (NTSC) Audio Mode Stereo, Dual channel, Joint stereo, Mono Audio Sampling Frequency 32 / 44.1 / 48KHz

3. Connectors

Port Specifications

LNB IF input F type, IEC 169-24 Female LNB IF Loop-Through F type, IEC 169-24 Female TV SCART RGB, CVBS, AUDIO L,R

Serial Port RS232C D-sub male type

4. RF-modulator Parameter Specifications

RF-Connector 75œ IEC169-2, Male / Female Frequency 470 MHz to 860 MHz Output Channel Ch 21-69 for the Demodulator TV Standard PAL B/G/I/D/K Selectable via Menu Setting

5. Power Supply Parameter Specifications

Input Voltage 90 ~ 260 VAC (SMPS) Power Consumption Maximum 23W Weight 1.5 Kg approx. Operating Temperature 0'C ~ 40'C Storage Temperature -40'C ~ 65'C

6. Card Slot

Parameter Specifications

Embedded 1 Slot Smart card

Factory or default Password: 0000

---------------------------------------------------------------------------------------------------------

Master Password: Press MENU and go to Information. Enter 6699, it will reset password to 0000.

Manhattan Plaza UPM User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual
