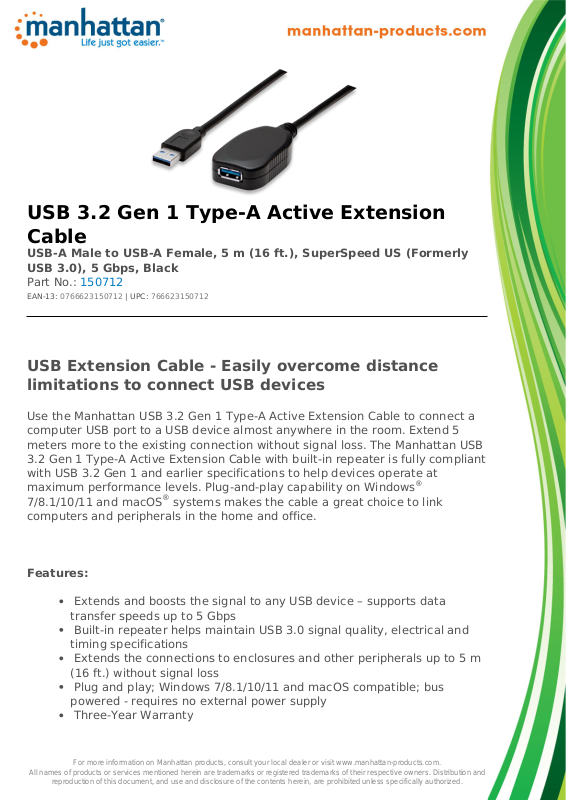

Page 1
USB 3.2 Gen 1 Type-A Active Extension
Cable
USB-A Male to USB-A Female, 5 m (16 ft.), SuperSpeed US (Formerly
USB 3.0), 5 Gbps, Black
Part No.: 150712
EAN-13: 0766623150712 | UPC: 766623150712
USB Extension Cable - Easily overcome distance
limitations to connect USB devices
Use the Manhattan USB 3.2 Gen 1 Type-A Active Extension Cable to connect a
computer USB port to a USB device almost anywhere in the room. Extend 5
meters more to the existing connection without signal loss. The Manhattan USB
3.2 Gen 1 Type-A Active Extension Cable with built-in repeater is fully compliant
with USB 3.2 Gen 1 and earlier specifications to help devices operate at
maximum performance levels. Plug-and-play capability on Windows
7/8.1/10/11 and macOS® systems makes the cable a great choice to link
computers and peripherals in the home and office.
®
Features:
Extends and boosts the signal to any USB device – supports data
transfer speeds up to 5 Gbps
Built-in repeater helps maintain USB 3.0 signal quality, electrical and
timing specifications
Extends the connections to enclosures and other peripherals up to 5 m
(16 ft.) without signal loss
Plug and play; Windows 7/8.1/10/11 and macOS compatible; bus
powered - requires no external power supply
Three-Year Warranty
For more information on Manhattan products, consult your local dealer or visit www.manhattan-products.com.
All names of products or services mentioned herein are trademarks or registered trademarks of their respective owners. Distribution and
reproduction of this document, and use and disclosure of the contents herein, are prohibited unless specifically authorized.
Page 2
Specifications:
Standards and Certifications
• USB 3.2 Gen 1
• CE
• RoHS
• WEEE
• FCC
Electrical:
USB power output: 5 V ±5% / 269 mA
General
• Throughput: 5 Gbps
• Bus powered
• All USB-supported operating systems
Connectors
• USB 3.0 Standard-A male
• USB 3.0 Standard-A female
• Nickel plated
• Molded PVC boot
Cable
• 28 AWG conductors
• Shielded
• Withstanding voltage: 300 V DC 10 ms
• Insulation resistance: 5 MOhm
• Contact resistance: 10 Ohm
• Thermal plastic casing
Package Contents
• SuperSpeed USB Active Extension Cable
