Page 1

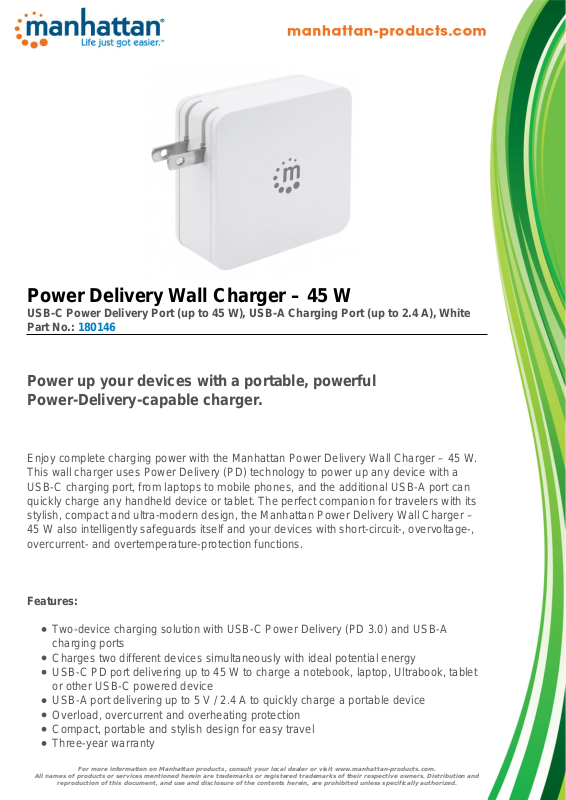

Power Delivery Wall Charger – 45 W
USB-C Power Delivery Port (up to 45 W), USB-A Charging Port (up to 2.4 A), White
Part No.: 180146
Power up your devices with a portable, powerful
Power-Delivery-capable charger.
Enjoy complete charging power with the Manhattan Power Delivery Wall Charger – 45 W.
This wall charger uses Power Delivery (PD) technology to power up any device with a
USB-C charging port, from laptops to mobile phones, and the additional USB-A port can
quickly charge any handheld device or tablet. The perfect companion for travelers with its
stylish, compact and ultra-modern design, the Manhattan Power Delivery Wall Charger –
45 W also intelligently safeguards itself and your devices with short-circuit-, overvoltage-,
overcurrent- and overtemperature-protection functions.
Features:
Two-device charging solution with USB-C Power Delivery (PD 3.0) and USB-A
charging ports
Charges two different devices simultaneously with ideal potential energy
USB-C PD port delivering up to 45 W to charge a notebook, laptop, Ultrabook, tablet
or other USB-C powered device
USB-A port delivering up to 5 V / 2.4 A to quickly charge a portable device
Overload, overcurrent and overheating protection
Compact, portable and stylish design for easy travel
Three-year warranty
All names of products or services mentioned herein are trademarks or registered trademarks of their respective owners. Distribution and
For more information on Manhattan products, consult your local dealer or visit www.manhattan-products.com.
reproduction of this document, and use and disclosure of the contents herein, are prohibited unless specifically authorized.
Page 2
Specifications:
Standards and Certifications
• USB 2.0
• PD 3.0
• FCC
• UL
• CE
• RoHS
• WEEE
Ports
• One USB-C with Power Delivery (PD 3.0)
• One USB-A
General
• AC input: 100 – 240 V; 50 – 60 Hz
• USB-C output: 5 – 20 V; maximum 3 A; 45 W
• Voltage/current settings (maximum):
- USB-C:
- 5 V / 3 A
- 9 V / 3 A
- 12 V / 3 A
- 15 V / 3 A
- 19 V / 2.25 A
- 20 V / 2.25 A
- USB-A:
- 5 V / 2.4 A
Input Characteristics
• AC rated voltage: 100 – 240 V
• Frequency range: 50 – 60 Hz (±1 Hz)
• Current: ? 1 A at 100 VAC 60 HZ
Output Characteristics
• Rated voltage: 5 / 9 / 12 / 15 / 19 / 20 V
• Current: 3 A maximum (at constant voltage mode)
• Rated power: 45 watts maximum
• Overshoot voltage: ? 5%
Protection Characteristics
• Short circuit (SCP) with auto-recovery mode
• Overvoltage (OVP) with auto-recovery mode
• Overcurrent (OCP) — current limit: 150% (max)
• Overtemperature (OTP)
All names of products or services mentioned herein are trademarks or registered trademarks of their respective owners. Distribution and
For more information on Manhattan products, consult your local dealer or visit www.manhattan-products.com.
reproduction of this document, and use and disclosure of the contents herein, are prohibited unless specifically authorized.
Page 3
Physical
• Dimensions: 6.5 x 6.5 x 2.9 cm (2.58 x 2.58 x 1.5 in.)
• Weight: 0.14 kg (4.9 oz.)
• Housing: plastic
Operating Environment
• Operation Temperature: 0 – 30°C (32 – 86°F)
• Storage Temperature: -20 – 65°C (-4 – 149°F)
• Humidity (noncondensing): 10 – 90%
Package Contents
• Power Delivery Wall Charger – 45 W
• Quick Instruction Guide
