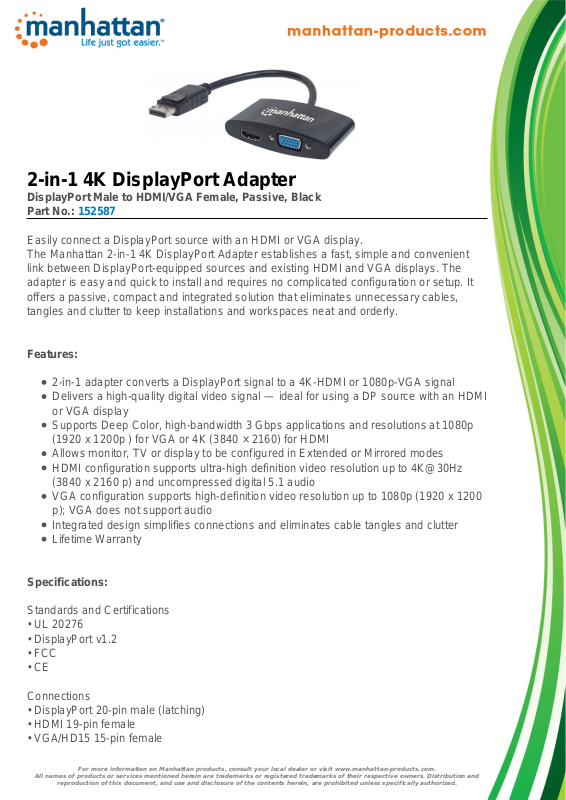

Page 1
2-in-1 4K DisplayPort Adapter
DisplayPort Male to HDMI/VGA Female, Passive, Black
Part No.: 152587
Easily connect a DisplayPort source with an HDMI or VGA display.
The Manhattan 2-in-1 4K DisplayPort Adapter establishes a fast, simple and convenient
link between DisplayPort-equipped sources and existing HDMI and VGA displays. The
adapter is easy and quick to install and requires no complicated configuration or setup. It
offers a passive, compact and integrated solution that eliminates unnecessary cables,
tangles and clutter to keep installations and workspaces neat and orderly.
Features:
2-in-1 adapter converts a DisplayPort signal to a 4K-HDMI or 1080p-VGA signal
Delivers a high-quality digital video signal — ideal for using a DP source with an HDMI
or VGA display
Supports Deep Color, high-bandwidth 3 Gbps applications and resolutions at 1080p
(1920 x 1200p ) for VGA or 4K (3840 × 2160) for HDMI
Allows monitor, TV or display to be configured in Extended or Mirrored modes
HDMI configuration supports ultra-high definition video resolution up to 4K@30Hz
(3840 x 2160 p) and uncompressed digital 5.1 audio
VGA configuration supports high-definition video resolution up to 1080p (1920 x 1200
p); VGA does not support audio
Integrated design simplifies connections and eliminates cable tangles and clutter
Lifetime Warranty
Specifications:
Standards and Certifications
• UL 20276
• DisplayPort v1.2
• FCC
• CE
Connections
• DisplayPort 20-pin male (latching)
• HDMI 19-pin female
• VGA/HD15 15-pin female
All names of products or services mentioned herein are trademarks or registered trademarks of their respective owners. Distribution and
For more information on Manhattan products, consult your local dealer or visit www.manhattan-products.com.
reproduction of this document, and use and disclosure of the contents herein, are prohibited unless specifically authorized.
Page 2
• Nickel-plated contacts
• Molded PVC and ABS Shell
General
• 8-bit and 10-bit Deep Color support
• 3 Gbps bandwidth
• Maximum single link resolution:
3840 x 2160 (4K@30Hz) for HDMI
1920 x 1200 (1080p) for VGA
• One-lane, one-direction, four-line connection support
• Passive
Video Resolutions
• VGA: 640 x 480, 800 x 600, 1024 x 768, 1920 x 1200
• DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p/4K@30Hz
Physical
• Cable length: 16 cm (6 inches)
• Housing: 7.5 x 4 x 1.8 cm (2.95 x 1.8 x 0.7 in.)
• Weight: 48 g (01.7 oz.)
• Housing: plastic
Operating Environment
• Operation Temperature: 0 - 40°C (32 - 104°F)
• Storage Temperature: -20 - 60°C (-4 - 140°F)
• Humidity (noncondensing): 0 - 80%
System Requirements
• Windows XP/Vista/7/8.1/10, Linux or Mac 9.x/10.x or above
Package Contents
• 2-in-1 4K DisplayPort Adapter
• Quick Instruction Guide
