Chapter 1 Introduction

Congratulations on your purchase of this outstanding 11N Mini Wireless AP. The Wireless
AP is a 150M Mini Wireless AP/Repeater, fully complies with 802.11b/g/n specifications,
adopting 1T1R architecture, up to 150Mbps data rate, you can connect notebook
computer to a wireless network and access high-speed Internet connection which is
beneficial for the such as HD video streaming and online gaming applications. The default
mode is repeater which is especially useful for a large space to eliminate signal-blind
corners. It is good choice for Large house, office, warehouse or other spaces where the
existing wireless signal is weak. Instructions for installing and configuring this product can
be found in this manual. Before you install and use this product, please read this manual
carefully for full exploiting the functions of this product.

1.1 Features

z Compatible with IEEE 802.11b/g/n
z Wireless speed up to 150Mbps
z Internal power supply
z Travel-sized design, Ideal for home or travel use
z Support WPA and WPA2 to safeguard wireless network access security
z Supports AP, Router, Repeater operation modes

1.2 System Requirement

z An Ethernet-Based Cable or DSL modem
z An wireless network card on PC
z TCP/IP network protocol for each PC
z RJ45 Twisted-pair
z Microsoft IE (or Firefox or Netscape)

1.3 Environment

Operating Temperature: 0 ~40℃℃
Storage Temperature: -10 ~70℃℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing

1.4 Package Contents

Please make sure you have the following in the box, if anything is missing, please contact
your vendor.

11N Mini Wireless AP

4

¾ 11N Mini Wireless AP
¾ User Manual

¾ RJ-45 Network Cable

¾ Warranty Card

11N Mini Wireless AP

5

Chapter 2 Hardware Installation

2.1 Front Panel

The front panel provides LED’s for device status. Refer to the following table for the
meaning of each feature.

2.2 Physical Interface

There are three physical interfaces on this AP.

Name Status Indication

Off Power is off.

POWER

On Power is on.
Off There is no device linked to the corresponding port.

On

There is a device linked to the corresponding port but
there is no activity.

ETH

(LAN/WAN)

Flashing

There is an activity device linked to the corresponding

port.
Off The Wireless function is disabled.
On The Wireless function is enabled.

WLAN

Flashing Data is received or sent through the Wireless.

11N Mini Wireless AP

6

Interface Description

Power Plug

A Power Plug for connecting the AP to a 100V~240V AC power
socket.

Wired Port

A 10/100Mbps LAN/WAN Port for connecting the AP to the PC or the
broadband device with a network cable.

Reset(WPS)

Button

The Reset Button has two functions, WPS and Factory Default.
When press it less than 2 seconds, it is WPS function, more than 5
seconds, the AP will restore to factory default.

2.3 Typical install

AP Mode:

As the supplement of wired LAN, Wireless AP enables the wired LAN to connect to the
Internet wirelessly.

The default mode of Wireless AP is AP. Plug the power plug of Wireless AP in electrical
wall socket and connect the Ethernet cable correctly, you can surf the Internet by
connecting your PC(s) to The Router wirelessly.

To avoid the conflict of DHCP service with front-end devices, the DHCP server is default to
be closed on this mode. If you want to login in the management page, please set your
computer’s IP address manually.

As below picture, under this mode, wired port works as LAN, connects wired signal
directly and turns the wired into wireless via AP device for the using of terminal wireless
equipment.

11N Mini Wireless AP

7

1. Connect the LAN port of Wireless AP to the wired network port with and Ethernet cable.

2. Plug the power plug of Wireless AP in electrical wall socket.

3. Power on the PC(s) and notebook(s).

Router Mode:

As a wireless router, Wireless AP enables multi-user to share Internet via DSL/Cable
Modem.

As below picture, under this mode, wired port works as WAN, which can access network
by using WI-FI Network, Cable/DSL Modem to be used by the lower extreme wireless
device. DHCP server is default opened and it is recommended that the IP address and
DNS server address obtained automatically.

1. Connect the WAN port of Wireless AP to the LAN port on the DSL/Cable Modem.

2. Connect the WAN port on the DSL/Cable Modem to the wired Internet.

3. Plug the power plug of Wireless AP in electrical wall socket.

4. Power on the DSL/Cable Modem, PC(s) and notebook(s).

Wireless ISP Mode:

The Wireless AP is used as a wireless network card to connect the wireless network
signal or wireless router.
As below picture, the only wired port works as LAN. Computer could connect to the device

11N Mini Wireless AP

8

by wired way.

1. Connect the PC to the LAN port of Wireless AP with an Ethernet cable.

2. Plug the power plug of Wireless AP in electrical wall socket.

3. 3. Power on the PC.

11N Mini Wireless AP

9

Chapter 3 TCP/IP Configuration

3.1 Set the Network Configurations

Under AP mode, you can proceed configuration by using the mode of wireless access or
wired access.
Under Router mode, you can access device to process configuration by using the mode of
wireless access.

After connecting device, operate according to below steps:

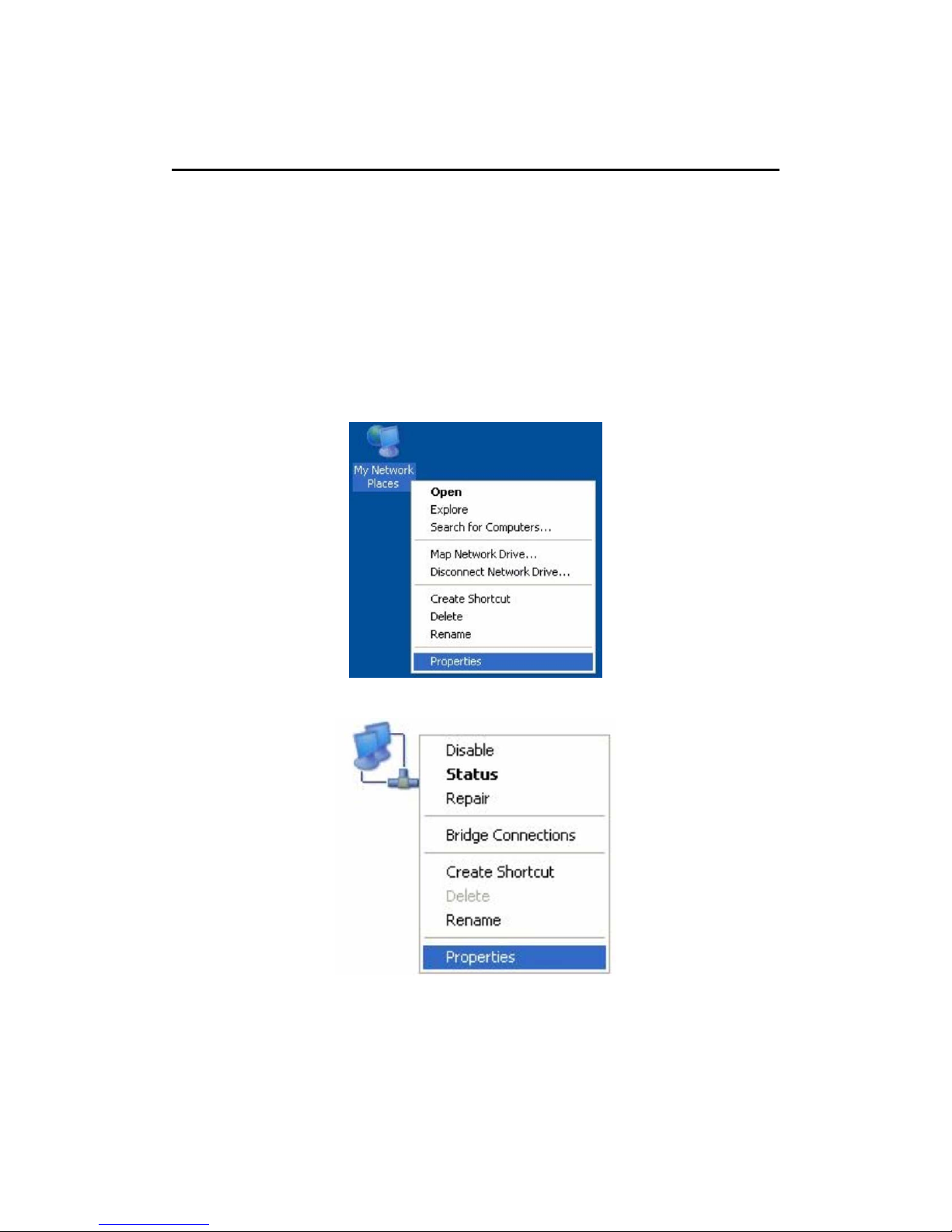

1. On your computer desktop right click "My Network Places" and select "Properties".

2. Right click "local Area Network Connection" and select "Properties".

3. Select "Internet Protocol (TCP/IP)" and click "Properties".

11N Mini Wireless AP

10

4. Select "Obtain an IP address automatically" or select "Use the following IP
address(S)".

A. Select "Obtain an IP address automatically" and "Obtain DNS server addres s

automatically". Click "OK".

B. "Use the following IP address (S)"
IP Address: 192.168.10.XXX :( XXX is a number from 2~254)
Subnet Mask: 255.255.255.0
Gateway: 192.168.10.254
DNS Server: You need to input the DNS server address provided by you ISP.

Otherwise, you can use the AP's default gateway as the DNS proxy server. Click
"OK" to save the configurations.

Note: When your wireless AP is in AP mode, the equipment system DHCP function

11N Mini Wireless AP

11

will be automatic to shut down, you need to press the B method and set the IP.

Click "OK" to save the configurations.

3.2 Getting Started

To access the configuration pages, open a

web-browser such as Internet Explorer and
enter the IP address of the AP
(192.168.10.254).
The Default User/Password: admin

If succeed, you can see the follow page.

11N Mini Wireless AP

12

Chapter 4 Configuring the AP

This chapter will show each Web page’s key functions and the configuration way.

4.1 Operating Mode

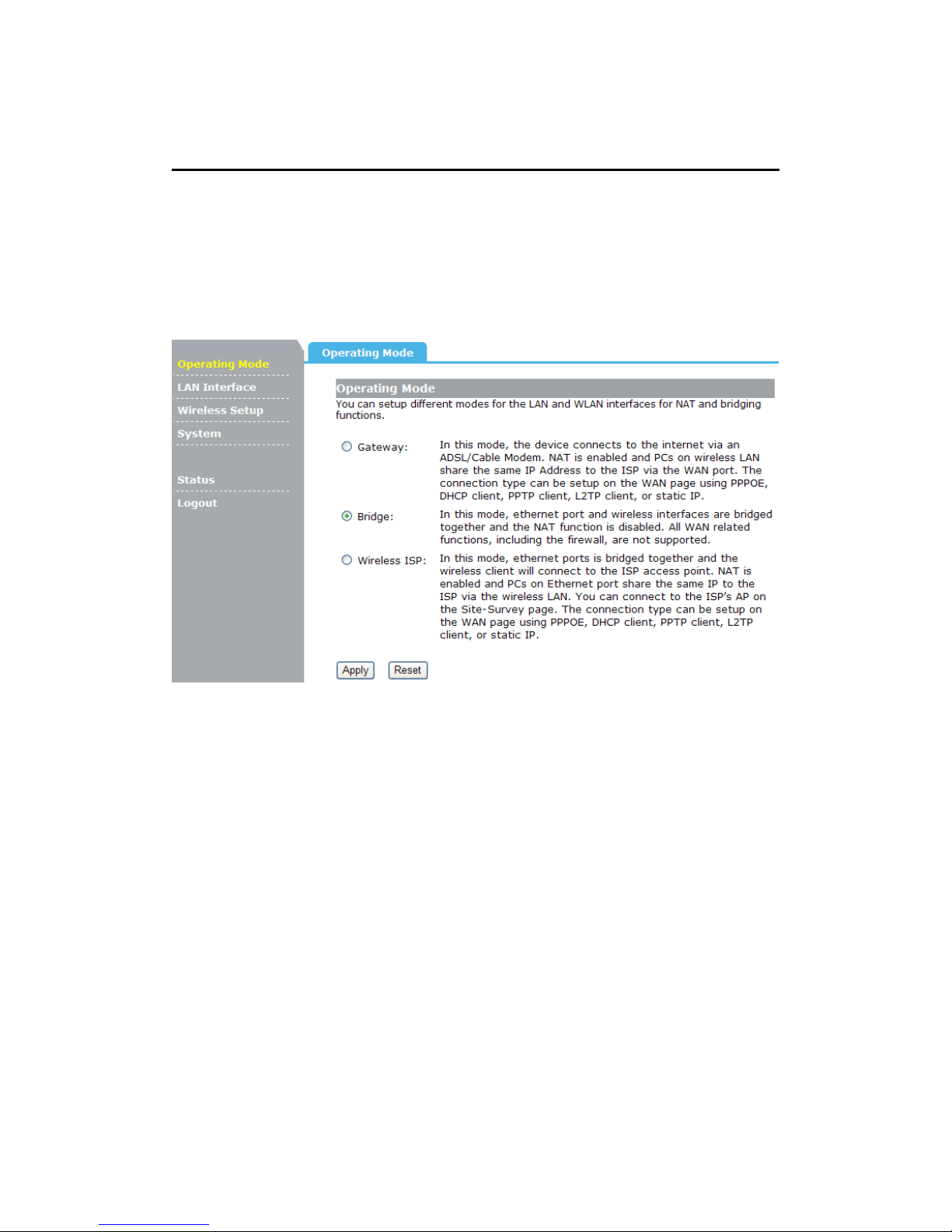

The Wireless AP supports three operation modes, Gateway, Bridge and Wireless ISP.
And each mode is suitable for different use, please choose correct mode.

4.2 WAN Interface

There are two submenus under the WAN Interface menu: WAN Interface, DDNS. Click
any of them, and you will be able to configure the corresponding function.

4.2.1 WAN Interface

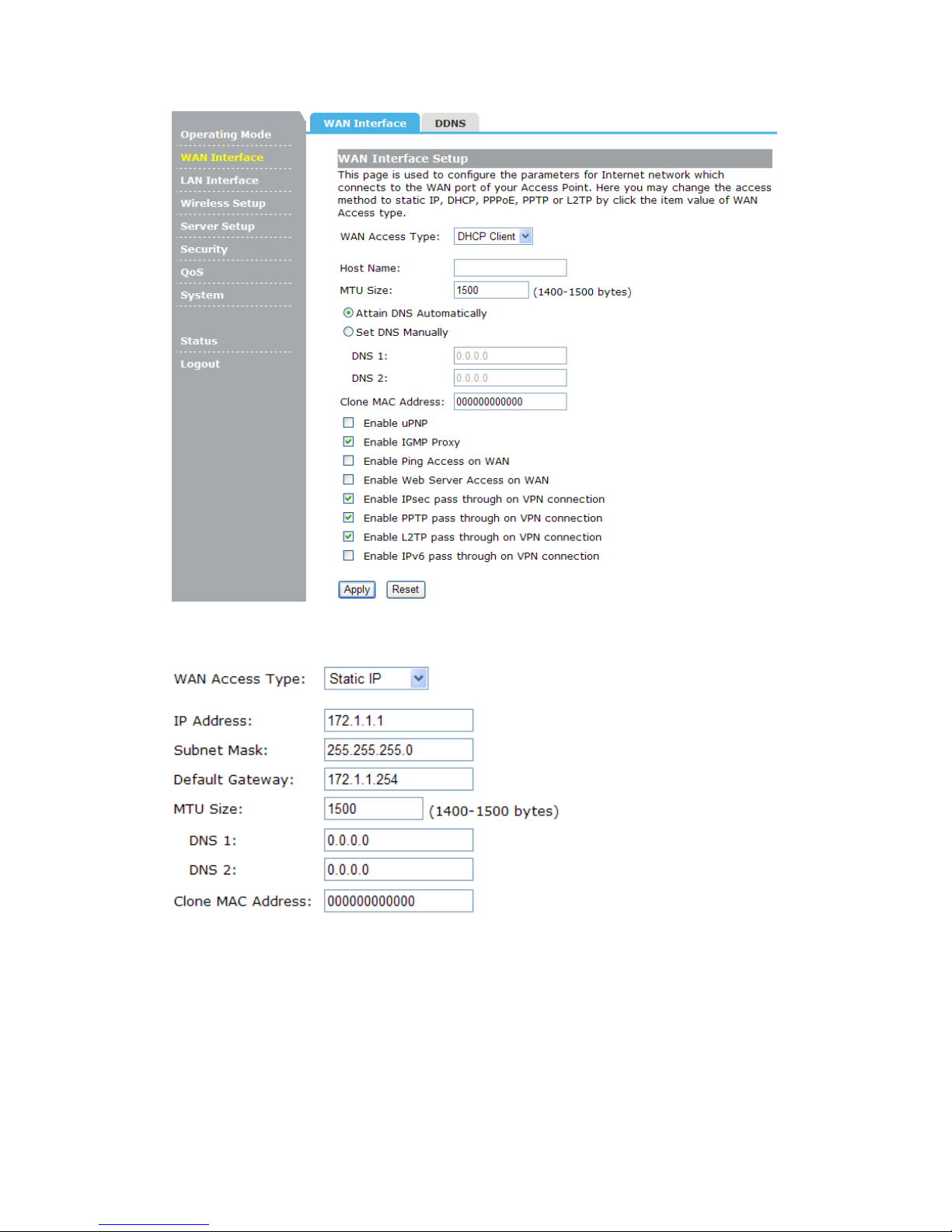

This page is used to configure the parameters for Internet network which connects to the
WAN port of your Access Point. Here you may change the access method to Static IP,

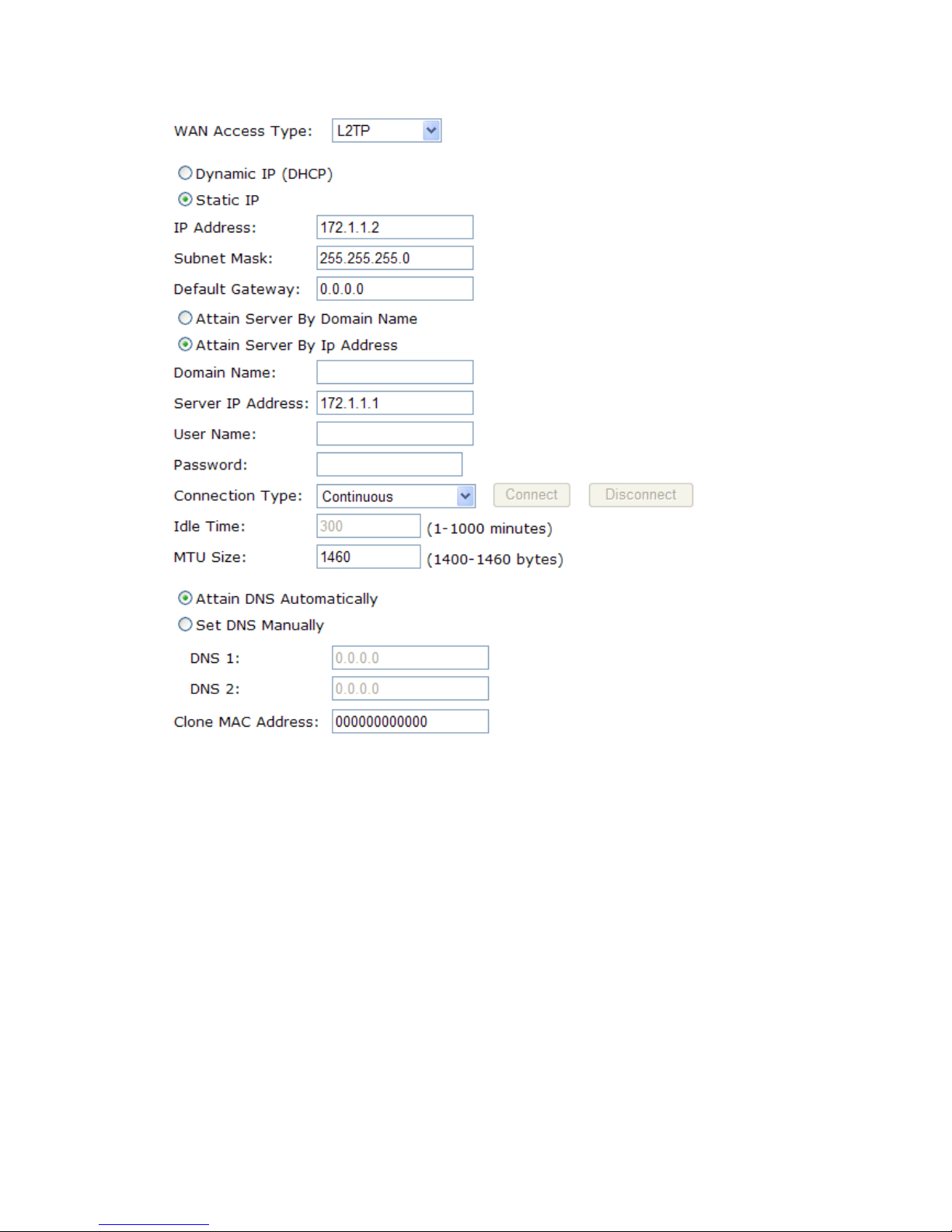

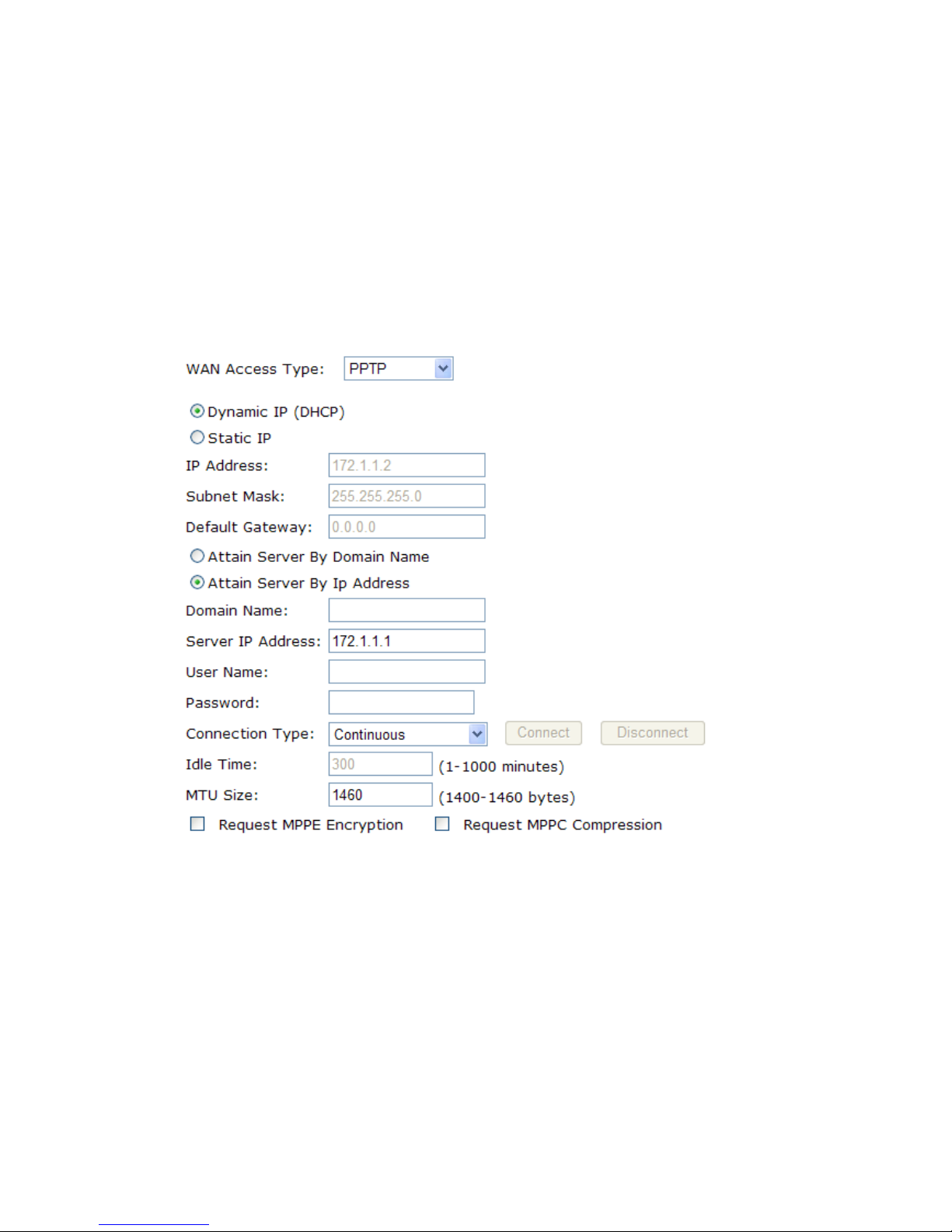

DHCP Client, PPPoE, PPTP or L2TP by click the item value of WAN Access type.

11N Mini Wireless AP

13

1. If you ISP provides a static or fixed IP Address, Subnet Mask, Gateway and DNS
setting, select Sta tic IP option. The Static IP settings page will appear:

IP Address / Subnet Mask: This is the AP's IP Address and Subnet Mask as seen by
external users on the Internet (including your ISP). If your Internet connection requires a
static IP address, then your ISP will provide you with a Static IP Address and Subnet
Mask.

Gateway: Your ISP will provide you with the Gateway IP Address.
MTU Size: The normal MTU (Maximum Transmission Unit) value for most Ethernet

networks is 1500 Bytes. It is not recommended that you change the default MTU Size
unless required by your ISP.
DNS: Your ISP will provide you with at least one DNS IP Address.

11N Mini Wireless AP

14

Clone Mac Address: You can configure the MAC address of the WAN.

2. If your ISP provides the DHCP service, please select DHCP Client option, and the AP’s
will automatically get IP parameters from your ISP. You can see the page as follows:

Host Name: This option specifies the Host Name of the AP.
MTU Size: The normal MTU (Maximum Transmission Unit) value for most Ethernet

networks is 1500 Bytes. It is not recommended that you change the default MTU Size
unless required by your ISP.
Set DNS Manually: If your ISP gives you one or two DNS addresses, select Set DNS
Manually and enter the primary and secondary addresses into the correct fields.
Otherwise, the DNS servers will be assigned dynamically from your ISP.
Clone Mac Address: You can configure the MAC address of the WAN.

3. If your ISP provides a PPPoE connection, select PPPoE option. And you should enter
the following parameters:

11N Mini Wireless AP

15

User Name / Password: Enter the User Name and Password you use when logging onto
your ISP through a PPPoE connection.
Service Name(AC): The service name and AC (Access Concentrator) name should not
be configured unless you are sure it is necessary for your ISP. In most cases, leaving
these fields blank will work.

Connection Type: There you can select Continuous, Connect on Demand or Manual.
Idle Time: You can configure the AP to disconnect from your Internet connection after a

specified period of inactivity.

4. If your ISP provides a PPTP connection, select PPTP option. And you should enter the
following parameters:

Dynamic IP (DHCP): Choose the IP address information provided by automatic
acquisition ISP, or manual input.

Default Gateway: Enter the gateway IP provided by your PPTP Server.
User Name / Password: Enter the User Name and Password you use when logging onto

your ISP through a PPTP connection.

5. If your ISP provides L2TP connection, please select L2TP option. And you should enter
the following parameters:

11N Mini Wireless AP

16

Dynamic IP (DHCP): Choose the IP address information provided by automatic
acquisition ISP, or manual input.

Default Gateway: Enter the gateway IP provided by your L2TP Server.
User Name / Password: Enter the User Name and Password you use when logging onto
your ISP through a L2TP connection.

4.2.2 DDNS

Dynamic DNS is a service that provides you with a valid, unchanging, internet domain
name (an URL) to go with that (possibly ever changing) IP-address.

11N Mini Wireless AP

17

Service Provider: Select one from the drop-down menu, such as DynDNS, OrayDDNS or
TZO.

Domain Name: Enter the domain name (Such as host.dyndns.org).
User Name/Email: Enter the user name or email the same as the registration name.
Password/Key: Enter the password you set.

4.3 LAN Interface

There are three submenus under the LAN Interface menu: LAN Interface, Static DHCP,
DHCP Client. Click any of them, and you will be able to configure the corresponding

function.

4.3.1 LAN Interface

This page is used to configure the parameters for local area network which connects to
the LAN port of your Access Point. Here you may change the setting for IP address,
subnet mask, DHCP, etc..

11N Mini Wireless AP

18

IP Address: Enter the IP address of your AP (factory default: 192.168.10.254).
Subnet Mask: An address code that determines the size of the network. Normally use

255.255.255.0 as the subnet mask.

Default Gateway: Enter the gateway IP address.
DHCP: Enable or Disable the DHCP server. If you disable the Server, you must have

another DHCP server within your network or else you must configure the computer
manually.

DHCP Client Range: Specify IP address for the DHCP Client Range.
DHCP Lease Time: The DHCP Lease Time is the amount of time a network user will be

allowed connection to the AP with their current dynamic IP address. Enter the amount of
time, in minutes, that the user will be "leased" this dynamic IP address.

Clone MAC Address: Input your MAC address should be cloned.

4.3.2 Static DHCP

This page allows you reserve IP addresses, and assign the same IP address to the
network device with the specified MAC address any time it requests an IP address.

11N Mini Wireless AP

19

IP Address: Enter the IP address which needs to be bound.
MAC Address: Enter the MAC address of the computer you want to assign the above IP

address.
Comment: You can add some comment for this item.
Click “Apply” to add the entry in the list.

4.3.3 DHCP Client

This table shows the assigned IP address, MAC address and time expired for each DHCP
leased client.

4.4 Wireless Setup

There are seven submenus under the Wireless Setup menu: Site Survey, Basic,
Security, Access Control, WDS, WPS, Schedule. Click any of them, and you will be

able to configure the corresponding function.

11N Mini Wireless AP

20

4.4.1 Site Survey

This page provides a tool to scan for wireless networks. If an Access Point or IBSS is
found, you could choose to connect to it manually when client mode is enabled.

4.4.2 Basic

This page is used to configure the parameters for wireless LAN clients which may connect
to your Access Point. Here you may change wirele ss network parameters.

11N Mini Wireless AP

21

Disable Wireless LAN Interface: Check this box to to disable the AP’s wireless features;
uncheck to enable it.

Band: Select one mode from the following. The default is 2.4GHz (B+G+N) mode.
Mode: Support AP, Client, WDS and AP+WDS mode.
Network Type: This type is only valid in client mode.
SSID: SSID (Service Set Identifier) is the unique name of the wireless network.
Channel Width: Select the channel width from the pull-down list. Select 40MHz if you use

802.11n or 802.11n mixed mode, otherwise 20MHz, it is default value.

Channel Number: Indicates the channel setting for the AP.
Broadcast SSID: Select “Enable” to enable the device's SSID to be visible by wireless

clients. The default is enabled.
WMM: It will enhance the data transfer performance of multimedia data when they’re
being transferred over wireless network.

4.4.3 Security

This page allows you setup wireless security. Using WEP or WPA Encryption Keys will
help prevent unauthorized access to your wireless network.

The following picture shows how to set the WEP security.

11N Mini Wireless AP

22

Key length: WEP supports 64 Bits or 128 Bits security key.
Key Format: User can enter key in ASCII or Hex format.
Encryption Key: Enter the key, its format is limited by the Key format, ASCII or Hex.

The following picture shows how to set WPA-PSK security, you can select WPA (TKIP),
WPA2 (AES) and Mixed mode.

Pre-Shared Key Format: Specify the format of the key, pass phrase or hex.
Pre-Shared Key: Enter the key here, its format is limited by the key format.

4.4.4 Access Control

The Wireless MAC Address Filtering feature allows you to control wireless stations
accessing the AP, which depend on the station’s MAC addresses.

Mode: If you choose 'Allowed Listed', only those clients whose wireless MAC addresses
are in the access control list will be able to connect to your Access Point. When 'Deny
Listed' is selected, these wireless clients on the list will not be able to connect the Access
Point. The MAC Address format is 001122334455.

11N Mini Wireless AP

23

4.4.5 WDS

Wireless Distribution System uses wireless media to communicate with other APs, like the
Ethernet does. To do this, firstly you must set AP Mode to WDS or AP+WDS in basic
setting, then enable WDS function and set another AP MAC which you want to
communicate with. The WDS supports PSK security mode. Of course in order to make
APs work, you have to keep them the same channel and security mode.

Enable WDS: Check this box to enable WDS function.
MAC Address: Enter the remote AP MAC address.
Comment: You can add some comment for this item.
Set Security: Set WDS security.
Encryption: You may select None or WPA2 (AES).
Pre-Shared Key Format: You can select Passphrase or HEX(64 Characters).
Pre-Shared Key: Pre-shared key(PSK) is a method to set encryption keys. Commonly

used in Wi-Fi Protected Access.

4.4.6 WPS

WPS is designed to ease set up of security Wi-Fi networks and subsequently network
management. This AP supports WPS features for AP mode, AP+WDS mode, and
Infrastructure-Client mode.

11N Mini Wireless AP

24

Disable WPS: Check this box and clicking “Apply” will disable WPS function. WPS is
turned on by default.
WPS Status: When AP’s settings are factory default, it is set to open security and
un-configured state, some registers such as Vista WCN can configure AP. Otherwise If it
already shows “Configured”, it means that the AP has setup its security.

Self-PIN Number: It is AP’s PIN.
Start PBC: Clicking this button will invoke the Pus Button Configuration of WPS. If one

station wants to connect to the AP, it must click its PBC button in two minute.
Note: This AP also has a hardware button, it is same button with reset. When click this
button less than two seconds, the AP will run PBC function, during this time, the station
can connect to the AP by its software or hardware WPS button. By the way, click this
button exceed 5 seconds, the AP will restore factory default.
Client PIN Number: The length of PIN is limited to four or eight numeric digits. If the AP
and Station input the same PIN and click “Start PIN” button in two minutes, they will
establish connection and setup their security key.

4.4.7 Schedule

This page allows you setup the wireless schedule rule. Please do not forget to configure
system time before enable this feature.

11N Mini Wireless AP

25

Enable Wireless Schedule: Check this box will enable Wireless Schedule function.

4.5 Server Setup

There are two submenus under the Server Setup menu: Port Forwarding, DMZ. Click
any of them, and you will be able to configure the corresponding function.

4.5.1 Port Forwarding

If you configure the AP as V irtual Server, remote users accessing services such as Web or
FTP at your local site via public IP addresses can be automatically redirected to local
servers configured with private IP address. In other words, depending on the requested
service (TCP/UDP port number), the AP redirects the external service request to the
appropriate server.

Enable Port Forwarding: Check this box will enable Port Forwarding function.
IP Address: That external User accesses the AP will redirect to this local IP.
Protocol & Port Range: The packet with this protocol and port will be redirected to the

local IP.

Comment: You can add some comment for this item.
Current Port Forwarding Table: The table shows all you have configured. You can

delete one or all.

4.5.2 DMZ

Some applications require multiple connections, like Internet games, video conferencing,
Internet calling and so on. These applications cannot work with a pure NAT router. Port
Triggering is used for some of these applications that can work with an NAT router.

11N Mini Wireless AP

26

Enable DMZ: Check this box will enable DMZ function.
DMZ Host IP Address: To expose one PC to the Internet, select Enable DMZ and enter
the computer's IP address in the DMZ Host IP Address field.

4.6 Security

There are four submenus under the Security menu: Port Filtering, IP Filtering, URL
Filtering, MAC Filtering. Click any of them, and you will be able to configure the

corresponding function.

4.6.1 Port Filtering

Entries in this table are used to restrict certain types of data packets from your local
network passing to the Internet through the Gateway. Use of these filters can be helpful in
securing or restricting your local network.

Enable Port Filtering: Check this box will enable Port Filtering function.
Port Range: The port range that you want to filter.
Protocol: The protocol that you want to filter, either TCP, UDP, or Both.

11N Mini Wireless AP

27

Comment: You can add some comment for this item.

4.6.2 IP Filtering

The IP Filtering feature allows you to control Internet Access by specific users on your
LAN based on their IP addresses.

Enable IP Filtering: Check this box will enable IP Filtering function.
Local IP Address: The Local IP address range that you want to filter.
Protocol: The protocol that you want to filter, either TCP, UDP, or Both.
Comment: You can add some comment for this item.

4.6.3 URL Filtering

The URL filter is used to restrict LAN users access to the internet.

11N Mini Wireless AP

28

Enable URL Filtering: Check this box will enable URL Filtering function.
URL Address: The URL Address that you want to filter.

4.6.4 MAC Filtering

The MAC Filtering feature allows you to control access to the Internet by users on your
local network based on their MAC address.

Enable MAC Filtering: Check this box will enable MAC Filtering function.
MAC Address: The MAC address that you want to filter.
Comment: You can add some comment for this item.

4.7 QoS Setup

The QoS helps improve your network gaming performance by prioritizing applications. By
default the bandwidth control are disabled and application priority is not classified
automatically.
In order to complete this settings, please follow the steps below.

1. Enable this function.

2. Enter the total speed or choose automatic mode.

3. Enter the IP address or MAC address user want to control.

4. Specify how to control this PC with this IP address or MAC address, priority and its

up/down speed.

5. Click Apply button to add this item to control table.

11N Mini Wireless AP

29

4.8 System

There are six submenus under the System menu: Time Zone Setting, Upgrade
Firmware, Save/Reload Settings, Password, Reboot, Language. Click any of them,

and you will be able to configure the corresponding function.

4.8.1 Time Zone

You can maintain the system time by synchronizing with a public time server over the
Internet.

11N Mini Wireless AP

30

Time Zone select: Select your local time zone from this pull down list.
NTP Server: Select the NTP Server, then the AP will get the time form the NTP Server

preferentially.

4.8.2 Upgrade Firmware

You can upgrade latest Firmware in this page.

Firmware Version: This displays the current firmware version.

4.8.3 Save/Reload Settings

You can backup or restore the system configuration in this page.

Save Settings to File: Get the AP’s settings and store it in your local computer.
Load Settings from File: Restore the settings from the file you backup before from your

local computer, the AP will go to the former settings.

Reset Settings to Default: Restore the system settings to factory default.

4.8.4 Password

To ensure the AP’s security, you will be asked for your password when you access the
AP’s Web-based Utility. The default user name and password is “admin”.
This page will allow you to add or modify the User name and password.

11N Mini Wireless AP

31

4.8.5 Reboot

You can reboot device via clicking the Apply button.

4.8.6 Language

You can select correspondent language.

4.9 Status

There are three submenus under the Status menu: Status, Statistics, Log.
Click anyone, you will see the following status.

4.9.1 Status

The Status page provides the current status information about the AP.

11N Mini Wireless AP

32

4.9.2 Statistics

This page shows the packet counters for transmission and reception regarding to wireless
and Ethernet networks.

Refresh: Click this button to refresh the data.

4.9.3 System Log

The page shows the system log. Click the “Refresh” to update the log. Click “Clear” to

11N Mini Wireless AP

33

clear all shown information.

Refresh: Click this button to update the log.
Clear: Click this button to clear the current shown log.

4.10 Logout

This page is used to logout.

11N Mini Wireless AP

34

FCC RF EXPOSURE INFORMATION:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accep t
any interference received, including interference that may cause undesired operation.

Caution: The user is cautioned that changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant

to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, whi ch can be determin ed by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.

RF Exposure: A distance of 20 cm shall be maintained between the antenna and users, and
the transmitter module may not be co-located with any other transmitter or antenna.

11N Mini Wireless AP

35

EU regulatory conformance

The equipment named above is confirmed to comply with the requirements setout in the
Council Directive on the Approximation of the Laws of the Member States relating to
Electromagnetic Compatibility (2004/108/EC), Low-voltage Directive (2006/95/EC) and
R&TTE (1999/5/EC). The equipment passed the test which was performed according to
the following European standards:

•ETSI EN 301 489-1 V1.9.2 (2011-09)

•ETSI EN 301 489-17 V2.2.1 (2012-09)

•ETSI EN 300 328 V1.8.1 (2012-06)

•EN 62311: 2008

•EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
