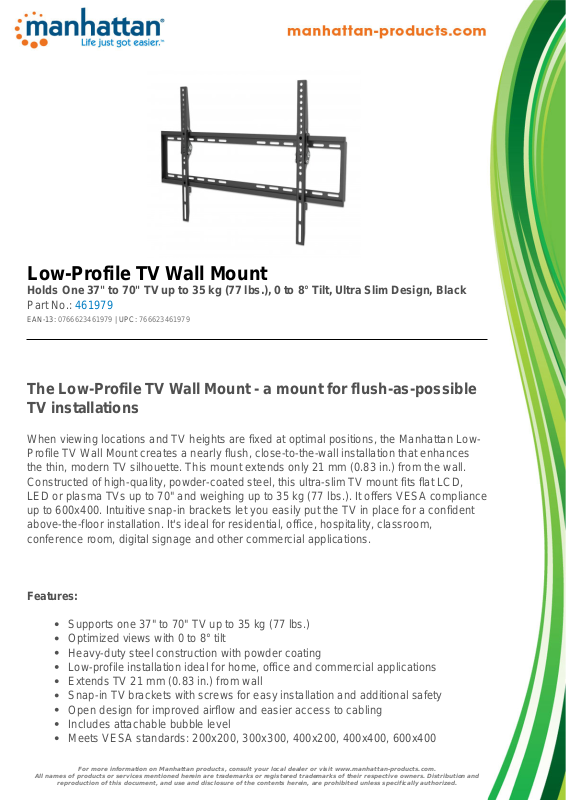

Manhattan 461979 User Manual

Low-Profile TV Wall Mount

Holds One 37" to 70" TV up to 35 kg (77 lbs.), 0 to 8° Tilt, Ultra Slim Design, Black

Part No.: 461979

EAN-13: 0766623461979 | UPC: 766623461979

The Low-Profile TV Wall Mount - a mount for flush-as-possible
TV installations

When viewing locations and TV heights are fixed at optimal positions, the Manhattan Low­Profile TV Wall Mount creates a nearly flush, close-to-the-wall installation that enhances
the thin, modern TV silhouette. This mount extends only 21 mm (0.83 in.) from the wall.
Constructed of high-quality, powder-coated steel, this ultra-slim TV mount fits flat LCD,
LED or plasma TVs up to 70" and weighing up to 35 kg (77 lbs.). It offers VESA compliance
up to 600x400. Intuitive snap-in brackets let you easily put the TV in place for a confident
above-the-floor installation. It's ideal for residential, office, hospitality, classroom,
conference room, digital signage and other commercial applications.

Features:

Supports one 37" to 70" TV up to 35 kg (77 lbs.)
Optimized views with 0 to 8° tilt
Heavy-duty steel construction with powder coating
Low-profile installation ideal for home, office and commercial applications
Extends TV 21 mm (0.83 in.) from wall
Snap-in TV brackets with screws for easy installation and additional safety
Open design for improved airflow and easier access to cabling
Includes attachable bubble level
Meets VESA standards: 200x200, 300x300, 400x200, 400x400, 600x400

All names of products or services mentioned herein are trademarks or registered trademarks of their respective owners. Distribution and

For more information on Manhattan products, consult your local dealer or visit www.manhattan-products.com.

reproduction of this document, and use and disclosure of the contents herein, are prohibited unless specifically authorized.

Lifetime warranty

Specifications:

General

• Certifications: RoHS

• Designed for most 37" – 70" flat screens

• Weight capacity: 35 kg (77 lbs.)

• Dimensions: 422 x 665 x 21 mm (16.61 x 26.18 x 0.83 in.)

• Weight: 1.19 kg (2.62 lbs.)

• VESA standards: 200x200, 300x300, 400x200, 400x400, 600x400

Package Contents

• Low-Profile TV Wall Mount

• Attachable bubble level

• Installation hardware with instructions
