BAR CODE
BAR CODE
Programming Menu
V3.8 a
Notice
The manufacturer shall not be liable for technical
or editorial errors or omissions contained herein;
nor for incidental or consequential damages in
connection with the furnishing,performance or use
of use the publication.
Contents
Chapter 1 Description
1.1 Notice ....................................................... 3
1.2 Introduction ........................................... 4
1.3 Codes Read ........................................... 4
1.4 Installation .............................................. 4
1.5 Pin Assignment ...................................... 6
Chapter 2 Configuration - General
2.1 Flow Chart ............................................. 8
2.2 Loop of Programming ........................... 9
2.3 Factory Default Settings ........................ 9
2.4 Main Page of Configuration................... 10
Chapter 3 Interface and Reading Mode
Selection
3.1 Interface Selection ................................. 11
3.2 Memory Function .................................... 11
3.3 Reading Mode Selection ........................ 12
Chapter 4 Communication Parameters
4.1 RS232 Mode Parameters ...................... 13
4.2 Keyboard Wedge Mode Parameters..... 15
4.3 Output Characters Parameters ............. 17
4.4 Wand Emulation Mode Parameters...... 19
Chapter 5 Bar Codes & Others
5.1 Symbologies Selection ......................... 20
5.2 UPC/EAN/JAN Parameters ................... 24
5.3 Code 39 Parameters ............................. 26
5.4 Code 128 Parameters ........................... 28
5.5 Interleave 25 Parameters ...................... 30
5.6 Industrial 25 Parameters ....................... 32
5.7 Matrix 25 Parameters ............................ 34
5.8 CODABAR/NW7 Parameters ............... 36
5.9 Code 93 Parameters ............................. 38
5.10 Code 11 Parameters ............................. 40
5.11 MSI/PLESSEY Code Parameters ......... 42
1
5.12 Code 2 of 6 Parameters ......................... 44
5.13 LCD 25 Parameters ............................. 46
5.14 Telepen Parameters ............................. 48
5.15 GS1 DataBar (RSS Code) ........................50
Chapter 6 Miscellaneous Parameters
6.1 Language Selection .............................. 52
6.2 Bar Code ID .......................................... 54
6.3 Reading Level ........................................ 57
6.4 Accuracy ............................................... 57
6.5 Buzzer Beep Tone ................................. 57
6.6 LED Control .......................................... 57
6.7 Same Code Delay Reading lnterval ...... 58
6.8 Notebook Function ................................ 58
6.9 Reverse Output Characters .................. 59
6.10 Set Up Deletion ...................................... 59
6.11 Set Up Insertion ................................... 62
6.12 Set Up IR Sensor ................................... 65
Appendix
A. Decimal Value Tables ............................ 67
B. ASCII Tables .......................................... 68
C. Function Key Tables .............................. 72
2
Chapter 1 Description
1.1 General
Thank you for purchasing this barcode scanner with
an advanced and versatile decoder.The decoder
works with variety of barcode types,reading devices,
and computer interfaces.It discriminates over twenty
different symbologies automatically.
This menu provides an easy way to configure the
decoding options and interface selections by scanning bar codes listed in the menu.
FCC Approval
This device had been tested in accordance with the procedures and in compliance with Part 15 Subpart B of FCC
Rules. And keeps all requirments according ANSI C63.4 &
FCC Part 15 B Regulation and CISPR22 Class B.
CE Standards
The CE mark as shown here indicates this product had
been tested in accordance with the procedures given in
European Council Directive 2004/108/EC and confirmed to
comply with the Europe Standard EN55022:2006:Class B,
EN 55024:1998+A1:2001+A2:2003,IEC61000-3-2:2006,
IEC61000-3-3:1995+A1:2005,IEC61000-4-2:2001,
IEC61000-4-3:2006,IEC61000-4-4:2004,IEC61000-4-5:
2006,IEC61000-4-6:2001,IEC61000-4-8:2001,IEC61000-411:2004.
LEGISLATION AND WEEE SYMBOL
This marking shown on the product or its literature,
indicates that it should not be disposed with other
households wastes at the end of its working life.To
prevent possible harm to the environment or human healthy from uncontrolled waste disposal,
please separate this from other types of wastes and
recyle it responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer
where they purchased this product,or their local
government office,for details of wher and how they
can take this item fore environm entally safe
recycling.Business users should contact their supplier and check the terms and conditions of the purchase
3
1.2 Introduction
The Decoder is an advanced and versatile
decoding facility for barcoding systems .It works
with variety of bar code types, reading devices,
and computer interfaces. It discriminates about
twenty different symbologies automatically.
This menu provide an easy way to config the
decoding options and interface selections by
scanning bar codes listed in the menu.
1.3 Codes Read
. Codes Read
ALL UPC/EAN/JAN , Code 39, Code 39 Full ASCII,
Code 128, Interleave 25, Industrial 25, Matrix 25,
CODABAR/NW7, Code 11, MSI/PLESSEY, Code
93, China Postage, Code32/Italian Pharmacy
Others available upon request.
1.4 Installation
Unpacking –
Remove the scanner from its packing and check it
for damage. If the scanner was defected in transit,
please contact your vendor immediately. Be sure
that you keep the packing with all accessories
contains in the package for your returning of
service.
Connecting the scanner –
Keyboard wedge/RS-232C/USB:
Connect the 10-pins RS-45 male connector into
the bottom of the scanner and you will hear a
“click” when the connection is made.
4
Power supply for RS-232C scanner–
There are 3 ways to supplying the power, use external +5V power supply, use optional power cable
(KBDC) which taking the power from KB wedge or
if the host supports +5V power from pin 9.
Installing the scanner to the Host System –
1. Turn off the host system.
2. Connect the power if needed.
3. Connect to the proper port on the host system.
4. Turn on the host system.
Switching cable –
Before removing the cable from the scanner, it is
recommended that the power on the host system
is off and the power supply has been disconnected
from unit.
1. Find the small “Pin-hole” on the bottom of the
unit.
2. Use a bended regular paperclip and insert the
tip into the hole.
3. You will head a “click”, then gentle on the strainrelief of the cable and it will slide out of the
scanner.
SG/LG Series
SD Series
5

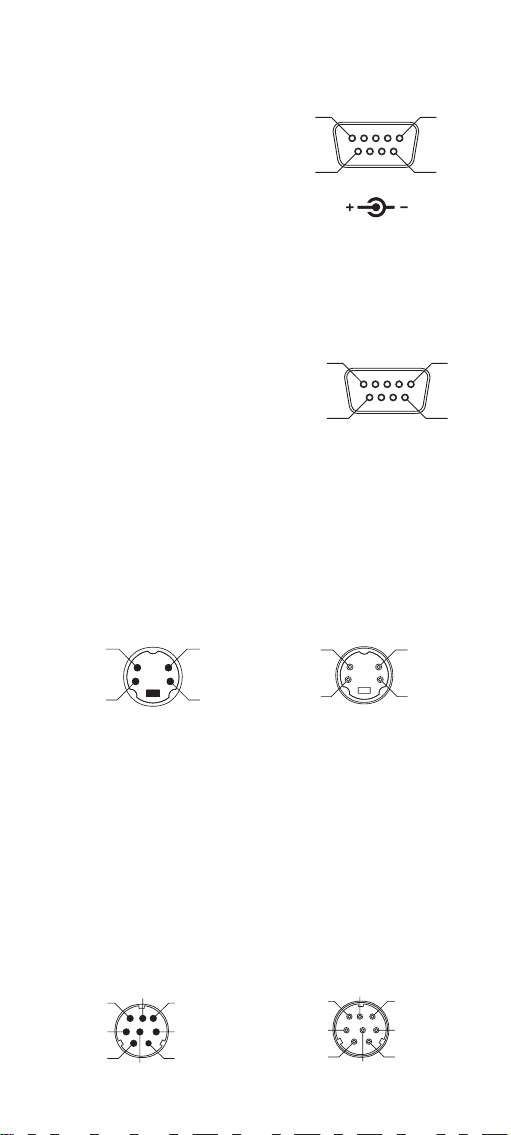

1.5 Pin Assignment
4
5
3
2
1
5
4
1
2
3
3
1
5
4
2
6
3
1
5
4
2
6
1
6
9
5
A> Input Port for Mini Decoder
DB 9 Male
Pin No. Wand / CCD /
Slot Reader Laser Scanner
1 N.C. S.O.S.
2 DATA DATA
3 N.C. N.C.
4 N.C. N.C.
5 N.C. TRIGGER
6 N.C. P. E.
7 GND GND
8 SHIELD SHIELD
9 +5V +5V
B> Output Port
1. PC Keyboard Output
DIN 5 MALE DIN 5 FEMALE
Pin No. Function Pin No. Function
1 HOST CLK 1 KB CLK
2 HOST DATA 2 KB DATA
4 GND 4 GND
5 Vcc(+5V) 5 Vcc(+5V)
MiniDIN 6 MALE MiniDIN 6 FEMALE
Pin No. Function Pin No. Function
1 HOST DATA 1 KB DATA
3 GND 3 GND
4 Vcc 4 Vcc
5 HOST CLK 5 KB CLK
6
6
1
5
9
1
2
4
3
1
3
2
4
6
7
8
5
2
1
3
4
2
5
1
3
8
7
6
4
6
1
5
9
2. RS-232 Output
DB 9 Female
Pin No. Function
2 TXD
3 RXD
5 GND
7 CTS
8 RTS
Power Lead Vcc (+5V)
3. WAND Emulation Output
DB 9 Female
Pin No. Function
2 DATA
7 GND
9 Vcc (+5V)
4. ADB Interface
MiniDIN 4 MALE MiniDIN 4 FEMALE
Pin No. Function Pin No. Function
1 ADB 1 ADB
3 Vcc 3 Vcc
4 GND 4 GND
5. NEC 9801 Interface
MiniDIN 8 MALE MiniDIN 8 FEMALE
Pin No. Function Pin No. Function
1 RST 1 RST
2 GND 3 GND
3 HOST RDY 4 KB RDY
4 HOST DATA 5 KB DATA
5 RTY 4 RTY
8 +5V 5 +5V
7
Chapter 2 Configuration - General
2.1 Flow Chart
8
2.2 Loop of Programming
The philosophy of programming parameters has
been shown on the flow chart of 2.1. Basically user
should
1.Scan Start of Configuration.
2.Scan all necessary labels for parameters that meet
applications.
3.Scan End of Configuration to end the programming.
4.To permanently save the settings you programmed
,just scan label for Save Parameters.
5.To go back to the Default Settings,just scan label
for Set All Defaults.
2.3 Factory Default Settings
The factory default settings are shown with <> and
bold in the following sections.You can make your
own settings by following the procedures in this
manual.If you want to save the settings permanently
,you should scan the label of "Save Parameters" in
chapter 2.4,otherwise the settings will not be saved
after the decoder power is off,and all settings will
go back to previous settings.
By scanning "Set All Default" label,the settings will
go back to the factory default settings.
9
%$ +/ 0
%$ +/ 1
%$ +/ 2
%$ +/ 3
%$ +/ 4
%$ +/ 6
%$ +/ 5

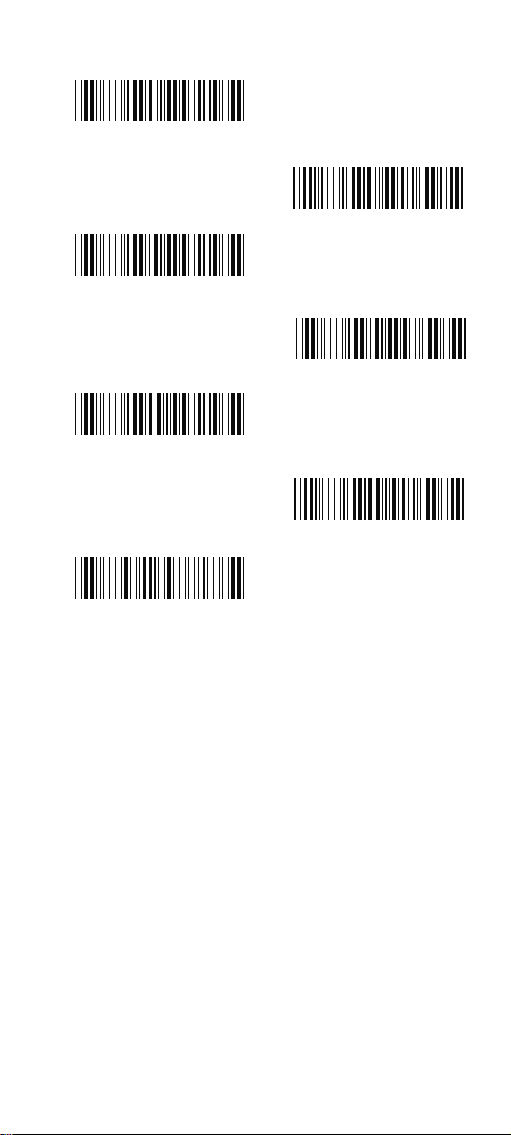

2.4 Main Page of Configuration
Save Parameters
Recall Stored
Parameters
Set All Defaults
Start Configuration
End Configuration
Abort Configuration
Version Information
Save Parameters -
The parameter settings will be saved permanently.
Recall Stored Parameters -
Replace the current parameters by the parameters
you saved last time.
Set All Defaults -
Set all the parameters to the factory default
settings.
Abort Configuration -
Terminate current programming status.
Version Information -
Display the decoder version information and date
code.
10
Chapter 3 Interface and
%0 0U0
%0 0U8
%0 0M2
%0 XI 2
%0 XI 0
%0 XO8
Reading Mode Selection
3.1 Interface Selection
<Keyboard Mode>
RS232 Mode
WAND Emulation
USB Mode
3.2 Memory Function<HC102M Only>
<Enable>
Disable
11

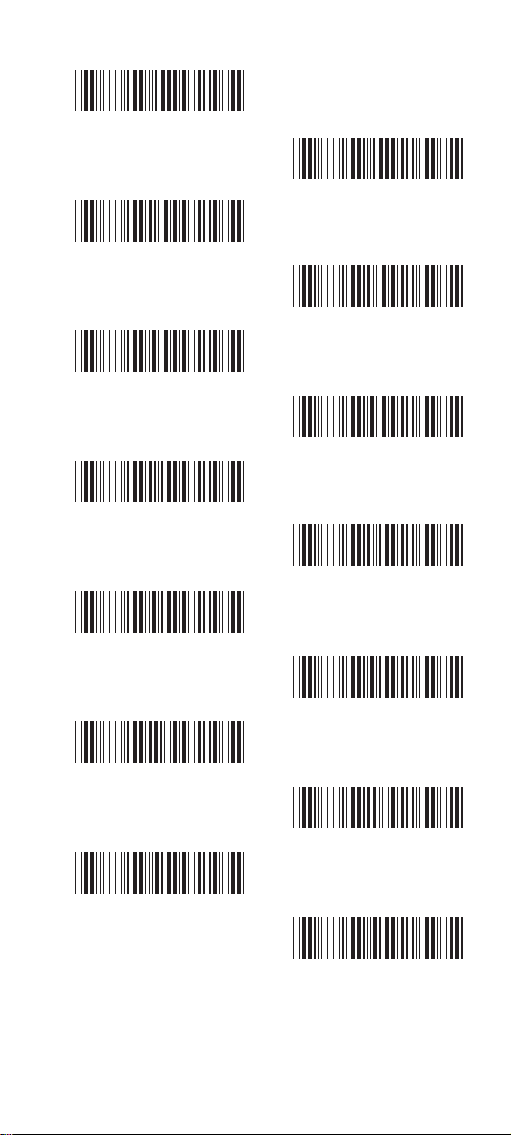

3.3 Reading Mode Selection
%0 27 1
%0 27 0
%0 27 2
%0 27 5
%0 27 3
%0 27 4
%0 27 6
%0 27 7
%0 9 F8
%0 9 F9
%0 9 FA
%0 9 FB
<Good Read OFF>
Trigger ON/OFF
Continuous/Trigger OFF
Testing
Continuous/Auto Power On
Flash
Flash/Auto Power On
Reserved 2 ( Auto Sense
Option)
Reserved4
12
Reserved1
Reserved3
Reserved5
Ch.4 Communication Parameters
%0 Y80
%0 Y88
%0 Y71
%0 Y72
%0 Y73
%0 Y77
%0 Y74
%0 YO8
%0 YO0
%0 Y7 5
4.1 RS232 Communication Parameters
A> Set Up BAUD Rate
1200
2400
4800
<9600>
19200
38400
B> Set Up Data Bits
7 Data Bits
C> Set Up Stop Bits
<1 Bit>
<8 Data Bits>
2 Bits
13
D> Set Up Parity
%0 YN7
%0 YN2
%0 YN3
%0 YN1
%0 YN0
%0 18 8
%0 18 0
%0 14 4
%0 14 0
%0 3K4
%0 3K0
<None>
Odd
Space
E> Handshaking
RTS/CTS Enable
Even
Mark
<RTS/CTS Disable>
ACK/NAK Enable
XON/XOFF Enable
<ACK/NAK Disable>
<XON/XOFF Disable>
14
4.2 Keyboard Wedge Mode Parameters
%0 ZF0
%0 ZF1
%0 ZF2
%0 ZF3
%0 ZF4
%0 ZF5
%0 ZF6
%0 ZF7
%0 ZF8
%0 ZF9
%0 ZFA
%0 ZFB
%0 ZFC
%0 ZFD
A> Terminal Type
<IBM PC/AT, PS/2>
IBM PC/XT
IBM PS/2 25, 30
NEC 9800
Apple Desktop Bus(ADB)
IBM 5550
IBM 122 Key (1)
IBM 102 Key
IBM 122 Key (2)
Reserved 2
Reserved 4
Reserved 1
Reserved 3
Reserved 5
15
B> Upper/Lower Case
%0 33 0
%0 33 1
%0 33 2
%0 X8 8
%0 X8 0
%0 3 O8
%0 3 O0
%0 1 K4
%0 1 K0
<No Change>
Lower Case
C> Capslock Detection
Enable
Upper Case
<Disable>
D> Send Character by ALT Method
Enable
<Disable>
E>Select Numerical Pad
ON
<OFF>
16

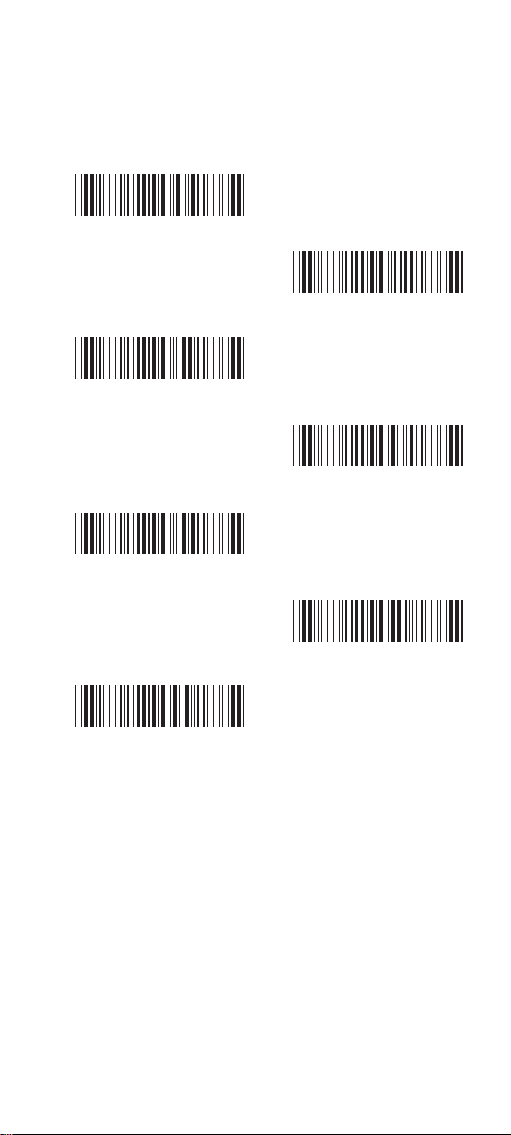

4.3 Output Characters Parameters
%7 S0+
%7 S2+
%7 S4+
%7 S5+
%7 S7+
%7 S1+
%7 S3+
A> Select Terminator
<CR+LF>
None
CR
LF
Space
HT(TAB)
STX-ETX
17
B> Time-out Between Characters
%0 07 0
%0 07 1
%0 07 2
%0 07 3
%0 07 4
%0 07 5
%0 07 6
%0 07 7
<0 ms>
5 ms
10 ms
25 ms
50 ms
100 ms
200 ms
300 ms
18
4.4 Wand Emulation Mode Parameters
%0 2K4
%0 2K0
%0 28 8
%0 28 0
%0 2O8
%0 2O0
%0 XK4
A> TTL Level Representation
<Bar Equals High>
Bar Equals Low
B> Scan Speed Selection
<Fast>
Slow
C> Output Format Selection
<Output as Code 39>
Output as Original
Code Format
Output as Code 39
Full ASCII
19
Ch.5 Bar Codes & Others
%0 A44
%0 A40
%0 BO8
%0 BO0
%0 A22
%0 A20
%0 A11
%0 A10
%0 EO8
%0 EO0
%0 FO8
%0 FO0
%0 J O8
%0 J O0

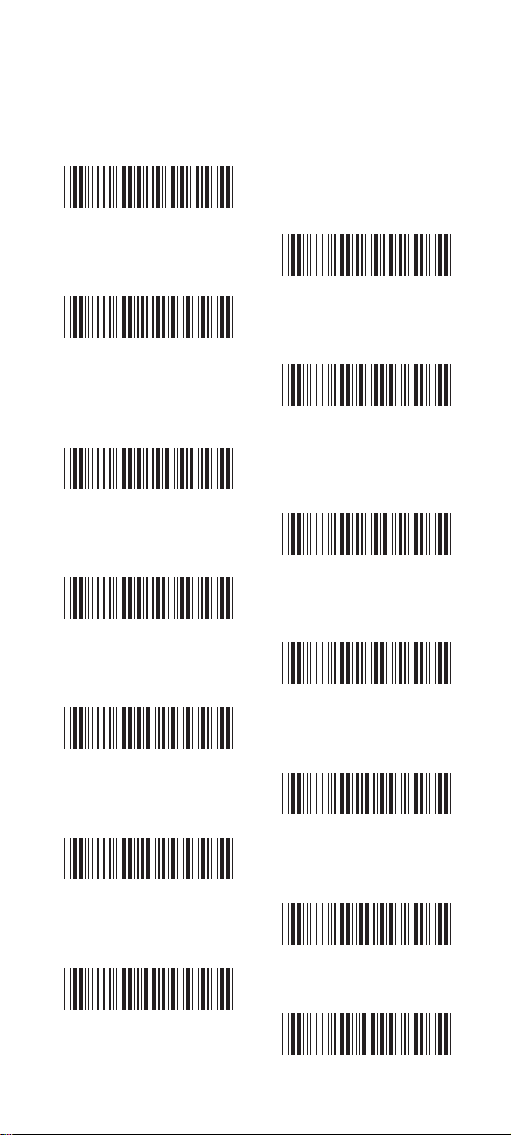

5.1 Symbologies Selection
UPC-A <ON>
OFF
UPC-E <ON>
OFF
EAN-13/JAN-13/ISBN-13
<ON>
OFF
EAN-8/JAN-8 <ON>
OFF
CODE 39 <ON>
CODE 128 <ON>
CODABAR/NW7 <ON>
OFF
OFF
OFF
20
Interleave 25 <ON>
%0 GO8
%0 GO0
%0 HO8
%0 HO0
%0 I O8
%0 I O0
%0 KO8
%0 KO0
%0 LO8
%0 LO0
%0 MO8
%0 MO0
%0 NO8
%0 NO0
Industrial 25 ON
Matrix 25 ON
CODE 93 ON
CODE 11 ON
OFF
<OFF>
<OFF>
<OFF>
China Postage ON
MSI/PLESSEY ON
<OFF>
<OFF>
<OFF>
21
Code 2 of 6 ON
%0 PO8
%0 PO0
%0 QO8
%0 QO0
%0 RO8
%0 RO0
%0 SO8
%0 SO0
%0 T O8
%0 T O0
<OFF>
LCD25 ON
<OFF>
Telepen ON
<OFF>
Reserved5 ON
<OFF>
Reserved6 ON
<OFF>
22
%0 UO8
%0 UO0
%0 VO8
%0 VO0
%1 A/ +
%0 WO8
%0 WO0
GS1 DataBar Omnidirectional ON
<OFF>
GS1 DataBar Limited ON
<OFF>
GS1 DataBar Expanded ON
<OFF>
Select All Bar Codes
23
5.2 UPC/EAN/JAN Parameters
%0 AK4
%0 AK0
%0 B88
%0 B80
%0 B44
%0 B40
%0 1O0
%0 1O8
%0 BH1
%0 BH0
%0 AO0
%0 X4 4
%0 X4 0
%0 AO8
A> Reading Type
UPCA=EAN13 ON
UPCA=EAN13<OFF>
ISBN-10 Enable
ISBN-13 <Enable>
ISSN Enable
ISSN <Disable>
Decode with Supplement
<Autodiscriminate
Supplement>
Expand UPC-E
Enable
Expand UPC-E
<Disable>
EAN8=EAN13
Enable
EAN8=EAN13
<Disable>
GTIN Format
Enable
GTIN Format
<Disable>
24
B> Supplementals Set Up
%0 AI 2
%0 AI 0
%0 BI 2
%0 BI 0
%0 AH1
%0 AH0
%0 A88
%0 A80
%0 B33
%0 B31
%0 B32
%0 B30
%0 BK4
%0 BK0
<Not Transmit>
Transmit 2 Code
Transmit 5 Code
Transmit 2&5 Code
C> Check Digit Transmission
UPC-A Check Digit
Transmission <ON>
OFF
UPC-E Check Digit
Transmission <ON>
OFF
EAN-8 Check Digit
Transmission <ON>
OFF
EAN-13 Check Digit
Transmission <ON>
OFF
ISSN Check Digit
Transmission <ON>
OFF
25
5.3 Code 39 Parameters
%0 EH1
%0 EH0
%0 E88
%0 E80
%0 EM2
%0 EM6
%0 EM4
%0 E44
%0 E40
A> Type of Code
<Standard>
Full ASCII
Italian Pharmacy/Code 32
<OFF>
Italian Pharmacy/
Code 32 ON
B> Check Digit Transmission
<Do Not Calculate
Check Digit>
Calculate Check Digit
& Transmit
Calculate Check Digit
& Not Transmit
C> Output Start/Stop Character
Enable
<Disable>
26
D> Decode Asterisk
%4 E1+
%4 E00
%4 E01
%4 E00
%4 E02
%2 C0 +
%2 +- /
%0 E2 0
%0 E2 2
Enable
<Disable>
E> Set Up Code Length
To set the fixed length:
1. Scan the "Begin" label of the desired set.
2. Go to the Decimal Value Tables in Appendix A,
scan label(s) that represents the length to be
read.
3. Scan the "Complete" label of the desired set.
Repeat the steps 1 - 3 to set additional lengths.
<Variable>
Fix Length (2 Sets Available)
1. 1st Set Begin 2. Decimal Value
(Appendix A)
3. 1st Set Complete
1. 2nd Set Begin 2. Decimal Value
(Appendix A)
3. 2nd Set Complete
Minimum Length
1. Begin 2. Decimal Value
(Appendix A)
3. Complete
27
5.4 Code 128 Parameters
%0 FN7
%0 FN5
%0 F8 8
%0 F8 0
%0 FN1
%0 F 4 4
%0 F 4 0
%0 F 2 2
%0 F 2 0
%0 F 1 1
%0 F 1 0
A> Reading Type
UCC/EAN-128
Enable
<UCC/EAN-128
Disable>
<Enable']C1'Code
Format>
Disable']C1'Code
Format
<Enable Code128 Group
Separators (GS)>
Disable Code128
Group Separators
(GS)
B> Check Digit Transmission
Do Not Calculate
Check Digit
Calculate Check
Digit & Transmit
<Calculate Check Digit
& Not Transmit>
C> Append FNC2
ON
<OFF>
28
D> Set Up Code Length
%4 F1 +
%4 F0 0
%4 F0 1
%4 F0 0
%4 F0 2
%2 +- /
%2 C1 +
To set the fixed length:
1. Scan the "Begin" label of the desired set.
2. Go to the Decimal Value Tables in Appendix A,
scan label(s) that represents the length to be
read.
3. Scan the "Complete" label of the desired set.
Repeat the steps 1 - 3 to set additional lengths.
<Variable>
Fix Length (2 Sets Available)
1. 1st Set Begin 2. Decimal Value
(Appendix A)
3. 1st Set Complete
1. 2nd Set Begin 2. Decimal Value
(Appendix A)
3. 2nd Set Complete
Minimum Length
1. Begin 2. Decimal Value
(Appendix A)
3. Complete
29
5.5 Interleave 25 Parameters
%0 GN3
%0 GN7
%0 GN5
%0 G8 8
%0 G8 0
%0 G40
%0 G44
A> Check Digit Transmission
<Do Not Calculate
Check Digit>
Calculate Check Digit
& Transmit
Calculate Check Digit
& Not Transmit
B> Set Up Number of Character
<Even>
Odd
C> Brazilian Banking Code
<Disable>
Enable
30

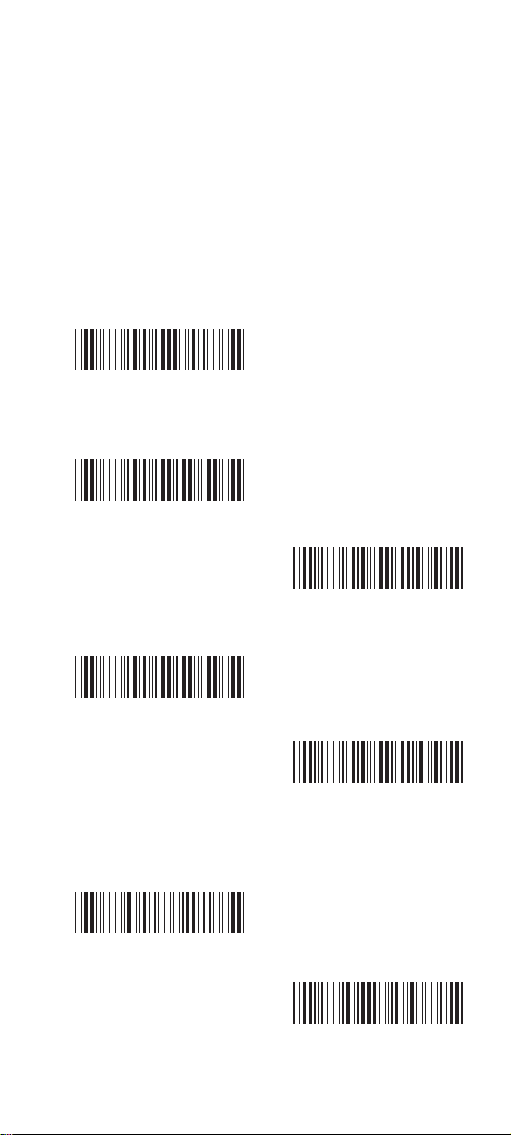

D> Set Up Code Length
%4 G1 +
%4 G0 0
%4 G0 1
%4 G0 0
%4 G0 2
%2 +- /
%2 C2 +
To set the fixed length:
1. Scan the "Begin" label of the desired set.
2. Go to the Decimal Value Tables in Appendix A,
scan label(s) that represents the length to be
read.
3. Scan the "Complete" label of the desired set.
Repeat the steps 1 - 3 to set additional lengths.
<Variable>
Fix Length (2 Sets Available)
1. 1st Set Begin 2. Decimal Value
(Appendix A)
3. 1st Set Complete
1. 2nd Set Begin 2. Decimal Value
(Appendix A)
3. 2nd Set Complete
Minimum Length
1. Begin 2. Decimal Value
(Appendix A)
3. Complete
31
5.6 Industrial 25 Parameters
%0 HN7
%0 HN5
%0 H4 4
%0 H4 0
%0 HN3
A> Reading type
IATA25 Enable
<Disable>
B> Check Digit Transmission
<Do Not Calculate
Check Digit>
Calculate Check Digit
& Transmit
Calculate Check Digit
& Not Transmit
C> Set Up Code Length
To set the fixed length:
1. Scan the "Begin" label of the desired set.
2. Go to the Decimal Value Tables in Appendix A,
scan label(s) that represents the length to be
read.
3. Scan the "Complete" label of the desired set.
Repeat the steps 1 - 3 to set additional lengths.
32
<Variable>
%4 H1 +
%4 H0 0
%4 H0 0
%4 H0 1
%4 H0 2
%2 +- /
%2 C3 +
Fix Length (2 Sets Available)
1. 1st Set Begin 2. Decimal Value
(Appendix A)
3. 1st Set Complete
1. 2nd Set Begin 2. Decimal Value
(Appendix A)
3. 2nd Set Complete
Minimum Length
1. Begin 2. Decimal Value
(Appendix A)
3. Complete
33

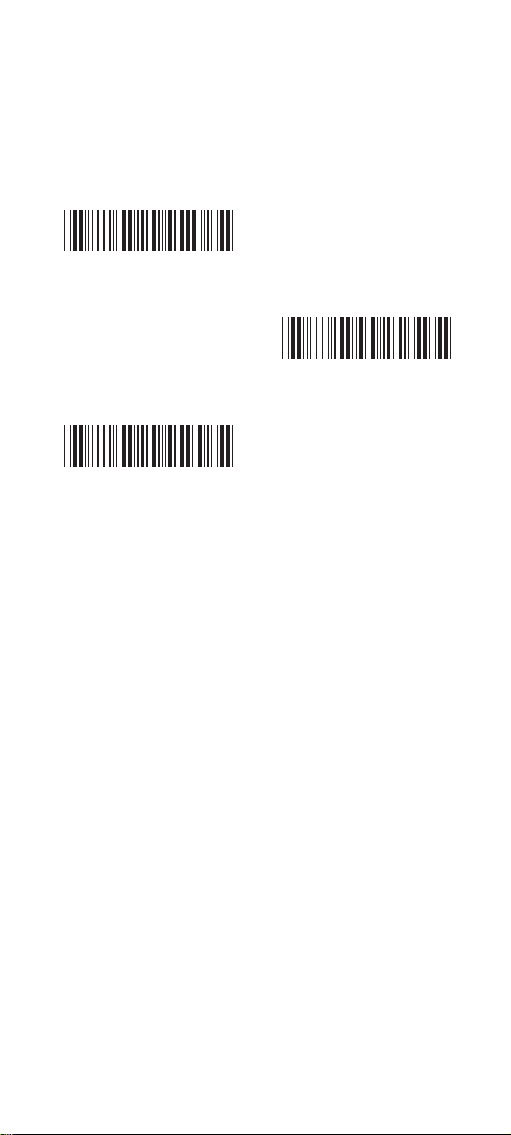

5.7 Matrix 25 Parameters
%0 I N3
%0 I N7
%0 I N5
A> Check Digit Transmission
<Do Not Calculate
Check Digit>
Calculate Check Digit
& Transmit
Calculate Check Digit
& Not Transmit
B> Set Up Code Length
To set the fixed length:
1. Scan the "Begin" label of the desired set.
2. Go to the Decimal Value Tables in Appendix A,
scan label(s) that represents the length to be
read.
3. Scan the "Complete" label of the desired set.
Repeat the steps 1 - 3 to set additional lengths.
34

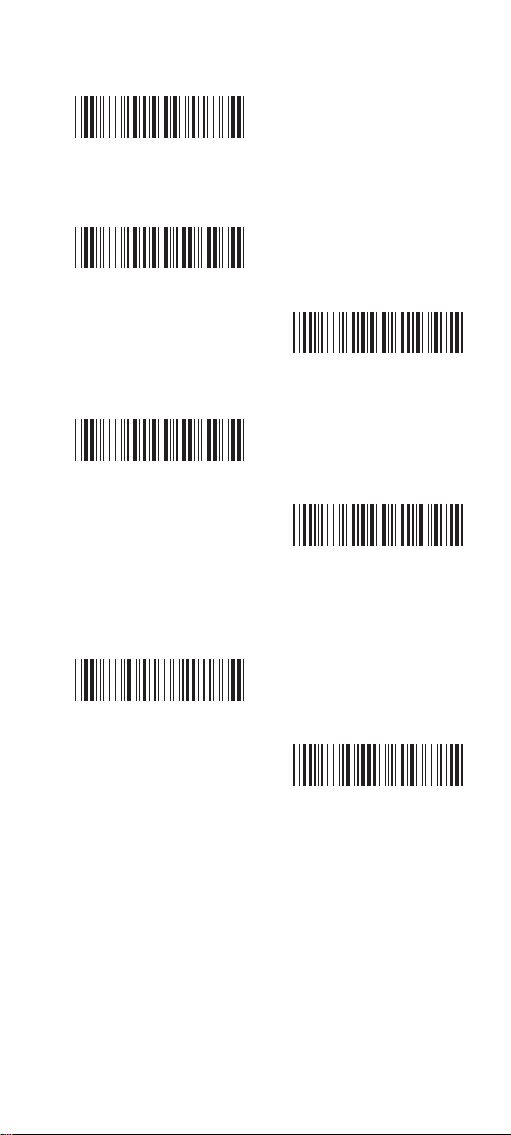

<Variable>
%4 I 1 +
%4 I 0 0
%4 I 0 0
%4 I 0 1
%4 I 0 2
%2 +- /
%2 C4 +
Fix Length (2 Sets Available)
1. 1st Set Begin 2. Decimal Value
(Appendix A)
3. 1st Set Complete
1. 2nd Set Begin 2. Decimal Value
(Appendix A)
3. 2nd Set Complete
Minimum Length
1. Begin 2. Decimal Value
(Appendix A)
3. Complete
35

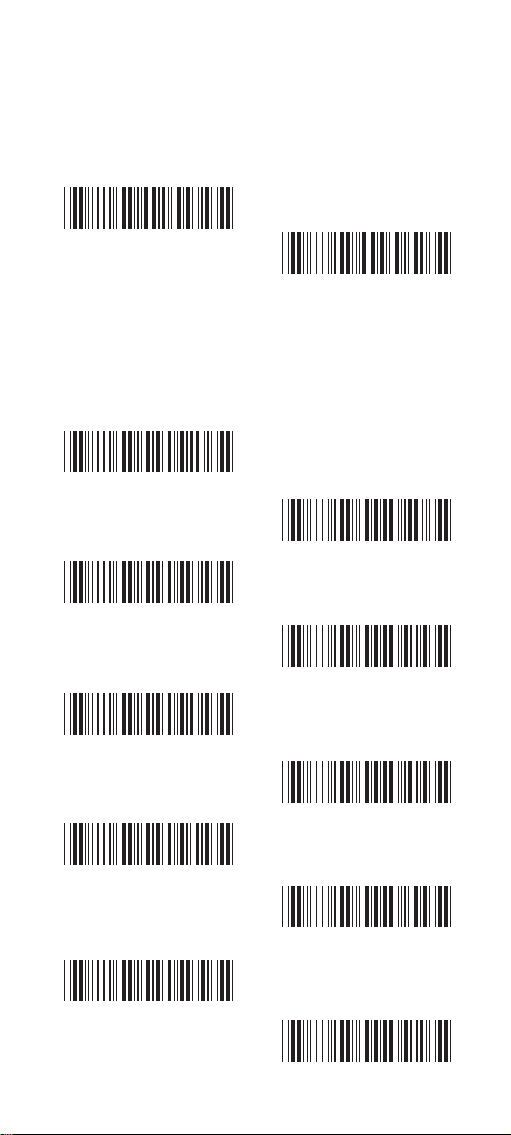

5.8 CODABAR/NW7 Parameters
%0 J H1
%0 J H0
%0 4VF
%0 4F F
%0 4V1
%0 4F 1
%0 4V2
%0 4F 2
%0 4V4
%0 4F 4
%0 4V8
%0 4F 8
A> Set Up Start/Stop Characters Upon
Transmission
ON
<OFF>
B> Transmission Type of Start/Stop
<A/B/C/D> <Start>
<A/B/C/D> <Stop>
A Start
A Stop
B Start
C Start
D Start
B Stop
C Stop
D Stop
36
C> Set Up Code Length
%4 J 1 +
%4 J 0 0
%4 J 0 0
%4 J 0 1
%4 J 0 2
%2 +- /
%2 C5 +
To set the fixed length:
1. Scan the "Begin" label of the desired set.
2. Go to the Decimal Value Tables in Appendix A,
scan label(s) that represents the length to be
read.
3. Scan the "Complete" label of the desired set.
Repeat the steps 1 - 3 to set additional lengths.
<Variable>
Fix Length (2 Sets Available)
1. 1st Set Begin 2. Decimal Value
(Appendix A)
3. 1st Set Complete
1. 2nd Set Begin 2. Decimal Value
(Appendix A)
3. 2nd Set Complete
Minimum Length
1. Begin 2. Decimal Value
(Appendix A)
3. Complete
37
5.9 Code 93 Parameters
%0 KN3
%0 KN4
A> Check Digit Transmission
<Calculate Check 2 Digits
& Not Transmit>
Do Not Calculate
Check Digit
B> Set Up Code Length
To set the fixed length:
1. Scan the "Begin" label of the desired set.
2. Go to the Decimal Value Tables in Appendix A,
scan label(s) that represents the length to be
read.
3. Scan the "Complete" label of the desired set.
Repeat the steps 1 - 3 to set additional lengths.
38
<Variable>
%4 K1+
%4 K00
%4 K00
%4 K01
%4 K02
%2 +- /
%2 C6 +
Fix Length (2 Sets Available)
1. 1st Set Begin 2. Decimal Value
(Appendix A)
3. 1st Set Complete
1. 2nd Set Begin 2. Decimal Value
(Appendix A)
3. 2nd Set Complete
Minimum Length
1. Begin 2. Decimal Value
(Appendix A)
3. Complete
39
5.10 Code 11 Parameters
%0 LN3
%0 LN7
%0 LN5
%0 LN6
%0 LN4
A> Check Digit Transmission
<Do Not Calculate
Check Digit>
Calculate Check 1
Digit & Transmit
Calculate Check 1 Digit
& Not Transmit
Calculate Check 2
Digits & Transmit
Calculate Check 2 Digits
& Not Transmit
B> Set Up Code Length
To set the fixed length:
1. Scan the "Begin" label of the desired set.
2. Go to the Decimal Value Tables in Appendix A,
scan label(s) that represents the length to be
read.
3. Scan the "Complete" label of the desired set.
Repeat the steps 1 - 3 to set additional lengths.
40
<Variable>
%4 L1 +
%4 L0 0
%4 L0 0
%4 L0 1
%4 L0 2
%2 +- /
%2 C7 +
Fix Length (2 Sets Available)
1. 1st Set Begin 2. Decimal Value
(Appendix A)
3. 1st Set Complete
1. 2nd Set Begin 2. Decimal Value
(Appendix A)
3. 2nd Set Complete
Minimum Length
1. Begin 2. Decimal Value
(Appendix A)
3. Complete
41
5.11 MSI/PLESSEY Code Parameters
%0 NN3
%0 NN7
%0 NN5
A> Check Digit Transmission
Do Not Calculate
Check Digit
Calculate Check Digit
& Transmit
<Calculate Check Digit
& Not Transmit>
B> Set Up Code Length
To set the fixed length:
1. Scan the "Begin" label of the desired set.
2. Go to the Decimal Value Tables in Appendix A,
scan label(s) that represents the length to be
read.
3. Scan the "Complete" label of the desired set.
Repeat the steps 1 - 3 to set additional lengths.
42
<Variable>
%4 N1 +
%4 N0 0
%4 N0 0
%4 N0 1
%4 N0 2
%2 +- /
%2 C9 +
Fix Length (2 Sets Available)
1. 1st Set Begin 2. Decimal Value
(Appendix A)
3. 1st Set Complete
1. 2nd Set Begin 2. Decimal Value
(Appendix A)
3. 2nd Set Complete
Minimum Length
1. Begin 2. Decimal Value
(Appendix A)
3. Complete
43
5.12 Code 2 of 6 Parameters
%0 PN3
%0 PN7
%0 PN5
A> Check Digit Transmission
<Do Not Calculate
Check Digit>
Calculate Check
Digit & Transmit>
Calculate Check Digit
& Not Transmit
B> Set Up Code Length
To set the fixed length:
1. Scan the "Begin" label of the desired set.
2. Go to the Decimal Value Tables in Appendix A,
scan label(s) that represents the length to be
read.
3. Scan the "Complete" label of the desired set.
Repeat the steps 1 - 3 to set additional lengths.
44
<Variable>
%2 +- /
%4 P1 +
%4 P0 0
%4 P0 1
%4 P0 0
%4 P0 2
%2 CB+
Fix Length (2 Sets Available)
1. 1st Set Begin 2. Decimal Value
(Appendix A)
3. 1st Set Complete
1. 2nd Set Begin 2. Decimal Value
(Appendix A)
3. 2nd Set Complete
Minimum Length
1. Begin 2. Decimal Value
(Appendix A)
3. Complete
45
5.13 LCD25 Parameters
%0 QN3
%0 QN7
%0 QN5
A> Check Digit Transmission
<Do Not Calculate
Check Digit>
Calculate Check Digit
& Transmit
Calculate Check
Digit & Not Transmit
B> Setup Code Length
To set the fixed length:
1. Scan the "Begin" label of the desired set.
2. Go to the Decimal Value Tables in Appendix A,
scan label(s) that represents the length to be
read.
3. Scan the "Complete" label of the desired set.
Repeat the steps 1 - 3 to set additional lengths.
46

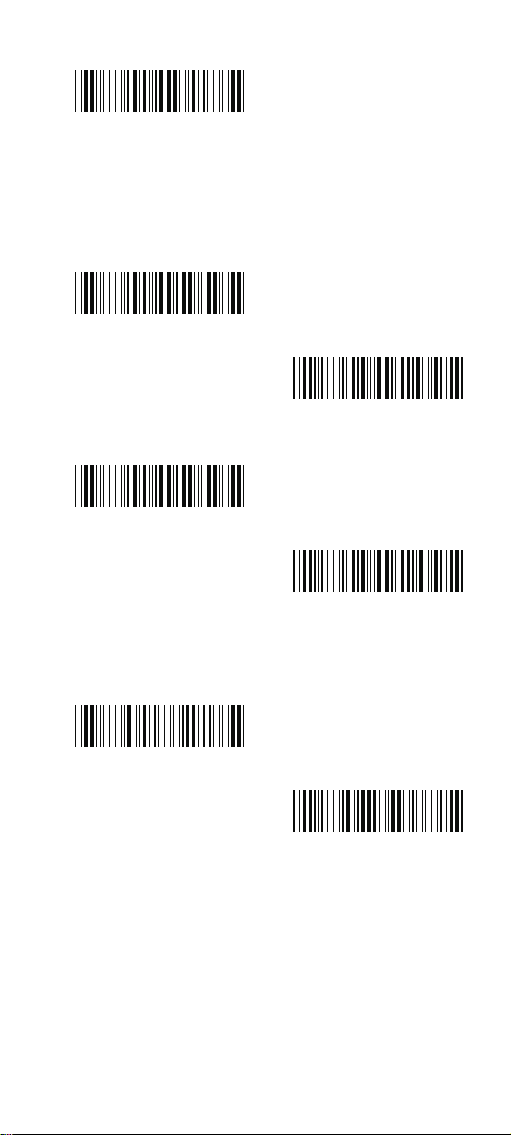

<Variable>
%2 + - /
%4 Q1+
%4 Q00
%4 Q01
%4 Q00
%4 Q02
%2 CC+
Fix Length (2 Sets Available)
1. 1st Set Begin 2. Decimal Value
(Appendix A)
3. 1st Set Complete
1. 2st Set Begin 2. Decimal Value
(Appendix A)
3. 2nd Set Complete
Minimum Length
1. Begin 2. Decimal Value
(Appendix A)
3. Complete
47
5.14 Telepen Parameters
%0 T 8 0
%0 T 8 8
%0 T N3
%0 T N7
%0 T N5
A> Type of Code
<Full ASCll Mode>
Compressed Numeric
Mode
B> Check Digit Transmission
Do Not Calculate
Check Digit
Calculate Check
Digit & Transmit
<Calculate Check Digit
& Not Transmit>
C> Set Up Code Length
To set the fixed length:
1. Scan the "Begin" label of the desired set.
2. Go to the Decimal Value Tables in Appendix A,
scan label(s) that represents the length to be
read.
3. Scan the "Complete" label of the desired set.
Repeat the steps 1 - 3 to set additional lengths.
48

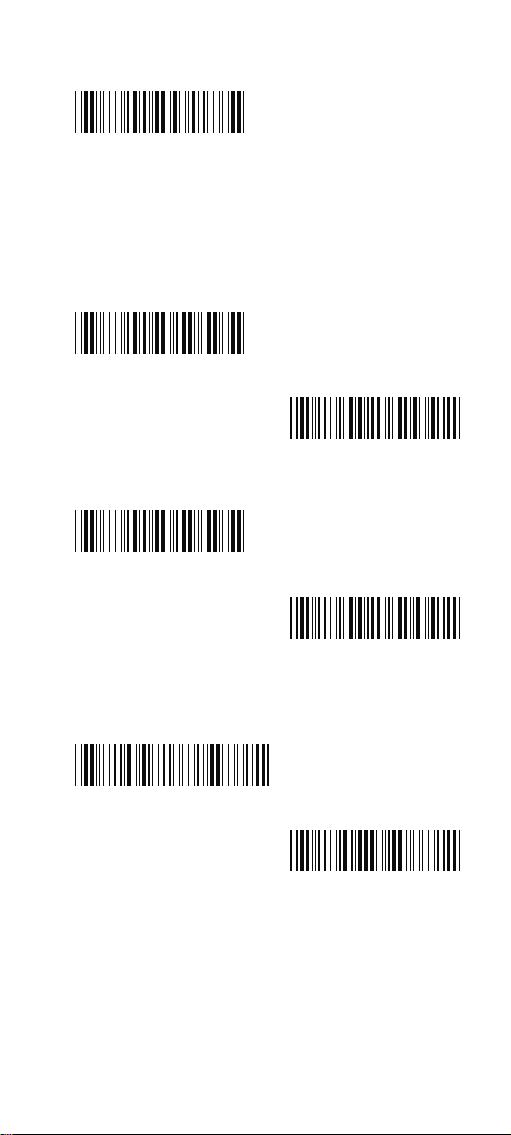

<Variable>
%4 T 1 +
%4 T 0 0
%4 T 0 1
%4 T 0 0
%4 T 0 2
%2 %+ - /
%2 CF+
Fix Length (2 Sets Available)
1. 1st Set Begin 2. Decimal Value
(Appendix A)
3. 1st Set Complete
1. 2nd Set Begin 2. Decimal Value
(Appendix A)
3. 2nd Set Complete
Minimum Length
1. Begin 2. Decimal Value
(Appendix A)
3. Complete
49
5.15 GS1 Databar(RSS Code)
%0 UN7
%0 UN5
%0 U8 8
%0 U8 0
%0 U4 4
%0 U4 0
%0 VN7
%0 VN5
A> GS1 DataBar Omnidirectional ON
<Transmit Check
Digit>
Don't Transmit
Check Digit
<Transmit
Application ID>
Don't Transmit
Application ID
Transmit Symbology ID
<Don't Transmit
Symbology ID>
B> GS1 DataBar Limited Parameters
<Transmit Check
Digit>
Don't Transmit
Check Digit
50

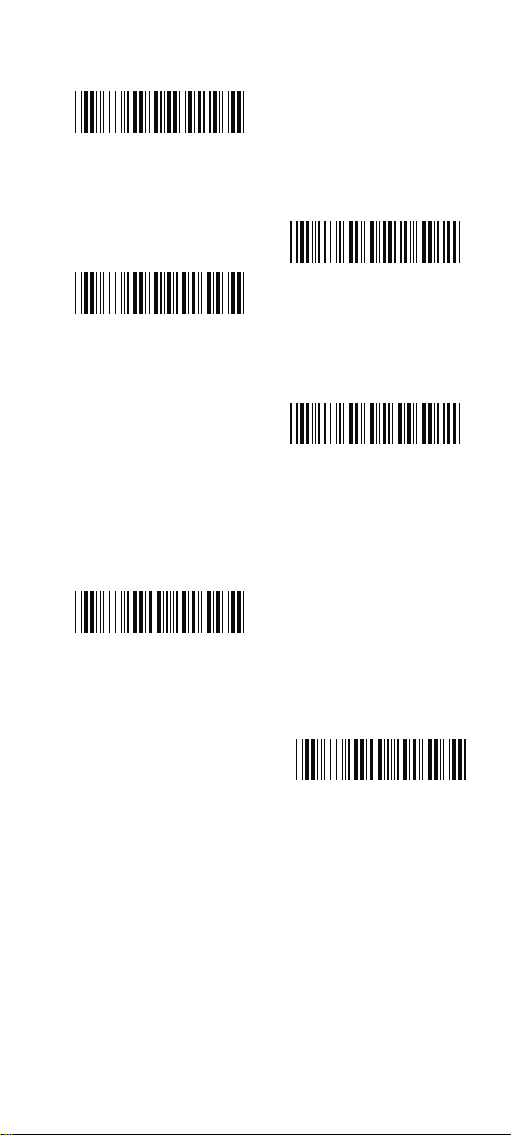

<Transmit Application ID>
%0 V8 8
%0 V8 0
%0 V4 4
%0 V4 0
%0 W4 4
%0 W4 0
Don't Transmit
Application ID
Transmit Symbology ID
<Don't Transmit
Symbology ID>
C> GS1 DataBar Expanded Parameters
Transmit Symbology ID
<Don't Transmit
Symbology ID>
51
Ch.6 Miscellaneous Parameters
%0 ZV0
%0 ZV1
%0 ZV2
%0 ZV3
%0 ZV4
%0 ZV5
%0 ZV6
%0 ZV7
%0 ZV8
%0 ZV9

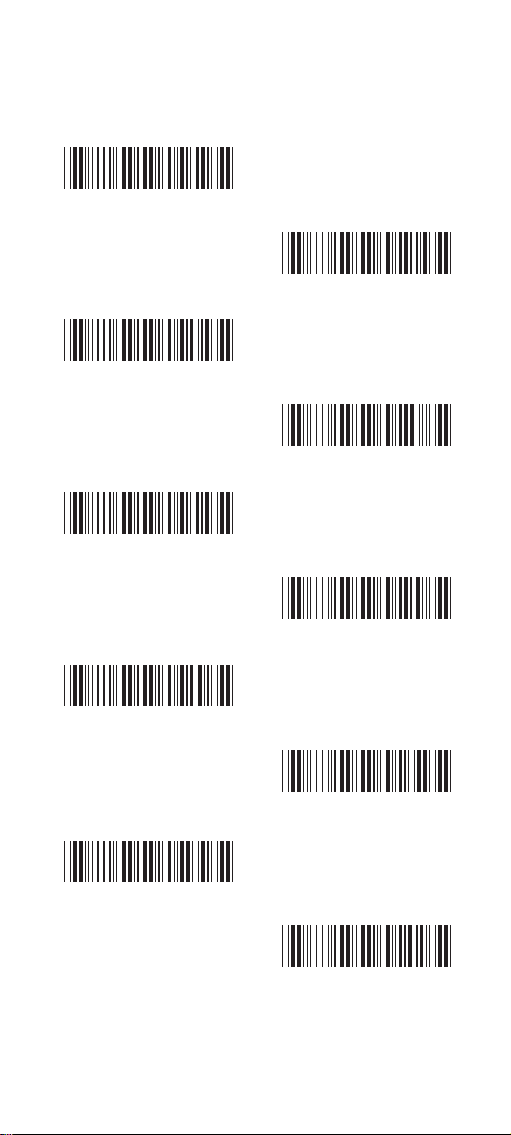

6.1 Language Selection
<US English>
UK English
Italian
Spanish
French
German
Swedish
Hungarian
Switzerland
Japanese
52
Belgium
%0 ZVA
%0 ZVB
%0 ZVC
%0 ZVD
%0 ZVE
%0 ZVF
Denmark
Turkey
Portuguese
Netherlands
Reserved2
53

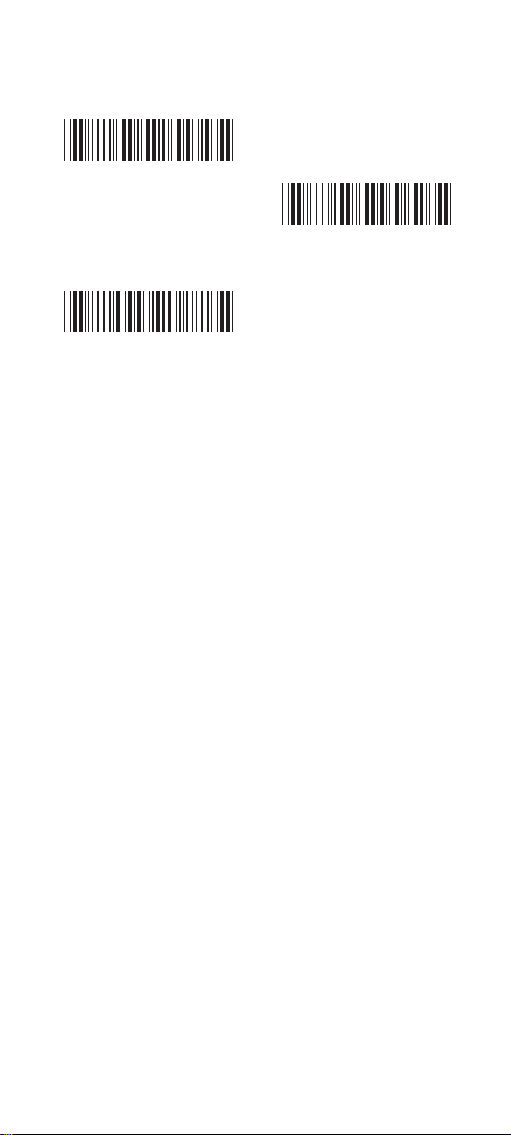

6.2 Bar Code ID
%0 0H1
%0 0H0
%9 13 +
ON
<OFF>
Default
With this function ON, a leading character will be
added to the output string while scanning code, user
may refer to the following table to know what kind of
bar code is being scanned.
Please refer to the table below for matching code
ID of codes read in.
Code Type ID Code Type ID
UPC-A A UPC-E B
EAN-8 C EAN-13 D
CODE 39 E CODE 128 F
Interleave 25 G Industrial 25 H
Matrix 25 I Codabar/NW7 J
CODE 93 K CODE 11 L
China Postage M MSI/PLESSEY N
Code 2 of 6 P LCD25 Q
Telepen T RSS-14 U
RSS Limited V RSS Expanded W
User Define Code ID
To set the code ID:
1. Scan the symbologies label.
2. Go to the ASCII Tables in Appendix B, scan
label that represents the desired code ID.
Note:
User define code ID will override default value.
Program will not check the conflict. It is possible
to have more than two symbologies which have
same code ID.
54

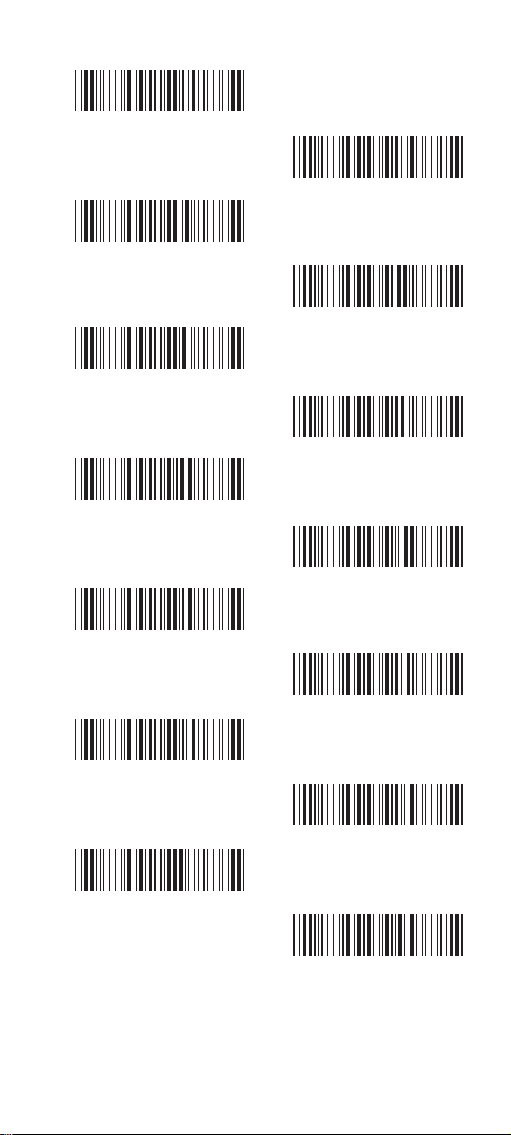

UPC-A
%9 1A+
%9 1B+
%9 1Y+
%9 1Z +
%9 1E+
%9 1F +
%9 1G+
%9 1H+
%9 1I +
%9 1J +
%9 1K+
%9 1L +
%9 1M+
%9 1N+
UPC-E
EAN-13/JAN-13
EAN-8/JAN-8
CODE 39
CODE 128
CODABAR/NW7
Interleave 25
Industrial 25
CODE 93
China Postage
Matrix 25
CODE 11
MSI/PLESSEY
55
Code 2 of 6
%9 1P+
%9 1R+
%9 1S+
%9 1 T+
%9 1 Q+
%9 1 U+
%9 1 V+
%9 1 W+
Telepen
LCD25
RSS-14
RSS Limited
RSS Expanded
Reserved5
Reserved6
56
6.3 Reading Level
%0 13 0
%0 13 1
%0 13 2
%0 13 3
%0 1J 3
%0 1J 2
%0 1J 1
%0 1J 0
%0 3I 0
%0 3I 2
%0 9 O8
%0 9 O0
Bar Equals High
6.4 Accuracy
<1 Time>
3 Times
6.5 Buzzer Beep Tone
<High>
<Bar Equals Low>
2 Times
4 Times
Medium
Low
Off
6.6 LED Control(SV700 only)
<ON>
OFF
57
6.7 Sensitivity of Continuous Reading Mode
%0 38 8
%0 38 0
%0 34 4
%0 34 0
%3 0 0 00
%3 0 0 01
A> Quick Setting:
<Fast>
Slow
B> Same Code Delay Reading Interval
Following code sequences represent the
length of time before a barcode can be
rescanned at continuous and flash reading
mode. The value can be defined from 1-50
and they represent 100ms to 5 seconds in
100ms interval.Default value is 3 (0.3 seconds).
To setup same code delay reading interval:
1.Scan the "Begin" label
2.Go the Decimal Value Tables in Appendix A,
Scan label(s),that represents the same code
delay reading interval.They are ranged form
1-50.One step is represented 0.1second.So
the interval is from 0.1 to 5 seconds.
3.Scan the "Complete" label
Repeat the steps 1-3 to set time out of same
symbol
1.Begin 2.Decimal Value
(1-50) (Appendix A)
3.Complete
6.8 Notebook Function
Enable
<Disable>
58
6.9 Reverse Output Characters
%0 3H0
%8 00 +
%8 01 +
%8 02 +
%8 03 +
%8 04 +
%8 05 +
%0 3H1
<Disable>
Enable
6.10 Setup Deletion
To setup the deletion of output characters:
1. Scan the label of the desired set below.
2. Scan the label of the desired symbology.
3. Go to the Decimal Value Tables in Appendix A,
scan label(s) that represents the desired
position to be deleted.
4. Scan the "Complete" label of "Character Position
to be Deleted".
5. Go to the Decimal Value Tables in Appendix A,
scan label(s) that represents the number of
characters to be deleted.
6. Scan the "Complete" label of "Number of
Characters to be Deleted".
Repeat the steps 1 - 6 to set additional deletion.
A> Select Deletion Set Number
1. 1st Set
2. 2nd Set
3. 3rd Set
4. 4th Set
5. 5th Set
6. 6th Set
59
B> Symbologies Selection
%8 1A+
%8 1B+
%8 1Y+
%8 1Z +
%8 1E+
%8 1F +
%8 1J +
%8 1G+
%8 1H+
%8 1I +
%8 1K+
%8 1L +
%8 1M+
%8 1N+
UPC-A
UPC-E
EAN-13/JAN-13/ISBN-13
EAN-8/JAN-8
CODE 39
CODE 128
CODABAR/NW7
Interleave 25
Industrial 25
CODE 93
China Postage
Matrix 25
CODE 11
MSI/PLESSEY
60
Code 2 of 6
%8 1P+
%8 1S+
%8 20 +
%8 30 +
%8 14 +
%8 1 T+
%8 1 Q+
%8 1 U+
%8 1 V+
%8 1 W+
Telepen
LCD25
RSS-14
RSS Limited
RSS Expanded
All Codes
None
C> Character Position to be Deleted
1. Decimal Value
(Appendix A) 2. Complete
D> Number of Characters to be Deleted
1. Decimal Value
(Appendix A) 2. Complete
61
6.11 Setup Insertion
%5 00 +
%5 02 +
%5 03 +
%5 04 +
%5 05 +
%5 01 +
To setup the insertion of output characters:
1. Scan the label of the desired set.
2. Scan the label of the desired symbology.
3. Go to the Decimal Value Tables in Appendix A, scan
label(s) that represents the desired position to be
inserted.
4. Scan the "Complete" label of "Character Position
to be Inserted".
5. Go to the ASCII Tables in Appendix B or Function
Key Tables in Appendix C, scan label(s) that
represents the desired characters to be inserted.
6. Scan the "Complete" label of "Characters to be
Inserted".
Repeat the steps 1 - 6 to set additional insertion.
A> Select Insertion Set Number
1. 1st Set
3. 3rd Set
5. 5th Set
2. 2nd Set
4. 4th Set
6. 6th Set
62

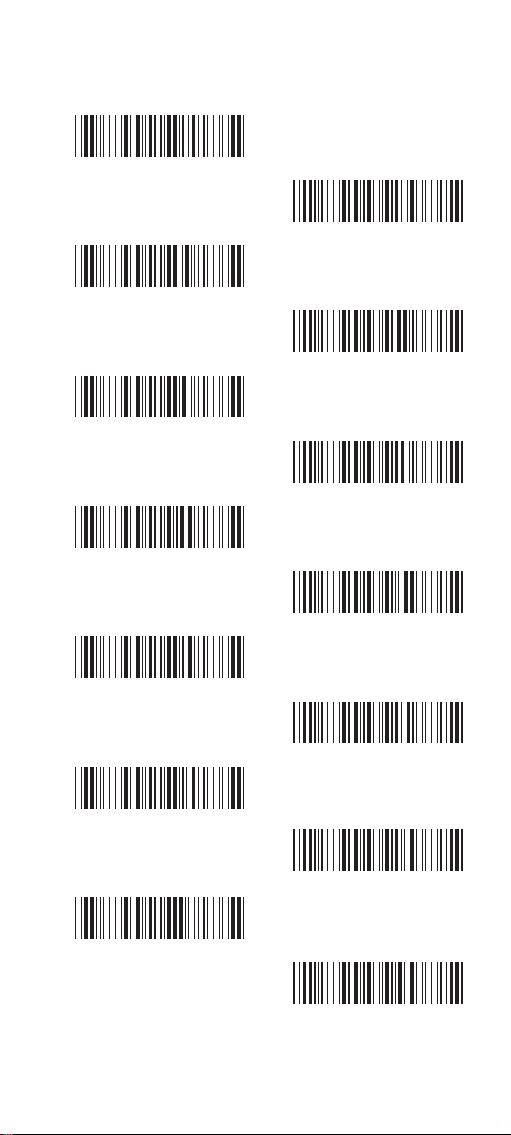

B> Symbologies Selection
%5 1A+
%5 1B+
%5 1Y+
%5 1Z +
%5 1E+
%5 1F +
%5 1G+
%5 1J +
%5 1H+
%5 1I +
%5 1K+
%5 1L +
%5 1M+
%5 1N+
UPC-A
UPC-E
EAN-13/JAN-13/ISBN-13
EAN-8/JAN-8
CODE 39
CODE 128
CODABAR/NW7
Interleave 25
Industrial 25
CODE 93
China Postage
Matrix 25
CODE 11
MSI/PLESSEY
63
Code 2 of 6
%5 20 +
%5 30 +
%5 14 +
%5 1S+
%5 1 P+
%5 1 T+
%5 1 Q+
%5 1 U+
%5 1 V+
%5 1 W+
Telepen
LCD25
RSS-14
RSS Limited
RSS Expanded
All Codes
None
C> Character Position to be Inserted
1. Decimal Value
(Appendix A) 2. Complete
D> Characters to be Inserted
1. ASCII Table
(Appendix B) 2. Complete
64
6.12 Setup IR Sensor (LG303 only)
%0 XH0
%0 XH1
<Disable>
Enable
65

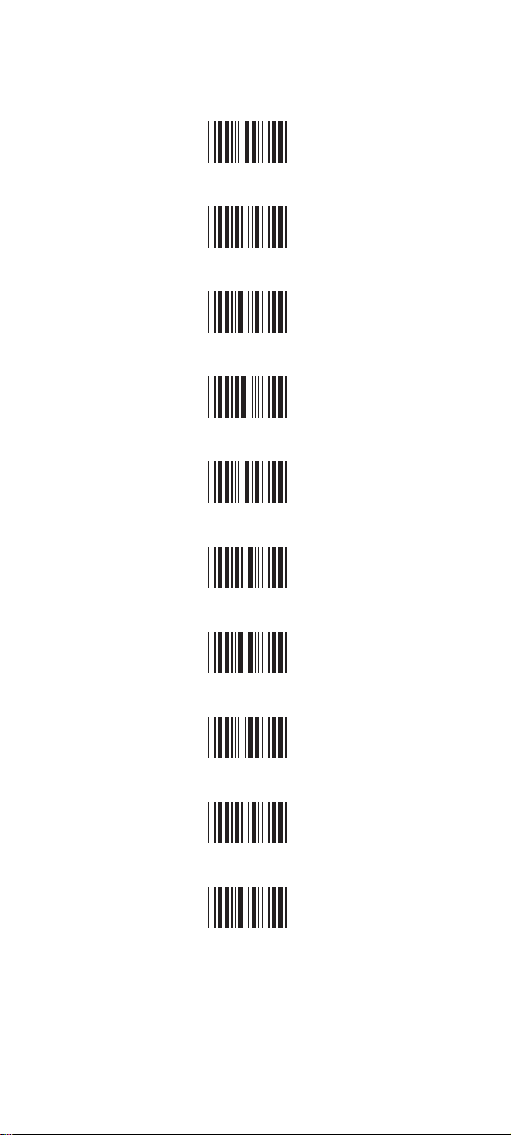

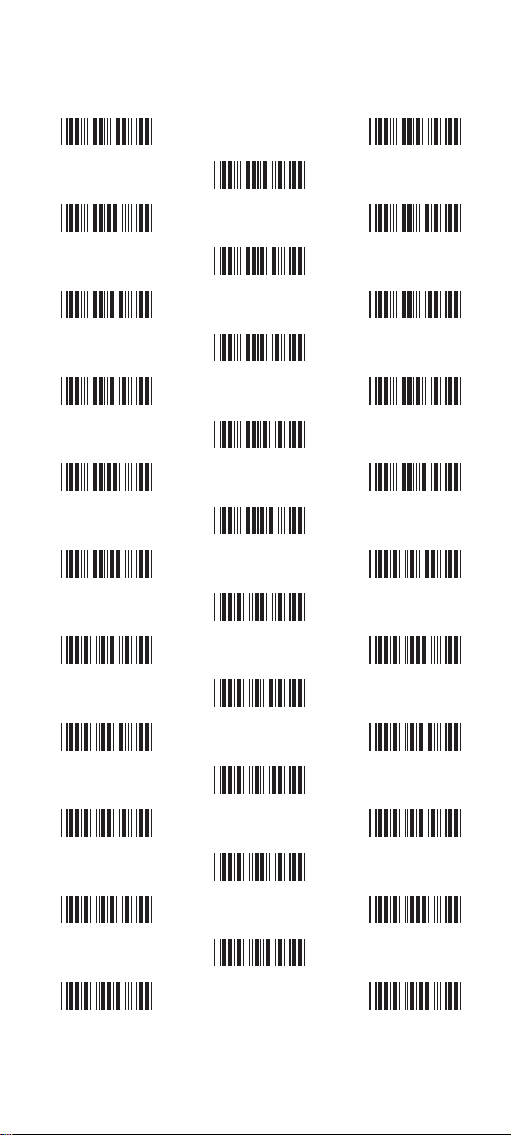

Appendix A Decimal Value Table
8
0
1
2
3
4
567
9
66

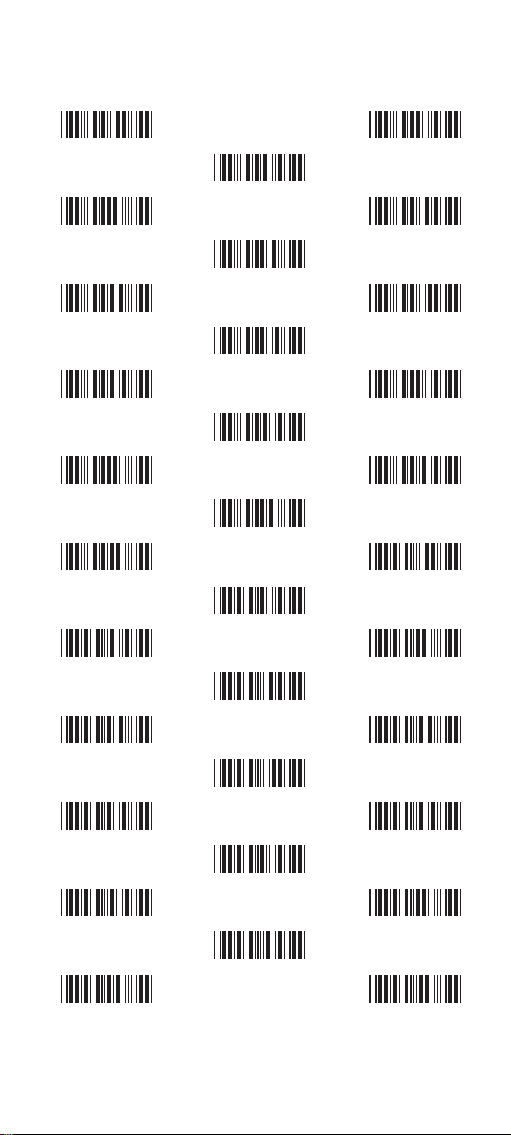

Appendix B ASCII Table
03000201040506
07
08090A
0B
0C0D0E0F1011121314
15
16
171819
1A
1B
1C
1D1E1F
NULL SOH
STX
ETX EOT
ENQ
ACK BEL
BS
HT LF
VT
FF CR
SO
SI DLE
DC1
DC2 DC3
DC4
NAK SYN
ETB
CAN EM
SUB
ESC FS
GS
RS US
67
SPACE !
20
21
2223242526
27
28292A
2B
2C2D2E2F3031323334
35
36
373839
3A
3B
3C
3D3E3F
"
# $
%
& '
(
) *
+
, -
.
/ 0
1
2 3
4
5 6
7
8 9
:
; <
=
> ?
68
@ A
40
414243
44
454647
48494A4B4C4E4D4F505152535455565758595A
5B
5C
5D
5E
5F
B
C D
E
F G
H
I J
K
L M
N
O P
Q
R S
T
U V
W
X Y
Z
[ \
]
^ _
69
` a
60
616263
64
656667
68696A6B6C6D6E6F707172737475767778797A
7B
7C
7D
7E
7F
b
c d
e
f g
h
i j
k
l m
n
o p
q
r s
t
u v
w
x y
z
{ |
}
~ DEL
70

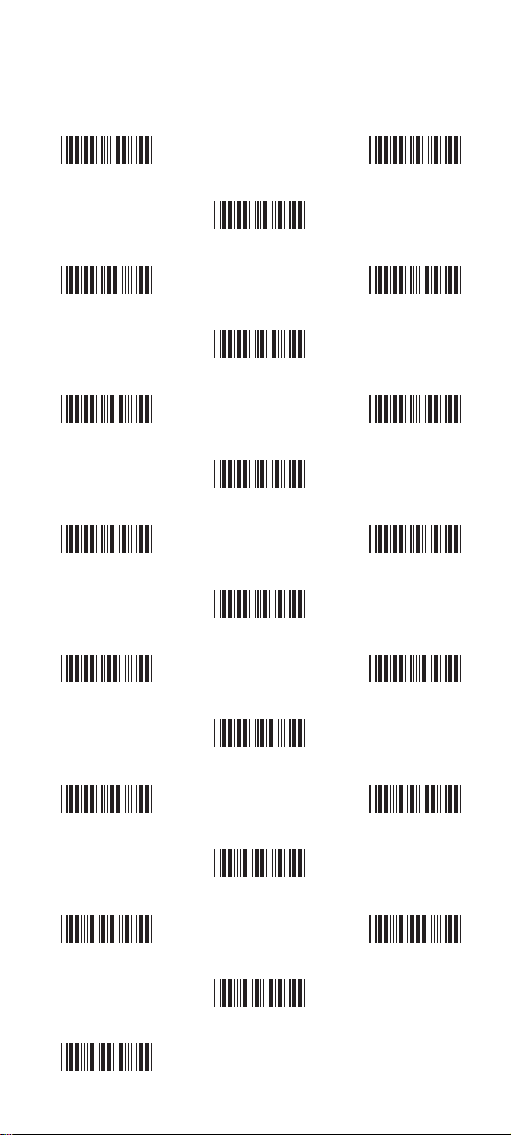

Appendix C Function Key Table
C1
C0
C2C3C4
C5C6C7
C8
C9
CA
CBCCCD
CE
CF
D0
D1
D2D3D4
D5
F1 F2
F3
F4 F5
F6
F7 F8
F9
F10 F11
F12
Insert Delete
Home
Page Up Page Down
End
Left Right
Up
Down
71
Save Parameters
Recall Stored
Parameters
SetAll Defaults
Start Configuration
End Configuration
Abort Configuration
VersionInformation
%$ + / 0
%$ + / 1
%$ + / 2
%$ + / 3
%$ + / 4
%$ + / 6
%$ + / 5
Ver 3.8 a
0145-85E00J1
Loading...
