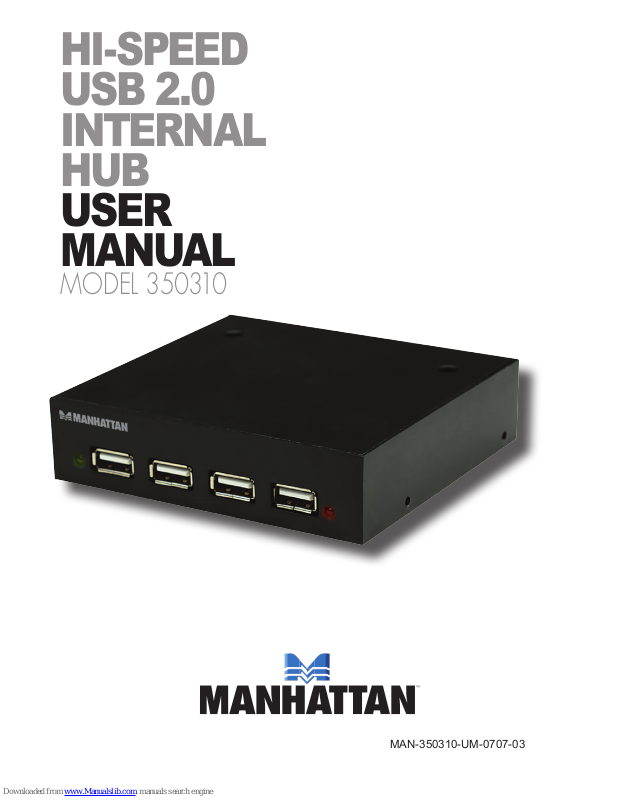

Page 1
HI-SPEED
USB 2.0
INTERNAL
HUB
USER
MANUAL
Model 350310
MAN-350310-UM-0707-03
Page 2
Thank you for purchasing the MANHATTAN® Hi-Speed USB 2.0 Internal
Hub, Model 350310.
Easily converting an empty, unused 3.5” bay into a four-port Hi-Speed
USB 2.0 hub, this device brings USB convenience to the front of a
desktop computer to quickly add USB digital cameras, ash drives,
external hard-drive enclosures and more. It’s an ideal desktop computer
upgrade that provides handy USB connections without the nuisance of
moving the PC case for rear-panel access or disconnecting cables and
devices to free a port. USB 1.1 compatibility supports older devices and
provides Hi-Speed USB 2.0 data transfer speeds up to 480 Mbps.
Installation is simple with Plug and Play and hot-swappable capabilities.
System Requirements
• Windows 98SE/Me/2000/XP/Vista/7 or Mac OS 8.6 or above
Package Contents
• Hi-Speed USB 2.0 Internal Hub
• USB, power supply cables and mounting screws
• User manual
USB
connections
Page 3
NOTE: If, after connecting the internal hub to one or more peripheral
devices, any of the ports fail to work normally, disconnect the device(s), as
the failure may be momentary due to excessive current. Reconnect the
device(s) to allow the hub to recover and operate normally.
SPECIFICATIONS
Hub
• OHCI and EHCI host controller
core share root hub with
downstream ports
• Bus power mode only
• Genesys chipset, GL850
Cables
• USB A-type male to 4-pin Molex
female, 60 cm (2 ft.)
• Power to 4-pin Molex cable,
20 cm (8 in.)
General
• Transfer speeds up to 480 Mbps
• Supports up to 127 USB devices
• Backwards compatible with USB
1.1 devices
• LED indicators
• Compatible with Windows 2000/
XP/Vista/7; Mac OS 8.6 or above
• USB A-type male to 4-pin Molex
cable, 85 cm (33 in.)
• Power cable, 4-pin Molex male to
4-pin Molex, 20 cm (8 in.)
• 10.2 x 2.56 x 9.5 cm (4 x 1 x 3.75
in.); 108 g (3.8 oz.)
