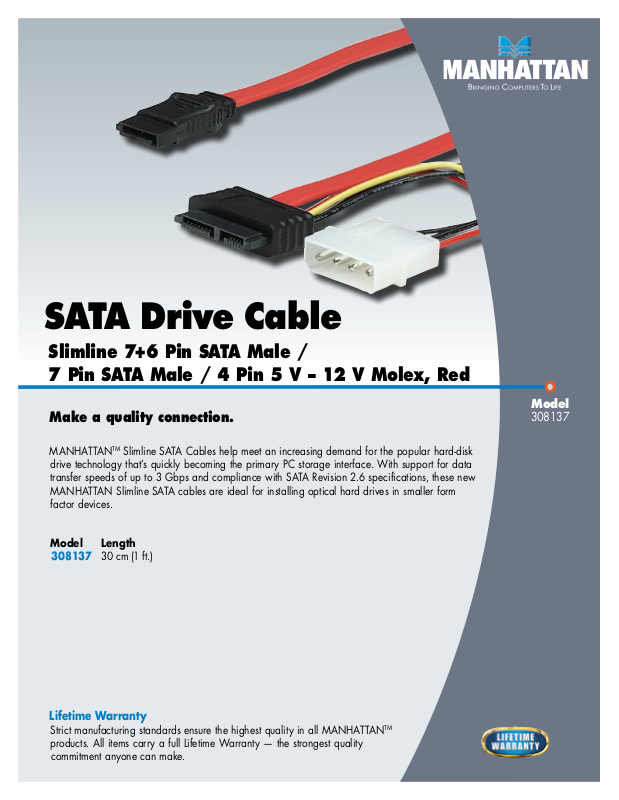

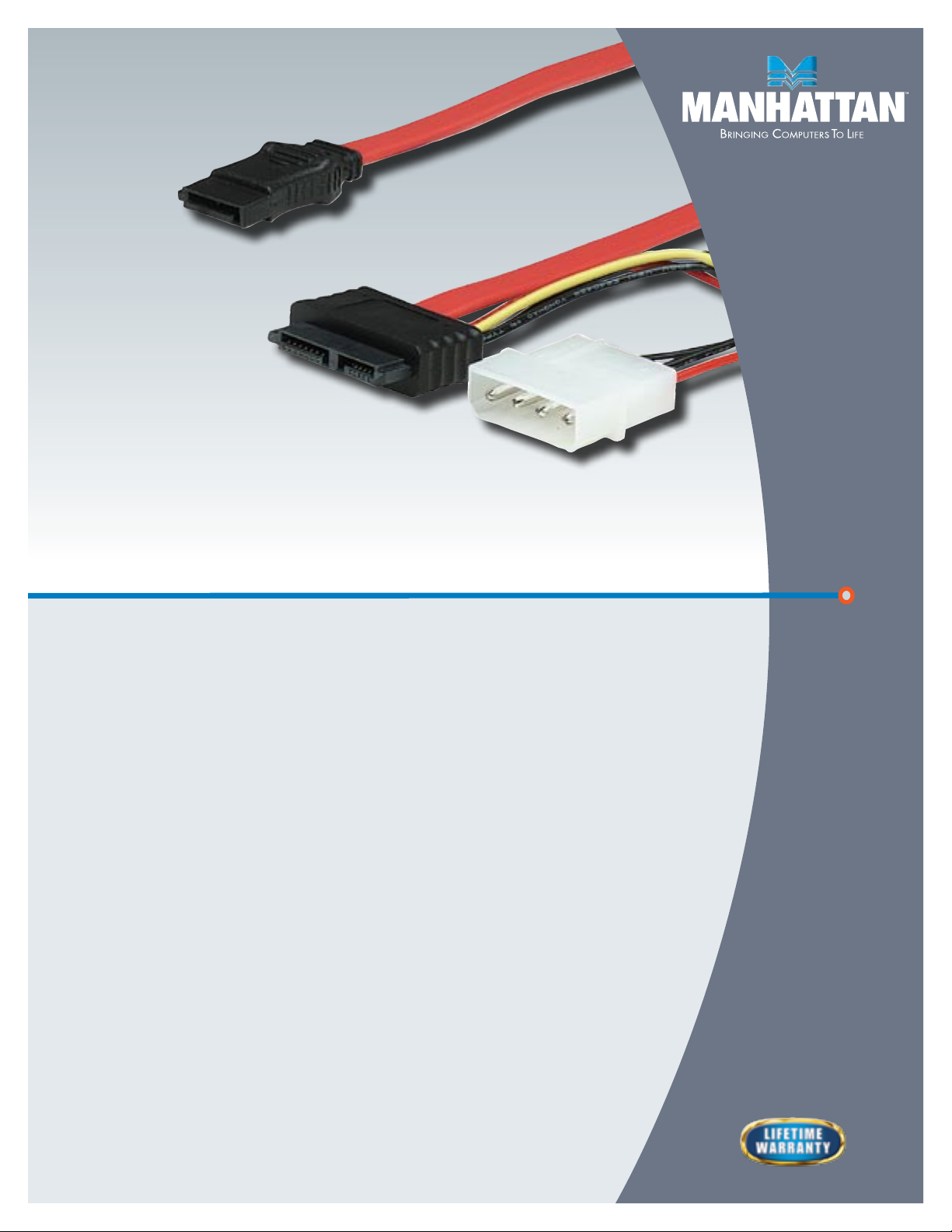

SATA Drive Cable
Slimline 7+6 Pin SATA Male /
7 Pin SATA Male / 4 Pin 5 V – 12 V Molex, Red
Make a quality connection.
MANHATTANTM Slimline SATA Cables help meet an increasing demand for the popular hard-disk
drive technology that’s quickly becoming the primary PC storage interface. With support for data
transfer speeds of up to 3 Gbps and compliance with SATA Revision 2.6 specifications, these new
MANHATTAN Slimline SATA cables are ideal for installing optical hard drives in smaller form
factor devices.
Model Length
308137 30 cm (1 ft.)
Model
308137
Lifetime Warranty
Strict manufacturing standards ensure the highest quality in all MANHATTANTM
products. All items carry a full Lifetime Warranty — the strongest quality
commitment anyone can make.
Page 2

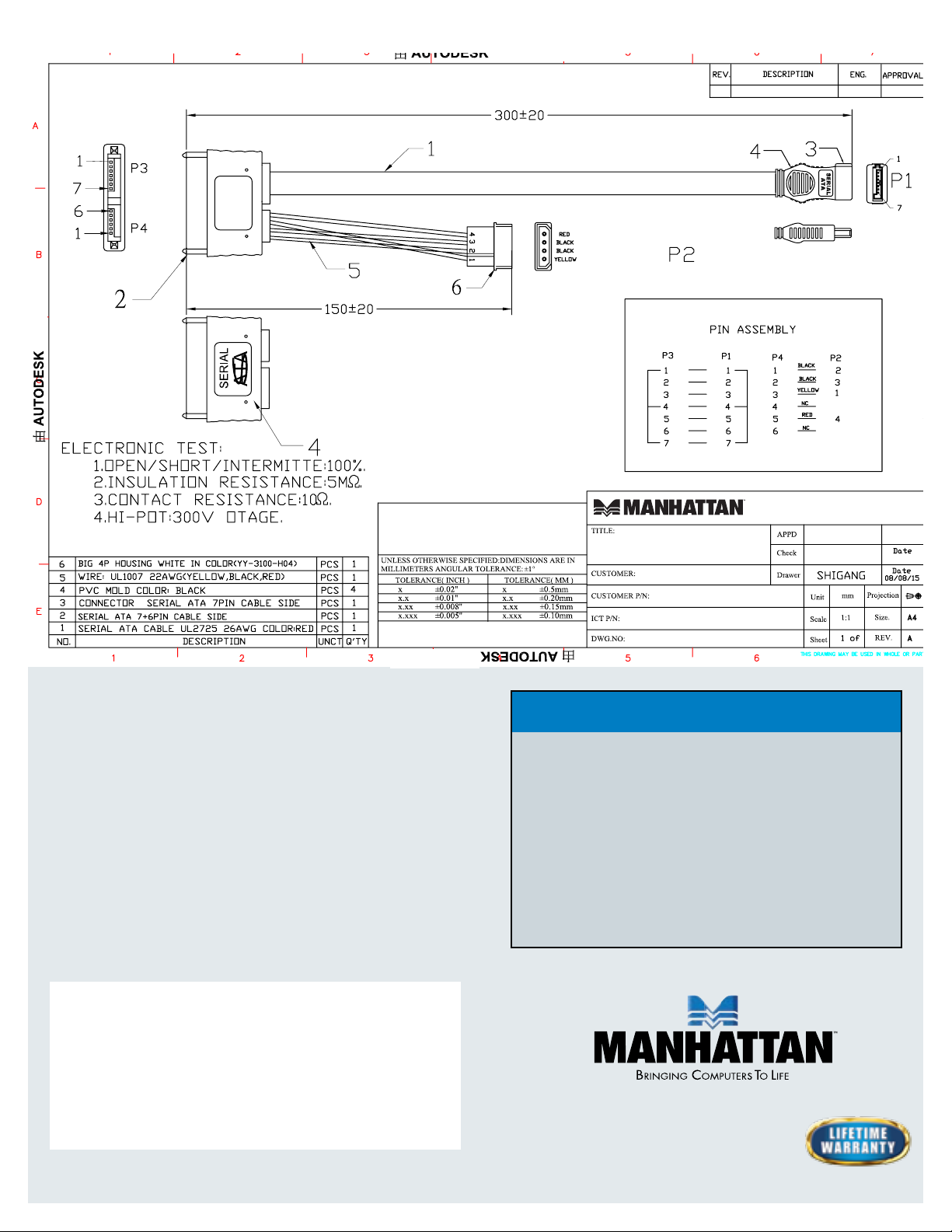

Technical Drawing
Features
• Connects a Slimline drive with a SATA controller
• Ideal for installing optical disk drives, DVD R/W/ROM,
Blu-ray players and other Slimline devices
• Meets current SATA 2.6 revision specifications
• Fully shielded to reduce EMI and other interference sources
• Lifetime Warranty
For more information on MANHATTANTM products, consult your
local dealer or visit
www.manhattan-products.com
Specifications
Standards and Certifications
• SATA 2.6
Contacts
• (1) 7 pin male
• (1) 7+6 pin male
• (1) 4 pin 5 V – 12 V Molex
power connection
• Gold-plated contacts
Cable
• Shielded
• Thermal plastic casing
• 26 AWG data connectors
• 22 AWG power connectors
• Molded PVC overmold
.
Copyright © MANHATTAN
Dimensions
• Length: 30 cm (12 in.)
Electrical
• Withstanding voltage:
300 V DC 10 ms
• Insulation resistance: 5 MOhms
• Contact resistance: 10 Ohms
• 5 V – 12 V power connection
Package Contents
• Slimline 7+6 Pin SATA Male / 7
Pin SATA Male /
4 Pin 5 V – 12 V Molex
All names of products or services mentioned herein are trademarks or registered trademarks of their respective owners.
Distribution and reproduction of this document, and use and disclosure of the contents herein, are prohibited unless specifically authorized.
MH-CABLES-DS-1112-01
