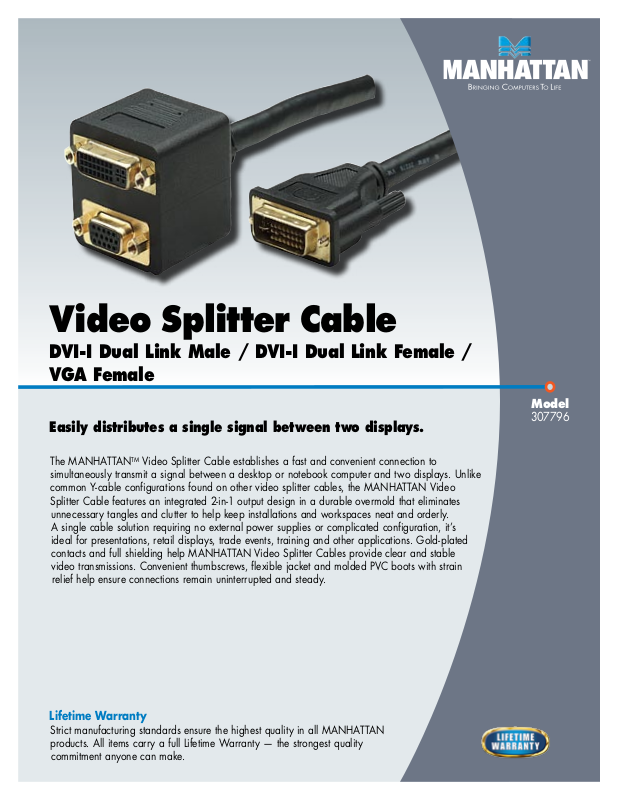

Video Splitter Cable
DVI-I Dual Link Male / DVI-I Dual Link Female /
VGA Female
Easily distributes a single signal between two displays.
The MANHATTANTM Video Splitter Cable establishes a fast and convenient connection to
simultaneously transmit a signal between a desktop or notebook computer and two displays. Unlike
common Y-cable configurations found on other video splitter cables, the MANHATTAN Video
Splitter Cable features an integrated 2-in-1 output design in a durable overmold that eliminates
unnecessary tangles and clutter to help keep installations and workspaces neat and orderly.
A single cable solution requiring no external power supplies or complicated configuration, it’s
ideal for presentations, retail displays, trade events, training and other applications. Gold-plated
contacts and full shielding help MANHATTAN Video Splitter Cables provide clear and stable
video transmissions. Convenient thumbscrews, flexible jacket and molded PVC boots with strain
relief help ensure connections remain uninterrupted and steady.
Model
307796
Lifetime Warranty
Strict manufacturing standards ensure the highest quality in all MANHATTAN
products. All items carry a full Lifetime Warranty — the strongest quality
commitment anyone can make.
Page 2
Technical Drawing
Features
• Connects a DVI-I male source with DVI-I and VGA displays
• Delivers a single, high-quality video signal to two displays – ideal
for presentations, retail displays and training applications
• Integrated 2-in-1 output design eliminates Y-cable tangles and clutter
• Fully shielded to reduce EMI and other interference sources
• Gold-plated connectors with thumbscrews provide
maximum connectivity
• Molded PVC boot and strain relief
• Lifetime Warranty
For more information on MANHATTAN products, consult your
local dealer or visit
www.manhattan-products.com
.
Specifications
STANDARDS AND
CERTIFICATIONS:
• UL
CONTACTS:
• (1) DVI 24+1-pin male
• (2) 24+1-pin female
• Gold-plated
• Molded PVC boot
• Shielded
CABLE:
• 30 AWG connectors
• Mylar and aluminum shielding
• Withstanding voltage: 300 V DC
• Insulation resistance: 5 MOhms
• Conductive resistance: 10 Ohms
• Thermal plastic casing
• Length: 0.3 m (1 ft.)
• Weight: 174.3 g (6.15 oz.)
PACKAGE CONTENTS:
• Video Splitter Cable, DVI-D Dual Link
Male / DVI-D Dual Link Female /
DVI-D Dual Link Female
Copyright © MANHATTAN
All names of products or services mentioned herein are trademarks or registered trademarks of their respective owners.
Distribution and reproduction of this document, and use and disclosure of the contents herein, are prohibited unless specifically authorized.
MH-CABLES-DS-1201-01
