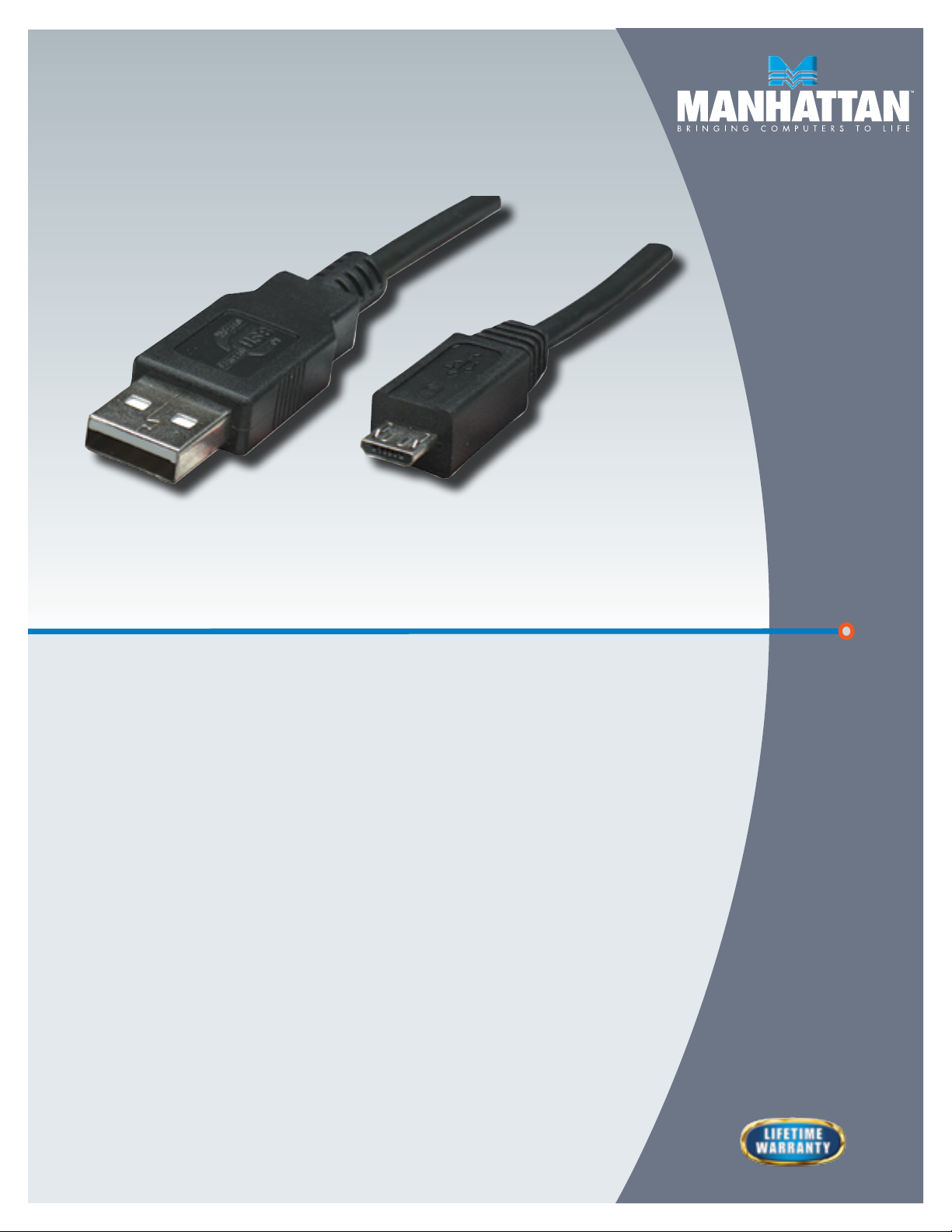

Hi-Speed USB Device Cable
A Male / Micro-B Male, Black
Connect with confidence.
MANHATTAN® Hi-Speed USB 2.0 Device Cables easily connect USB peripherals and accessories
with desktop and notebook computers. Ideal for use with many USB external enclosures, hubs
and other hot-swap, Plug and Play devices, MANHATTAN Hi-Speed USB 2.0 Device Cables
support data transfer rates up to 480 Mbps on Windows and Mac systems for fast, reliable
transmissions. Nickel-plated contacts, shielding and fully molded boots with strain relief help
provide dependable connections, maximum conductivity and minimal data loss with reduced
EMI interference.
Model Length
325677 0.5 m (1.5 ft.)
307161 1.0 m (3 ft.)
393249 1.0 m (3 ft.)
393256 1.8 m (6 ft.)
325684 3.0 m (10 ft.)
325691 5.0 m (16.5 ft.)
Model
307161
325677
325684
325691
393249
393256
Lifetime Warranty
Strict manufacturing standards ensure the highest quality in all MANHATTAN
products. All items carry a full Lifetime Warranty — the strongest quality
commitment anyone can make.
Page 2
Technical Drawing
THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY
OF MANHATTAN AND SHALL NOT BE REPRODUCED, COPIED
OR USED IN ANY MANNER WITHOUT THE PRIOR WRITTEN
CONSENT OF MANHATTAN.
Features
• USB 2.0 Standard-A male to USB 2.0 Micro-B male
• Connects a Hi-Speed USB device to a Hi-Speed USB hub or
computer
• Supports speeds of up to 480 Mbps
• Hi-Speed USB for ultra-fast data transfer rates with zero data
degradation
• Lifetime Warranty
Specifications
STANDARDS AND
CERTIFICATIONS
• UL 2725
• USB 2.0
CONNECTORS
• (1) USB 2.0 Standard-A male
• (1) USB 2.0 Micro-B male
• Nickel plated
• Molded PVC boot
CABLE
• 28 AWG conductors
• Shielded
• Withstanding voltage: 300 V DC 10 ms
• Insulation resistance: 5 MOhms
• Contact resistance: 10 Ohms
• Thermal plastic casing
PACKAGE CONTENTS
• Hi-Speed USB Device Cable
For more information on MANHATTAN products, consult your
local dealer or visit
All names of products or services mentioned herein are trademarks or registered trademarks of their respective owners.
Distribution and reproduction of this document, and use and disclosure of the contents herein, are prohibited unless specifically authorized.
www.manhattan-products.com
.
Copyright © MANHATTAN
MH-CABLES-DS-0410-01
