7-Port Industrial USB 3.0 Hub
Seven USB 3.0 Type-A Ports, 20 kV ESD Protection, A/C, Bus and Terminal-Block
Power Options, DIN Rail, Wall Mountable, Metal Housing, Screw-Lock Security
Part No.: 164405
EAN-13: 0766623164405 | UPC: 766623164405
Fast, powerful SuperSpeed USB 3.0 performance in a multiport
hub
The Manhattan 7-Port Industrial USB 3.0 Hub easily expands and secures your USB
access in industrial environments and high traffic areas. Versatile, sturdy mounting options
allow the hub to be secured to a wall, used on a desktop or added to a DIN rail. This hub
creates more open connection points for USB 3.0 devices, such as external hard drives
and printers. Built-in screw-lock ports offer security for cables and additional stability from
vibrations in the surrounding environment. It is backward compatible with previous USB
standards to provide flexibility for attached devices. The Manhattan 7-Port Industrial USB
3.0 Hub offers plug-and-play, hot-swap capabilities and data transfer speeds up to 5 Gbps.
Features:
Provides seven SuperSpeed USB 3.0 ports for additional peripherals
Supports data transfer rates up to 5 Gbps
Rugged metal housing and screw-locking USB connections offer robust security in
high-traffic areas and industrial environments
Built-in rubber feet, detachable wall mounts and DIN-rail support provide multiple
installation options
All names of products or services mentioned herein are trademarks or registered trademarks of their respective owners. Distribution and
For more information on Manhattan products, consult your local dealer or visit www.manhattan-products.com.
reproduction of this document, and use and disclosure of the contents herein, are prohibited unless specifically authorized.
Page 2
AC, bus-powered and terminal-block power options with overcurrent and 20 kV
ESD protection; does not support simultaneous use of terminal block and AC
power
Supports battery-charge specification 1.2 (BC 1.2)
Backward compatible with all USB 2.0 and 1.1 devices
Power and port-activation LED indicator
Plug and Play
Requires additional industrial power supply (not included)
Three-year warranty
Specifications:
Standards and Certifications
• USB 3.0
• FCC
• CE
• RoHS
• WEEE
Ports
• Transfer speeds: 12 Mbps / 480 Mbps / 5 Gbps
• Seven USB 3.0 type A
• One USB 3.0 type B
• 9 – 40 reverse polarity VDC port: 5.5 x 2.1 x 9.5 mm
• 9 – 40 reverse polarity VDC port, three-pin terminal block
Physical
• Dimensions: 15.8 x 3.2 x 8 cm (6.22 x 1.26 x 3.15 in)
• Weight: 0.33 kg (0.73 lbs.)
• USB 3.0 type-A to type-B cable: 1 m (3 ft.); screw-lock connector
• Housing: metal
• Detachable metal wall-mount brackets
• Detachable DIN-rail mount bracket
• LED power indicators: green
System Requirements
• Does not support simultaneous use of terminal block and A/C power
• USB-enabled PC or Mac system
• Windows XP/Vista/7/8.1/10 or Mac OS 9 or above
• Available USB port
• 32 W power adapter (recommended; a higher-power adapter can also be used)
Operating Environment
• Operation Temperature: 0 – 40°C (32 – 104°F)
• Storage Temperature: -20 – 60°C (-4 – 140°F)
• Humidity (noncondensing): 0 – 96%
All names of products or services mentioned herein are trademarks or registered trademarks of their respective owners. Distribution and
For more information on Manhattan products, consult your local dealer or visit www.manhattan-products.com.
reproduction of this document, and use and disclosure of the contents herein, are prohibited unless specifically authorized.
Page 3

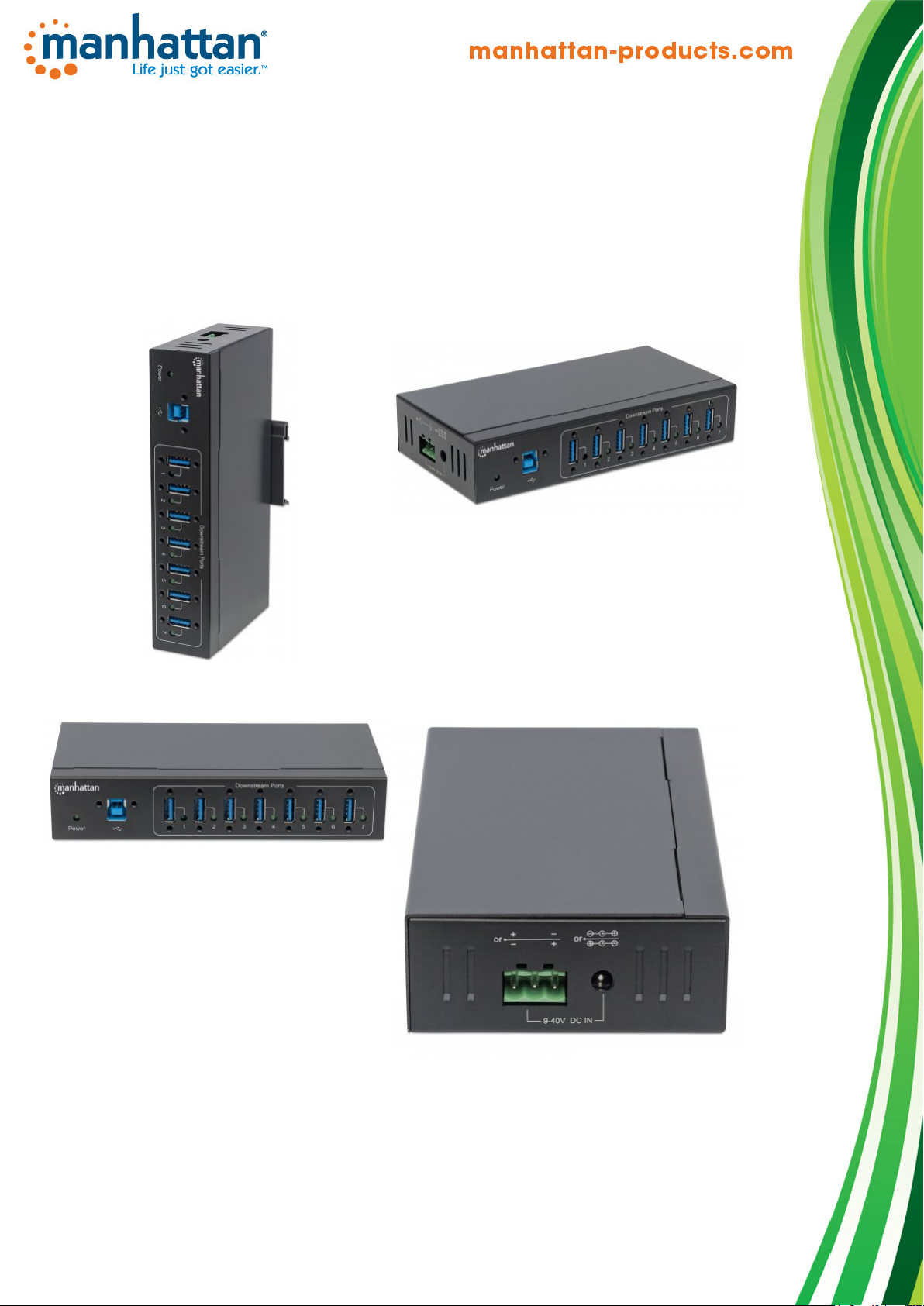

Package Contents
• 7-Port Industrial USB 3.0 Hub
• USB cable
• One DIN-rail bracket
• Two wall-mount brackets
• 3-PIN Terminal Block
• Quick Instruction Guide
