COMPACT
KVM SWITCH
USER MANUAL
MODELS 151252 & 151269
E
NGLISH

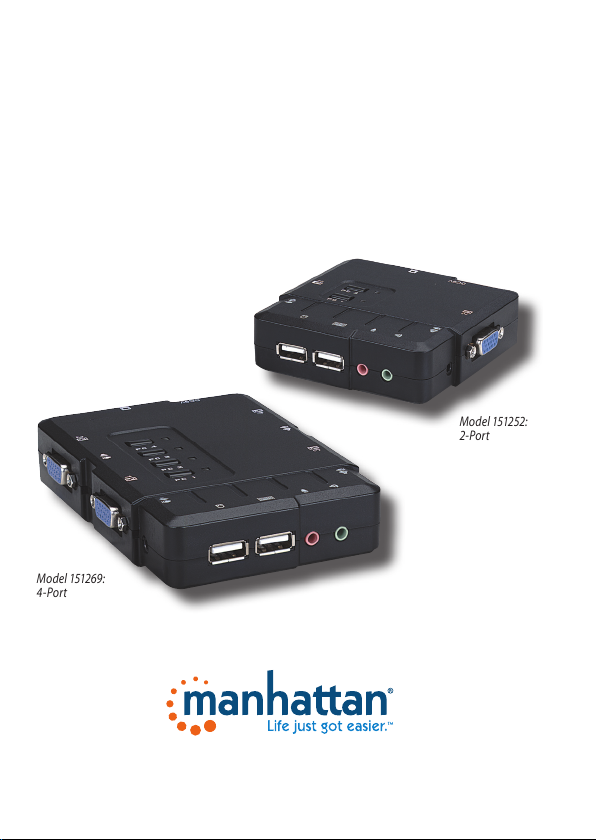

Mo de l 15126 9:
4-Port
Model 151252:
2-Port
manhattan-products.com
MAN-151252/151269-UM-ML1-0113-06-0
Compact KVM Switch • User Manual English
Thank you for purchasing the Manhattan® Compact KVM Switch, Model 151252
(2-Port) or 151269 (4-Port). For specications, go to manhattan-products.com.
CONNECTIONS
1. Make sure all devices are turned o.
2. Connect the shared keyboard, mouse, monitor and, if used, speaker set and
microphone to the switch (2-port example below).
3. Connect each of the computers to the KVM switch, using the included cables.
4. Turn the power on to each of the connected computers one at a time.
The KVM switch receives power when you connect it to a PC and then turn on the PC.
The keyboard and mouse will be recognized, and you can begin operating the switch.
OPERATION
Press any button (PC1-2 or PC1-4 on the top panel) to select the corresponding port and
manage/control the connected device (host) through the switch. The LED next to each
button lights to indicate your selection. NOTE: Only one connected device can be
managed at a time through the switch.
Hotkey options on your keyboard allow you to select a port on the switch remotely —
convenient when the switch is out of reach.
• Tap <Left CTRL> or <Right CTRL>: Switch to the next or previous port in sequence.
• Tap <Shift>: Scan through ports in 5-second intervals; tap the space bar to stop.
• Press <1> and <2> together to reset the switch if the mouse or keyboard is temporarily
unplugged.
Keyboard port
Monitor port
Mouse port
Speaker jack
Microphone jack
PC 2
PC 1
2
Host signal port
