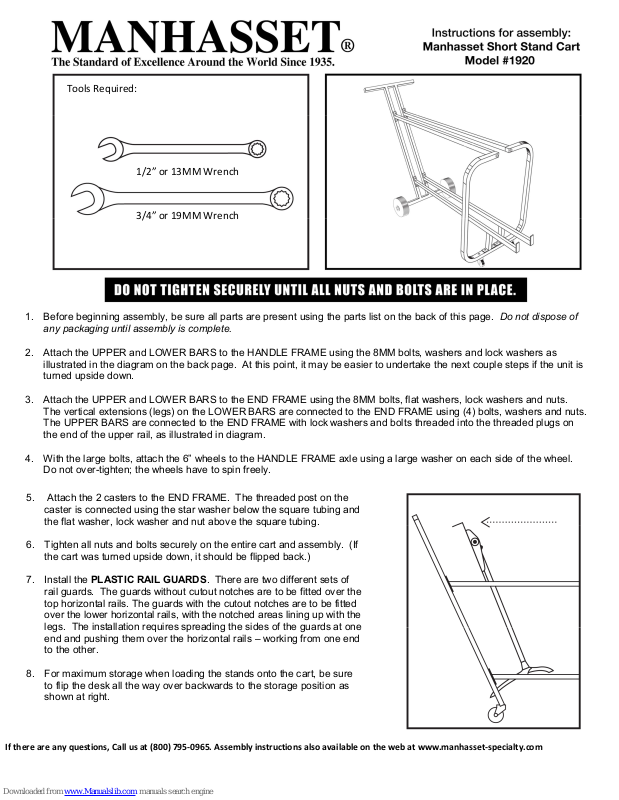

Manhasset 1920 Instructions For Assembly

1. Before beginning assembly, be su

re all parts are present using the parts list on the back of this page.

Do not dispose of

If there are any questions, Call us at (

800) 795

-

0965. Assembly instructions also available on the web at www.manhasset

-

specialty.com

3/4” or 19MM Wrench

1/2” or 13MM Wrench

Tools Required:

any packaging until assembly is complete.

2. Attach the UPPER and LOWER BARS to the HANDLE FRAME using the 8MM bolts, washers and lock washers as
illustrated in the diagram on the back page. At this point, it may be easier to undertake the next couple steps if the unit is
turned upside down.

3. Attach the UPPER and LOWER BARS to the END FRAME using the 8MM bolts, flat washers, lock washers and nuts.
The vertical extensions (legs) on the LOWER BARS are connected to the END FRAME using (4) bolts, washers and nuts.
The UPPER BARS are connected to the END FRAME with lock washers and bolts threaded into the threaded plugs on
the end of the upper rail, as illustrated in diagram.

4. With the large bolts, attach the 6” wheels to the HANDLE FRAME axle using a large washer on each side of the wheel.
Do not over-tighten; the wheels have to spin freely.

5. Attach the 2 casters to the END FRAME. The threaded post on the
caster is connected using the star washer below the square tubing and
the flat washer, lock washer and nut above the square tubing.

6. Tighten all nuts and bolts securely on the entire cart and assembly. (If
the cart was turned upside down, it should be flipped back.)

7. Install the PLASTIC RAIL GUARDS. There are two different sets of
rail guards. The guards without cutout notches are to be fitted over the
top horizontal rails. The guards with the cutout notches are to be fitted
over the lower horizontal rails, with the notched areas lining up with the
legs. The installation requires spreading the sides of the guards at one
end and pushing them over the horizontal rails – working from one end
to the other.

8. For maximum storage when loading the stands onto the cart, be sure
to flip the desk all the way over backwards to the storage position as
shown at right.

8MM BOLT

SMALL FLAT WASHER

8MM HEX NUT

(12 PLACES)

12MM BOLT

LARGE FLAT WASHERS

LOCK WASHER

SMALL FLAT

WASHER

8MM BOLT

#1943

END FRAME

STAR WASHER

#1951

HANDLE

FRAME

#1922 12MM AXLE BOLT (2)

#1923 LARGE WHEEL WASHERS (4)

#78 8MM BOLT (14)

#1928 SMALL FLAT WASHERS (12)

#1929 LOCK WASHERS (14)

#1930 8MM HEX NUTS (12)

#1939 UPPER BAR (2 PIECES)

#1941 LOWER BAR (2 PIECES)

(Not Pictured) #1960 PLASTIC RAIL GUARDS (4)

#1921 6” POLYETHELENE WHEEL (2)

#1945 3” THREADED STEM CASTER (2) with 1

star washer, 1 flat washer, 1 lock washer & 1 nut
