Handy Pillow Lift
user instructions
Simple solutions for everyday independence
Page 2
Handy Pillow Lift
The Handy Pillow Lift:
• Provides adjustable back support for people who require to sleep in a more upright position.
NOTE: Do not use the Handy Pillow Lift. when for medical reasons it is critical that an upright sleeping
position is maintained (See ‘WARNINGS’).
• Provides assistance for those with limited upper body strength wishing to lift themselves to a reclined
or sitting position.
• Can be used simply as a means of providing additional comfort.
The Handy Pillow Lift has been designed to t on any bed without the need for securing straps. Power is
provided by the Mangar International Airo Compressor. PLEASE READ the separate Airo compressor
instructions.
WARNING
• Ensure that you have read and fully understand these and the separate Airo user instructions before
using the equipment.
• Where a medical condition dictates that an upright sleeping position is critical, the Handy Pillow Lift
must not be used as an air leak in the system would cause the backrest to loose height.
• Ensure that when in use, the Airo, the hand control lead and air hose are laid out in such a way as
to avoid any risk of tripping or strangulation.
• Do Not use any other air supply to inate the Handy Pillow Lift.
• The Handy Pillow Lift should only be used for it’s stated purpose and should not be modied in any
way.
• Do not operate the Airo compressor in the presence of ammable anaesthetic mixtures with air,
oxygen or nitrous oxide, as these mixtures can create a combustible environment leading to the
potential for re or even an explosion in the presence of a spark.
• Ensure that when in use, the Airo compressor, the hand control lead and air hose are laid out in
such a way as to avoid any risk of tripping or strangulation.
• Do not allow children to play with the Leglifter or Airo as operation of the equipment in an
uncontrolled or unsupervised situation may lead to personal injury and/or damage.
Standard Contents
1 x Handy Pillow Lift
1 x Pillow Lift Quilt
1 x Pillow Lift Cover
1 x Spreader Bar
1 x User Instructions.
Please Note: Neither this product or it’s associated packaging contain latex.
2 3
Page 3
C
B
A
Handy Pillow Lift
Fitting Instructions
• Fit the Spreader Bar (A g. 1) through the
pocket on the base of the Handy Pillow Lift.
• The air hose (B), can be led to either side of the
bed, depending on where the compressor is
to be placed. If the hose is to be led to the left
hand side of the bed (as you lie on the bed),
the hose needs to pass through the two holes
as indicated (C).
1
D
E
G
• Remove the pillows from the bed and place the
Handy Pillow Lift on the bed with the Spreader
Bar positioned up against the headboard. Fold
the strut (D g.2) towards the headboard.
2
• Connect the air hose from the Handy Pillow Lift
to the compressor air outlet socket (E g. 3).
• Connect the Push Button Hand Control (F) to
the socket (G).
• Place the Airo by the side or under the bed, in
an out of the way position.
F
• Partially inate the Handy Pillow Lift by pressing
‘up’ on the hand control (see separate Airo
instructions).
3
Simple solutions for everyday independence
Page 4
Handy Pillow Lift

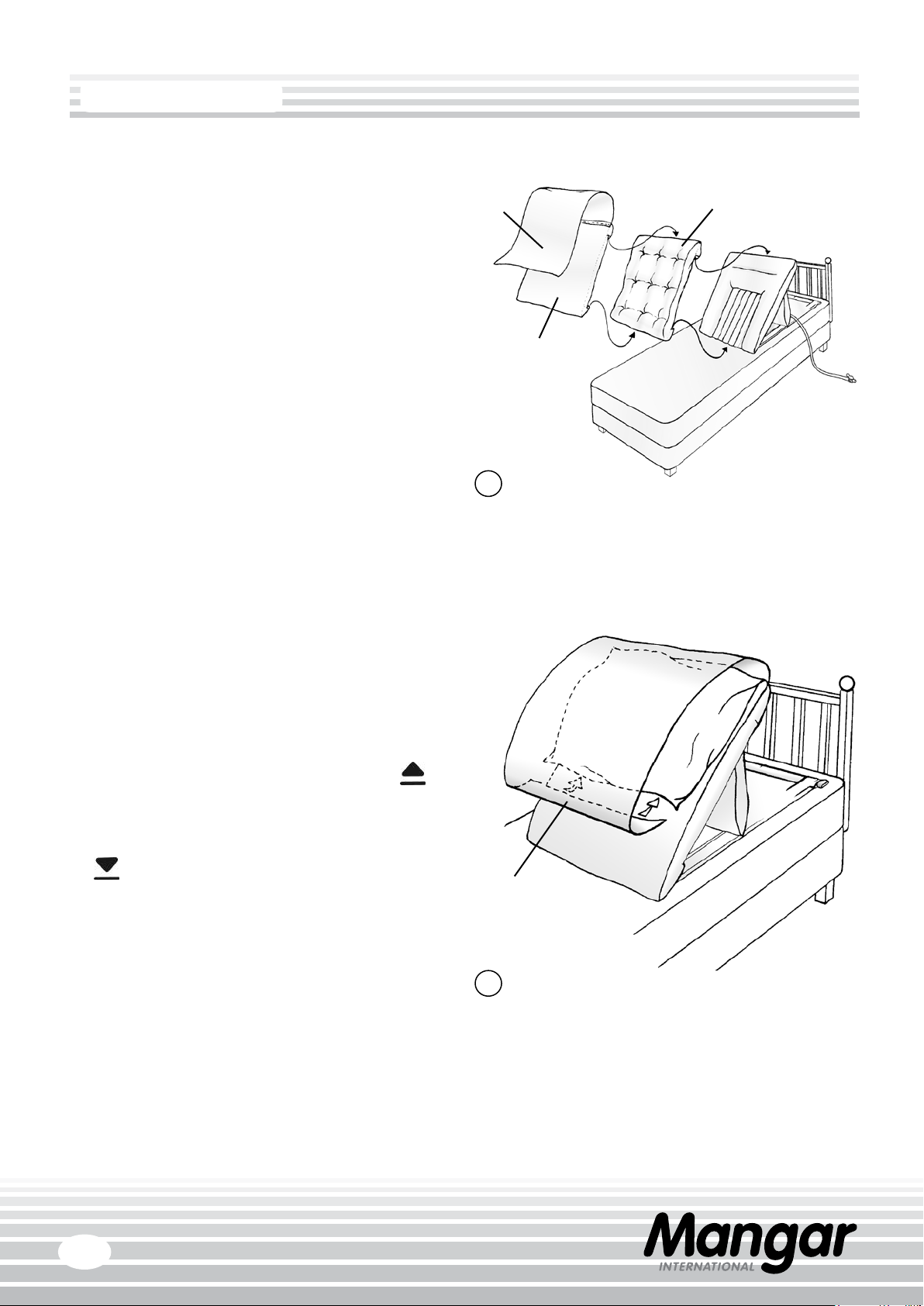

• Fit the Quilt (H g.4) to the Handy Pillow Lift
by inserting the top and bottom of the Handy
Pillow Lift into the pockets at the top and bottom
of the Quilt.
K
H
• Fit the Cover (J ) over the Quilt in the same way
as tting the Quilt, ensuring that the Flap (K), is
positioned at the top.
• Position your pillow on the Handy Pillow Lift
as indicated (g. 5) and wrap the ap (K)
completely around the pillow to hold it in place.
Operating Instructions
• To raise the Handy Pillow Lift, press ‘Up’ on
the hand control.
• To stop at any point, release the ‘Up’ button.
• To lower the Handy Pillow Lift, press “Down”
on the hand control.
FOR YOUR SAFETY: Keep the compressor, the air
hose and the hand control tidy and easy to reach.
J
4
K
5
4 5
Page 5
Handy Pillow Lift
Routine Cleaning
Remove the cover and quilt and inate the Handy Pillow Lift. Sponge clean with a non abrasive
proprietary liquid cleaner or disinfectant and dry thoroughly. Do not dry using hot air. The cover
can be machine washed up to 40°C; low heat tumble dried and medium heat ironed. Do Not dry clean or
use bleach. Restrict the quilt washing temperature to 40°C for maximum product life.
Disinfecting
The quilt and cover should be removed and the Handy Pillow Lift be fully inated. The Handy Pillow Lift
should be pre-cleaned by washing with detergent and water and then disinfected
of household liquid bleach and water (1 part bleach to 10 parts cold water). Leave the solution
on the Handy Pillow Lift for approximately 10 minutes before thoroughly rinsing off with clean cold
water. Do not dry using hot air.
The quilt can be thermal disinfected at 71ºC for 3 minutes, followed by tumble drying.
NOTE: ‘Normal ‘ setting tumble dry temperatures (70ºC) can reach 80ºC and therefore, a ‘Low‘
temperature (40ºC) setting should be used. If thermal disinfection of the quilt at 71ºC for 3 minutes
is repeatedly carried out, degradation of the quilt’s performance can occur.
using a 1:10 solution
Storage
Ensure that the Handy Pillow Lift is thoroughly dry before storing. Store deated in a dry place. Keep
these instructions in a safe place for future reference.
Maintenance
Other than routine cleaning and disinfecting, the Handy Pillow Lift is maintenance free.
We recommend that a thorough examination of the Handy Pillow Lift is carried out regularly (not to exceed
12 months). Please contact our Customer Service Department for further details or contact your local
supplier.
Specications:
Max. User weight: 135kg. (Use with heavier
persons will not damage the
product, but full lift may not
be achieved).

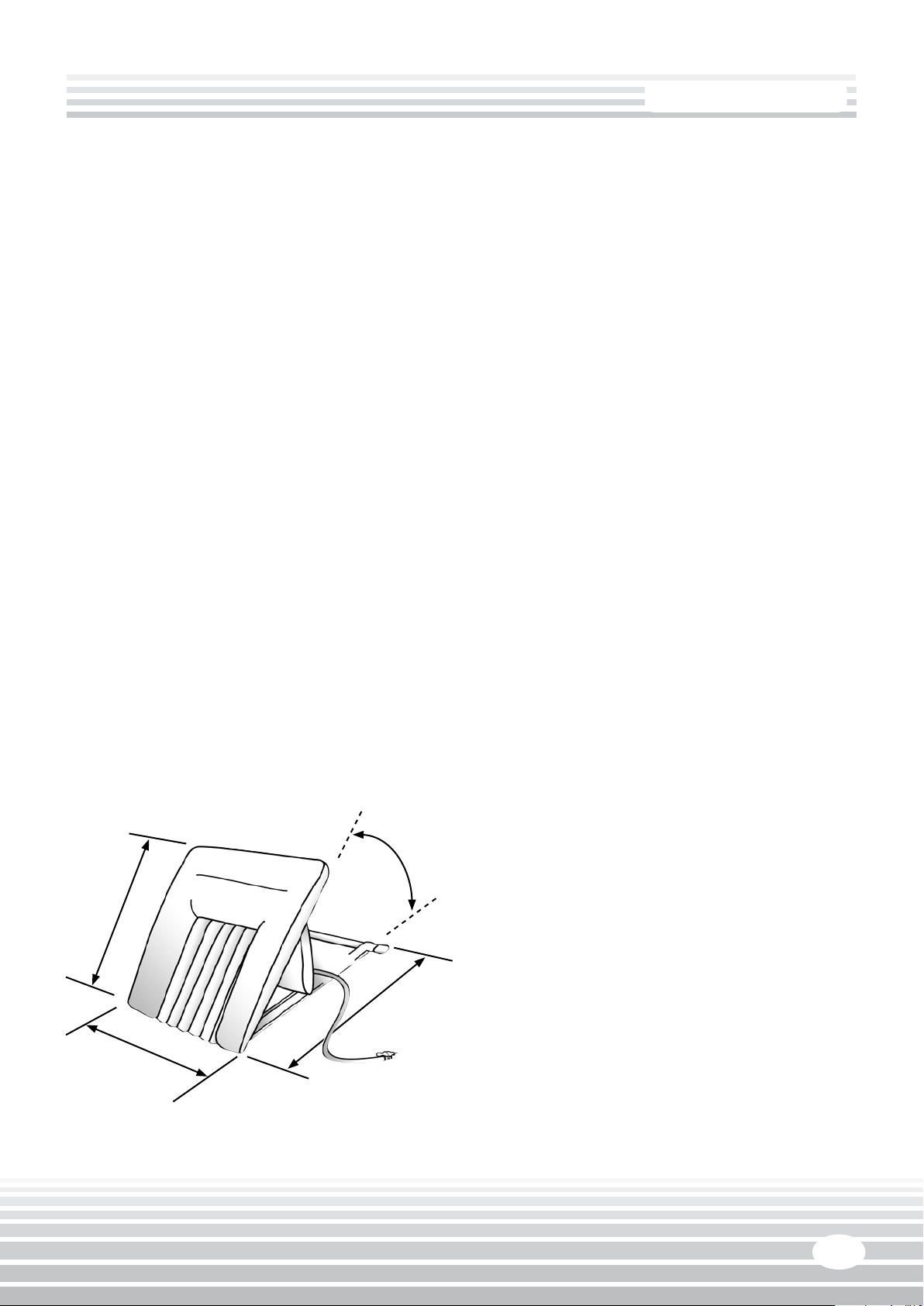

0°
73cm
- 55°
approx
Weight of HPL: 2kg
Inated Width: 61cm
Deated width: 71cm
Length: 80cm
80cm
61cm
Backrest Length: 73cm
Backrest Angle: 0° to 55° approx.
Max. Pressure: 0.35 bar (5 psi)
Air Hose Length: 1.8m
Fabric: PU Coated Nylon
Simple solutions for everyday independence
Page 6
Handy Pillow Lift
Warranty
The guarantee is given against defects in material and workmanship and comprises piece, parts and
labour. The guarantee is not valid in the case of fair wear and tear, wilful damage, common neglect,
misuse or unauthorised alteration or repair by unqualied persons.
The following statements do not affect the consumer’s statutory rights. This product is sold on the
understanding that in the event of any defect of manufacture or material appearing within the warranty
period, the defect will be rectied free of charge providing that:
(a) Reasonable evidence is provided (e.g. purchase invoice, delivery note) that the claim is being made
within the warranty period.
(b) The defect is not attributable to accidental damage (either in transit or otherwise), misuse or
unauthorised repair.
Handy Pillow Lift serial number: ..........................
Date of purchase: ..........................
Invoice/Delivery note number: ..........................
We strive to provide our customers with reliable and durable products of the highest quality.
In addition to our standard warranty, and for added peace of mind, our Customer Service Department
offers an Annual Service and Clean package.
To nd out more about this service please call our Customer Service Department on Freephone 0800
2800 485.
Mangar International reserves the right to alter product specications and/or any of the information contained within this document without notice.
6 7
Page 7
DECLARATION OF CONFORMITY
This is to certify that:-
The
Handy Pillow Lift - HBA0007
complies with:-
Handy Pillow Lift
The requirements for Class 1 devices of the Medical Devices
Directive 93/42/EEC as amended by 2007/47/EC
Signed:
Date: April 2009
A. Barker Managing Director
Mangar International
Presteigne, Powys, Wales, UK. LD8 2UF
tel: +44 (0)1544 267674
fax: +44 (0)1544 260287
headof[email protected]
www.mangar.co.uk
Simple solutions for everyday independence
Page 8
Simple solutions for everyday independence
Mangar International
Presteigne, Powys, Wales, LD8 2UF
United Kingdom
tel: +44 (0)1544 267674
fax: +44 (0)1544 260287
e-mail: [email protected]
www.mangar.co.uk
www.mangarhealth.com
MI0036 issue 11
