Dials

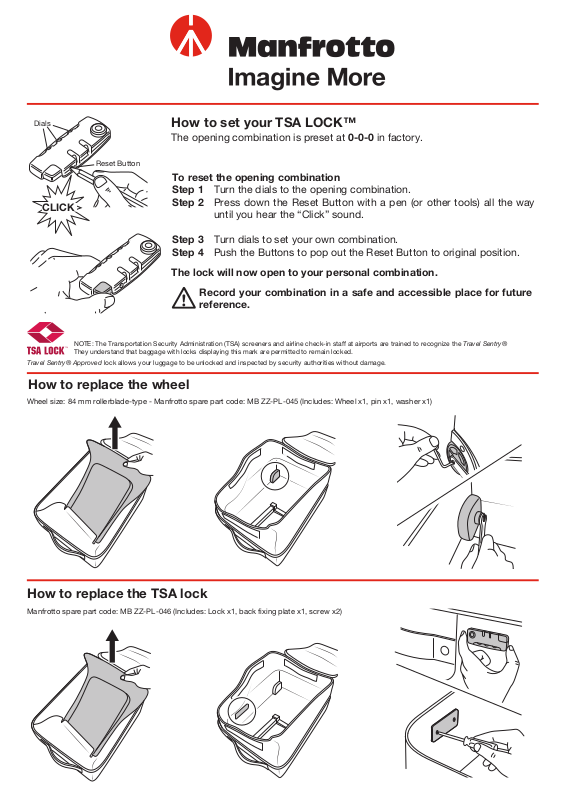

How to set your TSA LOCK™
The opening combination is preset at 0-0-0 in factory.
Reset Button
To reset the opening combination
Step 1 Turn the dials to the opening combination.
CLICK
Step 2 Press down the Reset Button with a pen (or other tools) all the way
until you hear the “Click” sound.
Step 3 Turn dials to set your own combination.
Step 4 Push the Buttons to pop out the Reset Button to original position.
The lock will now open to your personal combination.
Record your combination in a safe and accessible place for future
reference.
NOTE: The Transportation Security Administration (TSA) screeners and airline check-in staff at airports are trained to recognize the Travel Sentry®
They understand that baggage with locks displaying this mark are permitted to remain locked.
Travel Sentry® Approved lock allows your luggage to be unlocked and inspected by security authorities without damage.
How to replace the wheel
Wheel size: 84 mm rollerblade-type - Manfrotto spare part code: MB ZZ-PL-045 (Includes: Wheel x1, pin x1, washer x1)
How to replace the TSA lock
Manfrotto spare part code: MB ZZ-PL-046 (Includes: Lock x1, back fixing plate x1, screw x2)
