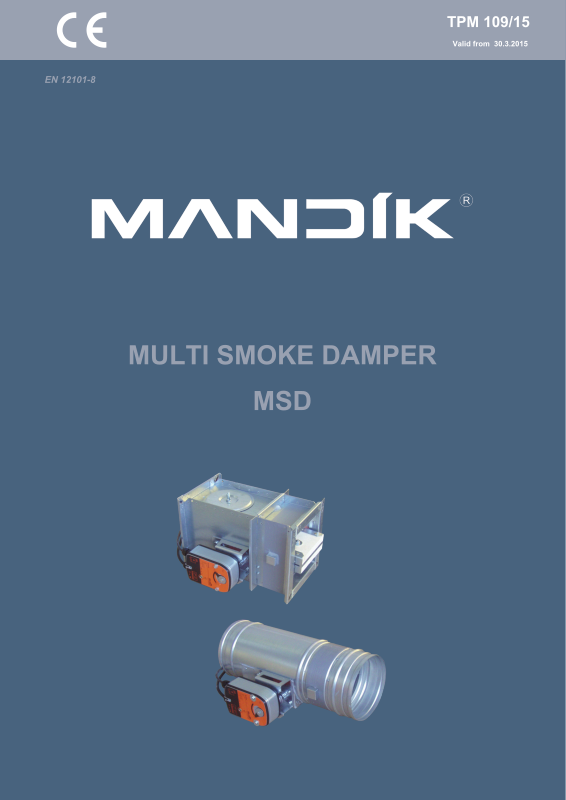

Mandik MSD Square, MSD Round User Manual

Download
TPM 109/15
These technical specifications state a row of manufactured sizes and models of multi smoke dampers (further only dampers) MSD. It is valid for production, designing, ordering, delivery, maintenance and operation.
I. CONTENT
II. GENERAL INFORMATION 2
2. Design................................................................................................................................
3. Communication and control devices.................................................................................... 8
4. Dimensions, weights........................................................................................................... 9
5. Placement and Assembly.................................................................................................... 24
III. TECHNICAL DATA 30
6. Pressure loss...................................................................................................................... 30
7. Coefficient of local pressure loss......................................................................................... 31
8. Noise data..............….…………………………………......................................................... 32
IV. MATERIAL, FINISHING 34
9. Material............................................................................................................................. 34
V. INSPECTION, TESTING 34
10. Inspection, testing............................................................................................................. 34
VI. TRANSPORTATION AND STORAGE 34
11. Logistic terms.................................................................................................................... 34
2
3
VII. ASSEMBLY, ATTENDANCE, MAINTENANCE AND REVISIONS 34
12. Assembly.......................................................................................................................... 34
13. Entry into service and revisions......................................................................................... 35
14. Spare parts....................................................................................................................... 35
VIII. PRODUCT DATA 36
15. Ordering key...................….…..........................................................................................
36
IX. ORDERING INFORMATION 37
16. Ordering key.....................................................................................................................
37
1
TPM 109/15
II. GENERAL INFORMATION
1. Description
Fig. 1 Damper MSD - square Fig. 2 Damper MSD - round
1.1. Multi smoke dampers are shutters in the smoke exhaust duct systems. The dampers are
designed to remove heat and combustible products (e.g. smoke) from effected fire compartments. In the event of fire the Smoke and Fire ventilation system opens the damper in the affected
section and removes combustion products and heat from this section. The damper blade is controlled by electrical actuating mechanism. Dampers are fire resistant and are intended for systems with automatic activation. Dampers can be installed in construction of the fire compartment.
1.2. Damper characteristics
• CE certified acc. to EN 12101-8
• Tested in accordance with EN 1366-10
• Classified acc. to EN 13501-4+A1
• Fire resistance according Tab. 1.2.1
• External casing leakage class min. C acc. to EN 1751
• Internal leakage: round dampers - class min. 2, diameters from 560 mm to 630 mm min.
class 3 acc. to EN 1751
square dampers - class min. 2, for max. dimension 1500 x 800 mm min.
class 3 acc. to EN 1751
• Cycling test in class C 10000 acc. to EN 15650 (design MSD-W is tested without load)
• ES Certificate of conformity No. 1391-CPD-2015/0057 for MSD
• ES Certificate of conformity No. 1391-CPD-2015/0058 for MSD-W
• Declaration of Perfomance No. CDM/MSD/001/15
Tab. 1.2.1. Classification of Dampers
Supporting Construction Classification
Porous concrete ceiling construction, thickness 150 mm
Porous concrete wall construction, thickness 100 mm
EI 120 (how - i↔o) S1500C
EI 120 (vew - i↔o) S1500C
10000
10000
AAmulti
AAmulti
Gypsum wall, thickness 125 mm
EI 120 (v
- i↔o) S1500C
ew
10000
AAmulti
2
TPM 109/15
1.3. Working conditions
Exact damper function is provided under the following conditions: a) maximum air velocity 15 m.s
-1
b) underpressure max. -1500 Pa or overpressure max. 500 Pa.
Dampers can be installed in arbitrary position (horizontal or vertical blade axis).
Dampers are designed for macroclimatic areas with mild climate according to EN 60 721-3-3.
Temperature in the place of installation is permitted to range from - 20°C to + 50°C.
2. Design
2.1. Design with actuating mechanism
Design .44 and .54
MSD (MSD-W) is equipped by actuating mechanism Belimo BLE24(BE24-12) for 24V supply or
BLE230(BE230-12) for 230V supply. MSD with big dimensions is equipped by actuating
mechanism Schischek InMax 50.75-S (dual supply 24V or 230V). After being connected to power supply the actuating mechanism displaces the damper blade into
operation position "OPEN" or „CLOSED“ (according to method of connection, see connection
diagram). Running time is max. 60s. If is power supply cut off, actuating mechanism is stopped
in actual position. The crank handle supplied with the actuator allows it to be operated manually.
Signaling of the damper blade positions "OPEN" and "CLOSED" is provided by means of two
integrated, invariably set terminal switches.
Fig. 3 Damper with actuating machanism
Actuating mechanism
Tab. 2.1.1. Actuating mechanism BELIMO BLE 24(-ST), BLE 230
Actuating mechanism BELIMO BLE 24(-ST) BLE230
Nominal voltage AC 24V 50/60Hz
Power consumption - motoring
- holding Dimensioning 9 VA (Imax 2,7 A @ 5 ms) 12 VA (Imax 6 A @ 5 ms) Protection class III II Degree of protection IP 54 Running time for 95° < 30 s Ambient temperature range
Non-operating temperature Connecting - motor
- auxiliary switch
Actuating mechanism
AC 230 V 50/60Hz
DC 24 V
7,5 W
< 0,5 W
- 30 °C … + 50 °C
- 40 °C … + 80 °C
cable 1 m, 3 x 0,75 mm cable 1 m, 6 x 0,75 mm
(BLE 24-ST) with plug-in connectors
5W
< 1 W
2
2
3
TPM 109/15
Fig. 4 Actuating mechanism BELIMO BLE 24(-ST)
~
AC 24 V
DC 24 V
+-
Connection through an insulation transformer.
BLE24-ST: Design with connector plugs for communication to network and communication device BKNE230-24
213
<3°
Fig. 5 Actuating mechanism BELIMO BLE 230
N
L1
1
2
3
S2S1 S3 S5S4 S6
AC230 V
<3° <87°
S3S2S1 S6S5S4
<87°
Parrallel connection of other driver is possible. Pay attention to the power input data.
BLE24 (-ST)
BLE230
Parrallel connection of other driver is possible. Pay attention to the power input data.
Tab. 2.1.2. Actuating mechanism BELIMO BE 24-12(-ST), BE 230-12
Actuating mechanism BELIMO BE 24-12 (-ST) BE230-12
Nominal voltage AC 24V 50/60Hz
DC 24 V
Power consumption - motoring
- holding
Dimensioning 18 VA (Imax 8.2 A @ 5 ms)
Protection class III
Degree of protection IP 54
Running time for 95° < 60 s
Ambient temperature range Non-operating temperature
Connecting - motor
- auxiliary switch
12 W
0,5 W
- 30 °C … + 50 °C
- 40 °C … + 80 °C
cable 1 m, 3 x 0,75 mm cable 1 m, 6 x 0,75 mm
(BE 24-ST) with plug-in connectors
AC 230 V 50/60Hz
8W
0,5 W
15 VA (Imax 7.9 A @ 5 ms)
II
2
2
4
TPM 109/15
Fig. 6 Actuating mechanism BELIMO BE 24-12(-ST)
~ +-
AC 24 V
DC 24 V
Connection through an insulation transformer.
BE24-12-ST: Design with connector plugs for communication to network and communication device BKNE230-24
213
<3° <87°
Fig. 7 Actuating mechanism BELIMO BE 230-12
N
L1
1
2
3
S2S1 S3 S5S4 S6
AC230 V
S3S2S1 S6S5S4
BE24-12 (-ST)
Parrallel connection of other driver is possible. Pay attention to the power input data.
<3° <87°
Tab. 2.1.3. Actuating mechanism SCHISCHEK InMax 50.75-S
Actuating mechanism SCHISCHEK
Nominal voltage
Power consumption - motoring
- heating
BE230-12
Parrallel connection of other driver is possible. Pay attention to the power input data.
InMax 50.75-S
24-240 VAC/DC 50/60Hz
10 W
16 W (start at -20°C)
Protection class I
Degree of protection IP 66
Running time for 95° < 60 s
Ambient temperature range Non-operating temperature
- 40 °C … + 50 °C
- 40 °C … + 70 °C
Connecting cable 1 m, 0,5 mm
5
2
TPM 109/15
Fig. 8 Actuating mechanism SCHISCHEK InMax 50.75-S
24...230 VAC/DC
+-
~
~
Integrated aux. switches max 24V/3A, 240V/0,25A switching at 5° and 85°.
<5°
>85°
PE
a
b
A B
1
heater
2 3
4
1
2 3
4 5
6
PA
2.2. Design with the communication and supply device
Design .66
Design with the communication and supply device BKNE230-24 and the actuating mechanism
BLE24(BE24-12)-ST. BKNE230-24 functions as a decentralized network device for supplying the actuating mechanism
BLE24(BE24-12)-ST on one hand and on the other hand it transmits signals from communication
and control device BKSE24-6.
It simplifies electrical wiring and interconnection of dampers. It facilitates on site check and
enables central control and checks of fire damper by means of a simple 2-conductor wiring.
BKNE230-24 signals the damper position „OPEN“/„CLOSED“ (from switches on the actuator)
and any fault alarms to the BKSE24-6 unit. It also receives positioning commands from the
control unit and triggers the actuator to the required position. The last control command is
retained troughout temporary power failures.
The BKNE230-24 unit monitors the positions of the switches on the actuator, its running time and
the exchange of data with the control and monitoring unit BKSE24-6. It also monitors the actuator
current and the power supply. In order to make installation as simple as possible the smoke
extraction damper actuators ...-ST are fitted with plug connectors that can be inserted directly into
the BKNE230-24 unit.
The 2-wire conductor must be connected to screw terminals 6 and 7. It is recommended that a
fire alarm signal cable suitable for the application be used for the 2-wire conductor. It is essential
to ensure the correct polarity. More information in catalogue Belimo.
Design .66 is not available by using actuating mechanism InMax 50.75-S
Fig. 9 Damper with actuating mechanism and BKNE230-24
Actuating mechanismBKNE230-24
BKNE230-24
Actuating mechanism
6
TPM 109/15
Tab. 2.2.1. Communication and supply device BKNE 230-24
Communication and supply device BKNE 230-24
Nominal voltage AC 230V 50/60Hz Power consumption 10 W (including actuating mechanism) Dimensioning 19 VA (including actuating mechanism) Degree of protection II Ambient temperature range
Non-operating temperature Connecting - net
- actuator
- terminal board
Fig. 10 Communication and supply device BKNE 230-24
6-pole connector, 3-pole connector
screw terminals for cable 2x1,5 mm
- 30 °C … + 50 °C
- 40 °C … + 80 °C
cable 1 m without plug
2
AC 230 V
BKNE230-24
M
Displays
LED Stav Funkce
yellow flashing light damper moving to OPEN
yellow steady light damper open
green flashing light damper moving to CLOSED
green steady light damper closed
yellow flashing at double
or
green frequency
yellow dark power failure
+green
1 2
Nothing must be assigned
3
to terminals 1 to 5
4 5
a
2-wire conductor
6
to BKSE24-6
b
7
BE(G)24-ST, BE24-12-ST
fault
2.3. Design with electric actuating mechanism with emergency function and electromagnet
Design .4M0, .4M1, .5M0 and .5M1
MSD-W is always equipped by electric actuating mechanism BLF 230-T, BLF 24-T, DAF2.20S or
DAF1.20S (further only "actuating mechanism") and is complemented with initiation by means of
an electromagnet (solenoid). After being connected to power supply AC/DC 24V or 230V, the
actuating mechanism displaces the damper blade into operation position "CLOSED" and at the
same time it pre-stretches its back spring. When the actuating mechanism is under voltage, the
damper blade is in the position "CLOSED" and the back spring is pre-stretched. Time needed for
full closing of the flap blade from the position "OPEN" to the position "CLOSED" is maximum
60 sec. This possition is secured by initional lever. If the actuating power supply is cut off damper
is still in the position "CLOSED". After activation of electromagnet is released initiation lever and
the back spring displaces the damper blade into the breakdown position "OPEN". The time of
displacing the blade from the position "OPEN" to the position "CLOSED" takes maximum 16 sec.
In case that the power supply is restored again (the blade can be in any position), the actuating
mechanism starts to re-displace the damper blade into the position "CLOSED". By voltage AC 230 V is damper equipped by electromagnet EM230. By voltage AC/DC 24 V is
damper equipped by electromagnet EM230 with pre-pulse switch SIEM24. SEIM24 activates the
electromagnet after capacitor charge witch is placed inside of SIEM24. It takes about 10 sec.
Charging time depends on the current supply. For reliable operation is necessary connect to
electromagnet or pre-pulse switch appropriate supply for 2 sec (230 V) or 20 to 30 sec (24 V).
7
TPM 109/15
Fig. 11 Electric actuating mechanism with emergency function and electromagnet
Pulse switch
Tab. 2.3.1. Actuting mechanism BELIMO BLF 24, BLF 230
Electromagnet (solenoid) Pulse switch
Actuating mechanism
Electromagnet (solenoid)
Actuating mechanism
Actuting mechanism BELIMO BLF 24 BLF230
Nominal voltage AC 24V 50/60Hz
AC 230 V 50/60Hz
DC 24 V
Power consumption - motoring
- holding
5 W
2,5 W Dimensioning 7 VA (Imax 5,8 A @ 5 ms) Protection class III
7 VA (Imax 150 mA @ 10 ms)
5W 3W
II Degree of protection IP 54 Running time - motor
- spring return
< 120 s
~ 16 s
Ambient temperature
- normal duty
- safety duty
- non-operating temperature Connecting - motor
- auxiliary switch
The safe position will be attained up to max. 75°C
- 30 °C … + 50 °C
- 40 °C … + 50 °C
cable 1 m, 2 x 0,75 mm cable 1 m, 6 x 0,75 mm
2
2
Obr. 12 Actuting mechanism BELIMO BLF 24
~
AC 24 V
DC 24 V
+-
1
2
M
<5° <80°
Connection through an insulation transformer.
S2S1 S3 S5S4 S6
BLF24
Parrallel connection of other driver is possible. Pay attention to the power input data.
8
TPM 109/15
Obr. 13 Actuting mechanism BLF 230
L1
2
M
AC230 V
S3S2S1 S6S5S4
<5° <80°
N
1
Tab. 2.3.1. Actuting mechanism Joventa DAF2.20S a DAF1.20S
For separation from the mains, a device that insulates polar conductors must be at disposal (Minimum distance between contacts - 3 mm).
BLF230
Parrallel connection of other driver is possible. Pay attention to the power input data.
Actuting mechanism Joventa DAF2.20S DAF1.20S
Nominal voltage AC 24V 50/60Hz
AC 230 V 50/60Hz
DC 24 V
Power consumption - motoring
- holding
26 VA (AC); 15,6 W (DC)
9,3 VA (AC); 2,6 W (DC) Dimensioning 14 VA Protection class II
0,15 A 0,09 A
14 VA
II Degree of protection IP 54 Running time - motor
- spring return
24…57 s 11…15 s
Ambient temperature
- normal duty
- non-operating temperature
Connecting - motor
- auxiliary switch
Obr. 14 Actuting mechanism Joventa DAF2.20S a DAF1.20S
DAF2.20S DAF1.20S LIMIT SWITCHES
M
BLK1RED
2
~ +-
AC 24 V
M
BLK
RED
1
2
N L1
AC230 V
DC 24 V
- 40 °C … + 55 °C
- 65 °C … + 85 °C
cable 1,2 m halogen-free; 2-wires cable 1,2 m halogen-free; 6-wires
BLK/
RED
21
COM
S1
BLK/
BLU
22
NC
21
22 23
21
BLK/
GRY
23
NO
WHT/
RED
24
COM
S2
WHT/
BLU
25
NC
24
24
25 26
WHT/
GRY
26
NO
9
TPM 109/15
Tab. 2.1.2. Elektromagnet EM230
Elektromagnet EM230
Jmenovité napětí AC 230 V / 50 Hz
Zátahový proud 1,2 A
Krytí IP 40
Teplota okolí provozní -10 °C … +40 °C
Obr. 15 Elektromagnet EM230
Připojení kabel 1m, 3x0,75mm
2
3. Communication and control devises
3.1. BKSE24-6 indicates operating status and fault signals for the smoke extraction dampers. The auxiliary contacts that are incorporated also allow functions to be signaled or passed on to higherlevel control systems. The signals from the BKNE230-24 unit are received by the BKSE24-6 unit and evaluated individually. All BKNE230-24 units are triggered simultaneously. To BKSE24-6 can be connected max. 6 BKNE230-24.
Communication is via the 2-wire conductor. Correct operation of the dampers is indicated by
means of two LEDs. The operating status of the SBSE-Control system and any faults are also indicated by this LED and the corresponding fault LED.
The BKSE24-6 unit can be clipped directly to a 35 mm DIN mounting rail and connected by means
of two 9-pole plug-in terminals.
Tab. 3.1.1. Communication and control devices BKSE 24-6
Communication and control devices
BKSE 24-6
Nominal voltage AC 24 V 50/60Hz
Power consumption 3,5 W (operating position)
Dimensioning 5,5 VA 18 VA (Imax 6.4 A @ 2.5 ms)
Protection class III
Degree of protection IP 20
Ambient temperature range 0 … + 50 °C
Connecting screw terminals for cable 2x1,5 mm
2
10
TPM 109/15
Fig. 16 Communication and control devices BKSE 24-6
SMOKE EXTRACTION
CEASE SMOKE EXTRACTION
AC 24 V
Connection through an insulation transformer.
4. Dimensions, weights
~
AUTO
Input 1
10
11 12
COM
Delay 0 s (Fan)
Delay 60 s (Fan)
OPEN
CLOSED
*Fault (Error)
*Inverted output: fault = contact open
13 14 15 16
17
18
BKSE24-6
9 8
7
6 5 4 3
2 1
+
-
Input 2
(isolated)
U
a1...a6
a1...a6
BKNE230-24
4.1. Dimensions
Fig. 17 Square MSD (MSD-W) - design with actuating mechanism
Position:
1 Damper body 3 Inspection hole covering 2 Damper blade 4 Actuating mechanism
11
TPM 109/15
Fig. 18 Square MSD - design with electric actuating mechanism with emergency function and electromagnet
Position:
1 Damper body 4 Actuating mechanism 2 Damper blade 5 Electromagnet (solenoid) 3 Inspection hole covering 6 Pulse switch SIEM24
Fig. 19 Round MSD (MD-W) - design with actuating mechanism
Position:
1 Damper body 3 Inspection hole covering 2 Damper blade 4 Actuating mechanism
12
TPM 109/15
Fig. 20 Round MSD (MSD-W) - design with electric actuating mechanism with emergency function and electromagnet
Position:
1 Damper body 4 Actuating mechanism 2 Damper blade 5 Electromagnet (solenoid) 3 Inspection hole covering 6 Pulse switch SIEM24
4.2. Weight and effective area
Tab. 4.2.1. Weight and effective area - square dampers
Size
Overlaps
AxB
a c weight actuator weight actuator weight actuator
160 x 180 - 19 0,0162 11,2 160 x 200 - 29,0 0,0191 11,6 160 x 225 - 41,5 0,0228 12,1 160 x 250 - 54 0,0264 12,6 160 x 280 - 69 0,0307 13,3 160 x 300 - 79,0 0,0336 13,7 160 x 315 - 86,5 0,0358 14,0 160 x 355 - 106,5 0,0416 14,8 160 x 400 - 129 0,0481 15,8 160 x 450 - 154 0,0554 16,8 160 x 500 - 179 0,0626 17,8 160 x 550 - 204 0,0699 18,9 160 x 560 - 209 0,0713 19,1 160 x 600 - 229 0,0771 19,9 160 x 630 - 244 0,0815 20,5 160 x 650 9 254 0,0844 20,9 160 x 700 34 279 0,0916 22,0 160 x 710 39 284 0,0931 22,2 160 x 750 59 304 0,0989 23,0 160 x 800 84 329 0,1061 24,0
Efective
area
Sef [m ]
MSD-W
2
BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
MSD-W
with electromagnet
11,7 12,1 12,6 13,1 13,8 14,2 14,5 15,3 16,3 17,3 18,3 19,4 19,6 20,4 21,0 21,4 24,3 24,5 25,3 26,4
BELIMO BLF BELIMO BLF BELIMO BLF BELIMO BLF BELIMO BLF BELIMO BLF BELIMO BLF BELIMO BLF BELIMO BLF BELIMO BLF BELIMO BLF BELIMO BLF BELIMO BLF BELIMO BLF BELIMO BLF
BELIMO BLF JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S
12,2 12,6 13,1 13,6 14,3 14,7 15,0 15,8 16,8 17,8 18,8 19,9 20,1 20,9 21,5 21,9 23,0 23,2 24,0 25,0
MSD
BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
13
TPM 109/15
Size AxB
Overlaps
a c weight actuator weight actuator weight actuator
Efective
area
Sef [m ]
2
180 x 180 - 19 0,0185 11,6 180 x 200 - 29 0,0218 12,0 180 x 225 - 42 0,0259 12,5 180 x 250 - 54 0,0300 13,1 180 x 280 - 69 0,0350 13,7 180 x 300 - 79 0,0383 14,2 180 x 315 - 87 0,0408 14,5 180 x 355 - 107 0,0474 15,3 180 x 400 - 129 0,0548 16,3 180 x 450 - 154 0,0630 17,4 180 x 500 - 179 0,0713 18,5 180 x 550 - 204 0,0795 19,6 180 x 560 - 209 0,0812 19,8 180 x 600 - 229 0,0878 20,6 180 x 630 - 244 0,0927 21,3 180 x 650 9 254 0,0960 21,7 180 x 700 34 279 0,1043 22,8 180 x 710 39 284 0,1059 23,0 180 x 750 59 304 0,1125 23,9 180 x 800 84 329 0,1208 25,0 200 x 180 - 19 0,0207 11,9 200 x 200 - 29 0,0244 12,4 200 x 225 - 42 0,0290 12,9 200 x 250 - 54 0,0337 13,5 200 x 280 - 69 0,0392 14,2 200 x 300 - 79 0,0429 14,6 200 x 315 - 87 0,0457 15,0 200 x 355 - 107 0,0531 15,9 200 x 400 - 129 0,0614 16,9 200 x 450 - 154 0,0707 18,0 200 x 500 - 179 0,0799 19,1 200 x 550 - 204 0,0892 20,3 200 x 560 - 209 0,0910 20,5 200 x 600 - 229 0,0984 21,4 200 x 630 - 244 0,1040 22,1 200 x 650 9 254 0,1077 22,5 200 x 700 34 279 0,1169 23,6 200 x 710 39 284 0,1188 23,9 200 x 750 59 304 0,1262 24,8 200 x 800 84 329 0,1354 25,9 225 x 180 - 19 0,0235 12,4 225 x 200 - 29 0,0277 12,8 225 x 225 - 42 0,0330 13,4 225 x 250 - 54 0,0382 14,0 225 x 280 - 69 0,0445 14,7 225 x 300 - 79 0,0487 15,2 225 x 315 - 87 0,0519 15,6 225 x 355 - 107 0,0603 16,5 225 x 400 - 129 0,0697 17,6 225 x 450 - 154 0,0802 18,7
MSD-W
BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
MSD-W
with electromagnet
12,1 12,5 13,0 13,6 14,2 14,7 15,0 15,8 16,8 17,9 19,0 20,1 20,3 21,1 21,8 22,2 25,1 25,3 26,2 27,3 12,4 12,9 13,4 14,0 14,7 15,1 15,5 16,4 17,4 18,5 19,6 20,8 21,0 21,9 22,6 23,0 26,0 26,2 27,1 28,2 12,9 13,3 13,9 14,5 15,2 15,7 16,1 17,0 18,1 19,2
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
12,6 13,0 13,5 14,1 14,7 15,2 15,5 16,3 17,3 18,4 19,5 20,6 20,8 21,6 22,3 22,7 23,8 24,0 24,9 26,0 12,9 13,4 13,9 14,5 15,2 15,6 16,0 16,9 17,9 19,0 20,1 21,3 21,5 22,4 23,1 23,5 24,6 24,9 25,8 26,9 13,4 13,8 14,4 15,0 15,7 16,2 16,6 17,5 18,6 19,7
MSD
BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
14
TPM 109/15
Size AxB
Overlaps
a c weight actuator weight actuator weight actuator
Efective
area
Sef [m ]
2
225 x 500 - 179 0,0907 19,9 225 x 550 - 204 0,1012 21,1 225 x 560 - 209 0,1033 21,3 225 x 600 - 229 0,1117 22,3 225 x 630 - 244 0,1180 23,0 225 x 650 9 254 0,1222 23,4 225 x 700 34 279 0,1327 24,6 225 x 710 39 284 0,1348 24,9 225 x 750 59 304 0,1432 25,8 225 x 800 84 329 0,1537 27,0 250 x 180 - 19 0,0263 12,8 250 x 200 - 29 0,0310 13,3 250 x 225 - 42 0,0369 13,9 250 x 250 - 54 0,0428 14,6 250 x 280 - 69 0,0498 15,3 250 x 300 - 79 0,0545 15,8 250 x 315 - 87 0,0580 16,1 250 x 355 - 107 0,0674 17,1 250 x 400 - 129 0,0780 18,2 250 x 450 - 154 0,0898 19,4 250 x 500 - 179 0,1015 20,7 250 x 550 - 204 0,1133 21,9 250 x 560 - 209 0,1156 22,1 250 x 600 - 229 0,1250 23,1 250 x 630 - 244 0,1321 23,8 250 x 650 9 254 0,1368 24,3 250 x 700 34 279 0,1485 25,6 250 x 710 39 284 0,1509 25,8 250 x 750 59 304 0,1603 26,8 250 x 800 84 329 0,1720 28,0 280 x 180 - 19 0,0297 13,4 280 x 200 - 29 0,0350 13,9 280 x 225 - 42 0,0416 14,5 280 x 250 - 54 0,0482 15,2 280 x 280 - 69 0,0562 15,9 280 x 300 - 79 0,0615 16,5 280 x 315 - 87 0,0655 16,8 280 x 355 - 107 0,0761 17,9 280 x 400 - 129 0,0880 19,0 280 x 450 - 154 0,1012 20,3 280 x 500 - 179 0,1145 21,6 280 x 550 - 204 0,1277 22,8 280 x 560 - 209 0,1304 23,1 280 x 600 - 229 0,1410 24,1 280 x 630 - 244 0,1489 24,9 280 x 650 9 254 0,1542 25,4 280 x 700 34 279 0,1675 26,7 280 x 710 39 284 0,1701 26,9 280 x 750 59 304 0,1807 27,9 280 x 800 84 329 0,1940 29,2
MSD-W
BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
MSD-W
with electromagnet
20,4 21,6 21,8 22,8 25,3 25,8 26,9 27,2 28,1 29,3 13,3 13,8 14,4 15,1 15,8 16,3 16,6 17,6 18,7 19,9 21,2 22,4 22,6 25,4 26,2 26,7 27,9 28,1 29,1 30,3 13,9 14,4 15,0 15,7 16,4 17,0 17,3 18,4 19,5 20,8 22,1 23,3 25,4 26,4 27,2 27,7 29,0 29,2 30,3 31,5
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S
20,9 22,1 22,3 23,3 24,0 24,4 25,6 25,9 26,8 28,0 13,8 14,3 14,9 15,6 16,3 16,8 17,1 18,1 19,2 20,4 21,7 22,9 23,1 24,1 24,8 25,3 26,6 26,8 27,8 29,0 14,4 14,9 15,5 16,2 16,9 17,5 17,8 18,9 20,0 21,3 22,6 23,8 24,1 25,1 25,9 26,4 27,7 27,9 28,9 30,2
MSD
BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
15
TPM 109/15
Size AxB
Overlaps
a c weight actuator weight actuator weight actuator
Efective
area
Sef [m ]
2
300 x 180 - 19 0,0319 13,7 300 x 200 - 29 0,0376 14,3 300 x 225 - 42 0,0447 14,9 300 x 250 - 54 0,0519 15,6 300 x 280 - 69 0,0604 16,4 300 x 300 - 79 0,0661 16,9 300 x 315 - 87 0,0704 17,3 300 x 355 - 107 0,0818 18,4 300 x 400 - 129 0,0946 19,5 300 x 450 - 154 0,1089 20,8 300 x 500 - 179 0,1231 22,2 300 x 550 - 204 0,1374 23,5 300 x 560 - 209 0,1402 23,7 300 x 600 - 229 0,1516 24,8 300 x 630 - 244 0,1602 25,6 300 x 650 9 254 0,1659 26,1 300 x 700 34 279 0,1801 27,4 300 x 710 39 284 0,1830 27,7 300 x 750 59 304 0,1944 28,7 300 x 800 84 329 0,2086 30,0 315 x 180 - 19 0,0336 14,0 315 x 200 - 29 0,0396 14,6 315 x 225 - 42 0,0471 15,2 315 x 250 - 54 0,0546 15,9 315 x 280 - 69 0,0636 16,7 315 x 300 - 79 0,0696 17,3 315 x 315 - 87 0,0741 17,7 315 x 355 - 107 0,0861 18,7 315 x 400 - 129 0,0996 19,9 315 x 450 - 154 0,1146 21,3 315 x 500 - 179 0,1296 22,6 315 x 550 - 204 0,1446 23,9 315 x 560 - 209 0,1476 24,2 315 x 600 - 229 0,1596 25,3 315 x 630 - 244 0,1686 26,1 315 x 650 9 254 0,1746 26,6 315 x 700 34 279 0,1896 28,0 315 x 710 39 284 0,1926 28,2 315 x 750 59 304 0,2046 29,3 315 x 800 84 329 0,2196 30,6 355 x 180 - 19 0,0381 14,7 355 x 200 - 29 0,0449 15,3 355 x 225 - 42 0,0534 16,0 355 x 250 - 54 0,0619 16,7 355 x 280 - 69 0,0721 17,6 355 x 300 - 79 0,0789 18,2 355 x 315 - 87 0,0840 18,6 355 x 355 - 107 0,0976 19,7 355 x 400 - 129 0,1129 21,0 355 x 450 - 154 0,1299 22,4
MSD-W
BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
MSD-W
with electromagnet
14,2 14,8 15,4 16,1 16,9 17,4 17,8 18,9 20,0 21,3 22,7 25,8 26,1 27,1 27,9 28,4 29,7 30,0 31,0 32,4 14,5 15,1 15,7 16,4 17,2 17,8 18,2 19,2 20,4 21,8 23,1 26,3 26,5 27,6 28,4 28,9 30,3 30,6 31,6 33,0 15,2 15,8 16,5 17,2 18,1 18,7 19,1 20,2 21,5 22,9
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
14,7 15,3 15,9 16,6 17,4 17,9 18,3 19,4 20,5 21,8 23,2 24,5 24,7 25,8 26,6 27,1 28,4 28,7 29,7 31,0 15,0 15,6 16,2 16,9 17,7 18,3 18,7 19,7 20,9 22,3 23,6 24,9 25,2 26,3 27,1 27,6 29,0 29,2 30,3 31,6 15,7 16,3 17,0 17,7 18,6 19,2 19,6 20,7 22,0 23,4
MSD
BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
16
TPM 109/15
Size AxB
Overlaps
a c weight actuator weight actuator weight actuator
Efective
area
Sef [m ]
2
355 x 500 - 179 0,1469 23,8 355 x 550 - 204 0,1639 25,2 355 x 560 - 209 0,1673 25,5 355 x 600 - 229 0,1809 26,6 355 x 630 - 244 0,1911 27,5 355 x 650 9 254 0,1979 28,0 355 x 700 34 279 0,2149 29,5 355 x 710 39 284 0,2183 29,7 355 x 750 59 304 0,2319 30,9 355 x 800 84 329 0,2489 33,3 400 x 180 - 19 0,0431 15,5 400 x 200 - 29 0,0508 16,2 400 x 225 - 42 0,0604 16,9 400 x 250 - 54 0,0701 17,7 400 x 280 - 69 0,0816 18,6 400 x 300 - 79 0,0893 19,2 400 x 315 - 87 0,0951 19,6 400 x 355 - 107 0,1105 20,8 400 x 400 - 129 0,1278 22,2 400 x 450 - 154 0,1471 23,7 400 x 500 - 179 0,1663 25,2 400 x 550 - 204 0,1856 26,6 400 x 560 - 209 0,1894 26,9 400 x 600 - 229 0,2048 28,1 400 x 630 - 244 0,2164 29,0 400 x 650 9 254 0,2241 29,6 400 x 700 34 279 0,2433 31,1 400 x 710 39 284 0,2472 31,4 400 x 750 59 304 0,2626 32,6 400 x 800 84 329 0,2818 35,1 450 x 180 - 19 0,0487 16,5 450 x 200 - 29 0,0574 17,1 450 x 225 - 42 0,0683 17,9 450 x 250 - 54 0,0792 18,7 450 x 280 - 69 0,0922 19,7 450 x 300 - 79 0,1009 20,3 450 x 315 - 87 0,1074 20,8 450 x 355 - 107 0,1248 22,1 450 x 400 - 129 0,1444 23,5 450 x 450 - 154 0,1662 25,1 450 x 500 - 179 0,1879 26,6 450 x 550 - 204 0,2097 28,2 450 x 560 - 209 0,2140 28,5 450 x 600 - 229 0,2314 29,8 450 x 630 - 244 0,2445 30,8 450 x 650 9 254 0,2532 31,4 450 x 700 34 279 0,2749 33,0 450 x 710 39 284 0,2793 33,3 450 x 750 59 304 0,2967 34,6 450 x 800 84 329 0,3184 37,2
MSD-W
BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
BELIMO BE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
BELIMO BE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
BELIMO BE
MSD-W
with electromagnet
26,1 27,5 27,8 28,9 29,8 30,4 31,8 32,1 33,2 34,6 16,0 16,7 17,4 18,2 19,1 19,7 20,1 21,3 22,7 24,2 27,5 29,0 29,3 30,5 31,4 31,9 33,4 33,7 34,9 36,4 17,0 17,6 18,4 19,2 20,2 20,8 21,3 22,6 24,0 27,4 29,0 30,6 30,9 32,1 33,1 33,7 35,3 35,6 36,9 38,5
JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S
BELIMO BLF BELIMO BLF BELIMO BLF BELIMO BLF BELIMO BLF BELIMO BLF BELIMO BLF BELIMO BLF BELIMO BLF
BELIMO BLF JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S
24,8 26,2 26,5 27,6 28,5 29,0 30,5 30,7 31,9 34,3 16,5 17,2 17,9 18,7 19,6 20,2 20,6 21,8 23,2 24,7 26,2 27,6 27,9 29,1 30,0 30,6 32,1 32,4 33,6 36,1 17,5 18,1 18,9 19,7 20,7 21,3 21,8 23,1 24,5 26,1 27,6 29,2 29,5 30,8 31,8 32,4 34,0 34,3 35,6 38,2
MSD
BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
BELIMO BE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
BELIMO BE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
BELIMO BE
17
TPM 109/15
Size AxB
Overlaps
a c weight actuator weight actuator weight actuator
Efective
area
Sef [m ]
2
500 x 180 - 19 0,0543 17,4 500 x 200 - 29 0,0640 18,1 500 x 225 - 42 0,0761 18,9 500 x 250 - 54 0,0883 19,8 500 x 280 - 69 0,1028 20,8 500 x 300 - 79 0,1125 21,5 500 x 315 - 87 0,1198 22,0 500 x 355 - 107 0,1392 23,3 500 x 400 - 129 0,1610 24,8 500 x 450 - 154 0,1853 26,5 500 x 500 - 179 0,2095 28,1 500 x 550 - 204 0,2338 29,8 500 x 560 - 209 0,2386 30,2 500 x 600 - 229 0,2580 31,5 500 x 630 - 244 0,2726 32,5 500 x 650 9 254 0,2823 33,2 500 x 700 34 279 0,3065 34,8 500 x 710 39 284 0,3114 35,2 500 x 750 59 304 0,3308 37,5 500 x 800 84 329 0,3550 39,2 550 x 180 - 19 0,0599 18,3 550 x 200 - 29 0,0706 19,0 550 x 225 - 42 0,0840 19,9 550 x 250 - 54 0,0974 20,8 550 x 280 - 69 0,1134 21,9 550 x 300 - 79 0,1241 22,6 550 x 315 - 87 0,1321 23,1 550 x 355 - 107 0,1535 24,5 550 x 400 - 129 0,1776 26,1 550 x 450 - 154 0,2044 27,9 550 x 500 - 179 0,2311 29,6 550 x 550 - 204 0,2579 31,4 550 x 560 - 209 0,2632 31,8 550 x 600 - 229 0,2846 33,2 550 x 630 - 244 0,3007 34,2 550 x 650 9 254 0,3114 34,9 550 x 700 34 279 0,3381 36,7 550 x 710 39 284 0,3435 37,0 550 x 750 59 304 0,3649 39,5 550 x 800 84 329 0,3916 41,2 560 x 180 - 19 0,0610 18,4 560 x 200 - 29 0,0719 19,2 560 x 225 - 42 0,0856 20,1 560 x 250 - 54 0,0992 21,0 560 x 280 - 69 0,1155 22,1 560 x 300 - 79 0,1264 22,8 560 x 315 - 87 0,1346 23,4 560 x 355 - 107 0,1564 24,8 560 x 400 - 129 0,1809 26,4 560 x 450 - 154 0,2082 28,2
MSD-W
BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
BELIMO BE
BELIMO BE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
BELIMO BE
BELIMO BE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
MSD-W
with electromagnet
17,9 18,6 19,4 20,3 21,3 22,0 22,5 23,8 25,3 28,8 30,5 32,1 32,5 33,8 34,8 35,5 37,2 37,5 38,8 40,5 18,8 19,5 20,4 21,3 22,4 23,1 23,6 25,0 28,4 30,2 32,0 33,7 34,1 35,5 36,5 37,2 39,0 39,4 40,8 42,5 18,9 19,7 20,6 21,5 22,6 23,3 23,9 25,3 28,7 30,5
BELIMO BLF BELIMO BLF BELIMO BLF BELIMO BLF BELIMO BLF BELIMO BLF BELIMO BLF BELIMO BLF
BELIMO BLF JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF JOVENTA DAFx.20S JOVENTA DAFx.20S
18,4 19,1 19,9 20,8 21,8 22,5 23,0 24,3 25,8 27,5 29,1 30,8 31,2 32,5 33,5 34,2 35,8 36,2 37,5 40,2 19,3 20,0 20,9 21,8 22,9 23,6 24,1 25,5 27,1 28,9 30,6 32,4 32,8 34,2 35,2 35,9 37,7 38,0 40,5 42,2 19,4 20,2 21,1 22,0 23,1 23,8 24,4 25,8 27,4 29,2
MSD
BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
BELIMO BE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
BELIMO BE
BELIMO BE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
18
TPM 109/15
Size AxB
Overlaps
a c weight actuator weight actuator weight actuator
Efective
area
Sef [m ]
2
560 x 500 - 179 0,2354 29,9 560 x 550 - 204 0,2627 31,7 560 x 560 - 209 0,2681 32,1 560 x 600 - 229 0,2899 33,5 560 x 630 - 244 0,3063 34,6 560 x 650 9 254 0,3172 35,3 560 x 700 34 279 0,3444 37,1 560 x 710 39 284 0,3499 38,4 560 x 750 59 304 0,3717 39,9 560 x 800 84 329 0,3989 41,6 600 x 180 - 19 0,0655 19,2 600 x 200 - 29 0,0772 20,0 600 x 225 - 42 0,0918 20,9 600 x 250 - 54 0,1065 21,9 600 x 280 - 69 0,1240 23,0 600 x 300 - 79 0,1357 23,7 600 x 315 - 87 0,1445 24,3 600 x 355 - 107 0,1679 25,8 600 x 400 - 129 0,1942 27,4 600 x 450 - 154 0,2235 29,3 600 x 500 - 179 0,2527 31,1 600 x 550 - 204 0,2820 33,0 600 x 560 - 209 0,2878 33,4 600 x 600 - 229 0,3112 34,8 600 x 630 - 244 0,3288 36,0 600 x 650 9 254 0,3405 36,7 600 x 700 34 279 0,3697 39,6 600 x 710 39 284 0,3756 39,9 600 x 750 59 304 0,3990 41,4 600 x 800 84 329 0,4282 43,3 630 x 180 - 19 0,0689 19,7 630 x 200 - 29 0,0812 20,6 630 x 225 - 42 0,0966 21,5 630 x 250 - 54 0,1119 22,5 630 x 280 - 69 0,1304 23,6 630 x 300 - 79 0,1427 24,4 630 x 315 - 87 0,1519 25,0 630 x 355 - 107 0,1765 26,5 630 x 400 - 129 0,2042 28,2 630 x 450 - 154 0,2349 30,1 630 x 500 - 179 0,2657 32,0 630 x 550 - 204 0,2964 33,9 630 x 560 - 209 0,3026 34,3 630 x 600 - 229 0,3272 35,8 630 x 630 - 244 0,3456 37,0 630 x 650 9 254 0,3579 37,8 630 x 700 34 279 0,3887 40,7 630 x 710 39 284 0,3948 41,1 630 x 750 59 304 0,4194 42,6 630 x 800 84 329 0,4502 44,5
MSD-W
BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
BELIMO BE BELIMO BE
BELIMO BE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
MSD-W
with electromagnet
32,3 34,0 34,4 35,8 36,9 37,6 39,4 39,7 41,2 42,9 19,7 20,5 21,4 22,4 23,5 24,2 24,8 26,3 29,8 31,6 33,5 35,3 35,7 37,2 38,3 39,0 40,9 41,2 42,7 44,6 20,2 21,1 22,0 23,0 24,1 24,9 25,5 27,0 30,5 32,4 34,4 36,3 36,6 38,2 39,3 40,1 42,0 42,4 43,9 45,8
JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S
BELIMO BLF BELIMO BLF BELIMO BLF BELIMO BLF BELIMO BLF BELIMO BLF BELIMO BLF
BELIMO BLF JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S
30,9 32,7 33,1 34,5 35,6 36,3 38,1 38,4 40,9 42,6 20,2 21,0 21,9 22,9 24,0 24,7 25,3 26,8 28,4 30,3 32,1 34,0 34,4 35,8 37,0 37,7 39,5 40,9 42,4 44,3 20,7 21,6 22,5 23,5 24,6 25,4 26,0 27,5 29,2 31,1 33,0 34,9 35,3 36,8 38,0 38,8 40,7 42,1 43,6 45,5
MSD
BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
BELIMO BE
BELIMO BE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
BELIMO BE
BELIMO BE
BELIMO BE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
BELIMO BE
BELIMO BE
BELIMO BE
19
TPM 109/15
Size AxB
Overlaps
a c weight actuator weight actuator weight actuator
Efective
area
Sef [m ]
2
650 x 180 - 19 0,0711 20,1 650 x 200 - 29 0,0838 20,9 650 x 225 - 42 0,0997 22,0 650 x 250 - 54 0,1156 22,9 650 x 280 - 69 0,1346 24,1 650 x 300 - 79 0,1473 24,9 650 x 315 - 87 0,1568 25,4 650 x 355 - 107 0,1822 27,0 650 x 400 - 129 0,2108 28,7 650 x 450 - 154 0,2426 30,7 650 x 500 - 179 0,2743 32,6 650 x 550 - 204 0,3061 34,6 650 x 560 - 209 0,3124 35,0 650 x 600 - 229 0,3378 36,5 650 x 630 - 244 0,3569 37,7 650 x 650 9 254 0,3696 38,5 650 x 700 34 279 0,4013 41,4 650 x 710 39 284 0,4077 41,8 650 x 750 59 304 0,4331 43,4 650 x 800 84 329 0,4648 45,3 700 x 180 - 19 0,0767 21,0 700 x 200 - 29 0,0904 21,9 700 x 225 - 42 0,1075 23,0 700 x 250 - 54 0,1247 24,0 700 x 280 - 69 0,1452 25,2 700 x 300 - 79 0,1589 26,0 700 x 315 - 87 0,1692 26,6 700 x 355 - 107 0,1966 28,2 700 x 400 - 129 0,2274 30,1 700 x 450 - 154 0,2617 32,1 700 x 500 - 179 0,2959 34,1 700 x 550 - 204 0,3302 36,2 700 x 560 - 209 0,3370 36,6 700 x 600 - 229 0,3644 38,2 700 x 630 - 244 0,3850 39,4 700 x 650 9 254 0,3987 41,2 700 x 700 34 279 0,4329 43,3 700 x 710 39 284 0,4398 43,7 700 x 750 59 304 0,4672 45,3 700 x 800 84 329 0,5014 47,3 710 x 180 - 19 0,0778 21,2 710 x 200 - 29 0,0917 22,1 710 x 225 - 42 0,1091 23,2 710 x 250 - 54 0,1265 24,2 710 x 280 - 69 0,1473 25,4 710 x 300 - 79 0,1612 26,2 710 x 315 - 87 0,1717 26,8 710 x 355 - 107 0,1995 28,5 710 x 400 - 129 0,2307 30,3 710 x 450 - 154 0,2655 32,4
MSD-W
BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
BELIMO BE BELIMO BE BELIMO BE
BELIMO BE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
MSD-W
with electromagnet
20,6 21,4 22,5 23,4 24,6 25,4 25,9 27,5 31,1 33,0 35,0 36,9 37,3 38,8 40,0 40,8 42,7 43,1 44,7 46,6 21,5 22,4 23,5 24,5 25,7 26,5 27,1 30,6 32,4 34,4 36,4 38,5 38,9 40,5 41,7 42,5 44,6 45,0 46,6 48,6 21,7 22,6 23,7 24,7 25,9 26,7 27,3 30,8 32,6 34,7
BELIMO BLF BELIMO BLF BELIMO BLF BELIMO BLF BELIMO BLF BELIMO BLF BELIMO BLF
BELIMO BLF JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S
21,1 21,9 23,0 23,9 25,1 25,9 26,4 28,0 29,7 31,7 33,6 35,6 36,0 37,5 38,7 39,5 42,4 42,8 44,4 46,3 22,0 22,9 24,0 25,0 26,2 27,0 27,6 29,2 31,1 33,1 35,1 37,2 37,6 39,2 40,4 42,2 44,3 44,7 46,3 48,3 22,2 23,1 24,2 25,2 26,4 27,2 27,8 29,5 31,3 33,4
MSD
BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
BELIMO BE BELIMO BE BELIMO BE
BELIMO BE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
20
TPM 109/15
Size AxB
Overlaps
a c weight actuator weight actuator weight actuator
Efective
area
Sef [m ]
2
710 x 500 - 179 0,3002 34,4 710 x 550 - 204 0,3350 36,5 710 x 560 - 209 0,3419 36,9 710 x 600 - 229 0,3697 38,5 710 x 630 - 244 0,3906 40,8 710 x 650 9 254 0,4045 41,6 710 x 700 34 279 0,4392 43,7 710 x 710 39 284 0,4462 44,1 710 x 750 59 304 0,4740 45,7 710 x 800 84 329 0,5087 47,8 750 x 180 - 19 0,0823 21,9 750 x 200 - 29 0,0970 22,8 750 x 225 - 42 0,1154 24,0 750 x 250 - 54 0,1338 25,0 750 x 280 - 69 0,1558 26,3 750 x 300 - 79 0,1705 27,1 750 x 315 - 87 0,1815 27,8 750 x 355 - 107 0,2109 29,5 750 x 400 - 129 0,2440 31,4 750 x 450 - 154 0,2808 33,5 750 x 500 - 179 0,3175 35,6 750 x 550 - 204 0,3543 37,7 750 x 560 - 209 0,3616 38,2 750 x 600 - 229 0,3910 39,9 750 x 630 - 244 0,4131 42,2 750 x 650 9 254 0,4278 43,0 750 x 700 34 279 0,4645 45,1 750 x 710 39 284 0,4719 45,6 750 x 750 59 304 0,5013 47,3 750 x 800 84 329 0,5380 49,4 800 x 180 - 19 0,0879 22,8 800 x 200 - 29 0,1036 23,8 800 x 225 - 42 0,1232 25,0 800 x 250 - 54 0,1429 26,1 800 x 280 - 69 0,1664 27,4 800 x 300 - 79 0,1821 28,3 800 x 315 - 87 0,1939 28,9 800 x 355 - 107 0,2253 30,7 800 x 400 - 129 0,2606 32,7 800 x 450 - 154 0,2999 34,9 800 x 500 - 179 0,3391 37,1 800 x 550 - 204 0,3784 39,3 800 x 560 - 209 0,3862 39,8 800 x 600 - 229 0,4176 42,6 800 x 630 - 244 0,4412 43,9 800 x 650 9 254 0,4569 44,8 800 x 700 34 279 0,4961 47,0 800 x 710 39 284 0,5040 47,4 800 x 750 59 304 0,5354 49,2 800 x 800 84 329 0,5746 51,4
MSD-W
BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
BELIMO BE BELIMO BE BELIMO BE BELIMO BE BELIMO BE
BELIMO BE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
MSD-W
with electromagnet
36,7 38,8 39,2 40,8 42,1 42,9 45,0 45,4 47,0 49,1 22,4 23,3 24,5 25,5 26,8 27,6 28,3 31,8 33,7 35,8 37,9 40,1 40,5 42,2 43,5 44,3 46,4 46,9 48,6 50,7 23,3 24,3 25,5 26,6 27,9 28,8 29,4 33,0 35,0 37,2 39,4 41,7 42,1 43,9 45,2 46,1 48,3 48,7 50,5 52,7
JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S
BELIMO BLF BELIMO BLF BELIMO BLF BELIMO BLF BELIMO BLF BELIMO BLF
BELIMO BLF JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S
35,4 37,5 37,9 39,5 40,8 42,6 44,7 45,1 46,7 48,8 22,9 23,8 25,0 26,0 27,3 28,1 28,8 30,5 32,4 34,5 36,6 38,7 39,2 40,9 42,1 44,0 46,1 46,6 48,3 50,4 23,8 24,8 26,0 27,1 28,4 29,3 29,9 31,7 33,7 35,9 38,1 40,3 40,8 42,5 44,9 45,8 48,0 48,4 50,2 52,4
MSD
BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
BELIMO BE BELIMO BE BELIMO BE BELIMO BE
BELIMO BE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
21
TPM 109/15
Size AxB
Overlaps
a c weight actuator weight actuator weight actuator
Efective
area
Sef [m ]
2
900 x 180 - 19 0,0991 24,6 900 x 200 - 29 0,1168 25,7 900 x 225 - 42 0,1389 27,0 900 x 250 - 54 0,1611 28,2 900 x 280 - 69 0,1876 29,6 900 x 300 - 79 0,2053 30,5 900 x 315 - 87 0,2186 31,3 900 x 355 - 107 0,2540 33,2 900 x 400 - 129 0,2938 35,3 900 x 450 - 154 0,3381 37,7 900 x 500 - 179 0,3823 40,1 900 x 550 - 204 0,4266 42,5 900 x 560 - 209 0,4354 44,0 900 x 600 - 229 0,4708 45,9 900 x 630 - 244 0,4974 47,4 900 x 650 9 254 0,5151 48,3 900 x 700 34 279 0,5593 50,7 900 x 710 39 284 0,5682 51,2 900 x 750 59 304 0,6036 53,1
900 x 800 84 329 0,6478 55,5 1000 x 180 - 19 0,1103 26,4 1000 x 200 - 29 0,1300 27,6 1000 x 225 - 42 0,1546 29,0 1000 x 250 - 54 0,1793 30,3 1000 x 280 - 69 0,2088 31,9 1000 x 300 - 79 0,2285 32,9 1000 x 315 - 87 0,2433 33,7 1000 x 355 - 107 0,2827 35,8 1000 x 400 - 129 0,3270 38,1 1000 x 450 - 154 0,3763 40,7 1000 x 500 - 179 0,4255 43,4 1000 x 550 - 204 0,4748 47,0 1000 x 560 - 209 0,4846 47,5 1000 x 600 - 229 0,5240 49,6 1000 x 630 - 244 0,5536 51,2 1000 x 650 9 254 0,5733 52,2 1000 x 700 34 279 0,6225 54,9 1000 x 710 39 284 0,6324 55,4 1000 x 750 59 304 0,6718 57,5 1000 x 800 84 329 0,7210 60,1 1100 x 180 - 19 0,1215 28,2 1100 x 200 - 29 0,1432 29,5 1100 x 225 - 42 0,1703 31,0 1100 x 250 - 54 0,1975 32,4 1100 x 280 - 69 0,2300 34,1 1100 x 300 - 79 0,2517 35,2 1100 x 315 - 87 0,2680 36,0 1100 x 355 - 107 0,3114 38,2 1100 x 400 - 129 0,3602 40,8 1100 x 450 - 154 0,4145 43,6
MSD-W
BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
BELIMO BE BELIMO BE BELIMO BE BELIMO BE BELIMO BE BELIMO BE BELIMO BE
BELIMO BE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
MSD-W
with electromagnet
25,1 26,2 27,5 28,7 30,1 31,0 33,6 35,5 37,7 40,0 42,4 44,8 45,3 47,2 48,7 49,6 52,0 52,5 54,4 56,8 26,9 28,1 29,5 30,8 32,4 35,2 36,0 38,1 40,5 43,1 45,7 48,3 48,8 50,9 52,5 53,5 56,2 56,7 58,8 61,4 28,7 30,0 31,5 32,9 34,6 37,5 38,3 40,6 43,1 45,9
BELIMO BLF BELIMO BLF BELIMO BLF BELIMO BLF BELIMO BLF
BELIMO BLF JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S
25,6 26,7 28,0 29,2 30,6 31,5 32,3 34,2 36,3 38,7 41,1 43,5 45,0 46,9 48,4 49,3 51,7 52,2 54,1 56,5 27,4 28,6 30,0 31,3 32,9 33,9 34,7 36,8 39,1 41,7 44,4 47,0 48,5 50,6 52,2 53,2 55,9 56,4 58,5 61,1 29,2 30,5 32,0 33,4 35,1 36,2 37,0 39,2 41,8 44,6
MSD
BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
BELIMO BE BELIMO BE BELIMO BE BELIMO BE BELIMO BE BELIMO BE BELIMO BE
BELIMO BE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
22
TPM 109/15
Size AxB
Overlaps
a c weight actuator weight actuator weight actuator
Efective
area
Sef [m ]
2
1100 x 500 - 179 0,4687 46,4 1100 x 550 - 204 0,5230 50,2 1100 x 560 - 209 0,5338 50,7 1100 x 600 - 229 0,5772 53,0 1100 x 630 - 244 0,6098 54,7 1100 x 650 9 254 0,6315 55,8 1100 x 700 34 279 0,6857 58,6 1100 x 710 39 284 0,6966 59,1 1100 x 750 59 304 0,7400 61,4 1100 x 800 84 329 0,7942 64,2 1250 x 180 - 19 0,1383 30,9 1250 x 200 - 29 0,1630 32,3 1250 x 225 - 42 0,1939 34,0 1250 x 250 - 54 0,2248 35,5 1250 x 280 - 69 0,2618 37,4 1250 x 300 - 79 0,2865 38,6 1250 x 315 - 87 0,3050 39,5 1250 x 355 - 107 0,3544 42,0 1250 x 400 - 129 0,4100 44,7 1250 x 450 - 154 0,4718 47,8 1250 x 500 - 179 0,5335 51,9 1250 x 550 - 204 0,5953 54,9 1250 x 560 - 209 0,6076 55,5 1250 x 600 - 229 0,6570 58,0 1250 x 630 - 244 0,6941 59,8 1250 x 650 9 254 0,7188 61,1 1250 x 700 34 279 0,7805 64,1 1250 x 710 39 284 0,7929 64,8 1250 x 750 59 304 0,8423 67,2 1250 x 800 84 329 0,9040 70,3 1400 x 180 - 19 0,1551 33,7 1400 x 200 - 29 0,1828 35,2 1400 x 225 - 42 0,2174 37,0 1400 x 250 - 54 0,2521 38,7 1400 x 280 - 69 0,2936 40,7 1400 x 300 - 79 0,3213 42,0 1400 x 315 - 87 0,3421 43,0 1400 x 355 - 107 0,3975 45,7 1400 x 400 - 129 0,4598 48,7 1400 x 450 - 154 0,5291 53,0 1400 x 500 - 179 0,5983 56,4 1400 x 550 - 204 0,6676 59,7 1400 x 560 - 209 0,6814 60,4 1400 x 600 - 229 0,7368 63,0 1400 x 630 - 244 0,7784 65,0 1400 x 650 9 254 0,8061 66,4 1400 x 700 34 279 0,8753 69,7 1400 x 710 39 284 0,8892 70,4 1400 x 750 59 304 0,9446 73,0
1400 x 800 84 329 1,0138 76,4
MSD-W
BELIMO BLE
BELIMO BE BELIMO BE BELIMO BE BELIMO BE BELIMO BE BELIMO BE BELIMO BE BELIMO BE
BELIMO BE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
MSD-W
with electromagnet
48,7 51,5 52,0 54,3 56,0 57,1 59,9 60,4 62,7 65,5 31,4 32,8 34,5 36,0 39,7 40,9 41,8 44,3 47,0 50,1 53,2 56,2 56,8 59,3 61,1 62,4 65,4 66,1 68,5 71,6 34,2 35,7 37,5 41,0 43,0 44,3 45,3 48,0 51,0 54,3 57,7 61,0 61,7 64,3 66,3 67,7 71,0 71,7 74,3
77,7
JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S
BELIMO BLF BELIMO BLF BELIMO BLF
BELIMO BLF JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S JOVENTA DAFx.20S
BELIMO BLF
BELIMO BLF
BELIMO BLF JOVENTA DAF2.20S JOVENTA DAF2.20S JOVENTA DAF2.20S JOVENTA DAF2.20S JOVENTA DAF2.20S JOVENTA DAF2.20S JOVENTA DAF2.20S JOVENTA DAF2.20S JOVENTA DAF2.20S JOVENTA DAF2.20S JOVENTA DAF2.20S JOVENTA DAF2.20S JOVENTA DAF2.20S JOVENTA DAF2.20S JOVENTA DAF2.20S JOVENTA DAF2.20S
JOVENTA DAF2.20S
48,4 51,2 51,7 54,0 55,7 56,8 59,6 60,1 62,4 65,2 31,9 33,3 35,0 36,5 38,4 39,6 40,5 43,0 45,7 48,8 52,9 55,9 56,5 59,0 60,8 62,1 65,1 65,8 68,2 71,3 34,7 36,2 38,0 39,7 41,7 43,0 44,0 46,7 49,7 54,0 57,4 60,7 61,4 64,0 66,0 67,4 70,7 71,4 74,0
84,2
MSD
BELIMO BE BELIMO BE BELIMO BE BELIMO BE BELIMO BE BELIMO BE BELIMO BE BELIMO BE BELIMO BE
BELIMO BE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE BELIMO BLE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE SCHISCHEK
InMax 50.75
23
TPM 109/15
Size AxB
Overlaps
Efective
area
MSD-W
2
MSD-W
with electromagnet
MSD
Sef [m ]
a c weight actuator weight actuator weight actuator
1500 x 180 - 19 0,1663 35,5 1500 x 200 - 29 0,1960 37,1 1500 x 225 - 42 0,2331 39,0 1500 x 250 - 54 0,2703 40,7 1500 x 280 - 69 0,3148 42,9 1500 x 300 - 79 0,3445 44,3 1500 x 315 - 87 0,3668 45,3 1500 x 355 - 107 0,4262 48,1 1500 x 400 - 129 0,4930 51,3 1500 x 450 - 154 0,5673 55,8 1500 x 500 - 179 0,6415 59,3 1500 x 550 - 204 0,7158 62,9 1500 x 560 - 209 0,7306 63,6 1500 x 600 - 229 0,7900 66,4 1500 x 630 - 244 0,8346 68,5 1500 x 650 9 254 0,8643 69,9 1500 x 700 34 279 0,9385 73,4 1500 x 710 39 284 0,9534 74,1 1500 x 750 59 304 1,0128 76,9
1500 x 800 84 329 1,0870 80,5
BELIMO BLE
BELIMO BLE
BELIMO BLE
BELIMO BLE
BELIMO BLE
BELIMO BLE
BELIMO BLE
BELIMO BLE
BELIMO BLE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
36,0 37,6 39,5 43,1 45,2 46,6 47,6 50,4 53,6 57,1 60,6 64,2 64,9 67,7 69,8 71,2 74,7 75,4 78,2
81,8
BELIMO BLF
BELIMO BLF
BELIMO BLF
JOVENTA DAFx.20S
JOVENTA DAFx.20S
JOVENTA DAFx.20S
JOVENTA DAFx.20S
JOVENTA DAFx.20S
JOVENTA DAFx.20S
JOVENTA DAFx.20S
JOVENTA DAFx.20S
JOVENTA DAFx.20S
JOVENTA DAFx.20S
JOVENTA DAFx.20S
JOVENTA DAFx.20S
JOVENTA DAFx.20S
JOVENTA DAFx.20S
JOVENTA DAFx.20S
JOVENTA DAFx.20S
JOVENTA DAFx.20S
36,5 38,1 40,0 41,7 43,9 45,3 46,3 49,1 52,3 56,8 60,3 63,9 64,6 67,4 69,5 70,9 74,4 75,1 77,9
88,3
BELIMO BLE
BELIMO BLE
BELIMO BLE
BELIMO BLE
BELIMO BLE
BELIMO BLE
BELIMO BLE
BELIMO BLE
BELIMO BLE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
BELIMO BE
SCHISCHEK
InMax 50.75
4.3. Weight and effective area
Tab. 4.3.1. Weight and effective area - round dampers
Size
D
Overlaps
Efective
area
2
Sef [m ]
f weight actuator weight actuator weight actuator
180 - 0,0160 9,1 200 - 0,0208 9,5 225 - 0,0277 10,1 250 2,5 0,0356 10,7 280 17,5 0,0463 11,4 315 35 0,0607 12,5 355 55 0,0794 13,6 400 77,5 0,1035 15,1 450 102,5 0,1339 16,8 500 127,5 0,1683 18,7 560 157,5 0,2148 21,2 630 192,5 0,2762 24,3
MSD-W
BELIMO BLE
BELIMO BLE
BELIMO BLE
BELIMO BLE
BELIMO BLE
BELIMO BLE
BELIMO BLE
BELIMO BLE
BELIMO BLE
BELIMO BLE
BELIMO BLE
BELIMO BLE
MSD-W
with electromagnet
11,3 11,7 12,2 12,9 13,6 14,6 15,8 15,6 17,3 19,2 21,7 24,8
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
BELIMO BLF
JOVENTA DAFx.20S
JOVENTA DAFx.20S
JOVENTA DAFx.20S
JOVENTA DAFx.20S
JOVENTA DAFx.20S
9,1
9,5 10,1 10,7 11,4 12,5 13,6 15,1 16,8 18,7 21,2 24,3
MSD
BELIMO BLE
BELIMO BLE
BELIMO BLE
BELIMO BLE
BELIMO BLE
BELIMO BLE
BELIMO BLE
BELIMO BLE
BELIMO BLE
BELIMO BLE
BELIMO BLE
BELIMO BLE
24
TPM 109/15
4.3. For square damper (Fig. 21) the open damper blade overlaps the damper body by the value “c” or “a” and “c”. These values are specified in the Tab. 4.2.1.
For round damper (Fig. 22) the open damper blade overlaps the damper body by the value “f” These values are specified in the Tab. 4.2.2.
Values "a","c" and "f", has to be respected when projecting related smoke exhaust ducts.
Fig. 21 Value “a” a “c”
Fig. 22 Value “f”
4.4. For the design .66 (with BKNE supply and communication device) add to weight of the damper
with an actuating mechanism (from the Tab. 4.2.1. and 4.2.2.) the weight of BKNE (0.7 kg).
For the design .4M0, .4M1, .5M0 and .5M1 (with electric actuating mechanism with emergency
function and electromagnet add to weight of the damper with an actuating mechanism (from the Tab. 4.2.1. and 4.2.2.) the weight of electromagnet (1 kg).
4.5. Square dampers can be supplied on the customer´s demands in all subdimension of the above mentioned range.
4.6. Flanges of square fire dampers are 30 mm wide with oval hole (Fig. 23).
In case of damper installation into SPIRO duct, round dampers are supplied without the flanges
so as it is possible to connect them with external joints.
Fig. 23 Flange of square damper
25
TPM 109/15
5. Placement and Assembly
5.1. Multi smoke extraction dampers are designed to remove heat and combustion products (e.g. smoke) from fire compartments according EN1366-8.
Multi smoke extraction dampers are designed to horizontal or vertical installation with arbitrary
blade axis position.
To provide needed access space to the control device, all other objects must be situated at least
350 mm from the control parts of the damper.
5.2. The distance between the fire damper:
- distance 200 mm between dampers installed in the duct;
- distance 75 mm between damper and construction (wall/ceiling).
Fig. 24 The distance between the smoke damper and the construction
min. 200
min. 75
Fig. 25 Built in edge
BUILT IN EDGE
min. 75
min. 200
min. 75
BUILT-IN EDGE BUILT-IN EDGE
BUILT IN EDGE
min. 75
BUILT IN EDGE
(70)
BUILT IN EDGE
375
240
(70)
475
290
26
TPM 109/15
5.3. The control mechanism has to be protected (covered) against damage and pollution during installation process.
During installation the damper blade must be in position “CLOSED”. The damper body should not
be deformed in the course of installation. Once the damper built in, its blade should not grind on the damper casing during opening or closing.
5.4. Installation opening dimensions
Fig. 26 Installation opening - square damper
Fig. 27 Installation opening - round damper
Fig. 28 Installation opening - round damper
27
TPM 109/15
5.5. Installation examples
2
Tab. 5.5.1. Statement of installations
Placement
In solid wall construction mortar or gypsum 29
Square
In solid ceiling construction mortar or gypsum 30
In gypsum wall construction mortar or gypsum 31
In solid wall construction mortar or gypsum 32
Round
In solid ceiling construction mortar or gypsum 33
In gypsum wall construction mortar or gypsum 34
Fig. 29 Installation in a solid wall construction - MSD-S (MSD-W-S)
Filling of space between
damper and wall
Figure
POSITION:
1 Damper MSD (MSD-W)
2 Mortar or gypsum with min. density 800 kg/m
≥ 50
≥ 100
3
28
TPM 109/15
Fig. 30 Installation in a solid wall construction - MSD-R (MSD-W-R)
2
2
≥ 50
POSITION:
1 Damper MSD (MSD-W)
2 Mortar or gypsum with min. density 800 kg/m
3
≥ 100
Fig. 31 Installation in a solid ceiling construction - MSD-S (MSD-W-S)
≥ 50
≥ 150
POSITION:
1 Damper MSD (MSD-W)
2 Mortar or gypsum with min. density 800 kg/m
3 Duct suitable for multi compartment (insulated)
3
29
TPM 109/15
2
Fig. 32 Installation in a solid ceiling construction - MSD-R (MSD-W-R)
2
≥ 50
≥ 150
POSITION:
1 Damper MSD (MSD-W)
2 Mortar or gypsum with min. density 800 kg/m
3 Duct suitable for multi compartment (insulated)
3
Fig. 33 Installation in a gypsum wall construction - MSD-S (MSD-W-S)
≥ 50
POSITION:
1 Damper MSD (MSD-W)
2 Mortar or gypsum with min. density 800 kg/m
3
≥ 100
30
TPM 109/15
Fig. 34 Installation in a gypsum wall construction - MSD-R (MSD-W-R)
2
≥ 50
POSITION:
1 Damper MSD (MSD-W)
2 Mortar or gypsum with min. density 800 kg/m
3
≥ 100
III. TECHNICAL DATA
6. Pressure loss
6.1. Pressure loss calculation
p =
p [Pa] pressure loss
w [m.s ] air flow speed in nominal damper section
[kg.m ] air density
[-] coefficient of local pressure loss for the nominal damper section
2
w
2
-1
-3
(see Tab. 7.1.1a, 7.1.1b and 7.1.1.)
31
TPM 109/15
6.2. Determination of pressure loss by using diagram = 1,2 kg.m
Diagram 6.2.1. Pressure losses for air density =1,2 kg.m
-3
-3
7. Coefficient of local pressure loss
Tab. 7.1.1a. Coefficient of local pressure loss (-) - square dampers
B
A 180 200 225 250 280 300 315 355 400 450
180 2,1314 1,6906 1,3782 1,1149 1,0037 0,9288 0,7918 0,6827 0,6003 0,5350 200 1,9945 1,5804 1,2423 1,0368 0,9748 0,8785 0,7383 0,6367 0,5585 0,4976 225 1,9207 1,5162 1,1256 0,9994 0,9341 0,8442 0,7137 0,6078 0,5329 0,4772 250 1,8415 1,4584 1,1032 0,9651 0,9009 0,8068 0,6837 0,5832 0,5125 0,4590 280 1,7505 1,3782 1,0732 0,9116 0,8571 0,7597 0,6484 0,5543 0,4847 0,4366 300 1,6853 1,3311 1,0400 0,8635 0,8046 0,7148 0,6099 0,5264 0,4665 0,4109 315 1,6071 1,2690 1,0037 0,8303 0,7597 0,6645 0,5864 0,5050 0,4419 0,3927 355 1,5408 1,2155 0,9544 0,7929 0,7083 0,6356 0,5607 0,4815 0,4227 0,3756 400 1,4841 1,1706 0,9063 0,7651 0,6859 0,6227 0,5382 0,4633 0,4045 0,3606 450 1,4359 1,1331 0,8913 0,7394 0,6666 0,5896 0,5200 0,4473 0,3916 0,3478 500 1,3996 1,1021 0,8624 0,7201 0,6548 0,5810 0,5061 0,4344 0,3799 0,3371 550 1,3803 1,0882 0,8378 0,7073 0,6474 0,5757 0,4965 0,4269 0,3734 0,3349 560 1,3643 1,0754 0,8282 0,7009 0,6324 0,5725 0,4922 0,4227 0,3692 0,3285 600 1,3493 1,0582 0,8218 0,6944 0,6270 0,5585 0,4858 0,4184 0,3659 0,3242 630 1,3332 1,0497 0,8100 0,6837 0,6238 0,5436 0,4804 0,4130 0,3606 0,3199 650 1,3204 1,0379 0,7907 0,6752 0,6003 0,5393 0,4740 0,4066 0,3542 0,3157 700 1,3108 1,0304 0,7832 0,6741 0,5949 0,5382 0,4719 0,4045 0,3531 0,3146 710 1,3043 1,0272 0,7747 0,6688 0,5896 0,5371 0,4697 0,4034 0,3520 0,3135 750 1,2926 1,0176 0,7683 0,6634 0,5842 0,5307 0,4633 0,3980 0,3478 0,3103 800 1,2808 1,0079 0,7618 0,6559 0,5767 0,5222 0,4601 0,3959 0,3456 0,3060
900 1,2594 0,9908 0,7479 0,6441 0,5692 0,5136 0,4526 0,3884 0,3381 0,3007 1000 1,2433 0,9780 0,7383 0,6367 0,5607 0,4976 0,4462 0,3831 0,3338 0,2975 1100 1,2284 0,9662 0,7287 0,6281 0,5478 0,4869 0,4408 0,3777 0,3296 0,2932 1250 1,2155 0,9544 0,7126 0,6206 0,5339 0,4804 0,4355 0,3734 0,3264 0,2900 1400 1,2027 0,9459 0,6998 0,6142 0,5254 0,4783 0,4301 0,3692 0,3231 0,2857 1500 1,1952 0,9395 0,6955 0,6110 0,5157 0,4708 0,4280 0,3670 0,3199 0,2846
32
TPM 109/15
Tab. 7.1.1b. Coefficient of local pressure loss (-) - square dampers
B
A 500 550 560 600 630 650 700 710 750 800
180 0,4879 0,4665 0,4462 0,4216 0,4109 0,3916 0,3884 0,3820 0,3681 0,3585
200 0,4526 0,4323 0,4152 0,3959 0,3820 0,3681 0,3606 0,3552 0,3424 0,3328
225 0,4355 0,4152 0,4002 0,3788 0,3681 0,3531 0,3456 0,3413 0,3338 0,3221
250 0,4216 0,4002 0,3809 0,3659 0,3542 0,3403 0,3328 0,3274 0,3210 0,3092
280 0,3948 0,3766 0,3585 0,3435 0,3328 0,3199 0,3167 0,3114 0,2975 0,2932
300 0,3766 0,3531 0,3435 0,3253 0,3157 0,3071 0,2996 0,2953 0,2814 0,2750
315 0,3574 0,3349 0,3264 0,3103 0,3007 0,2932 0,2846 0,2782 0,2696 0,2611
355 0,3413 0,3253 0,3114 0,2975 0,2868 0,2750 0,2718 0,2664 0,2557 0,2493
400 0,3274 0,3082 0,2985 0,2900 0,2761 0,2654 0,2589 0,2557 0,2472 0,2386
450 0,3167 0,2964 0,2889 0,2782 0,2654 0,2589 0,2525 0,2461 0,2386 0,2301
500 0,3071 0,2943 0,2803 0,2664 0,2579 0,2482 0,2429 0,2386 0,2311 0,2236
550 0,3039 0,2857 0,2771 0,2611 0,2450 0,2365 0,2301 0,2268 0,2279 0,2194
560 0,2996 0,2825 0,2729 0,2515 0,2504 0,2408 0,2290 0,2268 0,2236 0,2172
600 0,2943 0,2793 0,2707 0,2493 0,2482 0,2375 0,2268 0,2247 0,2194 0,2140
630 0,2910 0,2761 0,2664 0,2482 0,2450 0,2343 0,2268 0,2247 0,2161 0,2119
650 0,2900 0,2707 0,2632 0,2461 0,2418 0,2322 0,2258 0,2236 0,2140 0,2097
700 0,2868 0,2654 0,2622 0,2450 0,2408 0,2301 0,2247 0,2226 0,2129 0,2087
710 0,2846 0,2632 0,2600 0,2440 0,2397 0,2290 0,2226 0,2215 0,2119 0,2076
750 0,2814 0,2611 0,2568 0,2397 0,2365 0,2268 0,2204 0,2194 0,2108 0,2054
800 0,2793 0,2600 0,2547 0,2354 0,2333 0,2236 0,2183 0,2172 0,2087 0,2022
900 0,2739 0,2547 0,2504 0,2333 0,2301 0,2172 0,2151 0,2129 0,2044 0,1990 1000 0,2696 0,2515 0,2461 0,2290 0,2268 0,2151 0,2119 0,2087 0,2001 0,1958 1100 0,2664 0,2482 0,2429 0,2258 0,2236 0,2129 0,2097 0,2065 0,1969 0,1937 1250 0,2632 0,2429 0,2397 0,2226 0,2204 0,2076 0,2065 0,2044 0,1947 0,1905 1400 0,2611 0,2397 0,2375 0,2204 0,2183 0,2044 0,2033 0,2022 0,1926 0,1894 1500 0,2589 0,2386 0,2365 0,2183 0,2161 0,2022 0,2012 0,2001 0,1905 0,1883
7.2. Coefficient of local pressure loss (-) - round dampers
Tab. 7.2.1. Coefficient of local pressure loss - round dampers
D 180 200 225 250 280 315 355 400 450 500 560 630
3,546 2,124 1,291 0,877 0,609 0,438 0,328 0,255 0,205 0,173 0,147 0,127
8. Noise data
8.1. Level of acoustic output corrected with filter A.
LWA = LW1 + 10 log(S) + K
L
[dB(A)] level of acoustic output corrected with filter A
WA
L
[dB] level of acoustic output LW1 related to the 1 m section (see Tab. 10.3.1. a 10.3.2)
W1
2
[m ] duct cross section
S
A
2
KA[dB] correction to the weight filter A (see Tab. 10.3.3.)
33
TPM 109/15
8.2. Level of acoustic output in octave ranges.
L
= LW1 + 10 log(S) + L
Woct
rel
L
L
S [m ] duct cross section L
[dB] spectrum of acoustic output in octave range
Woct
[dB] level of acoustic output LW1 related to the 1 m section (see Tab. 10.3.1. a 10.3.2)
W1
2
[dB] relative level expressing the shape of the spectrum (see Tab. 10.3.3.)
rel
2
8.3. Table of acoustics values
Tab. 8.3.1. Level of acoustic output LW1[dB] related to the 1 m section - square dampers
2
[-]
w [m.s ] 0,2 0,3 0,4 0,5 0,6 0,7 0,8 0,9 1 1,5 2 2,5
-1
2 15,5 18,7 20,9 22,6 24,0 25,2 26,3 27,2 28,0 31,2 33,4 35,1 3 26,1 29,2 31,5 33,2 34,6 35,8 36,9 37,8 38,6 41,7 44,0 45,7 4 33,6 36,7 39,0 40,7 42,1 43,3 44,3 45,3 46,1 49,2 51,5 53,2 5 39,4 42,5 44,8 46,5 47,9 49,1 50,2 51,1 51,9 55,0 57,3 59,0 6 44,1 47,3 49,5 51,3 52,7 53,9 54,9 55,8 56,6 59,8 62,0 63,8 7 48,2 51,3 53,5 55,3 56,7 57,9 58,9 59,8 60,7 63,8 66,1 67,8 8 51,6 54,8 57,0 58,8 60,2 61,4 62,4 63,3 64,1 67,3 69,5 71,3
9 54,7 57,9 60,1 61,8 63,2 64,4 65,5 66,4 67,2 70,4 72,6 74,3 10 57,4 60,6 62,8 64,6 66,0 67,2 68,2 69,1 70,0 73,1 75,3 77,1 11 59,9 63,1 65,3 67,1 68,5 69,7 70,7 71,6 72,4 75,6 77,8 79,6 12 62,2 65,4 67,6 69,3 70,7 71,9 73,0 73,9 74,7 77,9 80,1 81,8
Tab. 8.3.2. Level of acoustic output LW1[dB] related to the 1 m section - round dampers
2
[-]
w [m.s ] 0,1 0,2 0,3 0,4 0,6 0,8 1 1,5 2 2,5 3 3,5
-1
2 9,0 11,5 14,7 16,9 20,1 22,3 24,1 27,2 29,4 31,2 32,6 33,8
3 16,7 22,1 25,3 27,5 30,7 32,9 34,6 37,8 40,0 41,7 43,2 44,4
4 24,2 29,6 32,8 35,0 38,1 40,4 42,1 45,3 47,5 49,2 50,7 51,9
5 30,0 35,4 38,6 40,8 44,0 46,2 47,9 51,1 53,3 55,1 56,5 57,7
6 34,8 40,2 43,3 45,6 48,7 51,0 52,7 55,8 58,1 59,8 61,2 62,4
7 38,8 44,2 47,3 49,6 52,7 55,0 56,7 59,9 62,1 63,8 65,2 66,4
8 42,3 47,7 50,8 53,1 56,2 58,4 60,2 63,3 65,6 67,3 68,7 69,9
9 45,4 50,7 53,9 56,1 59,3 61,5 63,3 66,4 68,6 70,4 71,8 73,0
10 48,1 53,5 56,6 58,9 62,0 64,3 66,0 69,1 71,4 73,1 74,5 75,7
11 50,6 56,0 59,1 61,4 64,5 66,7 68,5 71,6 73,9 75,6 77,0 78,2
12 52,8 58,2 61,4 63,6 66,8 69,0 70,7 73,9 76,1 77,9 79,3 80,5
34
TPM 109/15
Tab. 8.3.3. Correction to the weight filter A - square and round dampers
KA [dB]
-1
-15,0 -11,8 -9,8 -8,4 (7,30 Kč) -6,4 -5,7 -5,0 -4,5 -4,0 -3,6
- square and round dampers
rel
w [m.s ] 2 3 4 5 6 7 8 9 10 11 12
Tab. 8.3.4. Relative level expressing the shape of the spectrum L
f [Hz]
w [m.s ] 63 125 250 500 1000 2000 4000 8000
-1
2 -4,5 -6,9 -10,9 -16,7 -24,1 -33,2 -43,9 -56,4
3 -3,9 -5,3 -8,4 -13,1 -19,5 -27,6 -37,4 -48,9
4 -3,9 -4,5 -6,9 -10,9 -16,7 -24,1 -33,2 -43,9
5 -4,0 -4,1 -5,9 -9,4 -14,6 -21,5 -30,0 -40,3
6 -4,2 -3,9 -5,3 -8,4 -13,1 -19,5 -27,6 -37,4
7 -4,5 -3,9 -4,9 -7,5 -11,9 -17,9 -25,7 -35,1
8 -4,9 -3,9 -4,5 -6,9 -10,9 -16,7 -24,1 -33,2
9 -5,2 -3,9 -4,3 -6,4 -10,1 -15,6 -22,7 -31,5
10 -5,5 -4,0 -4,1 -5,9 -9,4 -14,6 -21,5 -30,0
11 -5,9 -4,1 -4,0 -5,6 -8,9 -13,8 -20,4 -28,8
12 -6,2 -4,3 -3,9 -5,3 -8,4 -13,1 -19,5 -27,6
IV. MATERIAL, FINISHING
9. Material
9.1. Damper bodies are supplied in the standard design made of galvanized plate without any other surface finish.
Damper blades are made of fire resistant asbestos free boards made of mineral fibres.
Fasteners is galvanized.
9.2. According to the customer's requirements, damper body, control, springs and jointing material can be made of stainless material.
V. INSPECTION, TESTING
10. Inspection, testing
10.1. The appliance is constructed and and preset by the manufacturer, its operation is dependent on proper installation and adjustment.
35
TPM 109/15
VI. TRANSPORTATION AND STORAGE
11. Logistic terms
11.1. Dampers are transported by box freight vehicles without direct weather impact, there must not occur any sharp shocks and ambient temperature must not exceed + 40 °C. Dampers must be protected against mechanic damages when transported and manipulated. During transportation, the damper blade must be in the "CLOSED" position.
11.2. Dampers are stored indoor in environment without any aggressive vapours, gases or dust. Indoor temperature must be in the range from -5 °C to +40 °C and maximum relative humidity 80 %. Dampers must be protected against mechanic damages when transported and manipulated.
VII. ASSEMBLY, ATTENDANCE, MAINTENANCE AND REVISIONS
12. Assembly
12.1. Assembly, maintenance and damper check can be done only by qualified persons, i.e. "AUTHORIZED PERSONS" that have been trained by the manufacturer.
Trainings are done by the firm MANDÍK that makes out a proficiency "CERTIFICATE" which is
valid for 5 years. It can be renewed by the "AUTHORIZED PERSONS" themselves, directly at the manufacturer.
When the "CERTIFICATE" expires, it becomes invalid and is eliminated from the trainer´s
registration.
Only professional personnel that undertake guarantee for the completed work can be trained.
12.2. All effective safety standards and directives must be observed during fire damper assembly.
12.3. Flange and screw joints must be conductively connected to protect against dangerous contact. 2
galvanized fan shape pads that are placed under the head of one screw and a fastened nut are used for conductive connection.
12.4. To ensure reliable fire damper function it is necessary to avoid blocking the closing mechanism and contact surfaces with collected dust, fibre and sticky materials and solvents.
12.5. Manual operation
Without power supply, the damper can be operated manually and fixed in any required
position. Release of the locking mechanism can be achieved manually or automatically by applying the supply voltage (design 4Mx or 5Mx).
13. Entry into service and revisions
13.1. Before entering the dampers into operation after assembly and after sequential revisions, checks and functionality tests of all designs including operation of the electrical components must be done. After entering into operation, these revisions must be done according to requirement set by national regulations.
In case that dampers are found unable to serve for their function for any cause, it must be clearly
marked. The operator is obliged to ensure so that the damper is put into condition in which it is able to function and meanwhile he is obliged to provide the fire protection another appropriate way.
Results of regular checks, imperfections found and all-important facts connected with the damper
function must be recorded in the "FIRE BOOK" and immediately reported to the operator.
36
TPM 109/15
13.2. Before entering the dampers into operation after their assembly and by sequential checks, the following checks must be carried out for all designs.
Visual inspection of proper damper integration, inside damper area, damper blade, contact
surfaces and silicon sealing.
Inspection hole disassembly: release the covering lid by turning the wing nut and while turning
the lid right or left release it from the security belt. Then tilt the lid and remove it from its original position.
13.3. For designs .44, .54 and .66 check of damper blade displacement can be realize after actuating mechanism supply connection or signal connection from higher level control systems. Blade displacement from position “OPEN” to position “CLOSED” and return displacement is checked.
13.4. For designs 4Mx or 5Mx check of blade displacement into the position "CLOSED" can be done after connecting the electromagnet impuls. Check of blade displacement back into the "OPEN" position can be done after connection of actuating mechanism power supply. After check actuating mechanism power supply has to be cutting off.
14. Spare parts
14.1. Spare parts are supplied only on basis of an order.
VIII. PRODUCT DATA
15. Data label
15.1. Data label is placed on the damper body.
Fig. 35 Data label
SMOKE CONTROL DAMPER - MSD
CLASSIFICATION: EI120 (vew-how-i o) S1500C10000AAmulti
DIMENSION:
SERIAL NUMBER:
TPM109/15
Certificate:
1391-CPR-2015/0057 15 EN 12101-8:2011
MANDÍK, a.s. 267 24 Hostomice
DESIGN:
WEIGHT (kg):
MANDÍK, a.s. 267 24 Hostomice
Dobříšská 550 Czech Republic
1391
Dobříšská 550 Czech Republic
SMOKE CONTROL DAMPER - MSD-W
CLASSIFICATION: EI120 (vew-how-i o) S1500C10000AAmulti
DIMENSION:
SERIAL NUMBER:
TPM109/15
Certificate:
1391-CPR-2015/0058 15 EN 12101-8:2011
DESIGN:
WEIGHT (kg):
37
1391
TPM 109/15
IX. ORDERING INFORMATION
16. Ordering key
16.1. Smoke damper MSD
MSD-S
TPM 109/15
.44800x400 -
technical specifications
design
size
S - square (rectangular) R - round
type
Dampers design Additional digit
with actuating mechanism BLE230(BE230-12), InMax 50.75-S .44 with actuating mechanism BLE24(BE24-12), InMax 50.75-S .54
with the communication and supply device BKNE 230-24 and actuating mechanism
BLE24(BE24-12)-ST
* Design .66 is not available by using actuating mechanism InMax 50.75-S
.66
16.2. Smoke damper MSD-W
TPM 109/15
MSD-W-S
.44800x400 -
technical specifications
design
size
S - square (rectangular) R - round
type
Dampers design Additional digit
with actuating mechanism BLE230(BE230-12) .44 with actuating mechanism BLE24(BE24-12) .54
with the communication and supply device BKNE 230-24 and actuating mechanism
BLE24(BE24-12)-ST
with actuating mechanism BLF230, JOVENTA DAF2.20S with an electromagnet AC 230 V .4M0 with actuating mechanism BLF230, JOVENTA DAF2.20S with an electromagnet AC/DC 24V .4M1 with actuating mechanism BLF24, JOVENTA DAF1.20S with an electromagnet AC 230 V .5M0 with actuating mechanism BLF24, JOVENTA DAF1.20S with an electromagnet AC/DC 24V .5M1
.66
38
MANDÍK, a.s. Dobříšská 550 26724 Hostomice Czech Republic Tel.: +420 311 706 706 Fax: +420 311 584 810, 311 584 38 E-Mail: mandik@mandik.cz www.mandik.cz
The producer reserves the right for innovations of the product. For actual product information see
www.mandik.com
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
