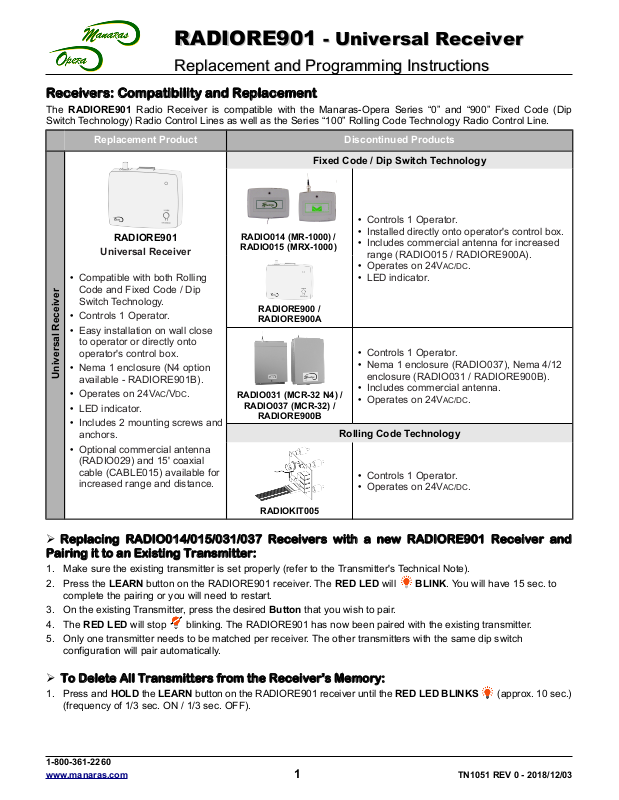

Manaras RADIORE901 Programming Instructions Manual
RADIORE901
RADIORE901
Replacement and Programming Instructions
Replacement and Programming Instructions
- Universal Receiver
- Universal Receiver
Receivers: Compatibility and Replacement
The RADIORE901 Radio Receiver is compatible with the Manaras-Opera Series “0” and “900” Fixed Code (Dip
Switch Technology) Radio Control Lines as well as the Series “100” Rolling Code Technology Radio Control Line.
Replacement Product Discontinued Products
Fixed Code / Dip Switch Technology
RADIORE901
Universal Receiver
• Compatible with both Rolling
Code and Fixed Code / Dip
Switch Technology.
• Controls 1 Operator.
• Easy installation on wall close
to operator or directly onto
operator's control box.
• Nema 1 enclosure (N4 option
Universal Receiver
available - RADIORE901B).
• Operates on 24VAC/VDC.
• LED indicator.
• Includes 2 mounting screws and
anchors.
• Optional commercial antenna
(RADIO029) and 15' coaxial
cable (CABLE015) available for
increased range and distance.
RADIO014 (MR-1000) /
RADIO015 (MRX-1000)
RADIORE900 /
RADIORE900A
RADIO031 (MCR-32 N4) /
RADIO037 (MCR-32) /
RADIORE900B
RADIOKIT005
• Controls 1 Operator.
• Installed directly onto operator's control box.
• Includes commercial antenna for increased
range (RADIO015 / RADIORE900A).
• Operates on 24VAC/DC.
• LED indicator.
• Controls 1 Operator.
• Nema 1 enclosure (RADIO037), Nema 4/12
enclosure (RADIO031 / RADIORE900B).
• Includes commercial antenna.
• Operates on 24VAC/DC.
Rolling Code Technology
• Controls 1 Operator.
• Operates on 24VAC/DC.
➢ Replacing RADIO014/015/031/037 Receivers with a new RADIORE901 Receiver and
Pairing it to an Existing Transmitter:
1. Make sure the existing transmitter is set properly (refer to the Transmitter's Technical Note).
2. Press the LEARN button on the RADIORE901 receiver. The RED LED will BLINK. You will have 15 sec. to
complete the pairing or you will need to restart.
3. On the existing Transmitter, press the desired Button that you wish to pair.
4. The RED LED will stop blinking. The RADIORE901 has now been paired with the existing transmitter.
5. Only one transmitter needs to be matched per receiver. The other transmitters with the same dip switch
configuration will pair automatically.
➢ To Delete All Transmitters from the Receiver's Memory:
1. Press and HOLD the LEARN button on the RADIORE901 receiver until the RED LED BLINKS (approx. 10 sec.)
(frequency of 1/3 sec. ON / 1/3 sec. OFF).
1-800-361-2260
www.manaras.com 1 TN1051 REV 0 - 2018/12/03
RADIORE901
Figure 5 - Wiring of RADIORE901 for
O/C/S and 3-Push Button Station
for Open/Close Function
on TSTRIP005
RADIORE901
Replacement and Programming Instructions
Replacement and Programming Instructions
- Universal Receiver
- Universal Receiver
➢ Wiring RADIORE901 Receiver with an Electronic Control Board
Figure 1 - Wiring of RADIORE901
for Open/Close/Stop Function
Figure 2 - Wiring of RADIORE901 for
O/C/S and 3-Push Button Station
Figure 3 - Wiring of RADIORE901 for
Open/Close Function
➢ Wiring RADIORE901 Receiver to an Electromechanical Terminal Block
Figure 4 - Wiring of RADIORE901
for Open/Close/Stop Function
Figure 6 - Wiring of RADIORE901
Wiring RADIORE901 Receiver to an External Terminal Strip
Mount the receiver directly to the terminal strip provided
Figure 7 - Wiring of RADIORE901
For further information, please consult the operator's Installation & Instruction Manual or contact our Technical
Support Department at 1-800-361-2260.
