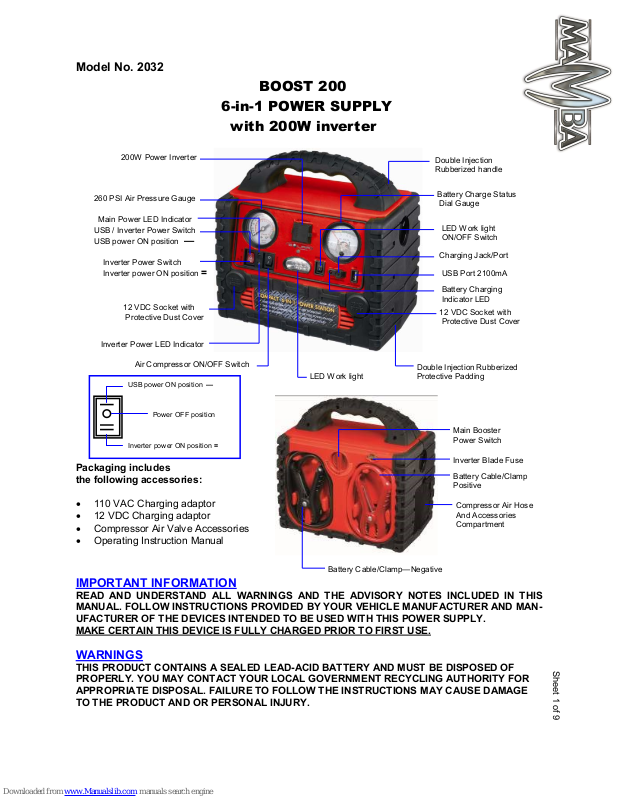

Mamba BOOST 200 2032 User Manual
Model No. 2032
BOOST 200
6-in-1 POWER SUPPLY
with 200W inverter
200W Power Inverter
260 PSI Air Pressure Gauge
Main Power LED Indicator
USB / Inverter Power Switch
USB power ON position —
Inverter Power Switch
Inverter power ON position =
12 VDC Socket with
Protective Dust Cover
Inverter Power LED Indicator
Air Compressor ON/OFF Switch
USB power ON position —
Power OFF position
Inverter power ON position =
Packaging includes
the following accessories:
110 VAC Charging adaptor
12 VDC Charging adaptor
Compressor Air Valve Accessories
Operating Instruction Manual
LED Work light
Double Injection
Rubberized handle
Battery Charge Status
Dial Gauge
LED Work light
ON/OFF Switch
Charging Jack/Port
USB Port 2100mA
Battery Charging
Indicator LED
12 VDC Socket with
Protective Dust Cover
Double Injection Rubberized
Protective Padding
Main Booster
Power Switch
Inverter Blade Fuse
Battery Cable/Clamp
Positive
Compressor Air Hose
And Accessories
Compartment
IMPORTANT INFORMATION
READ AND UNDERSTAND ALL WARNINGS AND THE ADVISORY NOTES INCLUDED IN THIS
MANUAL. FOLLOW INSTRUCTIONS PROVIDED BY YOUR VEHICLE MANUFACTURER AND MANUFACTURER OF THE DEVICES INTENDED TO BE USED WITH THIS POWER SUPPLY.
MAKE CERTAIN THIS DEVICE IS FULLY CHARGED PRIOR TO FIRST USE.
WARNINGS
THIS PRODUCT CONTAINS A SEALED LEAD-ACID BATTERY AND MUST BE DISPOSED OF
PROPERLY. YOU MAY CONTACT YOUR LOCAL GOVERNMENT RECYCLING AUTHORITY FOR
APPROPRIATE DISPOSAL. FAILURE TO FOLLOW THE INSTRUCTIONS MAY CAUSE DAMAGE
TO THE PRODUCT AND OR PERSONAL INJURY.
Battery Cable/Clamp—Negative
Sheet 1 of 9
Model No. 2032
IMPORTANT ADVISORY NOTES
Do not use with dry cell batteries. These batteries may burst and cause injury to person or damage
personal property.
Do not attempt to face the battery being jumped. Stay away as far as possible from the battery when
making the final connection.
DO NOT CONNECT TO or jump start a 6 or 24 Volt battery.
If battery acid comes in contact with skin or eyes, rinse immediately with water for 20 minutes. Seek
medical attention if redness, irritation or pain is present.
DO NOT smoke, use matches, lighters or an open flame near batteries.
This products contains chemical substances including lead. Wash hands thoroughly after handling
Lead Acid Batteries.
Never allow red (Positive) and black (Negative) clamps to come in contact with each other or
contact with metal object at the same time.
To protect against electrical hazards, do not immerse charger, adapters, or unit in water or other
liquid.
Close supervision is necessary when working near children.
Do not use unit for applications other than its intended use.
Always connect the red (+) clamp to the positive battery terminal first. Connect black (-) clamp to the
negative battery terminal as final connection.
Jumpstart vehicles in a well ventilated area only.
Do not expose Boost 200 to moisture and use it in extremely hot conditions.
Monitor the pressure gauge during use. Be careful not to over-inflate objects.
Never work alone with this product. Make sure that someone is available to give assistance if need-
ed.
Wear complete eye and clothing protection. Do not touch eyes while working near battery.
Do not attempt to remove or replace the battery used in this device. When the battery has reached
the end of its useful lifetime, take the entire unit to a battery recycling facility.
For proper and safe operation of the 12 Volt DC power accessory outlets, do not place anything into
it except the plug of the accessory to be used.
Remove metal, personal jewelry, such as: rings, bracelets, necklaces and watches, while working
with a lead acid battery. This can produce a short-circuit that may cause severe burns.
Never charge or jump-start a frozen battery.
Do not operate this device while wearing vinyl clothing. Static electricity may be generated when
vinyl clothing is rubbed.
This product is not intended for use in the rain or temperatures above 150ºF.
Use only the provided chargers, cables and clamps. Unauthorized parts may damage the unit.
This product has no consumer serviceable parts except the replaceable fuses.
Keep out of the reach of children.
Keep battery terminals clean. Be careful to keep corrosion from coming in contact with eyes.
Do not let the cords of the Boost 200 or jumper clamps get wet.
Prevent water to get into Boost 200 housing. Water will damage the internal electronics board.
This unit has a built-in lead acid battery. Although Boost 200 arrives partially charged from the
factory, it MUST be fully charged before the first use.
Recharge Boost 200 after each use or every 3 months preventing the battery voltage to become
extremely low.
FEATURES:
Compact 6-1 multipurpose AC and DC power supply with vehicle jumpstart boosting system. The unit
provides: two 12 VDC covered output ports, 200 Watt continuous power inverter with 120 VAC covered
outlet, 260 PSI air compressor, Booster Cables with Insulated Clamps, Booster Cables Power Switch,
Nozzle Adaptors for most Inflatables, LED working light, Battery Status Needle Dial Gauge, USB power
port with vehicle instant battery jump starter.
Sheet 2 of 9
Model No. 2032
SPECIFICATIONS:
BUILT-IN 12V 10AH RECHARGEABLE LEAD ACID BATTERY.
INSTANT BATTERY JUMP STARTER.
DUAL 12 VDC COVERED OUTPUT PORTS.
USB POWER SUPPLY OUTPUT PORT RATED AT 5V - 2100mA.
200 WATT CONTINUOUS/400 WATT PEAK POWER INVERTER
WITH 120 VAC COVERED OUTLET.
260PSI AIR COMPRESSOR WITH NEEDLE DIAL GAUGE.
ULTRA BRIGHT WHITE LED CONVENIENCE.
COMPACT AND PORTABLE SIZE WITH RUBBERIZED HANDLE.
NOZZLE ADAPTORS FOR INFLATABLES.
AC & DC CHARGERS ARE INCLUDED.
CHARGING BOOST 200 INSTRUCTIONS:
CAUTIONS
Prior to charging this device, read and understand all the related instruction indicated below.
Fully charge the Boost 200 unit when the Battery Status Needle Dial reads below 12 VDC.
This product may arrive partially charged from the factory. It is highly recommended to fully
charge the Boost 200 unit after purchase and before using for the fist time.
Make certain that all ON/OFF Power Switches are set in the OFF position.
Do not charge the Boost 200 Power Supply near flammable material, open flame or any
location which accumulate flammable fumes.
Make certain the electrical outlet located in a potentially wet or moist area that is to be used
to charge this device, is protected by a Ground Fault Circuit Interrupter (GFCI).
Make sure that both booster clamps are securely placed in their designated storage
compartments when not in use and during the charging period.
A. AC Charging At Home with 110 Volt Charger
1. Keep the Main Booster Power Switch in OFF position while charging.
2. Insert the AC charger round plug into the Boost 200 Charging Port.
3. Connect the 110 Volt AC Charger into the 110 Volt AC home receptacle.
4. Fully charge the Boost 200 according to the following schedules:
First time charge: 32 hours
Recharge and subsequent charge: 24 hours
5. Unplug the AC charger from the 110 Volt receptacle first and then remove the round plug from the
Boost 200 Charging Port.
B. DC Charging In Your Vehicle with 12 Volt Charger
1. Keep the Main Booster Power Switch in OFF position while charging.
2. Insert the 12 Volt DC Charger round Plug into the Boost 200 Charging Port.
3. Connect the 12 Volt DC Charger Plug into the vehicle cigarette lighter or 12 Volt accessory port.
4. Fully charge the Boost 200 internal battery for 6 hours while the vehicle engine is running.
5. Unplug the DC charger from the 12 Volt DC plug from the vehicle cigarette lighter port first and then
remove the round plug from the Boost 200 Charging Port.
INTERNAL BATTERY CHARGE LEVEL:
Turn the Main Booster Power Switch to the ON position to determine the unit internal battery
charge level prior to each use.
The Battery Charge Status Gauge Needle will indicate the battery charge level.
Gauge needle in Red Zone: Low Battery Charge Level - Charge immediately.
Gauge needle in Yellow Zone: 10% - 50% Charge Level - Recharge before use.
Gauge needle in Green Zone: 51% - 100% Charge Level - Recharge after use.
Sheet 3 of 9
