Malone MPG171 User Manual

MALONE

R

D

ELUXE

P

ADDLEBOARD

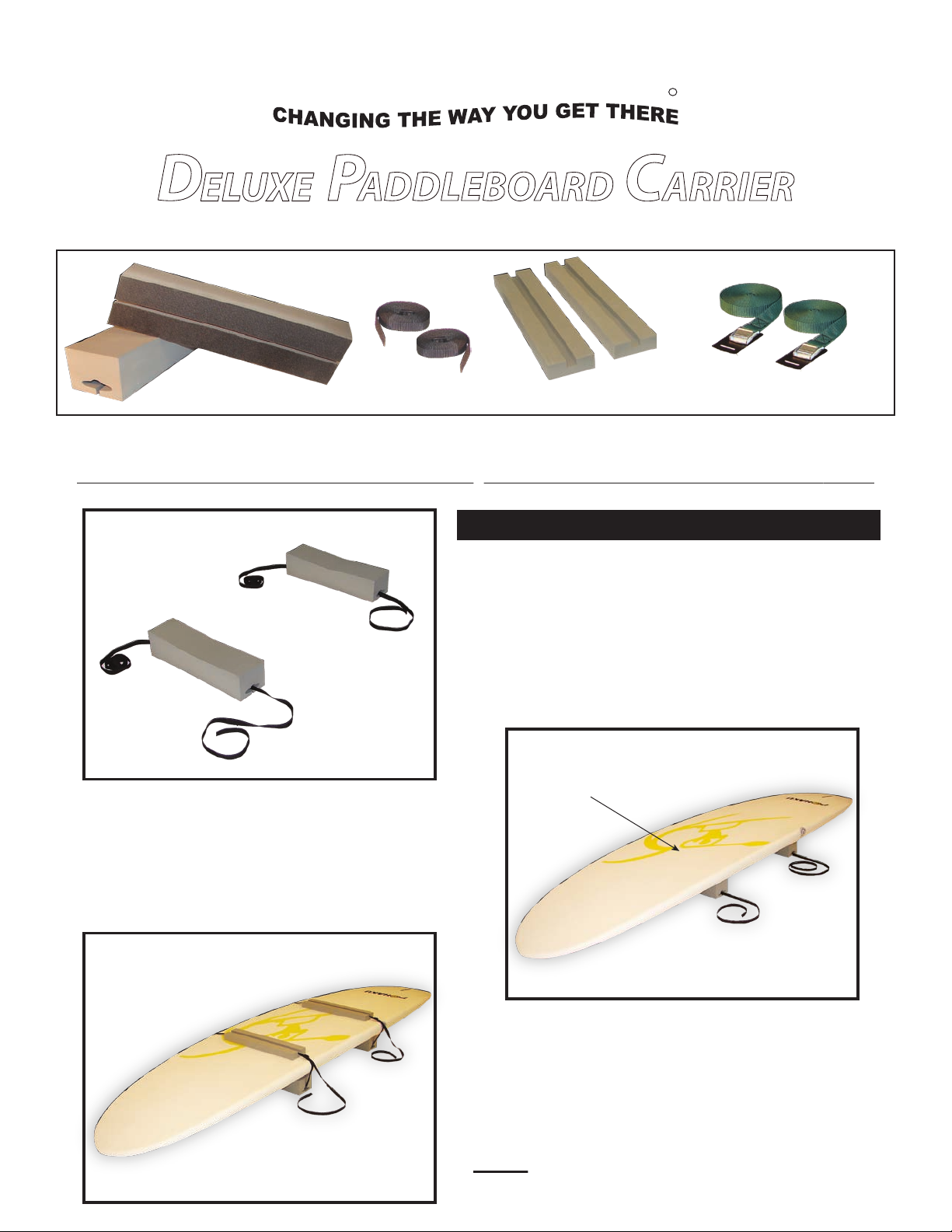

MPG171 ROOF TOP SUP BOARD TRANSPORT KIT

C

ARRIER

24” SUP Blocks

Installation & Loading Instructions - Please Read Before Beginning

Installation without cross bars, see instructions 1-9. Installation with cross bars, see instructions 10-17.

1

. Unroll the two 9’ Block Straps. Thread a Strap
through the cut-out in the bottom of a 24” Block.
Repeat for second Strap and Block. Measure
the SUP. Position the Blocks so they are aligned
and spaced apart approximately 1/3 of the total
length of the SUP. See Image 1.

. Place the SUP onto the Blocks so that the
bottom of the board is facing up. Align the
SUP so it’s weight is evenly distributed on
the two Blocks. See Image 2.

22” Spacer Pads 15’ Load Straps9’ Block Straps

Installation without Cross Bars

2

Bottom of Board

3

. Place the Spacer Pads on top of the SUP so that
they are aligned with the Blocks. Dress the
two Block Straps over the Pads. Dress the Strap
free ends through the buckles and tighten.
See Image 3.

NOTE: The Spacer Pads are only required
when transporting two SUP’s.

MALONE

R

Installation & Loading Instructions - MPG171 Deluxe SUP Kit

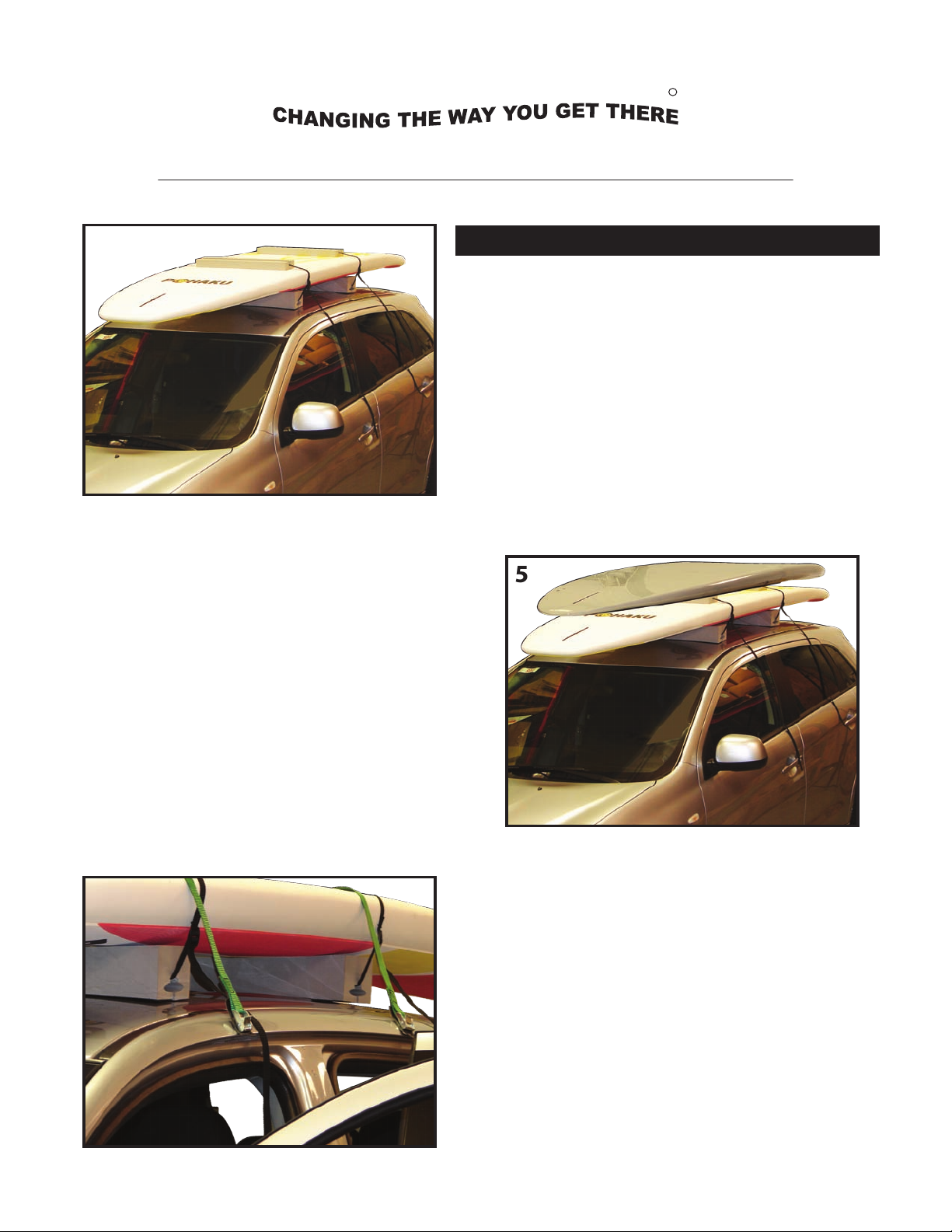

4

. Place and center the 2nd SUP onto the

Spacer Pads. See Image 5.

Installation without Cross Bars

. Confirm that the bottom of the Blocks and the

roof of the vehicle are clean and free of dust
and/or dirt that could scratch the vehicle’s finish.

Place and center the SUP with Blocks onto the
vehicle. See Image 4.

5

If only one SUP is to be transported, go
directly to Instruction 6.

6

. Unroll the two green 15’ Load Straps. Open the
vehicle’s doors. Throw the non-buckle ends of each
Strap up and over the SUP(s) and down to the other
side of the vehicle.

The Load Straps and the Blocks should be as closely
aligned as possible. See Image 6.

MALONE

R

Installation & Loading Instructions - MPG171 Deluxe SUP Kit

7

. Insert the free end of each Load Strap up

and through each buckle. Pull the free end
down to tighten. See Image 8.

For best results, tighten both straps at the
same time, going back and forth until both
Straps are firmly tight and the boards are
fully secure.

Installation without Cross Bars

. With the doors open, pull the free end of each

Load Strap back through the vehicle.
You should now have two continuous Strap loops

dressed over the SUP board(s) and through the
vehicle. See Image 7.

8

The free ends of the Straps can now be
dressed into the vehicle and the doors shut.

9

. Always check the Load Straps and SUP boards for
proper and secure attachment before transport.
See Image 9.

Limit travel to 150 miles or less. Check the boards
after the first 5 miles to confirm the transport is
correct and safe.

MALONE

R

Installation & Loading Instructions - MPG171 Deluxe SUP Kit

10

. Place the SUP onto the Blocks so that the
bottom of the board is facing up. Align the
SUP so it’s weight is evenly distributed on
the two Blocks. See Image 11.

Installation with Cross Bars

. Place the 24” Blocks onto the cross bars with the

bottom cut-outs fully inserted over each bar.
Center the Blocks in the middle of both cross bars.
See Image 10.

NOTE: The cross bars should be spaced a minimum
of 30” apart.

11

12

. Place and center the two Spacer Pads onto the
top of the SUP mounted on the blocks.

See Image 12.

If only one SUP is to be transported, go directly
to Instruction 14.

MALONE

R

Installation & Loading Instructions - MPG171 Deluxe SUP Kit

13

. Place and center the 2nd SUP onto the Spacer Pads.

Confirm that the 2nd SUP is aligned and it’s weight
is evenly distributed on the Pads. See Image 13.

. Unroll the 15’ green Load Straps. Dress a
Strap free end under a cross bar and back up
to make a loop. Pull the loop even and place
over the top and down the other side of the
SUP(s). Repeat for the second Load Strap.
See Image 14.

Installation with Cross Bars

14

15

. Both Load Strap loops should now be positioned
over the SUP(s). See Image 15.

MALONE

R

Installation & Loading Instructions - MPG171 Deluxe SUP Kit

16

. Pull the free end of a Load Strap down until the

the buckle is positioned approximately 6” above
the cross bar.

Insert the Strap free end up and through the buckle.
Pull down to tighten. Repeat for second Strap.

Confirm the boards are secure and the Straps are
firm before transport. See Image 16.

NOTE: For added security, dress the extra strap
around the cross bar and form a knot.

. The free ends of the Straps can now be placed
into the vehicle and the doors shut.
See Image 17.

Installation with Cross Bars

17

Always inspect mounting hardware, cross bars and load straps for proper and

secure attachment before and during transport. Use of this product for any

other application other than watersport carrier transport voids warranty.

Warning: All vehicular rooftop transports are potentially hazardous.

Any person using MALONE automotive transport systems is personally

responsible for following the given directions for use and installation
and accepts full and complete responsibility for any and all damages
or injury of any kind including death, which may result from their use.

MALONE AUTO RACKS, 81 County Road, Westbrook, Maine 04092

Phone: [phone] Fax: [phone]

Website: www.maloneautoracks.com Email: [e-mail]

R

Limited One Year Warranty

The Malone Auto Racks (Malone) Limited One Year Warranty covers certain Malone-brand products that have been specically
identied for inclusion in the program and is eective for one year from the date of purchase for the original retail purchaser.
This warranty is terminated after one year from the date of purchase, or, when the original retail purchaser sells or otherwise
transfers the product to any other person or entity during the one year warranty period.

Subject to the limitations and exclusions described in this warranty, Malone will remedy defects in materials and/or
workmanship by repairing or replacing, at its option, a defective product without charge for parts or labor. Malone may
elect, at its option, not to repair or replace a defective product but rather issue to the original retail purchaser a refund
equal to the purchase price paid for the product, or credit to be used toward the purchase of a replacement Malone
product.

This warranty does not cover, and no warranty is given for defects or problems caused by normal wear and tear which
includes but is not limited to surface (aesthetic) metal corrosion, scratches, dents, deformities, accidents, unlawful
vehicle operation, or any modication of a product not performed or authorized in writing by Malone.

In addition, this warranty does not cover problems resulting from conditions beyond Malone’s control including, but not
limited to, theft, misuse, overloading, or failure to assemble, mount or use the product in accordance with Malone’s
written instructions or guidelines included with the product available to the original retail purchaser.

No warranty is given for Malone products purchased outside of the United States, Canada and Mexico.

If the product is believed to be defective, the original retail purchaser should contact the Malone dealer from whom it
was purchased, who will give the original retail purchaser instructions on how to proceed. If the original retail purchaser
is unable to contact the Malone dealer, or the dealer is not able to remedy the defect, the original retail purchaser should
contact Malone by email at [e-mail].

In the event that the product must be returned to Malone, a technician at the email address above will provide the
original purchaser with return shipping instructions. The original purchaser will be responsible for the cost of mailing
the product to Malone. In order to receive any remedy under this warranty, a copy of the original purchase receipt,
a description of the defect and a return address must be provided.

Disclaimer of Liability

Repair or replacement of a defective product, or the issue of a refund or credit (as determined by Malone) is the original
retail purchaser’s exclusive remedy under this warranty. Damage to original purchaser’s vehicle, cargo, or property, and/
or to any other person or property is not covered by this warranty.

This warranty is expressly made in lieu of any and all other warranties, express or implied, including the warranties of
merchantability and tness for a particular purpose.

Malone’s sole liability is limited to the remedy set forth above. In no event will Malone be liable for any direct, indirect,
consequential, incidental, special, exemplary, or punitive damages , or, for any other damages of any kind or nature
(including but not limited to, lost prots, lost income or lost sales).

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations
may not be applicable. This warranty gives you specic legal rights and you may also have other rights which vary from
state to state.

In addition, all vehicular transports are potentially hazardous. Any person using MALONE products are personally
responsible for following the given directions for use, installation and accepts full responsibility for any and all damages
or injury of any kind including death, which may result from their use.

MALONE AUTO RACKS, 81 County Road, Westbrook, Maine 04092

Phone: [phone] Fax: [phone]

Website: www.maloneautoracks.com Email: [e-mail]
