Malone MPG113MD User Manual

MALONE

R

TM

SS ComboSS Combo

Extension Frame Mounting Plate V-Block 70mm Bolts

TM

SEAWING KAYAK CARRIER with
STINGER LOAD ASSIST

TM

T-knobs

1” Bolts1 3/4” Bolts

TM

SeaWing Kayak Carriers 12’ Load Straps

Installation & Loading Instructions - Please Read Before Beginning

1

Stinger Load Assist Components

SeaWing Kayak Carrier Components

TM

50mm

60mm

Jawz Universal Adapters Mounting Bolts

TM

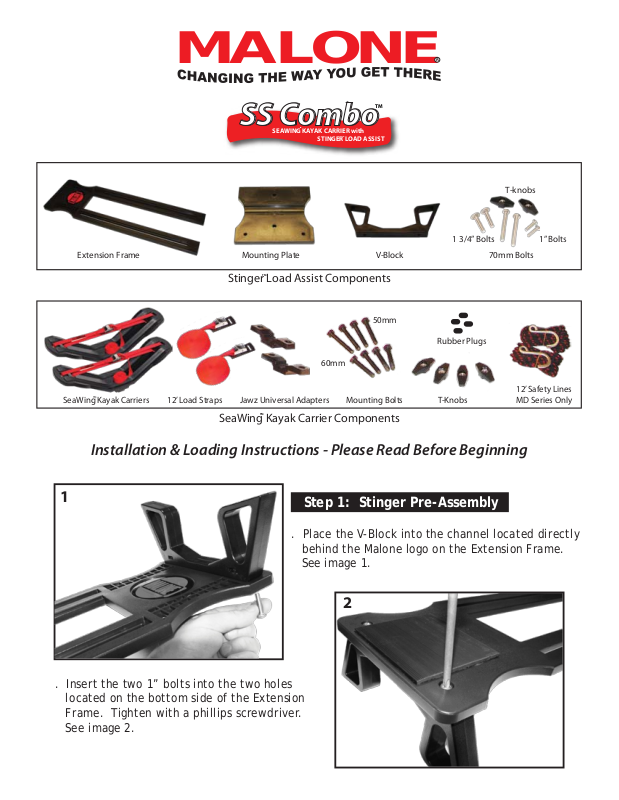

Step 1: Stinger Pre-Assembly

. Place the V-Block into the channel located directly
behind the Malone logo on the Extension Frame.
See image 1.

Rubber Plugs

T-Knobs

12’ Safety Lines
MD Series Only

. Insert the two 1” bolts into the two holes
located on the bottom side of the Extension
Frame. Tighten with a phillips screwdriver.
See image 2.

2

MALONE

R

3

Installation & Loading Instructions - MPG113MD SS Combo

TM

Align

channels

to holes

. Insert the 1 3/4” Carriage Bolts down and
through the Extension Frame channels and
into the holes in the Mounting Plate.
See image 4.

5

. Place the Extension Frame on top of the Mounting
Plate with the raised block side facing up. The two
holes located on the end of the Plate should align
with the two channels in the Frame.
See image 3.

4

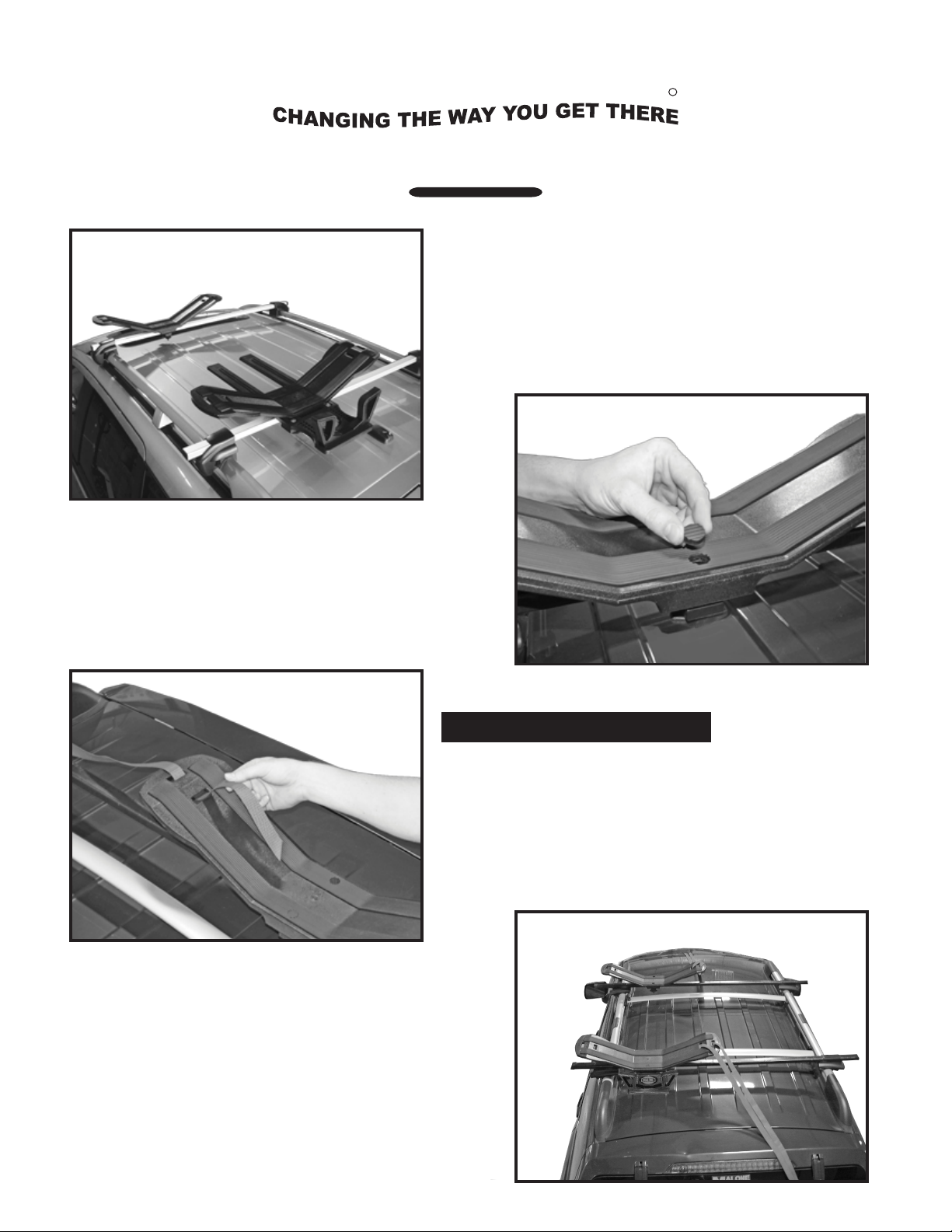

Step 2: Installing Carriers to Cross Bars

. Place the SeaWing onto the Stinger so that
the mounting holes in both units are aligned.
See image 6.

. Loosely thread the two T-knobs onto the Bolts.
Slide the Frame forward towards the Mounting
Plate until travel is stopped. Tighten both of
the T-knobs. See image 5.

6

MALONE

R

Installation & Loading Instructions - MPG113MD SS Combo

7

. Insert Bolt through one hole of the Jawz
mounting adapter and loosely apply the
T-knob. See image 8.

TM

. Insert a single 70mm Mounting Bolt down through
the SeaWing and Mounting Plate. See image 7.

Note: Additional bolt lengths available.

9

. Place the Stinger with SeaWing assembly onto
the rear cross bar of the vehicle with the V-Block
closest to the rear of the vehicle. Swing the Jawz
under the cross bar and insert the second 70mm
Bolt. See image 9.

. Loosely secure the second Bolt with a T-knob.
Position the assembly to the final location.
Finish by firmly tightening the T-knobs. See
image 10.

8

10

MALONE

R

Installation & Loading Instructions - MPG113MD SS Combo

11

. Insert Mounting Bolt through one hole of a
Jawz Mounting Adapter and loosely apply
a T-knob. See image 12.

TM

. Using the second SeaWing carrier, insert a Mounting
Bolt into one of the top side hex holes.
See image 11.

12

13

. Place the carrier onto the front cross bar. Swing
the Jawz under the cross bar as shown.
See image 13.

. Insert a second Mounting Bolt into the top side
unused carrier hex hole and down through the
Jawz mounting adapter. Apply a second T-knob
and slightly tighten until the carrier is secure.
See image 14.

14

MALONE

R

Installation & Loading Instructions - MPG113MD SS Combo

15

. Insert the four Rubber Plugs into the four
top side hex holes in the two carriers.
See image 16.

TM

. Confirm the carriers are in alignment. Firmly
tighten the T-knobs until both carriers are securely
fixed to the cross bars. See image 15.

16

17

. Place the straps parallel to the carriers
with the front strap loop on the windshield
and the rear strap loop on the back of the
vehicle. See image 18.

Step 3: Loading the Kayak

. Route the free end of a 12’ Load Strap down through
the top of the outer most strap slot and back up
through the inside slot of the carrier. Pull the free
end until there is an even loop. Repeat for the second
carrier. See image 17.

18

MALONE

R

Installation & Loading Instructions - MPG113MD SS Combo

TM

19

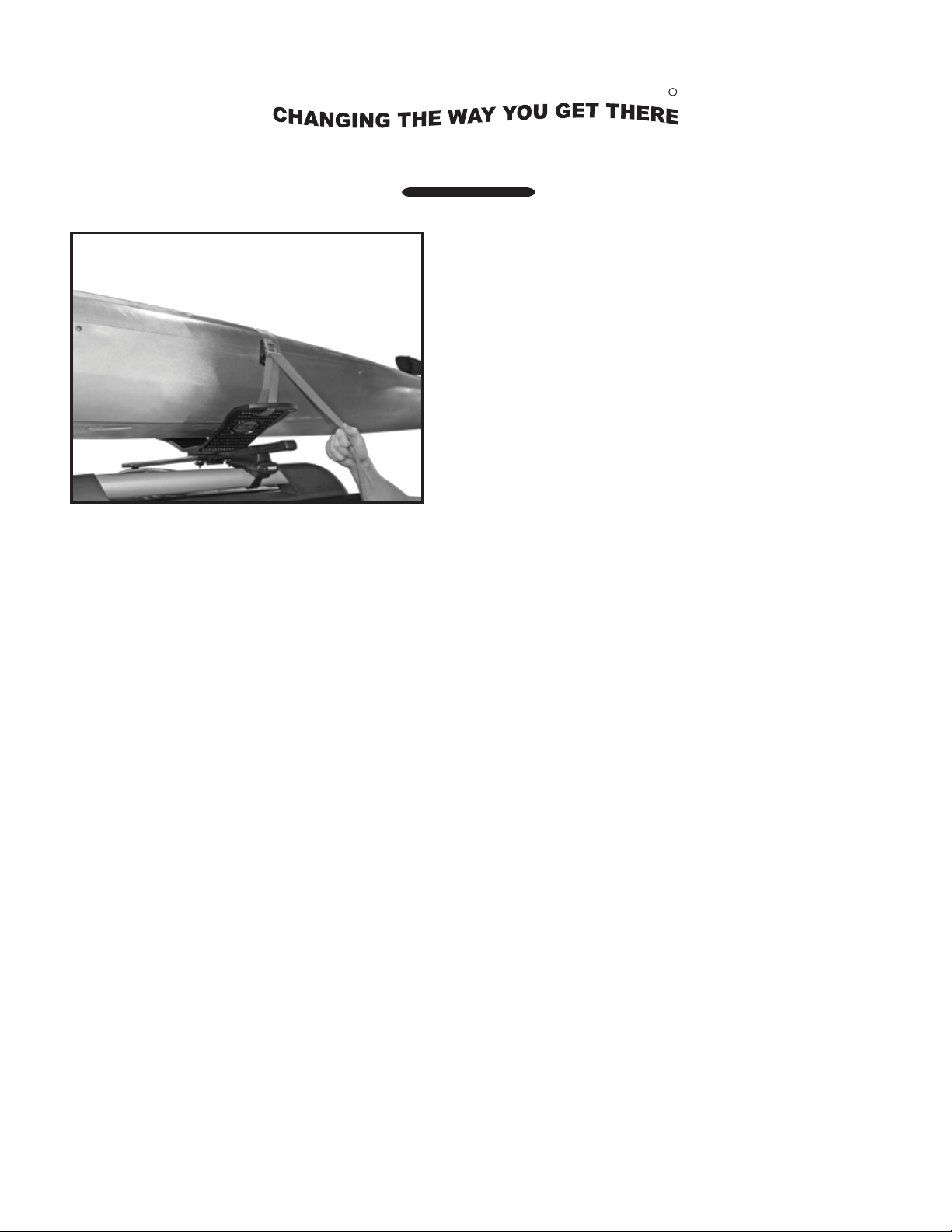

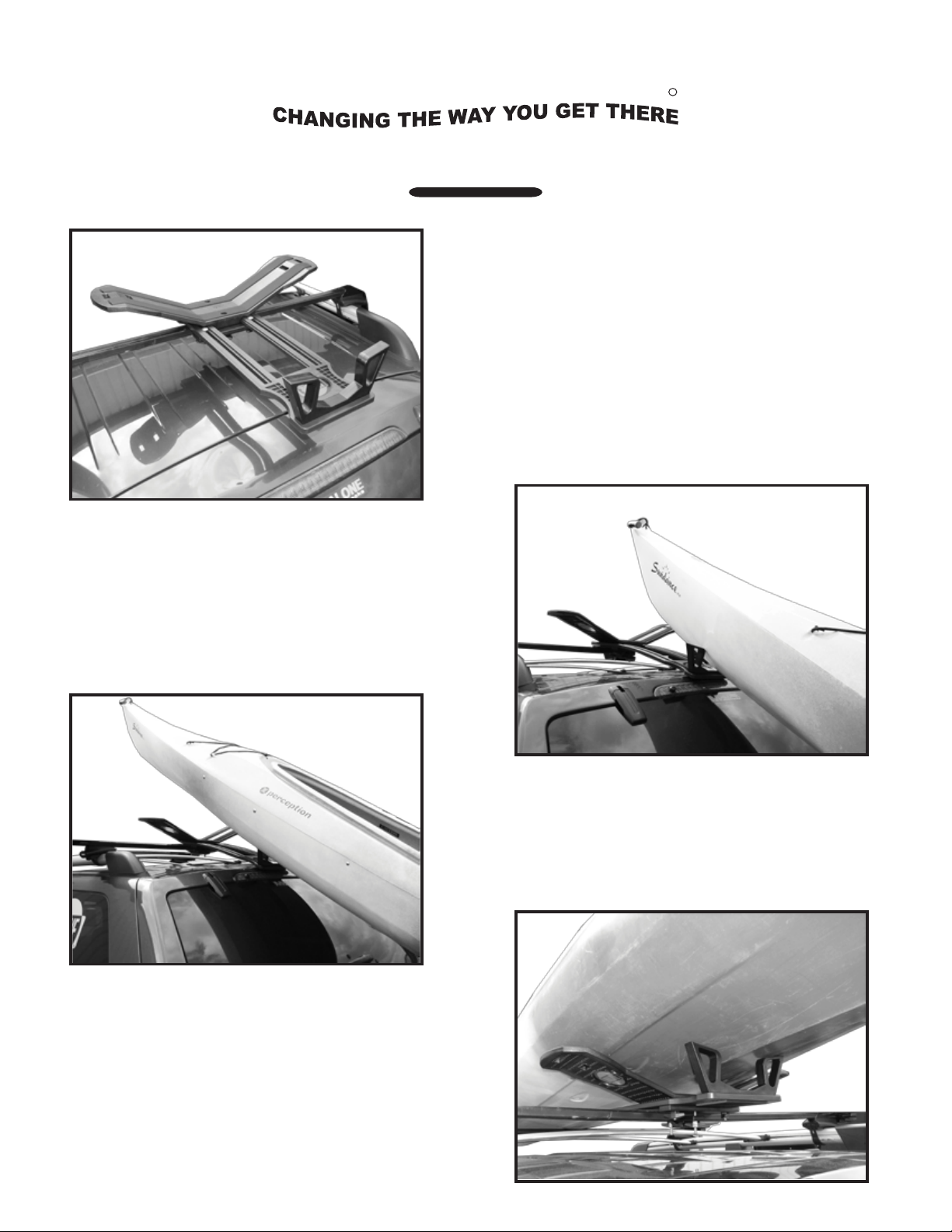

. Lift and place the front of the kayak into
the V-Block on the Extension Frame. Walk
to the rear of the kayak while continuing
to hold the kayak in place. See image 20.

. Loosen the two T-knobs holding the Extension
Frame. Pull the Frame out to the rear edge of
the vehicle and slightly re-tighten the T-knobs.
See image 19.

Note: The Extension Frame will bend down under
the weight of the kayak. The Frame should be
placed so that the rubber pad makes contact with
the vehicle’s rear edge. This will provide support
and protection while the kayak is loaded.

20

21

. After the kayak has been loaded onto the
carriers, loosen the two Extension Frame
T-knobs and push the Extension Frame back
until the V-Block makes contact with the
kayak. Tighten the T-knobs for transport.
See image 22.

. Lift the rear of the kayak and slowly push forward
until the kayak is centered between the carriers.
See image 21.

22

MALONE

R

23

Installation & Loading Instructions - MPG113MD SS Combo

TM

. Position kayak so that the cockpit is evenly centered
between the front and rear carriers. The bottom of
the kayak should be slightly elevated above each of
the carriers and held by the sides of the carriers.
See image 23.

24

. Place the strap loops over the kayak so that
each loop is positioned directly over a carrier.
See image 24.

25

. Pull the free end of each strap loop down until the
buckles are positioned half way up the side of the
kayak. Thread each free end down and through the
top of the outside slot and back up through the
bottom of the inside slot. See image 25.

26

MALONE

R

Installation & Loading Instructions - MPG113MD SS Combo

TM

. Thread the free strap ends up and through
the buckles. Pull down to tighten. Dress
any extra strap down and around the cross
bars. See image 26.

. For MD series only: Install the bow & stern
safety lines per the attached instructions.

IMPORTANT NOTES:

Safety tie-downs are required for all transport. If your kit did not include

safety tie-downs, we strongly recommend the use of the Malone

MPG316 Sentry Ratchet Tie-Down System.

For added stability for larger kayaks, dress the straps down under the cross

bars before bringing them back up through the slots in steps 17 and 25.

Always check mounting hardware, load straps and safety tie-down lines for proper

and secure attachment before transport. Use of this product for any other

application other than kayak transport voids warranty.

Warning: All vehicular rooftop transports are potentially hazardous.
Any person using MALONE automotive transport systems is personally
responsible for following the given directions for use and installation
and accepts full and complete responsibility for any and all damages

or injury of any kind including death, which may result from their use.

MALONE AUTO RACKS, 81 County Road, Westbrook, Maine 04092

Phone: [phone] Fax: [phone]

Website: www.maloneautoracks.com Email: [e-mail]
