Malone MPG107MD User Manual

MALONE

R

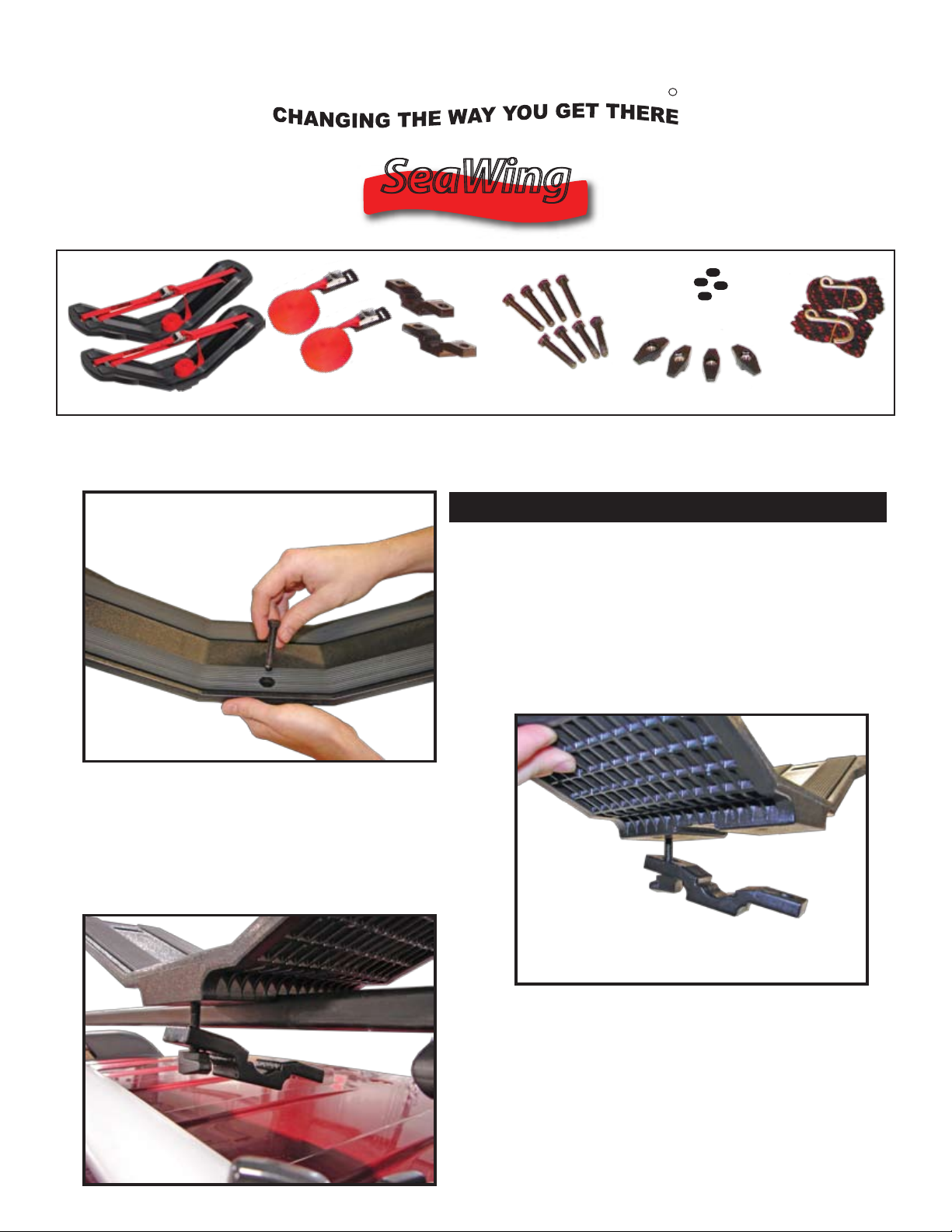

SeaWing Kayak Carriers 12’ Load Straps

Installation & Loading Instructions - Please Read Before Beginning

SeaWingSeaWing

V-STYLE KAYAK CARRIER

60mm

Jawz Universal Adapters

TM

50mm

Mounting Bolts

Rubber Plugs

T-Knobs

12’ Safety Lines
MD Series Only

1

. Insert Mounting Bolt through one hole of a
Jawz Mounting Adapter and loosely apply
a T-knob. See image 2.

3

Step 1: Installing Carriers to Cross Bars

. Insert a Mounting Bolt into one of the top side hex
holes. See image 1.

2

. Place the carrier onto the front cross bar. Swing
the Jawz under the cross bar as shown.
See image 3.

MALONE

R

Installation & Loading Instructions - MPG107M (MD) SeaWing

4

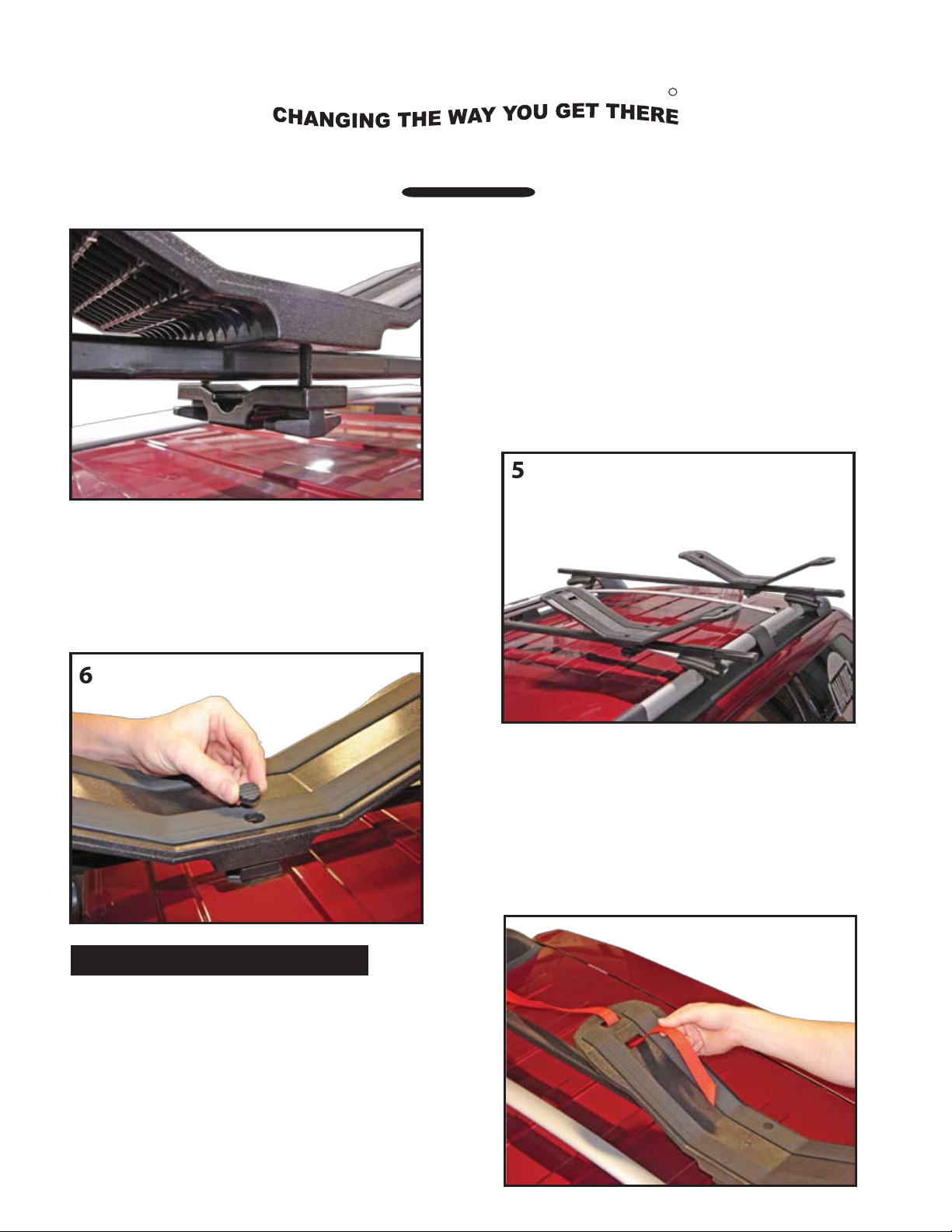

. Confirm the carriers are in alignment.
Firmly tighten the T-knobs until both
carriers are securely fixed to the cross
bars. See image 5.

TM

. Insert a second Mounting Bolt into the top side
unused carrier hex hole and down through the
Jawz mounting adapter. Apply a second T-knob
and slightly tighten until the carrier is secure.
Repeat steps 1-4 for the 2nd carrier and rear
cross bar. See image 4.

5

6

. Insert the four Rubber Plugs into the four top side
hex holes in the two carriers. See image 6.

Step 2: Loading the Kayak

. Route the free end of a 12’ Load Strap down
through the top of the outer most strap slot
and back up through the inside slot of the
carrier. Pull the free end until there is an
even loop. Repeat for the second carrier.
See image 7.

7

MALONE

R

Installation & Loading Instructions - MPG107M (MD) SeaWing

8

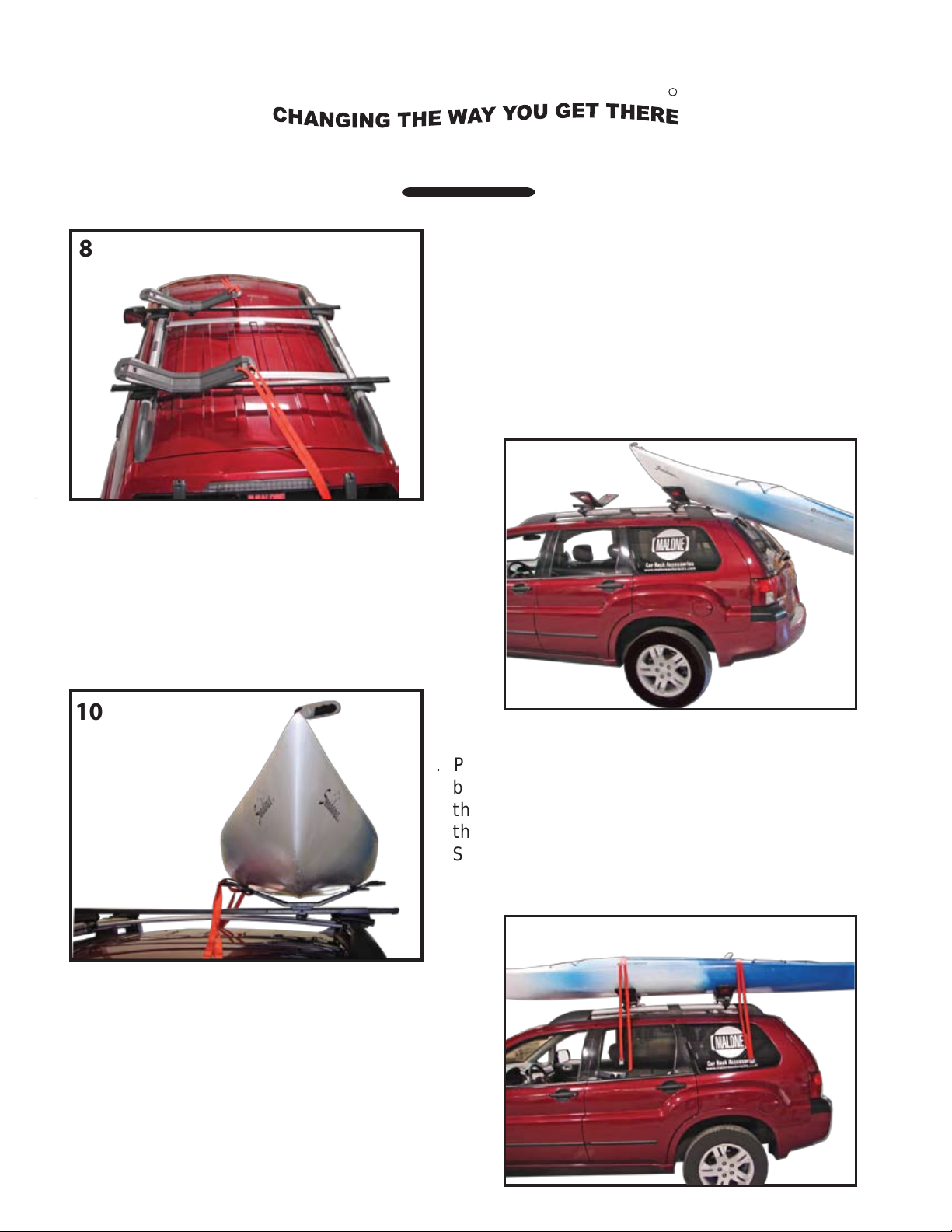

. Place a mat on the rear of the vehicle to
protect the finish. Lift the front of the
kayak onto the vehicle. Lift the rear of
the kayak up and slide it into the carriers.
See image 9.

TM

. Place the straps parallel to the carriers with the
front strap loop on the windshield and the rear
strap loop on the back of the vehicle.
See image 8.

9

10

. Position kayak so that the cockpit is evenly centered
between the front and rear carriers. The bottom of
the kayak should be slightly elevated above each of
the carriers and held by the sides of the carriers.
See image 10.

. Place the strap loops over the kayak so that
each loop is positioned directly over a carrier.
See image 11.

11

MALONE

R

Installation & Loading Instructions - MPG107M (MD) SeaWing

12

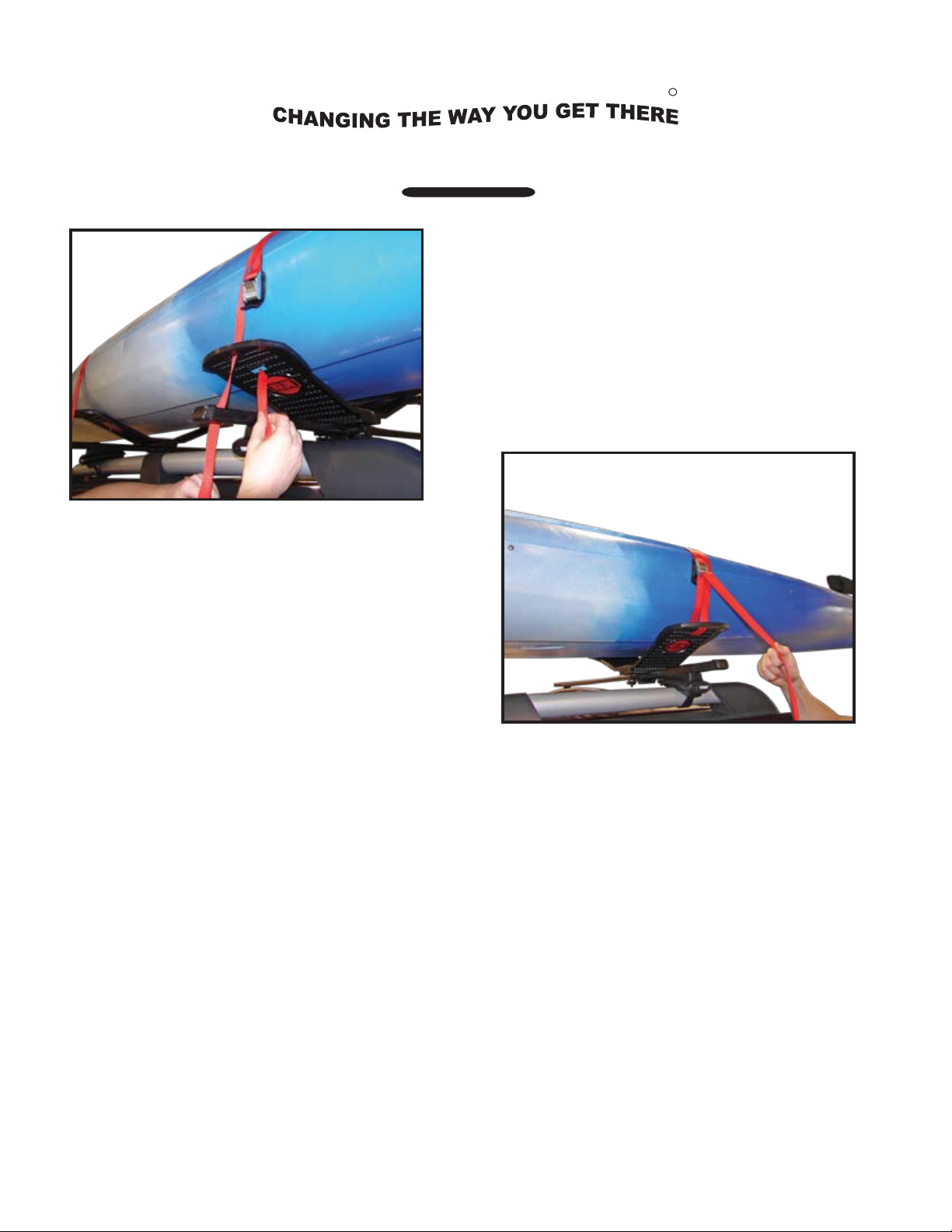

. Thread the free strap ends up and through
the buckles. Pull down to tighten. Dress
any extra strap down and around the cross
bars. See image 13.

TM

. Pull the free end of each strap loop down until the
buckles are positioned half way up the side of the
kayak. Thread each free end down and through the
top of the outside slot and back up through the
bottom of the inside slot. See image 12.

13

. For MD series: Install the bow & stern safety lines per the attached instructions.

IMPORTANT NOTES:

For added stability for larger kayaks, dress the straps down under the cross

bars before bringing them back up through the slots in steps 7 and 12.

Safety tie-downs are required for all transport. If your kit did not include

safety tie-downs, we strongly recommend the use of the Malone

MPG316 Sentry Ratchet Tie-Down System.

Always check mounting hardware, load straps and safety tie-down lines for proper

and secure attachment before transport. Use of this product for any other

application other than kayak transport voids warranty.

MALONE AUTO RACKS, 81 County Road, Westbrook, Maine 04092

Phone: [phone] Fax: [phone]

Website: www.maloneautoracks.com Email: [e-mail]

MPG370 BOW & STERN LINE KIT

MALONE

R

Attach hook to rope (steps A-D)

A B C D

Thread free end

of cord through

hook.

Create a “left

over right”

knot & tighten.

Create a “right

over left”

knot & tighten.

Pull to test for

knot strength.

Attach and dress rope to vehicle and boat (steps E-O)

Attach S-hook to vehicle

tow ring or other sturdy

body part.

Pass the loop through the

opening.

E

Keeping the rope tight and

S-hook in place, thread the

free end up and through a

strong point on the kayak

I

Pull to create a tight knot.

M

F

Make a loop in the rope

12” to 14” away

from the kayak or canoe.

J

Thread the free end of

the rope

through the loop.

N

G

K

Opening

Bend the loop over leaving

a large opening as shown.

Pull the free end up until

the rope

is sufficiently tight.

O

H

L

Hold the rope secure with

one hand.

MALONE AUTO RACKS, 81 County Road, Westbrook, Maine 04092

Website: www.maloneautoracks.com Email: [e-mail]

Form a knot with the free

Phone: [phone] Fax: [phone]

end and tighten. Form

a second knot for

safety purposes.

The line should be tight

and secure. Repeat for

second tie-down.

MALONE

R

Limited Lifetime Warranty

The Malone Auto Racks (Malone) Limited Lifetime Warranty covers certain Malone-brand products that have been specically
identied for inclusion in the program and is eective for as long as the original retail purchaser owns the product. This
warranty is terminated when the original retail purchaser sells or otherwise transfers the product to any other person or entity.

Subject to the limitations and exclusions described in this warranty, Malone will remedy defects in materials and/or
workmanship by repairing or replacing, at its option, a defective product without charge for parts or labor. Malone may
elect, at its option, not to repair or replace a defective product but rather issue to the original retail purchaser a refund
equal to the purchase price paid for the product, or credit to be used toward the purchase of a replacement Malone
product.

This warranty does not cover, and no warranty is given for defects or problems caused by normal wear and tear which
includes but is not limited to surface (aesthetic) metal corrosion, scratches, dents, deformities, accidents, unlawful
vehicle operation, or any modication of a product not performed or authorized in writing by Malone.

In addition, this warranty does not cover problems resulting from conditions beyond Malone’s control including, but not
limited to, theft, misuse, overloading, or failure to assemble, mount or use the product in accordance with Malone’s
written instructions or guidelines included with the product available to the original retail purchaser.

No warranty is given for Malone products purchased outside of the United States, Canada and Mexico.

If the product is believed to be defective, the original retail purchaser should contact the Malone dealer from whom it
was purchased, who will give the original retail purchaser instructions on how to proceed. If the original retail purchaser
is unable to contact the Malone dealer, or the dealer is not able to remedy the defect, the original retail purchaser should
contact Malone by email at [e-mail].

In the event that the product must be returned to Malone, a technician at the email address above will provide the
original purchaser with return shipping instructions. The original purchaser will be responsible for the cost of mailing
the product to Malone. In order to receive any remedy under this warranty, a copy of the original purchase receipt,
a description of the defect and a return address must be provided.

Disclaimer of Liability

Repair or replacement of a defective product, or the issue of a refund or credit (as determined by Malone) is the original
retail purchaser’s exclusive remedy under this warranty. Damage to original purchaser’s vehicle, cargo, or property, and/
or to any other person or property is not covered by this warranty.

This warranty is expressly made in lieu of any and all other warranties, express or implied, including the warranties of
merchantability and tness for a particular purpose.

Malone’s sole liability is limited to the remedy set forth above. In no event will Malone be liable for any direct, indirect,
consequential, incidental, special, exemplary, or punitive damages , or, for any other damages of any kind or nature
(including but not limited to, lost prots, lost income or lost sales).

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations
may not be applicable. This warranty gives you specic legal rights and you may also have other rights which vary from
state to state.

In addition, all vehicular transports are potentially hazardous. Any person using MALONE products are personally
responsible for following the given directions for use, installation and accepts full responsibility for any and all damages
or injury of any kind including death, which may result from their use.
