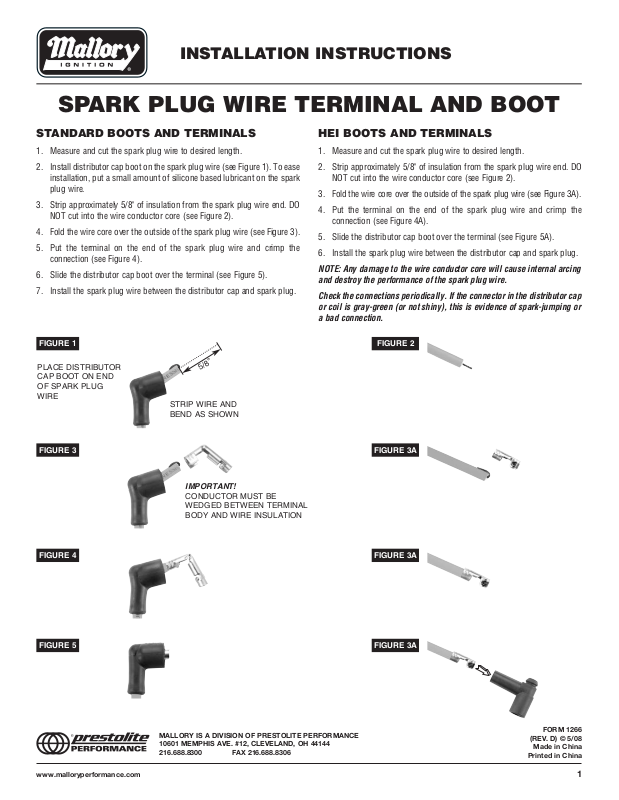

INSTALLATION INSTRUCTIONS

SPARK PLUG WIRE TERMINAL AND BOOT

STANDARD BOOTS AND TERMINALS

1. Measure and cut the spark plug wire to desired length.

2. Install distributor cap boot on the spark plug wire (see Figure 1). To ease
installation, put a small amount of silicone based lubricant on the spark
plug wire.

3. Strip approximately 5/8" of insulation from the spark plug wire end. DO
NOT cut into the wire conductor core (see Figure 2).

4. Fold the wire core over the outside of the spark plug wire (see Figure 3).

5. Put the terminal on the end of the spark plug wire and crimp the
connection (see Figure 4).

6. Slide the distributor cap boot over the terminal (see Figure 5).

7. Install the spark plug wire between the distributor cap and spark plug.

FIGURE 1

PLACE DISTRIBUTOR
CAP BOOT ON END
OF SPARK PLUG
WIRE

STRIP WIRE AND
BEND AS SHOWN

5/8”

HEI BOOTS AND TERMINALS

1. Measure and cut the spark plug wire to desired length.

2. Strip approximately 5/8" of insulation from the spark plug wire end. DO
NOT cut into the wire conductor core (see Figure 2).

3. Fold the wire core over the outside of the spark plug wire (see Figure 3A).

4. Put the terminal on the end of the spark plug wire and crimp the
connection (see Figure 4A).

5. Slide the distributor cap boot over the terminal (see Figure 5A).

6. Install the spark plug wire between the distributor cap and spark plug.

NOTE: Any damage to the wire conductor core will cause internal arcing
and destroy the performance of the spark plug wire.

Check the connections periodically. If the connector in the distributor cap
or coil is gray-green (or not shiny), this is evidence of spark-jumping or
a bad connection.

FIGURE 2

FIGURE 3

FIGURE 4

FIGURE 5

IMPORTANT!

CONDUCTOR MUST BE
WEDGED BETWEEN TERMINAL
BODY AND WIRE INSULATION
