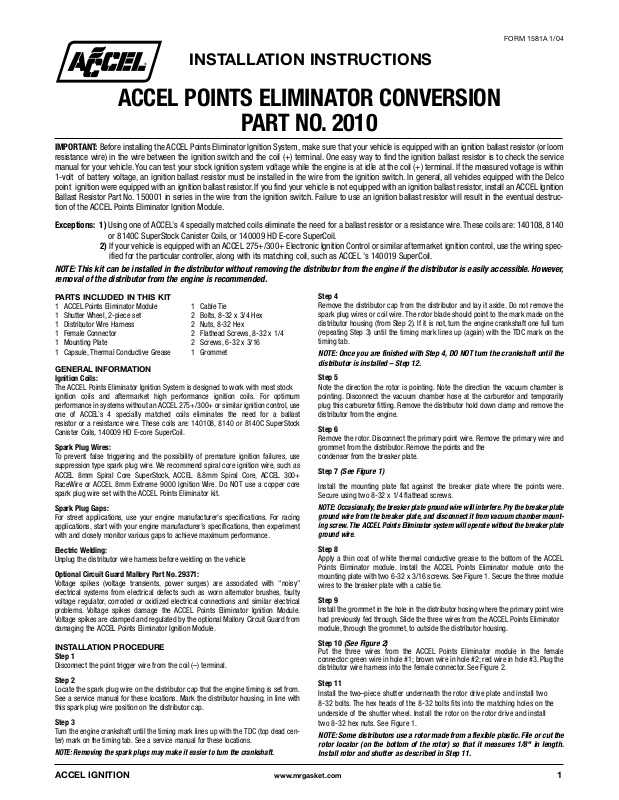

Mallory Ignition ACCEL 2010 User Manual

ACCEL POINTS ELIMINATOR CONVERSION

PART NO. 2010

PARTS INCLUDED IN THIS KIT

1 ACCEL Points Eliminator Module 1 Cable Tie
1 Shutter Wheel, 2-piece set 2 Bolts, 8-32 x 3/4 Hex
1 Distributor Wire Harness 2 Nuts, 8-32 Hex
1 Female Connector 2 Flathead Screws, 8-32 x 1/4
1 Mounting Plate 2 Screws, 6-32 x 3/16
1 Capsule, Thermal Conductive Grease 1 Grommet

IMPORTANT: Before installing the ACCEL Points Eliminator Ignition System, make sure that your vehicle is equipped with an ignition ballast resistor (or loom
resistance wire) in the wire between the ignition switch and the coil (+) terminal. One easy way to find the ignition ballast resistor is to check the service
manual for your vehicle. You can test your stock ignition system voltage while the engine is at idle at the coil (+) terminal. If the measured voltage is within
1-volt of battery voltage, an ignition ballast resistor must be installed in the wire from the ignition switch. In general, all vehicles equipped with the Delco
point ignition were equipped with an ignition ballast resistor. If you find your vehicle is not equipped with an ignition ballast resistor, install an ACCEL Ignition
Ballast Resistor Part No. 150001 in series in the wire from the ignition switch. Failure to use an ignition ballast resistor will result in the eventual destruc­tion of the ACCEL Points Eliminator Ignition Module.

Exceptions: 1) Using one of ACCEL’s 4 specially matched coils eliminate the need for a ballast resistor or a resistance wire. These coils are: 140108, 8140

or 8140C SuperStock Canister Coils, or 140009 HD E-core SuperCoil.

2) If your vehicle is equipped with an ACCEL 275+/300+ Electronic Ignition Control or similar aftermarket ignition control, use the wiring spec­ified for the particular controller, along with its matching coil, such as ACCEL 's 140019 SuperCoil.

NOTE: This kit can be installed in the distributor without removing the distributor from the engine if the distributor is easily accessible. However,
removal of the distributor from the engine is recommended.

GENERAL INFORMATION

Ignition Coils:

The ACCEL Points Eliminator Ignition System is designed to work with most stock
ignition coils and aftermarket high performance ignition coils. For optimum
performance in systems without an ACCEL 275+/300+ or similar ignition control, use
one of ACCEL’s 4 specially matched coils eliminates the need for a ballast
resistor or a resistance wire. These coils are: 140108, 8140 or 8140C SuperStock
Canister Coils, 140009 HD E-core SuperCoil.

Spark Plug Wires:

To prevent false triggering and the possibility of premature ignition failures, use
suppression type spark plug wire. We recommend spiral core ignition wire, such as
ACCEL 8mm Spiral Core SuperStock, ACCEL 8.8mm Spiral Core, ACCEL 300+
RaceWire or ACCEL 8mm Extreme 9000 Ignition Wire. Do NOT use a copper core
spark plug wire set with the ACCEL Points Eliminator kit.

Spark Plug Gaps:

For street applications, use your engine manufacturer’s specifications. For racing
applications, start with your engine manufacturer’s specifications, then experiment
with and closely monitor various gaps to achieve maximum performance.

Electric Welding:

Unplug the distributor wire harness before welding on the vehicle

Optional Circuit Guard Mallory Part No. 29371:

Voltage spikes (voltage transients, power surges) are associated with "noisy"
electrical systems from electrical defects such as worn alternator brushes, faulty
voltage regulator, corroded or oxidized electrical connections and similar electrical
problems. Voltage spikes damage the ACCEL Points Eliminator Ignition Module.
Voltage spikes are clamped and regulated by the optional Mallory Circuit Guard from
damaging the ACCEL Points Eliminator Ignition Module.

INSTALLATION PROCEDURE

Step 1

Disconnect the point trigger wire from the coil (–) terminal.

Step 2

Locate the spark plug wire on the distributor cap that the engine timing is set from.
See a service manual for these locations. Mark the distributor housing, in line with
this spark plug wire position on the distributor cap.

Step 3

Turn the engine crankshaft until the timing mark lines up with the TDC (top dead cen­ter) mark on the timing tab. See a service manual for these locations.

NOTE: Removing the spark plugs may make it easier to turn the crankshaft.

Step 4

Remove the distributor cap from the distributor and lay it aside. Do not remove the
spark plug wires or coil wire. The rotor blade should point to the mark made on the
distributor housing (from Step 2). If it is not, turn the engine crankshaft one full turn
(repeating Step 3) until the timing mark lines up (again) with the TDC mark on the
timing tab.

NOTE: Once you are finished with Step 4, DO NOT turn the crankshaft until the
distributor is installed – Step 12.

Step 5

Note the direction the rotor is pointing. Note the direction the vacuum chamber is
pointing. Disconnect the vacuum chamber hose at the carburetor and temporarily
plug this carburetor fitting. Remove the distributor hold down clamp and remove the
distributor from the engine.

Step 6

Remove the rotor. Disconnect the primary point wire. Remove the primary wire and
grommet from the distributor. Remove the points and the
condenser from the breaker plate.

Step 7

(See Figure 1)

Install the mounting plate flat against the breaker plate where the points were.
Secure using two 8-32 x 1/4 flathead screws.

NOTE: Occasionally,the breaker plate ground wire will interfere. Pry the breaker plate
ground wire from the breaker plate, and disconnect it from vacuum chamber mount­ing screw. The ACCEL Points Eliminator system will operate without the breaker plate
ground wire.

Step 8

Apply a thin coat of white thermal conductive grease to the bottom of the ACCEL
Points Eliminator module. Install the ACCEL Points Eliminator module onto the
mounting plate with two 6-32 x 3/16 screws. See Figure 1. Secure the three module
wires to the breaker plate with a cable tie.

Step 9

Install the grommet in the hole in the distributor hosing where the primary point wire
had previously fed through. Slide the three wires from the ACCEL Points Eliminator
module, through the grommet, to outside the distributor housing.

Step 10

(See Figure 2)

Put the three wires from the ACCEL Points Eliminator module in the female
connector: green wire in hole #1; brown wire in hole #2; red wire in hole #3. Plug the
distributor wire harness into the female connector. See Figure 2.

Step 11

Install the two–piece shutter underneath the rotor drive plate and install two
8-32 bolts. The hex heads of the 8-32 bolts fits into the matching holes on the
underside of the shutter wheel. Install the rotor on the rotor drive and install
two 8-32 hex nuts. See Figure 1.

NOTE: Some distributors use a rotor made from a flexible plastic. File or cut the
rotor locator (on the bottom of the rotor) so that it measures 1/8" in length.
Install rotor and shutter as described in Step 11.

FORM 1581A 1/04

ACCEL IGNITION www.mrgasket.com

1

INSTALLATION INSTRUCTIONS

ACCEL IGNITION www.mrgasket.com

2

Step 12

Install the distributor with the rotor and vacuum chamber pointing in the direction as
noted in Step 5. The rotor must be pointing (approximately) at the mark on the
distributor housing from Step 2.

NOTE: The distributor must be fully seated into the engine. It may be
necessary to turn the oil pump drive, or turn the engine crankshaft two full
turns until the timing mark lines up (again) with the TDC mark on the timing
tab, to allow the distributor to seat fully.

Step 13

Turn the distributor housing until the nearest slot on the shutter wheel is
approximately in the center of the optics of the ACCEL Points Eliminator module. This
will generally give timing close enough for starting purposes.The rotor must be point­ing (approximately) at the mark on the distributor housing from Step 2. Put the dis­tributor hold down clamp in place and tighten slightly, leaving it loose enough to turn
the distributor.

Step 14

Install the distributor cap.

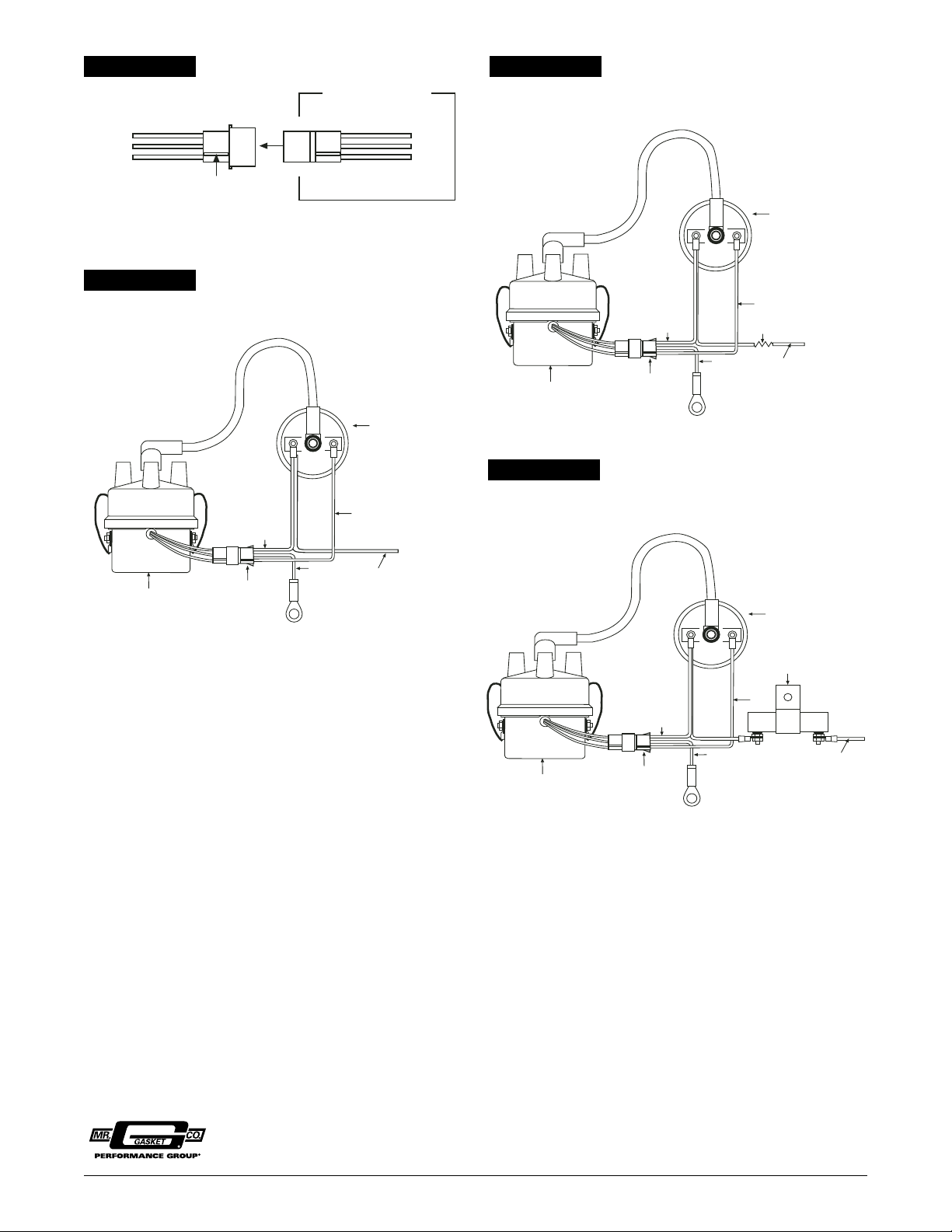

WIRING PROCEDURE

(See Figures 3, 4 and 5)

Step 1

Make sure that your vehicle is equipped with an ignition ballast resistor (or loom
resistance wire) in the wire between the ignition switch and the coil (+) terminal. If
you find your vehicle is not equipped with an ignition ballast resistor, install an ACCEL
Ignition Ballast Resistor Part No. 150001 in series in the wire from the ignition switch.
For optimum performance in systems without an ACCEL 275+/375+ or similar

ignition control, use one of ACCEL's 4 specially matched coils which eliminates the
need for a ballast resistor or a resistance wire. These coils are: 140108, 8140 or
8140C Canister SuperStock coil, 140009 HD E-core SuperCoil.

Step 2

There are three wires coming from the distributor wire harness:

RED WIRE: Connect to the coil (+) terminal.
GREEN WIRE: Connect to the coil (–) terminal.

BROWN WIRE: Connect to engine block ground.
Clean away any grease, oil and paint from the mounting surface before the
connection is made.

NOTE: If an ACCEL 275+/300+ Electronic Ignition Control or any other
aftermarket ignition control is being used, connect the distributor wire harness
according to the instructions supplied with the ignition control.

STARTING THE ENGINE

CAUTION: Be sure all tools, wires and miscellaneous objects are clear of
moving engine parts and extreme heat before starting the engine.

Recheck all wires and connections to make sure they are correct. Check and clean,
or replace spark plugs. If replacing spark plugs, use types recommended by the
engine manufacturer.

Step 1

Connect a timing light. Find the area with the best view of the timing marks.

Step 2

Start engine. If it fails to start, rotate the distributor in small increments clockwise or
counterclockwise until engine starts. Do not exceed more than ten degrees of
distributor housing rotation in either direction.

Step 3

Set timing as recommended by engine manufacturer, then tighten distributor hold
down clamp. Make sure timing is still correct. If timing has moved, repeat this procedure.

Step 4

Re-connect the vacuum hose between the vacuum chamber and the carburetor.

DISTRIBUTOR TUNE–UP PARTS PART NO.

DISTRIBUTOR CAP 120214
ROTOR 130117
SHUTTER WHEEL (Two Piece) 338
ACCEL Points Eliminator Module 2005
DISTRIBUTOR WIRE HARNESS 29349

FIGURE 1

ACCEL POINTS
ELIMINATOR MODULE
