Mallory Ignition ACCEL 2005 User Manual
Apply a thin coat of thermal conductive grease to the bottom of the ACCEL P oints
Eliminator Module before mounting the module to its plate in the distributor.
Slide the three wires from the ACCEL Points Eliminator Module, through the
grommet, to outside the distributor housing. Put the three wires from the
ACCEL Points Eliminator Module in the TERMINAL PIN HOUSING: GREEN
WIRE in hole #1, BROWN WIRE in hole #2, RED WIRE in hole #3. Plug the
three wire harness (PN 29349, not supplied with this kit) into the TERMINAL
PIN HOUSING.
CAUTION: Make sure that the vehicle is originally equipped from the
factory with an ignition ballast resistor or loom resistance wire from the
ignition switch to the coil (+) terminal. If the vehicle is not originally

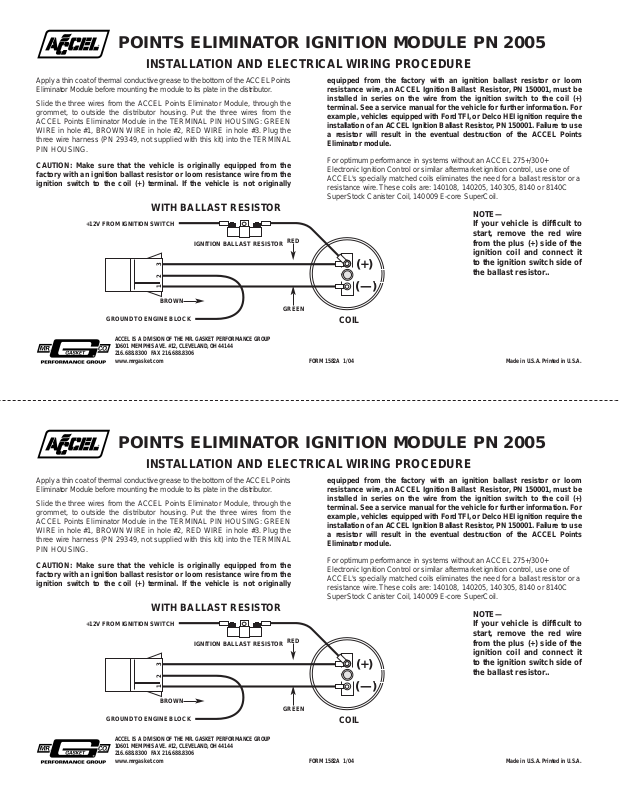

POINTS ELIMINATOR IGNITION MODULE PN 2005
ACCEL IS A DIVISION OF THE MR. GASKET PERFORMANCE GROUP
10601 MEMPHIS AVE. #12,CLEVELAND, OH 44144
216.688.8300 FAX 216.688.8306
www.mrgasket.com FORM 1582A 1/04 Made in U.S.A. Printed in U.S.A.
INSTALLATION AND ELECTRICAL WIRING PROCEDURE
COIL
(+)
(—)
12 3
+12V FROM IGNITION SWITCH
GROUND TO ENGINE BLOCK
IGNITION BALLAST RESISTOR
RED
GREEN
BROWN
NOTE—
If your vehicle is difficult to
start, remove the red wire
from the plus (+) side of the
ignition coil and connect it
to the ignition switch side of
the ballast resistor..
WITH BALLAST RESISTOR
equipped from the factory with an ignition ballast resistor or loom
resistance wire, an ACCEL Ignition Ballast Resistor, PN 150001, must be
installed in series on the wire from the ignition switch to the coil (+)
terminal. See a service manual for the vehicle for further information. For
example, vehicles equipped with Ford TFI, or Delco HEI ignition require the
installation of an ACCEL Ignition Ballast Resistor, PN 150001. Failure to use
a resistor will result in the eventual destruction of the ACCEL Points
Eliminator module.
For optimum performance in systems without an ACCEL 275+/300+
Electronic Ignition Control or similar aftermarket ignition control, use one of
ACCEL's specially matched coils eliminates the need for a ballast resistor or a
resistance wire.These coils are: 140108, 140205, 140305, 8140 or 8140C
SuperStock Canister Coil, 140009 E-core SuperCoil.
Apply a thin coat of thermal conductive grease to the bottom of the ACCEL P oints
Eliminator Module before mounting the module to its plate in the distributor.
Slide the three wires from the ACCEL Points Eliminator Module, through the
grommet, to outside the distributor housing. Put the three wires from the
ACCEL Points Eliminator Module in the TERMINAL PIN HOUSING: GREEN
WIRE in hole #1, BROWN WIRE in hole #2, RED WIRE in hole #3. Plug the
three wire harness (PN 29349, not supplied with this kit) into the TERMINAL
PIN HOUSING.
CAUTION: Make sure that the vehicle is originally equipped from the
factory with an ignition ballast resistor or loom resistance wire from the
ignition switch to the coil (+) terminal. If the vehicle is not originally
POINTS ELIMINATOR IGNITION MODULE PN 2005
ACCEL IS A DIVISION OF THE MR. GASKET PERFORMANCE GROUP
10601 MEMPHIS AVE. #12, CLEVELAND, OH 44144
216.688.8300 FAX 216.688.8306
www.mrgasket.com FORM 1582A 1/04 Made in U.S.A. Printed in U.S.A.
INSTALLATION AND ELECTRICAL WIRING PROCEDURE
COIL
(+)
(—)
12 3
+12V FROM IGNITION SWITCH
GROUND TO ENGINE BLOCK
IGNITION BALLAST RESISTOR
RED
GREEN
BROWN
NOTE—
If your vehicle is difficult to
start, remove the red wire
from the plus (+) side of the
ignition coil and connect it
to the ignition switch side of
the ballast resistor..
WITH BALLAST RESISTOR
equipped from the factory with an ignition ballast resistor or loom
resistance wire, an ACCEL Ignition Ballast Resistor, PN 150001, must be
installed in series on the wire from the ignition switch to the coil (+)
terminal. See a service manual for the vehicle for further information. For
example, vehicles equipped with Ford TFI, or Delco HEI ignition require the
installation of an ACCEL Ignition Ballast Resistor, PN 150001. Failure to use
a resistor will result in the eventual destruction of the ACCEL Points
Eliminator module.
For optimum performance in systems without an ACCEL 275+/300+
Electronic Ignition Control or similar aftermarket ignition control, use one of
ACCEL's specially matched coils eliminates the need for a ballast resistor or a
resistance wire.These coils are: 140108, 140205, 140305, 8140 or 8140C
SuperStock Canister Coil, 140009 E-core SuperCoil.
COIL
(+)
(—)
12 3
+12V FROM IGNITION SWITCH
GROUND TO ENGINE BLOCK
RED
GREEN
BROWN
COIL
(+)
(—)
12 3
+12V FROM IGNITION SWITCH
GROUND TO ENGINE BLOCK
LOOM RESISTANCE WIRE
RED
GREEN
BROWN
NOTE—
When using an ACCEL 275+
or 300+ or other aftermarket
ignition control, connect the
MODULE according to the
instructions supplied with the
ignition control.
WITH RESISTANCE WIRE
WITH ACCEL 8140, 8140C, 140108, 140205, 140305 OR 140009 COILS
COIL
(+)
(—)
12 3
+12V FROM IGNITION SWITCH
GROUND TO ENGINE BLOCK
RED
GREEN
BROWN
COIL
(+)
(—)
12 3
+12V FROM IGNITION SWITCH
GROUND TO ENGINE BLOCK
LOOM RESISTANCE WIRE
RED
GREEN
BROWN
NOTE—
When using an ACCEL 275+
or 300+ or other aftermarket
ignition control, connect the
MODULE according to the
instructions supplied with the
ignition control.
WITH RESISTANCE WIRE
WITH ACCEL 8140, 8140C, 140108, 140205, 140305 OR 140009 COILS
