Mallory Ignition A605 User Manual

FORM 1271 (REVISION A) 08/06

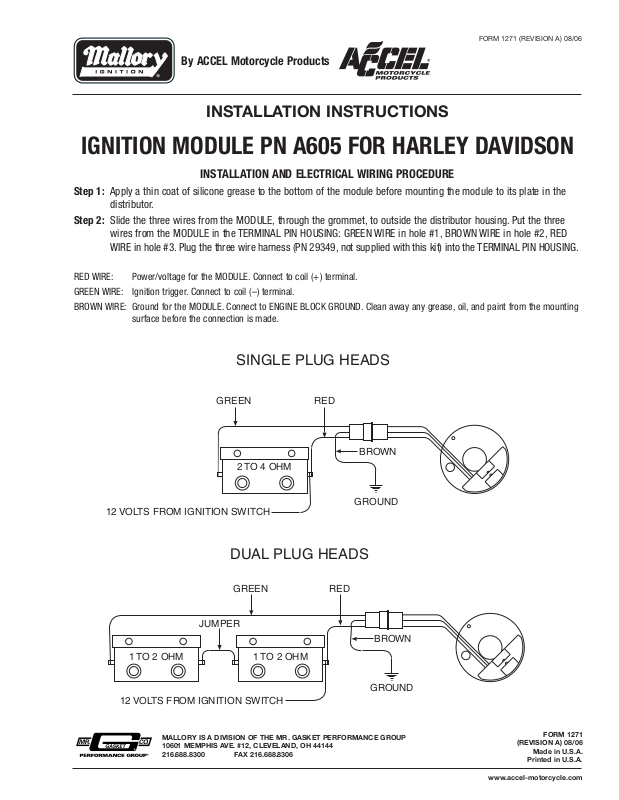

SINGLE PLUG HEADS

GREEN RED

2 TO 4 OHM

BROWN

GROUND

12 VOLTS FROM IGNITION SWITCH

DUAL PLUG HEADS

GREEN

JUMPER

12 VOLTS FROM IGNITION SWITCH

RED

BROWN

GROUND

1 TO 2 OHM 1 TO 2 OHM

By ACCEL Motorcycle Products

INSTALLATION INSTRUCTIONS

IGNITION MODULE PN A605 FOR HARLEY DAVIDSON

INSTALLATION AND ELECTRICAL WIRING PROCEDURE

Step 1: Apply a thin coat of silicone grease to the bottom of the module before mounting the module to its plate in the

distributor.

Step 2: Slide the three wires from the MODULE, through the grommet, to outside the distributor housing. Put the three

wires from the MODULE in the TERMINAL PIN HOUSING: GREEN WIRE in hole #1, BROWN WIRE in hole #2, RED
WIRE in hole #3. Plug the three wire harness (PN 29349, not supplied with this kit) into the TERMINAL PIN HOUSING.

RED WIRE: Power/voltage for the MODULE. Connect to coil (+) terminal.

GREEN WIRE: Ignition trigger. Connect to coil (–) terminal.

BROWN WIRE: Ground for the MODULE. Connect to ENGINE BLOCK GROUND. Clean away any grease, oil, and paint from the mounting

surface before the connection is made.

MALLORY IS A DIVISION OF THE MR. GASKET PERFORMANCE GROUP
10601 MEMPHIS AVE. #12, CLEVELAND, OH 44144

216.688.8300 FAX [phone]

FORM 1271

(REVISION A) 08/06

Made in U.S.A.

Printed in U.S.A.
