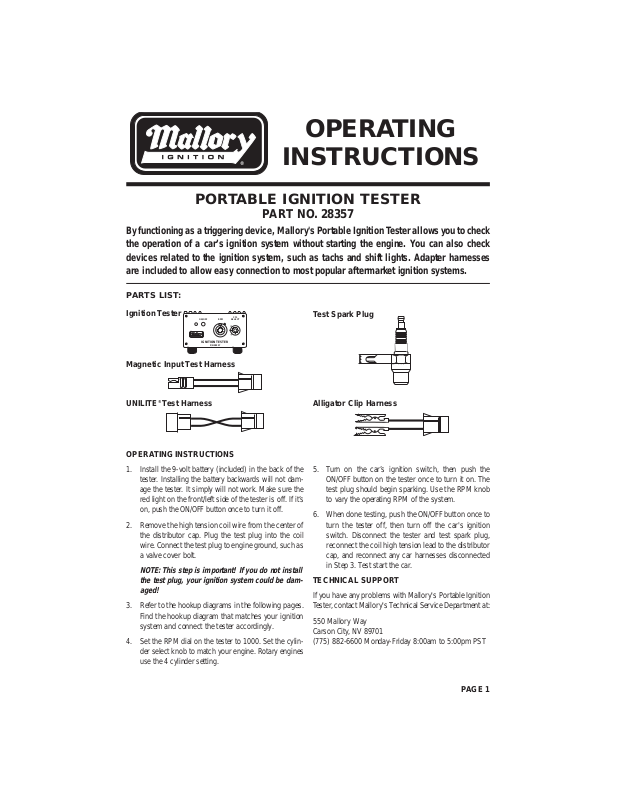

OPERATING
INSTRUCTIONS
PORTABLE IGNITION TESTER
PART NO. 28357
OPERATING INSTRUCTIONS
1. Install the 9-volt battery (included) in the back of the tester. Installing the battery backwards will not dam­age the tester. It simply will not work. Make sure the red light on the front/left side of the tester is off. If it’s on, push the ON/OFF button once to turn it off.
2. Remove the high tension coil wire from the center of the distributor cap. Plug the test plug into the coil wire. Connect the test plug to engine ground, such as a valve cover bolt.
NOTE: This step is important! If you do not install the test plug, your ignition system could be dam­aged!
3. Refer to the hookup diagrams in the following pages. Find the hookup diagram that matches your ignition system and connect the tester accordingly.
4. Set the RPM dial on the tester to 1000. Set the cylin­der select knob to match your engine. Rotary engines use the 4 cylinder setting.
5. Turn on the car’s ignition switch, then push the ON/OFF button on the tester once to turn it on. The test plug should begin sparking. Use the RPM knob to vary the operating RPM of the system.
6. When done testing, push the ON/OFF button once to turn the tester off, then turn off the car's ignition switch. Disconnect the tester and test spark plug, reconnect the coil high tension lead to the distributor cap, and reconnect any car harnesses disconnected in Step 3. Test start the car.
TECHNICAL SUPPORT
If you have any problems with Mallory's Portable Ignition Tester, contact Mallory's T echnical Service Department at:
550 Mallory Way Carson City, NV 89701 (775) 882-6600 Monday-Friday 8:00am to 5:00pm PST
PARTS LIST:
Ignition Tester
Magnetic Input Test Harness
4
0
10
20
30
40
50
60
70
80
90
ON/OFF RPM
CYL
SELECT
IGNITION TESTER
P/N 28357
®
UNILITE®Test Harness
Alligator Clip Harness
Test Spark Plug
PAGE 2
5
0
10
20
30
40
50
60
70
80
90
EXAMPLES OF RPM AND CYL SELECT SWITCH SETTINGS
Example: 5600 RPM,8 Cylinder
FIGURE 1
4
0
10
20
30
40
50
60
70
80
90
Example: 4200 RPM, 6 Cylinder
FIGURE 2
IMPORTANT INFORMATION
When checking a coil separate from the ignition, or an ignition without an amplifier box, the spark will probably “fade out” about 3000-4000 RPM (8 cylinder setting). This is normal. The test plug is a very heavy load. Amplifier equipped ignitions will normally operate to higher RPM.
It’s a good idea to use the tester once when the ignition system is known to be operating properly, to establish a baseline for future tests. In future tests, if the spark looks or sounds significantly different from the baseline, some­thing is wrong with the ignition.
The front dial on the tester is very accurate, which makes it very nice for checking RPM limiters, tachometers, and RPM activated switches. To check a limiter or RPM switch, just start testing at a low RPM and increase it with the dial until the spark stops, to check limiters, or until the RPM switch activates. Then read the RPM on the dial.
NOTE: If there is a discrepancy between your tachome­ter and the RPM dial on the ignition tester, the tach reading is inaccurate. For example, if the dial reads 7000 and the tach reads 6800 when the limiter stops the spark, the limiter will rev limit your engine at 7000 RPM, even though the tach reads 6800. It is not uncom­mon for tachometers to be off by 200-500 RPM. RPM switches and on-board computer readouts are usually closer, but it’s still a good idea to check them.
The RPM dial can be locked at any value. Simply push the locking lever at the top right of the dial downward toward the cylinder select dial.
The 9-volt battery will operate for a LONG time in typical usage. When it goes dead, the red light on the front of the tester won’t come on. When the battery is nearly dead, the red light may blink at low RPM.
PAGE 3
+
+
12 VOLT
BATTERY
4
0
10
20
30
40
50
60
70
80
90
ON/OFF RPM
CYL
SELECT
IGNITION TESTER
P/N 28357
®
MALLORY PRO SHIELD
®
ENGINE GROUND
IGNITION
COIL
TEST PLUG
COIL WIRE
PLUG ALLIGATOR CLIP HARNESS INTO IGNITION TESTER
BLACK
BLACK
RED
RED

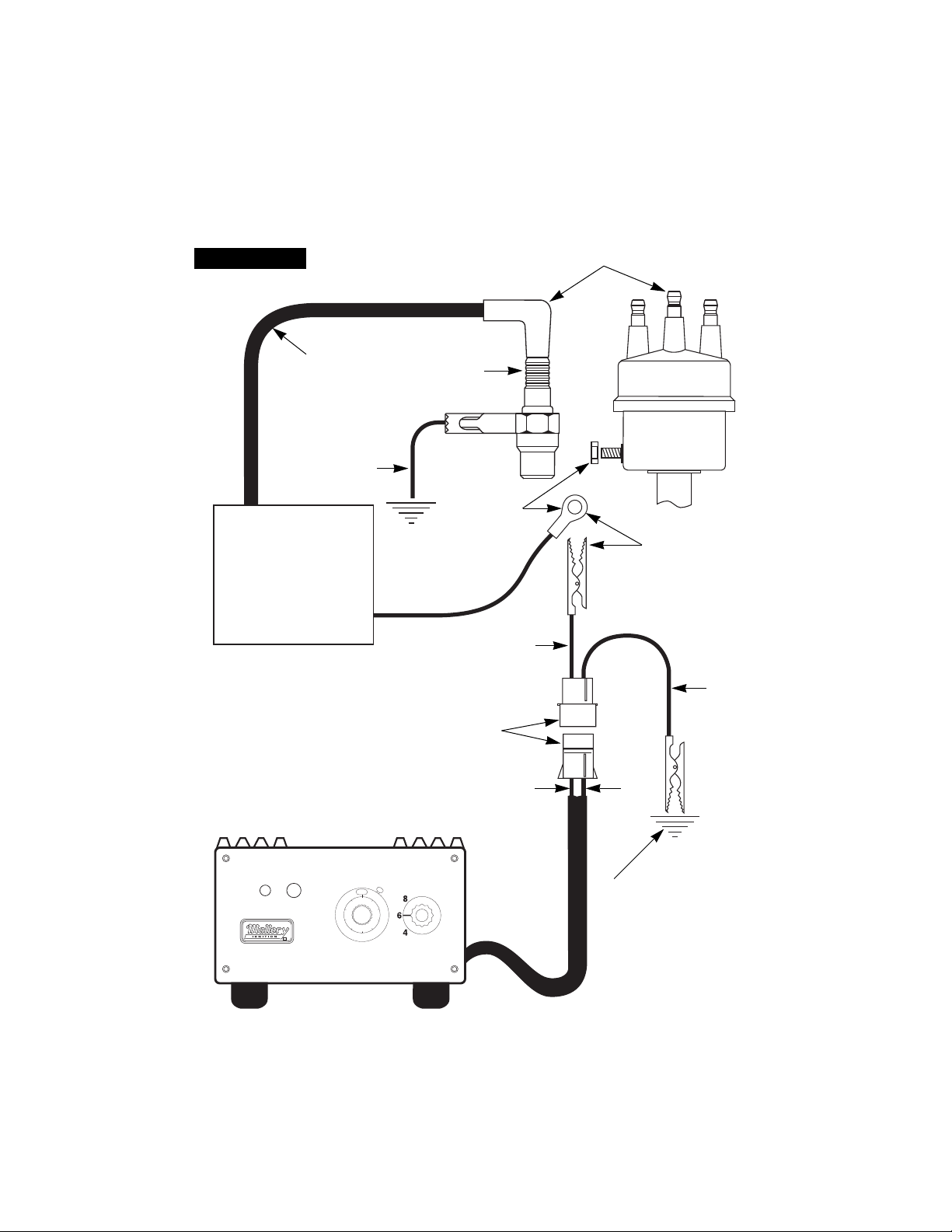

USING THE TESTER TO CHECK AN IGNITION COIL
FIGURE 3
CONNECT TO ENGINE GROUND
CONNECT TO ENGINE GROUND
PAGE 4
MALLORY PRO SHIELD
®
4
0
10
20
30
40
50
60
70
80
90
ON/OFF RPM
CYL
SELECT
IGNITION TESTER
P/N 28357
®
IGNITION
SYSTEM
(INCLUDING COIL)
DISTRIBUTOR
TEST PLUG
COIL WIRE

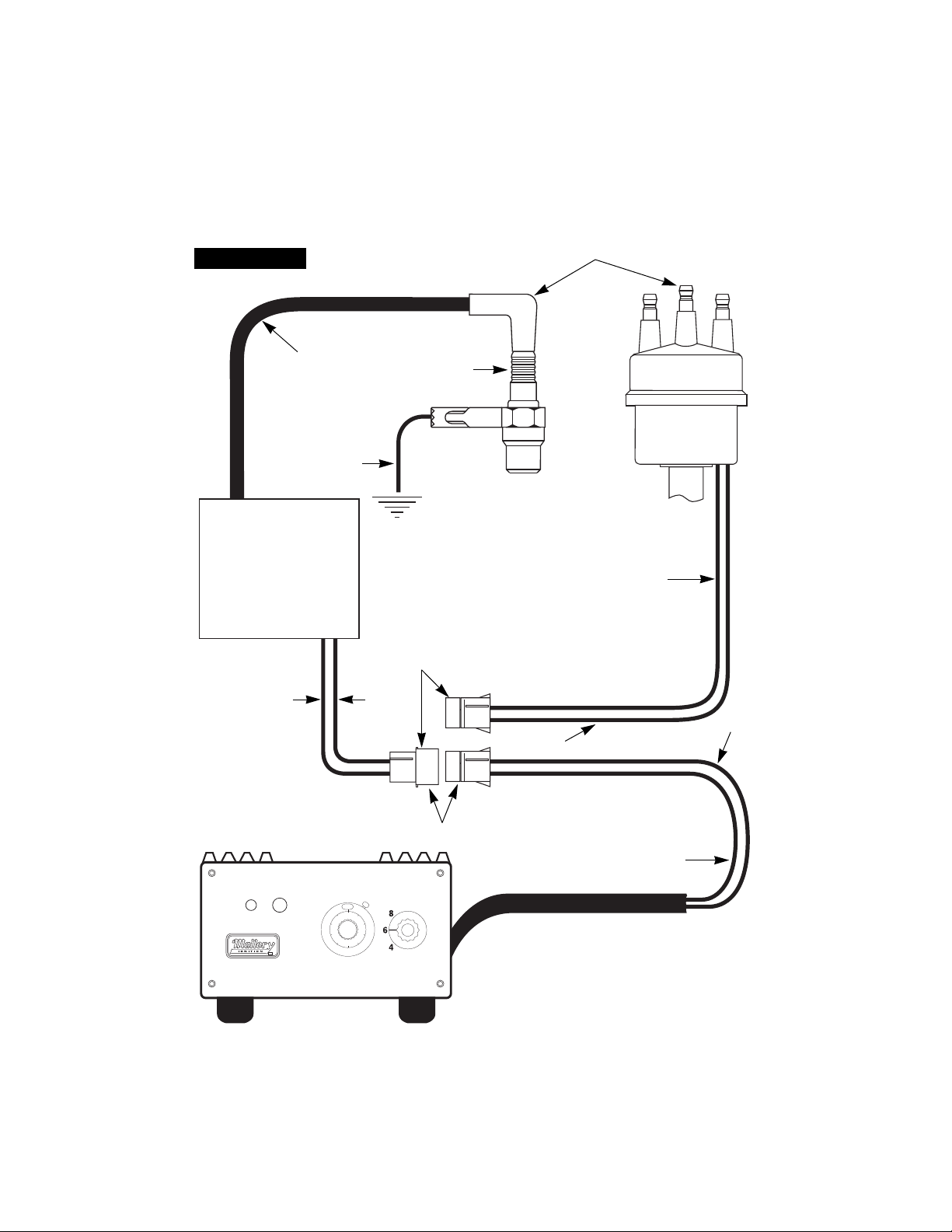

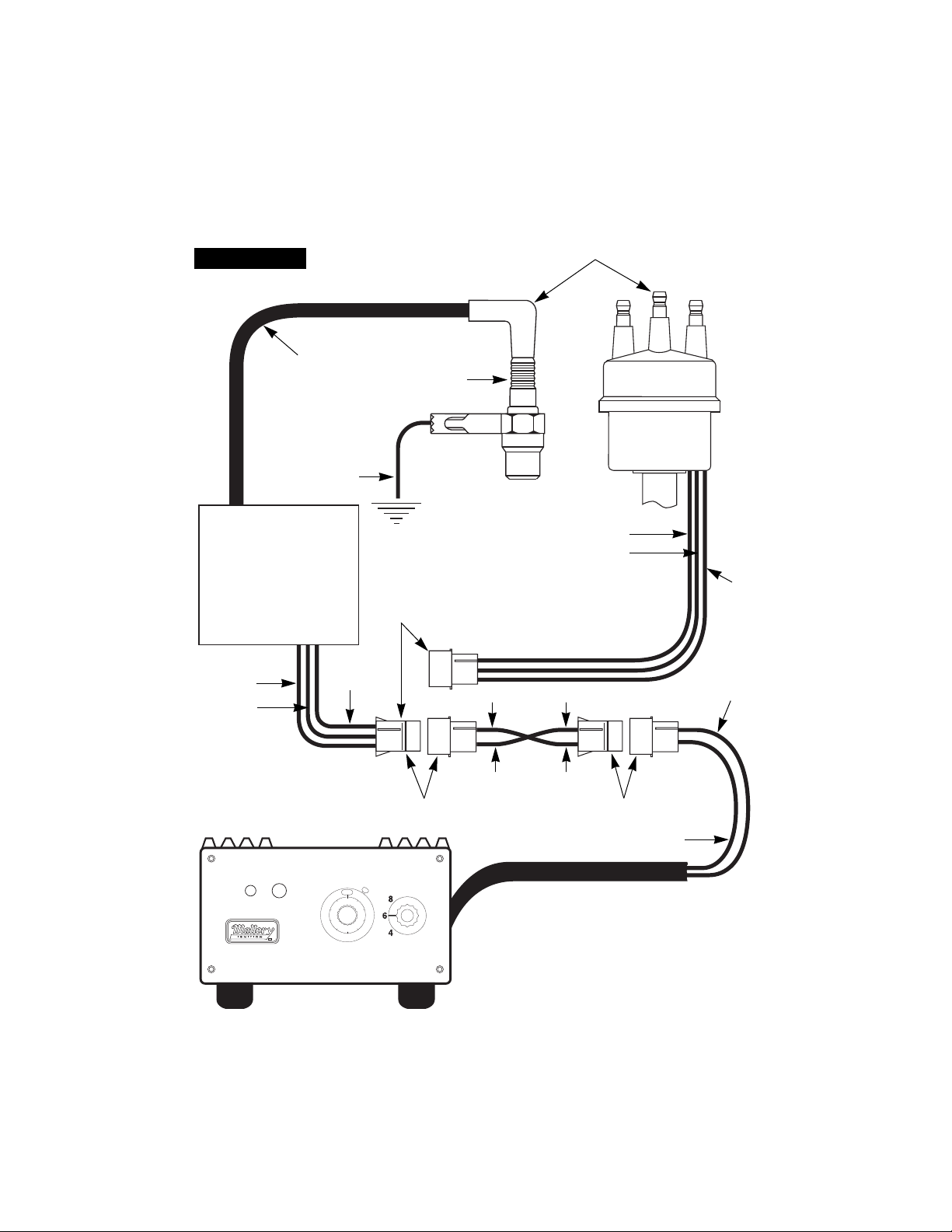

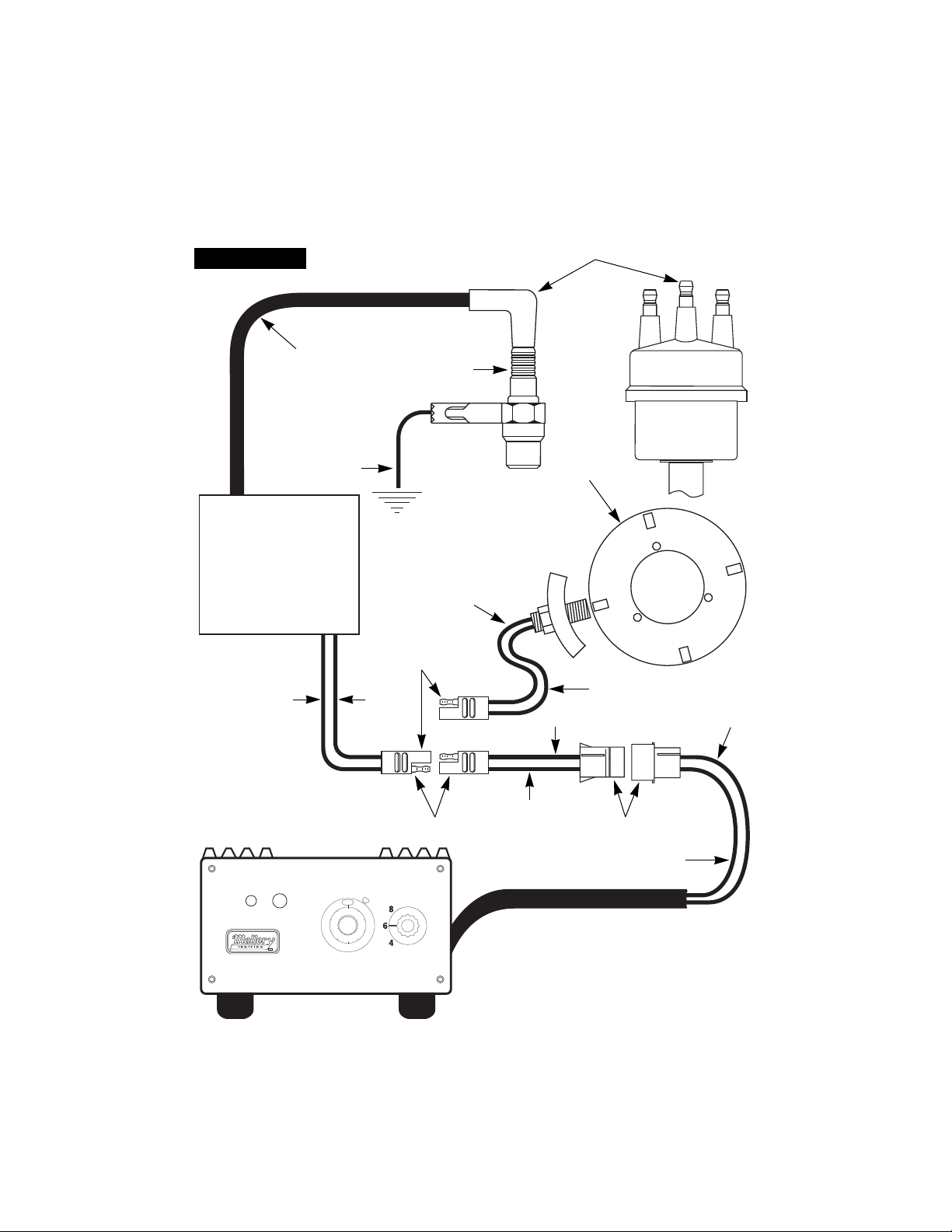

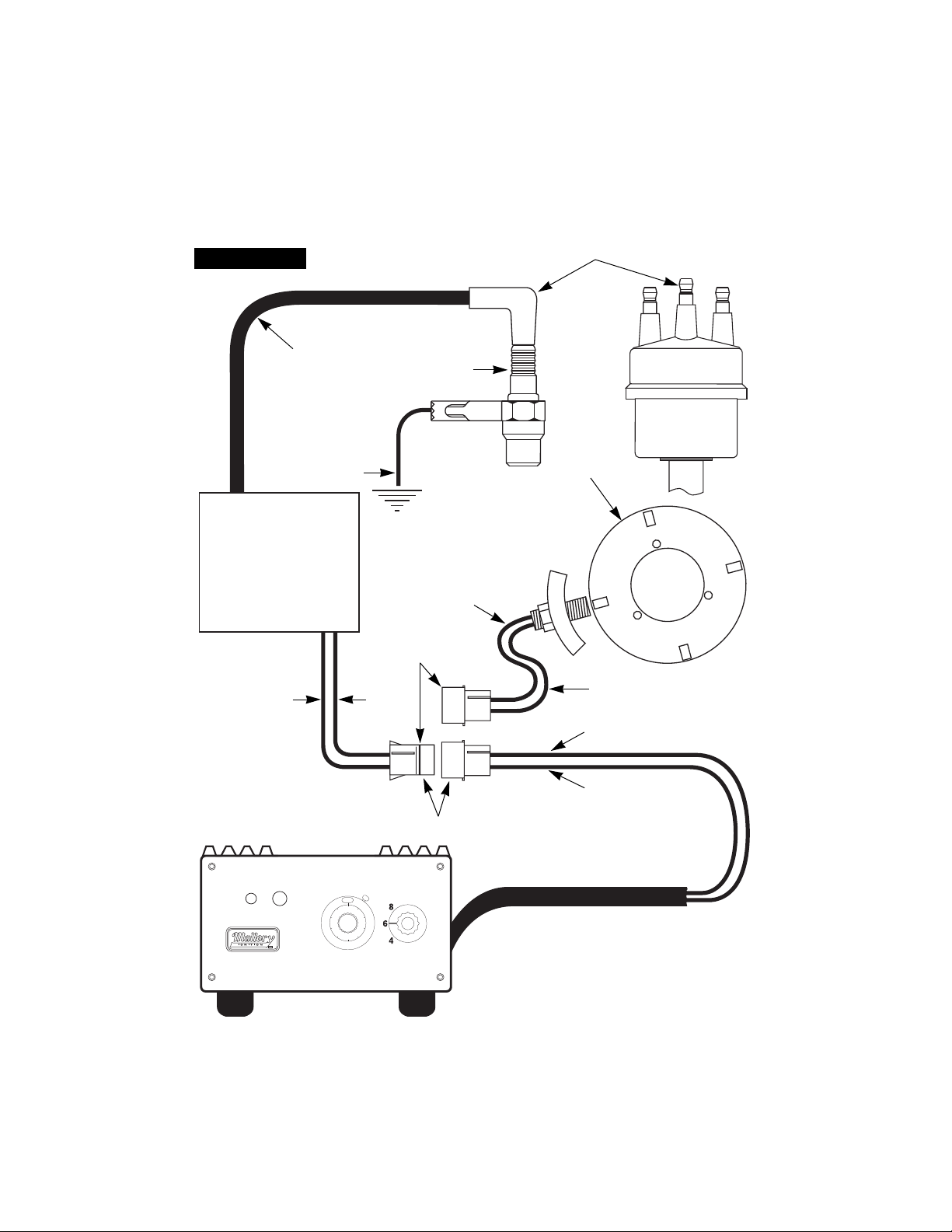

DISCONNECT COIL WIRE AT DISTRIBUTOR AND INSTALL TEST PLUG IN COIL WIRE
PLUG ADAPTER HARNESS INTO IGNITION TESTER
UNPLUG DISTRIBUTOR FROM IGNITION
BLACK
PLUG ADAPTER HARNESS INTO IGNITION
BLACK
BLACK
RED
MAG +
MAG —
RED
WHITE
USING THE TESTER IN PLACE OF AN ACCEL MAGNETIC PICKUP DISTRIBUTOR
FIGURE 4
CONNECT TO ENGINE GROUND
