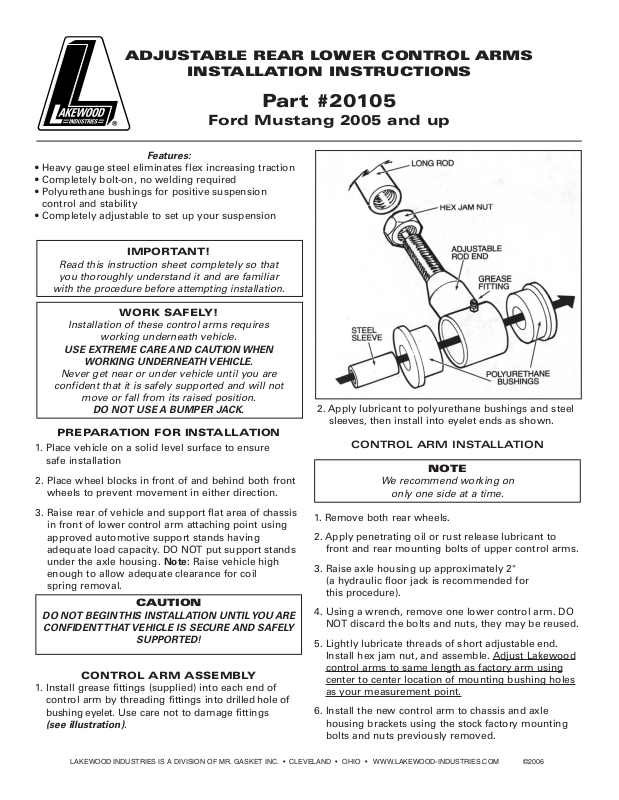

Mallory Ignition 20105 User Manual

Features:

• Heavy gauge steel eliminates flex increasing traction

• Completely bolt-on, no welding required

• Polyurethane bushings for positive suspension control and stability

• Completely adjustable to set up your suspension

IMPORTANT!

Read this instruction sheet completely so that you thoroughly understand it and are familiar

with the procedure before attempting installation.

WORK SAFELY!

Installation of these control arms requires

working underneath vehicle.

USE EXTREME CARE AND CAUTION WHEN

WORKING UNDERNEATH VEHICLE.

Never get near or under vehicle until you are

confident that it is safely supported and will not

move or fall from its raised position.

DO NOT USE A BUMPER JACK.

PREPARATION FOR INSTALLATION

1. Place vehicle on a solid level surface to ensure

safe installation

2. Place wheel blocks in front of and behind both front

wheels to prevent movement in either direction.

3. Raise rear of vehicle and support flat area of chassis

in front of lower control arm attaching point using approved automotive support stands having adequate load capacity. DO NOT put support stands under the axle housing. Note: Raise vehicle high enough to allow adequate clearance for coil spring removal.

CAUTION

DO NOT BEGIN THIS INSTALLATION UNTIL YOU ARE

CONFIDENT THAT VEHICLE IS SECURE AND SAFELY

SUPPORTED!

CONTROL ARM ASSEMBLY

1. Install grease fittings (supplied) into each end of

control arm by threading fittings into drilled hole of bushing eyelet. Use care not to damage fittings

(see illustration)

2. Apply lubricant to polyurethane bushings and steel sleeves, then install into eyelet ends as shown.

CONTROL ARM INSTALLATION

NOTE

We recommend working on

only one side at a time.

1. Remove both rear wheels.

2. Apply penetrating oil or rust release lubricant to front and rear mounting bolts of upper control arms.

3. Raise axle housing up approximately 2" (a hydraulic floor jack is recommended for this procedure).

4. Using a wrench, remove one lower control arm. DO NOT discard the bolts and nuts, they may be reused.

5. Lightly lubricate threads of short adjustable end. Install hex jam nut, and assemble. Adjust Lak

ewood control arms to same length as factory arm using center to center location of mounting bushing holes as your measurement point.

6. Install the new control arm to chassis and axle housing brackets using the stock factory mounting bolts and nuts previously removed.

ADJUSTABLE REAR LOWER CONTROL ARMS

INSTALLATION INSTRUCTIONS

Part #20105

Ford Mustang 2005 and up

Note: Clean and lubricate axle and chassis control arm mounting brackets with a good quality chassis grease to ease installation.

7. Tighten front and rear control arm mounting bolts to 80 ft./lb. torque.

Note: The adjustable feature of this arm enables you to correctly locate the rear end in relation to the chassis and to compensate for altered ride heights.

8. Follow the same above procedure for installation

of Adjustable Control Arm on other side of vehicle.

9. Lubricate control arm bushings with a good quality

chassis grease.

10. Once arms are installed you can begin to adjust.

11. The pinion angle must now be checked and adjusted if

necessary. The angle between the drive shaft and the rear end yoke must be between 4 and 6 degrees down.

12. With pinion angle set, tighten all fasteners securely.

13. Install wheels and properly tighten lug nuts to

wheel manufacturers specifications.

14. Carefully remove support stands and lower vehicle

to ground.

THIS COMPLETES THE INSTALLATION.

YOU CAN NOW ROCK-N-ROLL!

IMPORTANT!

Periodically check to make sure that all mounting

hardware is securely tightened. Use a good

quality chassis grease to keep bushings and

sleeves properly lubricated.

TECHNICAL SERVICE

A highly trained technical service department is

maintained by Lakewood Industries to answer your

technical questions, provide additional product

information and offer various recommendations. See

your local retailer of Lakewood products for specific

prices. For best results, technical service calls,

correspondence and warranty questions should be

directed to the following address:

Lakewood Industries

10601 Memphis Ave. #12

Cleveland, Ohio 44144

Phone 216-688-8300

8:30 A.M.-5:00 P.M. EST

www.lakewood-industries.com

RETAIN THIS INSTRUCTION SHEET FOR FUTURE REFERENCE.

97140082
