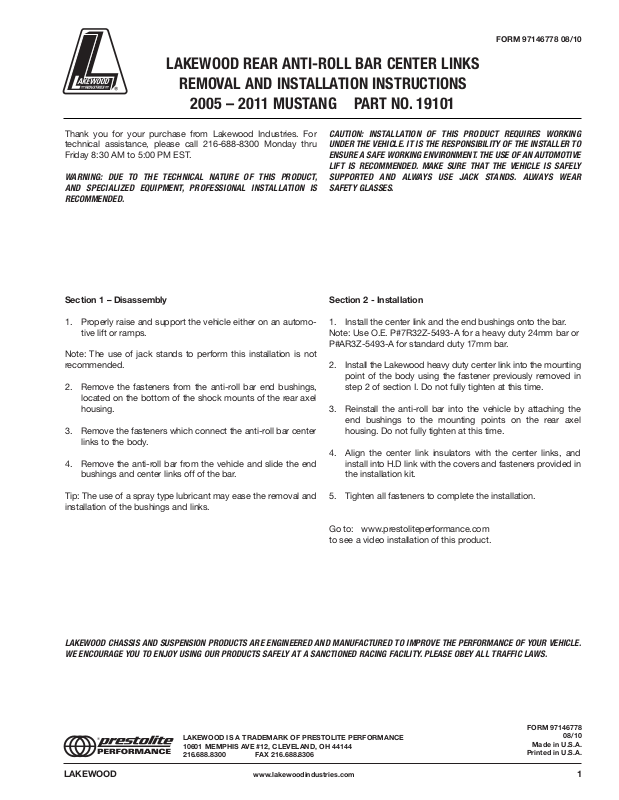

LAKEWOOD REAR ANTI-ROLL BAR CENTER LINKS
REMOVAL AND INSTALLATION INSTRUCTIONS
2005 – 2011 MUSTANG PART NO. 19101
FORM 97146778 08/10
Thank you for your purchase from Lakewood Industries. For
technical assistance, please call 216-688-8300 Monday thru
Friday 8:30 AM to 5:00 PM EST.
WARNING: DUE TO THE TECHNICAL NATURE OF THIS PRODUCT,
AND SPECIALIZED EQUIPMENT, PROFESSIONAL INSTALLATION IS
RECOMMENDED.
Section 1 – Disassembly
1. Properly raise and support the vehicle either on an automotive lift or ramps.
Note: The use of jack stands to perform this installation is not
recommended.
2. Remove the fasteners from the anti-roll bar end bushings,
located on the bottom of the shock mounts of the rear axel
housing.
3. Remove the fasteners which connect the anti-roll bar center
links to the body.
4. Remove the anti-roll bar from the vehicle and slide the end
bushings and center links off of the bar.
CAUTION: INSTALLATION OF THIS PRODUCT REQUIRES WORKING
UNDER THE VEHICLE. IT IS THE RESPONSIBILITY OF THE INSTALLER TO
ENSURE A SAFE WORKING ENVIRONMENT. THE USE OF AN AUTOMOTIVE
IFT IS RECOMMENDED. MAKE SURE THAT THE VEHICLE IS SAFELY
L
SUPPORTED AND ALWAYS USE JACK STANDS. ALWAYS WEAR
SAFETY GLASSES.
Section 2 - Installation
1. Install the center link and the end bushings onto the bar.
Note: Use O.E. P#7R32Z-5493-A for a heavy duty 24mm bar or
P#AR3Z-5493-A for standard duty 17mm bar.
2. Install the Lakewood heavy duty center link into the mounting
point of the body using the fastener previously removed in
step 2 of section I. Do not fully tighten at this time.
3. Reinstall the anti-roll bar into the vehicle by attaching the
end bushings to the mounting points on the rear axel
housing. Do not fully tighten at this time.
4. Align the center link insulators with the center links, and
install into H.D link with the covers and fasteners provided in
the installation kit.
Tighten all fasteners to complete the installation.
Tip: The use of a spray type lubricant may ease the r
installation of the bushings and links.
LAKEWOOD CHASSIS AND SUSPENSION PRODUCTS ARE ENGINEERED AND MANUFACTURED TO IMPROVE THE PERFORMANCE OF YOUR VEHICLE.
WE ENCOURAGE Y
LAKEWOOD www.lakewoodindustries.com
OU TO ENJO
Y USING OUR PRODUCTS SAFELY A
LAKEWOOD IS A TRADEMARK OF PRESTOLITE PERFORMANCE
10601 MEMPHIS AVE #12, CLEVELAND, OH 44144
216.688.8300
emoval and
T A SANCTIONED RACING FACILITY
AX 216.688.8306
F
5.
Go to: www.prestoliteperformance.com
to see a video installation of this pr
PLEASE OBEY ALL TRAFFIC LAWS.
.
oduct.
