The Lakewood Drive Shaft Safety Loop is made from
1/4" thick steel and is 2" wide which complies with
specifications stated in the NHRA & IHRA rule books.
This safety loop is designed to fit near the transmission
tail shaft in the tunnel area.
WORK SAFELY!
Installation of this Drive Shaft Safety
Loop requires working inside and underneath the
vehicle USE EXTREME CARE AND CAUTION WHEN
WORKING UNDERNEATH ANY VEHICLE. Never get
near or under vehicle until you are confident that it is
safely supported and will not move or fall from its
raised position.
DO NOT USE A BUMPER JACK.
PREPARATION FOR INSTALLATION
1. Place vehicle on solid level surface such as a
garage floor to ensure safe installation.
2. Place wheel blocks or wedges in front of and
behind both rear wheels to prevent movement in
either direction.
3. Carefully place floor jack under front engine
cross member. Be careful not to damage rack
and pinion unit.
4. Raise front of vehicle up with floor jack and place
automotive approved support stands having
adequate load capacity under lower control arms.
5. Lower floor jack until control arms are resting
securely on the support stands.
CAUTION:
DO NOT BEGIN THIS INSTALLATION UNTIL
YOU ARE CONFIDENT THAT VEHICLE IS SECURE AND
SAFELY SUPPORTED.
DRIVE SHAFT SAFETY LOOP INSTALLATION
1. Assemble the safety loop “loosely” around Drive
Shaft, about 6-8 inches away from the Transmission
Tail shaft. (See Figure A)
2. Next, remove the lightweight aluminum heat shields
for installation. (Please note, these can be
re-attached after loop installation, if needed.)
3. Next, position the outer loop frame brackets, on both
sides, around the frame rail sections where the loop
will be mounted. (See Figure B)
4. Then, finger tight all nuts and bolts stiffening up the
assembly so you can test mount the safety loop prior
to permanent installation.
5. Once you have tested where the loop needs to be
mounted, make sure you have proper clearance
around drive shaft and exhaust. (See Figure A)
6. Now that the safety loop is in the desired location,
mark the bracket holes on the frame and then drill
holes with 3/8” drill bit for attaching the outer frame
brackets. (See Figure B)
7. Next, install bolts through frame mounting brackets
and through the drilled frame holes mounting the
safety loop in place.

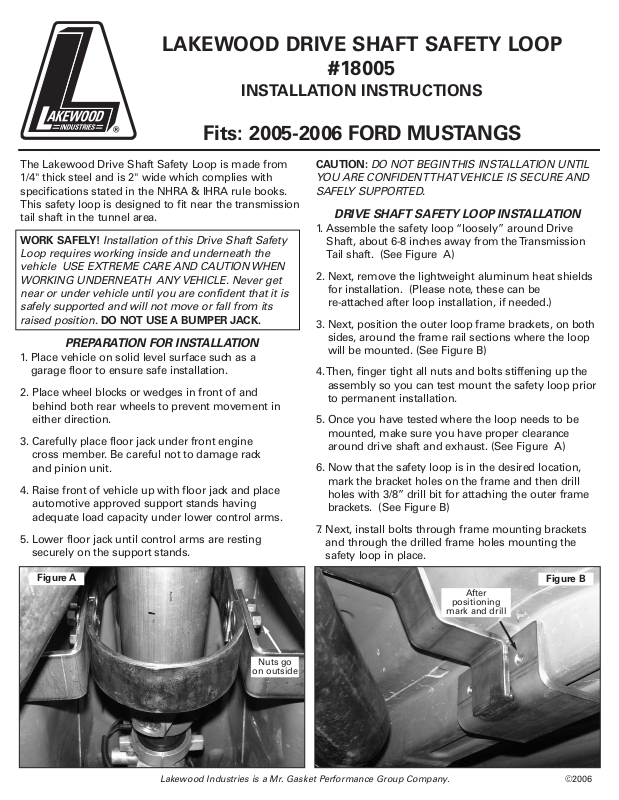

LAKEWOOD DRIVE SHAFT SAFETY LOOP
#18005
INSTALLATION INSTRUCTIONS
Fits: 2005-2006 FORD MUSTANGS
Lakewood Industries is a Mr. Gasket Performance Group Company.
©2006
Figure A
Figure B
Nuts go
on outside
After
positioning
mark and drill
8. For correct placement of the drive shaft safety loop. (See Figure C)
9. Be sure to tighten and torque down all fasteners after correct installation has been completed.
TECHNICAL SERVICE
A highly trained technical service department is maintained by Lakewood Industries to answer your
technical questions, provide additional product information and offer various recommendations. See your
local retailer of Lakewood products for specific prices. Technical service calls, correspondence and warranty
questions should be directed to the following address:
Lakewood Industries
10601 Memphis Ave. #12
Cleveland, Ohio 44144
Phone 216-688-8300 ext. 500
8:30 A.M.-12:00 P.M., 1:00 P.M.-5:00 P.M. EST
www.lakewood-industries.com
RETAIN THIS INSTRUCTION SHEET FOR FUTURE REFERENCE.
#97140105
Please see the
proper positioning
Figure C
Front of Car
