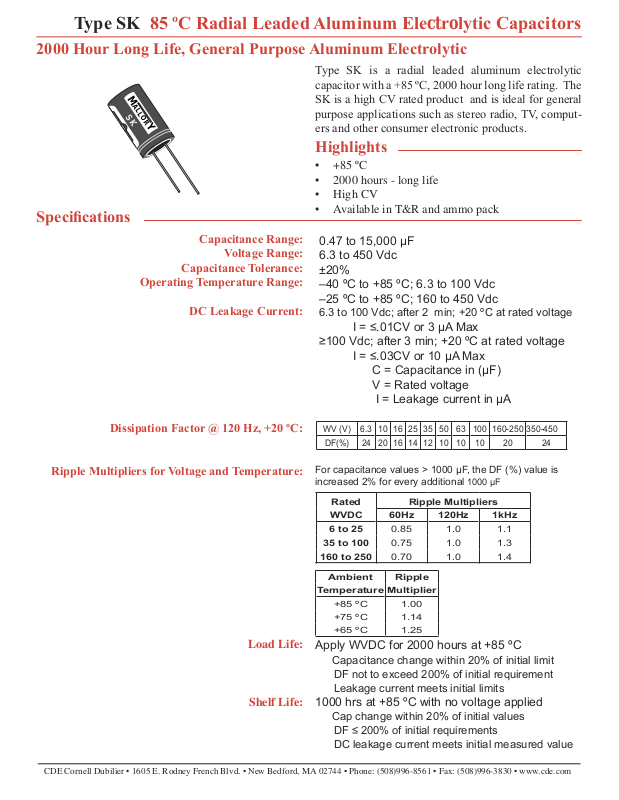

Type SK 85 ºC Radial Leaded Aluminum Electrolytic Capacitors
2000 Hour Long Life, General Purpose Aluminum Electrolytic
Type SK is a radial leaded aluminum electrolytic
capacitor with a +85 ºC, 2000 hour long life rating. The
SK is a high CV rated product and is ideal for general
purpose applications such as stereo radio, TV, computers and other consumer electronic products.
Highlights
+85 ºC
•
2000 hours - long life
•
High CV
•
Available in T&R and ammo pack
•
Specifications
M
ALLOR
SK
Y
Capacitance Range:
Voltage Range:
Capacitance Tolerance:
Operating Temperature Range:
DC Leakage Current:
Dissipation Factor @ 120 Hz, +20 ºC:
Ripple Multipliers for Voltage and Temperature:
0.47 to 15,000 µF
6.3 to 450 Vdc
±20%
–40 ºC to +85 ºC; 6.3 to 100 Vdc
–25 ºC to +85 ºC; 160 to 450 Vdc
6.3 to 100 Vdc; after 2 min; +20 ºC at rated voltage
I = ≤.01CV or 3 µA Max
≥100 Vdc; after 3 min; +20 ºC at rated voltage
I = ≤.03CV or 10 µA Max
C = Capacitance in (µF)
V = Rated voltage
I = Leakage current in µA
WV (V) 6.3 10 16 25 35 50 63 100 160-250 350-450
DF(%) 24 20 16 14 12 10 10 10 20 24
For capacitance values > 1000 µF, the DF (%) value is
increased 2% for every additional 1000 µF
Rated Ripple Multipliers
WVDC 60Hz 120Hz 1kHz
6 to 25 0.85 1.0 1.1
35 to 100 0.75 1.0 1.3
160 to 250 0.70 1.0 1.4
Ambient Ripple
Temperature Multiplier
+85 ºC 1.00
+75 ºC 1.14
+65 ºC 1.25
Load Life:
Apply WVDC for 2000 hours at +85 ºC
Capacitance change within 20% of initial limit
DF not to exceed 200% of initial requirement
Leakage current meets initial limits
Shelf Life:
1000 hrs at +85 ºC with no voltage applied
Cap change within 20% of initial values
DF ≤ 200% of initial requirements
DC leakage current meets initial measured value
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Page 2
Type SK 105 ºC Radial Leaded Aluminum Electorlytic Capacitors
Outline Drawing
Case vented on
diameters 6.3 and greater
Part Numbering System
SK 100 M 100 S T
Capacitance Rated Lead
Type Capacitance Tolerance Voltage Packaging Configuration
(µF) (%) (Vdc)
SK 1R0 = 1 K = ±10 6R3 = 6.3 A = Tape & Ammo 1 = Lead cut
100 = 10 M = ±20 010 = 10 E = Different Characteristic 2 = Lead form
Outline Dimensions
(Millimeters)
PVC Sleeve
d 앐0.05
-
L
15 Min.
5
S 앐0.5
+
Vinyl sleeve adds .5 Max. to diameter
and 2.0 Max. to length
+
D
101 = 100 100 = 100 R = Tape & Reel 4 = Lead crimp & cut (form)
102 = 1000 S = Standard T = Standard
Temperature Characteristics
20
1애F 50V
%욼C
0
-10
-20
-40 01040 80
Temperature 쎷C
Capacitance Change Ratio
Load Life Characteristics
%욼C
0
-10
-20
0 500101000 1500
Time In Hours
Capacitance Change Ratio
1애F 50V
100애F 25V
2000
100애F 25V
%욼DF
%욼DF
20
10
0
0 500301000 1500
Time In Hours
Dissipation Factor Change
200
100
50
10
5
5
1애F 50V
1
-40 0 40 80
Temperature 쎷C
Dissipation Factor Change
100애F 25V
1애F 50V
2000
100애F 25V
%욼LC
10
5
1
0.5
0.1
0 500 1000 1500
Leakage Current Change
100애F 25V
1애F 50V
2000
Time In Hours
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Page 3
Type SK 85 ºC Radial Leaded Aluminum Electorlytic Capacitors
Ratings RoHS Compliant
Max ESR Max Ripple
Catalog 120 Hz 120 Hz Size in. (mm)
Cap Part Number +25 ºC +85 ºC Diameter Length Lead Space Lead Dia.
(µF) (Ω) (mA) (D) (L) (S) (d)
6.3 Vdc (8 Volts Surge)
100 SK101M6R3ST 2.92 130 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
220 SK221M6R3ST 1.33 240 .248 (6.3) .433 (11.0) .098 (2.5) .0197 (0.5)
330 SK331M6R3ST 0.88 300 .248 (6.3) .433 (11.0) .098 (2.5) .0197 (0.5)
470 SK471M6R3ST 0.62 380 .315 (8.0) .453 (11.5) .138 (3.5) .0236 (0.6)
1000 SK102M6R3ST 0.29 580 .394 (10.0) .512 (13.0) .197 (5.0) .0236 (0.6)
2200 SK222M6R3ST 0.14 1050 .394 (10.0) .827 (21.0) .197 (5.0) .0236 (0.6)
3300 SK332M6R3ST 0.10 1250 .512 (13.0) .827 (21.0) .197 (5.0) .0236 (0.6)
4700 SK472M6R3ST 0.08 1700 .512 (13.0) .984 (26.0) .197 (5.0) .0236 (0.6)
6800 SK682M6R3ST 0.07 1900 .630 (16.0) .984 (25.0) .295 (7.5) .0315 (0.8)
10000 SK103M6R3ST 0.05 2250 .630 (16.0) 1.26 (32.0) .295 (7.5) .0315 (0.8)
15000 SK153M6R3ST 0.04 2680 .630 (16.0) 1.38 (35.0) .295 (7.5) .0315 (0.8)
10 Vdc (13 Volts Surge)
33 SK330M010ST 7.64 80 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
47 SK470M010ST 5.36 95 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
100 SK101M010ST 2.52 180 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
220 SK221M010ST 1.15 250 .248 (6.3) .433 (11.0) .098 (2.5) .0197 (0.5)
330 SK331M010ST 0.76 330 .315 (8.0) .433 (11.0) .138 (3.5) .0236 (0.6)
470 SK471M010ST 0.54 400 .315 (8.0) .433 (11.0) .138 (3.5) .0236 (0.6)
1000 SK102M010ST 0.25 630 .394 (10.0) .630 (16.0) .197 (5.0) .0236 (0.6)
2200 SK222M010ST 0.14 1100 .394 (10.0) .827 (21.0) .197 (5.0) .0236 (0.6)
3300 SK332M010ST 0.10 1400 .512 (13.0) .827 (21.0) .197 (5.0) .0236 (0.6)
4700 SK472M010ST 0.08 1800 .630 (16.0) .984 (25.0) .295 (7.5) .0315 (0.8)
6800 SK682M010ST 0.07 2150 .630 (16.0) 1.26 (32.0) .295 (7.5) .0315 (0.8)
10000 SK103M010ST 0.05 2500 .709 (18.0) 1.38 (35.0) .295 (7.5) .0315 (0.8)
15000 SK153M010ST 0.04 2950 .709 (18.0) 1.65 (42.0) .295 (7.5) .0315 (0.8)
16 Vdc (20 Volts Surge)
22 SK220M016ST 9.65 75 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
33 SK330M016ST 6.43 110 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
47 SK470M016ST 4.52 130 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
100 SK101M016ST 2.12 185 .248 (6.3) .433 (11.0) .098 (2.5) .0197 (0.5)
220 SK221M016ST 0.97 320 .315 (8.0) .453 (11.5) .138 (3.5) .0236 (0.6)
330 SK331M016ST 0.64 360 .315 (8.0) .453 (11.5) .138 (3.5) .0236 (0.6)
470 SK471M016ST 0.45 470 .394 (10.0) .512 (13.0) .197 (5.0) .0236 (0.6)
1000 SK102M016ST 0.21 790 .394 (10.0) .827 (21.0) .197 (5.0) .0236 (0.6)
2200 SK222M016ST 0.14 1350 .512 (13.0) .827 (21.0) .197 (5.0) .0236 (0.6)
3300 SK332M016ST 0.10 1700 .512 (13.0) .984 (26.0) .197 (5.0) .0236 (0.6)
4700 SK472M016ST 0.08 2100 .630 (16.0) 1.26 (32.0) .295 (7.5) .0315 (0.8)
6800 SK682M016ST 0.07 2500 .709 (18.0) 1.38 (35.0) .295 (7.5) .0315 (0.8)
10000 SK103M016ST 0.05 2700 .709 (18.0) 1.65 (42.0) .295 (7.5) .0315 (0.8)
25 Vdc (32 Volts Surge)
10 SK100M025ST 18.57 50 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
22 SK220M025ST 8.44 90 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
33 SK330M025ST 5.63 110 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
47 SK470M025ST 3.95 130 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
100 SK101M025ST 1.85 185 .248 (6.3) .433 (11.0) .098 (2.5) .0197 (0.5)
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Page 4
Type SK 105 ºC Radial Leaded Aluminum Electorlytic Capacitors
Ratings
Max ESR Max Ripple
Catalog 120 Hz 120 Hz Size in. (mm)
Cap Part Number +25 ºC +85 ºC Diameter Length Lead Space Lead Dia.
(µF) (Ω) (mA) (D) (L) (S) (d)
25 Vdc (32 Volts Surge)
220 SK221M025ST 0.84 320 .315 (8.0) .453 (11.5) .138 (3.5) .0236 (0.6)
330 SK331M025ST 0.56 420 .394 (10.0) .512 (13.0) .197 (5.0) .0236 (0.6)
470 SK471M025ST 0.39 540 .394 (10.0) .630 (16.0) .197 (5.0) .0236 (0.6)
1,000 SK102M025ST 0.18 950 .512 (13.0) .827 (21.0) .197 (5.0) .0236 (0.6)
2,200 SK222M025ST 0.14 1550 .512 (13.0) .984 (26.0) .197 (5.0) .0236 (0.6)
3,300 SK332M025ST 0.10 1950 .630 (16.0) 1.26 (32.0) .295 (7.5) .0315 (0.8)
4,700 SK472M025ST 0.08 2360 .709 (18.0) 1.38 (35.0) .295 (7.5) .0315 (0.8)
6,800 SK682M025ST 0.06 2550 .709 (18.0) 1.65 (42.0) .295 (7.5) .0315 (0.8)
35 Vdc (44 Volts Surge)
10 SK100M035ST 15.92 60 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
22 SK220M035ST 7.23 95 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
33 SK330M035ST 4.82 115 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
47 SK470M035ST 3.38 140 .248 (6.3) .433 (11.0) .098 (2.5) .0197 (0.5)
100 SK101M035ST 1.59 230 .315 (8.0) .453 (11.5) .138 (3.5) .0236 (0.6)
220 SK221M035ST 0.72 370 .394 (10.0) .512 (13.0) .197 (5.0) .0236 (0.6)
330 SK331M035ST 0.48 490 .394 (10.0) .630 (16.0) .197 (5.0) .0236 (0.6)
470 SK471M035ST 0.33 640 .394 (10.0) .827 (21.0) .197 (5.0) .0236 (0.6)
1,000 SK102M035ST 0.15 1100 .512 (13.0) .827 (21.0) .197 (5.0) .0236 (0.6)
2,200 SK222M035ST 0.14 1800 .630 (16.0) 1.26 (32.0) .295 (7.5) .0315 (0.8)
3,300 SK332M035ST 0.10 2220 .709 (18.0) 1.38 (35.0) .295 (7.5) .0315 (0.8)
4,700 SK472M035ST 0.08 2400 .709 (18.0) 1.65 (42.0) .295 (7.5) .0315 (0.8)
50 Vdc (63 Volts Surge)
0.47 SKR47M050ST 282.33 5 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
1.0 SK010M050ST 132.70 10 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
2.2 SK2R2M050ST 60.32 23 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
3.3 SK3R3M050ST 40.21 35 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
4.7 SK4R7M050ST 28.23 40 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
10 SK100M050ST 13.27 65 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
22 SK220M050ST 6.03 100 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
33 SK330M050ST 4.02 125 .248 (6.3) .433 (11.0) .098 (2.5) .0197 (0.5)
47 SK470M050ST 2.82 150 .248 (6.3) .433 (11.0) .098 (2.5) .0197 (0.5)
100 SK101M050ST 1.33 250 .315 (8.0) .433 (11.0) .138 (3.5) .0236 (0.6)
220 SK221M050ST 0.60 440 .394 (10.0) .630 (16.0) .197 (5.0) .0236 (0.6)
330 SK331M050ST 0.40 580 .394 (10.0) .827 (21.0) .197 (5.0) .0236 (0.6)
470 SK471M050ST 0.28 760 .512 (13.0) .827 (21.0) .197 (5.0) .0236 (0.6)
1,000 SK102M050ST 0.13 1350 .630 (16.0) .984 (25.0) .295 (7.5) .0236 (0.6)
2,200 SK222M050ST 0.14 2090 .709 (18.0) 1.38 (35.0) .295 (7.5) .0236 (0.6)
3,300 SK332M050ST 0.10 2320 .709 (18.0) 1.65 (42.0) .295 (7.5) .0236 (0.6)
63 Vdc (79 Volts Surge)
0.5 SKR47M063ST 254.10 5 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
1.0 SK010M063ST 119.43 10 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
2.2 SK2R2M063ST 54.28 29 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
3.3 SK3R3M063ST 36.19 40 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
4.7 SK4R7M063ST 25.41 45 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
10.0 SK100M063ST 11.94 70 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
* Note max leakage current ≥100 Vdc is measured at 3 minutes
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Page 5
Type SK 85 ºC Radial Leaded Aluminum Electorlytic Capacitors
Ratings
Max ESR Max Ripple
Catalog 120 Hz 120 Hz Size in. (mm)
Cap Part Number +25 ºC +85 ºC Diameter Length Lead Space Lead Dia.
(µF) (Ω) (mA) (D) (L) (S) (d)
63 Vdc (79 Volts Surge)
22 SK220M063ST 5.43 115 .248 (6.3) .433 (11.0) .098 (2.5) .0197 (0.5)
33 SK330M063ST 3.62 140 .248 (6.3) .433 (11.0) .098 (2.5) .0197 (0.5)
47 SK470M063ST 2.54 190 .315 (8.0) .433 (11.0) .138 (3.5) .0236 (0.6)
100 SK101M063ST 1.19 300 .394 (10.0) .512 (13.0) .197 (5.0) .0236 (0.6)
220 SK221M063ST 0.54 490 .394 (10.0) .827 (21.0) .197 (5.0) .0236 (0.6)
330 SK331M063ST 0.36 680 .512 (13.0) .827 (21.0) .197 (5.0) .0236 (0.6)
470 SK471M063ST 0.25 880 .512 (13.0) .984 (26.0) .197 (5.0) .0236 (0.6)
1,000 SK102M063ST 0.12 1550 .630 (16.0) 1.26 (32.0) .295 (7.5) .0315 (0.8)
100 Vdc (125 Volts Surge)
0.47 SKR47M100ST 225.87 10 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
1 SK010M100ST 106.16 21 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
2.2 SK2R2M100ST 48.25 30 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
3.3 SK3R3M100ST 32.17 40 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
4.7 SK4R7M100ST 22.59 50 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
10 SK100M100ST 10.62 75 .248 (6.3) .433 (11.0) .098 (2.5) .0197 (0.5)
22 SK220M100ST 4.83 130 .315 (8.0) .433 (11.0) .138 (3.5) .0236 (0.6)
33 SK330M100ST 3.22 170 .394 (10.0) .512 (13.0) .197 (5.0) .0236 (0.6)
47 SK470M100ST 2.26 230 .394 (10.0) .630 (16.0) .197 (5.0) .0236 (0.6)
100 SK101M100ST 1.06 400 .512 (13.0) .827 (21.0) .197 (5.0) .0236 (0.6)
220 SK221M100ST 0.48 710 .630 (16.0) .984 (25.0) .295 (7.5) .0315 (0.8)
330 SK331M100ST 0.32 860 .630 (16.0) .984 (25.0) .295 (7.5) .0315 (0.8)
470 SK471M100ST 0.23 1100 .630 (16.0) 1.26 (32.0) .295 (7.5) .0315 (0.8)
160 Vdc (200 Volts Surge)
0.47 SKR47M160ST 423.50 12.0 .248 (6.3) .433 (11.0) .098 (2.5) .0197 (0.5)
1.0 SK010M160ST 199.04 17.0 .248 (6.3) .433 (11.0) .098 (2.5) .0197 (0.5)
2.2 SK2R2M160ST 90.47 26.0 .248 (6.3) .433 (11.0) .098 (2.5) .0197 (0.5)
3.3 SK3R3M160ST 60.32 35.0 .248 (6.3) .433 (11.0) .098 (2.5) .0197 (0.5)
4.7 SK4R7M160ST 42.35 40.0 .248 (6.3) .433 (11.0) .098 (2.5) .0197 (0.5)
10 SK100M160ST 19.90 65.0 .315 (8.0) .433 (11.0) .138 (3.5) .0197 (0.5)
22 SK220M160ST 9.05 110.0 .394 (10.0) .630 (16.0) .197 (5.0) .0236 (0.6)
33 SK330M160ST 6.03 150.0 .394 (10.0) .827 (21.0) .197 (5.0) .0236 (0.6)
47 SK470M160ST 4.23 180.0 .512 (13.0) .827 (21.0) .197 (5.0) .0236 (0.6)
100 SK101M160ST 1.99 300.0 .512 (13.0) .984 (26.0) .197 (5.0) .0236 (0.6)
220 SK221M160ST 0.90 510.0 .630 (16.0) 1.42 (36.0) .295 (7.5) .0315 (0.8)
330 SK331M160ST 0.60 600.0 .709 (18.0) 1.65 (42.0) .295 (7.5) .0315 (0.8)
200 Vdc (250 Volts Surge)
0.5 SKR47M200ST 423.50 12 .248 (6.3) .433 (11.0) .098 (2.5) .0197 (0.5)
1.0 SK010M200ST 199.04 17 .248 (6.3) .433 (11.0) .098 (2.5) .0197 (0.5)
2.2 SK2R2M200ST 90.47 26 .248 (6.3) .433 (11.0) .098 (2.5) .0197 (0.5)
3.3 SK3R3M200ST 60.32 35 .248 (6.3) .433 (11.0) .098 (2.5) .0197 (0.5)
4.7 SK4R7M200ST 42.35 45 .315 (8.0) .433 (11.0) .138 (3.5) .0236 (0.6)
10 SK100M200ST 19.90 70 .394 (10.0) .512 (13.0) .197 (5.0) .0236 (0.6)
22 SK220M200ST 9.05 110 .394 (10.0) .827 (21.0) .197 (5.0) .0236 (0.6)
33 SK330M200ST 6.03 160 .512 (13.0) .827 (21.0) .197 (5.0) .0236 (0.6)
47 SK470M200ST 4.23 180 .512 (13.0) .827 (21.0) .197 (5.0) .0236 (0.6)
* Note max leakage current ≥100 Vdc is measured at 3 minutes
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Page 6
Type SK 105 ºC Radial Leaded Aluminum Electorlytic Capacitors
Ratings
Max ESR Max Ripple
Catalog 120 Hz 120 Hz Size in. (mm)
Cap Part Number +25 ºC +85 ºC Diameter Length Lead Space Lead Dia.
(µF) (Ω) (mA) (D) (L) (S) (d)
200 Vdc (250 Volts Surge)
100 SK101M200ST 1.99 330 .630 (16.0) .984 (25.0) .295 (7.5) .0315 (0.8)
220 SK221M200ST 0.90 520 .709 (18.0) 1.65 (42.0) .295 (7.5) .0315 (0.8)
250 Vdc (300 Volts Surge)
0.47 SKR47M250ST 423.50 12 .248 (6.3) .433 (11.0) .098 (2.5) .0197 (0.5)
1.0 SK010M250ST 199.04 17 .248 (6.3) .433 (11.0) .098 (2.5) .0197 (0.5)
2.2 SK2R2M250ST 90.47 30 .248 (6.3) .433 (11.0) .098 (2.5) .0197 (0.5)
3.3 SK3R3M250ST 60.32 35 .315 (8.0) .433 (11.0) .138 (3.5) .0236 (0.6)
4.7 SK4R7M250ST 42.35 45 .315 (8.0) .433 (11.0) .138 (3.5) .0236 (0.6)
10 SK100M250ST 19.90 70 .394 (10.0) .630 (16.0) .197 (5.0) .0236 (0.6)
22 SK220M250ST 9.05 130 .512 (13.0) .827 (21.0) .197 (5.0) .0236 (0.6)
33 SK330M250ST 6.03 160 .512 (13.0) .827 (21.0) .197 (5.0) .0236 (0.6)
47 SK470M250ST 4.23 210 .512 (13.0) .984 (26.0) .197 (5.0) .0236 (0.6)
100 SK101M250ST 1.99 310 .630 (16.0) 1.26 (32.0) .295 (7.5) .0315 (0.8)
350 Vdc (400 Volts Surge)
0.47 SKR47M350ST 564.67 14 .315 (8.0) .433 (11.0) .138 (3.5) .0236 (0.6)
1.0 SK010M350ST 265.39 18 .315 (8.0) .433 (11.0) .138 (3.5) .0236 (0.6)
2.2 SK2R2M350ST 120.63 28 .315 (8.0) .433 (11.0) .138 (3.5) .0236 (0.6)
3.3 SK3R3M350ST 80.42 35 .394 (10.0) .512 (13.0) .197 (5.0) .0236 (0.6)
4.7 SK4R7M350ST 56.47 40 .394 (10.0) .512 (13.0) .197 (5.0) .0236 (0.6)
10 SK100M350ST 26.54 70 .394 (10.0) .827 (21.0) .197 (5.0) .0236 (0.6)
22 SK220M350ST 12.06 110 .512 (13.0) .827 (21.0) .197 (5.0) .0236 (0.6)
33 SK330M350ST 8.04 140 .512 (13.0) .984 (26.0) .197 (5.0) .0236 (0.6)
47 SK470M350ST 5.65 220 .630 (16.0) .984 (25.0) .295 (7.5) .0315 (0.8)
100 SK101M350ST 2.65 360 .709 (18.0) 1.42 (36.0) .295 (7.5) .0315 (0.8)
400 Vdc (450 Volts Surge)
0.5 SKR47M400ST 564.67 14 .315 (8.0) .433 (11.0) .138 (3.5) .0236 (0.6)
1.0 SK010M400ST 265.39 18 .315 (8.0) .433 (11.0) .138 (3.5) .0236 (0.6)
2.2 SK2R2M400ST 120.63 28 .315 (8.0) .433 (11.0) .138 (3.5) .0236 (0.6)
3.3 SK3R3M400ST 80.42 32 .394 (10.0) .512 (13.0) .197 (5.0) .0236 (0.6)
4.7 SK4R7M400ST 56.47 41 .394 (10.0) .630 (16.0) .197 (5.0) .0236 (0.6)
10 SK100M400ST 26.54 70 .512 (13.0) .827 (21.0) .197 (5.0) .0236 (0.6)
22 SK220M400ST 12.06 120 .512 (13.0) .984 (26.0) .197 (5.0) .0236 (0.6)
33 SK330M400ST 8.04 140 .630 (16.0) .984 (25.0) .295 (7.5) .0315 (0.8)
47 SK470M400ST 5.65 160 .630 (16.0) 1.26 (32.0) .295 (7.5) .0315 (0.8)
450 Vdc (500 Volts Surge)
0.47 SKR47M450ST 564.67 14 .315 (8.0) .433 (11.0) .138 (3.5) .0236 (0.6)
1.0 SK010M450ST 265.39 19 .315 (8.0) .453 (11.5) .138 (3.5) .0236 (0.6)
2.2 SK2R2M450ST 120.63 29 .394 (10.0) .512 (13.0) .197 (5.0) .0236 (0.6)
3.3 SK3R3M450ST 80.42 35 .394 (10.0) .630 (16.0) .197 (5.0) .0236 (0.6)
4.7 SK4R7M450ST 56.47 50 .394 (10.0) .709 (18.0) .197 (5.0) .0236 (0.6)
10 SK100M450ST 26.54 75 .512 (13.0) .827 (21.0) .197 (5.0) .0236 (0.6)
22 SK220M450ST 12.06 110 .630 (16.0) .984 (25.0) .295 (7.5) .0315 (0.8)
33 SK330M450ST 8.04 150 .630 (16.0) 1.42 (36.0) .295 (7.5) .0315 (0.8)
47 SK470M450ST 5.65 230 .630 (16.0) 1.57 (40.0) .295 (7.5) .0315 (0.8)
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Loading...
