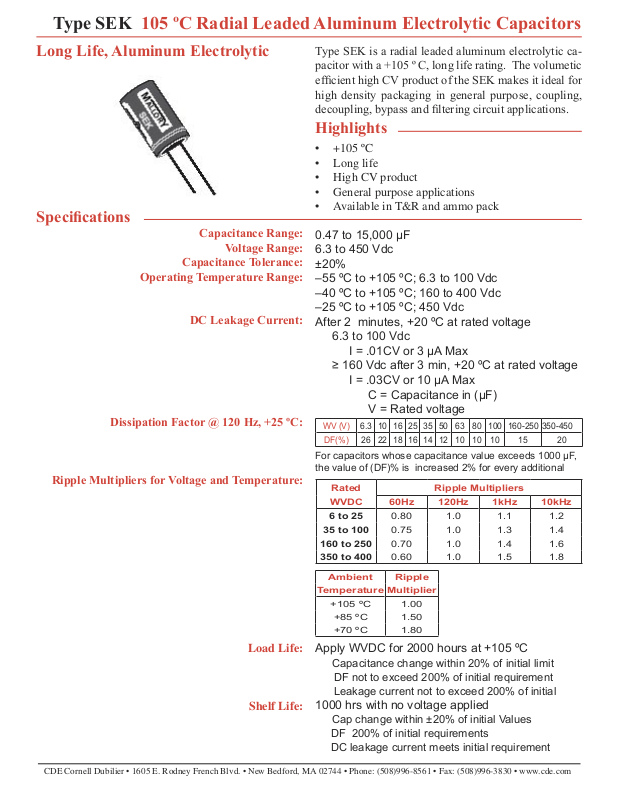

Page 1
Type SEK 105 ºC Radial Leaded Aluminum Electrolytic Capacitors
Long Life, Aluminum Electrolytic
Specifications
Capacitance Range:
Voltage Range:
Capacitance Tolerance:
Operating Temperature Range:
DC Leakage Current:
Dissipation Factor @ 120 Hz, +25 ºC:
Ripple Multipliers for Voltage and Temperature:
Type SEK is a radial leaded aluminum electrolytic ca­pacitor with a +105 º C, long life rating. The volumetic efficient high CV product of the SEK makes it ideal for high density packaging in general purpose, coupling, decoupling, bypass and filtering circuit applications.
+105 ºC
• Long life
• High CV product
• General purpose applications
• Available in T&R and ammo pack
•
0.47 to 15,000 µF
6.3 to 450 Vdc
±20% –55 ºC to +105 ºC; 6.3 to 100 Vdc –40 ºC to +105 ºC; 160 to 400 Vdc –25 ºC to +105 ºC; 450 Vdc After 2 minutes, +20 ºC at rated voltage
6.3 to 100 Vdc
I = .01CV or 3 µA Max ≥ 160 Vdc after 3 min, +20 ºC at rated voltage I = .03CV or 10 µA Max C = Capacitance in (µF) V = Rated voltage
WV (V) 6.3 10 16 25 35 50 63 80 100 160-250 350-450
DF(%) 26 22 18 16 14 12 10 10 10 15 20
For capacitors whose capacitance value exceeds 1000 µF, the value of (DF)% is increased 2% for every additional
Rated Ripple Multipliers
WVDC 60Hz 120Hz 1kHz 10kHz
6 to 25 0.80 1.0 1.1 1.2
35 to 100 0.75 1.0 1.3 1.4
160 to 250 0.70 1.0 1.4 1.6
350 to 400 0.60 1.0 1.5 1.8
Ambient Ripple
Temperature Multiplier
+105 ºC 1.00
+85 ºC 1.50
+70 ºC 1.80
Load Life:
Apply WVDC for 2000 hours at +105 ºC Capacitance change within 20% of initial limit
DF not to exceed 200% of initial requirement Leakage current not to exceed 200% of initial
Shelf Life:
1000 hrs with no voltage applied Cap change within ±20% of initial Values
DF 200% of initial requirements DC leakage current meets initial requirement
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Page 2
Type SEK 105 ºC Radial Leaded Aluminum Electrolytic Capacitors
L
S 0.5
15 Min.
D
5
+
PVC Sleeve
d 0.05
+
-
Vinyl sleeve adds .5 Max. to diameter and 2.0 Max. to length
Outline Dimensions
(Millimeters)
Case vented on diameters 6.3 and greater
5
-40 01040 80
%C
Temperature C
Capacitance Change Ratio
20
0
-10
-20
1F 50V
100F 25V
Temperature C
Dissipation Factor Change
-40 0 40 80
%DF
200
100
50
10
5
1
1F 50V
100F 25V
5
0 25010500 750
%C
Time In Hours
Capacitance Change Ratio
0
-10
-20
470F 25V
Time In Hours
Leakage Current Change
0 250 500 750
%LC
100
50
10
1
100F 160V
470
F 25V
1000
1000
0 25040500 750
%DF
Time In Hours
Dissipation Factor Change
30
20
10
100F 160V
470F 25V
1000
100F 160V
Outline Drawing
Part Numbering System
Capacitance Rated Lead
Type Capacitance Tolerance Voltage Packaging Configuration
(µF) (%) (Vdc)
SEK 100 M 100 S T
3R0 = 3 K = ±10 6R3 = 6.3 A = Tape & Ammo 1 = Lead cut
100 = 10 M = ±20 010 = 10 E = Different Characteristic 2 = Lead form
101 = 100 100 = 100 R = Tape & Reel 4 = Lead crimp & cut (form)
102 = 1000 S = Standard T = Standard
Temperature Characteristics
Load Life Characteristics
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Page 3
Type SEK 105 ºC Radial Leaded Aluminum Electrolytic Capacitors
Ratings RoHS Compliant
Max ESR Max Ripple
Catalog 120 Hz 120 Hz Size in. (mm)
Cap Part Number 25 ºC 105 ºC Diameter Length Lead Space Lead Dia.
(µF) (Ω) (mA) (D) (L) (S) (d)
6.3 Vdc (8 Volts Surge)
100 SEK101M6R3ST 3.45 100 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
220 SEK221M6R3ST 1.57 165 .248 (6.3) .433 (11.0) .098 (2.5) .0197 (0.5)
330 SEK331M6R3ST 1.05 200 .248 (6.3) .453 (11.5) .098 (2.5) .0197 (0.5)
470 SEK471M6R3ST 0.73 280 .315 (8.0) .453 (11.5) .138 (3.5) .0236 (0.6)
1000 SEK102M6R3ST 0.35 470 .394 (10.0) .512 (13.0) .197 (5.0) .0236 (0.6)
2200 SEK222M6R3ST 0.17 930 .394 (10.0) .827 (21.0) .197 (5.0) .0236 (0.6)
3300 SEK332M6R3ST 0.12 1100 .512 (13.0) .827 (21.0) .197 (5.0) .0236 (0.6)
4700 SEK472M6R3ST 0.10 1320 .630 (16.0) .984 (26.0) .197 (5.0) .0236 (0.6)
6800 SEK682M6R3ST 0.07 1490 .630 (16.0) .984 (25.0) .295 (7.5) .0315 (0.8)
10000 SEK103M6R3ST 0.06 1830 .630 (16.0) 1.26 (32.0) .295 (7.5) .0315 (0.8)
15000 SEK153M6R3ST 0.05 2280 .709 (18.0) 1.40 (36.0) .295 (7.5) .0315 (0.8)
10 Vdc (13 Volts Surge)
47 SEK470M010ST 6.21 75 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
100 SEK101M010ST 2.92 110 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
220 SEK221M010ST 1.33 180 .248 (6.3) .433 (11.0) .098 (2.5) .0197 (0.5)
330 SEK331M010ST 0.88 255 .315 (8.0) .453 (11.5) .138 (3.5) .0236 (0.6)
470 SEK471M010ST 0.62 305 .315 (8.0) .453 (11.5) .138 (3.5) .0236 (0.6)
1000 SEK102M010ST 0.29 570 .394 (10.0) .630 (16.0) .197 (5.0) .0236 (0.6)
2200 SEK222M010ST 0.14 1010 .512 (13.0) .827 (21.0) .197 (5.0) .0236 (0.6)
3300 SEK332M010ST 0.10 1220 .512 (13.0) .984 (25.0) .197 (5.0) .0236 (0.6)
4700 SEK472M010ST 0.08 1410 .630 (16.0) .984 (25.0) .295 (7.5) .0315 (0.8)
6800 SEK682M010ST 0.07 1610 .630 (16.0) 1.26 (32.0) .295 (7.5) .0315 (0.8)
10000 SEK103M010ST 0.05 1980 .709 (18.0) 1.40 (36.0) .295 (7.5) .0315 (0.8)
15000 SEK153M010ST 0.04 3330 .709 (18.0) 1.65 (42.0) .295 (7.5) .0315 (0.8)
16 Vdc (20 Volts Surge)
33 SEK330M016ST 7.24 70 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
47 SEK470M016ST 5.08 85 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
100 SEK101M016ST 2.39 135 .248 (6.3) .433 (11.0) .098 (2.5) .0197 (0.5)
220 SEK221M016ST 1.09 235 .315 (8.0) .453 (11.5) .138 (3.5) .0236 (0.6)
330 SEK331M016ST 0.72 285 .315 (8.0) .433 (11.0) .138 (3.5) .0236 (0.6)
470 SEK471M016ST 0.51 395 .394 (10.0) .512 (13.0) .197 (5.0) .0236 (0.6)
1000 SEK102M016ST 0.24 700 .394 (10.0) .827 (21.0) .197 (5.0) .0236 (0.6)
2200 SEK222M016ST 0.12 1150 .512 (13.0) .827 (21.0) .197 (5.0) .0236 (0.6)
3300 SEK332M016ST 0.09 1350 .512 (13.0) .984 (26.0) .197 (5.0) .0236 (0.6)
4700 SEK472M016ST 0.07 1560 .630 (16.0) 1.26 (32.0) .295 (7.5) .0315 (0.8)
6800 SEK682M016ST 0.06 1790 .709 (18.0) 1.40 (36.0) .295 (7.5) .0315 (0.8)
10000 SEK103M016ST 0.05 2884 .709 (18.0) 1.65 (42.0) .295 (7.5) .0315 (0.8)
25 Vdc (32 Volts Surge)
10 SEK100M025ST 21.23 50 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
22 SEK220M025ST 9.65 60 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
33 SEK330M025ST 6.43 75 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
47 SEK470M025ST 4.52 90 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
100 SEK101M025ST 2.12 145 .248 (6.3) .433 (11.0) .098 (2.5) .0197 (0.5)
220 SEK221M025ST 0.97 250 .315 (8.0) .433 (11.0) .138 (3.5) .0236 (0.6)
330 SEK331M025ST 0.64 355 .394 (10.0) .512 (13.0) .197 (5.0) .0236 (0.6)
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Page 4
Type SEK 105 ºC Radial Leaded Aluminum Electrolytic Capacitors
Ratings
Max ESR Max Ripple
Catalog 120 Hz 120 Hz Size in. (mm)
Cap Part Number 25 ºC 105 ºC Diameter Length Lead Space Lead Dia.
(µF) (Ω) (mA) (D) (L) (S) (d)
25 Vdc (32 Volts Surge)
470 SEK471M025ST 0.45 470 .394 (10.0) .630 (16.0) .197 (5.0) .0236 (0.6)
1000 SEK102M025ST 0.21 855 .512 (13.0) .827 (21.0) .197 (5.0) .0236 (0.6)
2200 SEK222M025ST 0.11 1230 .512 (13.0) .984 (26.0) .197 (5.0) .0236 (0.6)
3300 SEK332M025ST 0.08 1450 .630 (16.0) 1.26 (32.0) .295 (7.5) .0315 (0.8)
4700 SEK472M025ST 0.07 1690 .709 (18.0) 1.40 (36.0) .295 (7.5) .0315 (0.8)
6800 SEK682M025ST 0.05 2856 .709 (18.0) 1.65 (42.0) .295 (7.5) .0315 (0.8)
35 Vdc (44 Volts Surge)
22 SEK220M035ST 8.44 65 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
33 SEK330M035ST 5.63 85 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
47 SEK470M035ST 3.95 115 .248 (6.3) .433 (11.0) .098 (2.5) .0197 (0.5)
100 SEK101M035ST 1.86 190 .315 (8.0) .453 (11.5) .138 (3.5) .0236 (0.6)
220 SEK221M035ST 0.84 315 .394 (10.0) .512 (13.0) .197 (5.0) .0236 (0.6)
330 SEK331M035ST 0.56 440 .394 (10.0) .630 (16.0) .197 (5.0) .0236 (0.6)
470 SEK471M035ST 0.40 580 .512 (13.0) .787 (20.0) .197 (5.0) .0236 (0.6)
1000 SEK102M035ST 0.19 995 .512 (13.0) .827 (21.0) .197 (5.0) .0236 (0.6)
2200 SEK222M035ST 0.10 1450 .630 (16.0) 1.26 (32.0) .295 (7.5) .0315 (0.8)
3300 SEK332M035ST 0.07 1660 .709 (18.0) 1.40 (36.0) .295 (7.5) .0315 (0.8)
4700 SEK472M035ST 0.06 2674 .709 (18.0) 1.65 (42.0) .295 (7.5) .0315 (0.8)
50 Vdc (63 Volts Surge)
0.47 SEKR47M050ST 338.80 7.0 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
1.0 SEK010M050ST 159.24 12.0 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
2.2 SEK2R2M050ST 72.38 18.0 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
3.3 SEK3R3M050ST 48.25 25.0 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
4.7 SEK4R7M050ST 33.88 30.0 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
10 SEK100M050ST 15.92 50.0 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
22 SEK220M050ST 7.24 75.0 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
33 SEK330M050ST 4.83 105.0 .248 (6.3) .433 (11.0) .098 (2.5) .0197 (0.5)
47 SEK470M050ST 3.39 125.0 .248 (6.3) .453 (11.5) .098 (2.5) .0197 (0.5)
100 SEK101M050ST 1.59 210.0 .315 (8.0) .433 (11.0) .138 (3.5) .0236 (0.6)
220 SEK221M050ST 0.72 400.0 .394 (10.0) .630 (16.0) .197 (5.0) .0236 (0.6)
330 SEK331M050ST 0.48 535.0 .394 (10.0) .827 (21.0) .197 (5.0) .0236 (0.6)
470 SEK471M050ST 0.34 730.0 .512 (13.0) .827 (21.0) .197 (5.0) .0236 (0.6)
1000 SEK102M050ST 0.16 1110.0 .630 (16.0) .984 (25.0) .295 (7.5) .0315 (0.8)
2200 SEK222M050ST 0.08 1530.0 .709 (18.0) 1.40 (36.0) .295 (7.5) .0315 (0.8)
3300 SEK332M050ST 0.47 2478.0 .709 (18.0) 1.65 (42.0) .295 (7.5) .0315 (0.8)
63 Vdc (79 Volts Surge)
4.7 SEK4R7M063ST 28.23 34 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
10 SEK100M063ST 13.27 55 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
22 SEK220M063ST 6.03 90 .248 (6.3) .433 (11.0) .098 (2.5) .0197 (0.5)
33 SEK330M063ST 4.02 110 .248 (6.3) .433 (11.0) .098 (2.5) .0197 (0.5)
47 SEK470M063ST 2.82 155 .315 (8.0) .433 (11.0) .098 (2.5) .0236 (0.6)
100 SEK101M063ST 1.33 260 .394 (10.0) .512 (13.0) .197 (5.0) .0236 (0.6)
220 SEK221M063ST 0.60 460 .394 (10.0) .827 (21.0) .197 (5.0) .0236 (0.6)
330 SEK331M063ST 0.40 650 .512 (13.0) .827 (21.0) .197 (5.0) .0236 (0.6)
470 SEK471M063ST 0.28 800 .512 (13.0) .984 (26.0) .197 (5.0) .0236 (0.6)
1000 SEK102M063ST 0.13 1200 .630 (16.0) 1.26 (32.0) .295 (7.5) .0315 (0.8)
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Page 5
Type SEK 105 ºC Radial Leaded Aluminum Electrolytic Capacitors
Ratings
Max ESR Max Ripple
Catalog 120 Hz 120 Hz Size in. (mm)
Cap Part Number 25 ºC 105 ºC Diameter Length Lead Space Lead Dia.
(µF) (Ω) (mA) (D) (L) (S) (d)
100 Vdc (125 Volts Surge)
0.47 SEKR47M100ST 282.33 10 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
1.0 SEK010M100ST 132.70 15 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
2.2 SEK2R2M100ST 60.32 22 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
3.3 SEK3R3M100ST 40.21 29 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
4.7 SEK4R7M100ST 28.23 37 .197 (5.0) .433 (11.0) .079 (2.0) .0197 (0.5)
10.0 SEK100M100ST 13.27 65 .248 (6.3) .433 (11.0) .098 (2.5) .0197 (0.5)
22.0 SEK220M100ST 6.03 115 .315 (8.0) .433 (11.0) .138 (3.5) .0236 (0.6)
33.0 SEK330M100ST 4.02 160 .394 (10.0) .512 (13.0) .197 (5.0) .0236 (0.6)
47.0 SEK470M100ST 2.82 210 .394 (10.0) .630 (16.0) .197 (5.0) .0236 (0.6)
100.0 SEK101M100ST 1.33 385 .512 (13.0) .787 (20.0) .197 (5.0) .0236 (0.6)
220.0 SEK221M100ST 0.60 590 .630 (16.0) .984 (25.0) .295 (7.5) .0315 (0.8)
330.0 SEK331M100ST 0.40 720 .630 (16.0) .984 (25.0) .295 (7.5) .0315 (0.8)
470.0 SEK471M100ST 0.28 875 .630 (16.0) 1.26 (32.0) .295 (7.5) .0315 (0.8)
160 Vdc (200 Volts Surge)
0.47 SEKR47M160ST 423.50 12 .248 (6.3) .433 (11.0) .098 (2.5) .0197 (0.5)
1.0 SEK010M160ST 199.04 17 .248 (6.3) .433 (11.0) .098 (2.5) .0197 (0.5)
2.2 SEK2R2M160ST 90.47 25 .248 (6.3) .433 (11.0) .098 (2.5) .0197 (0.5)
3.3 SEK3R3M160ST 60.32 36 .248 (6.3) .433 (11.0) .098 (2.5) .0197 (0.5)
4.7 SEK4R7M160ST 42.35 43 .248 (6.3) .433 (11.0) .098 (2.5) .0197 (0.5)
10 SEK100M160ST 19.90 70 .315 (8.0) .433 (11.0) .138 (3.5) .0236 (0.6)
22 SEK220M160ST 9.05 130 .394 (10.0) .630 (16.0) .197 (5.0) .0236 (0.6)
33 SEK330M160ST 6.03 180 .394 (10.0) .827 (21.0) .197 (5.0) .0236 (0.6)
47 SEK470M160ST 4.23 270 .512 (13.0) .827 (21.0) .197 (5.0) .0236 (0.6)
100 SEK101M160ST 1.99 330 .512 (13.0) .984 (26.0) .197 (5.0) .0236 (0.6)
220 SEK221M160ST 0.90 500 .630 (16.0) 1.38 (35.0) .295 (7.5) .0315 (0.8)
330 SEK331M160ST 0.60 850 .709 (18.0) 1.65 (42.0) .295 (7.5) .0315 (0.8)
200 Vdc (250 Volts Surge)
0.47 SEKR47M200ST 423.50 12 .248 (6.3) .433 (11.0) .098 (2.5) .0197 (0.5)
1.0 SEK010M200ST 199.04 17 .248 (6.3) .433 (11.0) .098 (2.5) .0197 (0.5)
2.2 SEK2R2M200ST 90.47 25 .248 (6.3) .453 (11.5) .098 (2.5) .0197 (0.5)
3.3 SEK3R3M200ST 60.32 36 .248 (6.3) .453 (11.5) .098 (2.5) .0197 (0.5)
4.7 SEK4R7M200ST 42.35 50 .315 (8.0) .433 (11.0) .138 (3.5) .0236 (0.6)
10 SEK100M200ST 19.90 80 .394 (10.0) .512 (13.0) .197 (5.0) .0236 (0.6)
22 SEK220M200ST 9.05 140 .394 (10.0) .827 (21.0) .197 (5.0) .0236 (0.6)
33 SEK330M200ST 6.03 190 .512 (13.0) .827 (21.0) .197 (5.0) .0236 (0.6)
47 SEK470M200ST 4.23 220 .512 (13.0) .827 (21.0) .197 (5.0) .0236 (0.6)
100 SEK101M200ST 1.99 335 .630 (16.0) .984 (25.0) .295 (7.5) .0315 (0.8)
220 SEK221M200ST 0.90 515 .709 (18.0) 1.65 (42.0) .295 (7.5) .0315 (0.8)
250 Vdc (300 Volts Surge)
0.47 SEKR47M250ST 423.50 12 .248 (6.3) .433 (11.0) .098 (2.5) .0197 (0.5)
1.0 SEK010M250ST 199.04 17 .248 (6.3) .433 (11.0) .098 (2.5) .0197 (0.5)
2.2 SEK2R2M250ST 90.47 29 .248 (6.3) .453 (11.5) .098 (2.5) .0197 (0.5)
3.3 SEK3R3M250ST 60.32 42 .315 (8.0) .433 (11.0) .138 (3.5) .0236 (0.6)
4.7 SEK4R7M250ST 42.35 50 .315 (8.0) .433 (11.0) .138 (3.5) .0236 (0.6)
10.0 SEK100M250ST 19.90 88 .394 (10.0) .630 (16.0) .197 (5.0) .0236 (0.6)
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Page 6
Type SEK 105 ºC Radial Leaded Aluminum Electrolytic Capacitors
Ratings
Max ESR Max Ripple
Catalog 120 Hz 120 Hz Size in. (mm)
Cap Part Number 25 ºC 105 ºC Diameter Length Lead Space Lead Dia.
(µF) (Ω) (mA) (D) (L) (S) (d)
250 Vdc (300 Volts Surge)
22 SEK220M250ST 9.05 155 .512 (13.0) .827 (21.0) .197 (5.0) .0236 (0.6)
33 SEK330M250ST 6.03 190 .512 (13.0) .827 (21.0) .197 (5.0) .0236 (0.6)
47 SEK470M250ST 4.23 230 .512 (13.0) .984 (26.0) .197 (5.0) .0236 (0.6)
100 SEK101M250ST 1.99 340 .630 (16.0) 1.26 (32.0) .295 (7.5) .0315 (0.8)
350 Vdc (400 Volts Surge)
0.47 SEKR47M350ST 564.67 14 .315 (8.0) .433 (11.0) .138 (3.5) .0236 (0.6)
1.0 SEK010M350ST 265.39 20 .315 (8.0) .433 (11.0) .138 (3.5) .0236 (0.6)
2.2 SEK2R2M350ST 120.63 35 .394 (10.0) .453 (11.5) .138 (3.5) .0236 (0.6)
3.3 SEK3R3M350ST 80.42 47 .394 (10.0) .512 (13.0) .197 (5.0) .0236 (0.6)
4.7 SEK4R7M350ST 56.47 55 .394 (10.0) .512 (13.0) .197 (5.0) .0236 (0.6)
10 SEK100M350ST 26.54 95 .394 (10.0) .827 (21.0) .197 (5.0) .0236 (0.6)
22 SEK220M350ST 12.06 165 .512 (13.0) .984 (26.0) .197 (5.0) .0236 (0.6)
33 SEK330M350ST 8.04 195 .512 (13.0) .984 (25.0) .295 (7.5) .0315 (0.8)
47 SEK470M350ST 5.65 240 .630 (16.0) 1.38 (35.0) .295 (7.5) .0315 (0.8)
100 SEK101M350ST 2.65 360 .709 (18.0) 1.65 (42.0) .295 (7.5) .0315 (0.8)
400 Vdc (450 Volts Surge)
0.47 SEKR47M400ST 564.67 14 .315 (8.0) .433 (11.0) .138 (3.5) .0236 (0.6)
1.0 SEK010M400ST 265.39 20 .315 (8.0) .433 (11.0) .138 (3.5) .0236 (0.6)
2.2 SEK2R2M400ST 120.63 35 .394 (10.0) .512 (13.0) .197 (5.0) .0236 (0.6)
3.3 SEK3R3M400ST 80.42 50 .394 (10.0) .512 (13.0) .197 (5.0) .0236 (0.6)
4.7 SEK4R7M400ST 56.47 58 .394 (10.0) .630 (16.0) .197 (5.0) .0236 (0.6)
10 SEK100M400ST 26.54 100 .512 (13.0) .787 (20.0) .197 (5.0) .0236 (0.6)
22 SEK220M400ST 12.06 170 .512 (13.0) .984 (26.0) .197 (5.0) .0236 (0.6)
33 SEK330M400ST 8.04 205 .630 (16.0) 1.26 (32.0) .295 (7.5) .0315 (0.8)
47 SEK470M400ST 5.65 255 .709 (18.0) 1.40 (36.0) .295 (7.5) .0315 (0.8)
450 Vdc (500 Volts Surge)
0.47 SEKR47M450ST 564.67 14 .315 (8.0) .433 (11.0) .138 (3.5) .0236 (0.6)
1.0 SEK010M450ST 265.39 20 .315 (8.0) .433 (11.0) .138 (3.5) .0236 (0.6)
2.2 SEK2R2M450ST 120.63 35 .394 (10.0) .512 (13.0) .197 (5.0) .0236 (0.6)
3.3 SEK3R3M450ST 80.42 50 .394 (10.0) .512 (13.0) .197 (5.0) .0236 (0.6)
4.7 SEK4R7M450ST 56.47 58 .394 (10.0) .630 (16.0) .197 (5.0) .0236 (0.6)
10 SEK100M450ST 26.54 100 .512 (13.0) .827 (21.0) .197 (5.0) .0236 (0.6)
22 SEK220M450ST 12.06 170 .512 (13.0) .984 (26.0) .197 (5.0) .0236 (0.6)
33 SEK330M450ST 8.04 205 .630 (16.0) 1.26 (32.0) .295 (7.5) .0315 (0.8)
47 SEK470M450ST 5.65 255 .709 (18.0) 1.40 (36.0) .295 (7.5) .0315 (0.8)
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
