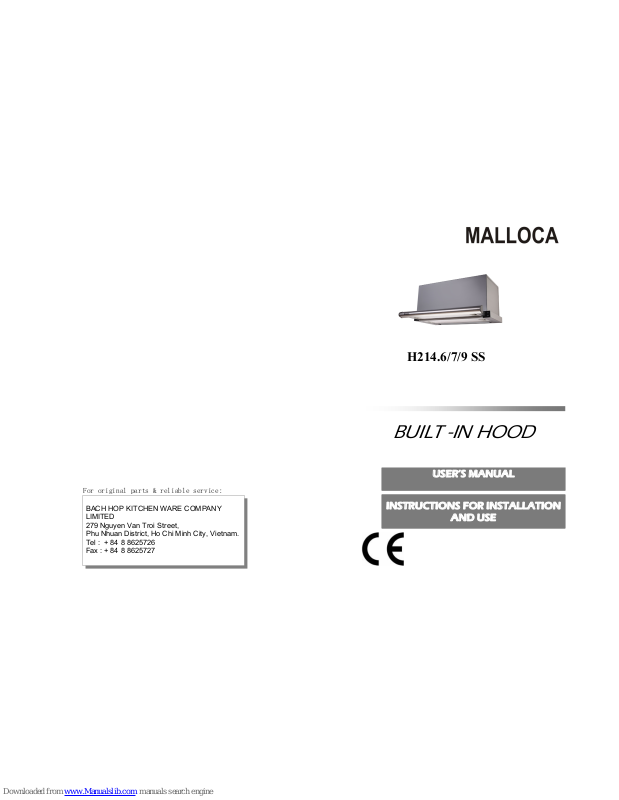

Page 1
BACH HOP KITCHEN WARE COMPANY
LIMITED
279 Nguyen Van Troi Street,
Phu Nhuan District, Ho Chi Minh City, Vietnam.
Tel : + 84 8 8625726
Fax : + 84 8 8625727
For original parts & reliable service:
BUILT -IN HOOD
INSTRUCTIONS FOR INSTALLATION
AND USE
USER’S MANUAL
H214.6/7/9 SS
Page 2
Table of Contents
• From the Manufacturer 3
• Specifications 3
• SAFETY : Read this first ! 4, 5
• Description of Parts 5, 6
• Instruction for use 6
• Technical Information 7
• Installation 8
• Cleaning & Maintenance 9, 10
• Troubleshooting 11
2
Troubleshooting
11
Symptoms Possible Cause Action
Check that the plug is
connected.
Does not function No electrical supply
Check that the main switch is
turned on.
Aluminium filters grease
clogged
Clean the filters and replace
when it is dry
Poor airflow
Charcoal grease filters
clogged
Replace charcoal filters with
new sets
Motor running but no
airflow
Butterfly valve jammed Contact technician
High temperature safety
device activated
The kitchen is not sufficiently
ventilated
Motor cuts after a few
minutes
The hood is installed too
near the cooking stove
The hood must be at least
65cm from stove
Charcoal filters not installed In re-circulating mode,
charcoal filters must be
installed
Strong cooking smell
Aluminium grease filter
saturated
Wash the aluminium grease
filters
Oil dripping onto stove
Aluminium grease filter
saturated
Wash the aluminium grease
filters
Whirring sound Foreign object in contact with
fan blade
Contact technician
Page 3
Cleaning & Maintenance (Continued)
Activated charcoal filter
To install the charcoal filter, the motor anchorage is made to coincide with the
anchor points of the activated charcoal filter and turn in clockwise.
The carbon filter lasts from three to six months depending on the particular
conditions of use.
The activated carbon filter can neither be exhausted, it must be changed.
Changing Bulbs
Remove the filter support to access the bulbs.
Take care to disconnect the mains beforehand and that the bulbs to be
replaces are not hot.
The maximum halogen light power is 20W.
10
From the Manufacturer
• This appliance and it’s packaging are produced by processes that
minimize waste and respect the environment.
• Please help us to continue the protection of the environment by
disposing of the packaging in a correct manner.
•
Safety!
• Please do not allow young children to play with the plastic bag
packaging.
• Before disposing of any old appliances, be sure to cut off the power
chord so that others will not be endangered by a defective electric
appliance.
Specifications
Input : 220-240V 50Hz
Absorption : 220W
Lamps : 2 x 20W
External Dimensions
• 60cm version : 600x280x280mm
• 70cm version : 700x280x280mm
• 90cm version : 900x280x280mm
3
Page 4
SAFETY : Read this First !
• Do not connect the appliance if there are obvious signs of transportation damage.
• Read this user manual thoroughly before attempting to use this appliance.
• Installation and repair should be attempted only by qualified technical personnel.
• It is dangerous to modify any part of this appliance.
• The manufacturer declines all responsibility in case of failure to adopt proper safety
measures.
• Ensure the location in which this appliance is installed has good, permanent ventilation.
• The distance between the bench top to the lower part of the hood must not be at less
than 65 cm or higher than 75 cm.
• Use an electrical connector with earth that is correct for your location.
• Check that the voltage in your area is correct before plugging in.
• The electrical connection of this appliance must be connected to earth.
Green & yellow = EARTH
Blue = NEUTRAL
Brown = LIVE
• Multiple plugs and extension cables must not be used. Overload is dangerous and may
cause a fire.
• Ensure that the power supply chord is free from any heat source or sharp objects.
• The appliance should be switched off and the electrical supply disconnected before any
cleaning or maintenance work can be carried out.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a hazard.
Clause 7 (60335-2-31)
There is a fire risk if cleaning is not carried out in according with the instructions.
The hood use four hob element at most.
4
Cleaning & Maintenance
Before carrying out any cleaning or maintenance activities, ensure that the
appliances is disconnected from the mains.
To carry out cleaning and maintenance, follow the safety Instructions.
Filter Cleaning
To withdraw the filters from their locations release the anchoring points. Clean
the filter either putting in the dishwasher (refer to notes) or leaving it standing
in hot water to simplify the removal of grease or, if wished, by means of
special sprays (protecting the non metallic parts). Once clean, leave it to dry.
Notes: cleaning in the dishwasher with aggressive detergents may blacken
the surface of metallic parts, without this affecting its gas retaining properties.
The filter must be cleaned at least once a month depending on how often the
appliances is used. It must be remembered that grease is deposited in the
extractor when cooking, whether it is switched on or not.
Cleaning the appliances body
The use of (40ºC approx.) soapy water is recommended. A cloth moistened in
this water is used for cleaning the extractor, paying special attention to the
grids. Afterwards, dry it using a lint-free cloth.
Note: Never use metallic scouring pads or abrasive products that could
damage the surface. Do not use scrapers with metallic surfaces such as
knives, scissors etc.
9
Page 5

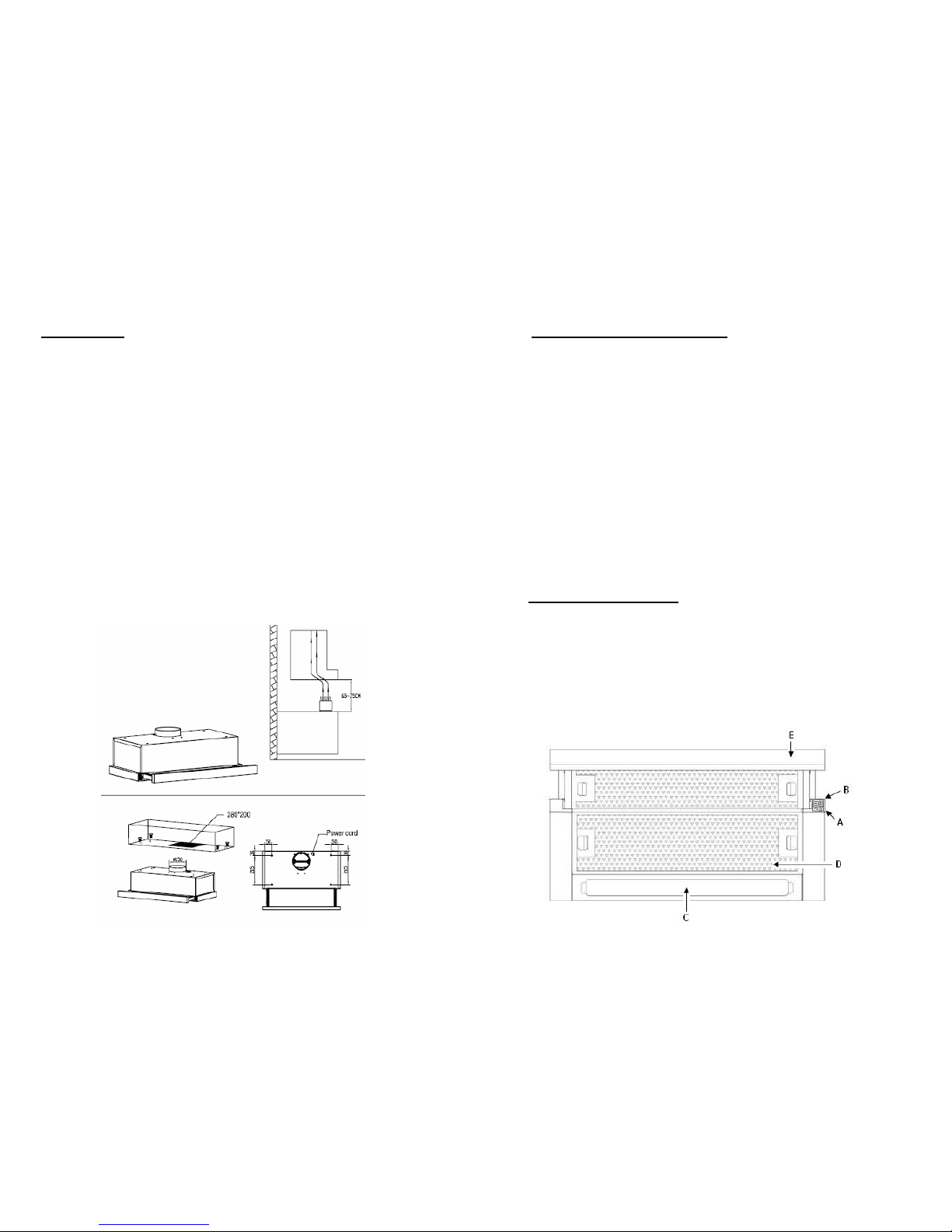

Installation
To fix the extractor to the kitchen unit.
The lower part of the extractor must be located at a minimum height of 60cm
above the hob for electric cookers and 65cm for gas cookers. If the
instructions of a gas cooker indicate a greater distance these must be
observed.
When the extractor is working at the same time as other non-electrical
cooking equipment, the outlet air pressure must not exceed 4 Pa.
To achieve optimum performance the length of the outlet hose should not
exceed 4 meters, or include more than two 90 angles (elbows)
Although venting to the outside is recommended, activated carbon filters may
be used, which allow the gas to be returned to the kitchen through the outlet
pipe.
8
SAFETY : Read this First ! (Continued)
• There shall be adequate ventilation of the room when the range hood is
used at the same time as appliances burning gas or other fuels (not
applicable to appliances that only discharge the air back into the room);
• There is a fire risk if cleaning is not carried out in accordance with the
instructions;
• Do not flambé under the range hood.
• The air must not be discharged into a flue that is used for exhausting
fumes from
• Appliances burning gas or other fuels (not applicable to appliances that
only discharge the air back into the room);
• Regulations concerning the discharge of air have to be fulfilled.
Description of Parts
A Motor controls that allow two positions to be selected.
B Light switch independent of the motors.
C Lighting by means of lamps.
D Filters located over cooking area, easily withdrawn for cleaning.
E Extractable group that allows a greater gas capture area.
5
Page 6

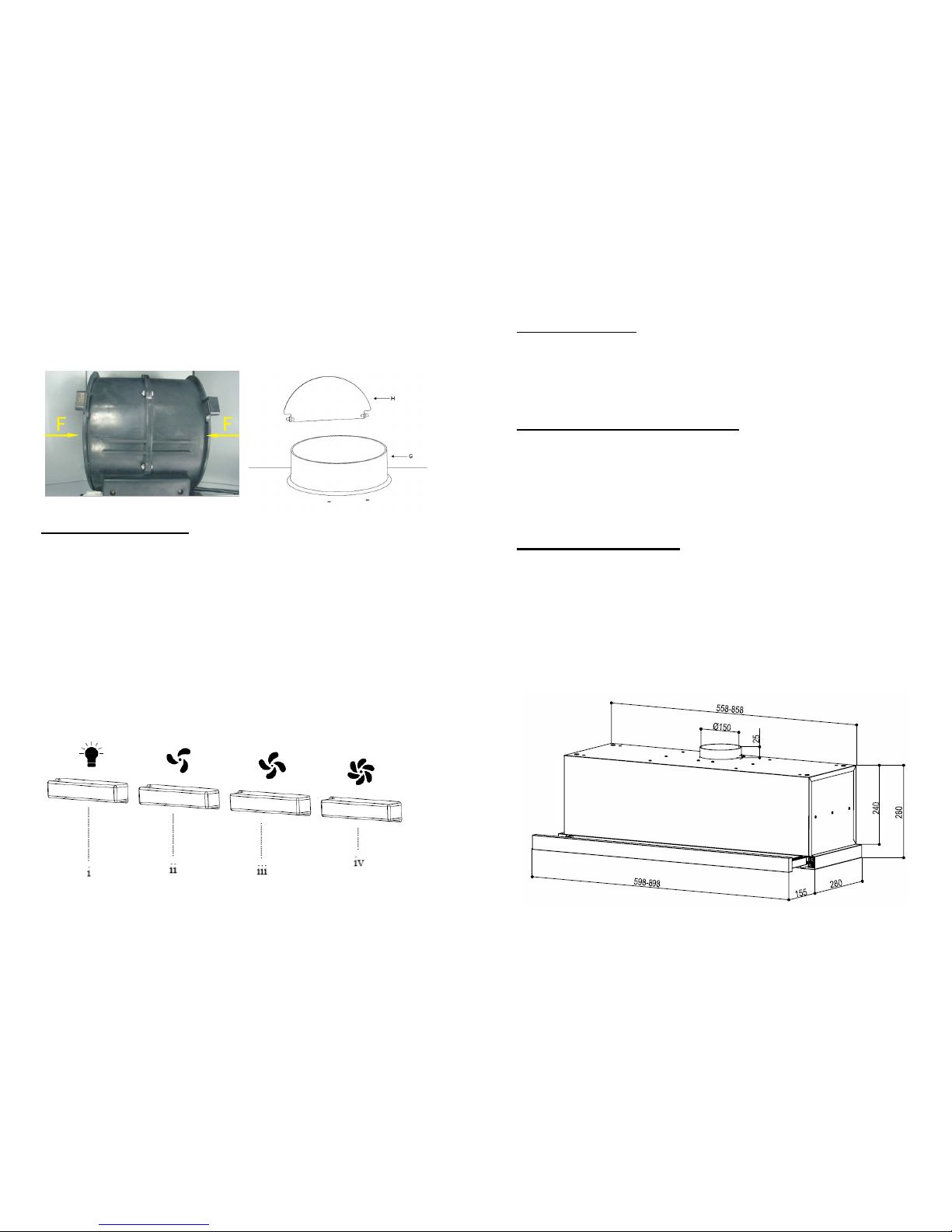

F Possibility of incorporating activated charcoal filter.
G-H Anti return tabs to be located in the outlet mouth, locating ends in the
holes provided.
Instructions for use
By pressing the button shown in the below, you will be able to control the
functions of the extractor.
To achieve better extraction, we recommend switching on the extractor a few
minutes before starting to cook (3—5 minutes) so that the air flow is
continuous and stable when extracting fumes.
Likewise, keep the extractor switched on for a few minutes when cooking is
complete to allow all fumes and odors to be expelled.
6
Light On/Off Button (i)
On/Off switch for the light. Push the button in to turn the light ON,
push again to turn the light OFF.
Blower On and Speed Buttons ( ii, iii & iv)
Button (ii) operates the blower on LOW speed, push again to turn off.
Push button (iii) for MEDIUM speed, push again to turn off.
Push button (iv) for HIGH speed, push again to turn off.
Technical Information
Dimensions Width = 500 / 900 mm
Depth = 280 mm
Height = 280 mm
7
