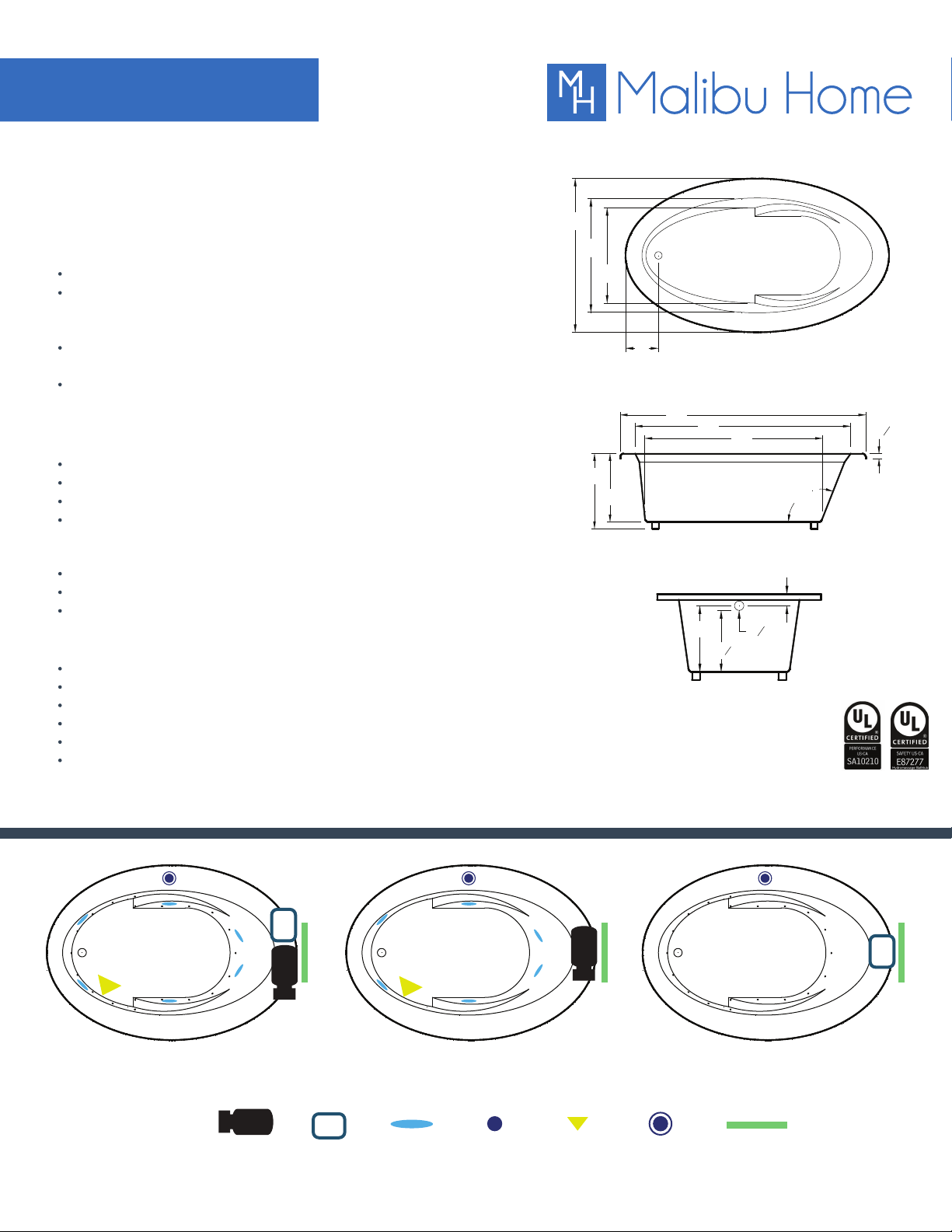

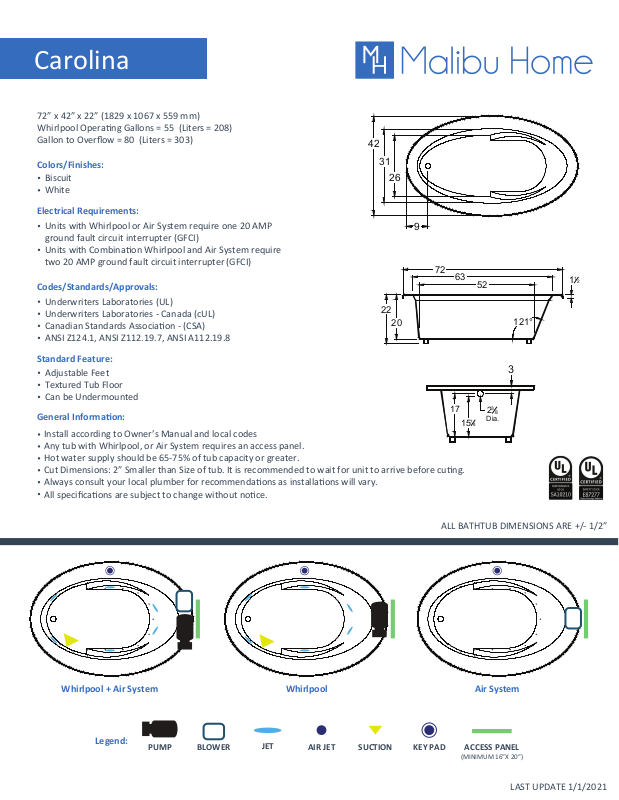

Malibu Home W005408627 Specifications

Carolina

72” x 42” x 22” (1829 x 1067 x 559 mm)

Whirlpool Operang Gallons = 55 (Liters = 208)
Gallon to Overflow = 80 (Liters = 303)

42

Colors/Finishes:

Biscuit

31

26

White

Electrical Requirements:

Units with Whirlpool or Air System require one 20 AMP

9

ground fault circuit interrupter (GFCI)
Units with Combinaon Whirlpool and Air System require
two 20 AMP ground fault circuit interrupter (GFCI)

72

Codes/Standards/Approvals:

Underwriters Laboratories (UL)
Underwriters Laboratories - Canada (cUL)
Canadian Standards Associaon - (CSA)

22

20

ANSI Z124.1, ANSI Z112.19.7, ANSI A112.19.8

Standard Feature:

Adjustable Feet
Textured Tub Floor
Can be Undermounted

General Informaon:

Install according to Owner’s Manual and local codes
Any tub with Whirlpool, or Air System requires an access panel.
Hot water supply should be 65-75% of tub capacity or greater.
Cut Dimensions: 2” Smaller than Size of tub. It is recommended to wait for unit to arrive before cung.
Always consult your local plumber for recommendaons as installaons will vary.
All specificaons are subject to change without noce.

17

63

15

1

1

52

121°

2

3

3

2

8

Dia.

7

8

ALL BATHTUB DIMENSIONS ARE +/- 1/2”

Whirlpool + Air System Whirlpool Air System

Legend:

PUMP

BLOWER

JET

AIR JET KEY PADSUCTION

ACCESS PANEL

(MINIMUM 16”X 20”)

LAST UPDATE 1/1/2021
