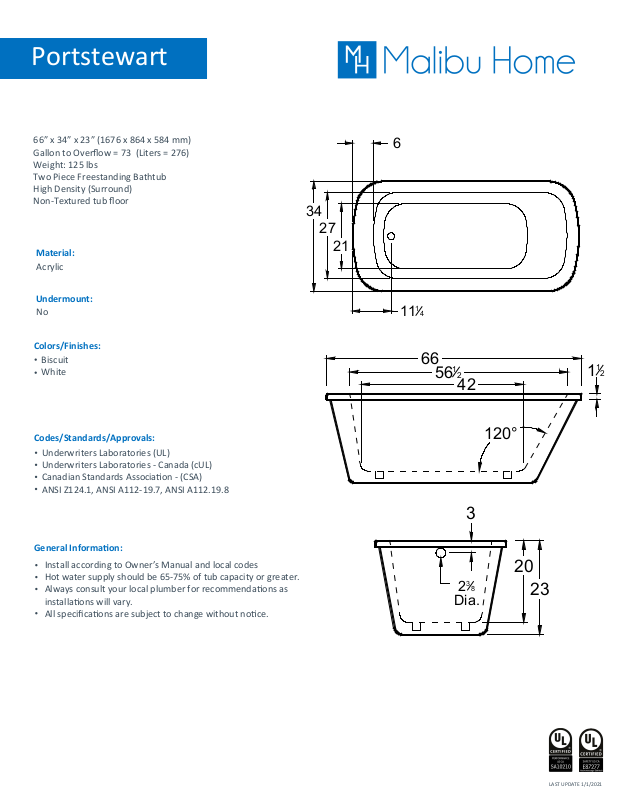

Page 1
Portstewart
66” x 34” x 23” (1676 x 864 x 584 mm)
Gallon to Overflow = 73 (Liters = 276)
Weight: 125 lbs
Two Piece Freestanding Bathtub
High Density (Surround)
Non-Textured tub floor
Material:
Acrylic
Undermount:
No
Colors/Finishes:
Biscuit
White
34
27
21
6
11
1
4
66
56
1
2
42
1
1
2
Codes/Standards/Approvals:
Underwriters Laboratories (UL)
Underwriters Laboratories - Canada (cUL)
Canadian Standards Associa�on - (CSA)
ANSI Z124.1, ANSI A112-19.7, ANSI A112.19.8
General Informa�on:
Install according to Owner’s Manual and local codes
Hot water supply should be 65-75% of tub capacity or greater.
Always consult your local plumber for recommenda�ons as
installa�ons will vary.
All specifica�ons are subject to change without no�ce.
3
3
2
8
Dia.
120°
20
23
LAST UPDATE 1/1/2021
