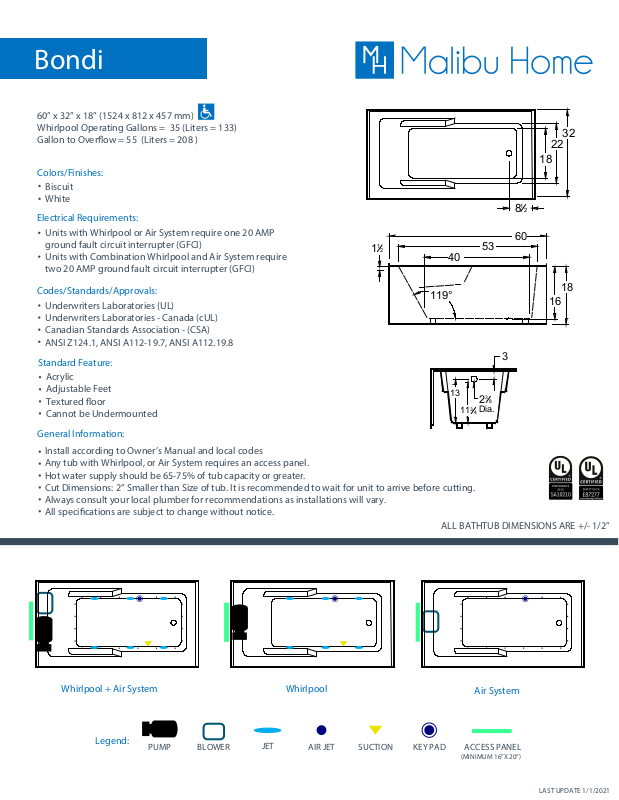

Bondi
60” x 32” x 18” (1524 x 812 x 457 mm)
Whirlpool Operating Gallons = 35 (Liters = 133)
Gallon to Overow = 55 (Liters = 208 )
Colors/Finishes:
Biscuit
White
Electrical Requirements:
Units with Whirlpool or Air System require one 20 AMP
ground fault circuit interrupter (GFCI)
Units with Combination Whirlpool and Air System require
two 20 AMP ground fault circuit interrupter (GFCI)
32
22
18
1
8
2
60
1
1
2
53
40
Codes/Standards/Approvals:
119°
Underwriters Laboratories (UL)
Underwriters Laboratories - Canada (cUL)
Canadian Standards Association - (CSA)
ANSI Z124.1, ANSI A112-19.7, ANSI A112.19.8
Standard Feature:
Acrylic
Adjustable Feet
13
Textured oor
Cannot be Undermounted
General Information:
Install according to Owner’s Manual and local codes
Any tub with Whirlpool, or Air System requires an access panel.
Hot water supply should be 65-75% of tub capacity or greater.
Cut Dimensions: 2” Smaller than Size of tub. It is recommended to wait for unit to arrive before cutting.
Always consult your local plumber for recommendations as installations will vary.
All specications are subject to change without notice.
ALL BATHTUB DIMENSIONS ARE +/- 1/2”
11
18
16
3
3
8
2
3
Dia.
4
Whirlpool + Air System Whirlpool
Legend:
PUMP
BLOWER
JET
AIR JET KEY PADSUCTION
Air System
ACCESS PANEL
MINIMUM 16”X 20”
LAST UPDATE 1/1/2021
