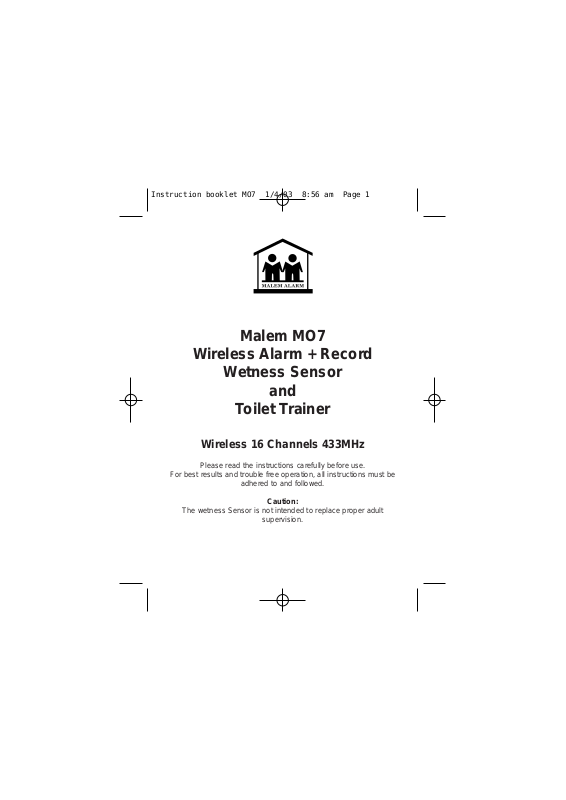

Malem MO7
Wireless Alarm + Record
Wetness Sensor
and
Toilet Trainer
Wireless 16 Channels 433MHz
Please read the instructions carefully before use.
For best results and trouble free operation, all instructions must be
adhered to and followed.
Caution:
The wetness Sensor is not intended to replace proper adult
supervision.
Operating Instructions: “Please READ”
1. Make sure the encode switch is set to the same position in
both the Transmitter (Tx), and Receiver (Rx) “Matching pair”.
Do NOT mix with others of different Code setting as the “pair”
will not communicate with each other if NOT code matching.
2. Make sure fresh Alkaline batteries are in both Tx (2 X AAA) &
Rx (4 X AA).
3. Remove isolating tags from battery compartments of both Tx
(remove first) and Rx if new from Malem Medical. Rx will beep
until signal is received from Tx. Allow up to 13 seconds.
(Battery saving feature).
4. Red LED must flash on Tx and Green LED must flash on Rx,
(once every 5 seconds). Make sure batteries are new and
making good contact inside compartment if LEDs do not
flash. Record user’s name or
personal message or music if
you wish or select type of alarm.
See diagram.
5. Plug in Easy-Clip© Sensor (make
sure leaver is lifted open),
Standard Sensor or Bed-Mat (both
optional extra) to Tx. The
Easy-Clip© Sensor can be
attached to the outside of close
fitting pants. The Standard
Sensors can be placed inside a
sanitary pad or nappy and for the
Bed-Mat, between the sheets under
the user so that the Tx is
triggered as soon as it detects
urination or wetness. (See page 4 for
Bed-Mat instructions)
2
Secure the Easy-Clip
onto the material by
pressing down the lever
Place material
into mouth of
the Easy-Clip
6. Attach Tx to pyjama or night dress
top. With Bed-Mat, place
Tx beside the bed or attach to
head board.
7. Once Tx detects wetness, it will
send a signal to the Rx.
Please allow up to 13 seconds for
the Rx to alarm. The nature of the alarm depends on your
selection. (Alarm, Music or recorded name/message). The Tx Red
LED and the Rx Green LED will flash once every second.
8. To stop the alarm sound, either remove the Tx sensor from
wetness, or press the Reset button on the Rx. If you do not
remove the Tx sensor from wetness, the Rx will alarm again
in 3 minutes.
9. Record the event time if you wish.
10. Setup the Tx sensor again as in 5 above.
11. To test the Tx/Rx, close the Easy-Clip leaver or place a moist
cloth across the Sensor or Bed-Mat tracks. The Rx should
always “Alarm” (allow up to 13 seconds for the Rx to alarm,
Battery saving feature).
12. The transmitter range is about 25 meters in open field.
13. The average battery life in the Tx is about 30 days and in the
Rx about 7 days (depending on the frequency and nature of
alarms).
14. Remove batteries if Tx/Rx not in use.
3
Malem Wireless Alarm Enuresis Alarm
Bed-Mat Sensor
Instructions:
1. Place the Bed-Mat over the mattress in the area which is normally
wetted and gently tie down.
2. Cover the bed-mat with a Clean Dry Cotton sheet and/or Bath
Towel and make the bed up as usual.
3. Attach the Bed-Mat wire to the Tx Transmitter and place the alarm
beside the bed.
4. Please tuck in the Bed-Mat wire so that it is not in the way for
getting in and out of bed.
5. The Receiver sound can be stopped ONLY when the Bed-Mat wire
is unlocked from the Tx or the Rx reset button is pressed. Rx will
alarm again in 3 minutes if Tx is detecting wettness.
6. The Bed-Mat must be wiped clean with detergent and dried then
replaced in a freshly made bed, as before, for reuse.
7. Adjust the loudness of the sound with the volume control.
Hints
The rest button will stop the Rx from sounding only for 3 minutes if the BedMat is not disconnected from the Tx.
The Bed-Mat positively locks to the Tx to prevent accidental disconnection.
However, it must be unlocked before attempting to reset the alarm on the Rx.
Please use a thicker cotton sheet or place a bath towel above the Bed-Mat if
sweating is triggering the alarm prematurely. Avoid plastic and Man-Made
fibers as they may cause static discharge and false alarm.
Treat the Bed-Mat with care. Avoid folding it or jumping over it.
Please replace the Bed-Mat with a new one if it has deteriorated and use a
new one with each child.
Please note that sleeping directly over an uncovered Bed-Mat or touching it
by hand may trigger the alarm.
4
Malem Wireless Alarm + Record
Wetness Sensor and Toilet Trainer
Wireless 16 Channels 433MHz
Please read the instructions carefully before use. For best results
and trouble free operation, all instructions must be adhered to
and followed.
Caution
The wetness Sensor is not intended to replace proper adult
supervision.
Theory
The Wetness Sensor is ideal for use in Care or Nursing Homes as well
as with children with learning difficulties. It can be used day or night in
two ways:
1: Simply to indicate urination so that the child/patient is changed.
This releases the nursing staff from regular and frequent manual
checking and can avoid the complications associated with
child/patient remaining wet until discovered.
2: To develop a toileting regime; by tabulating the child/patient
urination times, a bladder activity pattern can be observed and the
need for a bed-pan or toilet anticipated. This can result in significant
reduction in the Management and Disposable Nappy cost as well
as an improvement in child/patient morale.
If to be used as an enuresis alarm, then the Rx unit must be in the
same room as the child with Tx.
5
Description and Function
The wetness Sensor consists of a small Transmitter (Tx) and a portable Receiver
(Rx). The Tx is powered by 2 X AAAalkaline batteries. The Rx is powered either
by 4 X AAAlkaline batteries or via a 6 Volt power supply (not supplied). The Tx
can be attached to the supplied Easy-Clip Sensor or to Standard sensor or to a
Bed-Mat (optional extra). They can be placed inside a sanitary pad or nappy or
between the sheets under the user so that the Tx is triggered as soon as it
detects urination or wetness. Once triggered, a signal is sent to the Rx which will
emit a choice of alarm sounds, music or a recorded message, user’s name
(useful for identifying the wet user by name) or music of choice indicating
urination or wetness. Asilent vibrating option is available. Up to 16 Tx/Rx units
can be used in the same location and more than one Rx for each Tx.
The transmit range of the Tx to Rx is approximately 25 meters in open field and
fresh batteries.
The average battery life in the Tx is about 30 days and in the Rx about 7 days
(depending on the frequency and nature of alarms).
Transmitter (Tx)
Power
Place two AAAAlkaline batteries in the battery compartment and observe correct
polarity. Average battery life is about 30 days.
Red LED Indicator
The Red LED should start to flash once every 5 seconds when sensor is dry and
once every one second when sensor is wet. Make sure batteries are new and
making good contact within battery compartment if Red LED does NOT flash.
Encode Switch
Make sure that the encode switch setting inside the battery compartment is set in
a matching way to the Receiver (Rx) encode switch setting.
Operation
If the Tx is used with Easy-Clip Sensor, then it can be attached to the user
pyjama top or night dress using the safety pin or the clip. If the Tx is being used
with a Bed-Mat, then the Tx should be attached to the side of the bed and away
from any wetness.
Receiver (Rx)
Power
Place four (4) AAAlkaline batteries in the battery compartment and observe
correct polarity.
6
Hint: Place batteries in Tx before Rx. Average battery Life is about 7 days.
External mains adaptor 6V DC +ve centre pin (not supplied) can be used to
power the Rx.
Encode Switch
Make sure the encode switch is set to match the setting in the Tx encode switch.
Red LED Indicator
The Red LED will be ON and beep sound is activated until the Rx receives
normal signals from the Tx.
Green LED (5 mm)
This LED is at the top part of the front case. It should start to flash once every 5
seconds indicating normal operation.
Function and Operations
5 mm Green LED
Flash once every 5 seconds indicates normal operations.
Flash once every 1 second indicates Moisture is detected by the Tx.
LED OFF indicates no power (make sure batteries are fresh and making good
contact within battery compartment) or Rx is out of range from the Tx.
3 mm Red LED
This LED will be ON as soon as batteries are inserted or power connected. It will
be OFF once signal is received from the Tx (this can be up to 13 seconds long).
Flash when signal received from the Tx is getting weak. Distance between Tx &
Rx is reaching normal operating limits.
ON when Rx is outside transmitting range. Abeep…beep sound will be
activated in this situation.
3 mm Yellow LED
This LED will Flash if Tx battery is getting Low for normal operations. Replace
Tx batteries.
3 mm Green LED
This LED will be ON when Rx battery is too Low for normal operations.
Replace Rx batteries.
Switch selection & Function
Alarm type selection switches and record button are under cover next to battery
compartment.
7
Slide switch: Sound + LED + Motor or LED + Motor only (NO Sound). The Motor
indicates the ability to plug in the optional Vibrating unit for silent alarm
indication.
Slide Switch: Message or Sounds or Melody. Choice of: recorded message or
music or user’s name, inbuilt alarm sounds or inbuilt music.
Slide Switch: 8 Sounds or Single sound 1 or Single Sound 2.
Recording
If Message is selected, then a new message, music or the name of the user
must be recorded by pressing the “Record” button and speaking into the
Microphone next to the Record button. In Line recording is possible using the In
Line socket. The “Record” button must be kept pressed during recording.
Recording time is 10 seconds.
Test Button
Press and hold to confirm your selection is correct for your needs.
Volume Control
Located on side of case with minimum setting. Select desired volume level.
Reset Button
Press to stop Rx alarm output. Alarm will reactivate after 3 minutes if Tx sensor
is detecting and transmitting Wet signal.
The vibrating socket
It is always ON when there is WET signal received. When the vibrating motor
unit (optional Extra) is connected to the receiver, the motor will turn on
regardless of the position of sound/light selection switch.
Encode Switch
A choice of 16 channels to avoid interferance and allow the use of more than
one Tx/Rx unit in the same location. Please make sure that encode switch
settings are identical in both Tx & Rx units (matching pair). Make sure other
‘matching pair’ has a different code setting if to be used in the same location.
Trouble Shooting
No LED flashing when batteries are inserted: make sure batteries are new and
fresh and making good contact within the battery compartment. Rx does not
“Alarm” when Tx is wetted: make sure that the Tx and Rx batteries are not low
and the Rx is not out of range from the Tx. Rx does not respond to Tx: make
sure Code switch setting are matching in both Tx and Rx and that the Rx is not
out of range from the Tx. Rx with beep..beep sound: Low batteries or Rx is out of
range of Tx. Change batteries with new ones. Do not mix new and old batteries.
8
Optional Extra
Standard Sensor. Bed-Mat.
Other Possible Applications
To monitor the Tx carrier from getting out of range of the Rx.
Caution
The wetness Sensor is not intended to replace proper adult supervision.
Safety
Under no circumstances should the Transmitter (Tx) or Receiver (Rx) or the
power supply (if used) be wetted, washed or immersed in water. Please do NOT
dismantle either the Tx or the Rx. No operator serviceable parts inside.
The appliance should only be serviced by qualified service personnel. Always
remove the batteries and/or disconnect the power supply if the Rx is not going to
be used for long period of time.
Power Source
The Tx and Rx are both battery powered. Batteries are already fitted free of
charge. To save battery, the Rx can also be powered via a 6V DC (+ ve centre
pin) mains adaptor (not supplied). Remove isolating tags from battery
compartments if present.
Cleaning
The Rx and Tx can be cleaned by wiping with a moist cloth.
Range
The transmitter range is about 25 meters in open field. Range may be reduced
inside buildings.
Weight & Dimensions
Tx: 45 g - 5.6 X 5.1 X 1.7 cm Rx: 266 g - 15 X 8.5 X 3.6 cm
Guarantee
The Wetness Sensor is guaranteed for one year. This excludes batteries,
sensors and damage caused by accident, flood or misuse.
Transmitting Frequency
433 MHz.
Model No: MO7 CE Mark: Yes.
EMC Tested and approved: Yes.
EC- Certificate of Conformity according to the Electromagnetic Compability
Directive (89/336/EEC).
9
10
Malem Wireless Alarm + Record
Use Alkaline batteries ONLY
Slide
battery
cover
Red LED, flashes once/5 seconds (standby)
Flashes once/second (wet)
MODEL MO7 Rx & Tx
Speaker
In Line
Recording
RX battery low
TX Battery low
Weak signal - flash
out of range–ON+beep
sound
OPEN
4
3
2
1
Sensor
Socket
Use 2 x AAA Alkaline batteries
Please observe correct polarity
when replacing batteries
4
3
2
1
On
Transmitter (Tx) code
switch inside battery
compartment.
(Make sure the settings
are matching in both
Tx and Rx)
Rx
Tx
Standyby - Flash once/5 secs
Alarm - Flash once/sec
11
Volume
control
Microphone
Malem Wireless Alarm + Record
Use Alkaline batteries ONLY
OPEN
OPEN
OPEN
1
2
3
4
1
2
3
1
2
3
1
2
Test Button
Press and hold
to confirm
selection
Reset Button
Reactive after 3
min. when Tx
remains active
Receiver (Rx)
Code Switch
(Remove Cover)
settings must
match in Tx
and Rx
On
1. Sound+LED+
MOTOR
2. LED+
MOTOR (No sound)
Record Button (output must be on1-message above)
Press and hold down during recording (max 10sec)
+
-
DC 6C Power in
(Not supplied)
External
Vibrator
(optional
Extra)
Lift to remove belt clip
Rx
Output
1-Messages
2-Sounds
(inbuilt)
3-Melody
Sound
selections
1-8 Sounds
(built in)
2-Sound 1
(built in)
3-Sound 2
(built in)
LED
1
2
3
1
2
3
12
Malem Medical
10 Willow Holt, Lowdham
Nottingham NG14 7EJ, England, UK
Tel: + 44 (0)115 966 4440
Fax: + 44 (0)115 966 4672
E-mail: malem@malem.co.uk
Web: www.malem.co.uk
© Malem Medical 2003
Loading...
